HPE MSA 2042 SAN Storage: технические характеристики и документация

HPE MSA 2042 Storage

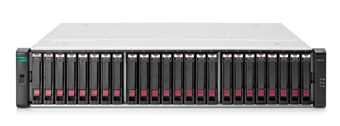

HPE MSA 2042 Storage (SFF)

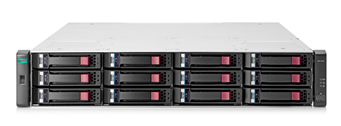

HPE MSA 2042 Storage (LFF)

The MSA 2042 further drives the MSA 2040 family into the world of flash acceleration with a new set of MSA models which includes 800GB of flash capacity in all SFF and LFF configurations.  In addition to including 2x400GB Mixed Use SSDs in the base configuration, the MSA 2042 also includes a rich set of software features as standard including 512 Snapshots, Remote Replication and Performance Tiering capabilities, all at a very attractive price compared to other hybrid configurations.  The 800GB of SSD capacity can be used as Read Cache or as a start to building a fully tiered configuration.  With the inclusion of the Advanced Data Services SW License, customers can choose how to best utilize these SSDs to provide the optimal flash acceleration for their performance hungry applications.  Both Read Cache and Performance Tiering utilize a real-time tiering algorithm which works without user intervention to place the most accessed data on the fastest medium at the right time.  The MSA 2042 will dynamically move hot pages up to SSD for flash acceleration and move cooler, more stagnant data back down to spinning media as workloads change in real time hour-to-hour, day-to-day, and week-to-week.  All done hands free and without any management overhead from the IT manager.

• Starting at $10K, accelerate applications affordably

- The industry’s leading entry array, now with 800GB of SSD capacity standard

- Built-in, tiering dynamically moves hot data to flash and cold data to lower-cost media

• Set it and forget it

- Hands-free data tiering engine eliminates performance bottlenecks with zero admin required

- All-inclusive software suite and simple management tools for IT generalists & server admins

• Reduce risk with modern disaster recovery and business continuity

- 512 snapshots out-of-the-box for instant recovery

- Remote replication included for affordable application availability

• Grow flexibly now and into the future

- Data-in-place upgrades eliminate risky data migrations and costly drive investments

- Start small and scale as needed with any combination of SSD, Enterprise or Midline SAS drives

What’s new with the MSA 2042

• Adding new higher capacity 2.4TB 12G SAS 10K SFF HDD and 12TB 12G SAS 7.2K LFF HDD
• Adding new higher capacity 900GB SAS 15K SFF HDD

1.

Power supplies

4.

Management Ethernet port

2.

Host connection ports

 FC, iSCSI,or SAS

5.

Expansion port

3.

CLI port (mini-USB)

ENERGY STAR Certification

ENERGY STAR certification for the HPE MSA 2042 Storage is pending.

Carrier-Grade Components (NEBS)

The HPE MSA 2042 Storage arrays are not NEBS compliant.  The HPE MSA 2042 does not support DC power supplies.

For customers who require NEBS compliance, or who require DC power supplies, should consider the HPE MSA 2040 Storage arrays.  Refer to the HPE MSA 2040 QuickSpecs on how to order the HPE MSA 2040 Carrier-Grade components.

Encryption

Data at Rest Encryption is not supported on the HPE MSA 2042.  If encryption is desired, refer to the HPE MSA 2040 Storage System.

All MSA 2042 models offer a common set of valuable features:

• MSA 2042 comes standard with two 400GB flash drives which allow IT managers to accelerate application performance
• The two 400GB SSDs can be optionally deployed as read cache, as an SSD virtual disk group for tiered storage, or as a Linear disk group.

- Deploy the two embedded SSDs as Read Cache to improve random read performance. A maximum of 2 SSD’s are supported per pool providing a maximum of 4TB of read cache per controller

- Deploy the two embedded SSDs as tiered storage.  The MSA 2042 can manage up to three tiers of storage: Performance tier, Standard tier and Archive tier..

- The Performance Auto Tiering License necessary to create a SSD virtual disk group for both read and write capabilities comes standard with all MSA 2042 models.  No additional software license purchase is necessary

• All MSA 2042 models come standard with the Advanced Data Services (ADS) Software Suite LTU.   Software titles included in the ADS Software Suite include:

- HPE MSA 2042 Performance Automated Tiering LTU

- HPE MSA 512-Snapshot Software LTU

- HPE MSA Remote Snap Software LTU

• MSA 2042 controller architecture which maximizes performance

- Four host ports per controller

MSA 2042 SAN controller supports 8 GB FC, 16 GB FC, 1GbE iSCSI or 10GbE iSCSI.

MSA 2042 SAS controller supports 6 GB and 12 GB SAS host connectivity.

- 6 GB transportable read/write cache per controller.

- Battery-free cache backup with super capacitors and compact flash

• MSA 2042 SAN Controller allows customers to create their own Combo Controller by mixing FC and iSCSI SFPs. Below are the valid configurations for mixing SFPs:

All MSA 2042 models offer a common set of valuable features (cont):

• Storage Management Utility V3 (SMU).  This new MSA management GUI brings a new modern look and feel to array management.
• Thin Provisioning allows storage allocation of physical storage resources only once they are consumed by an application. Thin Provisioning also allows over-provisioning of physical storage pool resources allowing ease of growth for volumes without predicting storage capacity upfront.
• All models feature a wide variety of drives: High-performance SSD drives, enterprise-class SAS, and SAS Midline drives.
• The MSA 2042 will support a maximum of 7 disk enclosures (either LFF and/or SFF). Add-on enclosures can either be D2700 SFF drive enclosures or MSA 2040 LFF disk enclosures.
• The MSA 2042 can grow incrementally to a maximum of 96 LFF or 199 SFF drives.
• Disks Groups can be spanned across multiple enclosures.
• Virtual Storage RAID levels 1, 5, 6, 10.
• Linear Storage RAID levels 0, 1, 3, 5, 6, 10, 50.
• Maximum hard drive counts vary by RAID levels: 2 drive max for RAID level 1; max of 16 drives for RAID levels 0, 3, 5, 6, and 10; max of 32 drives for RAID level 50.
• Multiple Disk Groups can be aggregated into a single Storage Pool.
• The maximum LUN size is 140TB (128TiB)
• Storage Pools allow data on a given LUN to span across all drives in a pool. When capacity is added to a system, the user is also getting a performance benefit of the additional spindles.
• Snapshot enhancements for virtual storage, including performance improvements, hierarchical snapshots, and simplified resource management. Administrators can monitor and optionally control snapshot space usage.
• Prioritize data by assigning appropriate affinity level (Performance, No Affinity or Archive)
• Large Pool Support is available with GL220 firmware or later. Customers can configure 512 TiB capacity per virtual pool by enabling large pool support.
• Non-disruptive on-line controller code upgrade.  Requires Multi-pathing software)
• Upgradable by design. Owners of an MSA P2000 G3 and an MSA 1040 array are able to do data-in-place controller upgrades to the new MSA 2042 array. This unique ability protects the earlier investments in drives, and JBODs.

- Certain limitations are applicable.  Please review  the Upgrading to the HPE MSA 1040 or HPE MSA 2040/2042 Technical Whitepaper before upgrading your P2000 G3/MSA 1040 systems

Application

Solutions

The HPE MSA 2042 Storage is the ideal solution for customers running Oracle, Microsoft, SAP environments and those customers who are deploying virtual server technologies like VMware and Hyper-V. The MSA 2042 delivers enterprise functionality that enhances virtual environments, simplifies management, and reduces costs. Easy to deploy, scale and maintain, HPE MSA 2042 Arrays ensure that crucial business data remains available.
Hewlett Packard Enterprise has developed best-in-class expertise in Oracle, Microsoft, SAP, and Virtualization Hypervisor technology through extensive testing with the HPE MSA 2042, HPE servers, and management software; high availability and disaster recovery solutions; and backup and recovery on the Oracle, Microsoft, and SAP application platforms. As a result, our customers can expect a wide range of operational and business benefits where they can:

• Deploy IT assets across multiple locations.
• Incrementally grow storage without interruption.
• Enable high availability and disaster recovery capabilities for critical applications.
• Deploy a remote disaster recovery site.

Learn more

To learn more about specific HPE Storage Solutions that are built with Oracle, Microsoft, SAP and Virtualization environments in mind, visit the solution sites supporting each of these applications.

HPE MSA Storage hyperlink to: http://www.hpe.com/storage/MSA

Product Technology

SAN controller

MSA 2042 SAN controller supports 8Gb FC, 16Gb FC, 1GbE iSCSI or 10GbE iSCSI host connectivity. .

SAS controller

MSA 2042 SAS controller supports 6Gb and 12Gb SAS host connectivity.

Modular

Chassis

2U rack height. 12 LFF or 24 SFF drive bays.  All MSA 2042 models come pre-configured with two controllers, two 400GB SSDs, and an Advanced Data Services LTU

NOTE:  The MSA 2042 does not support single controller configurations.

Drives available

The MSA 2042 controllers support both the MSA 3.5-inch LFF drives, and the MSA 2.5-inch SFF drives.

• Solid State Drives (SSDs) deliver exceptional performance for applications requiring high random read IOPs performance.
• Serial Attached SCSI (SAS) enterprise-class drives are designed for high demand, 24x7 usage.
• SAS Midline drives are usually reserved for archival of data as they are relatively inexpensive and are available in very large capacities.

Optional Disk Enclosures

Just as the user has a choice of chassis for the array enclosure (LFF or SFF drive bays), so also do they have a choice of expansion disk enclosures accommodating either drive size.  All of the SFF and LFF disk enclosures can be hot-added to an operating array. SFF and LFF array heads enclosures and Disk Enclosures can be mixed without limitations.

The MSA 2040 storage systems have supported various SFF and LFF disk enclosures over time.  The latest disk enclosures to be supported on the MSA 2040 platform are the MSA 2050 SFF Disk Enclosure and the MSA 2050 LFF Disk Enclosures.   The MSA 2050 SFF and LFF enclosures can be added to existing MSA 2040 storage systems for expansion disk capacity.  The MSA 2050 SFF and LFF disk enclosures can be intermixed with the D2700 SFF disk enclosure and/or the MSA 2040 LFF disk enclosure.

The MSA 2050 SFF and LFF disk enclosures are the recommended enclosures to be used for capacity expansion on the MSA 2040 storage system.

LFF Disk Enclosures

MSA 2040 3.5-inch Disk Enclosure. This 2U enclosure is designed to support twelve HPE Storage LFF drive bays and accepts MSA dual-ported 12Gb SSD, SAS, and SAS MDL hard drives. The pre-configured MSA 2040 LFF Drive Enclosure has two I/O modules and supports the MSA 2042 dual controller arrays.

• The MSA 2040 LFF MSA Disk Enclosure can be attached to the MSA 2042 LFF or SFF storage models.
• Each MSA2040 LFF Disk Enclosure ships standard with two .5m mini-SAS to mini-SAS cables for connection to the MSA 2042 array expansion port or existing disk enclosure cascade port.
• LFF and/or SFF Disk Enclosures can be mixed up to the maximum of 7 total Disk Enclosures

MSA 2050 LFF Disk Enclosure. This 2U enclosure is designed to support twelve HPE Storage LFF drives and accepts MSA dual-ported 12Gb SSD and SAS Midline hard drives. The pre-configured MSA 2050 LFF Disk Enclosure (Q1J06A) has two I/O modules and supports the MSA 2040 dual controller arrays.

• The MSA 2050 LFF Disk Enclosure can be attached to the MSA 2040 LFF or SFF storage models.
• Each MSA 2050 LFF Disk Enclosure ships standard with two .5m mini-SAS to mini-SAS cables for connection to the MSA 2040 array expansion port or existing disk enclosure cascade port.
• LFF and/or SFF Disk Enclosures can be mixed up to the maximum of 7 total Disk Enclosures on the MSA 2040 storage models.
• Requires GL225 array controller firmware or newer
• The MSA 2050 LFF Disk Enclosures are the recommended LFF enclosures to be used for capacity expansion on the MSA 2040 storage system

SFF Disk Enclosures

HPE D2700 Disk Enclosure This 2U enclosure is designed to support twenty five HPE Storage 2.5-inch SFF drive bays and accepts MSA dual ported 12Gb SSD, SAS, or SAS MDL hard drives.  The pre-configuared D2700Disk Enclosure has two I/O modules and supports the MSA 2042 dual controller arrays.

• The D2700 Disk Enclosure can be attached to the MSA 2042 LFF or SFF storage models
• Each D2700 Disk Enclosure ships standard with a two .5m mini-SAS to mini-SAS cables for connection to the MSA 2042 array expansion port or existing disk enclosure cascade port.
• LFF and/or SFF Disk Enclosures can be mixed up to the maximum of 7 total Disk Enclosures.

HPE MSA 2050 SFF Disk Enclosure This 2U enclosure is designed to support twenty four HPE Storage 2.5-inch SFF drive bays and accepts MSA dual ported 12Gb SSD, Enterprise SAS, or SAS Midline hard drives.  The pre-configured MSA 2050 SFF Disk Enclosure has two I/O modules and supports the MSA 2040 dual controller arrays.

• The MSA 2050 SFF Disk Enclosure can be attached to the MSA 2040 LFF or SFF storage models
• Each MSA 2050 SFF Disk Enclosure ships standard with a two .5m mini-SAS to mini-SAS cables for connection to the MSA 2040 array expansion port or existing disk enclosure cascade port.
• LFF and/or SFF Disk Enclosures can be mixed up to the maximum of 7 total Disk Enclosures.
• Requires GL225 array controller firmware or newer
• The MSA 2050 SFF Disk Enclosures are the recommended SFF enclosures to be used for capacity expansion on the MSA 2040 storage system

Scalability

The MSA 2042 array configurations are designed to allow an installation to begin with smaller capacity and be able to grow gradually as needed. The flexibility of SSD, SAS or SAS MDL drives technology, form factors, sizes, speeds, and costs per GB allows a system to easily fit in almost any budget.

• Large Form Factor configurations can scale up to 144TB SAS MDL, expandable to 1152TB SAS MDL with the addition of a maximum of seven MSA 2040 3.5-inch Disk Enclosures.
• Small Form Factor configurations can scale up to 76.8 TB SAS, expandable to 637 TB SAS. with the addition of a maximum of seven HPE D2700 2.5-inch Disk Enclosures.
• Users may configure an MSA 2042 SFF array enclosure with LFF MSA 2040 3.5-inch disk enclosures. This is an excellent option for a configuration that supports high-speed SFF SSDs or fast SFF enterprise-class SAS drives in the array enclosure, combined with economical LFF drives staged for archival purposes, all in the same array.

Disk Group

A Disk Group is a collection of disks in a given redundancy mode (RAID 1, 5, 6, 10, 50). It is equivalent to a Vdisk in Linear Storage and utilizes the same proven fault tolerant technology used by Linear Storage. Disk Group RAID level and size can be created based on performance and/or capacity requirements. With GL200 or newer firmware multiple Disk Groups can be allocated into a Storage Pool for use with the Virtual Storage features

LUNs

The MSA 2042 arrays support 512 volumes and up to 512 snapshots in a system. All of these volumes can be mapped to LUNs. Maximum LUN sizes up to 140TB (128 TiB), the LUN capacity is size are dependent on the storage architecture: Linear vs. Virtualized.  Thin Provisioning allows the user to create the LUNs independent of the physical storage

Storage Pools

Storage Pools are comprised of one or more Disk Groups. LUNs are no longer be restricted to a single Vdisk as with Linear Storage. A volume’s data on a given LUN can now span all disk drives in a pool.   When capacity is added to a system, users will benefit from the performance of all spindles in that pool.

The MSA 2042 supports large, flexible Volumes with sizes up to 128TiB and facilitates seamless capacity expansion. As volumes are expanded data automatically reflows to balance capacity utilization on all drives.

RAID 0, 1, 3, 5, 6, 10, 50

In addition to the usual RAID levels, the MSA 2042 features several important additional levels. RAID 6 offers the highest level of RAID protection. It allocates two sets of parity data across drives and allows simultaneous write operations. It can withstand two simultaneous drive failures without downtime or data loss. RAID 10 is mirroring and striping without parity and allows large Disk Groups to be created with high performance and mirroring for fault tolerance. RAID 50 combines the block striping and parity of RAID 5 with the straight block striping of RAID 0, yielding higher performance than RAID 5 through the addition of RAID 0, particularly during writes.

Performance

The performance figures provided here are for reference as many variables exist between array configurations, workloads, hard drive types, disk group setup parameters and host system setup.

Hewlett Packard Enterprise has traditionally published a set of end-to-end MSA performance specifications which feed into HPE Sizer tools which are based on conservative real-world configurations. For consistency, the MSA 2040 performance numbers have been documented in both Benchmark and End-to-End Performance tables. Configuration details are provided for both test scenarios. These numbers are preliminary and subject to change without notice.

Benchmark Performance Results using Linear Storage:

End-to-End Performance Figures using Linear Storage:
Guarantee Performance numbers are a guideline as established by tests using RAW I/O in an Operating System Agnostic test lab environment.

5) Sequential tests (MB/s) are based on 256K block sizes and random tests (IOPS) are based on 8K block sizes run against linear storage.  For sequential workloads with a queue depth greater than 1, each sequential stream is targeted to operate on a separate LBA range. Other types of sequential workloads that target specific LBA ranges may achieve higher results.   Results cannot be expected with a single host.

6) Fibre Channel results were measured using 16Gb FC Host Bus Adapters.  SAS results were measured using 6Gb SAS Host Bus Adapters.  10GbE iSCSI results were measured using 10GbE iSCSI Host Bus Adapters.  1GbE iSCSI results were measured using 1GbE network interface controllers (NICs).   Hosts were directly attached to the HPE MSA 2040 array.

7) MSA 2040 Hard Disk Drive (HDD) results:  Dual Controller configuration, 192 15k SAS HDDs, 12 drives per vdisk, 8 vdisks per controller, 1 volume per vdisk.

8) MSA 2040 Solid State Drives (SSD) results: Dual Controller configuration, 2 SSDs per vdisk in RAID 1, 3 SSDs per vdisk in RAID 5, 4 SSDs per vdisk in RAID6, 2 vdisks per controller, 1 volume per vdisk

NOTE: Number and type of applications, drive type and number of drives, operating system used, and the number of hosts will affect overall performance. This table is provided strictly as a test-lab comparison.

End-to-End Performance Figures using Virtual Storage:
Guarantee Performance numbers are a guideline as established by tests using RAW I/O in an Operating System Agnostic test lab environment.

9) Sequential tests (MB/s) are based on 256K block sizes and random tests (IOPS) are based on 8K block sizes run against virtual pool storage.  For sequential workloads with a queue depth greater than 1, each sequential stream is targeted to operate on a separate LBA range. Other types of sequential workloads that target specific LBA ranges may achieve higher results.   Results cannot be expected with a single host.

10) Fibre Channel results were measured using 16Gb FC Host Bus Adapters.  SAS results were measured using 6Gb SAS Host Bus Adapters.  10GbE iSCSI results were measured using 10GbE iSCSI Host Bus Adapters.  1GbE iSCSI results were measured using 1GbE network interface controllers (NICs).   Hosts were directly attached to the HPE MSA 2040 array.

11) MSA 2042 RAID 10 Hard Disk Drive (HDD) random results:  Dual Controller configuration, 192 15k SAS HDDs, 12 drives per disk group, 8 disk groups per pool, 8 volumes per pool.

12) MSA 2042 RAID 10 Hard Disk Drive (HDD) sequential read results:  Dual Controller configuration, 96 15k SAS HDDs, 12 drives per disk group, 4 disk groups per pool, 4 volumes per pool.

13) MSA 2042 RAID 10 Hard Disk Drive (HDD) sequential write results:  Dual Controller configuration, 48 15k SAS HDDs, 12 drives per disk group, 2 disk groups per pool, 4 volumes per pool.

14) MSA 2042 RAID 5 Hard Disk Drive (HDD) random results:  Dual Controller configuration, 180 15k SAS HDDs, 9 drives per disk group, 10 disk groups per pool, 10 volumes per pool.

15) MSA 2042 RAID 5 Hard Disk Drive (HDD) sequential results:  Dual Controller configuration, 72 15k SAS HDDs, 9 drives per disk group, 4 disk groups per pool, 4 volumes per pool.

16) MSA 2042 RAID 6 Hard Disk Drive (HDD) random results:  Dual Controller configuration, 180 15k SAS HDDs, 10 drives per disk group, 9 disk groups per pool, 9 volumes per pool.

17) MSA 2042 RAID 6 Hard Disk Drive (HDD) sequential results:  Dual Controller configuration, 80 15k SAS HDDs, 10 drives per disk group, 4 disk groups per pool, 4 volumes per pool.

18) MSA 2042 Solid State Drives (SSD) results: Dual Controller configuration, 2 SSDs per disk group in RAID 1, 3 SSDs per disk group in RAID 5, 4 SSDs per disk group in RAID6, 1 disk group per pool, 1 volume per pool.

NOTE: Number and type of applications, drive type and number of drives, operating system used, and the number of hosts will affect overall performance. This table is provided strictly as a test-lab comparison.

Configuration and Management Tools

HPE Storage Management Utility (SMU). Management access, out-of-band: WEB GUI, CLI. Interface Types: USB 100/1000 Ethernet. Protocols Supported SNMP, SMI-S, SSL, SSH, SMTP, FTP, HTTP, Telnet

Software and Documents
Support CD

• All product documentation (CD can be used on ALL supported server Operating Systems.)
• Host Software Bundles (Win and Linux for both ProLiant x86, ProLiant x64 and Integrity IA64servers.)
• CD updated quarterly on HPE.com with sustaining firmware updates

Hot Plug Expansion and Replacement Support

All MSA 2042 models support hot plug expansion and replacement of redundant controllers, enclosures, fans, power supplies, and I/O modules for simple, fast installation and maintenance. Hot add expansion of disk enclosures is also supported.

See  https://www.hpe.com/h20195/V2/getpdf.aspx/4AA5-5032ENW.pdf?ver=1.0

Snapshot and Clone

All MSA 2042 arrays come standard with 512 snaps. This controller based functionality offers higher levels of data protection, enables an almost instant recovery from data failure or corruption and offers alternative development testing of 'offline' production data and the ability to backup snapped/cloned data.

HPE Server Compatibility
NOTE: depends on protocol

The MSA 2042 supports most HPE ProLiant, BladeSystems and Integrity servers including

• HPE ProLiant DL, ML
• HPE c-Class Blade Servers
• Integrity servers, IA64
• Compatibility must be confirmed at: http://www.hpe.com/storage/spock

3^rd Party  server

support

• Supports most multi-vendor industry standard 32-bit and 64 bit Intel and AMD based (x86) servers. Hewlett Packard Enterprise requires the Third-Party Server to be logged and listed on the Microsoft Windows Server Catalog.
• Hewlett Packard Enterprise recommends that the Third-Party Server Vendor is an active member of TSANet. Refer to the TSANet website for details: http://www.tsanet.com
• Non-HPE servers will generally be supported if the HPE storage stack is used. This includes supported HPE branded HBAs and drivers, and supported FC switches.

OS Support
NOTE: depends on protocol

Refer to the Hewlett Packard Enterprise support statements for complete current OS version support: http://www.hpe.com/storage/spock

• Microsoft Windows Server 2016
• Microsoft Windows Server 2012
• Microsoft Windows Server 2008 R2
• VMware
• HP-UX
• Red Hat Linux
• SuSE SLES Linux
• Solaris
• OpenVMS
• MAC OS

Web Browser support

• The MSA 2042 arrays come integrated with web browser and CLI based software for storage and RAID management, setup, configuration, and troubleshooting. This reduces the cost of ownership by reducing the training and technical expertise necessary to install and maintain your HPE storage solution.
• The MSA 2042 supports target based management, and include a Web interface and a telnet interface for management
• MSA 2042 customers have the option to use SMU v2(Linear Only) or SMU v3.
• Users taking advantage of virtualization features will be required to use SMU V3.
• The MSA 2042 management supports Microsoft Internet Explorer, Mozilla Firefox, and Google Chrome.

Warranty

Three-year limited warranty, parts exchange Next Business day delivery

Enclosures, Hard drives, and Options for the MSA 2042 carry their own warranty. Refer to Hewlett Packard Enterprise Limited Warranty Statement for more information.

The MSA 2042 has been designed with customer self-repairable parts to minimize repair time and provide greater flexibility in performing defective parts replacement. Please refer to Hewlett Packard Enterprise limited warranty Statement and parts replacement instructions for further details.

http://h20565.www2.hpe.com/hpsc/doc/public/display?sp4ts.oid=5211884&docId=emr_na-c04770336&docLocale=en_US

Products included in various kits carry their own individual warranties.

NOTE: The warranty of the hard drive options purchased with the MSA 2042 models is different for SAS hard drives versus SAS MDL. SAS hard drive options have a three year warranty and SAS MDL have a one year warranty.

NOTE: Firmware updates beyond the 3 year warranty period requires a support contract.

Solid State Drives (SSD)
Warranty

3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage and or maximum supported lifetime limitations, whichever occurs first. Maximum Supported Lifetime is the period in years set to equal the warranty for the device. Maximum usage limit is the maximum amount of data that can be written to the device before reaching the device's write endurance limit

NOTE: SSDs used for replacement will be of equal or greater capacity and are designed to meet or exceed the original SSD warranty. Replacement drive/s could be of the same model drive or of a different model qualified to operate interchangeably inside the MSA array.  Warranties of these components are unaffected by any substitution.

Service and Support

Protect your business beyond warranty with HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Our integrated portfolio of Services for storage help customers reduce costs, optimize data, streamline storage management, and improve backup and recovery. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new storage solution, giving you full entitlement for the support for need for your IT and business.

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to HP Enterprise.  Achieve up to 77%¹ reduction in down time, near 100%² diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

¹  IDC whitepaper - The Business Value of Connected Support from HP, March 2015

² HP CSC reports 2014 - 2015

Optimized Care

HPE Proactive Care with 6 hour call-to-repair commitment, three year Support Service

HPE Proactive Care gives customers an enhanced call experience plus helps preventing problems and maintains IT stability by utilizing tailored, proactive reports with recommendations and advice when your products are connected to HPE.  This Service combines three years’ proactive reporting and advice with our highest level of hardware support - HPE’s 24x7, six hour hardware call-to-repair.  HPE is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable storage systems.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Standard Care

HPE Proactive Care with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience plus helps preventing problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice when your products are connected to HPE.  This Service combines three years’ proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Basic Care

HPE Foundation Care 24x7, three-year Support Service

HPE Foundation Care 24x7 gives you access to HPE 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. Simplify your support experience and make HPE your first call to help resolve hardware or software problems.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Related Services

Choose from a rich portfolio of services to make the most of MSA 2042 SAN Storage so you can efficiently and affordably consolidate, manage, and extract value from unstructured data.

HPE Services can help you discover needs and create a plan for simplifying the environment, reducing risk, and maximizing your storage investments

HPE MSA Family Disk Array Installation and Startup Service - Implement right from the start, as Hewlett Packard Enterprise experts install, test, and configure your hardware and software onsite. We deliver a tailored storage deployment properly integrated into your environment. http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA0-3048ENW.pdf

HPE Storage Data Migration Services - End-to-end data migration service providing seamless discovery, assessment, planning, and design, completely customizable to your organization's storage area network or network attached storage environment and using innovative software to help you migrate to HPE storage quickly and efficiently.
http://h20195.www2.hpe.com/V2/GetPDF.aspx/5982-4107en.pdf

HPE Storage Efficiency Analysis - The HPE Storage Efficiency Analysis provides customers with a view of their storage infrastructure and operating environment; highlighting recommendations for improvements. The report provides extensive insight about the existing storage environment, opportunities for efficiency gains, asset aging and replacement through interaction with key decision makers
http://h20195.www2.hpe.com/V2/GetPDF.aspx/4aa3-9475enw.pdf

Configuration Information

MSA 2042

POWER REQUIREMENTS

Input Power Requirements
(typical-running I/O)
SFF/LFF arrays

• 110VAC 3.32A, 344-390 W; 220VAC 1.61A,374-432W

Max Input Power

100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A

Heat Dissipation

1622 BTU/hr

TEMPERATURE AND HUMIDITY RANGES

Operating Temperature

41°F to 104°F (5°C to 40°C)

Shipping Temperature

-40°F to 158°F (-40°C to 70°C)

Operating Humidity

10% to 90% RH @ 104°F (40°C) non-condensing

Non-Operating Humidity

Up to 93% RH @ 104°F (40°C)

DECLARED ACOUSTIC NOISE LEVELS

Sound Power

A weighted sound power LWAd=6,75 B

Sound Pressure

A weighted sound pressure LpAm - 55dB

SHOCK AND VIBRATION

Shock, Operational

3G's for 11 milliseconds

Shock, Non-Operational

15G 11ms half sine

Vibration, Operational

5-500Hz, 0.14 Grms shaped

Vibration, Non-Operational

3-365-3Hz, 1.22 Grms,z-axis,0.85 Grms, X&Y axis shaped spectrum

PHYSICAL

Height

3.5 in/ 8.9 cm

Depth (excluding cables) (back of ear to back of controller handle)

SFF 24-bay array: 19.5 in / 49.5 cm
LFF 12-bay array: 22.5in. / 57.2 cm

Width (body only)

17.6 in / 44.7 cm (w/ ears 19 in / 48.26 cm)

Weight
(Includes chassis and 2 controllers.  No drives)

LFF chassis: 40.6 lbs.
SFF chassis: 38.7 lbs

MSA 2042
Regulatory Info

Safety

UL 60950-1 (USA)

CAN/CSA-C22.2 No.60950-1-03 (Canada)

EN 60950-1 (European Union)

GS mark (Germany)

IEC 60950-1 (International)

CCC Mark (power supply only, China PRC)

Electromagnetic Compatibility

VCCI:2008-04 Class A (Japan)

FCC 15:109(g) Class A (USA)

ICES-003:2004 Class A (Canada)

EN55022 : (European Union Class A); CISPR 22 (International Class A)

EN61000-3-2 : (Harmonics) (European Union)

EN61000-3-3 : (Flicker) (European Union)

EN 55024 (European Union, Immunity, Class A);CISPR 24 (International Immunity, Class A)

AS/NZS CISPR 22, Class A (Australia, New Zealand)

CNS 13438 Taiwan, Class A (Taiwan)

KN22 Class A (Emissions Class A); KN24 (Immunity) (S Korea)

RoHS and WEEE

RoHS-6/6 Compliance, China RoHS, WEEE

Country Approvals

United States ,Australia/New Zealand, Canada, China (PRC), European Union, Germany (GS Mark), Japan, South Korea, Taiwan

Date

Version History

Action

Description of Change

05-Mar-2018

From Version 7 to 8

Added

Added MSA 2050 SFF and LFF Disk Enclosures as supported options on the MSA 2042 storage systems.

05-Feb-2018

From Version 6 to 7

Changed

Standard Features and Configuration Information were revised.

06-Nov-2017

From Version 5 to 6

Changed

Changes made to the entire document.

02-Oct-2017

From Version 4 to 5

Changed

Changes made to the Standard Features Section

27-Mar-2017

From Version 3 to 4

Changed

Changes made to the entire document

13-Feb-2017

From Version 2 to 3

Changed

Changes made to the entire document

26-Sept-2016

From Version 1 to 2

Changed

Changes made to the entire document.

15-Aug-2016

Version 1

Created

Document Created
