HPE Compute Scale-up Server 3250 QuickSpecs The ultimate x86-based mission-critical platform. The HPE Compute Scale-up Server 3250 is a highly reliable server that scales from four to sixteen powerful 6th Generation Intel® Xeon® Scalable Processors in 4 socket increments. It provides higher bandwidth and faster data rates than prior generations. Designed to support 2 TB-64 TB of shared memory, in terms of security, scalability, reliability, performance and energy efficiency, it is an ideal choice for in-memory and traditional databases. |
|
|
HPE Compute Scale-up Server 3250 |
| ||||
|
The HPE Compute Scale-up Server 3250 is a highly flexible and scalable server that starts at 4 and scales up to 16 powerful 6th Generation Intel® Xeon® Scalable Processors in 4 socket increments. Its modular architecture scales cost-efficiently to meet your data growth needs. With 4 UPI links per platinum processor, it provides higher bandwidth and faster data rates than prior generations. Designed to support 2 TB-64 TB of shared memory, it is an ideal choice for in-memory and traditional databases. Extreme RAS capabilities including "firmware first," analysis engine, and auto self-healing enables high reliability for mission critical apps. Superior security, including HPE iLO ASIC Silicon Root of Trust, protects your workloads and data against firmware attacks and malware. Optional deployment with GreenLake provides flexible as-a-service consumption while maintaining on-premises control. |
| ||||
|
| |||||
|
|
| ||||
|
HPE Compute Scale-up Server 3250 |
| ||||
|
| |||||

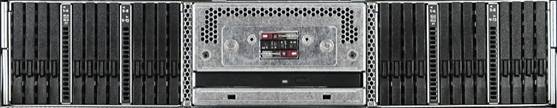

Storage Backplane 24 x EDSFF (E3.S 1T) Drive bays, Optional NVMe Hot Plug Boot Device, and Optional DVD
| |||||
|
Base chassis front view | |||||
|
8 x Cooling Fans with handles | |||||
|
16 x NUMAlink connectors Front Panel Management | |||||
|
At a Glance Features HPE Compute Scale-up Server 3250 is designed to power mission critical applications and databases, and specialized HPC and AI workloads. It offers: - Support for 4 to 16 sockets of Intel® Xeon® Scalable processors in a single system with up to 86-cores per socket for a maximum of 1,376 cores - Up to 4 UPI links per socket providing unparalleled bandwidth and performance - 64 DIMM slots of DDR5 memory per chassis - 64 GB, 96 GB, 128 GB, or 256 GB DDR5 DIMMS with up to 64 TB of shared memory - 16 half-height I/O slots OR 8 full-height + 4 half-height I/O slots, OR 4 full-height + 2 half-height I/O slots per four-socket chassis - Base I/O includes support for one (1) PCIe 5.0 x16 OCP slot, one (1) Intel I210 Gigabit network port on Base I/O, two (2) system USB 3.0 ports on the back, one (1) system USB and one (1) RMC USB port on the front panel. The RMC USB can be connected to USB ethernet adapter as a temporary management LAN connection. The RMC USB port can also be connected to a USB thumb drive which enables firmware update when the firmware bundle is not accessible over the network. - Internal storage up to 24 EDSFF E3.S or 24 SFF drive bays and optional DVD, varies based on I/O support selected - HPE Compute Scale-up Server 3250 Error Analysis Engine for better diagnostics, self-healing, and mission-critical reliability. - Optional support for NVMe HotPlug Boot Device | |
|
| |
| |
|
|
80PLUS Titanium Power Supply | ||
|
Loading |
100% maximum |
50% of maximum |
|
Minimum Efficiency @ 230 VAC |
91% |
96% |
|
Rated Specifications |
Value |
Units |
|
Input Voltage |
200-240 |
Volts |
|
Input Current (max) |
13.3 |
Amps |
|
Input Frequency (typ) |
50/60 |
Hz |
|
Rated Output Power |
2400 |
Watts |
|
Notes: - Each SKU contains 2 power supplies, 2 kits are required per chassis
|
|
System The system can support up to four (4) chassis. Notes: Ordering rules can be found in the HPE Compute Scale-up Server 3250 menu and in the ordering and configuration tools. Chassis Each chassis has the following specifications: - Support for four (4) Intel® Xeon® Scalable processors - Supports up to 64 DDR5 DIMM slots (16 DIMMs per processor) - Supports up to sixteen (16) PCIe 5.0 slots
Base and Expansion Chassis - Every HPE Compute Scale-up Server 3250 system starts with one 4-socket capable Base Chassis (with boot support). Up to three (3) Expansion Chassis can be added to expand the system from 4-sockets to 8, 12, or 16 sockets. |
|
|
|
Processors Each server chassis supports four (4) Intel® Xeon® Scalable processors: - Intel® Xeon®-Platinum 6788P, 2.0 GHz 86-core 350 W Processor for HPE Compute Scale-up Server 3250 - Intel® Xeon®-Platinum 6768P, 2.4 GHz 64-core 330 W Processor for HPE Compute Scale-up Server 3250 - Intel® Xeon®-Platinum 6728P, 2.7 GHz 24-core 210 W Processor for HPE Compute Scale-up Server 3250 - Intel® Xeon®-Platinum 6724P, 3.6 GHz 16-core 210 W Processor for HPE Compute Scale-up Server 3250 - Intel® Xeon®-Platinum 6714P, 4.0 GHz 8-core 165 W Processor for HPE Compute Scale-up Server 3250 Notes: - All processors within a chassis, partition, and system must be identical - 6714P 8-core and 6724P 16-core processor support limited to 4 socket configuration |
|
|
|
Memory type Registered - HPE Compute Scale-up Server 3250 64 GB (1x64GB) Dual Rank x4 DDR5-6400 Registered Standard Memory Kit - HPE Compute Scale-up Server 3250 96 GB (1x96GB) Dual Rank x4 DDR5-6400 Registered Standard Memory Kit - HPE Compute Scale-up Server 3250 128 GB (1x128GB) Dual Rank x4 DDR5-6400 Registered Standard Memory Kit - HPE Compute Scale-up Server 3250 256 GB (1x256GB) Quad Rank x4 DDR5-6400 Registered 3DS Memory Kit |
|
|
|
Memory protection - DDR5 Error Check and Scrub (ECS) for reduced error counts. - DDR5 Post-Package Repair (PPR) for self-healing, including boot time (hPPR) and runtime (sPPR). - Advanced ECC and multi-region ADDDC for resiliency. |
|
|
|
Operating System - Red Hat Enterprise Linux (RHEL) - SUSE Linux Enterprise Server (SLES) - Oracle Linux - Microsoft Windows Server 2025 Standard and Datacenter Notes: - HPE Foundation Software is required for all Linux OS environments - SLES, RHEL and Oracle Linux certifications include KVM certification - Minimum OS versions may be required for certain features and hardware options |
|
|
|
Product SKU |
Description |
RHEL 9 and 10 |
SLES 15 and 16 |
|
P51178-B21 |
Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T Adapter for HPE |
X |
X |
|
P42044-B21 |
Mellanox MCX631102AS-ADAT Ethernet 10/25 GB 2-port SFP28 Adapter for HPE |
X |
X |
|
P51181-B21 |
Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE |
X |
X |
|
P26269-B21 |
Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 OCP3 Adapter for HPE |
X |
X |
|
P26264-B21 |
Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE |
X |
X |
|
R7N87A |
HPE SN1700Q 64 GB 2-port Fibre Channel Host Bus Adapter |
X |
X |
|
P25960-B21 |
Mellanox MCX623106AS-CDAT Ethernet 100 GB 2-port QSFP56 Adapter for HPE |
X |
X |
|
S4T09A |
HPE SN1720E 64 GB 2p FC Secure HBA |
X |
X |
|
R9N97A |
HPE MR9670-24i 24-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller |
X |
X |
|
R9N96A |
HPE MR9660-16i Tri-Mode PCIe4 Controller |
X |
X |
|
S4S79A |
HPE Compute Scale-up Server 3250 2U NVMe Hot Plug Boot Optimized Storage Device |
X |
X |
|
S6J33A |
HPE Compute Scale-up Server 3250 1U NVMe Hot Plug Boot Optimized Storage Device |
X |
X |
|

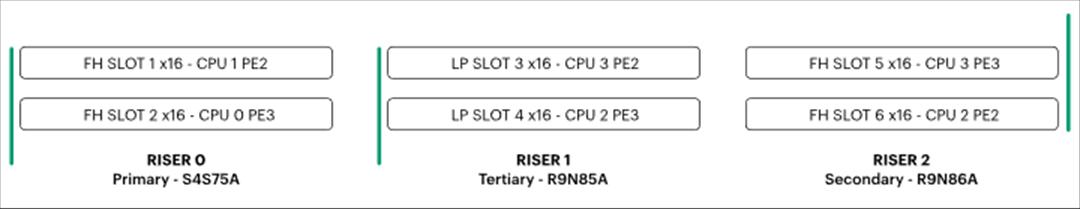

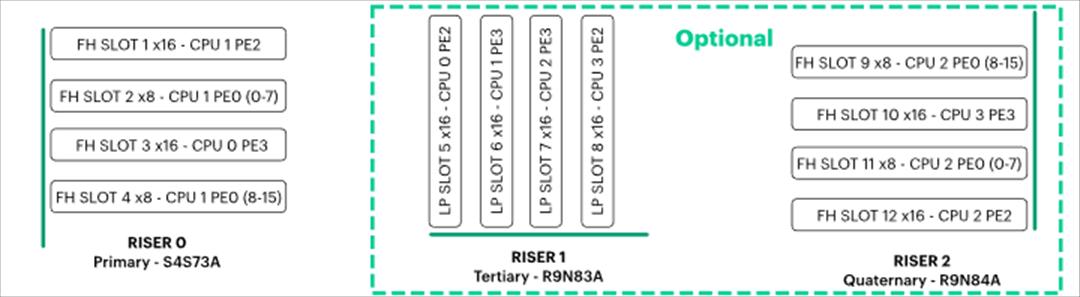

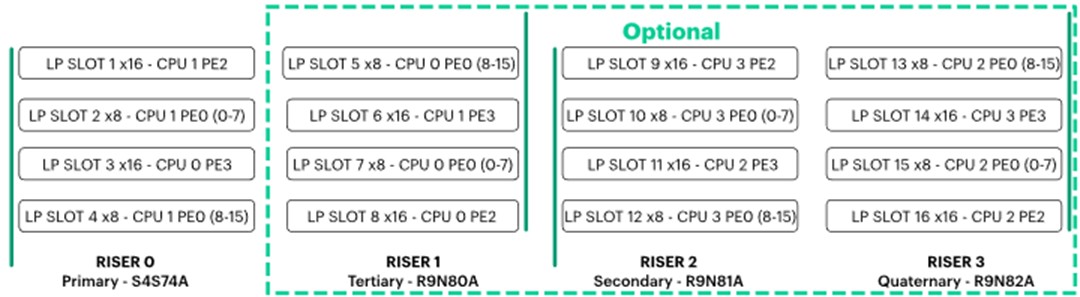

I/O Slots Chassis support either 16 half-height PCIe slots (8 x16 slots and 8 x8 slots); 12 slots with eight-full height slots (4 x16 slots and 4 x8 slots) + 4 half-height slots (4 x16 slots); 6 slots with four full-height (4 x16) + two half-height (2 x16) or a compute-only configuration (no PCIe slots). The compute-only configuration is only supported with the Expansion Chassis.
|
|
|
|
Max Storage |
|
|
|
|
|
Base Chassis Base I/O - One OCP Card Access - One Reset switch - One RMC console (mini USB-B) - One 1 GbE LAN on motherboard (LOM) RJ45 network port - Two external USB 3.0 ports - One DisplayPortTM - One serial port (9-pin Dsub) - Set of System Indicator LEDs - Two iX Industrial® ports for inter-chassis management connection - One RJ45 RMC Auxiliary port - One RJ45 RMC Management port
|
|
Form Factor 5U Base Chassis or Expansion Chassis |
|
|
|
High availability-standard server features - 2N (N+N) redundant (2400 W) power supplies - N+1 fans (or greater depending on the load) - Hot-swappable and redundant fans, power supplies - HPE Analysis Engine Logging and Reporting - Full Support for Fault Resilient boot with indications and deconfiguration capability - Enhanced MCA Gen2 recovery - Post Package Repair (PPR) with ADDDC memory options - ECC, re-tries, and Link Width Reduction on data paths - Automatic de-configuration of DIMMs. Processor de-configuration - I/O Advanced Error Recovery - Enhanced Downstream Port Containment - PCIe error Isolation - Redundancy and Failover in Fabric Lanes; Automatic rerouting; Error correction - Redundant Internal Management LAN - Front Panel Management device |
|
|
|
Standard Warranty Three-year parts, 3-year Labor and 3-year on-site limited global warranty. Protected by HPE Services operational services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners.
Hewlett Packard Enterprise branded hardware and options qualified for the HPE Compute Scale-up Server 3250 are covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners. The HPE branded hardware and options diagnostic support and repair is available for three years from date of purchase, or the warranty length of the server they are attached to, whichever is greater. Additional support may be covered under the warranty or available through additional support packages. Enhancements to warranty services are available through HPE Services operational services or customized service agreements.
Additional information regarding worldwide limited warranty and technical support is available at: https://support.HPE.com/hpsc/doc/public/display?docId=c01865770 |
|
|
|
Physical and Environmental Information Systems are comprised of the following components: Base chassis plus Expansion chassis. Enclosure The system can be field racked. However, it is strongly recommended that customers order the systems racked from the factory. This provides the customer the benefit of extensive system testing and avoids possible premium service charges for field racking service. Field racking requires the use of an appropriate material lift capable of lifting 125+ lbs.
Other products may be placed in the same rack as the system. Placement of these other products must not result in moving the server chassis. All racks in the same order must be the same height and width. |
|
Hardware Configuration | |
|
Number of chassis per compute system |
1/2/3/4 |
|
Number of processor modules per compute system (min/max) |
4/8/12/16 |
|
Number of DIMMs (min/max) |
8 or 16 per socket |
|
Number of I/O slots |
16 low-profile per chassis Or 8 Full Height and 4 low-profile per chassis Or 4 Full Height and 2 low-profile per chassis Or Compute only 0-slot (Expansion Chassis only) |
|
Number of RMCs |
1 per chassis. Base chassis is primary controller |
|
Number of Base I/O |
1 per chassis. |
|
NVMe drives per Chassis |
Up to 24 EDSFF E3.S or SFF drive bays, depending on number of I/O slots selected |
|
DVD module per Base I/O |
0-1 |
|
Fans |
8 per chassis front, 2 in rear |
|
Power Supplies (2400 W) |
2N or N+1 (configuration dependent): 4 per chassis |
|
The system is supported in the HPE 600 mm and 800 mm series racks and the HPE D-rack with a standard rack door. |
|
|
|
Configuration Rules The chassis is the basic building block. - A single system can be supported in 1-Chassis to 4-Chassis configurations. An embedded Rack Management Controller is included with Base chassis. - Each system starts with one (1) Base Chassis. Up to three (3) Expansion Chassis can be added to scale the system. - There are single phase and three phase power distribution options. - All processors within a chassis, partition or system must be of the same processor type - Default boot slots dependent on what I/O selection is made and slot is populated with a bootable PCIe card
- One (1) Additional/Customizable boot slot available for a total of four (4) boot slots |
||||||||||||
|
| ||||||||||||
|
Racking Choices HPE Compute Scale-up Server 3250 can be racked in many of the HPE G2 Enterprise Series and Advanced Series racks, and the HPE D-Rack. Complete ordering rules can be found in the HPE Compute Scale-up Server 3250 menu and in the ordering and configuration tools. The HPE Compute Scale-up Server 3250 can also be rack mounted in 3rd party rack. Specific rules and guidelines for this are available here: HPE Compute Scale-up Server 3250 Rack Planning Checklist HPE Compute Scale-up Server 3250 Rackmounting Guide
The following racks are supported with HPE Compute Scale-up Server 3250-refer to the server menu for ordering and configuration rules: - HPE 22U 600x1075mm Adv G2 Shock Rack - HPE 36U 600x1075mm Adv G2 Kit Shock Rack - HPE 42U 600x1200mm Adv G2 Kit Shock Rack - HPE 42U 600x1075mm Adv G2 Kit Shock Rack - HPE 42U 600x1075 Ent G2 Shock Rack - HPE 42U 600x1200 Ent G2 Shock Rack - HPE 42U 800x1075 Ent G2 Shock Rack - HPE 42U 800x1200 Ent G2 Shock Rack - HPE 48U 600x1075 Ent G2 Shock Rack - HPE 48U 600x1200 Ent G2 Shock Rack - HPE 48U 800x1200 Ent G2 Shock Rack - HPE 42U 610 mm x 1156 mm D-Rack - HPE D-Rack 42U 610 mm x 1156 mm Extended
| ||||||||||||
|
The default assumption is that chassis are loaded in the rack at the bottom. It is recommended that 1U is left below the bottom of the compute enclosure in the 42U rack to provide PDU and cabling exit space. Supported configurations have the system located at the bottom of the rack with peripherals located above all chassis. HPE G2 Enterprise Series Racks QuickSpecs: https://www.HPE.com/h20195/v2/GetDocument.aspx?docname=a00002907enw HPE G2 Advanced Series Racks QuickSpecs: | ||||||||||||
|
Enlogic by nVent G3 Enterprise Power Distribution Units for HPE QuickSpecs: https://h20195.www2.HPE.com/v2/GetDocument.aspx?docname=c05324691
HPE G2 Metered Power Distribution Units QuickSpecs: https://www.HPE.com/psnow/doc/a00002908enw.pdf?jumpid=in_pdp-psnow-qs | ||||||||||||
|
| ||||||||||||
|
G2 and G3 PDUs supported on HPE Compute Scale-up Server 3250 | ||||||||||||
|
P9R80A |
HPE G2 Metered Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208 V Outlets (6) C19/1U Horizontal NA/JP PDU | |||||||||||
|
P9R81A |
HPE G2 Metered Modular 3Ph 22kVA/60309 5-wire 32A/230 V Outlets (6) C19/1U Horizontal INTL PDU | |||||||||||
|
P59420-B21 |
Enlogic by nVent G3 Basic 1-phase 4.9kVA/24A/200-240 V Outlets (4) C13 (8) Combo C13/C19 PDU for HPE | |||||||||||
|
P59421-B21 |
Enlogic by nVent G3 Basic 1-phase 7.3kVA/32A/200-240 V Outlets (4) C13 (8) Combo C13/C19 PDU for HPE | |||||||||||
|
|
| |||||||||||
|
|
PDU Model |
Region |
Power Phase |
Input Voltage Range |
Input Current |
Circuit Breakers |
Input Plug Type |
Input Cord Length |
Outlet |
Dimensions |
| |
|
|
S0P01A |
NA/JP |
Three |
200 - 240 V |
48A derated |
6 x 20A |
IEC 60309/ 460P9W |
12' |
6 x IEC320 C19 |
22.5"H x 2.0"W x 6.5"D |
| |
|
|
S0P02A |
INTL |
Three |
380 - 415 V |
32A |
6 x 16A |
IEC 60309/ 532C6W |
12' |
6 x IEC320 C19 |
22.5"H x 2.0"W x 6.5"D |
| |
|
|
S0P03A |
NA/JP |
Single |
200 - 240 V |
24A derated |
2 x 20A |
NEMA L6-30 |
12' |
2 x IEC320 C19 |
11.6"H x 1.8"W x 3.9"D |
| |
|
|
S0P04A |
INTL |
Single |
200 - 240 V |
32A |
2 x 20A |
IEC 60309/ 332C6W |
12' |
2 x IEC320 C19 |
11.6"H x 1.8"W x 3.9"D |
| |
|
|
|
HPE Destination Rack (D-Rack) The HPE D-Rack is available for HPE Compute Scale-up Server 3250 in two models: - HPE 42U 610 mm x 1156 mm D-Rack (H7C27A) - HPE D-Rack 42U 610 mm x 1156 mm Extended (Q2T97A) The extended rack includes a 2U extension for a total of 44 rack units (44U). |
|
HPE Destination Rack (D-Rack) | |
|
Dimensions for a single 24-inch wide 42U rack |
Height: 78.75 in. (200 cm) |
|
Width: 24.0 in. (60.9 cm) | |
|
Depth: 46.0 in. (116.8 cm) | |
|
Shipping dimensions (single rack) |
Height: 88.88 in. (225.8 cm) |
|
Width: 44.0 in. (111.8 cm) | |
|
Depth: 62.75 in. (159.4 cm) | |
|
Weight (single rack) |
386 lb. (175.1 kg) |
|
Shipping weight (single rack) |
856 lb. (388.3 kg) |
|
Static load (max) |
2400 lb. (1088.6 kg) |
|
Dynamic load (max rolling) |
2500 lb. (1134 kg) |
|
42U rack access requirements |
Front: 48 in. (121.9 cm) |
|
Rear: 48 in. (121.9 cm) | |
|
Top: 18 in. (45.7 cm) | |
|
|
|
HPE Power Advisor The HPE Power Advisor is a tool provided by Hewlett-Packard to assist in the estimation of power consumption at a system, rack, and multi-rack level. Available at: https://poweradvisorext.it.HPE.com/?Page=Index |
|
|
|
Processor Support HPE Compute Scale-up Server 3250 systems support Intel® Xeon® 6th Generation specified in the following table. Notes: - Maximum memory per socket includes DDR5 memory within the system - Maximum memory is 4 TB per socket - Minimum OS levels are required for support of some processors and options |
|
Supported Processor Matrix | ||||
|
Intel® Xeon® Scalable Processor Family 6th Generation | ||||
|
Processor |
# of cores per processor |
Frequency |
Cache |
Power |
|
Intel® Xeon® Platinum 6788P Processor |
86c |
2.0 GHz |
336 MB |
350 W |
|
Intel® Xeon® Platinum 6768P Processor |
64c |
2.4 GHz |
336 MB |
330 W |
|
Intel® Xeon® Platinum 6728P Processor |
24c |
2.7 GHz |
144 MB |
210 W |
|
Intel® Xeon® Platinum 6724P Processor |
16c |
3.6 GHz |
72 MB |
210 W |
|
Intel® Xeon® Platinum 6714P Processor |
8c |
4.0 GHz |
48 MB |
165 W |
|
|
|
Processor Mixing Support Governing rules for mixing processors are as follows: - No mixing of processor types within the same system |
|
|
|
DDR5 Memory Support Systems will use DDR5 DIMM technology. The following DIMMs are supported in the chassis: - 64 GB 2Rx4 DDR5-6400R Registered DIMM - 96 GB 2Rx4 DDR5-6400R Registered DIMM - 128 GB 2Rx4 DDR5-6400R Registered DIMM - 256 GB 4Rx4 DDR5-6400R Registered DIMM Notes: - Only DIMMs that Hewlett Packard Enterprise has qualified are supported. - Each chassis supports up to 64 DIMMs. This breaks down to sixteen DIMMs per socket, 8 memory channels.General memory configuration rules:
|
|
|
|
Memory Slot Configuration |
DIMMS per Socket |
Data Rate |
Capacity per Socket |
Total System Memory Capacity (TB) | |||
|
4S |
8S |
12S |
16S | ||||
|
64 GB RDIMM |
8 |
6400 MT/s |
512 GB |
2 TB |
4 TB |
6 TB |
8 TB |
|
16 |
5200 MT/s |
1 TB |
4 TB |
8 TB |
12 TB |
16 TB | |
|
96 GB RDIMM |
8 |
6400 MT/s |
768 GB |
3 TB |
6 TB |
9 TB |
12 TB |
|
16 |
5200 MT/s |
1.5 TB |
6 TB |
12 TB |
18 TB |
24 TB | |
|
128 GB RDIMM |
8 |
6400 MT/s |
1 TB |
4 TB |
8 TB |
12 TB |
16 TB |
|
16 |
5200 MT/s |
2 TB |
8 TB |
16 TB |
24 TB |
32 TB | |
|
256 GB RDIMM |
8 |
6400 MT/s |
2 TB |
8 TB |
16 TB |
24 TB |
32 TB |
|
16 |
5200 MT/s |
4 TB |
16 TB |
32 TB |
48 TB |
64 TB | |
|
Storage Option |
Backplane SKU |
RAID controller/ SKU |
Lanes / Bay |
Slot usage |
Controller slot to Drive mapping |
Cable SKUs |
Chassis options / Drives |
|
Internal storage configurations 1U | |||||||
|
No internal storage |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
0, 6 slots |
|
8 drive premium 1U SFF storage, HW RAID, Encryption with SED drives, x2 NVMe / SAS / SATA |
R9N88A |
R9N96A 9660-16i |
x2 |
2 LP x8 slots** |
PCIe 3: Box1 / Drv1-8 |
1x R4R41A 1x R4R42A |
12 or 16 slots
|
|
8 drive premium 1U SFF storage, Intel® CPU Direct-Attach, No encryption, x4 NVMe |
R9N88A |
NORAID |
x4 |
No PCIe slots used |
CPU0/3: Box1 / Drv1-8 |
1x R9Q28A |
0 or 12 slots
|
|
10 drive premium 1U SFF storage, |
R9N88A R9N89A |
R9N97A 9670-24i |
x2/x4 |
1 FH x8 slot and 1 LP x8 slot** |
PCIe 3: Box1 / Drv1-8 PCIe 3: Box2 / Drv1-2 |
1x R4R41A 1x R4R42A 1x R4R40A |
12 slots 10 drives No DVD/ Ht Plg Boot Dev |
|
12 drive premium 2U EDSFF storage, HW RAID, Encryption with SED drives, x2 NVMe |
S4T00A= 3x 4E3.S BP |
R9N97A 9670-24i |
x2
|
1 FH x16 slot* |
#PCIe 2: Box1 / Drv1-12 |
S5E22A / P1 S5E22A / P2 S5E22A / P1 S5E22A / P2 S5E22A / P1 S5E22A / P2 |
6 slots 12 drives DVD and NVMe Ht Plg Boot Dev |
|
12 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach, No encryption, x4 NVMe |
S4T00A= 3x 4E3.S BP |
NORAID |
x4 |
No PCIe slots used |
CPU0/1: Box1 / Drv1-12
|
1x S4T01A |
0 or 6 slots 12 drives DVD and NVMe Ht Plg Boot |
|
24 drive premium 2U EDSFF storage, HW RAID, Encryption with SED drives, x2 NVMe |
2x S4T00A= 6x 4E3.S BP |
R9N97A 9670-24i |
x2
|
2 FH x16 slot* |
#PCIe 2: Box1 / Drv1-12 PCIe 1: Box3 / Drv1-12 |
S5E22A / P1 S5E22A / P2 S5E22A / P1 S5E22A / P2 S5E22A / P1 S5E22A / P2 S5E23A / P1 S5E23A / P2 S5E23A / P1 S5E23A / P2 S5E23A / P1 S5E23A / P2 |
6 slots 24 drives DVD and NVMe Ht Plg Boot Dev |
|
16 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach, No encryption, x4 NVMe |
2x S4T00A= 6x 4E3.S BP |
NORAID
|
x4 |
No PCIe slots used
|
CPU0/1: Box1 / Drv1-8 CPU2/3: Box3 / Drv1-8 |
1x S6J30A 1x S6J31A |
6 slots 16 drives DVD and NVMe Ht Plg Boot Dev |
|
24 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach, No encryption, x4 NVMe |
2x S4T00A= 6x 4E3.S BP |
NORAID
|
x4 |
No PCIe slots used
|
CPU0/1: Box1 / Drv1-12 CPU2/3: Box3 / Drv1-12 |
1x S4T01A 1x S4T02A |
6 slots 24 drives DVD and NVMe Ht Plg Boot Dev |
|
Notes: - * Indicates one or two tethered super-caps are mounted in center DVD bay - # If more than one controller, this indicates the primary boot controller. |
|
|
|
Backplane type |
Storage controller |
Drive interface |
Data lanes per drive bay |
Data transfer rate |
Maximum throughput |
|
Premium |
MegaRAID 96xx |
NVMe (PCIe4) |
2 |
32 GT/s |
3.938 GB/s |
|
Premium |
MegaRAID 96xx |
NVMe (PCIe4) |
4 |
64 GT/s |
7.877 GB/s |
|
Premium |
Intel CPU Direct-Attach |
NVMe (PCIe4) |
4 |
64 GT/s |
7.877 GB/s |
|
Premium |
Intel CPU Direct-Attach |
NVMe (PCIe5) |
4 |
128 GT/s |
15.754 GB/s |
|
Notes: - The speeds above are based on storage interface data transfer rates and are NOT measured performance. - When multiple controller cards are used, there will be multiple RAID groups because drives on different controllers can't be in the same RAID group. - When multiple controller cards are used, the first controller listed is the default boot controller. - RAID 0, 1, 10, 5, 50, 6, and 60 supported |
|
|
|
Security HPE Compute Scale-up Server 3250 provides important architectural security features not found in other industry standard servers. HPE Compute Scale-up Server 3250 Mission Critical focus provides unique customer benefits without exposure to many vulnerabilities found - UEFI Secure Boot and Secure Start support, Enabled by default - Immutable HPE iLO ASIC Silicon Root of Trust - PQC (Post Quantum Cryptography) compliant root of trust - IDevID - Factory provisioned server identity - Auto secure FW recovery. RMC & PDHC watchdogs are fully enabled allowing RMC and PDHC to automatically reboot to recover from unexpected hangs. - Tamper-free updates - components digitally signed and verified - Components are dual-signed with RSA and PQC cryptos - Secure Recovery - recover critical firmware to known a good state on detection of compromised firmware (per NIST SP800-193) - Firmware rollback protection for critical vulnerability fixes - System TPM (Trusted Platform Module) 2.0 tamper-resistant and soldered down for all systems - Manageability TPM for RMC - Manageability Flash Encryption - Chassis Intrusion detection standard - FW update protected by RMC Admin authentication - Firewalled Manageability Network - Secure Out-of-Box passwords - RMC uses CNSA 1.0 by default - Directory access control (LDAP/Active Directory) - Alternatives to PXE (Directed LAN Boot, HTTP Boot) -Ability to disable HOST and RMC USB ports - Ability to enable Total Memory Encryption (TME) |
|
|
|
Platform Management The HPE Compute Scale-up Server 3250 has a built-in and always available platform management system. By integrating the management into the server platform, Hewlett Packard Enterprise ensures that every HPE Compute Scale-up Server 3250 comes with the full set of management features and simplifies the task of integrating HPE Compute Scale-up Server 3250 into the data center. The purpose of the HPE Compute Scale-up Server 3250 management system is to: - Provide built-in tools to manage hardware and provide mission-critical system availability (inventory, monitor, diagnose, configure, maintain, and self-healing) - Make it easier for users and applications to manage the system (inventory, start, stop, connect console, and so on)
The HPE Compute Scale-up Server 3250 manageability system provides a very powerful control point for the system, and the embedded Rack Management Controller (RMC) makes managing the HPE Compute Scale-up Server 3250 much easier by centralizing the control and building the management into the hardware and firmware of the system. It provides the following features: - Web GUI for RMC - Redfish driven. Covers:
- CLI for easy access to all RMC functions, providing potential scripting and power user convenience - Console, and console logs - Built-in Error Analysis Engine constantly monitors all system hardware, analyzes log and telemetry data, and determines corrective actions for highest system uptime (often performing corrective actions automatically) - HPE Compute Scale-up Server 3250 RMC will interface directly with the HPE Remote Support software for data center wide fault management visibility and tie-in to HPE support services, such as the Insight Online portal - Front Panel Management device functionality that provides Power Button, System status Indicator LEDs including Power, UID and RMC indicator. - The RMC accepts all valid update requests. Firmware updates will be done immediately if possible.
The HPE Compute Scale-up Server 3250 delivers system administration, control, and platform management both via a Web GUI, a programmable Redfish API, or a comprehensive and concise command-line interface. The Redfish® API can be used in many ways including: - Directly in simple scripts to obtain inventory and monitoring information - With HPE OneView for a graphical user interface, as well as manage multiple HPE systems concurrently in the datacenter at once - With Openstack Ironic for Provisioning the OS |
|
|
|
For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services. |
|
Ordering and Configuration This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. - Configure-to-order servers must start with a CTO Chassis - FIO indicates that this option is a Factory Installable Option.
| |
|
| |
|
Configuring the HPE Compute Scale-up Server 3250 | |
|
If No Rack Option is selected then a Virtual Rack should be selected | |
|
Rack choice |
SKU |
|
HPE Virtual Rack |
M0S66A |
|
Base Chassis |
|
|
HPE Compute Scale-up Server 3250 4-socket XNC Base Chassis |
S4S70A |
|
Notes: - Every HPE Compute Scale-up Server 3250 system must have min 1/max 1 Base Chassis - Adding Option code "#0D1" to the chassis will integrate the chassis into the rack (which must be on the same order) - Chassis bezel is Optional and is not included
| |
|
Expansion Chassis |
SKU |
|
HPE Compute Scale-up Server 3250 4-socket XNC Expansion Chassis |
S4S71A |
|
Notes: - Adding Option code "#0D1" to the chassis will integrate the chassis into the rack (which must be on the same order) - Chassis bezel is Optional and is not included | |
|
| |
|
Scale Activation Kits |
SKU |
|
HPE Compute Scale-up Server 32X0 Internal UPI Cable Kit |
R9Y98A |
|
HPE Compute Scale-up Server 32X0 4-socket Scale Activation Kit |
R9P06A |
|
HPE Compute Scale-up Server 32X0 8-socket Scale Activation Kit |
R9P07A |
|
HPE Compute Scale-up Server 32X0 12-socket Scale Activation Kit |
R9P08A |
|
HPE Compute Scale-up Server 32X0 16-socket Scale Activation Kit |
R9P09A |
|
Notes: Any chassis configured with Platinum processors requires 1 x R9Y98A per chassis | |
|
| |
|
Processors |
SKU | |
|
Intel Xeon 6788P 2.0 GHz 86-core 350 W Processor for HPE Compute Scale-up Server 3250 |
S4S88A | |
|
Intel Xeon 6768P 2.4 GHz 64-core 330 W Processor for HPE Compute Scale-up Server 3250 |
S4S89A | |
|
Intel Xeon 6728P 2.7 GHz 24-core 210 W Processor for HPE Compute Scale-up Server 3250 |
S4S92A | |
|
Intel Xeon 6724P 3.6 GHz 16-core 210 W Processor for HPE Compute Scale-up Server 3250 |
S4S93A | |
|
Intel Xeon 6714P 4.0 GHz 8-core 165 W Processor for HPE Compute Scale-up Server 3250 |
S4S94A | |
|
Notes: - No mixing of processors within a single chassis, partition, or system - Each Chassis requires minimum four (4) processors | ||
|
| ||
|
DDR5 Memory |
SKU | |
|
HPE Compute Scale-up Server 3250 64 GB (1x64GB) Dual Rank x4 DDR5-6400 Registered Standard Memory Kit |
S4S96A | |
|
HPE Compute Scale-up Server 3250 96 GB (1x96GB) Dual Rank x4 DDR5-6400 Registered Standard Memory Kit |
S4S97A | |
|
HPE Compute Scale-up Server 3250 128 GB (1x128GB) Dual Rank x4 DDR5-6400 R Standard Memory Kit |
S4S98A | |
|
HPE Compute Scale-up Server 3250 256 GB (1x256GB) Quad Rank x4 DDR5-6400 Registered 3DS Memory Kit |
S4S99A | |
|
Notes: Memory kits contain a single DIMM | ||
|
| ||
|
Optical Drives |
SKU | |
|
HPE Compute Scale-up Server 3250 9.5 mm SATA 1U Internal DVD-RW Optical Drive |
S4V52A | |
|
Notes: - One (1) DVD is optional in Base Chassis and is not available in the Expansion Chassis - DVD option is not allowed if optional 3rd Storage backplane is configured to Base Chassis | ||
|
| ||
|
Storage Backplanes |
SKU | |
|
HPE Compute Scale-up Server 3250 2U 12EDSFF NVMe 32Gx4 E3.S Premium Backplane Kit |
S4T00A | |
|
HPE Compute Scale-up Server 32X0 1U 8SFF Tri-Mode 24Gx4 U.3 BC Premium Backplane Kit |
R9N88A | |
|
HPE Compute Scale-up Server 32X0 1U 2SFF Tri-Mode 24Gx4 U.3 BC Premium Backplane Kit |
R9N89A | |
|
Notes: Internal storage cables will be added to the configuration as required. No user selection is needed. | ||
|
| ||
|
SFF U.3 NVMe Mainstream |
SKU | |
|
HPE 800 GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
P64999-H21 | |
|
HPE 1.6 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
P65007-H21 | |
|
HPE 3.2 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
P65015-H21 | |
|
HPE 6.4 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
P65023-H21 | |
|
HPE 7.68 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
P64848-H21 | |
|
HPE 15.36 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
P84236-B21 | |
|
|
| |
|
SFF U.3 NVMe High Performance (HPF) |
SKU |
|
HPE 3.2 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
P70426-B21 |
|
HPE 6.4 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
P70428-B21 |
|
HPE 7.68 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD |
P70434-B21 |
|
HPE 15.36 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD |
P70436-B21 |
|
|
|
|
EDSFF E3.S NVMe Mainstream |
SKU |
|
HPE 1.6 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
P69241-B21 |
|
HPE 3.2 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
P69243-B21 |
|
HPE 6.4 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
P69245-B21 |
|
HPE 1.92 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
P69234-B21 |
|
HPE 3.84 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
P69237-B21 |
|
HPE 7.68 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
P69239-B21 |
|
HPE 15.36 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
P69546-B21 |
|
HPE 1.6 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
P77262-B21 |
|
HPE 3.2 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
P77265-B21 |
|
HPE 6.4 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
P77267-B21 |
|
HPE 1.92 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
P77269-B21 |
|
HPE 3.84 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
P77271-B21 |
|
HPE 7.68 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
P77273-B21 |
|
HPE 15.36 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
P77275-B21 |
|
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
P85114-B21 |
|
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
P85117-B21 |
|
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
P85119-B21 |
|
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
P85121-B21 |
|
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
P85124-B21 |
|
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
P85126-B21 |
|
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
P85128-B21 |
|
|
|
EDSFF E3.S NVMe High Performance (HPF) |
SKU |
|
HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
P70392-B21 |
|
HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
P70395-B21 |
|
HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
P70397-B21 |
|
HPE 3.2 TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
P70399-B21 |
|
HPE 6.4 TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
P70401-B21 |
|
HPE 12.8 TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
P70403-B21 |
|
|
|
|
PCIe Infrastructure |
SKU |
|
Notes: - Each chassis requires exactly one (1) PCIe option: S4S75A or S4S77A or S4S73A or S4S74A - The Base Chassis requires either S4S75A or S4S73A or S4S74A | |
|
HPE Compute Scale-up Server 3250 PCIe Full Height 6-slot Bulkhead with 1x 2-slot 2x16 Riser Kit |
S4S75A |
|
Notes: S4S75A includes two (2) Full Height x16 - Maximum Length of PCIe card when installed in Full Height slot = 10.5". S4S75A accommodates both Full Height and low-profile cards | |
|
HPE Compute Scale-up Server 32X0 2x16 2-slot PCIe Tertiary Riser for 1U PCIe 6-slot Bulkhead |
R9N85A |
|
HPE Compute Scale-up Server 32X0 2x16 2-slot PCIe Secondary Riser for 1U PCIe 6-slot Bulkhead |
R9N86A |
|
Notes: - S4S75A and R9N86A each include two (2) Full-Height x16 slots. Maximum Length of PCIe card when installed in Full Height slot is 10.5". S4S75A and R9N86A accommodates both Full-Height and Low-Profile cards - R9N85A includes Two (2) Low-Profile x16 slots. | |
|
HPE Compute Scale-up Server 3250 PCIe Full Height 12-slot Bulkhead with 1x 4-slot 2x8/2x16 Riser Kit |
S4S73A |
|
HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Secondary Riser for 2U PCIe 12-slot Bulkhead |
R9N84A |
|
Notes: - S4S73A & R9N84A each include two (2) Full-Height x16 and two (2) Full Height x8 slots. Maximum Length of PCIe card when installed in 12-slot Bulkhead is 10.5". S4S73A & R9N84A accommodates both Full-Height and Low-Profile cards - R9N83A includes Four (4) Low-Profile x16 slots. | |
|
HPE Compute Scale-up Server 32X0 4x16 4-slot PCIe Tertiary Riser for 2U PCIe 12-slot Bulkhead |
R9N83A |
|
HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Secondary Riser for 2U PCIe 16-slot Bulkhead |
R9N81A |
|
HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Tertiary Riser for 2U PCIe 16-slot Bulkhead |
R9N80A |
|
HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Quaternary Riser for 2U PCIe 16-slot Bulkhead |
R9N82A |
|
Notes: S4S74A, R980A, R981A & R982A each include two (2) Low-Profile x16 and two (2) Low-Profile x8 slots. | |
|
HPE Compute Scale-up Server 3250 PCIe low-profile 16-slot Bulkhead with 1x 4-slot 2x8/2x16 Riser Kit |
S4S74A |
|
HPE Compute Scale-up Server 3250 PCIe 1U 0-slot Compute Only Bulkhead |
S4S77A |
|
HPE Compute Scale-up Server 3250 PCIe 2U 0-slot Compute Only Bulkhead |
S4S76A |
|
Notes: Low-profile PCIe cards can be used in full-height or low-profile slots with the correct faceplate; some cards include both faceplates. | |
|
| |
|
RAID Controllers |
SKU |
|
HPE MR9670-24i 24-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller |
R9N97A |
|
HPE MR9670-16i 16-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller |
R9N96A |
|
Notes: Max two (2) per chassis/ Max 8 per system |
|
|
|
|
|
NVMe Hot Plug Boot Dev |
SKU |
|
HPE Compute Scale-up Server 3250 2U NVMe Hot Plug Boot Optimized Storage Device |
S4S79A |
|
HPE Compute Scale-up Server 3250 1U NVMe Hot Plug Boot Optimized Storage Device |
S6J33A |
|
Notes: Max one (1) per chassis/ Max 1 per system |
|
|
| |
|
Fibre Channel HBAs |
SKU | |
|
HPE SN1720E 64 GB 2p FC SecureHBA |
S4T09A | |
|
HPE SN1700Q 64 GB 2-port Fibre Channel Host Bus Adapter |
R7N87A | |
|
Notes: Max eight (8) per chassis/ Max 16 per system |
| |
|
| ||
|
Networking Controller cards - PCIe |
SKU | |
|
Mellanox MCX631102AS-ADAT Ethernet 10/25 GB 2-port SFP28 Adapter for HPE |
P42044-B21 | |
|
Notes: Max eight (8) per chassis/ Max 16 per system |
| |
|
Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T Adapter for HPE |
P51178-B21 | |
|
Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE |
P26264-B21 | |
|
Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE |
P25960-B21 | |
|
Notes: Max eight (8) per chassis/ Max 16 per system |
| |
|
| ||
|
Network Controller cards - OCP | ||
|
Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE |
P51181-B21 | |
|
Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE |
P42041-B21 | |
|
Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE |
P26269-B21 | |
|
Notes: - Max one (1) per chassis - Server networking transceiver and cable compatibility matrix can be found here | ||
|
| ||
|
Foundation Software |
SKU | |
|
HPE Foundation Software 2 for Red Hat Enterprise Linux Media FIO LTU |
Q7N13A | |
|
HPE Foundation Software 2 for SUSE Linux Enterprise Server Media FIO LTU |
Q7N14A | |
|
HPE Foundation Software 2 for Red Hat Enterprise Linux Media |
Q7Y82A | |
|
HPE Foundation Software 2 for SUSE Linux Enterprise Server Media |
Q7Y83A | |
|
HPE Foundation Software 2 for Red Hat Enterprise Linux Media License RTU |
Q7N11A | |
|
HPE Foundation Software 2 for SUSE Linux Enterprise Server Media License RTU |
Q7N12A | |
|
HPE Foundation Software 2 for Oracle Linux Media |
Q7Y84A | |
|
HPE Foundation Software 2 for Oracle License RTU |
Q7N16A | |
|
Notes: - Exactly one (1) RTU is required per system with a Linux OS distribution - Minimum one (1) Foundation SW FIO or Media is required per system with a Linux OS distribution - Selected RTU must match selected FIO and/or Media option | ||
|
| ||
System Expansion and Upgrades |
| |
|
System Expansion Kits are utilized when scaling up a HPE Compute Scale-up 3250. When adding Expansion chassis, select the appropriate beginning and ending size of your system | ||
|
Description |
SKU | |
|
HPE Compute Scale-up Server 3250 4-socket to 8-socket Scale Activation Kit |
S6J04A | |
|
HPE Compute Scale-up Server 3250 4-socket to 12-socket Scale Activation Kit |
S6J05A | |
|
HPE Compute Scale-up Server 3250 4-socket to 16-socket Scale Activation Kit |
S6J06A | |
|
HPE Compute Scale-up Server 3250 8-socket to 12-socket Scale Activation Kit |
S6J13A | |
|
HPE Compute Scale-up Server 3250 8-socket to 16-socket Scale Activation Kit |
S6J14A | |
|
HPE Compute Scale-up Server 3250 12-socket to 16-socket Scale Activation Kit |
S6J21A | |
|
| ||
|
Chassis Options |
SKU | |
|
HPE Compute Scale-up Server 3250 Chassis Bezel |
S4S72A | |
|
Notes: One per chassis, all chassis should have the same option. | ||
|
| ||
|
This section describes the physical and environmental information for a chassis. | ||
|
HPE Compute Scale-up Server 3250 chassis | |
|
Physical Information | |
|
Site planning and installation included |
Yes |
|
Maximum Heat dissipation (fully populated chassis, no GPUs) |
15.81 kBTU/hr |
|
Depth (handle to handle) |
905 mm / 35.63" |
|
Width (not including mounting rails) |
445 mm / 17.5" |
|
Height |
219.2 mm / 8.63" (5U) |
|
Weight - Maximum (fully populated) |
Range between 40.8 kg / 90 lb to 56.7 kg / 125 lb |
|
Electrical and Environmental Characteristics | |
|
Single phase (200/240) |
4 x IE320-C19 |
|
Maximum Input Power total |
4.65 KVA (no GPUs) |
|
Environmental Characteristics | |
|
Cooling airflow (front to back) |
750 CFM (maximum) |
|
Acoustics |
91 dBA (maximum) 84 dBA (typical) |
|
Temperature - Recommended Operating Range1,2 |
18°C to 27°C |
|
Temperature - Allowable Operating Range1,2 |
5°C to 35°C |
|
Maximum rate of temperature change |
20°C/hr non-condensing |
|
Non-operating temperature (storage) |
-40°C to 60°C |
|
Air quality |
Gaseous contaminants must be at the G1 level or less as defined by ISA Standard ISA-71.04-1985 |
|
Humidity - Recommended Operating Range (non-condensing)1 |
-9°C DP to 15°C DP and 60% RH |
|
Humidity - Allowable Operating Range (non-condensing)1 |
-12°C DP and 8% RH to 24°C DP and 85% RH |
|
Non-operating relative humidity (storage) |
8% RH to 90% RH and 32°C DP |
|
Maximum Operating altitude |
3050 m (10,000 ft) |
|
Maximum Non-operating altitude (storage) |
4500 m (15,000 ft) non-pressurized |
|
Notes: - (1) The Recommended Operating Range is recommended for continuous operation. Operating within the Allowable Operating Range is supported but may result in a decrease in system performance. - (2) All temperature ratings shown are for sea level. An altitude de-rating of 1°C per 300 m above 1524 m is applicable. No direct sunlight allowed. Upper operating limit is 3,048 m (10,000 ft). |
|
|
|
Regulatory model numbers: - Chassis (S4S70A, S4S71A) RMN: CHPF-074 |
|
Date |
Version History |
Action |
Description of Change |
|
06-Jul-2026 |
Version 4 |
Added |
- Updated multiple sections to enhance system scalability and configurability, including expanded I/O slot options, PCIe Gen5 capabilities, and updated boot slot mappings. - Added new processor options (Intel® Xeon® Platinum 6728P, 6724P, and 6714P) with associated specifications, SKUs, and configuration constraints. - Expanded operating system support to include Oracle Linux and Microsoft Windows Server 2025, along with related adapter and storage entries. - Enhanced storage portfolio with new 1U and 2U configurations, storage backplanes, and NVMe SSD offerings across SFF U.3 and EDSFF E3.S categories. - Introduced additional PCIe infrastructure, RAID controllers, NVMe boot devices, networking adapters, and Fibre Channel HBA options. - Updated Foundation Software section to include Oracle Linux support and licensing options. |
|
Changed |
- Revised At a Glance Features, General, and Physical and Environmental Information sections to standardize I/O slot descriptions and remove redundant or inconsistent configurations. - Corrected duplicate and inconsistent controller references in storage tables to improve accuracy and consistency. | ||
|
01-Jun-2026 |
Version 3 |
Added |
- Added 64 GB 2Rx4 DDR5-6400R Registered DIMM |
|
Changed |
- Updated Memory type Registered and DDR5 Memory sections to add the 64 GB (1x64GB) Dual Rank x4 DDR5-6400 Registered Standard Memory Kit, including SKU S4S96A. - Updated DDR5 Memory Support to add 64 GB RDIMM support and corresponding capacity and speed values. - Updated regulatory model numbers section to reflect addition of 64 GB 2Rx4 DDR5-6400R Registered DIMM. | ||
|
16-Mar-2026 |
Version 2 |
Added |
- Added new At a Glance Features details including numeric identifiers and letter markers required for feature accuracy. |
|
Changed |
- Updated I/O connector terminology: replaced "Display Port" with DisplayPortTM, replaced "lights" with LEDs, updated iX connector names to iX Industrial®, and clarified RMC and LAN port entries. - Multiple updates to DDR5 Memory Support including corrected capacity values, module specifications, and removal of duplicated "52" and "64" entries. Added extended memory configuration ranges for RDIMM and various MT/s speeds. | ||
|
02-Mar-2026 |
Version 1 |
New |
- New QuickSpecs |
|
|
|
Have feedback on QuickSpecs? We're listening | |
|
|
|
| |
|
|
|
Chat now | |
|
|
|
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a50009253enw - 17285 - Worldwide - V4 - 06-July-2026 | |
|
|
|
HEWLETT PACKARD ENTERPRISE HPE.com |
|
