HPE Standard Series Rack

The HPE Standard Series Rack is specifically designed for the value-minded customer. It presents significant savings while providing a reliable industry standard rack that will fit many racking requirements.

The HPE Standard Series Rack is an industry standard 19" rack that can hold up to 2000 lbs of static load.

HPE Standard Series Rack Models

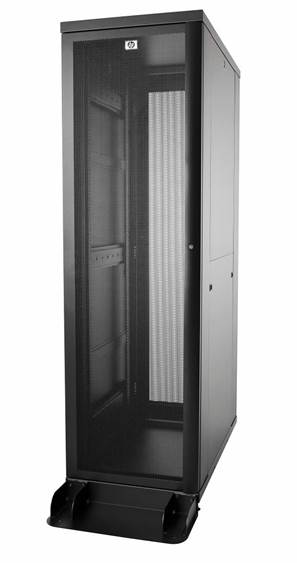

HP 42U 600mm x 1075mm Standard Pallet Rack

AF046A

HP V142 1075mm deep Pallet 100 series Rack/S-Buy

AF046S

At a Glance

The HPE 42U Standard Pallet Rack is a full-featured, low cost rack option for HPE server and storage customers buying their first IT rack. It is fully compatible with all HPE rack-mounted servers, storage, and networking products, but recommended for those devices requiring less than 1075mm of depth. The HPE 42U Standard Pallet Rack is designed to meet the EIA-310D industry specification and can be used with most other non-HPE 19-inch wide devices.

The HPE 42U 600mm x 1075mm Standard Pallet Rack includes:

• Front door with perforated design for better air flow
• Front and rear door handles and locks for security
• Cable management, rack stabilizer, baying, grounding kit and other options available
• Three-year limited warranty (3/0/0), parts only
• Covered by HPE Server Care Pack when server and rack purchased together
• Optional side panels come in 2 parts for ease of manageability and mounting

Rack Compatibility

The following HPE IT solutions are supported by the HPE 42U Standard Pallet Rack:

• HPE Rack and Tower ProLiant Servers (Recommended)
• HPE BladeSystem Enclosures
• HPE HyperScale Servers
• HPE Mission-Critical Servers
• HPE Storage
• HPE Networking

HPE 42U Standard Pallet Racks utilize the industry-standard 19-inch RETMA rack design (now EIA) and can support most other non-HPE devices designed to mount in a 19-inch rack.

Rack Load Support

HPE racks are designed to support high capacity weight loads that include the weight of the rack and all the equipment installed. All HPE racks are tested to provide the following maximum weight loads:

• Static Load - maximum loaded weight that a rack can support without any movement;
• Dynamic Load (Rolling) - maximum loaded weight a rack can support while being moved (or rolled) within a data center or facility;
• Dynamic Load (Shipping) - maximum loaded weight a rack can support while being shipped to data center or facility - this includes services such as HPE Factory Express.

The HPE 42U Standard Rack is rated for Static Loads only (maximum of 2000 lbs. or 907 kg) and should never be used to transport installed IT equipment to or within an IT facility.  If transportation or movement of installed equipment within a rack is required, Hewlett Packard Enterprise recommends that you review the Advanced and Enterprise racks for rack options rated for Dynamic Loads.

Compliance

EIA

The HPE Standard Rack conforms to EIA-310D Type A cabinet per section 4.1.1

UL/CES Certification

No

WEEE

Yes

RoHS compliant

Yes

TAA compliant

Yes

HPE Support Services

HPE Pointnext operational services include coverage for the Hewlett Packard Enterprise branded hardware options qualified for the server and purchased at the same time or afterward that are internal to the enclosure. This also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HPE qualified rack options installed within the same rack.

• HPE Services
  • To help streamline implementation and enhance ongoing support of rack solution, Hewlett Packard Enterprise provides cost-effective service options with resources and specialized expertise to complement customers’ in-house capabilities.
• Installation and Startup services
  • Take advantage of complete installation and implementation support-including global rollout capabilities-to get rack solutions up-and-running rapidly, with minimal business disruption.
• Rack Option Hardware Support
  • Cover rack options with a single convenient service package. HPE Pointnext operational services for rack-mounted ProLiant DL servers and storage products provide support for all HPE-branded rack hardware options that are qualified for inclusion with the server at the time of or after purchase. In addition, 22-inch and smaller external monitors, tower units, and UPS options up to 3KVA are covered at the same service level and for the same period as the server at no additional cost. Also covered are any additional HPE-qualified rack options installed within the same rack.

HPE Pointnext operational services help increase uptime and productivity with rapid response on a 24x7 or 13x5 basis. Both options feature same-day, 4-hour onsite assistance when service issues cannot be resolved remotely. And both help enhance the return on server investment with proven HPE Services expertise and consistent support levels across geographically dispersed sites.

NOTE: To learn more, please visit:
http://www.hp.com/services/servers

Hewlett Packard Enterprise offers a full line of accessories and options that can be added to a Standard Series Rack allowing you to customize each rack to fit your IT requirements. HPE Standard Series Rack accessories include upgrades such as side panels, baying kits, cable management kits, drawers, shelving, and filler panels.  To build a complete rack and power infrastructure for your IT environment, Hewlett Packard Enterprise also offers a full line of options that include power distribution units (PDU), uninterruptible power systems (UPS), and KVM (keyboard, video, mouse) consoles and switches.

Rack Baying Kit

HP Standard Series Rack Baying Kit

AF048A

NOTE: The baying kit is used to join two or more HPE 42U Standard Series Racks.

Sidewall Panel Kits

HP Standard Series Rack Side Panels

AF047A

NOTE: Lightweight, locking side panels for this 42U rack come in 2 sections for better handling.

Ballast Option Kit

HP 9000 and 10000 Rack Ballast Kit

120672-B21

NOTE: The Ballast Option Kit is designed to provide additional stability and support when used with the Stabilizer Kit. It is typically used when very heavy equipment is routinely installed, removed or accessed within the rack.

Rack Stabilization Kit

HP Standard Series Rack Stabilizer Kit

AF049A

NOTE: The anti-tip stabilizer kits provide stability and support when equipment is installed, removed or accessed within the rack.
NOTE: The stabilizing kit is recommended for single rack deployments.

Grounding Kit

HP Standard Series Rack Grounding Kit

NOTE: Provides a dedicated ground system to maintain system performance and protect equipment.

AF040A

HPE Cable Management Kits

HPE Cable Management D Rings
NOTE:NOTE: This kit consists of 10 "D" rings that can be for cable management.

168233-B21

HP Rack Cable Management Velcro Clips

379820-B21

HP Rack Cable Management Kit
NOTE: This kit provides an easy way to organize and route cables within HPE Racks. Cable clips, cable rings, and 1U and 2U access panels are included.

AF099A

HPE Locking Drawer

HP 2U Universal Locking Drawer
NOTE: This product mounts on all HPE Standard Series Racks with sliding rails and is used to store CD's, Instruction manuals, tools, and any other item that is frequently used at the rack. Drawer includes lock.

361591-B21

HPE Rack Cable Trays

HP 600 Wide Rack Top Cable Tray

383982-B21

HP 800 Wide Rack Top Cable Tray

383983-B21

HPE Rack Top Cable Mgmt Transfer Tray

NOTE: The HPE Rack Top Cable Management Transfer Tray allows for cabling trays to be connected even across different aisles in the datacenter.

383984-B21

Universal 1U Filler Panels

HP 1U 10-pack Black Universal Filler Panel

BW928A

HP 1U 100-pack Black Universal Filler Panel

BW929A

NOTE: The blanking panels are made from high grade molded plastic, and are designed to be installed without tools. The use of blanking panels is recommended to ensure proper airflow.

HPE Basic Power Distribution Units (PDU)

NOTE: HPE Basic PDU’s provide reliable, low-cost power distribution throughout the rack and are available in both vertical and horizontal form factors to allow for flexible installation in your rack. For more information, please review the HPE Basic PDU QuickSpecs.

HPE Basic Power Distribution Unit: 1U/0U Version

HPE Basic 1.9kVA/L5-20P 16A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU

H5M54A

HPE Basic 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU

H5M56A

NOTE: HPE Standard racks support 1U or 2U mounting of PDUs only.

HPE Basic Power Distribution Unit: Half Height Version

HPE Basic 2.8kVA/L5-30P 24A/120V Outlets (18) 5-20R/Vertical NA/JP PDU

H5M55A

HPE Basic 4.9kVA/60320 C20 Detachable 16A/230V Outlets (20) C13/Vertical WW PDU

H5M57A

HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (20) C13/Vertical NA/JP PDU

H5M58A

HPE Basic 7.3kVA/60309 5-wire 32A/230V Outlets (20) C13/Vertical INTL PDU

H5M68A

HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13/Vertical NA/JP PDU

H5M61A

HPE Basic Power Distribution Unit: Mid Height Version

HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU

H5M59A

HPE Basic 7.3kVA/60309 3-wire 32A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M70A

HPE Basic 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (6) C19/Vertical NA PDU

H5M60A

HPE Basic 11kVA/60309 63A 3-wire 48A/230V Outlets (30) C13 (6) C19/Vertical INTL PDU

H5M71A

HPE Basic 9.2kVA/50A Terminal Block 40A/230V Outlets (30) C13 (6) C19/Vertical WW PDU

H5M75A

HPE Basic 3Ph 5.7kVA/ L21-20P 16A/120-208V Outlets (24) C13 (3) 5-20R/Vertical NA/JP PDU

H5M63A

HPE Basic 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (24) C13 (3) C19 (3) 5-20R/Vertical NA/JP PDU

H5M64A

HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU

H5M62A

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M72A

HPE Basic Power Distribution Unit: Full Height Version

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (36) C13 (6) C19/Vertical INTL PDU

H5M73A

HPE Basic 3Ph 11kVA/60309 16A/240V Outlets (36) C13 (6) C19/Vertical NA PDU

H5M67A

HPE Standard Power Distribution Unit: 480/277 Volt Version

HPE Basic 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (6) C19/Vertical NA PDU

H5M60A

HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13/Vertical NA/JP PDU

H5M61A

HPE Basic 3Ph 11kVA/60309 16A/240V Outlets (36) C13 (6) C19/Vertical NA PDU

H5M67A

HPE Basic 9.2kVA/50A Terminal Block 40A/230V Outlets (30) C13 (6) C19/Vertical WW PDU

H5M75A

HPE Basic 7.3kVA/60309 5-wire 32A/230V Outlets (20) C13/Vertical INTL PDU

H5M68A

HPE Basic 7.3kVA/60309 3-wire 32A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M70A

HPE Basic 11kVA/60309 63A 3-wire 48A/230V Outlets (30) C13 (6) C19/Vertical INTL PDU

H5M71A

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M72A

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (36) C13 (6) C19/Vertical INTL PDU

H5M73A

NOTE: Additional HPE Power Distribution Units are available. For a complete list of all HPE PDUs and additional information: please visit http://www.hp.com/go/pdu

HPE Metered Power Distribution Units (PDU)

NOTE: HPE Monitored PDU’s provide reliable power distribution within your rack combined with highly accurate power metering available for each power load segment. For more information, please review the HPE Monitored PDU QuickSpecs.

HPE Monitored Power Distribution Unit: 1U Version

HPE Metered 2.8kVA/L5-30P 24A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU

D9N43A

HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU

D9N46A

HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (12) C13/Horizontal NA/JP PDU

D9N44A

HPE Monitored Power Distribution Unit: Half Height Version

HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (16) C13/Vertical WW PDU

D9N45A

HPE Monitored Power Distribution Unit: Mid Height Version

HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU

D9N47A

HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlets (20) C13 (4) C19/Vertical INTL PDU

D9N48A

HPE Metered 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (3) C19/Vertical NA/JP PDU

D9N51A

HPE Metered 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (18) C13 (3) C19 (3) 5-20R/Vertical NA/JP PDU

D9N53A

HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (18) C13 (3) C19/Vertical INTL PDU

D9N55A

HPE Monitored Power Distribution Unit: Full Height Version

HPE Metered 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (3) C19/Vertical NA PDU

D9N49A

HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlet (32) C13 (4) C19/Vertical INTL PDU

D9N50A

HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (30) C13 (3) C19/Vertical INTL PDU

D9N57A

HPE Metered 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N58A

HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (30) C13 (3) C19/Vertical NA/JP PDU

D9N61A

HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (24) C13 (3) C19/Vertical NA/JP PDU

D9N54A

HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N59A

HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU

D9N60A

HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlet (30) C13 (3) C19/Vertical INTL PDU

D9N56A

HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N62A

HPE Metered 3Ph 19.9kVA/L22-30P 24A/277V Outlets (30) RF-203P-HP/Vertical NA PDU

D9N63A

HPE Environmental Sensor for Remote Monitored PDUs

HP Environmental Sensor for Remote Monitored and Managed PDUs

E2D53A

NOTE: Additional HPE Power Distribution Units are available. For a complete list of all HPE PDUs and additional information: please visit http://www.hp.com/go/pdu

HPE Metered and Switched Power Distribution Units (PDU)

NOTE: HPE Managed PDU’s provide reliable power distribution combined with highly accurate power metering and switching that provide you with the ability to monitor and control each outlet. For more information, please review the HPE Managed PDU QuickSpecs.

100-120V Single Phase

HPE Metered Switched 2.8kVA/L5-30P 24A/120V Outlets (24) 5-20R /Vertical NA/JP PDU

H8B48A

200-240V Single Phase

HPE Metered Switched 3.6kVA/60320 C20 Detachable 16A/230V Outlets (7) C13 (1) C19/Vertical WW PDU

H8B49A

HPE Metered Switched 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU

H8B50A

HPE Metered Switched 7.3kVA/60309 3-wire 32A/230V Outlets (20) C13 (4) C19/Vertical INTL PDU

H8B51A

200-240V Three Phase

HPE Metered Switched 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (6) C19/Vertical NA/JP PDU

H8B52A

HPE Metered Switched 3Ph 8.6kVA/L21-30P 24A/208V Outlets (20)C13 (3)C19 (1)5-20R/Vertical NA/JP PDU

H8B53A

HPE Metered Switched 3Ph 11kVA/60309 5-wire 16A/230V Outlets (21) C13 (3) C19/Vertical INTL PDU

H8B54A

HPE Metered Switched 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

H8B55A

HPE Metered Switched 3Ph 17.3kVA/60309 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

H8B56A

NOTE: Additional HPE Power Distribution Units are available. For a complete list of all HPE PDUs and additional information: please visit http://www.hp.com/go/pdu

HPE Intelligent Power Distribution Unit (PDU)

NOTE: HPE Intelligent PDU’s deliver a unique set of capabilities that not only allow you to meter and switch individual outlets, but also communicate directly with each server to understand and track power usage, configuration, and redundancy information. For more information, please review the HPE Intelligent Power PDU QuickSpecs.

HPE 6 Outlet Intelligent Power Distribution Unit Cores

HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF520A

HPE Intelligent Modular 8.3kVA/CS8265C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF521A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF522A

HPE Intelligent Modular 3Ph 14.4kVA/CS8365C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF533A

HPE Intelligent Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V (6) C19/Horizontal NA/JP PDU

AF523A

HPE Intelligent Modular 3Ph 17.3kVA/60309 30A 5-wire 24A/240V (6) C19/Horizontal NA/JP PDU

AF901A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF525A

HPE Intelligent Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU

AF526A

HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF527A

NOTE: HPE Standard racks support 1U or 2U mounting of PDUs only.

HPE 12 Outlet Intelligent Power Distribution Unit Cores

HPE Intelligent Modular 3Ph 17.3kVA/IEC 60309 60A 4-wire 48A/208V (12) C19/Horizontal NA/JP PDU

AF535A

HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C19/Horizontal INTL PDU

AF538A

HPE Intelligent Power Distribution Unit Extension Bar Kits

HPE 5xC13 Intelligent PDU Extension Bar G2 Kit

AF547A

NOTE: Intelligent Extensions Bars have individually monitored outlets that are also individually switchable for power cycling attached equipment. Each individual C13 outlet has Power Line Communications to support Intelligent Power Discovery when connected to PLC enabled common slot power supplies.

HPE 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar

AF528A

NOTE: Standard (non-intelligent) Extension Bars are monitored as a single load segment and do not support Intelligent Power Discovery AF528A

NOTE: Additional HPE Power Distribution Units are available. For a complete list of all HPE PDUs and additional information: please visit http://www.hp.com/go/pdu

HPE R1500 G4 Uninterruptible Power Supply (UPS)

Line Interactive Single Phase UPS that provides up to 1.5kVA in a 1U rack mount form factor.

HPE R1500 G4 NA Uninterruptible Power System

J2Q99A

HPE R1500 G4 JP/TWN Uninterruptible Power System

J2R05A

HPE R1500 G4 INTL Uninterruptible Power System

J2R03A

NOTE: Please see the QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154342
(Worldwide)

HPE R/T2200 G4 Uninterruptible Power System (UPS)

Line Interactive Single Phase UPS that provides up to 2.2kVA in a 2U rack mount form factor. System can be converted for either rack or tower use.

HPE R/T2200 G4 NA/JP Uninterruptible Power System

J2R00A

NOTE: Please see the QuickSpecs for additional information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154342
(Worldwide)

HPE R/T3000 G4 Uninterruptible Power System (UPS)

Line Interactive Single Phase UPS that provides up to 3kVA in a 2U rack mount form factor. System can be converted for either rack or tower use.

HPE R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System

J2R01A

HPE R/T3000 G4 High Voltage NA/JP Uninterruptible Power System

J2R02A

HPE R/T3000 G4 High Voltage INTL Uninterruptible Power System

J2R04A

NOTE: Please see the QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154342
(Worldwide)

HPE R5000 Uninterruptible Power Systems (UPS)

Line Interactive Single Phase UPS that provides up to 5kVA in a 3U rack mount form factor.

HPE R5000 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

HPE R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A

NOTE: Please see the QuickSpecs additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154342
(Worldwide)

HPE R7000 Uninterruptible Power Systems (UPS)

Line Interactive Single Phase UPS that provides up to 7kVA in a 4U rack mount form factor.

HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

HPE R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System

AF463A

NOTE: Please see the QuickSpecs additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154342
(Worldwide)

HPE Online On Demand 3 Phase Uninterruptible Power Systems (UPS)

Online On-Demand Three-Phase UPS solution that is scalable to 72kVA.

HPE R8000/3 8000kVA Three Phase NA 6U Rackmount Uninterruptible Power System

AF431A

HPE R8000/3 8000kVA Three Phase INTL 6U Rackmount Uninterruptible Power System

AF432A

HPE R12000/3 12000VA Three Phase NA 6U Rackmount Uninterruptible Power System

AF429A

HPE R12000/3 12000VA Three Phase INTL 6U Rackmount Uninterruptible Power System

AF430A

NOTE: Please see the QuickSpecs additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123376
(Worldwide)

HPE DirectFlow 3 Phase Uninterruptible Power Systems (UPS)

Enterprise level rack-based UPS that can provide up to 19.9kVA of power in as little as 5U of rack space.

1U UPS

HPE R12000 DirectFlow - 1U Rackmount Uninterruptible Power System

G9Y75A

HPE R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System

AF478A

2U UPS

HPE R18000 DirectFlow - 2U Rackmount Uninterruptible Power System

AF479A

NOTE: Please see the QuickSpecs additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123376 (Worldwide)

HPE KVM Consoles

HPE LCD8500 1U Rackmount Console Kit Models

HP LCD8500 1U US Rackmount Console Kit

AF630A

HP LCD8500 1U UK Rackmount Console Kit

AF631A

HP LCD8500 1U DE Rackmount Console Kit

AF632A

HP LCD8500 1U FR Rackmount Console Kit

AF633A

HP LCD8500 1U JP Rackmount Console Kit

AF642A

HP LCD8500 1U RU Rackmount Console Kit

AF643A

HP LCD8500 1U INTL Rackmount Console Kit

AF644A

HP LCD8500 1U US TAA Rackmount Console Kit

AF645A

HPE KVM Switch Options

HPE Analog KVM Switches

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x4 KVM Console 6ft PS2 Cable

AF612A

HP 1x4 KVM Console 6ft USB Cable
NOTE: USB cable required for supporting USB peripherals.

AF613A

NOTE: Please see the QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04164460 (Worldwide)

HP 0x1x8 G3 KVM Console Switch

AF651A

HP 0x2x16 G3 KVM Console Switch

AF652A

HPE KVM Console USB Interface Adapter

AF628A

NOTE: Please see the QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123433 (Worldwide)

HPE Analog KVM Switches with Virtual Media & CAC

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP KVM Console USB 2.0 Virtual Media CAC Interface Adapter

AF629A

HP KVM Console Serial/Power G2 Interface Adapter

AF625A

NOTE: VT100 True Serial.

NOTE: Please see the QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04168373 (Worldwide)

HPE Digital KVM Switches with Virtual Media & CAC

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

Interface Adapters

HP KVM CAT5 1-pack PS/2 Interface Adapter

262588-B21

HPE KVM Console USB Interface Adapter

AF628A

HP KVM CAT5 1-pack Serial Interface Adapter

373035-B21

NOTE: Please see the QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04168374
(Worldwide)

NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.

NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm

HPE Support Services

HPE Install Rack and Rack Options Service

U2871E

HPE Standard Pallet Rack

Dimensions (HxDxW)

Total Cabinet Area

80.00 x 42.13 x 23.63 in (203.2 x 107.01 x 60.02 cm)

Shipping (with packaging materials)

85.28 x 47.24 x 27.95in (216.6 x 119.98 x 70.99 cm)

Weight

Operating

249 lb (112.94 kg)

Shipping

278 lb (126.09 kg)

Load

Static

Dynamic (Rolling)

Dynamic (Shipping)

2000 lb (907.18 kg)

Not applicable

Not applicable

Color

Doors

Carbonite

Frame

Carbonite

HPE Standard Pallet Rack does not include casters and cannot be CTO configured. Please see Advanced or Enterprise Series Racks for configure to order options.

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

http://www.hpe.com/recycle

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as HPE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

http://www.hpe.com/recycle

Date

Version History

Action

Description of Change

23-Oct-2017

Version 15

Added

Care Pack naming and Service and Support- Parts and Materials updated.

06-Mar-2017

From Version 13 to 14

Added

Note added under the HPE Basic Power Distribution Unit: 1U/0U Version and HPE 6 Outlet Intelligent Power Distribution Unit Cores sections.

07-Oct-2016

From Version 12 to 13

Changed

QuickSpecs was rebranded.

23-Oct-2015

From Version 11 to 12

Changed

Overview section was revised.

17-Aug-2015

From Version 10 to 11

Changed

Content changed throughout the entire QuickSpecs.

Note the title changed to HPE Standard Series Rack.

24-Aug-2012

From Version 9 to 10

Removed

HPE UPS R1500 G2, HPE R/T 3000 Uninterrupted Power System, HPE Rack-Mountable R5500 UPS, and HPE Serial Console Server Options nodes were removed from Related Options section.

15-May-2012

From Version 8 to 9

Changed

Revised the Hard Drives section. Note that the title has changed.

30-Aug-2011

From Version 7 to 8

Changed

Product descriptions were revised throughout Related Options and HPE R1500 G3 Uninterruptible Power Supply (UPS) and HPE R/T3000 G2 Uninterruptible Power System (UPS) were added.
What's New was added to the Overview.

20-Jun-2011

From Version 6 to 7

Changed

Models and Related Options product descriptions were revised.
Mentions of StorageWorks were removed.

16-Feb-2011

From Version 5 to 6

Changed

TFT7600 Rackmount Keyboard and Monitors were replaced with HPE TFT7600 G2 KVM Console Rackmount Keyboard and Monitors in Keyboard and Monitors and Serial Interface Adapter, 1-pack with power supply was removed from HPE KVM Switch Options.

14-Jan-2011

From Version 4 to 5

Changed

Changes made to the North America and Canada versions only.

16-Aug-2010

From Version 3 to 4

Removed

HPE R3000v Uninterruptible Power System (UPS) was removed from Related Options.

21-Jun-2010

From Version 2 to 3

Removed

HPE UPS R3000 Uninterruptible Power System and HPE UPS R/T2200 G2 Models were removed from Related Options.

19-Feb-2010

From Version 1 to 2

Changed

Corrected the overview image.
