HPE Serial Console Server

HPE Serial Console Servers provide remote access to headless servers such as those running UNIX, Linux or Microsoft as well as serial managed devices such as network switches and routers from any workstation on the network or a local terminal. HPE Serial Console Servers support either 16 or 48 attached devices or servers through a single IP address using any SSH or telnet client. Up to two 16 Port Serial Console Servers or one 48 Port Serial Console Server can be mounted in a single "U" of rack space.

The HPE Serial Console Server will reconfigure, reboot and reimage remotely even if the primary data network is down to minimize disruption and downtime from a single console. With its powerful user access control and streamline management from the Virtual Media option, the HPE Serial Console Server grants access to specified users or even implements LDAP directory authentication while allowing servers to access storage media. Security for servers is controlled by user names, passwords, and access rights configured and stored in non volatile memory in the Serial Console Server for up to 64 users or through RADIUS. The HPE Serial Console Servers offer the security, flexibility, and efficiency that meets the needs of the most demanding IT environments.

What's New

• Auto-senses pin out configuration for seamless connection
• Management port for direct connection
• More secure, stable command line recovery of equipment
• On board Ethernet and modem (48-port model only) for in-band and out-of-band support.
• External device connectivity such as a modem, sensor or mass storage device (16-port model)



Target Applications and Markets

Small data centers, remote and branch offices, server rooms, network closets. Whether the data center is in the closet, next to a desk, or across the globe in a remote office, today's IT professional needs access to servers non-stop.

• Secure console and power management

- The HPE Serial Console Server enables staffed data centers to move people out of computer rooms while still maintaining server accessibility. Technicians can access servers or devices from their local work station through a LAN/WAN connection.

• Server and network management

- The HPE Serial Console Server provides users with access to local console functions over their LAN or WAN. Remote users can access servers or devices and perform actions as if they are standing at a local console.

• Heterogeneous environments

- The HPE Serial Console Server connects to any type of server or serially managed device that has a standard DB9 or RJ45 RS-232 serial connection.

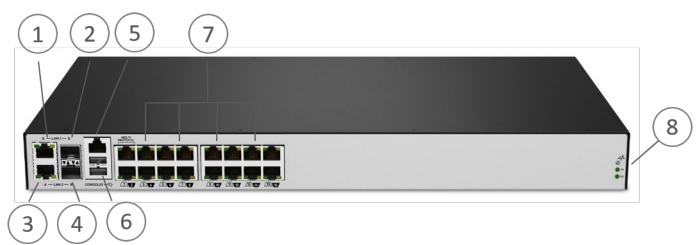

HPE 16 Port Serial Console Server

1.

1. LAN1 A RJ45 Network Interface connector

6.

(2) USB ports

2.

2. LAN1 B Fiber optic network connector

7.

Serial connection ports 1-16 including (2) Multi Protocol ports that can accept RS422 or RS485 pin outs in addition to ACS and Cisco

3.

3. LAN2 A RJ45 Network Interface connector

8.

Status LEDs

4.

4. LAN2 B Fiber optic network connector

Green indicates booted and initialized

5.

5. Console management port

P1 LED indicates active power supply

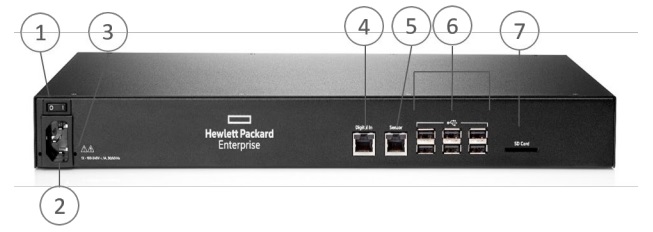

1.

1.On/off switch

4.

Digital In Sensor port not available on this model

2.

2. Power cord connector

5.

Analog In Sensor port dry contact not available on this model

3.

3. Cable management retention bracket holes

6.

USB ports

7.

SD Card slot

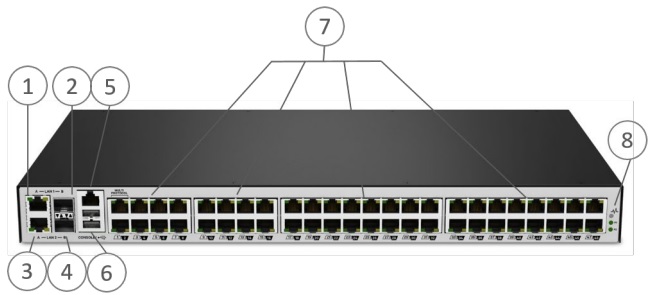

HPE 48 Port Serial Console Server

1.

LAN1 A RJ45 Network Interface connector

6.

(2) USB ports

2.

LAN1 B Fiber optic network connector

7.

Serial connection ports 1-48 including (2) Multi Protocol ports that can accept RS422 or RS485 pin outs in addition to ACS and Cisco

3.

LAN2 A RJ45 Network Interface connector

8.

Status LEDs

4.

LAN2 B Fiber optic network connector

Green indicates booted and initialized

5.

Console management port

P1 LED indicates active power supply

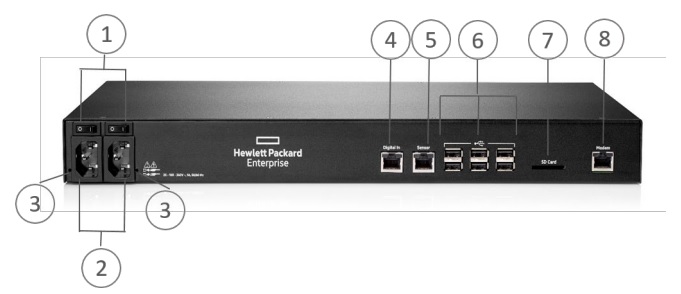

1.

On/off switch

5.

Analog In Sensor port dry contact not available on this model

2.

Power cord connector

6.

USB ports

3.

Cable management retention bracket holes

7.

SD Card slot

4.

Digital In Sensor port not available on this model

8.

V.92/56K analog MODEM port

HPE Serial Console Servers

HPE 16-port WW Serial Console Server

Q1P52A

HPE RJ45-DB9 DCE Female Serial Adapter

Q5T64A

Additional HPE Rackmount UPS models

HPE Serial Console Servers

HPE 48-port WW Serial Console Server

Q1P53A

HPE RJ45-DB9 DCE Female 8-pack Serial Adapter

Q5T65A

XXXXXX-X21 is SKU designation formed by a common six digit part number and a -X21 suffix that identifies a SKU that is available across multiple server family lines.  Refer to the table below to find the SKU suffix that applies to the specific server product line this option can be ordered with.

-B21

-H21

-K21

COMPUTE Server Line

SPECIALIZED COMPUTE Server Line

STORAGE Line

HPE Cloudline CL2100/CL2200/CL2800/CL3100/
CL4100/CL5200/CL5800 Servers

HPE Composable Cloud for ProLiant DL

HPE ProLiant BL460c/BL660c Servers

HPE ProLiant DL20/DL160/DL180 Servers

HPE ProLiant DL325/DL360/DL380/
DL385/DL560/DL580 Servers

HPE ProLiant DX360/DX380 Servers

HPE ProLiant MicroServer

HPE ProLiant for Microsoft Azure Stack

HPE ProLiant ML30/ML110/ML350 Servers

HPE Synergy 480/660 Systems

HPE ProLiant DX170r/DX190r, DX2000 Servers

HPE ProLiant DX560 Gen10 server

HPE ProLiant DX4200 Gen10 server

HPE Apollo 35/40/70 Systems

HPE Apollo 2000/6000 Servers

HPE XL170r/XL190r/XL270d (Apollo 6500) Gen10 Server for BlueData  Software

HPE Converged System 300/500/700/750

HPE Edgeline Systems and Servers

HPE Integrity BL860c i6/BL870c i6/BL890c i6 Server Blades

HPE Integrity MC990 X Server

HPE Integrity rx2800 i6 Server

HPE Integrity Superdome

HPE SGI 8600 System

HPE Solutions for SAP HANA (TDI)

HPE Apollo 4200 Gen9/Gen10 Servers

HPE Apollo 4200 Gen10 LFF Server for BlueData Software

HPE Apollo 4510 Gen10 System

HPE D2220sb/D2500sb Storage Blade

HPE D3000/D6020/D8000 Disk Enclosures

HPE Scalable Object Storage with Scality RING

HPE SimpliVity 2600

HPE SimpliVity 325/380 Gen10

HPE Storage File Controllers

HPE StoreEasy 1460/1560/1650/1660/1860

Disclaimer: This may not be a complete listing of applicable servers

Features

• Auto-senses pin out configuration for seamless connection
• Management port for direct connection
• 16 and 48 port models available
• More secure, stable command line recovery of equipment
• On board Ethernet and modem (48-port model only) for in-band and out-of-band support.
• External device connectivity such as a modem, sensor or mass storage device (16-port model)
• On board fail-over for maximum availability

- Automatic Ethernet or modem failover using second GbE port

- Dual power supplies keep your console working (48-port model only)

- Dual Gigabit Ethernet support allows you to access your console and through it your equipment even in a system failure

- USB port for direct connection

• Secure, remote control with enhanced security, data logging and event monitoring.

- Preset security profiles include secure mode, moderate and open. Customizable, multiple access levels for secure management.

- X.509 SSH certificate support

- Two-factor authentication (RSA SecurID®)

- One-Time Password (OTP) authentication

- Local, backup-user authentication support

• Console management, port access, system management

- Unlimited number of simultaneous sessions, configurable event notification (email, pager, SNMP trap), customizable global time zone support, multiple and customizable user levels of access

- Port access directly by server name or device name, CLI command, simultaneous

- Telnet and SSH access

- Configuration wizard in Web for first-time users, auto-discovery for automatic deployment, command line interface (CLI), and Web Management Interface

• Port buffer holds the most recent 64KB of online and offline serial data and can be configured to write port data to a NFS server.
• Redundant fans on 48 Port Serial Console Server.
• Integrated support for 1 Gb SFP fiber modules

Why HPE?

What is the Hewlett Packard Enterprise advantage for you?

While you have many choices for rack and power infrastructure products, HPE offers an extensive range of rack, power, and HPE KVM products to meet all your needs. What is the HPE advantage for you? HPE can help to simplify your IT purchasing, installation, usage, and maintenance for your organization by providing a single point of contact for all your needs. The HPE KVM products are designed and developed to be used specifically with HPE servers and storage. You can use HPE KVM products with non-HP IT equipment; however, when used with HP servers, you are able to take advantage of various server and IP-based tools used for maintaining and managing all the equipment in the rack.

HPE Services operational services purchased for servers and storage extend to our rack and power infrastructure products such as racks, power distribution units, uninterruptible power systems, and KVM console switches.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

The HPE serial consoling solution utilizes CAT5 UTP cables to connect to any serially managed device, facilitating cable routing and allowing for field termination of cable lengths. The optional adapter is used to convert the serial signal to RJ45.
