R7000 Uninterruptible Power System (UPS) | |||
|
The innovative Minimally Switched Technology used in the new HPE R7000 UPS improves the performance over traditional line-interactive UPS designs while reducing the cost, weight, and size of traditional double-conversion online UPS designs. The digital signal processing (DSP) enables complete digital control of the UPS resulting in increased power conditioning, lower system cost, and enhanced user interface interactivity. DSP technology enables the practical implementation of sophisticated UPS topologies and controls. The DSP can simultaneously control multiple power converters to optimize system efficiency and other performance characteristics such as: enhanced battery management for extended battery life, and improved output voltage regulation. The result is a higher performance UPS in smaller, lighter, more reliable designs-an advantage for space-constrained equipment racks and cost conscious, co-located data center applications. | |||
|
| |||
|

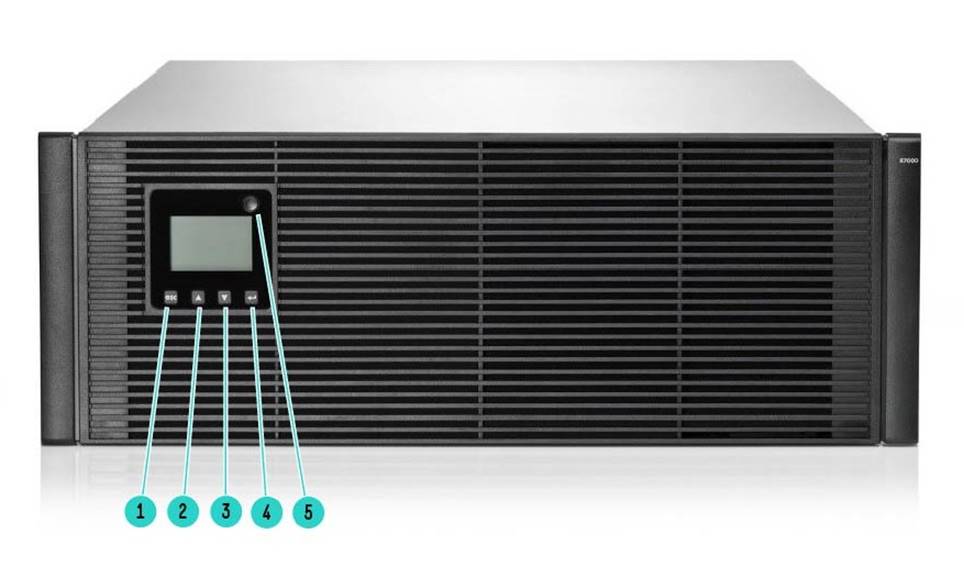

Front View | |||
|
1. |
Escape Button |
4. |
Enter/Select button |
|
2. |
Scroll up button |
5. |
Power button |
|
3. |
Scroll down button |
|
|
|
| |||
|
| |||
|

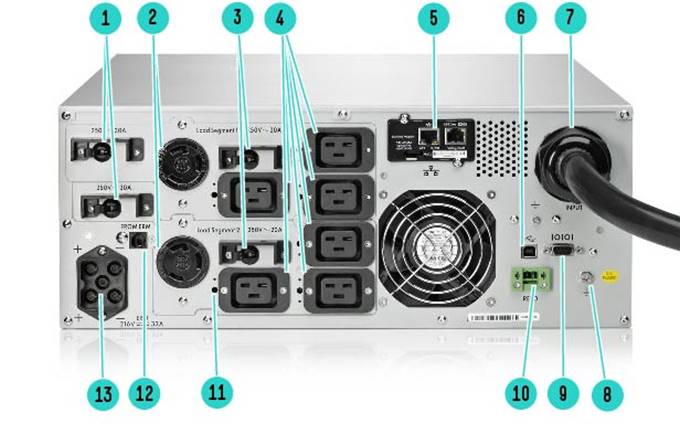

Rear View | |||
|
1. |
Circuit Breaker (controls L6-30R receptacle for NA/JPN,) |
8. |
Ground bonding screw |
|
2. |
Large output NEMA L6-30R receptacle (NA/JPN) or IEC-60309 32A receptacle on short cords (INTL) associated with load segment 1 |
9. |
Serial communications port |
|
3. |
Circuit Breaker (controls the C19 receptacles, but does not control the large output receptacle) |
10. |
REPO port |
|
4. |
3 x IEC C19 receptacles |
11. |
Cord retention clip attachment locations |
|
5. |
HPE UPS Network Module |
12. |
ERM communication port |
|
6. |
USB communications port |
13. |
ERM connector for the large plug on the split ERM cable |
|
7. |
Input power line cord with NEMA CS8265C plug (NA/JPN) or IEC-309-32A plug (INTL) |
|
|
|
| |||
|
Models NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. |
|
|
HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System |
AF462A |
|
HPE R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System |
AF463A |
|
|
|
|
Kit Contents
|
|
Standard Features
|
Key Features
*Load protection guarantee available in North America only.)
|
|
|
|
4U Power Packed Design Rated at unity power at 7200VA /7200W for the NA/Japan model, and 6500VA/6500W on the international model, the HPE UPS R7000 packs more power in space-conserving rack-mount design, allowing you to support more critical equipment in your rack. |
|
|
|
Increase System Uptime with Extended Runtime Modules The Extended Runtime Modules are rack mounted battery modules that occupy 3U (5.25 inches) of rack space. The HPE UPS R7000 supports up to four Extended Runtime Modules (ERM), which extend your overall battery runtime. |
|
|
|
Lower Cost of Ownership with Innovative Technology The HPE UPS R7000 utilizes a Digital Signal Processing industry-leading technology that continually conditions and regulates power without using the battery, thereby increasing the life of the battery. The output voltage is automatically regulated, based on the connected load and the input voltage. |
|
|
|
Investment Protection with HPE Enhanced Battery Management HPE UPS R7000 incorporates Enhanced Battery Management: an exclusive, patented technology that doubles battery service life, optimizes battery recharge time, and provides advance notice of pending battery failure. With Enhanced Battery Management, you can save 2-3 battery replacements over the life of the UPS saving hundreds of dollars giving you a lower total cost of ownership while still receiving the power protection for your critical equipment. |
|
|
|
Enhanced Flexibility Six C19 outlets, and two L6-30 outlet (2x 32A IEC on the International model) provide a wide range of connection options. Two included Extension Bars provide an addition 14 C13 outlets if needed. Adding additional HPE PDU Extension Bars, AF500A, provides additional C13 outlets making the R7000 and extremely flexible UPS for all environments. |
|
|
|
Remotely Monitor UPSs on the Network The installed UPS Network Module enables network administrators to remotely monitor UPSs and reboot network devices. It provides SNMP functionality, including power event alerts, network power diagnostics, and remote UPS reboot and testing. Used in conjunction with HPE Systems Insight Manager or other SNMP capable Network Management Software, power-related problems on the network are quickly discovered and remedied. |
|
|
|
Easy Configuration via Enhanced Front Panel Display LCD system integrated into the front panel with five button controls (three buttons for UPS power control and one button under the front bezel for configuration) |
|
|
|
Independently Controllable Load Segments With two load segments, you have the flexibility to configure scheduled startups and shutdowns, in addition to independently control the separate load segments. Working in conjunction with HPE UPS Network Module, the HPE UPS R7000 can be configured to extend the runtime for more critical devices. |
|
|
|
Ease of Maintenance with Hot-Swappable Batteries and Electronics Modules The UPS R7000 is modular in design, and both the battery and the electronics modules are hot swappable. HPE UPSs are designed with simple access through the front panel. Users can safely install new batteries without ever powering down connected server and server options. |
|
|
|
Extended Runtime Module (ERM), R7000 The UPS R7000 supports up to four Extended Runtime Modules. Each module is 3U (5.25 inches), a rack mountable battery module that extends your overall battery runtime. |
|
|
|
HPE Quality The HPE hardware qualification is the toughest in the industry. Extensive evaluation, testing, product improvement, and an unsurpassed warranty guarantee the highest level of system protection, electrical performance, product quality and compatibility. |
|
|
|
Compatibility Compatible with all Hewlett Packard Enterprise servers, storage, racks, rack options, and other rack mountable Hewlett Packard Enterprise equipment. For PDU options please refer to the UPS/PDU compatibility matrix on HPE Uninterruptible Power Systems (UPS) web page. NOTE: for information on these products and their specifications , please see the HPE Line Interactive Single Phase UPS QuickSpecs |
|
|
|
Warranty The HPE UPS R7000 is covered by a three year warranty, with the first year including parts and labor. Also, standard on all HPE UPS units, is our exclusive Battery Pre-Failure Warning which extends the advantage of a HPE three-year, limited warranty by applying it to the battery before it fails. This warranty is offered worldwide. Specifically, the Pre-Failure Battery Warranty ensures that when customers receive notification from the HPE UPS Network Module that the battery may fail, the battery is replaced free of charge under the warranty. All HPE Rackmount UPSs are also automatically covered to the full service level of ProLiant Pointnext in the same rack so there is no need to purchase additional Pointnext for the UPSs. Batteries are not covered under Pointnext Coverage NOTE: $250,000 Computer/Load Protection Guarantee is also provided in NA, in addition to the HPE three year, limited warranty. |
|
|
|
Service and Support HPE Technology Services HPE Technology Services offers you consultants and support experts to solve your most complex infrastructure problems. We help keep your business running, boost availability and avoid downtime. Protect your business beyond warranty with HPE Pointnext operational Services When you buy HPE Options, it's also a good time to think about what level of service you may need. HPE Pointnext operational services provide total care and support expertise with committed response choices designed to meet your IT and business need. |
|
|
|
Recommended HPE Pointnext operational Services for optimal satisfaction with your HPE product |
|
Recommended Services 3-Year HPE 24x7 4 hour Response, Hardware Support Onsite Service Provides you with rapid remote support and if required an Hewlett Packard Enterprise Authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged. Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner https://www.hpe.com/h20195/v2/getpdf.aspx/5981-9356en |
|
|
Service and Support
|
Related HPE Pointnext operational Services to enhance your HPE product experience Related Services 3-Year HPE 6 hour Hardware Support Onsite Call-to-Repair Service Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 hours of the initial service request to the HPE Global Solution Center. HPE Proactive Select Service Provides a flexible way to purchase HPE best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months. |
|
|
|
Insight Remote Support Delivers secure remote monitoring and support for Hewlett Packard Enterprise servers and storage, 24x7 at no additional cost. Available as part of HPE Warranty, PointNext and Service Contract offers. |
|
|
|
Parts and materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
|
|
Coverage For ProLiant servers and storage systems, this service covers HPE-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22 inches and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HPE as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option. |
|
|
|
For more information To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: https://www.hpe.com/us/en/support.html or https://www.hpe.com/us/en/services/operational.html |
|
|
Related Options
|
HPE UPS Options |
|
|
HPE R5KVA and R7KVA 3U Extended Runtime Module |
AF464A |
|
| |
|
HPE Pointnext operational |
|
|
HPE Install Universal Power Supply 3KVA to Below 6KVA Service |
U4693E |
|
| |
UPS Model Matrix
|
High Voltage Models | ||||
|
Operating Voltage Settings |
Power Out (VA/Watts) |
Input Connection |
Output Connection |
Part Number |
|
200/208* |
7200VA/7200W |
Hubble CS8265C, |
LS1: 15A CB - 3 x C19 + 1 x L6-30R |
AF462A (NA/JPN) |
|
220, 230*, 240 |
6300VA/ 6300W @230V input |
IEC-309 32A, |
LS1: 15A CB - 3 x C19 + + one pigtailed receptacle IEC-309 32A LS2: 15A CB - 3 x C19 + + one pigtailed receptacle IEC-309 32A |
AF463A (International) |
|
* Factory default setting. | ||||
|
| ||||
Estimated Backup Times Chart (Minutes)
|
All Models | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Specifications
|
Unit Dimensions(HxWxD) |
6.75 x 17.2 x 28.9 in (17.1 x 43.7 x 73.4 cm) | |
|
Unit Weight |
165 lb/75 kg | |
|
Shipping Weight |
210 lb/100 kg | |
|
BTU Break Down |
BTU On Line |
649 INTL, 581 NA/JPN |
|
BTU On Battery |
1290 INTL, 1501 NA/JPN | |
|
Battery String Voltage |
216V | |
|
Battery Type |
12V 45W | |
|
Battery Quantity |
18 | |
|
Electrical Input |
Voltage Range |
160-253V at 200/208V nominal; 160-253V at 220, 230, and 240V nominal |
|
Frequency |
50/60 Hz | |
|
Input Plug |
Part number AF462A: Hubble CS6285C, 3 m cord | |
|
Online Efficiency |
95% | |
|
REPO |
Remote Emergency Power-Off disables AC power to load | |
|
Electrical Output |
Online Regulation |
-10% to +6% of nominal voltage |
|
On battery Regulation |
±5% of nominal voltage | |
|
Voltage Wave Form |
Sine wave | |
|
Connections |
See Model Selection Matrix; divided into 2 Load Segments | |
|
Output Protection |
Re-settable circuit protectors | |
|
Battery |
Type |
Maintenance-free, sealed, valve-regulated lead acid (VRLA) |
|
Extended Batteries |
Up to four ERMs supported | |
|
Backup Time |
See Backup Times Chart | |
|
Recharge Time |
<3 hours to 80% usable capacity; <48 hours for complete recharge | |
|
Battery String Voltage |
216V | |
|
Battery Type |
12V 45W | |
|
Battery Quantity |
18 | |
|
Maximum wattage based on voltage input |
AF426A NA/JPN |
200-240V: 7200VA/7200W |
|
AF463A INTL |
220V: 6100VA/6100W 230V: 6300VA/6300W 240V: 6500VA/6500W | |
|
Communications |
Serial Ports |
Standard DB-9 ports (ships with communication cable) |
|
Included |
HPE UPS Network Module | |
|
LED Indicators |
LED and switch membrane integrated into the front panel; with four-button control (three buttons for UPS power control and one button under the front bezel for configuration). | |
|
Environmental and Safety |
Operating Temperature |
50° to 104° F (10° to 40° C ) |
|
Transit Temperature |
-13° to 131° F (-25° to 55° C) | |
|
Storage Temperature |
32° to 77° F (0° to 25° C ) | |
|
Operating Humidity |
20% to 80% (non-condensing) | |
|
Storage Humidity |
5% to 95% | |
|
Operating Altitude |
Up to 6,562 ft (2000 m) above sea level | |
|
Transit Altitude |
49,212 ft (15,000 m) above sea level | |
|
Audible Noise |
<46db (at 1m from surface of unit) | |
|
Safety Markings |
NA/JPN: UL, cUL Int'l: GS, CE, GOST | |
|
Safety Certifications |
UL1778, UL60950-1; CSA22.2 No.107.3, No.60-1950; EN50091-1-1; EN60950-1 IEC62040-1-1 | |
|
EMC Markings |
NA/JPN: FCC, VCCI, ICES, CISPR Int'l: BSMI, C-Tick, CISPR | |
|
Emissions |
FCC CFR 47, Part 15 Class A, EN50091-2 | |
|
Immunity |
IEC 801-2, IEC 801-3, IEC 801-4, IEC 801-5 | |
|
REPO Port |
Meets NEC code 645-11 intent and UL requirements | |
|
| ||
|
