R5000 Uninterruptible Power System (UPS)

The innovative Minimally Switched Technology used in the HPE R5000 UPS improves the performance over traditional line-interactive UPS designs while reducing the cost, weight, and size of traditional double-conversion online UPS designs. The digital signal processing (DSP) enables complete digital control of the UPS resulting in increased power conditioning, lower system cost, and enhanced user interface interactivity.

DSP technology enables the practical implementation of sophisticated UPS topologies and controls. The DSP can simultaneously control multiple power converters to optimize system efficiency and other performance characteristics such as: enhanced battery management for extended battery life, and improved output voltage regulation. The result is a higher performance UPS in smaller, lighter, more reliable designs-an advantage for space-constrained equipment racks and cost conscious, co-located data center applications.

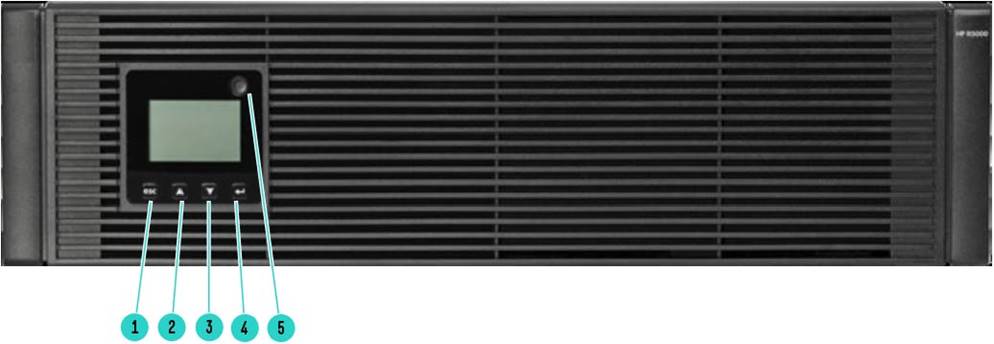

Front View

1.

Escape Button

4.

Enter/Select button

2.

Scroll up button

5.

Power button

3.

Scroll down button

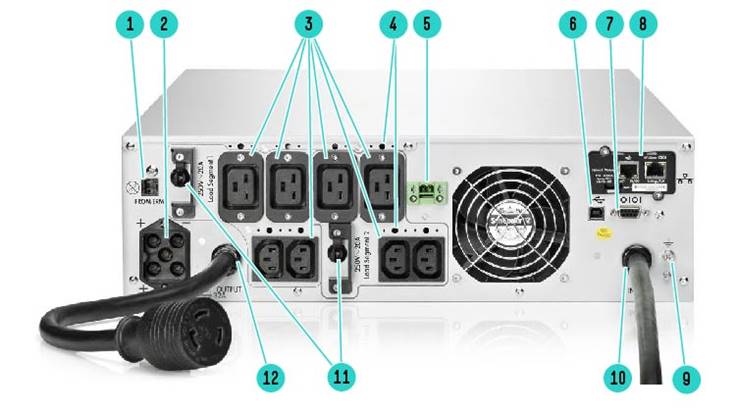

Rear View

1.

ERM connector for the small plug on the split ERM cable

7.

Serial communications port

2.

ERM Connector for large plug

8.

HPE UPS Network Module (included)

3.

IEC-320-C19 receptacles, IEC-320-C13 receptacles)

9.

Ground bonding screw

4.

Cord retention clip attachment locations

10.

Input power line cord with NEMA L6-30 plug (NA/JPN) or IEC-309-32A plug (INTL)

5.

REPO port

11.

Circuit breaker (controls the C19 and C13 receptacles, but does not control the large output receptacle)

6.

USB communications port

12.

Large output NEMA L6-30R receptacle (NA/JPN) or IEC-309-32A receptacle (INTL) associated with load segment 1

Models

NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated.

HPE R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A

HPE R5000 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

Kit Contents

• HPE UPS R5000
• HPE UPS Network Module
• Power Products Documentation CD
• Depth adjustable fixed rack mounting rails, mounting brackets, cord retention clips
• Communications cable
• Two 10 Amp IEC to IEC jumper cords

Key Features

• High power density with 5000VA/4500 Watts of power packed in just 3U rack space
• Greater system uptime with support for Extended Runtime Modules (ERM)
• Easy configuration through enhanced front panel display
• Enterprise-wide intelligent manageability with bundled UPS Network Module and HPE Power Protector software
• More efficient voltage regulation with revolutionary Digital Signal Processing technology
• Ultimate long-term battery reliability with HPE Enhanced Battery Management
• Enhanced system flexibility with two independently controlled load segments
• Support for Remote Emergency Power Off (REPO) circuitry
• Easy serviceability through modular design
• Hot-Swappable Battery
• Backed by a three year warranty with the first year including parts and labor. The HPE Pre-Failure warranty, and a $250,000 load protection guarantee*. (Certain restrictions and exclusions apply;

*Load protection guarantee available in North America only.)

• Optional Extended Runtime Modules (ERM) increase batter runtime during a power failure

3U Power Packed Design

Rated near unity at 5000VA / 4500W, the HPE UPS R5000 packs more power in space-conserving rack-mount design, allowing you to support more critical equipment in your rack.

Increase System Uptime with Extended Runtime Modules

The Extended Runtime Modules are rack mounted battery modules that occupy 3U (5.25 inches) of rack space. The HPE UPS R5000 supports up to four Extended Runtime Modules (ERM), which extends your overall battery runtime.

Lower Cost of Ownership with Innovative Technology

The HPE UPS R5000 utilizes a new industry-leading technology that continually conditions and regulates power without using the battery, thereby increasing the life of the battery. The output voltage is automatically regulated, based on the connected load and the input voltage.

Investment Protection with HPE Enhanced Battery Management

HPE UPS R5000 incorporates Enhanced Battery Management: an exclusive, patented technology that doubles battery service life, optimizes battery recharge time, and provides advance notice of pending battery failure. With Enhanced Battery Management, you can save 2-3 battery replacements over the life of the UPS saving hundreds of dollars giving you a lower total cost of ownership while still receiving the power protection for your critical equipment.

Enhanced Flexibility

Four C13 outlets, four C19 outlets, and a L6-30 outlet (32A IEC on the International model) provide a wide range of connection options. Adding the HPE PDU Extension Bars, AF500A, provides additional C13 outlets making the R5000 and extremely flexible UPS for all environments.

Remotely Monitor UPSs on the Network

The installed UPS Network Module enables network administrators to remotely monitor UPSs and reboot network devices. It provides SNMP functionality, including power event alerts, network power diagnostics, and remote UPS reboot and testing. Used in conjunction with HPE Systems Insight Manager or other SNMP capable Network Management Software, power-related problems on the network are quickly discovered and remedied.

Easy Configuration via Enhanced Front Panel Display

LCD system integrated into the front panel with five button controls (three buttons for UPS power control and one button under the front bezel for configuration)

Independently Controllable Load Segments

With two load segments, you have the flexibility to configure scheduled startups and shutdowns, in addition to independently control the separate load segments. Working in conjunction with HPE UPS Management Module, the HPE UPS R5000 can be configured to extend the runtime for more critical devices.

Ease of Maintenance with Hot-Swappable Batteries and Electronics Modules

The UPS R5000 is modular in design, and both the battery and the electronics modules are hot swappable. HPE UPSs are designed with simple access through the front panel. Users can safely install new batteries and even the electronics module without ever powering down connected server and server options.

Extended Runtime Module (ERM), R5000

The UPS R5000 supports up to four Extended Runtime Modules. Each module is 3U (5.25 inches), a rack mountable battery module that extends your overall battery runtime.

HPE Quality

The HPE hardware qualification is the toughest in the industry. Extensive evaluation, testing, product improvement, and an unsurpassed warranty guarantee the highest level of system protection, electrical performance, product quality and compatibility.

Compatibility

Compatible with all Hewlett Packard Enterprise servers, storage, racks, rack options, and other rack mountable Hewlett Packard Enterprise equipment. For PDU options please refer to the UPS/PDU compatibility matrix on

HPE Uninterruptible Power Systems (UPS) web page.

NOTE: for information on these products and their specifications , please see the HPE Line Interactive Single Phase UPS

Warranty

The HPE UPS R5000 is covered by a three year warranty, with the first year including parts and labor. Also, standard on all HPE UPS units, is our exclusive Pre-Failure Warranty, which extends the advantage of a HPE three-year, limited warranty by applying it to the battery before it actually fails. This warranty is offered worldwide. Specifically, the Pre-Failure Battery Warranty ensures that when customers receive notification from HPE Power Management Software that the battery may fail, the battery is replaced free of charge under the warranty.

All HPE Rackmount UPSs are also automatically covered to the full service level of ProLiant HPE Point next in the same rack so there is no need to purchase additional HPE Point next for the UPSs. Batteries are not covered under HPE Point next Coverage
NOTE: $250,000 Computer/Load Protection Guarantee is also provided in NA, in addition to the HPE three year, limited warranty.

Service and Support

HPE Technology Services

HPE Technology Services offers you consultants and support experts to solve your most complex infrastructure problems. We help keep your business running, boost availability and avoid downtime.

Protect your business beyond warranty with HPE Pointnext operational Services

When you buy HPE Options, it's also a good time to think about what level of service you may need. HPE Pointnext operational services provide total care and support expertise with committed response choices designed to meet your IT and business need.

Recommended HPE Pointnext operational Services for optimal satisfaction with your HPE product

Recommended Services

3-Year HPE 24x7 4-hour Response, Hardware Support Onsite Service

Provides you with rapid remote support and if required an Hewlett Packard Enterprise Authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

HPE ProLiant Server Hardware Installation

Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner

https://www.hpe.com/h20195/v2/getpdf.aspx/5981-9356en

Related HPE Pointnext operational Services to enhance your HPE product experience

Related Services

3-Year HPE 6-hour Hardware Support Onsite Call-to-Repair Service

Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 hours of the initial service request to the HPE Global Solution Center

HPE Proactive Select Service

Provides a flexible way to purchase HPE best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

Insight Remote Support

Delivers secure remote monitoring and support for Hewlett Packard Enterprise servers and storage, 24x7 at no additional cost. Available as part of HPE Warranty, HPE Point next and Service Contract offers.

Parts and materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Coverage

For ProLiant servers and storage systems, this service covers HPE-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22 inches and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by Hewlett Packard Enterprise as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: https://www.hpe.com/us/en/support.html or

https://www.hpe.com/us/en/services/operational.html

HPE UPS Options

HPE R5KVA and R7KVA 3U Extended Runtime Module
NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated.

AF464A

HPE Pointnext operational services

HPE Install Universal Power Supply 3KVA to Below 6KVA Service

U4693E

High Voltage Models

Operating Voltage Settings

Power Out
(VA/Watts)

Input Connection

Output Connection

Part Number

200/208*, 220, 230, 240

5000/4500

L6-30P,

3 m cord

LS1: 15A CB - 2 x C19 + 2 x C13

LS2: 15A CB - 2 x C19 + 2 x C13

Plus one pigtailed receptacle (LS1) 1 x L6-30R for NA/JPN model

AF460A
(NA/JPN)

220, 230*, 240

5000/4500

IEC-309 32Amp,

3 m cord

LS1: 15A CB - 2 x C19 + 2 x C13

LS2: 15A CB - 2 x C19 + 2 x C13

Plus one pigtailed receptacle (LS1)1 x IEC-309 32Amp for Int'l model

AF461A
(International)

* Factory default setting.

Average Battery Runtime

Unit Dimensions (HxWxD)

5.5 x 17.2 x 29.3 in (12.7 x 43.7 x 74.4 cm)

Shipping Dimensions
(HxWxD)

14.4 x 23.6 x 38.78 in (36.58 x 60 x 98.5 cm)

Unit Weight

126 lb (57 kg)

Shipping Weight

192 lb (87 kg)

BTU Break Down

BTU On Line

478 all models

BTU On Battery

846 INTL, 1041 NA/JPN

Battery String Voltage

216V

Battery Type

12V 27W

Battery Quantity

18

Electrical Input

Voltage Range

160-253V at 200/208V nominal; 176-253V at 220, 230, and 240V nominal

Frequency

50/60Hz

Input Plug

Part number AF460A: L6-30P, 3 m cord
Part number AF461A: IEC-309 32Amp, 3 m cord

Online Efficiency

94%

REPO

Remote Emergency Power-Off disables AC power to load

Electrical Output

Online Regulation

-10% to +6% of nominal voltage

On battery Regulation

±5% of nominal voltage

Voltage Wave Form

Sine wave

Connections

See Model Selection Matrix; divided into 2 Load Segments

Output Protection

Re-settable circuit protectors

Battery

Type

Maintenance-free, sealed, valve-regulated lead acid (VRLA)

Extended Batteries

Up to four ERMs supported

Backup Time

See Backup Times Chart

Recharge Time

<3 hours to 80% usable capacity; <48 hours for complete recharge

Battery String Voltage

216V

Battery Type

12V 27W

Battery Quantity

18

Communications

LED Indicators

LCD and switch membrane integrated into the front panel; with five-button control (four buttons for UPS power control and one button under the front bezel for configuration).

Environmental and Safety

Operating Temperature

50° to 104°F (10° to 40°C)

Transit Temperature

-13° to 131°F (-25° to 55°C)

Storage Temperature

32° to 77°F (0° to 25°C)

Operating Humidity

20% to 80% (non-condensing)

Storage Humidity

5% to 95%

Operating Altitude

Up to 6,60 ft (2000 m) above sea level

Transit Altitude

49,000 ft (15,000 m) above sea level

Audible Noise

<45db (in normal operation)

Safety Markings

NA/JPN: UL, cUL
Int'l: GS, CE, GOST

Safety Certifications

UL1778, UL60950-1; CSA22.2 No.107.3, No.60-1950; EN50091-1-1; EN60950-1 IEC62040-1-1

EMC Markings

NA/JPN: FCC, VCCI, ICES, CISPR
Int'l: BSMI, C-Tick, CISPR

Emissions

FCC CFR 47, Part 15 Class A, EN50091-2

Immunity

IEC 801-2, IEC 801-3, IEC 801-4, IEC 801-5

REPO Port

Meets NEC code 645-11 intent and UL requirements

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html. To recycle your product, please go to:

 https://www.hpe.com/us/en/about/environment/product-recycling.html or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered, or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at:

https://www.hpe.com/us/en/about/environment/product-recycling.html.

These instructions may be used by recyclers and other WEEE treatment facilities as well as HPE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
