HPE Location Discovery Services

HPE Location Discovery Services is the first solution that merges the physical rack with IT equipment to provide automated location awareness of installed servers for advanced asset management and workload placement.

HPE 11000G2 and Intelligent Series Racks equipped with the Location Discovery option provide detailed location information to ProLiant Gen8 servers to track new installations and equipment moves. Upon installation the server's iLO queries and records the rack identifier as well as the exact U location of the server in the rack. Once the server knows exactly where it is located this information can be forwarded to other systems such as HPE OneView and HPE Insight Control to automatically update new rack configuration. This saves time in configuring hardware and software to manage the data center while eliminating constant manual updates and the associated human errors that can slow resolution to issues and even cause down time and loss of business.

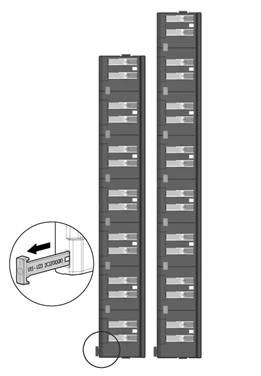

HPE Location Discovery Services - 7U & 8U module view

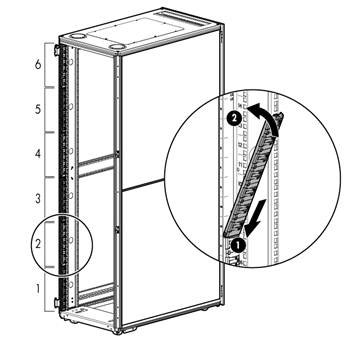

HPE Location Discovery Services - rack view

What's New

• New Location Discovery Services kits for the 11000 G2 Series racks in a 48U height.

HPE Location Discovery Services

HPE 48U Location Discovery Kit

F9V74A

HPE 47U Location Discovery Kit

BW947A

HPE 42U Location Discovery Kit

BW946A

HPE 36U Location Discovery Kit

BW945A

HPE 22U Location Discovery Kit

BW944A

HPE 14U Location Discovery Kit

BW943A

HPE Location Discovery Contact Cover Kit

BW942A

NOTE: Contact covers protect Location Discovery strip contacts in unused rack U space locations. Each Contact Cover Kit contains 25 covers.

Kit Contents

• HPE 48U Location Discovery Kit
  • Six (6) 8U modules
• HPE 47U Location Discovery Kit
  • One (1) 7U module
  • Five (5) 8U modules
• HPE 42U Location Discovery Kit
  • Six (6) 7U module
• HPE 36U Location Discovery Kit
  • Four (4) 7U module
  • One (1) 8U modules
• HPE 22U Location Discovery Kit
  • Two (2) 7U module
  • One (1) 8U modules
• HPE 14U Location Discovery Kit
  • Two (2) 7U module
• HPE Location Discovery Contact Cover Kit
  • Twenty-five (25) individual contact covers

Product Features

• HPE Location Discovery Services is an option to HPE Intelligent Series racks that provides automatic discovery of Location Discovery enabled systems within the rack.
• The HPE Intelligent Series is the first rack family to offer location discovery intelligence for advanced asset management and workload placement information. It provides automatic discovery of Location Discovery enabled systems within the rack, which reduces data center operation costs and eliminates human errors common in inefficient manual documentation processes.
• Data center administrators are now able to automatically and visibly locate Location Discovery enabled systems to the specific U location within a rack.
• Requires a Location Discovery Services enabled HPE ProLiant Gen8 DL or ML series server (see appropriate server QuickSpecs for compatibility)
• Requires HPE Integrated Lights-Out 4 (iLO Advanced) version 1.20 or greater and the latest system bios
• Fully integrates with HPE OneView
• Basic integration with HPE Systems Insight Manager (SIM) requires version 7.1 or greater
• Advanced integration with Insight Control power management (ICpm) requires version 7.1.1 or greater (includes iLO Advanced
• Integration with HPE Discovery Services requires HPE Intelligent Power Distribution Units (iPDU) with firmware version 1.5 or greater
• Three year limited warranty, parts only (3/0/0)

Industry Standard Support

The HPE Intelligent Series Racks with or without Location Discovery installed meet EIA-310-D standards to support HPE and third-party equipment designed to mount in 19-inch wide racks.

Rack Compatibility

All HPE 11000 G2 Series Racks and all HPE Intelligent Series Racks are compatible with HPE Location Discovery Services kits.

NOTE: Please see the following QuickSpecs for part numbers:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123187
(HPE 11000 G2 Series Racks)
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123237
(HPE Intelligent Series Rack)

EIA

N/A

UL/CES Certification

FCC, VCCI, ICES, CE, C-Tick, KCC

WEEE

N/A

RoHS compliant

Yes

Innovative Breakthroughs

• Location Discovery Services provides automatic discovery of the Location Discovery enabled systems within the rack, which reduces data center operation costs and eliminates human error
• Time saving tool less installation

Service and Support

HPE Technology Services
HPE Technology Services offers you technical consultants and support expertise to solve your most complex infrastructure problems. We help keep your business running, boost availability, and avoid downtime.

Protect your business beyond warranty with HPE Pointnext operational services
Like all HPE Rack Options the Location Discovery Kit inherits the Care Pack coverage of ProLiant servers in the same rack. However when you buy HPE Options it is also a good time to think about what level of service you may need. HPE Pointnext operational services provide total care and support expertise with committed response choices designed to meet your IT and business need.

HPE Foundation Care services deliver scalable support-packages for Hewlett Packard Enterprise industry-standard servers and software. You can choose the type and level of service that is most suitable for your business needs. New to this portfolio is HPE Collaborative Support. If you are running business critical environments, Hewlett Packard Enterprise offers Proactive Care or Critical Advantage. These services help you deliver high levels of application availability through proactive service management and advanced technical response.

Here is the support service recommendation from the Foundation Care and Proactive Care portfolio. For customized support service solution, Hewlett Packard Enterprise can work with you to tailor a service solution for your unique support requirements using broader services portfolio of Foundation Care and Proactive Care.

Recommended HPE Pointnext operational services for optimal satisfaction with your HPE product

Recommended Services

3-Year HPE 24x7 4 hour Response, Hardware Support Onsite Service
Provides you with rapid remote support and if required a Hewlett Packard Enterprise Authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

https://www.hpe.com/h20195/v2/getpdf.aspx/5982-6547eee.pdf

OR

3-Year HPE 24x7 4 hour Response, HPE Collaborative Support
Offers customers a single point of contact for server problem diagnosis, hardware problem resolution, and basic software problem diagnosis, fault isolation, and resolution if available to HPE. If the problem is with HPE HW, the representative will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged. In case, the issue is with HPE or supported third-party software product and cannot be resolved by applying known fixes, Hewlett Packard Enterprise will contact the third-party vendor and create a problem incident on your behalf.
HPE ProLiant Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Related HPE Pointnext operational services to enhance your HPE product experience

Related Services

3-Year HPE 24x7 4 hour Response, Proactive Care or Critical Advantage
Helps optimize your systems and delivers high levels of application availability through proactive service management and advanced technical response. A skilled Technical Manager will own your query or issue end to end until resolved, delivering a single point of contact for you

https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-2140enw.pdf

OR

3-Year HPE 6-hour Onsite Call-to-Repair, HPE Collaborative Support

Offers customers a single point of contact for server problem diagnosis, hardware problem resolution to return the hardware in operating condition within 6 hours of the initial service request to the HPE Global Solution Center, and basic software problem diagnosis, fault isolation, and resolution if available to HPE. In case, the issue is with HPE or supported third-party software product and cannot be resolved by applying known fixes, Hewlett Packard Enterprise will contact the third-party vendor and create a problem incident on your behalf.

HPE Proactive Select Service

Provides a flexible way to purchase HPE best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

OneView Support

Location Discovery Services is fully integrated with HPE OneView. Learn more http://www.hp.com/go/insightremotesupport

Insight Remote Support

Provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. Learn more http://www.hp.com/go/insightremotesupport

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Care Pack or Hewlett Packard Enterprise contractual support agreement.

*The Hewlett Packard Enterprise  Support Center Mobile App is subject to local availability

Parts and materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Warranty / Service Coverage

For ProLiant servers and storage systems, this service covers HPE-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HPE as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hp.com/go/HPQO

HPE Pointnext operational services

HPE Install Rack and Rack Options Service

U2871E

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html#.V-lPA_krKiM

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as HPE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html#.V-lPA_krKiM

Date

Version History

Action

Description of Change

23-Oct-2017

Version 6

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

07-Oct-2016

From Version 4 to 5

Changed

QuickSpecs was rebranded.

01-Jun-2015

From Version 3 to 4

Added

New Location Discovery Services kits for the 11000 G2 Series racks in a 48U height.

09-Dec-2013

From Version 2 to 3

Added

Added the What's New section to read:

New Location Discovery Services kits for the 11000 G2 Series racks in 14U and 22U heights.

Added OneView Support to the Service and Support section. And other changes made throughout the QuickSpecs.

04-Dec-2012

From Version 1 to 2

Changed

Changes were made in the Standard Features and Related Options sections.
