HPE Apollo Platform Manager

The HPE Apollo Platform Manager(APM) is a rack level power and system management solution for the HPE Apollo 6000 System, HPE Apollo 4500 System, and HPE Apollo 2000 System.

HPE APM will automatically discover hardware components and enable bay level power on and off, server metering, and aggregate dynamic power capping. HPE APM consolidates Ethernet access to all resident iLOs, and provides a secure single sign on. HPE APM also provides asset management capabilities for shared infrastructure.

HPE APM features rack level event logging, RADIUS authentication, an integrated serial concentrator, up to 11 local user accounts, a read only service port, and supports SNMP, SSH, Syslogd, telnet.

What's New

• Dynamic Rack Power capping
• Unified Ethernet access to all resident iLOs with single sign on capability
• Ability to link multiple APMs together for a "row view" of APM based racks
• Enhanced graphical interface
• RESTful API support
• Can monitor health of all servers in the rack while providing an "at a glance" view

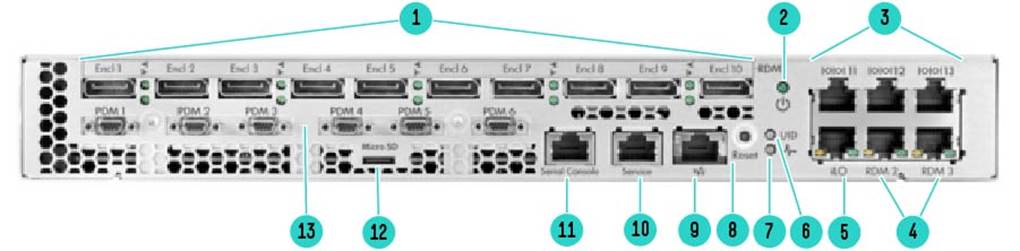

Front View:

1.

Consolidated Management Ports 1 - 10 (RDM1)

8.

Reset Button

2.

Power LED

9.

Ethernet Management port

3.

Serial port for management of top of rack switch

10.

Service port

4.

RDM ports for APM Distribution module

11.

Serial Console port

5.

iLO port

12.

MicroSD Card slot

6.

UID LED

13.

Power Distribution Module (PDM) ports 1 - 6

7.

Health LED

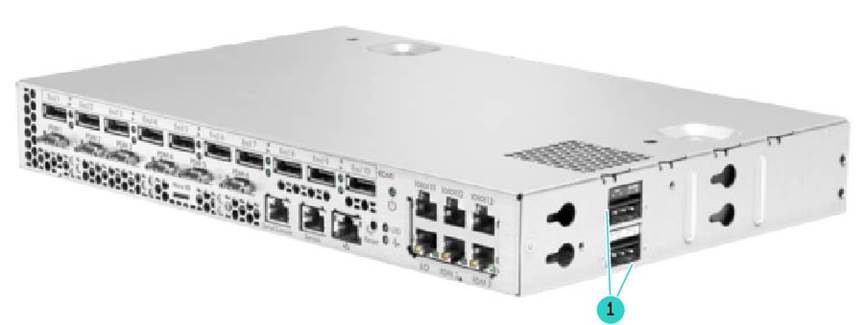

Side View

1.

Reserve

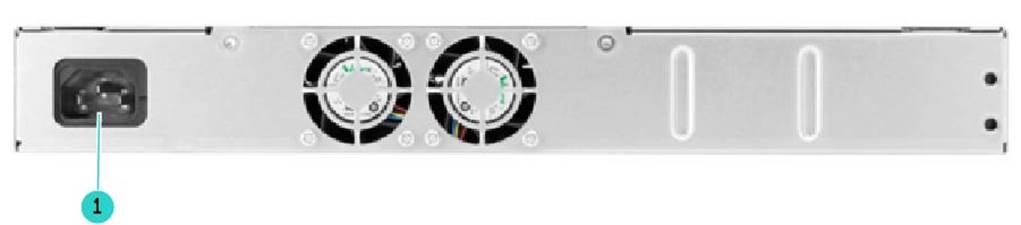

Back View

1.

Power plug

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements.

Notes: Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business day response. Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

Factory Express Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: https://hpe.sharepoint.com/sites/B1/EG/GSC/Pages/Factory-Integration.aspx

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

Notes: Contact your local sales representative for information on configurable product offerings and requirements.

Configuration Example 1

Appropriate for server chassis with consolidated management port such as HPE Apollo systems.

HPE Apollo Platform Manager

HPE Apollo Platform Manager Kit

741192-B21

Notes: Each HPE APM can connect up to 10 server chassis via consolidated management cable.

HPE 4M 20 Pin Consolidated Management Cable

762048-B21

Notes: 1 cable per server chassis.

Configuration Example 2

Appropriate for rack configurations with greater than 10 chassis such as Apollo 2000.

HPE Apollo Platform Manager

HPE Apollo Platform Manager Kit

741192-B21

Notes: Each HPE APM can connect to 2 HPE Advanced Power Manager Distribution (APMD) modules.

HPE Apollo Platform Manager Distribution Module Kit

620002-B21

Notes: Each APMD can connect up to 10 chassis.

System Unit

Chassis Dimensions

(H x W x D)

1.625" x 8.25" x 13" (4.128 x 20.95 x 33.02cm)

Weight

(approximate)

9 lbs

Input Requirements

(per power supply)

Rated Line Voltage

100 to 240 VAC

Rated Input Current

1.0A at 115VAC

1.0A at 230VAC

Rated Input Frequency

50 to 60 Hz

Rated Input Power

12W (at 100 VAC),

12W (at 200 VAC)

Power Specifications

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL:

https://www.hpe.com/us/en/servers.html

653.10W (at 100 VAC),

653.08W (at 200 VAC)

System Inlet Temperature

Operating

50° to 140° F (10° to 60° C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 305 m) above sea level to a maximum of 10,000 ft (3050 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed.

System performance may be reduced if operating with a fan fault or above 86°F (30°C).

Non-operating

-22° to 185° F (-30° to 85° C)

Maximum rate of change is 36°F/hr (20°C/hr).

Relative Humidity

(non-condensing)

Operating

10% to 90% relative humidity (Rh), 82.4°F (28°C) maximum wet bulb temperature, non-condensing.

Non-operating

5% to 95% relative humidity (Rh), 101.7°F (38.7°C) maximum wet bulb temperature, non-condensing.

Altitude

Operating

10,000 ft (3050 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Non-operating

30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Emissions Classification (EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
