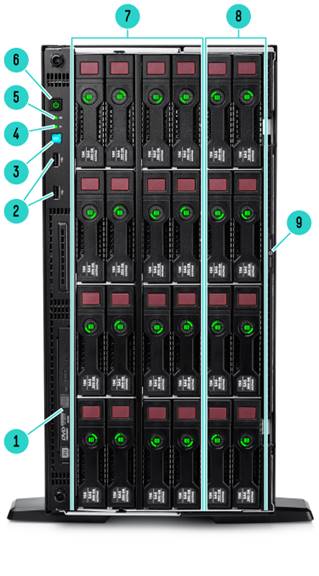

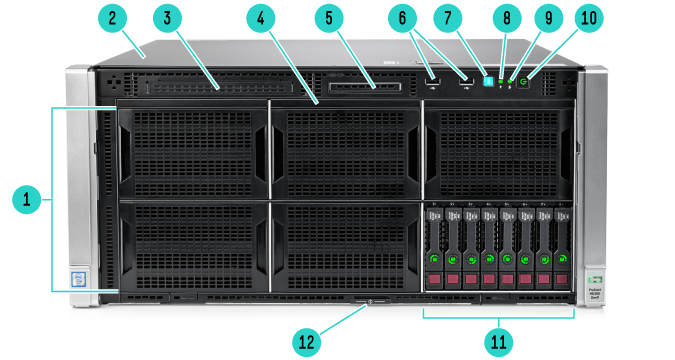

HPE ProLiant ML350 Generation9 (Gen9): технические характеристики и документация

Model

CPU frequency

Cores

L3 Cache

Power

QPI

DDR4 Hz

E5-2699v3

2.3GHz

18

45MB

145W

9.6GT/s

2133

E5-2698v3

2.3GHz

16

40MB

135W

9.6GT/s

2133

E5-2697v3

2.6GHz

14

35MB

145W

9.6GT/s

2133

E5-2695v3

2.3GHz

14

35MB

120W

9.6GT/s

2133

E5-2690v3

2.6GHz

12

30MB

135W

9.6GT/s

2133

E5-2683v3

2.0GHz

14

35MB

120W

9.6GT/s

2133

E5-2680v3

2.5GHz

12

30MB

120W

9.6GT/s

2133

E5-2670v3

2.3GHz

12

30MB

120W

9.6GT/s

2133

E5-2667v3

3.2GHz

8

20MB

135W

9.6GT/s

2133

E5-2660v3

2.6GHz

10

25MB

105W

9.6GT/s

2133

E5-2650v3

2.3GHz

10

25MB

105W

9.6GT/s

2133

E5-2650Lv3

1.8GHz

12

30MB

65W

9.6GT/s

2133

E5-2643v3

3.4GHz

6

20MB

135W

9.6GT/s

2133

E5-2640v3

2.6GHz

8

20MB

90W

8.0GT/s

1866

E5-2637v3

3.5GHz

4

15MB

135W

9.6GT/s

2133

E5-2630v3

2.4GHz

8

20MB

85W

8.0GT/s

1866

E5-2630Lv3

1.8GHz

8

20MB

55W

8.0GT/s

1866

E5-2623v3

3.0GHz

4

10MB

105W

8.0GT/s

1866

E5-2620v3

2.4GHz

6

15MB

85W

8.0GT/s

1866

E5-2609v3

1.9GHz

6

15MB

85W

6.4GT/s

1600

E5-2603v3

1.6GHz

6

15MB

85W

6.4GT/s

1600

E5-2699v4

2.2GHz

22

55MB

145W

9.6GT/s

2400

E5-2698v4

2.2GHz

20

50MB

135W

9.6GT/s

2400

E5-2697v4

2.3GHz

18

45MB

145W

9.6GT/s

2400

E5-2697Av4

2.6GHz

16

40MB

145W

9.6GT/s

2400

E5-2695v4

2.1GHz

18

45MB

120W

9.6GT/s

2400

E5-2690v4

2.6GHz

14

35MB

135W

9.6GT/s

2400

E5-2683v4

2.1GHz

16

40MB

120W

9.6GT/s

2400

E5-2680v4

2.4GHz

14

35MB

120W

9.6GT/s

2400

E5-2667v4

3.2GHz

8

25MB

135W

9.6GT/s

2400

E5-2660v4

2.0GHz

14

35MB

105W

9.6GT/s

2400

E5-2650v4

2.2GHz

12

30MB

105W

9.6GT/s

2400

E5-2650Lv4

1.7GHz

14

35MB

65W

9.6GT/s

2400

E5-2643v4

3.4GHz

6

20MB

135W

9.6GT/s

2400

E5-2640v4

2.4GHz

10

25MB

90W

8.0GT/s

2133

E5-2637v4

3.5GHz

4

15MB

135W

9.6GT/s

2400

E5-2630v4

2.2GHz

10

25MB

85W

8.0GT/s

2133

E5-2630Lv4

1.8GHz

10

25MB

55W

8.0GT/s

2133

E5-2623v4

2.6GHz

4

10MB

85W

8.0GT/s

2133

E5-2620v4

2.1GHz

8

20MB

85W

8.0GT/s

2133

E5-2609v4

1.7GHz

8

20MB

85W

6.4GT/s

1866

E5-2603v4

1.7GHz

6

15MB

85W

6.4GT/s

1866

Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/

On System Management Chipset

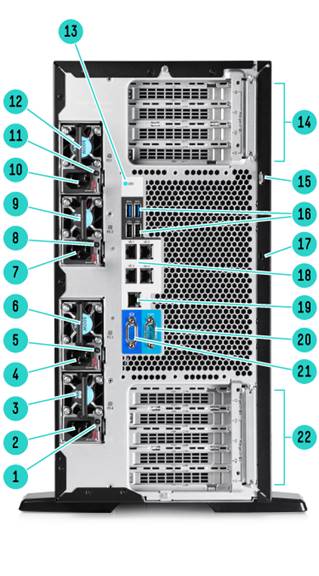

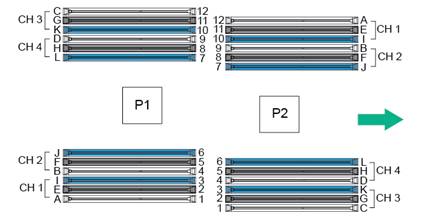

Memory

One of the following depending on model

Type:

Type:

NOTE: Mixing of 2133 and 2400MHz memory is not supported.

Memory Protection

Network Controller

Storage Controller

One of the following depending on model

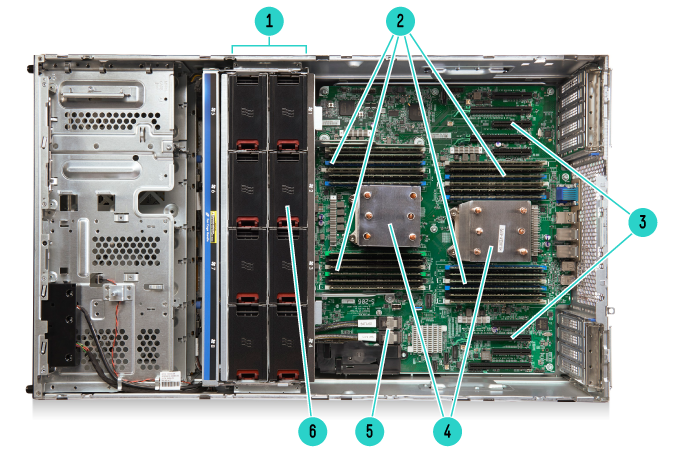

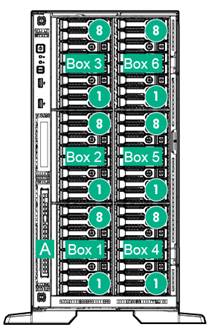

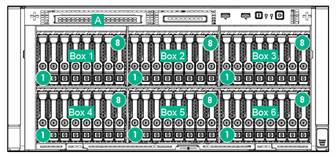

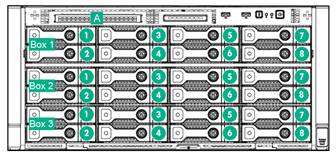

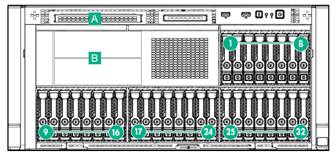

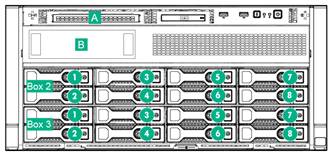

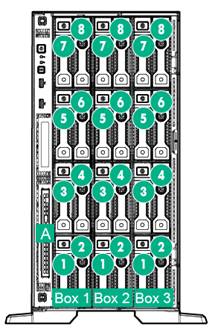

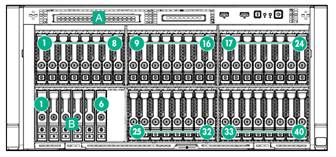

Internal Storage Devices

One of the following depending on model

Maximum Internal Storage

One of the following depending on model

Power Supply

One of the following depending on model

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen9 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at http://www.hpe.com/info/hppoweradvisor.

Power specifications and technical content for all HPE Server power supplies can be found at http://www.hp.com/go/proliant/powersupply.

System Fans

One of the following depending on model

NOTE: Refer to ML350 Gen9 User Guide for fan configuration rules.

Interfaces

Operating Systems and Virtualization Software Support for ProLiant Servers

NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hpe.com/info/ossupport and our driver download page.

Upgradeability

Industry Standard Compliance

Graphics

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.

NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using RESTful API for iLO 4
• PXE boot support for IPv6 networks
• Boot support for option cards that only support a UEFI option ROM
• Network Stack configurations

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen9 Server.

Form Factor

Tower or Rack (5U)

Embedded Management

Server utilities

Security

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HPE replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

Embedded Management

Server Management

Rack and Power Infrastructure

HPE Rack and Power Infrastructure products and services create highly efficient and intelligent solutions for existing or new IT data centers. HPE Rack and Power infrastructure solutions - rack infrastructure, power protection and management, performance optimized data centers (PODs) - are the foundation you are looking for to help secure your long-term IT success. These products are designed to help you react to changes in the industry. They deliver efficient, easy-to-use capabilities to manage, monitor, deploy and provision infrastructure from entry to enterprise. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

Learn more at HPE Rack and Power Infrastructure.

High Performance Clusters

HPC Interconnects

NOTE: High Performance Computing (HPC) interconnect technologies are available for this server under the HPE Cluster Platform product portfolio. These high-speed interconnects are fully supported by Hewlett Packard Enterprise when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPEC Clusters with InfiniBand Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html.

Storage Software

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. http://ocs.ext.hpe.com/.

HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement to the support for need for your IT and business.

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%¹ reduction in down time, near 100%² diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support.

 ^{1- IDC 2 - HP CSC reports 2014 - 2015}

Recommended Support

Standard: HPE Proactive Care* with 24x7 coverage, three year Support Service
HPE Proactive Care gives customers an enhanced call experience. When your products are connected to Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.
https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Optimized HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service
HPE Proactive Care gives customers an enhanced call experience. When your products are connected to Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years' proactive reporting and advice with our highest level of hardware support - Hewlett Packard Enterprise 24x7, six hour hardware call-to-repair. Hewlett Packard Enterprise is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.
https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Parts and Materials

Hewlett Packard Enterprise will provide Hewlett Packard Enterprise-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Related Services

HPE Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Installation and Startup Service
Provides for the installation and startup of Hewlett Packard Enterprise technology including BladeSystems, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).

HPE Technology Services Support Credits
Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers.

Learn more http://www.hpe.com/support/hpesc

The Hewlett Packard Enterprise Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Support Service or Hewlett Packard Enterprise contractual support agreement.

*HPE Support Center Mobile App is subject to local availability.

For more information: http://www.hpe.com/services

Country Code Key

NOTE: Not all models are available in all regions. Check with your local country Hewlett Packard Enterprise offices for availability.

Step 1: Base Configuration (choose one of the following configurable models)

Select one or two processors from Core Options-Processor section below,

• If one processor is desired, select one xxxxxx-L21
• If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.
• Up to 2 processors supported. Mixing different processor models is not supported.
• DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x v#, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number.

Select one or more memory from Core Options-Memory section below,

• UDIMM, RDIMM, and LRDIMM are all distinct memory technologies and cannot be mixed within a server.
• HPE memory options from previous generation servers are not qualified or warranted with Hewlett Packard Enterprise Gen9 systems. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9.
• If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors all DIMM slots are available.
• Depending on the memory configuration and processor model, the memory speed may run at 2400MHz, 2133MHz, 1866MHz or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hpe.com/go/ddr4config.

Select one or more power supplies from Core Options-Power Supplies section below:

• Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor.
• Mixing of power supplies in the same server is not supported. All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.

Select a standup NIC adapter from Core Options-Networking section below,

• Please see the QuickSpecs for Technical Specifications and additional information: http://www.hpe.com/go/ProLiantNICs.
• These options are upgradeable and can be changed from the original configuration after the server is shipped.
• For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

Select one or more drives from Core Options-HPE Drives section below:

• The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
• Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
• The HPE ProLiant Gen9 Smart Storage solutions are equipped with re-designed Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HPE Qualified Hard Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove."

Select one or more graphics adapter from Additional Options section below.

• Please see the HPE Power Advisor for estimated power consumption of your individual system configuration prior to installing GPUs. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor.
• This section may contain FIO options, please see HPE Computation & Graphics Accelerators section below.

Select one or more Unique options from Core Options section below.

• This section may contain FIO options, please see the Unique options section below.
• FIO indicates that this option is only available as a factory installable option.

 Select one or more Fan Kits from Core Options section below.

• This section may contain FIO options, please see HPE Cooling Options section below.
• FIO indicates that this option is only available as a factory installable option.

Select one or more Storage options from Additional Options section below.

• The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be needed, and for CTO orders please also select  the Legacy mode settings part, 758959-B22
• This section may contain FIO options, please see HPE Storage Controllers section below.
• FIO indicates that this option is only available as a factory installable option.

Select one type of rail kit from Additional Options section below.

• Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen9 server.
• To assist in the installation of the server into the rack, an optional installation tool is available by contacting your local services representative (p/n 695539-001).
• See Hewlett Packard Enterprise Rack Options in Additional Options section of this QuickSpecs for more rack kit choices.

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

HPE Unique Options

HPE Processors

E5-2600v4 series Processors

E5-2600v3 series Processors

HPE Memory

HPE Optical Drives

1 Gigabit Ethernet adapters

10 Gigabit Ethernet adapters

25 Gigabit Ethernet adapters

HPE Flex Slot Platinum Hot-plug Power supplies
