HPE ProLiant ML10 Generation9 (Gen9)

HPE ProLiant ML10 Gen9, delivers a full featured single-socket tower server with the right features at a competitive price, easy to use and maintain for growing small businesses and remote branch offices.

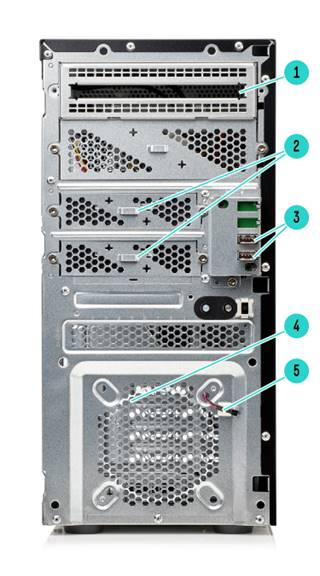

Front View (details for 4LFF)

1.

Media Bay

2.

Hard drive bays

NOTE: To install HDD, must:

a. Power down the server.

b. Remove all power.

c. Disconnect each power cord from the power source.

d. Remove the access panel.

e. Remove the tower bezel.

f. Remove the EMI shield.

3.

USB 2.0 connectors

4.

Drive cage

5.

Ambient temperature sensor

NOTE: To install HDD, must:

a. Power down the server.

b. Remove all power.

c. Disconnect each power cord from the power source.

d. Remove the access panel.

e. Remove the tower bezel.

Remove the EMI shield.

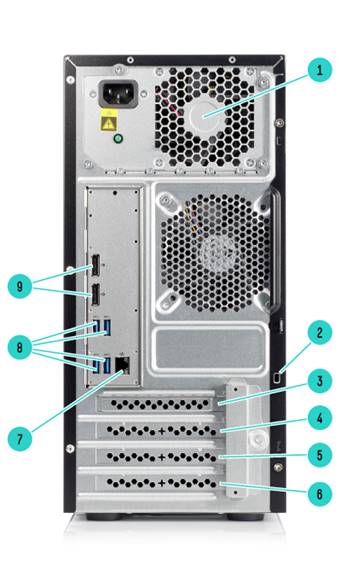

Rear View

1.

Power Supply

2.

Kensington security slot

3.

Slot 1, PCIe3 x 8 (8,4,1)

4.

Slot 2, PCIe3 x 16 (16, 8, 4, 1)

NOTE: For more information on the expansion slot specifications, see PCIe expansion slot definitions.

NOTE: For more information on the expansion slot specifications, see PCIe expansion slot definitions.

5.

Slot 3, PCIe3 x 4 (4,1)

6.

Slot 4, PCIe3 x 4 (1)

NOTE: For more information on the expansion slot specifications, see PCIe expansion slot definitions.

NOTE: For more information on the expansion slot specifications, see PCIe expansion slot definitions.

7.

NIC connector

8.

USB 3.0 connectors

9.

Display ports

NOTE: To connect to a VGA monitor, a DisplayPort to VGA Active Dongle is required.

NOTE: Video output is design for DisplayPort 1.2.

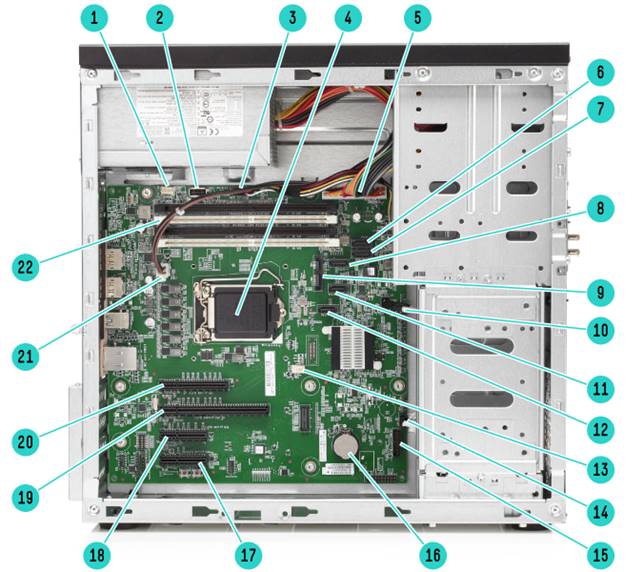

Internal View

1.

System fan connector

2.

Internal USB 2.0 connector

3.

Front LEDs and power button module connector

4.

Processor

5.

24-pin power supply connector

6.

SATA connector 1

7.

SATA connector 2

8.

SATA connector 3

9.

Optical drive connector

10.

Front USB connector

11.

SATA connector 4

12.

SATA connector 5

13.

Heatsink fan connector

14.

Ambient temperature sensor connector

15.

TPM connector

16.

System battery

17.

Slot 4, PCIe3 x 4 (1)

18.

Slot 3, PCIe3 x 4 (4,1)

NOTE: For more information on the expansion slot specifications, see PCIe expansion slot definitions.

NOTE: For more information on the expansion slot specifications, see PCIe expansion slot definitions.

19.

Slot 2, PCIe3 x 16 (16,8,4,1)

20.

Slot 1, PCIe3 x 8 (8,4,1)

NOTE: For more information on the expansion slot specifications, see PCIe expansion slot definitions.

NOTE: For more information on the expansion slot specifications, see PCIe expansion slot definitions.

21.

4-pin power connector

22.

DIMM slots

What's New

• ClearOS, an easy to use OS with an application marketplace, allows you to build a fully functional server that is just right for you at no upfront cost. To learn more on what you can do, please visit http://www.hpe.com/servers/clearos.

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Intel® Xeon® processor E3-1200v5 quad core processor family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. The product also supports Intel® Pentium® and Intel® Core-i3 dual core processors. Choose one of the following processors based on the model:

Processor
One of the following depending on model

Cache Memory

One of the following depending on model

8MB (1 x 8MB) Level 3 cache

NOTE: For Quad-core Intel Xeon® processors.

3MB (1 x 3MB) Level 3 cache

NOTE: For Dual-core Intel Pentium® and Core^TM i3 processors.

Chipset

Intel® C236 Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management

Chipset

Intel® Active Management Technology (Intel® AMT 11.0)

NOTE: The server supports the Intel Standard Manageability when the Intel Pentium or Core i3 processor is installed. The server supports Intel AMT when the Intel Xeon processor is installed in the system.

NOTE: For more information, visit: http://www.intel.com/technology/platform-technology/intel-amt

Memory

Type:

DDR4 Unbuffered (UDIMM)

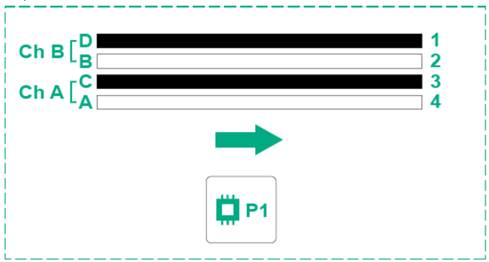

DIMM Slots Available

4

4 DIMMs (2 Channels/ 2 DIMMs per channel)

Maximum Capacity (UDIMM)

64GB

(4 x 16GB UDIMM @2133MHz)

NOTE: For information regarding HPE Server Memory visit: http://www.hp.com/go/memory.

Memory Protection

ECC

Network Controller

Intel® Ethernet Connection I219-LM

Expansion Slots

Expansion Slots #

Technology

Bus
Width

Connector Width

Form Factor

Notes

4

PCIe 3.0

x1

x4

Full height/half length

3

PCIe 3.0

x4

x4

Full height/half length

2

PCIe 3.0

x8

x16

Full height/half length

1

PCIe 3.0

x8

x8

Full height/half length

NOTE: Bus Width indicates the number of physical electrical lanes running to the connector.

Storage Controller
One of the following depending on model

Entry Models

Intel RST SATA RAID

Performance Models

Intel RST SATA RAID

Internal Storage Devices
One of the following depending on model

Optical Drive

Optional SATA 9.5mm DVD-ROM Optical Drive

Optional SATA 9.5mm DVD RW Optical Drive

NOTE: When install ODD, HDD can support up to 5 drives.

NOTE: To install ODD, must purchase HPE ML10 Gen9 Slim ODD Enablement Kit (#836742-B21).

Hard Drives

1 x1TB HPE LFF SATA HDD included in Performance Model

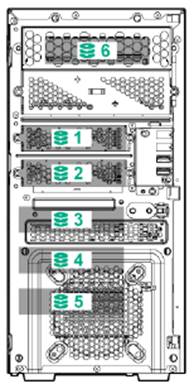

Hard Drive Bays

4 LFF Non-hot plug SATA 3.5" drives

Up to 6 LFF Non-hot plug SATA 3.5" drives

NOTE: HPE ML10 Gen9 HDD Cable Screw Kit (#841425-B21) is required if install the 5th drive. If the 6th drive is required, must purchase HPE ML10 Drive Enablement Kit (#836739-B21).

Maximum Internal Storage

CAPACITY

CONFIGURATION

Non Hot Plug LFF SATA

24TB

6x4 TB

Power Supply

300W Multi-Output Power Supply

NOTE: HPE Entry-Level Power Supplies provide lower-cost options for customers trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs.  All Entry-Level power supply options have been designed specifically for HPE ProLiant Gen9 Essential Series servers.

Power Specification and Technical Content for supported power supplies can be found at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111541.

Required Cabling

Server Power Cords

The ProLiant ML10 Gen9 server is a tower server that ships standard with below power cords:

AMS: US

AP: AU/UK/India/Taiwan/Thailand

Japan: JP

CN: CN

EMEA: EU/UK

If customers require additional local power cords, they can check the power cord matrix for the appropriatecountry specific SKU.

System Fans
One of the following depending on model

Non-redundant

Redundant

1P model

One (1) Non-redundant system fan

Interfaces

Display Port

2 (rear)

NOTE: To connect to a VGA monitor, a DisplayPort to VGA Active Dongle is required.

NOTE: Video output is design for DisplayPort 1.2.

Network RJ-45 (Ethernet)

1 (rear)

USB 3.0

4 (4 rear)

USB 2.0

3 (2 front, 1 internal)

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

ClearOS

NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost.  It is available via CTO preload, Intelligent Provisioning or via download. For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

NOTE: For more information on HPE's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hpe.com/info/ossupport and our driver download page.

Upgradeability

Up to 6LFF Non-hot plug SATA 3.5" drives

NOTE: HPE ML10 Gen9 HDD Cable Screw Kit (#841425-B21) is required if install the 5th drive. If the 6th drive is required, must purchase HPE ML10 Drive Enablement Kit (#836739-B21).

Optical Drive Bay

NOTE: When install ODD, HDD can support up to 5 drives.

NOTE: To install ODD, must purchase HPE ML10 Gen9 Slim ODD Enablement Kit (#836742-B21).

Industry Standard Compliance

PCIe 3.0 Compliant

PXE Support

Microsoft® Logo certifications

USB 2.0 /3.0 Support

Graphics

GPU Support (Xeon Only)

NOTE: Embedded GPU support for Xeon processor only.

Form Factor

Up to 6LFF Drive

Security

Power-on password

Setup password

Power switch security

Administrator's password

TPM 1.2

TPM 2.0

NOTE: HPE Trusted Platform Module 2.0 Option (745823-B21) works with Gen9 servers with UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants. HPE Gen9 servers purchased earlier may need the latest firmware update to be compatible with the TPM 2.0 Option. The earlier HPE Trusted Platform Module Option (488069-B21) is the TPM 1.2 version, which is also available however TPM 2.0 has newer technology standards incorporated. The TPM 1.2 compatible server platforms include Gen8 and Gen9 servers. HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.

UEFI

Warranty

NOTE: Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

HPC Interconnects

NOTE: High Performance Computing (HPC) interconnect technologies are available for this server under the HPE Cluster Platform product portfolio. These high-speed interconnects are fully supported by Hewlett Packard Enterprise when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPEC Clusters with InfiniBand Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html.

ClearOS

HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow.

NOTE: For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. http://ocs.ext.hpe.com/.

HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement to the support for need for your IT and business.

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%¹ reduction in down time, near 100%² diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support.

 ^{1- IDC 2 - HPE CSC reports 2014 - 2015}

Recommended Support

Basic: HPE Foundation Care NBD, three-year Support Service
HPE Foundation Care Next Business Day connects you to Hewlett Packard Enterprise during business hours for assistance on resolving issues - This service features need based next business day hardware onsite response and software call back within two hours. In addition, Collaborative software support and provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call to help resolve hardware or software problems.
https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Standard: HPE Foundation Care 24x7, three-year Support Service
HPE Foundation Care 24x7 gives you access to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. In addition, collaborative software support is included in this service that provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call to help resolve hardware or software problems.
https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Optimized: HPE Foundation Care CTR, three-year Support Service
HPE Foundation Care Call-To-Repair Service connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues -this includes our highest level commitment to repair hardware within six hours after opening your case and respond to software questions within two hours. Hewlett Packard Enterprise is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. In addition, Collaborative software support is included and provides troubleshooting assistance on industry leading software running on your server. Simplify your support experience and make Hewlett Packard Enterprise your first call to help resolve hardware or software problems.
https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Parts and Materials

Hewlett Packard Enterprise will provide Hewlett Packard Enterprise-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Related Services

HPE Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Installation and Startup Service
Provides for the installation and startup of Hewlett Packard Enterprise technology including BladeSystems, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).

HPE Technology Services Support Credits
Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

For more information: http://www.hpe.com/services

1. Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
2. Not all models are available in all regions. Check with your local country Hewlett Packard Enterprise offices for availability.

Country Code Key

xx1 = B21

Worldwide

xx1 = 001

US

xx1 = 421

EU

xx1 = 371

AP

xx1 = 291

Japan

xx1 = AA1

PRC

NOTE: Not all models are available in all regions. Check with your local country Hewlett Packard Enterprise offices for availability.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Unique
Options

HPE ML10 Gen9 Drive Enablement Kit

836739-B21

NOTE: HPE ML10 Gen9 Drive Enablement Kit is required if install 6th HDD.

HPE ML10 Gen9 Slim ODD Enablement Kit

836742-B21

NOTE: HPE ML10 Gen9 Slim ODD Enablement Kit is required if install ODD.

HPE ML10 Gen9 HDD Cable Screw Kit

841425-B21

NOTE: HPE ML10 Gen9 HDD Cable Screw Kit (#841425-B21) is required if install the 5th drive. If the 6th drive is required, must purchase HPE ML10 Drive Enablement Kit (#836739-B21).

HPE Memory

NOTE: For information regarding HPE Server Memory visit: http://www.hp.com/products/memory.

Unbuffered DIMMs (UDIMMs)

HPE 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Unbuffered Standard Memory Kit

805667-B21

HPE 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Unbuffered Standard Memory Kit

805669-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Unbuffered Standard Memory Kit

805671-B21

HPE 8GB (1x8GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Unbuffered Standard Memory Kit

819880-B21

HPE Optical Drives

HP 9.5mm SATA DVD-ROM JackBlack Gen9 Optical Drive

726536-B21

HP 9.5mm SATA DVD-RW JackBlack G9 Optical Drive

726537-B21

HPE ML10 Gen9 Slim ODD Enablement Kit

836742-B21

HPE Drives

NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: HPE ML10 Gen9 HDD Cable Screw Kit (#841425-B21) is required if install the 5th drive.

NOTE: HPE ML10 Gen9 Drive Enablement Kit (#836739-B21) is required if install the 6th drive.

6G SATA Non-hot Plug LFF 7.2K (3.5-inch) Entry Drives

HPE 500GB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

843264-B21

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

843266-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

843268-B21

HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

843270-B21

6G SATA Non-hot Plug LFF 7.2K (3.5-inch) Standard Drives

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

801882-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

801884-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

801888-B21

6G SATA Non-hot Plug LFF 5.9K (3.5-inch) Entry Drives

HPE 4TB SATA 6G Entry 5.9K LFF (3.5in) RW 1yr Wty HDD

815635-B21

Hard Drive Kits

HPE ML10 Gen9 Drive Enablement Kit

836739-B21

HPE ML10 Gen9 HDD Cable Screw Kit

841425-B21

HPE Networking

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port 331T Adapter

647594-B21

HPE Ethernet 1Gb 2-port 332T Adapter

615732-B21

HPE Ethernet 1Gb 2-port 361T Adapter

652497-B21

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Security

HPE Trusted Platform Module 2.0 Kit

745823-B21

HPE Trusted Platform Module Option

488069-B21

NOTE: HPE Trusted Platform Module 2.0 Option (745823-B21) works with Gen9 servers with UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants. HPE Gen9 servers purchased earlier may need the latest firmware update to be compatible with the TPM 2.0 Option. The earlier HPE Trusted Platform Module Option (488069-B21) is the TPM 1.2 version, which is also available however TPM 2.0 has newer technology standards incorporated. The TPM 1.2 compatible server platforms include Gen8 and Gen9 servers. HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.

HPE Storage
Controllers

HPE Host Bus Adapters

HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter

726911-B21

NOTE: Only require when install External Tape Drive.

HPE Tape Backup

NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HPE tape backup products see: http://www.hp.com/storage/SPOCK and http://www.hp.com/go/ebs.

NOTE: Limited to H241 when select Tape Drive.

Tape Drives

HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HPE Uninterruptible Power Systems (UPS)

HPE Tower UPS

HPE T750 G4 UPS Models

HPE T750 G4 NA/JP Uninterruptible Power System

J2P85A

HPE T1000 G4 UPS Models

HPE T1000 G4 NA/JP Uninterruptible Power System

J2P86A

HPE T1500 G4 UPS Models

HPE T1500 G4 NA/JP Uninterruptible Power System

J2P87A

NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

HPE Rack Mount Consoles, KVM Switches, and Keyboards

HPE USB Keyboard and Mouse

HPE USB US Keyboard/Mouse Kit

631341-B21

HPE USB UK Keyboard/Mouse Kit

631344-B21

HPE USB FR Keyboard/Mouse Kit

631346-B21

HPE USB ES Keyboard/Mouse Kit

631348-B21

HPE USB DE Keyboard/Mouse Kit

631358-B21

HPE USB JP Keyboard/Mouse Kit

631360-B21

HPE USB IT Keyboard/Mouse Kit

631362-B21

HPE USB CN Keyboard/Mouse Kit

631364-B21

HPE USB AE Keyboard/Mouse Kit

638212-B21

HPE USB RU Keyboard/Mouse Kit

638214-B21

HPE USB IN Keyboard/Mouse Kit

672097-D63

HPE USB AP/INTL Keyboard/Mouse Kit

672097-373

HPE USB INTL Keyboard/Mouse Kit

672097-B33

HPE USB PT Keyboard/Mouse Kit

672097-133

HPE USB TR Keyboard/Mouse Kit

672097-143

HPE USB CZ Keyboard/Mouse Kit

672097-223

HPE USB FI Keyboard/Mouse Kit

672097-353

HPE USB SE Keyboard/Mouse Kit

672097-103

HPE USB CH Keyboard/Mouse Kit

672097-113

HPE USB KR Keyboard/Mouse Kit

672097-KD3

HPE Support Services

Foundation Care

HPE 3 year Foundation Care Next business day ML10 Gen9 Service

H1RN5E

HPE 3 year Foundation Care Next business day with DMR ML10 Gen9 Service

H1RN6E

HPE 3 year Foundation Care 24x7 ML10 Gen9 Service

H1RN7E

HPE 3 year Foundation Care 24x7 with DMR ML10 Gen9 Service

H1RN8E

HPE 3 year Foundation Care Call to Repair ML10 Gen9 Service

H1RN9E

HPE 3 year Foundation Care Call to Repair with DMR ML10 Gen9 Service

H1RP0E

HPE 3 year Foundation Care Next business day with CDMR ML10 Gen9 Service

H1RQ3E

HPE 3 year Foundation Care 24x7 with CDMR ML10 Gen9 Service

H1RQ4E

HPE 3 year Foundation Care Call to Repair with CDMR ML10 Gen9 Service

H1RQ5E

HPE 3 year Foundation Care Next business day ML10v2 Service

U2GU0E

HPE 3 year Foundation Care Next business day with DMR ML10v2 Service

U2GU1E

HPE 3 year Foundation Care Next business day with CDMR ML10v2 Service

U2GU2E

HPE 3 year Foundation Care 24x7 ML10v2 Service

U2GU3E

HPE 3 year Foundation Care 24x7 wDMR ML10v2 Service

U2GU4E

HPE 3 year Foundation Care 24x7 wCDMR ML10v2 Service

U2GU5E

Proactive Care

HPE 3 year Proactive Care 24x7 ML10v2 Service

U0SC5E

Installation Services

HPE Install ProLiant ML110 Service

U4444E

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HPE Standard Memory
HPE Standard Memory is unique technology which is designed to work on 10/100 series Rack and Tower server. In Gen9 Server HPE Standard Memory has passed HPE's rigorous qualification and test processes. HPE Standard Memory is a certified HPE options and will provide a platform to allow future memory-related support enhancements through HPE Active Health System, System Insight Management and Insight Control management software.

DDR4 memory population guidelines
For detailed memory configuration rules and guidelines, please use the Online DDR4 Memory Configuration Tool: http://h22195.www2.hp.com/MemoryTool/Home/SelectServer.

Memory Population guidelines

General Memory Population Rules and Guidelines:

.

The HPE ProLiant ML10 Gen9 Server has four memory slots

.

There are two channels per server with two DIMM slots per channel

.

Memory channel  consists of the two (2) DIMMs that are closest to the processor

.

Memory channel  consists of the two (2) DIMMs that are furthest from the processor

.

Support for single/dual-rank 2133 MT/s ECC UDIMM (unbuffered DIMMS)

.

The server supports up to 64 GB (4 x 16-GB) for Unbuffered DIMMs

.

When only one processor is installed, install DIMMs in sequential alphabetic order: 3C, 1D, 4A, 2B

.

No support for LRDIMMs; RDIMMs; Non-ECC UDIMMs

.

Do not install DIMMs if the processor is not installed

.

Populate DIMMs from heaviest load (double-rank) to lightest load (single-rank)

.

DIMMs should be populated starting farthest from the processor on each channel

.

Non-ECC DIMMs are not supported

.

Always use HPE qualified DIMMs

Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E3-1200v5 Series Processor Family

DIMM slot and configuration diagram

Standard memory replaced with optional memory (1 CPU model)

• When one processor is installed, install DIMMs in sequential alphabetic order: 3C, 1D, 4A, 2B

Memory Speed by Processor Model

Standard and Maximum Memory Capacity (Pre-configured Models)

DDR4 memory options part number decoder

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 2GB = 2,048MB
• 4GB = 4,096MB
• 8GB = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB
• 64GB = 65,536MB

Max 6 LFF non-hot-plug drive model

1-5

5 x LFF SATA Non-hot-plug Hard Drive Bays

NOTE: HPE ML10 Gen9 HDD Cable Screw Kit (#841425-B21) is required if install the 5th drive.

6

6 LFF SATA Non-hot plug Hard Drive Bay

NOTE: If requires the 6th drive, must purchase HPE ML10 Drive Enablement Kit (#836739-B21).
NOTE: When install ODD, HDD can support up to 5 drives.
NOTE: To install ODD, must purchase HPE ML10 Gen9 Slim ODD Enablement Kit (#836742-B21).

Maximum Storage Capacity

Total (4 LFF Drive)

16 TB

Max (6 LFF Drive)

24 TB

System Unit

Tower Dimensions

14.47(H) x 6.89(W) x 15.79(D) in (36.76 x 17.5 x 40.13 cm)

Tower Weight

Minimum:

14.7lb(6.68kg)

Maximum:

24.29lb(11.04kg)

Input Requirements

Rated Line Voltage

100-120 VAC/200-240 VAC

Rated Input Current

6 A/ 4 A

Rated Input Frequency

50/60 Hz

Rated Input Power

333W at 115 V AC input

333W at 230 V AC input

BTU Rating

Maximum

1133.33 at 115 VAC /1133.33 at 230 VAC

Power Supply Output

Rated Steady-State Power

300 W (at 115 VAC)

300 W (at 230 VAC)

Maximum Peak Power

300 W (at 115 VAC)

300 W (at 230 VAC)

System Inlet Temperature

Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°Cper every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30C to 60C (-22F to 140F)

Relative Humidity

Operating

Minimum to be the higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity Maximum to be 24°C (75.2°F) dew point or 90% relative humidity.

Non-operating

5% to 95% 38.7C (101.7F), maximum wet bulb temperature.

Altitude

Operating

An altitude derating of 1.0°C per 304.8 m (1.8°F per 1000 ft) to3048 m (10,000 ft) is applicable. No direct sunlight allowed. Maximum rate of change is 20°C per hour (36°F per hour). The upper limit and rate of change might be limited by the type and number of options installed.

Non-operating

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

LWAd

3.8 Bels

LpAm

22 dBA

Operating

LWAd

3.8 Bels

LpAm

22 dBA

NOTE: Configurations tested for LFF Pmodels include one (1) 1TB LFF SATA Midline HDD and Windows 2012 R2 64-bit.

NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

Emissions Classification (EMC)

FCC Rating

Class B

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Intel RSTe SATA RAID

Storage protocol support

SATA

SAS/SATA peak data transfer rate

6Gb/s

Number of SAS/SATA links

6 links

SAS/SATA connectivity

6 connectors

Expander support

No

Drives supported (max)

Up to 6 Internal Drives

RAID support

0, 1, 10, 5 SATA

Software management

Intel RST utility

Warranty

Server warranty

HPE Secure Encryption license

Not Supported

HPE SmartCache License

Not Supported

Intel® Ethernet Connection I219-LM

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

IEEE 802.3 10Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3u 100Base-TX

Data Transfer Method

PCI Express, two lanes (x2)

Controller

Intel Ethernet Connection I219-LM

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s per port, 40 Mb/s combined

10Base-T (Full-Duplex)

20 Mb/s per port, 80 Mb/s combined

100Base-TX (Half-Duplex)

100 Mb/s per port, 400 Mb/s combined

100Base-TX (Full-Duplex)

200 Mb/s per port, 800 Mb/s combined

1000Base-TX (Half and Full-Duplex)

1000 Mb/s per port, 4000 Mb/s combined

1000Base-TX (Full-Duplex)

2000 Mb/s per port, 8000 Mb/s combined

Connector

RJ-45

Cable Support

10 Base-T

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

10/100/1000 Base-TX

Category 5 or higher UTP; up to 328 ft (100 m)

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

http://www.hpe.com/recycle

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

http://www.hpe.com/recycle

Date

Version History

Action

Description of Change

11-Jul-2017

From Version 6 to 7

Changed

Operating Systems and Virtualization Software Support for ProLiant Servers section was revised.

8-May-2017

From Version 5 to 6

Added

Added ClearOS support.

28-Nov-2016

From Version 4 to 5

Changed

Maximum Storage Capacity and Internal Storage Devices were revised.

15-Aug-2016

From Version 3 to 4

Added

Added T750, T1000, T1500 G4 Tower UPS models.

Changed

Interfaces section was revised.

6-Jun-2016

From Version 2 to 3

Changed

Memory, Upgradeability, and Storage were revised.

31-Mar-2016

From Version 1 to 2

Added

Added new Security TMP option.

Changed

Security, Service and Support, and Pre-configured Models sections were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.
