HPE ProLiant DX380 Gen10 server

The HPE ProLiant DX380 Gen10 server along with Nutanix provide a global partnership to deliver hyper-converged solutions in an on premise appliance or through the HPE Greenlake consumption model.. This offering will leverage Nutanix's free AHV hypervisor and Nutanix Enterprise Cloud software to provide customers with a pre-integrated and optimized solution that dramatically lowers total cost of ownership and accelerates operational productivity.

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DX380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for Nutanix environments on the industry's most trusted compute platform.

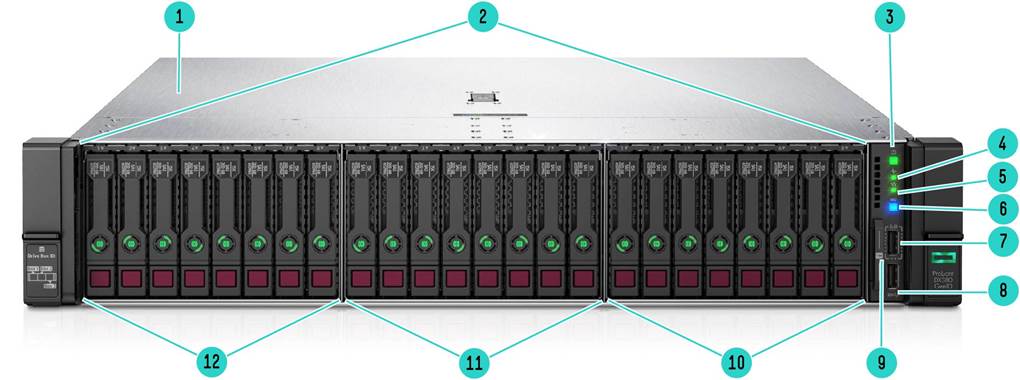

DX380 24SFF chassis - Front View

1.

Quick removal access panel

7.

iLO Front Service Port

2.

Standard 24SFF SATA/SAS drive bays in 3 - 8 drive cage boxes

8.

USB 3.0

3.

Power On/Standby button and system power LED button

9.

Serial label pull tag

4.

Health LED

10

Box 3

5.

NIC status

11

Box 2

6.

UID button

12

Box 1

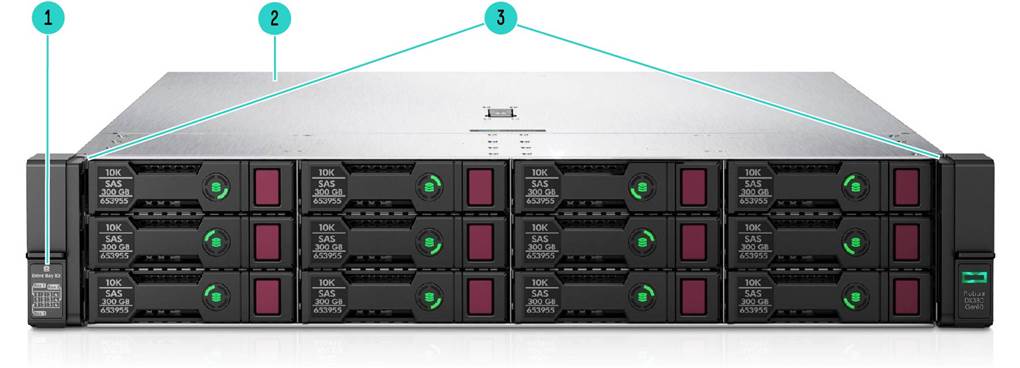

DX380 12LFF chassis - Front View

1.

Drive support label

3

Standard 12 LFF SATA/SAS drive bays

2.

Quick removal access panel

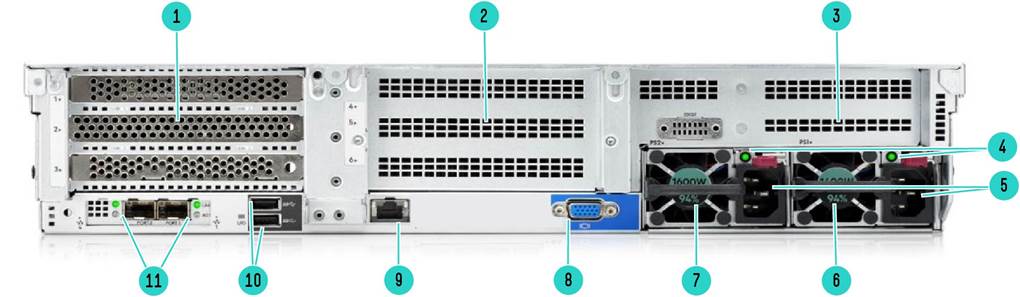

Rear View - With optional FlexLOM shown.

1.

Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard)

7.

HPE Flexible Slot Power Supply bay 2 (800W shown)

2.

Secondary Riser. PCI Slots (Slots 4-6top to bottom, requires second riser card, and second processor)

8.

VGA connector

3.

Tertiary Riser (Slots 7-8)

9.

Dedicated iLO management port

4.

Power supply Power LED

10.

USB connectors 3.0 (2)

5.

Power supply Power connection

11.

Optional FlexibleLOM ports (Shown: 2 x 10GbE)

6.

HPE Flexible Slot Power Supply bay 1 (800W shown)

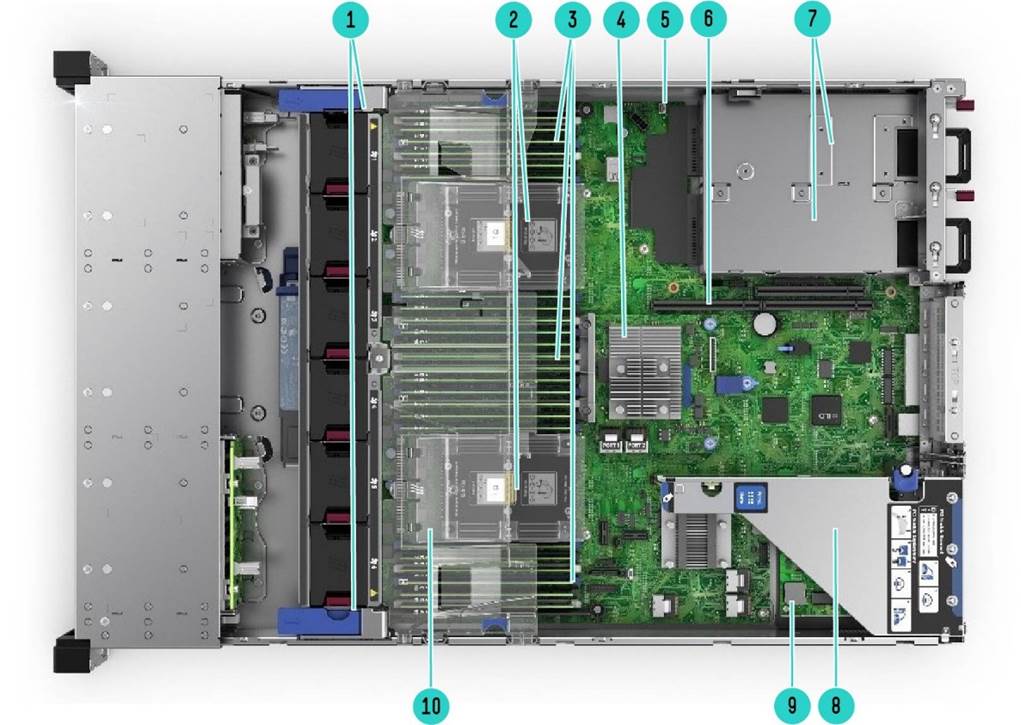

Internal View - with 2^nd CPU and FlexLOM shown

1.

Fan cage shown with 6 standard Hot-plug fans (High Performance temperature fans are included)

6..

Connection for second (optional) riser (Requires second CPU)

2.

2 Processors, heatsink showing

7.

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

3.

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

8.

Primary PCIe riser, standard

4.

HPE Smart Array clear air baffle

9.

Optional Flexible LOM slot

5.

Chassis intrusion detection connector

10.

Clear air baffle

What's New:

• New additional processors in the second generation Intel Xeon family that provide an improved price performance
• New ProLiant DX380 8SFF Server
• Support for up to 4 single wide GPUs on DX380 SFF Server only
• New ProLiant DX380 Gen10 Platform
• Qualified platforms / configs recognized by both HPE & Nutanix
• Factory tuned & optimized HW settings for Nutanix environments
• Factory pre-installed Nutanix AHV & AOS

Platform Information

Form Factor

• 2U rack

Chassis Types

• 24 SFF
• 12 LFF
• 8SFF

System Fans

• The 12 LFF, 8SFF and 24 SFF chassis ship with 6 High performance fans as standard.

Processors

2 processors required

Notes:

- For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

- This table covers the public Intel offering only.

- All HPE DX380 processors come with the High Performance Heatsink included.

Notes: More than 1.5 TB memory per socket requires memory higher than 128 GB capacity

Chipset

Intel C621 Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

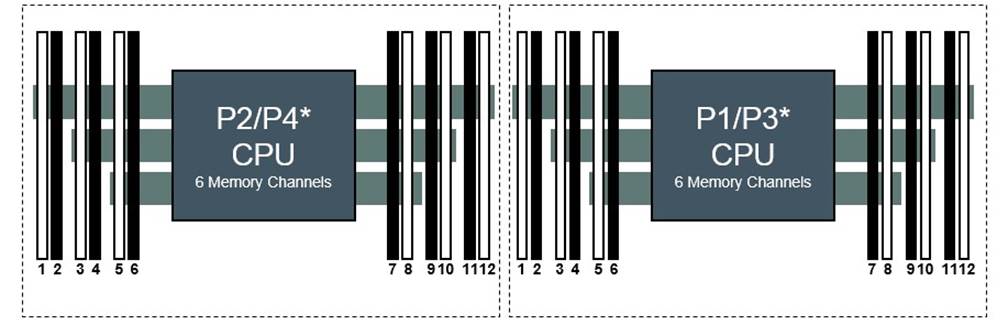

Memory

One of the following depending on model

Notes:

- Maximum memory per socket is dependent on processor selection. 2^nd generation processors supporting 4.5 TB per CPU indicated by the "L" in the processor model names (i.e. 8276L).

- Mixing of RDIMM and LRDIMM memory is not supported.

- For General Server Memory Population Rules and Guidelines for Gen10 see details here:

http://www.hpe.com/docs/memory-population-rules

- For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

- To realize the performance memory capabilities listed in this document, HPE DDR4 Smart Memory is required. For additional information, please see the HPE DDR4 Smart Memory QuickSpecs.

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.

Expansion Slots

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- This riser also supports dual m.2 cards.

Storage Controllers

• HPE Smart Array E208i-a SR Gen10 Controller
• HPE Smart Array E208i-p SR Gen10 Controller

Notes: The appropriate controllers are included with the server models P17641-B21 and P17642-B21.  The number of available PCI slots are reduced by 1 on the P17641-B21 and reduced by 2 on the P17642-B21.

Internal Storage Devices

Hard Drives

None ship standard

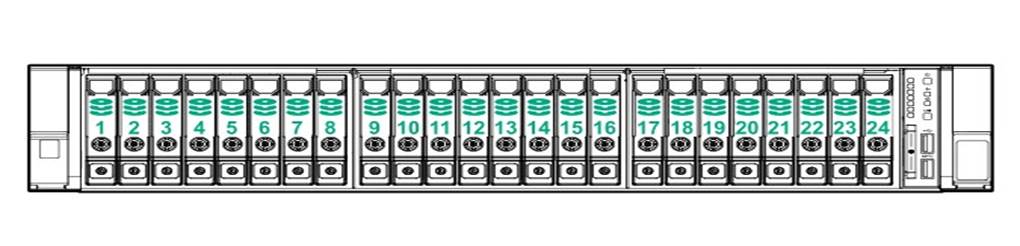

HPE ProLiant DX380 24SFF Hard Drive Configurations

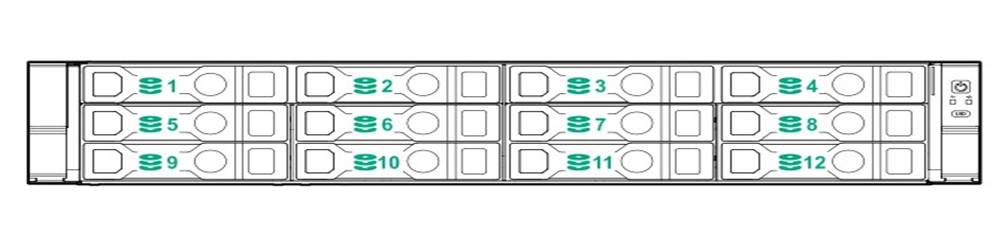

HPE ProLiant DX380 12LFF Hard Drive Configurations

Notes: SAS and SATA SSDs can not be mixed.

Power Supply

• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

• HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% and 96% efficiency.

- Also available in -48VDC and 227VAC/380VDC power inputs.

• HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the HPE Power Cords web page.

To review the power requirements for your selected system, please use the HPE Power Advisor guide.

For information on power specifications and technical content visit HPE Power Supplies.

Interfaces

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

• Nutanix Acropolis Operating System (AOS):  Version 5.10.5 and higher

- R6T15A, Nutanix AOS LTS FIO SW for HPE

- R6T15B, Nutanix AOS STS FIO SW for HPE

Notes:

- R6T15A, LTS Software Trigger SKU must be defaulted for all CTO Servers. Customer is allowed to  de-select. If de-selected, then "STS" SW trigger SKU (R6T15B) can be selected or Customer is also allowed not to select SW trigger SKUs with approval in advance at order entry.

- "LTS" SW trigger SKU cannot be selected with P35837-B21 - HPE DX NS204ip Gen10+ Boot Device is on same order.

• Nutanix Acropolis Hypervisor (AHV):  Version 2017030.279 and higher
• VMware vSphere: Version 6.5 U2, 6.5 U3, 6.7 U3

Notes: The latest version of AOS and AHV are pre-installed in each server at the factory.  vSphere must be installed separately.

Industry Standard Compliance

Notes:

- For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

- Legacy mode is the default for the DX380 Gen10.

Graphics

• Article I Integrated Video StandardVideo modes up to 1920 x 1200@60Hz (32 bpp)
• Article II 16MB Video Memory
• Article III HPE iLO 5 on system management memory
• Article IV 32 MB Flash
• Article V 4 Gbit DDR 3 with ECC protection

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

Notes: iLO Advanced license with 3 year support is included with the server models P17641-B21 and P17642-B21

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.  Learn more at http://www.hpe.com/info/hpesim.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

Security

• UEFI Secure Boot and Secure Start support
• Tamper-free updates - components digitally signed and verified
• Immutable Silicon Root of Trust
• Ability to rollback firmware
• FIPS 140-2 validation
• Secure erase of NAND/User data
• Common Criteria certification
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Bezel Locking Kit option
• Support for Commercial National Security Algorithms (CNSA)
• Chassis Intrusion detection option
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
