HPE ProLiant DX360 Gen10 server

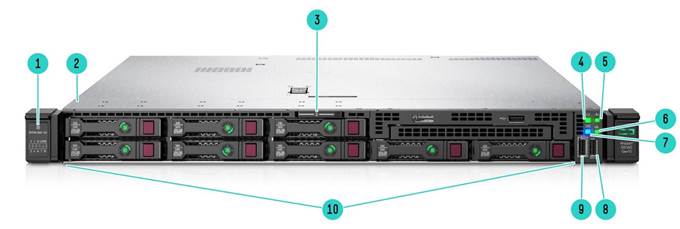

8 SFF Front View

1.

Drive support label

6.

NIC status LED

2.

Quick removal access panel

7.

UID button/LED

3.

Serial no. label pull tab

8.

USB 3.0 port

4.

Power On/Standby button and system power LED

9.

iLO service port

5.

Health LED

10.

Standard 8 SAS/SATA drive bays

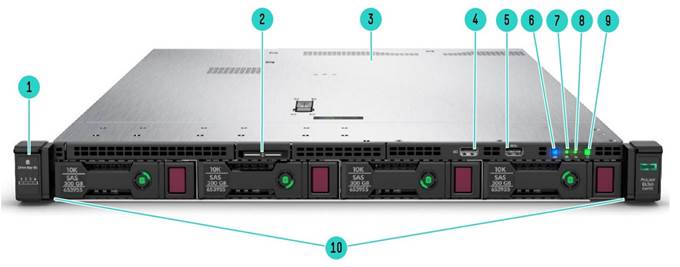

4 LFF Front View

1.

Drive support label

6.

UID button/LED

2.

Serial no. label pull tab

7.

Power On/Standby button and system power LED

3.

Quick removal access panel

8.

Health LED

4.

iLO Service Port

9.

NIC status LED

5.

USB 3.0 Port

10.

SAS/SATA drive bays

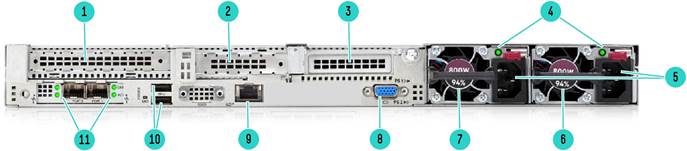

Rear View - Standard for all DX360 Gen10

1.

Slot 1 PCIe 3.0

7.

Power Supply 2

2.

Slot 2 PCIe 3.0

8.

VGA port

3.

Option: Slot 3 PCIe 3.0 (Requires 2^nd processor)

9.

iLO Management Port

4.

Power supply LED

10.

USB 3.0 Ports

5.

Power supply connectors

11.

Option: FlexibleLOM (Shown: 2 x 10GbE)

6.

Power Supply 1

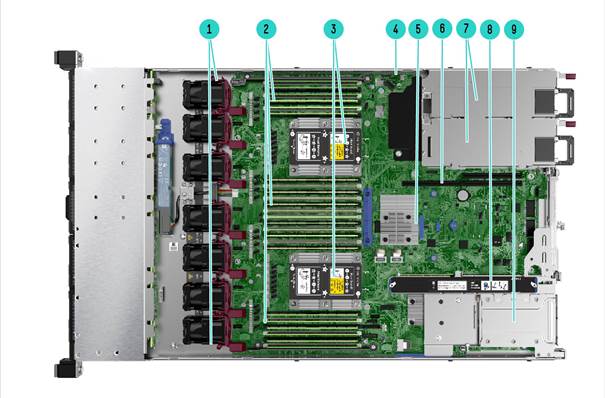

Internal View - Standard for all DX360 Gen10

1.

Fan cage shown with 7 standard Hot-plug fans (High Performance temperature fans are included)

6.

Connection for second (optional) riser (Requires second CPU)

2.

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

7.

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

3.

Two (2) Processors, heatsink showing

8.

Primary PCIe riser, standard

4.

Chassis intrusion detection connector

9.

Optional Flexible LOM slot

5.

HPE Smart Array Controller

What's New

• Additional Vmware ESXi support
• New additional processors in the second generation Intel Xeon family that provide an improved price performance
• New ProLiant DX360 Gen10 10NMVMe Platform
• HPE DX TPM 2.0 Kit
• New ProLiant DX360 Gen10 Platform
• Qualified platforms / configs recognized by both HPE & Nutanix
• Factory tuned & optimized HW settings for Nutanix environments
• Factory pre-installed Nutanix AHV & AOS

Form Factor

• 1U rack

Chassis Types

• 10 SFF NVMe
• 8 SFF
• 4 LFF

System Fans

• The 4 LFF,8 SFF and 10 NVMe chassis ship with 7 high performance fans as standard.

Notes: The DX360 Gen10 will support up to 7 fans with fan redundancy built in. One fan rotor failure will place server in degraded mode but fully functional. Two fan rotor failures could provide warning and imminent server shutdown.

Notes:

- This table covers the public Intel offering only.

- For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

- All HPE DX360 processors come with the High Performance Heatsink included.

Notes:

- 6-Channel DDR4 @ 2933 MT/s.  2TB max RAM per socket on select SKUs

- Support for: Vector Neural Network Instructions (VNNI) for inference acceleration.

- 2 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.

- Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).

- 48 lanes PCIe 3.0, advanced RAS

Notes:

- ¹ 5218B has consistent features with the 5218 processor but from a different die. Mixing both 5218B & 5218 in a system is not supported

- 6-Channel DDR4 @ 2933 MT/s (Gold 6200 & 5222 skus only), 2666 MT/s on all Gold 5200 skus (except 5222 @ 2933 MT/s).

- 2TB max RAM per socket on select SKUs

- Support for: Vector Neural Network Instructions (VNNI) for inference acceleration.

- 2 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.

- Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).

- 48 lanes PCIe 3.0, advanced RAS

Notes:

- 6-Channel DDR4 @ 2400 MT/s.

- Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration.

- 2 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 9.6 GT/s.

- Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).

- 48 lanes PCIe 3.0, standard RAS

Chipset

Intel C621 Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

System Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

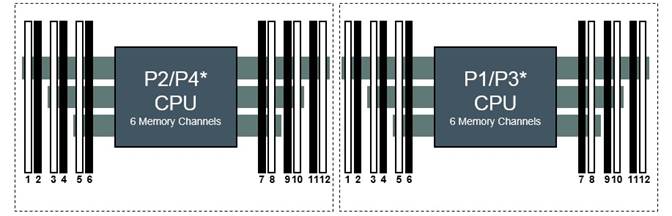

Memory

HPE DDR4 Smart Memory

Type

Registered (RDIMM), Load Reduced (LRDIMM)

Notes:

- Maximum memory per socket is dependent on processor selection. 2nd generation processors supporting 4.5 TB

per CPU are indicated by the "L" in the processor model names (i.e. 8276L).

- Mixing of RDIMM and LRDIMM memory is not supported.

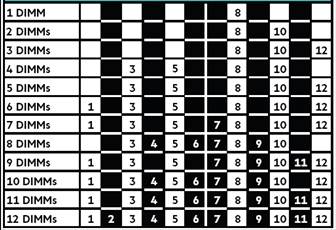

- For General Server Memory Population Rules and Guidelines for Gen10 see details here:

http://www.hpe.com/docs/memory-population-rules

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Notes: For more information see our Memory RAS feature technical whitepaper.

Expansion Slots

Storage Controllers

• HPE Smart Array E208i-a SR Gen10 Controller
• HPE Smart Array E208i-p SR Gen10 Controller

Notes: The appropriate controllers are included with the server models P18229-B21 and P18230-B21.  The number of available PCI slots are reduced by 1 for both models.

Internal Storage Devices

Hard Drives

None ship standard

HPE ProLiant DX360 8SFF Hard Drive Configurations

• Hybrid SSD/HDD

SSDs, 2

HDDs, 4 or 6

• All SSD

SSDs, 4, 6, or 8

HPE ProLiant DX360 4LFF Hard Drive Configurations

• Hybrid SSD/HDD

SSDs, 2

HDDs, 2

• All SSD

SSDs, 2 or 4

HPE ProLiant DX360 10NVMe  Hard Drive Configurations

• All SSD

SSDs, 2, 4, 6, 8, 10

Power Supply

• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

• HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% and 96% efficiency.

- Also available in -48VDC and 227VAC/380VDC power inputs.

• HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Graphics

Integrated video standard

• Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)
• 16 MB Video Memory
• HPE iLO 5 on system management memory
• 32 MB Flash
• 4 Gbit DDR3 with ECC protection

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

Notes: iLO Advanced license with 3 years support is included with the server models P18229-B21 and P18230-B21

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at https://www.hpe.com/us/en/servers/smart-update.html.

Industry Standard Compliance

• ACPI 6.1 Compliant
• PCIe 3.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• PXE Support
• USB 3.0 Compliant
• USB 2.0 Compliant (only on optional Universal Media Bay)
• SMBIOS 3.1
• UEFI 2.6 (Unified Extensible Firmware Interface Forum)
• Redfish API
• IPMI 2.0
• Secure Digital 4.0
• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP v3
• TLS 1.2
• DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)
• Active Directory v1.0
• ASHRAE A3/A4
• Energy Star

Notes: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit:

https://support.hpe.com/hpsc/doc/public/display?docId=emr_na-c05384171&docLocale=en_US.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at http://www.hpe.com/servers/iLOamplifierpack.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

Security

• Immutable Silicon Root of Trust
• FIPS 140-2 validation
• Common Criteria certification
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• iLO Security Modes
• Granular control over iLO interfaces
• Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised FW
• Ability to rollback firmware
• Secure erase of NAND
• Bezel Locking Kit
• Chassis Intrusion detection option

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

Notes: An HPE iLO Advanced license with 3 years support is included with the server models P18229-B21 and P18230-B21

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview.

HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

Learn more at https://www.hpe.com/servers/infosight

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes.

https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

•   Factory Integrated Models must start with a CTO Server.
• All DX360 options are only available as a factory installable option.
• All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
• Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

Base configuration includes select options as noted below

Notes:

- HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

- All CTO servers are Energy Star 2.1 compliant.

- All HPE DX360 processors come with the High Performance Heatsink included.

Step 2: Choose Required Options

Please select one -L21 processor required below.

For second processor, please select the same processor model with -B21 from Core Options - HPE Processors section.

For example: first processor, select P02679-L21 then for second processor, select P02679-B21.

Notes:

- Mixing of 2 different processor models is not supported.

- When 2^nd Generation Intel Xeon Scalable Processor is selected, then only DDR4-2933 Memory Kit can be selected

- All HPE DX360 processors come with the High Performance Heatsink included.

Step 2a: Choose Processor Options

Processor Option Kits (Required Processor)

Intel Xeon-Gold 5217 (3.0GHz/8-core/115W) FIO Processor Kit for HPE ProLiant DX360 Gen10

P18292-L21

Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit for HPE ProLiant DX360 Gen10

P18290-L21

Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit for HPE ProLiant DX360 Gen10

P18288-L21

Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit for HPE ProLiant DX360 Gen10

P18284-L21

Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit for HPE ProLiant DX360 Gen10

P18282-L21

Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DX360 Gen10

P18280-L21

Notes: All HPE DX360 processors come with the High Performance Heatsink included.

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to:

For Gen10 memory speed table, please go to: https://www.hpe.com/psnow/doc/a00019564enw

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: http://www.hpe.com/docs/memory-ras-feature.

Notes:

- Maximum memory capacity and speed per processor is dependent on processor model selection or limitation.

- DDR4-2933 Memory Kits are only supported with 2^nd Generation Intel Xeon Scalable Series Processors

Registered DIMMs (RDIMMs) for 2^nd Generation Intel Xeon Scalable Series

HPE DX 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18453-B21

HPE DX 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18450-B21

HPE DX 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18449-B21

HPE DX 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18448-B21

Load Reduced DIMMs (LRDIMMs) for 2^nd Generation Intel Xeon Scalable Series

HPE DX 128GB (1x128GB) Quad Rank x4 DDR4-2933 CAS-24-21-21 Load Reduced Smart FIO Memory Kit

P18454-B21

Step 2c: Choose Power Supplies

Please select one or two power supplies from below.

Notes: Mixing of 2 different power supplies is NOT supported.

HPE Flex Slot Power Supplies

HPE DX 1600W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18222-B21

HPE DX 800W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18223-B21

HPE DX 800W Flex Slot Titanium Hot Plug Low Halogen FIO Power Supply Kit

P18224-B21

HPE DX 500W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18226-B21

Notes: 1600W Power supplies only support high line voltage (200 VAC to 240 VAC).

Step 3: Choose Additional (FIO) Factory Integratable Options

Each of the following may be selected if desired at time of factory integration

HPE Security Options

HPE Chassis Intrusion Special Detection Kits

P18357-B21

HPE DX Trusted Platform Module 2.0 Gen10 FIO Option Kit

P17811-B21

HPE Unique Options Risers

Risers

HPE DX360 Gen10 Low Profile FIO Riser Kit

P18356-B21

HPE DX Gen10 x8/x16/x8 FIO Riser Kit

P17803-B21

Step 4: Choose Additional Options for Factory Integration from Core and Additional Option sections below

HPE Processors

Please select one -L21 processor required above.

For second processor, please select the same processor model with -B21 from Core Options - HPE Processors section below.

For example: first processor, select P02679-L21 then for second processor, select P02679-B21.

Notes:

- Mixing of 2 different processor models is not supported.

- When 2^nd Generation Intel Xeon Scalable Processor is slected, then only DDR4-2933 Memory Kit can be selected

- All HPE DX360 processors come with the High Performance Heatsink included.

HPE Memory

For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to:

https://www.hpe.com/docs/memory-population-rules

For Gen10 memory speed table, please go to: https://www.hpe.com/psnow/doc/a00019564enw

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: http://www.hpe.com/docs/memory-ras-feature

Notes:

- Maximum memory capacity and speed per processor is dependent on processor model selection or limitation.

- DDR4-2933 Memory Kits are only supported with 2nd Generation Intel Xeon Scalable Series Processors

HPE DDR4 Memory

Registered DIMMs (RDIMMs) for 2^nd Generation Intel Xeon Scalable Series

HPE DX 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18453-B21

• Standalone P00930-B21

HPE DX 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18450-B21

• Standalone P00924-B21

HPE DX 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18449-B21

• Standalone P00922-B21

HPE DX 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18448-B21

• Standalone P00920-B21

Load Reduced DIMMs (LRDIMMs) for 2^nd Generation Intel Xeon Scalable Series

HPE DX 128GB (1x128GB) Quad Rank x4 DDR4-2933 CAS-24-21-21 Load Reduced Smart FIO Memory Kit

P18454-B21

• Standalone P11040-B21

HPE Drives

Midline - 12G SAS - SFF Drives

HPE DX 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware FIO HDD

P22713-B21

• Standalone 881457-B21

SSD Selection

For SSD selection guidance, please visit https://ssd.hpe.com/

Read Intensive - SATA - LFF - Solid State Drives

HPE DX 1.9TB SATA 6G Read Intensive LFF SCC PM893 FIO SSD

P56741-B21

HPE DX 3.84TB SATA 6G Read Intensive LFF SCC PM893 FIO SSD

P56745-B21

HPE DX 3.84TB SATA 6G Read Intensive LFF SCC PM893 SSD

P56748-B21

HPE DX 1.9TB SATA 6G Read Intensive LFF SCC PM893 SSD

P57537-B21

HPE DX 1.92TB SATA 6G Read Intensive LFF SCC S4520 FIO SSD

P56751-B21

• Standalone P57545-B21

HPE DX 3.84TB SATA 6G Read Intensive LFF SCC S4520 FIO SSD

P56755-B21

• Standalone P56758-B21

Read Intensive -  SATA - SFF - Solid State Drives

HPE DX 1.9TB SATA 6G Read Intensive SFF SC PM893 FIO SSD

P56740-B21

• Standalone P47812-B21

HPE DX 3.84TB SATA 6G Read Intensive SFF SC PM893 FIO SSD

P56744-B21

• Standalone P47813-B21

HPE DX 1.92TB SATA 6G Read Intensive SFF SC S4520 FIO SSD

P56750-B21

• Standalone P47319-B21

HPE DX 3.84TB SATA 6G Read Intensive SFF SC S4520 FIO SSD

P56754-B21

• Standalone P47321-B21

Read Intensive - SAS - LFF - Solid State Drives

HPE DX 3.84TB SAS 24G Read Intensive LFF SCC PM1653 FIO SSD

P56761-B21

HPE DX 7.68TB SAS 24G Read Intensive LFF SCC Multi Vendor FIO SSD

P56765-B21

Read Intensive - SAS - SFF - Solid State Drives

HPE DX 3.84TB SAS 24G Read Intensive SFF SC PM1653 FIO SSD

P56760-B21

• Standalone P57577-B21

HPE DX 7.68TB SAS 12G Read Intensive SFF SC Multi Vendor FIO SSD

P56764-B21

• Standalone P57585-B21

Mixed Use - SAS - LFF - Solid State Drives

HPE DX 3.2TB SAS 24G Mixed Use LFF SCC Multi Vendor FIO SSD

P57593-B21

HPE DX 6.4TB SAS 24G Mixed Use LFF SCC Multi Vendor FIO SSD

P57605-B21

HPE DX 1.6TB SAS 12G Mixed Use LFF SCC Multi Vendor FIO SSD

P58746-B21

• Standalone P57633-B21

Multi Use - SAS - SFF - Solid State Drives

HPE DX 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor FIO SSD

P57621-B21

• Standalone P57625-B21

Read Intensive -  NVMe - Solid State Drives

HPE DX 1.92T NVMe Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware FIO SSD

P57766- B21

• Standalone P50214-B21

HPE DX 3.84TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 PM1733a FIO SSD

P57768-B21

• Standalone P50217-B21

HPE DX 7.68TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 PM1733a FIO SSD

P57770-B21

• Standalone P50220-B21

Mixed Use - SATA - LFF - Solid State Drives

HPE DX 1.92TB SATA 6G Mixed Use LFF SCC S4620 FIO SSD

P56737-B21

HPE DX 960GB SATA 6G Mixed Use LFF SCC PM897 SSD

P57513-B21

Mixed Use - SATA - SFF - Solid State Drives

HPE DX 1.92TB SATA 6G Mixed Use SFF SC PM897 FIO SSD

P56732-B21

• Standalone P47816-B21

HPE DX 1.92TB SATA 6G Mixed Use SFF SC S4620 FIO SSD

P56736-B21

• Standalone P47325-B21

Mixed Use NVMe - Solid State Drives

HPE DX 1.6TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735a FIO SSD

P57761-B21

• Standalone P50225-B21

HPE DX 3.2TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735a FIO SSD

P57763-B21

• Standalone P50228-B21

Notes: (supported on DX360 NVMe model only.  10 drives required)

HPE Networking

100 Gigabit Ethernet adapters

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 FIO Adapter for HPE DX

P43273-B21

• Standalone: P25960-B21

25 Gigabit Ethernet adapters

HPE DX Ethernet 10/25Gb 2-port 640SFP28 FIO Adapter

P18462-B21

• Standalone: 817753-B21

10 Gigabit Ethernet adapters

HPE DX Ethernet 10Gb 2-port 562SFP+ FIO Adapter

P18455-B21

• Standalone: 727055-B21

HPE DX Ethernet 10Gb 2-port 562T FIO Adapter

P18456-B21

• Standalone: 817738-B21

1 Gigabit Ethernet adapters

HPE DX Ethernet 1Gb 4-port 366T FIO Adapter

P18460-B21

• Standalone: 811546-B21

FlexibleLOM Adapters

HPE DX Ethernet 10/25Gb 2-port 640FLR-SFP28 FIO Adapter

P18461-B21

• Standalone: 817749-B21

HPE DX Ethernet 10Gb 2-port 562FLR-T FIO Adapter

P18458-B21

Standalone: 817745-B21

HPE DX Ethernet 10Gb 2-port 562FLR-SFP+ FIO Adapter

P18457-B21

• Standalone: 727054-B21

HPE DX Ethernet 1Gb 4-port 366FLR FIO Adapter

P18459-B21

• Standalone: 665240-B21

HPE Graphic Options

NVIDIA Tesla T4 16GB FIO Computational Accelerator for HPE DX

P17819-B21

• Standalone: Q0V80C

HPE Boot Controllers

HPE DX NS204i-p Gen10 Plus x2 Lanes NVMe PCIe3 x8 FIO Boot Device

P35837-B21

• Standalone: P12965-B21

Notes:

- UEFI supported only

- "LTS" SW trigger SKU cannot be selected when P35837-B21 is selected.

HPE Power Supplies

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

HPE Flex Slot Platinum Hot-plug Power supplies

HPE DX 1600W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18222-B21

HPE DX 800W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18223-B21

HPE DX 800W Flex Slot Titanium Hot Plug Low Halogen FIO Power Supply Kit

P18224-B21

HPE DX 500W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18226-B21

HPE DX 800W Flex Slot -48VDC Hot Plug Low Halogen FIO Power Supply Kit

P25214-B21

Notes: 1600W Power supplies only support high line voltage (200 VAC to 240 VAC).

HPE Security

HPE DX Gen10 Chassis Intrusion FIO Detection Kit

P17812-B21

Notes: This provides a physical connection from the chassis board and hood and detects any physical intrusion into the chassis, providing security during the entire supply chain process of shipping, receiving, distribution, and operation.

HPE Rack Options

Rail Kits

Notes: HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E.  In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer's own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

HPE DX 1U Cable Management Arm for Easy Install FIO Rail Kit

P18353-B21

HPE DX 1U Gen10 SFF Easy Install FIO Rail Kit

P21955-B21

Notes: Does not include CMA (P18353-B21).

HPE DX 1U Gen10 LFF Easy Install FIO Rail Kit

P23849-B21

Notes: Does not include CMA (P18353-B21).

HPE DX 1U Gen10 SFF Ball Bearing FIO Rail Kit

P21956-B21

HPE DX 1U Gen10 LFF Ball Bearing FIO Rail Kit

P23850-B21

HPE Support Services

HPE 3 Year Next Business Day with Defective Media Retention DX360 Gen10 Hardware Service

HN4Y9E

HPE 3 Year 24x7 DX360 Gen10 Hardware Service

HN4Z0E

HPE 3 Year 24x7 with Defective Media Retention DX360 Gen10 Hardware Service

HN4Z1E

Memory Population Guidelines

HPE Gen10 DX360 / DX380 / DX560

Notes:  Servers Front Server2 Slots  per Channel

HPE ProLiant Gen10 12 slot per CPU DIMM population order

General Memory Population Rules and Guidelines:

• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
• To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
• When two processors are installed, balance the DIMMs across the two processors.
• White DIMM slots denote the first slot to be populated in a channel.
• Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.
• For details on the HPE Server Memory Options Population Rules, visit:

http://www.hpe.com/docs/memory-population-rules

• To realize the performance memory capabilities listed in this document, HPE DDR4 Smart Memory is required. For additional information, please see the HPE DDR4 Smart Memory QuickSpecs.

Notes: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

FFor details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

System Unit

Dimensions  (Height x Width x Depth)

• SFF Drives

4.29 x 43.46 x 70.7 cm

1.69 x 17.11 x 27.83 in

• LFF Drives

4.29 x 43.46 x 74.98 cm

1.69 x 17.11 x 29.5 in

Weight (approximate)

• 13.04 kg

28.74 lb

SFF minimum: One drive, one processor, one power supply, two heatsinks, one Smart Array controller, and five fans.

• 16.27 kg

35.86 lb

SFF maximum: 10 drives, two processors, two power supplies, two heatsinks, one Smart Array controller and seven fans.

• 13.77 kg

30.36 lb

LFF minimum: one drive, one processor, one power supply, two heatsinks, one Smart Array controller and five fans.

• 16.78 kg

37 lb

LFF maximum: Four drives, two processors, two power supplies, two heatsinks, one Smart Array controller and seven fans.

1

Input Requirements (per power supply)

Rated Line Voltage

• For 1600W (Platinum): 200-240 VAC
• For 800W (Titanium) Power Supply: 200-240 VAC
• For 800W (Platinum): 100-240 VAC
• For 800W (Universal) Power Supply: 200-277 VAC
• For 800W (-48VDC): -40 Vdc to -72 Vdc
• 500W (Platinum) Power Supply: 100-240 VAC

BTU Rating

Maximum

• For 1600W Power Supply: 5918 BTU/hr (at 200 VAC), 5888 BTU/hr (at 220 VAC), 5884 BTU/hr (at 240 VAC)
• For 800W (Titanium) Power Supply: 2905 BTU/hr (at 200 VAC), 2899 BTU/hr (at 220 VAC), 2893 BTU/hr (at 240 VAC)
• For 800W (Platium) Power Supply: 3067 BTU/hr (at 100 VAC), 2958 BTU/hr (at 200 VAC), 2949 BTU/hr (at 240 VAC)
• For 800W (Universal) Power Supply: 2964 BTU/hr (at 200 VAC), 2951 BTU/hr (at 230 VAC), 2936 BTU/hr (at 277 VAC)
• For 800W-(48Vdc) Power Supply: 2983 BTU/hr (at -40 Vdc), 2951 BTU/hr (at -48Vdc), 2912 BTU/hr (at -72Vdc)
• For 500W (Platinum) Power Supply: 1902 BTU/hr (at 100 VAC), 1840 BTU/hr (at 200 VAC), 1832 BTU/hr (at 240 VAC)

Power Supply Output (per power supply)

Rated Steady-State Power

• For 1600W Power Supply: 1600W (at 240 VAC), 1600W (at 240 VDC) for China only
• For 800W (Titanium) Power Supply: 800W (at 200 VAC), 800W (at 240 VAC), 800W (at 240 VDC) for China only
• For 800W (Platinum) Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VDC) input for China only
• For 800W (Universal) Power Supply: 800W (at 200 VAC), 800W (at 277 VAC)
• For 800W (-48VDC) Power Supply: 800W (at -40 Vdc), 800W (at -72Vdc)
• For 500W (Platinum) Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VDC) input for China only

Maximum Peak Power

• For 1600W Power Supply: 1600W (at 240 VAC), 1600W (at 240 VDC) for China only
• For 800W (Titanium) Power Supply: 800W (at 200 VAC), 800W (at 240 VAC), 800W (at 240 VDC) for China only
• For 800W (Platinum) Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VDC) input for China only
• For 800W (Universal) Power Supply: 800W (at 200 VAC), 800W (at 277 VAC)
• For 800W (-48VDC) Power Supply: 800W (at -40 Vdc), 800W (at -72Vdc)
• For 500W (Platinum) Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VDC) input for China only

System Inlet Temperature

• Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:http://www.hpe.com/servers/ashrae

• Extended Ambient  Operating Support

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

Relative Humidity (non-condensing)

• Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

• Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

• Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

• Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Notes: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.

Emissions Classification (EMC)

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts

HPE Smart Array

For latest information on HPE Smart Array Gen10 Controllers for HPE ProLiant DX, ML and Apollo Servers please refer to their QuickSpecs. (E208i-a,E208i-p,E208e-p,P408i-a,P408i-p,P408e-p,P816i-a)

Environment-frienDXy Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

16-Sep-2024

Version 14

Changed

Standard Features (Operating Systems and Virtualization Software Support for HPE Servers) and Additional Options sections were updated.

18-Mar-2024

Version 13

Changed

Standard Features and Additional Options sections were updated

20-Nov-2023

Version 12

Changed

HPE Services Rebranding

03-Apr-2023

Version 11

Changed

Standard Features, Configuration Information, Core Options and Additional Options sections were updated.

Obs SKUs were removed

12-Sep-2022

Version 10

Changed

Core Options, Additional Options and support sections were updated

01-Nov-2021

Version 9

Changed

Core Options and Additional Options sections were updated.

Obs SKUs were removed

06-Jul-2021

Version 8

Changed

Overview, Configuration Information, Core Options and Additional Options sections were updated.

Obs SKUs were removed.

18-Jan-2021

Version 7

Changed

Overview section was updated.

Obs SKUs were removed

03-Aug-2020

Version 6

Changed

Overview and Core options sections were updated.

16-Mar-2020

Version 5

Changed

Standard Features section was updated.

24-Feb-2020

Version 4

Changed

Overview, Core Options, and Configuration Information sections were updated.

Obs SKUs were removed

02-Dec-2019

Version 3

Changed

Overview, Configuration Information, Core Options and Additional Options sections were updated.

07-Oct-2019

Version 2

Changed

Overview, and Configuration Information sections were updated.

30-Jul-2019

Version 1

New

New QuickSpecs

© Copyright 2024 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

a00073753enw - 16522 - Worldwide  - V14 - 16-September-2024
