HPE ProLiant DX8000 Converged Edge System

The HPE ProLiant DX8000 Converged Edge System brings high-power computing to the edge of networks, which previously tended to have limited computing capacity.

The condensed rugged design of the HPE ProLiant DX8000 allows new compute possibilities directly where data is being generated such as a factory floor, locomotives, battlefields, oil rigs, coffee shops, hospitals and beyond.

With the ProLiant DX910 Server Blades installed, The ProLiant DX8000 System expands the scope of Machine Learning, Video Analytics, and Mobile Edge Compute.  The compute capacity previously limited to traditional data centers or the cloud is now available at the Edge with the HPE ProLiant DX8000 Converged Edge Systems.

HPE ProLiant DX8000 Converged Edge System enables data-intensive, low-latency compute, based on open standards and advanced remote manageability.

The HPE ProLiant DX8000 Converged Edge System is designed to help communication service providers (CSP) capitalize on data-intensive, low-latency services for media delivery, connected mobility, and smart cities. The new system enables CSPs to process vast amounts of data in real time directly at the edge, based on open standards to boost flexibility and reduce costs.

To deliver new services that tap into this massive growth of real-time data, CSPs must transform their telecommunications network edge towards standard IT systems and software-defined architectures, such as virtual radio access networks (vRAN) and virtual cable modem termination systems (vCMTS).

The open-standards based HPE ProLiant DX8000 Converged Edge System was therefore developed as a cost effective replacement for CSPs’ current proprietary edge systems, with enhanced performance and versatility for data-intensive real-time digital services. Additionally, the HPE ProLiant DX8000 Converged Edge System’s unique design delivers high performance and ultra-low latency for the most demanding use cases, including media streaming, IoT, artificial intelligence, and video analytics, in a compact and ruggedized form factor, equipped with edge-optimized serviceability and remote systems management.

The compact and rugged design of the HPE ProLiant DX8000 Converged Edge System allows deployment of traditional datacenter software applications in hostile Edge environments.

Exceeding the requirements of industry standards NEBS and ASHRAE class 3 and 4, the system is resistant against hazardous environmental influences like heat, shock and vibration, as well as failover, supporting continuous operation between 0 and 55 degrees Celsius. The system can run rack mounted or stand-alone in any space available, with either a front-to-back and back-to-front cooling design.

The single-socket design, equipped with high-end Intel® Xeon® Scalable Processors, reduces latency and energy consumption. System components can be combined, scaled and hot-swapped to meet changing demands, supporting, among others,  NICs from Intel or Mellanox, up to 1.5TB of memory and 16TB of storage.

With a range of depth and width options for blades and chassis, the system can be flexibly configured and scaled to meet new or changing use-case requirements.

Data center class security, device and remote systems management.

The HPE proven HPE iLO 5 technology and the newly developed DX Chassis Manager enable remote provisioning, ongoing system health monitoring, updates, and management of HPE ProLiant DX8000 Converged Edge Systems across thousands of cell sites, from cell towers to oil rigs, without needing IT expertise on site.

HPE ProLiant DX8000 5U Front Cabling Chassis View

Item

Description

Item

Description

1.

1U Blank

3

Chassis Manager

2

ProLiant DX910 1U Server Blade

4

HPE ProLiant DX8000 1500W (AC/DC) Power Supplies

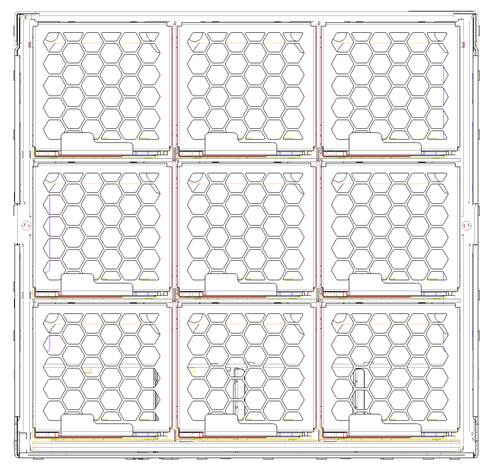

HPE ProLiant DX8000 Rear View

9 System Fans

Enclosure

The HPE ProLiant DX8000 Chassis supports the following ProLiant Server Blade configuration

Server Blade Configurations

• ProLiant DX910 1U Blade Server

DX8000 5U Front Cabling Chassis

• Qty of 1, up to 4

The HPE ProLiant DX8000 System is rated for extended operating temperatures of up to 55°C, which allows it to be located in environments unsuitable for traditional servers. It is also compliant with ASHRAE Class A3 and A4 specifications.

Acoustic Noise Specs

Listed are the sound power levels and average bystander position sound pressure levels when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

•   DX8000 has the following sound power levels: 62 dBA at low speeds of 10%-20% PWM, and 95 dBA at full speed.
• It has the following averaged bystander sound pressure levels (office environment): 58 dBA at 30%, and 89 dBA at full speed.

HPE ProLiant Server Blades

HPE ProLiant DX8000 System has a unique Server Blade Form Factor and can only support

• HPE ProLiant DX910 1U Server Blades

Notes: Please visit the DX910 Quickspecs at the following URL for detailed information and configuration possibilities

https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=a00067735enw

HPE DX8000 Systems Power Supply

The HPE ProLiant DX8000 Systems supports 1 or 2 (for redundancy) 1500W Power Supplies.

There are the following chooses depending on the Chassis:

Notes: Mixing of VAC and VDC options is allowed

Embedded Management

The HPE ProLiant DX910 Blade Servers plugged into an HPE ProLiant DX8000 has its own iLO 5 management processor, which can be accessed directly through the management network.

The HPE ProLiant DX8000 System has a Chassis Controller to monitor and control common chassis elements. The iLO 5 on the server blade communicates with the Chassis Controller to gather and report status information on the chassis itself.

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

HPE NEBS Enablement Kit

It is essential for telecom equipment in tough environments (and for NEBS 3 compliance) to be able to continuously sustain operating temperatures up to 55 degrees Celsius without performance degradation. This is enabled both by using embedded long-life components and intelligent software-controlled fans. Another important NEBS characteristic is that the equipment must sustain a power feed outage lasting longer than 10 milliseconds. In other words, this is the time the hardware must be able to operate, from the time a power failure happens until the battery backup or diesel generators kick in. A tough environment also means performance must be secured under extreme conditions; for example, equipment must be operational after being subjected to an earthquake reaching ~7 to 8 on the Richter scale.

Three optional kits provide the option for fan table selection (for NEBS cooling) through Factory Installed Option. The factory enables NEBS by turning on 3 switches (1 for chassis, 2 for blades). This allows DX8000 system to operate at 63C ambient temperature by setting the fan table at optimal cooling. The ROM based setup utility (f9 access during boot) can be used to set additional fan speed options listed below.

Optimal Cooling - default

• Increased Cooling - drops all sensor setpoints by 5deg.  Increases min fan speed by 1.5X (50pwm is optimal min).
• Enhanced CPU Cooling - drops CPU set point by 8deg ( -10 DTS becomes -18 DTS)
• Max Cooling - fans always 100%

These option kits (P12387-B21, P12390-B21 and P12394-B21) will be available for ordering in 2Q 2020 after NEBS certification is completed.

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world..

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Free up resources with Operational Services from HPE Pointnext Services

HPE delivers services for IT by using proven best practices as well as automation and methodologies that have been tested and refined by HPE experts and artificial intelligence through thousands of deployments globally. Choose from the recommended services for customers purchasing from Hewlett Packard Enterprise or an authorized reseller.  Services are quoted using Hewlett Packard Enterprise order configuration tools.

HPE ProLiant DX Server Support Service - (Choose the response level that meets your needs)

Notes: 3-Year, Next Business Day Onsite support is included with every DX server, but several services uplifts are available to meet your needs.

HPE ProLiant DX Server Support Services help whenever there is a HW or iLo Advanced problem. These services are available in 3, 4, and 5 year terms with a choice of response levels: Next Business day (NBD), 24x7 with a 4 hour response, and 6 hour Call-To-Repair (CTR). Note that Call-To-Repair Service connects you to HPE 24 hours a day, seven days a week for assistance on resolving issues -this includes our highest level commitment to repair hardware within six hours after opening your case and response to software questions within two hours. In addition, Collaborative software support is included and provides troubleshooting assistance on industry leading software running on your server.

Simplify your support experience and make HPE your first call to help resolve hardware or iLo Advanced Software problems. (Nutanix should be your first call for any issues related to the Nutanix Software).

For more information on this service: https://www.hpe.com/psnow/doc/a50000081enw?jumpid=in_lit-psnow-red

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

If you need your ProLiant DX Servers connected to your Complete Care contract, please let your sales teams know, and reach out to your HPE DX Category manager for further assistance.

https://www.hpe.com/services/completecare

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Reduce down time, increase diagnostic accuracy and have a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Tech Care Service and HPE Complete Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support. Learn more about getting connected at http://www.hpe.com/services/getconnected

Other related services from HPE Pointnext

HPE Server Hardware Installation

Provides for the basic hardware installation of your new ProLiant DX8000 System. It is part of a suite of HPE deployment services that are designed to give you the peace of mind that comes from knowing your HPE products have been installed by an Hewlett Packard Enterprise authorized service specialist in accordance with the product’s documentation.

https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00062322enw

HPE Installation and Startup Service

Provides for the installation of your new ProLiant DX8000 System. This service will assist you in bringing your new HPE ProLiant DX8000 System into operation and make it remotely accessible in a timely and professional manner. The HPE service delivery technician will connect the product to the network as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).

https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00062211enw

HPE Service Credits

Offers flexible services and technical skills to meet your IT demands as your business   evolves. With a menu of services, you can access additional resources and specialist skills to help you maintain peak performance of your IT. HPE Service Credits help you proactively respond to your dynamic IT and business needs.

HPE Education Services

Provides comprehensive training designed to expand the skills of your IT staff and keep them up to speed with the latest technologies.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.

Warranty

Notes: 3-Year, Next Business Day Onsite support is included with every DX server, covering your complete configuration.

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Partner Ready Resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for initial setup is available for 90 days from date of purchase. Enhancements to the warranty services are available through HPE services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes:

- Chassis Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty

- Repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories:

o Optional CSR parts are designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge.

o 2) No CSR parts require a Hewlett Packard Enterprise authorized service provider to replace the part. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

Defective Media Retention

An option available with HPE Pointnext Complete Care and HPE Pointnext Tech Care and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
