HPE ProLiant DX910 Server Blade
|
|
Are you wanting to move software applications and compute closer to the user? Do you need to reduce moving the vast amounts of data to a centralized data center? The HPE ProLiant DX910 Server Blade allows you to deploy edge compute directly to where the data is being generated, reducing band width latency, and reducing time to actionable insight. The HPE ProLiant DX910 Server Blade features a rugged, compact design that is certified for extended thermal environments of 0° to 55° Celsius within the HPE ProLiant DX8000 Chassis. The HPE ProLiant DX910 Server Blade architecture is based on Intel® Xeon® SP processors to give you increased compute power and speed. The modular design of the HPE ProLiant DX910 Server Blade provides a broad range of configurations choices in networking, storage, I/O for optimizing your unique edge workloads.
The HPE ProLiant DX910 Server Blade supports industry standard technology leveraging the Intel® Xeon® Processor Scalable Family.
The HPE ProLiant DX910 Server Blade is available with Integrated Lights-Out technology (iLO5) when the BD505A SKU is applied during configuration time. iLO5 includes server management capabilities and Silicon Root of Trust so you can securely configure, monitor, and update your Hewlett Packard Enterprise servers seamlessly and from anywhere.
The HPE ProLiant DX910 Server Blade provides the choice of compute density or I/O Expansion which enables you the optimal configuration for your needs.
|
|
|
|
| |||
|

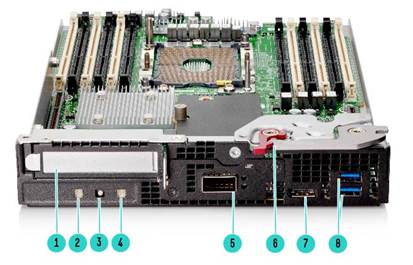

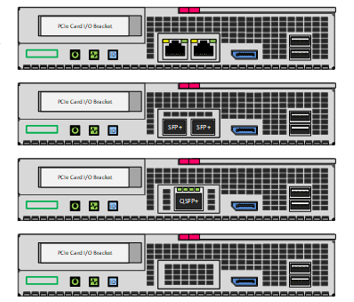

ProLiant DX910 1U Server Blade - Front View | |||
|
Item |
Description |
Item |
Description |
|
1. |
Half height, half length PCIe 3.0 slot |
5. |
Network Connection |
|
2. |
LEDs UID |
6. |
Release latch |
|
3. |
LEDs Health |
7. |
Display port |
|
4. |
LEDs Power |
8. |
USB 3.0 ports |
|
| |||
|
| |||
|

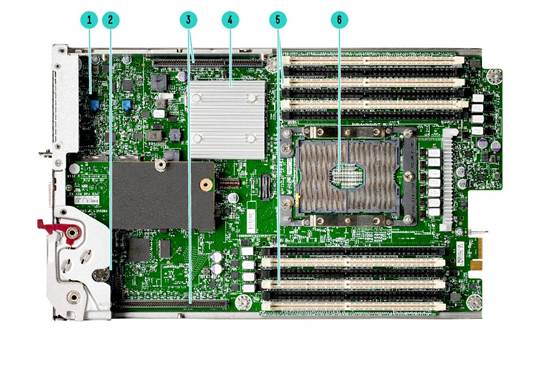

ProLiant DX910 1U Blade Server - Interior View | |||
|
Item |
Description |
Item |
Description |
|
1. |
M.2 SSD slots (Qty. 2 form factor 2242 or 2280 |
4. |
Heatsink (Chipset) |
|
2. |
System Battery |
5. |
DIMM slots (DDR4) |
|
3. |
Left and Right PCIe Riser Slot |
6. |
CPU Socket |
|
| |||
Standard Features
|
Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Notes: - For more information regarding Intel® Xeon® SP, please see the following URL: - The UPI functionality is not embedded on the 6212U Processor which is single socket optimized |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Chipset |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intel® C624 Chipset Notes: For more information regarding chipset, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets/c624.html |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Graphics |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Integrated Video Standard
HPE iLO 5 on system management memory
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
On System Management Chipset |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HPE iLO 5 ASIC Notes: Read and learn more in the iLO QuickSpecs |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Memory | |||||||||||||||||||||
Notes: - Rules under "Memory" section must be followed for Configuring and Mixing of DIMMs. - Registered DIMMs (RDIMMs), Load Reduced DIMMs (LRDIMMs)
| |||||||||||||||||||||
|
Memory Protection | |||||||||||||||||||||
|
For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.
| |||||||||||||||||||||
|
Expansion slots | |||||||||||||||||||||
|
The ProLiant e910 Server Blades I/O Options are configured through 2 Riser Connections.
| |||||||||||||||||||||
| |||||||||||||||||||||
|
| |||||||||||||||||||||
|
Network
The following configurable network connections are supported through riser kits on the DX910 blades:
|
|
|
|
Dual SFP+ |
|
HPE DX910 2p 10GbE SFP+ Mod (P27128-B21) |
|
QSFP+ |
|
HPE DX910 4p 10GbE QSFP+ Mod (P27126-B21) |
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Maximum Internal Storage
480GB(2x240GB)
16.4TB(8x2TB)
23.0TB(6x3.8TB) |
|
|
|
Power Supply Refer to the EL8000 QuickSpecs https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00067727enw |
|
|
|
System Fans Refer to the EL8000 QuickSpecs https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00067727enw |
|
|
|
Interfaces
|
|
|
|
Operating Systems and Virtualization Software |
|
Support for ProLiant Servers |
Notes: The latest version of AOS and AHV are pre-installed in each server at the factory. vSphere must be installed separately |
|
Industry Standard Compliance |
|
|
HPE Server UEFI ROM |
|
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. The HPE ProLiant DX910 Server Blades default to UEFI and does not support Legacy BIOS Boot Mode. Notes: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://www.hpe.com/psnow/doc/PSN6935826USEN.pdf
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:
|
Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. |
|
|
|
Form Factor HPE ProLiant DX910 Server Blades plug into the HPE ProLiant DX8000 Systems. |
|
|
|
Embedded Management HPE Integrated Lights-Out Advanced (HPE iLO Advanced)
https://psnow.ext.hpe.com/doc/PSN332279USEN.pdf
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.
|
|
|
|
UEFI Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at https://www.hpe.com/psnow/doc/PSN6935826USEN.pdf. |
|
|
|
RESTful API RESTful API for iLO 5 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards.
Learn more at http://www.hpe.com/info/restfulapi
Notes: Full REST API is available when the server is installed in a HPE Edgeline System |
|
|
|
Intelligent Provisioning Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning |
|
|
|
Security
|
|
|
|
HPE Trusted Platform Module HPE Trusted Platform Module 2.0 is embedded on the Server Cartridge, and can be enabled and disabled using the BIOS. Notes: - The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008, 2012/2012 R2. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 2.0. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04939549 - ProLiant OS pre-installed units will come with the partition required for TPM deployment. - The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss. |
|
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike. Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world..
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Free up resources with Operational Services from HPE Pointnext Services HPE delivers services for IT by using proven best practices as well as automation and methodologies that have been tested and refined by HPE experts and artificial intelligence through thousands of deployments globally. Choose from the recommended services for customers purchasing from Hewlett Packard Enterprise or an authorized reseller. Services are quoted using Hewlett Packard Enterprise order configuration tools. HPE ProLiant DX Server Support Service - (Choose the response level that meets your needs) Notes: 3-Year, Next Business Day Onsite support is included with every DX server, but several services uplifts are available to meet your needs.
HPE ProLiant DX Server Support Services help whenever there is a HW or iLo Advanced problem. These services are available in 3, 4, and 5 year terms with a choice of response levels: Next Business day (NBD), 24x7 with a 4 hour response, and 6 hour Call-To-Repair (CTR). Note that Call-To-Repair Service connects you to HPE 24 hours a day, seven days a week for assistance on resolving issues -this includes our highest level commitment to repair hardware within six hours after opening your case and response to software questions within two hours. In addition, Collaborative software support is included and provides troubleshooting assistance on industry leading software running on your server.
Simplify your support experience and make HPE your first call to help resolve hardware or iLo Advanced Software problems. (Nutanix should be your first call for any issues related to the Nutanix Software).
For more information on this service: https://www.hpe.com/psnow/doc/a50000081enw?jumpid=in_lit-psnow-red
|
|
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
If you need your ProLiant DX Servers connected to your Complete Care contract, please let your sales teams know, and reach out to your HPE DX Category manager for further assistance.
https://www.hpe.com/services/completecare
|
|
|
|
Connect your devices Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Reduce down time, increase diagnostic accuracy and have a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Tech Care Service and HPE Complete Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support. Learn more about getting connected at http://www.hpe.com/services/getconnected |
|
|
|
Other related services from HPE Pointnext |
|
HPE Server Hardware Installation Provides for the basic hardware installation of your new Edgeline System. It is part of a suite of HPE deployment services that are designed to give you the peace of mind that comes from knowing your HPE products have been installed by Hewlett Packard Enterprise authorized service specialist in accordance with the product's documentation. https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00062322enw |
|
HPE Installation and Startup Service Provides for the installation of your new Edgeline System. This service will assist you in bringing your new HPE Edgeline System into operation and make it remotely accessible in a timely and professional manner. The HPE service delivery technician will connect the product to the network as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux). https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00062211enw
|
|
HPE Service Credits Offers flexible services and technical skills to meet your IT demands as your business evolves. With a menu of services, you can access additional resources and specialist skills to help you maintain peak performance of your IT. HPE Service Credits help you proactively respond to your dynamic IT and business needs.
|
|
HPE Education Services Provides comprehensive training designed to expand the skills of your IT staff and keep them up to speed with the latest technologies.
|
|
|
|
Warranty Notes: 3-Year, Next Business Day Onsite support is included with every DX server, covering your complete configuration.
This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. NOTES: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Optional CSR parts are designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 2) No CSR parts are also designed for requiring a Hewlett Packard Enterprise authorized service provider replace the part. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. Defective Media Retention An option available with HPE Pointnext Complete Care and HPE Pointnext Tech Care and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
|
|
|
|
For more information
To learn more on HPE Storage Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
HPE Support Services are sold by HPE and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
Configuration Information
|
Notes: - This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements - If you want to configure a server cartridge only, proceed to Step 1 | |
|
Base Configuration Select 1 | |
|
ProLiant DX8000 Chassis | |
|
HPE ProLiant DX8000 5U Configure-to-order Front Cabling Chassis |
P27112-B21 |
|
Power Supply Options |
|
|
Select One or Two (for Redundancy) | |
|
HPE DX8000 1500W 264VAC Front Cabling FIO Power Supply Kit |
P27129-B21 |
|
HPE DX8000 1500W -48VDC Front Cabling FIO Power Supply Kit |
P27130-B21 |
|
HPE ProLiant DX910 1U Node Configure-to-order Blade Server
|
P27111-B21 |
|
ILO5 Advanced is enabled by attaching the below SKU, one per blade: |
|
|
HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features
|
BD505A |
|
| |
|
Configure ProLiant Server Cartridge Choose appropriate Option |
|
|
Processor Option |
|
|
Select One |
|
|
Intel Xeon-Gold 6212U (2.4GHz/24-core/165W) FIO Processor Kit for HPE ProLiant DX910 |
P27116-B21 |
|
Intel Xeon-Gold 6230N (2.3GHz/20-core/125W) FIO Processor Kit for HPE ProLiant DX910 |
P27118-B21 |
|
Intel Xeon-Gold 6254 (3.1GHz/18-core/200W) FIO Processor Kit for HPE ProLiant DX910 |
P27119-B21 |
|
Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) FIO Processor Kit for HPE ProLiant DX910
|
P27117-B21 |
|
Riser Options Select Zero to One |
|
|
ProLiant DX910 1U Server Blade |
|
|
HPE ProLiant DX910 1U x16 HHHL Left FIO Riser Kit |
P27122-B21 |
|
Storage Expansion Option Select Zero or One |
|
|
ProLiant DX910 1UServer Blade |
|
|
HPE ProLiant e910 4-slot NVMe M.2 Enablement Kit |
P12386-B21 |
|
Notes: The M.2 Enablement Kit (P12386-B21) supports Qty4 of M.2 2280 and M.2 22110 SSDs Mixing of 2280 and 22110 SSD Form Factors are allowed
|
|
|
HPE Memory |
|
|
Select 1 to 12 of the following: |
|
|
HPE DX 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered FIO Memory Kit |
P27131-B21 |
|
HPE DX 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered FIO Memory Kit |
P27132-B21 |
|
HPE DX 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced FIO Memory Kit |
P27133-B21 |
|
HPE DX 128GB (1x128GB) Octal Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced FIO Memory Kit |
P27134-B21 |
|
Notes: - Mixing of RDIMMs and LRDIMMs is not allowed - Mixing of different LRDIMM capacity kits is not allowed (i.e 64GB &128GB) - Standard 2nd generation processors (i.e. x2xx) can only support up to and including 1024GB Max of memory per processor/socket. For configurations exceeding 1TB/socket, the "M" series processor (2TB/socket) is required.
|
|
|
HPE Solid State Drives |
|
|
Select 0 to 2 of the following: |
|
|
HPE 120GB SATA M.2 2242 Solid State Drive Field Upgradable Kit |
866842-B21 |
|
Select 0 to 6 of the following: |
|
|
HPE DX 1.92TB NVMe x4 Lanes Mixed Use M.2 22110 3yr Wty Extended Temperature FIO SSD |
P27124-B21 |
|
HPE DX 3.84TB NVMe x4 Lanes Mixed Use M.2 22110 3yr Wty Extended Temperature FIO SSD |
P27125-B21 |
|
| |
|
Choose Additional Options | |
|
Choose additional options for Factory Integration from sections below | |
|
| |
Additional Options
|
PCIe Slot Options: | |
|
Notes: - See Riser Kit Options above for determine configuration quantities. o ProLiant e910 1U max Qty. of 1 with Riser Option(P12384-B21) | |
|
Networking |
|
|
HPE DX Ethernet 10Gb 2-port 562SFP+ FIO Adapter |
P18455-B21 |
|
HPE DX Ethernet 1Gb 4-port 366T FIO Adapter |
P18460-B21 |
|
HPE DX Ethernet 10/25Gb 2-port 640SFP28 FIO Adapter |
P18462-B21 |
|
Flex-LOM: |
|
|
Notes: The ProLiant e910 Server Blades have a Network Module on the front of the server blade. The module design allows for the below choices for network connections |
|
|
HPE ProLiant DX910 4-port 10GbE QSFP+ FIO Module |
P27126-B21 |
|
Network Riser Kit |
|
|
HPE ProLiant DX910 2-port 10GbE SFP+ FIO Module |
P27128-B21 |
|
Supported Cables |
|
|
HPE DX 25Gb SFP28 SR 100m FIO Transceiver |
P18413-B21 |
|
| |
Technical Specifications
|
Server Cartridge |
|
HPE ProLiant DX910 Server Blade
|
|
|
|
System Inlet Temperature |
|
|
|
|
Emissions Classification (EMC)
Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. |
|
|
|
Environment-friendly Products and Approach - End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
15-Nov-2021 |
Version 4 |
Changed |
Service and Support Pointnext Tech Care and Complete Care information updated |
|
05-Oct-2020 |
Version 3 |
Changed |
Standard Features and Additional Options sections were updated. |
|
03-Aug-2020 |
Version 2 |
Changed |
Overview, Standard Features and Configuration Information sections were updated. |
|
01-Jun-2020 |
Version 1 |
New |
New QuickSpecs |
Copyright
|
|
| ||||||||||||
|
|
|
© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a50000487enw - 16610 - Worldwide - V4 - 15-November-2021 | ||||||||||||
