HPE ProLiant DX190r Gen10 server

The HPE ProLiant DX190r Gen10 server along with Nutanix provide a global partnership to deliver hyper-converged solutions in an on premise appliance or through the HPE Greenlake consumption model.. This offering will leverage Nutanix's free AHV hypervisor and Nutanix Enterprise Cloud software to provide customers with a pre-integrated and optimized solution that dramatically lowers total cost of ownership and accelerates operational productivity.

The ProLiant DX190r Gen10 Server is a 2U half-width, 2P server with the same configuration options as the DX170r for CPU and memory, but has additional PCIe slots providing support for additional networking expansion cards..  The dense and flexible HPE ProLiant DX2000 Chassis Chassis can accommodates up to two 2U hot-swap server trays to meet various workload needs while lowering TCO.

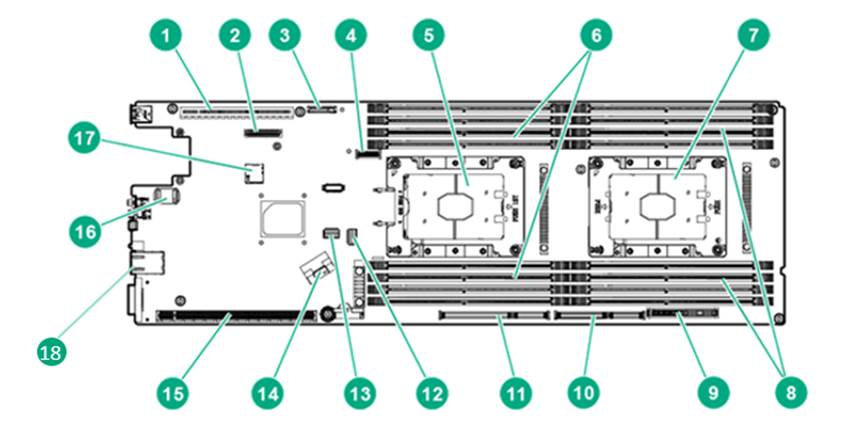

128GFront View

Item

Description

Item

Description

1

Primary riser slot 1

10

Secondary riser slot 4

2

mLOM connector

11

Secondary riser slot 3

3

System battery

12

Slimline connector (SATA x4)

4

M.2 SSD riser connector

13

System maintenance switch

5

Processor 1

14

Slimline connector (SATA x8)

6

DIMMs for processor 1

15

Secondary riser slot 2

7

Processor 2

16

TPM connector

8

DIMMs for processor 2

17

microSD slot

9

Bayonet board slot

18

iLO dedicated port

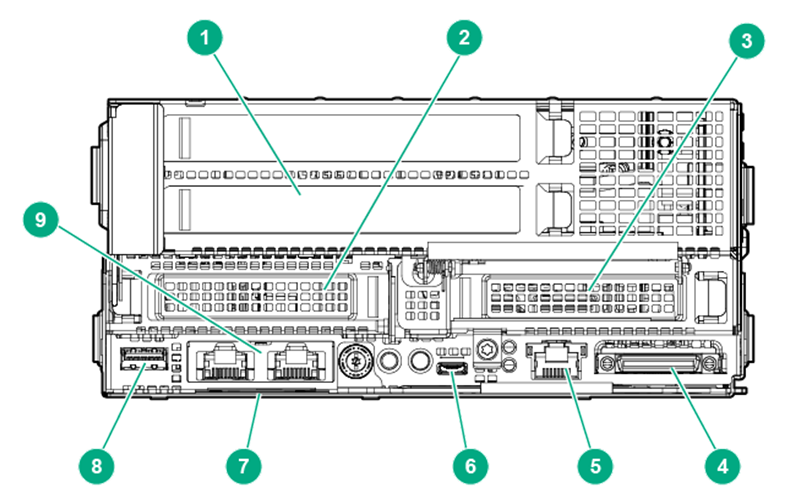

2U Node Rear Panel Components

Item

Description

Item

Description

1

Dual Width GPU slot 3

6

iLO service port with micro USB connector

2

Slot 1

7

Node serial number and iLO label pull tab

3

Slot 2

8

USB 3.0 connector

4

SUV connector

9

Media module

5

iLO Management port

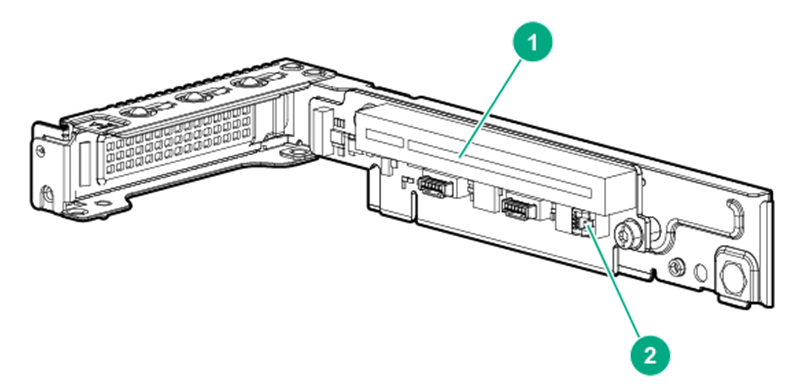

Single-Slot left PCI riser cage assembly

Item

Form factor

Slot number

Slot description

1

Storage controller

1

PCIe3 x16 (16, 8, 4, 1) for Processor 1

Notes: This riser and the HPE Smart Array E208i-a SR Gen10 Controller are included with each HPE ProLiant DX190r server.

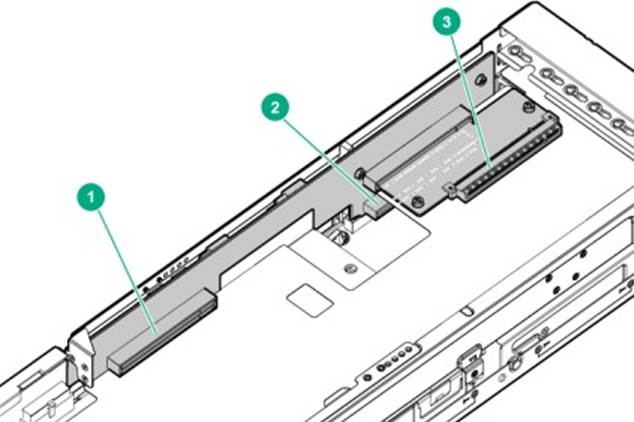

2U secondary riser for processor 2 cage assembly

Item

Form factor

Slot number

Slot description

1

Optional Card

4

PCIe3 x16 (16, 8, 4, 1) for Processor 2

2

Flexible LOM Slot

2

PCIe3 x16 for Processor 1

3

Optional Card

3

PCIe3 x16 (16, 8, 4, 1) for Processor 2

Notes: This riser is included with each HPE ProLiant DX190r server.

Processors

Chipset

Intel® C622 Chipset (Intel EY82C622 PCH)

Notes: For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

On System Management Processor

HPE iLO 5 ASIC.

Notes: Read and learn more in the iLO QuickSpecs

Notes:

- HPE memory from previous generation servers are not fully compatible with the HPE ProLiant DX190r Gen10 server.

- To realize the performance memory capabilities listed in this document, HPE SmartMemory is required.

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

- The maximum memory speed is a function of the memory type, memory configuration, and processor model. Please see Memory Population Table or the Online Memory Configuration Tool at:

http://www.hpe.com/servers/servermemoryconfigurator

- Memory DIMM availability with a server platform is dependent upon completion of certification testing.

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.

Notes:

- *Indicates the number of physical electrical lanes running to the connector.

- Expansion slot 1 is preconfigured with the HPE XL1x0r Gen10 Left LP Riser Kit and HPE Smart Array E208i-p SR Gen10 Controller.

- Expansion slot 2 is preconfigured with the HPE DX190r Gen10 FLOM Riser Kit, customers can select from the FLOM network adapters available for the HPE ProLiant DX190r.

- Expansion slots 3 and 4 are available for adding additional networking option cards

Internal Hard Drives

None, drives are selected with the server but installed in the HPE ProLiant DX2000 Chassis

HPE ProLiant DX2200 12LFF Hard Drive Configurations

• Hybrid SSD/HDD: 2 SSD and 4 HDD per server
• All SSD: 2, 4, or 6 SSD per server

Notes: SAS and SATA SSDs cannot be mixed

Operating Systems and Virtualization Software

• Nutanix Acropolis Operating System (AOS):  Version 5.10.5 and higher
• Nutanix Acropolis Hypervisor (AHV):  Version 2017030.279 and higher
• VMware vSphere: Version 6.5 U2, 6.5 U3, 6.7 U3

Notes: The latest version of AOS and AHV are pre-installed in each server at the factory.  vSphere must be installed separately.

Form Factor

The ProLiant DX190r Gen10 Server is a single-slot 2U node for the HPE ProLiant DX2000 Chassis.

Industry Standard Compliance

• ACPI 6.2 Compliant
• PCIe 3.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• PXE Support
• USB 3.0 Compliant (internal); USB 2.0 Compliant (external ports via SUV)
• SMBIOS 3.1
• UEFI 2.6
• Redfish API

Power Specifications

The HPE ProLiant DX2000 server chassis come preconfigured with two (2) HPE 1800W-2200W Flex Slot Platinum Hot Plug Power Supplies.

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL:

http://www.hpe.com/servers/powersupplies

Notes: Power Specification and Technical Content for supported power supplies can be found at:

https://www.hpe.com/info/qs

Graphics

Integrated Matrox G200 video standard

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)
• HPE iLO 5 On System Management Memory
• 32 MB Flash
• 512 MB DDR 3 with ECC (112 MB after ECC and video

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at: http://www.hpe.com/info/ilo

Notes: iLO Advanced license with 3 years support is included with each HPE DX190r server.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at: http://www.hpe.com/info/restfulapi

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at: http://www.hpe.com/servers/ahs

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations. Learn more at http://www.hpe.com/servers/ahsv

Smart Update

Keep your servers up to date with HPE's Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP)

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

http://www.hpe.com/servers/iLOamplifierpack

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. http://www.hpe.com/info/ilo/mobileapp

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. http://www.hpe.com/info/resttool

Scripting tools

Provision 1 to many servers using your own scripts to discover and deploy with Scripting Toolkit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. http://www.hpe.com/servers/powershell

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE Servers generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. http://www.hpe.com/info/oneview

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. www.hpe.com/info/hpesim

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. http://www.hpe.com/servers/iloadvanced

Notes: iLO Advanced license with 3 years support is included with each HPE DX190r server.

HPE OneView Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. http://www.hpe.com/servers/iloadvanced

HPE Performance Cluster Management (HPCM)

HPE Performance Cluster Manager is a fully integrated system management solution offering all the functionalities you need to manage your Linux®-based high performance computing (HPC) clusters. The software provides system setup, hardware monitoring and management, image management and software updates as well as power management for systems of any scale - up to 100,000 nodes. http://www.hpe.com/software/hpcm

HPE Performance Software-Message Passing Interface

The HPE Performance Software-Message Passing Interface (MPI) is an MPI development environment designed to enable the development and optimization of high performance computing (HPC) applications. The HPE Performance Software-MPI leverages a scalable MPI library and boosts performance of existing applications without requiring recompilation.

Security

• Immutable Silicon Root of Trust
• Support for Commercial National Security Algorithms (CNSA)
• Granular control over iLO interfaces
• Common Access Card (CAC) 2-factor Authentication
• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
• Intrusion Security Kit option
• Runtime Firmware Validation - Periodically scan essential firmware for compromised code during runtime

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty.

Notes: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://www.hpe.com/support/ProLiantServers-warranties

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services

HPE Pointnext Tech Care.

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more at http://www.hpe.com/support/hpesc

HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

Notes:*HPE Support Center Mobile App is subject to local availability.

For more information visit http://www.hpe.com/services

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

Notes:

- FIO indicates that this option is only available as a factory installable option.

- HPE ProLiant DX2000 Chassis is required to support the server Refer to HPE ProLiant DX2000 Chassis QuickSpecs for additional information.

Step 1: Base Configuration

HPE CTO Model

HPE ProLiant DX190r Gen10 2U Node Configure-to-order Server

P17978-B21

Options included in this model

• HPE XL1x0r Gen10 M2 NGFF Riser
• HPE 240GB SATA MU M.2 2280 DS SSD
• HPE XL1x0r Gen10 Left Low Profile Riser Kit
• HPE XL190r Gen10 FLOM Riser Kit
• HPE XL190r Left E208ip/P408ip Cable Kit
• iLO Advance license with 3 years support
• HPE Smart Array E208i-p SR Gen10 Controller
• Tech Care Next Business Day 3 year support service

Step 2a: Choose Required Options

Please select one -L21 processor required below.

For second processor, please select the same processor model with -B21 from Core Options - HPE Processors section

For example: first processor, select P18018-L21 then for second processor, select P180018-B21.

Notes:

- 2 processors are required.

- Mixing of 2 different processor models is not supported.

- When 2^nd Generation Intel Xeon Scalable Processor is selected, then only DDR4-2933 Memory Kit can be selected

- All HPE DX190r processors come with the High Performance Heatsink included.

HPE Processors

SKU

2^nd Generation Intel® Xeon

Intel Xeon-Platinum 8253 (2.2GHz/16-core/125W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18018-L21

Intel Xeon-Gold 6252 (2.1GHz/24-core/150W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18017-L21

Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18016-L21

Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10.

P18015-L21

Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10.

P18014-L21

Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18013-L21

Intel Xeon-Gold 6238 (2.1GHz/22-core/140W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10.

P18012-L21

Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18011-L21

Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18010-L21

Intel Xeon-Gold 6226R (2.9GHz/16-core/150W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P23443-L21

Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18009-L21

Intel Xeon-Gold 5220R (2.2GHz/24-core/150W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P23444-L21

Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18008-L21

Intel Xeon-Gold 5218R (2.1GHz/20-core/125W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P23439-L21

Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18007-L21

Intel Xeon-Gold 5217 (3.0GHz/8-core/115W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18006-L21

Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18005-L21

2^nd Generation Intel® Xeon

Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18004-L21

Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18003-L21

Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P23441-L21

Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10.

P18002-L21

Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18001-L21

Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P23440-L21

Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18000-L21

Step 2b: Choose Memory Options

Notes:

- Minimum 2 DIMMs are required per server; up to 8 DIMMs per processor.

- DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. For the maximum supported memory speeds for each processor listed above, please reference the 'Memory Speed by Processor Model' table in the Memory section of the QuickSpecs.

Registered DIMMs (RDIMMs) for 2nd Generation Intel Xeon Scalable Series

HPE DX 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18448-B21

HPE DX 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18449-B21

HPE DX 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18450-B21

HPE DX 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18453-B21

Load Reduced DIMMs (LRDIMMs) for 2nd Generation Intel Xeon Scalable Series

HPE DX 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart FIO Memory Kit

P18451-B21

Notes:

- Minimum 2 DIMMs are required per server; up to 8 DIMMs per processor.

- A maximum of 16 DIMMs are supported per DX190r server tray (or 8 DIMMs max per processor).

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

- HPE memory from previous generation servers is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10. For additional information, please see the HPE SmartMemory QuickSpecs at: https://www.hpe.com/h20195/v2/GetPDF.aspx/c04355083.pdf

- Depending on the memory configuration and processor model, the memory speed may run at 2666MHz, 2400MHz, and 2133MHz. Please see Memory Population Table or the Online Memory Configuration Tool at:

http://h22195.www2.hpe.com/MemoryTool/Home/Legal

Step 3: Choose Additional Options for Factory Integration from Core Options section below

HPE Processors

Notes: 2 processors are required.  Select processor matching the first processor selection.

2^nd Generation Intel® Xeon

Intel Xeon-Platinum 8253 (2.2GHz/16-core/125W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10.

P18018-B21

Intel Xeon-Gold 6252 (2.1GHz/24-core/150W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10.

P18017-B21

Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18016-B21

Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10.

P18015-B21

Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10.

P18014-B21

Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18013-B21

Intel Xeon-Gold 6238 (2.1GHz/22-core/140W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10.

P18012-B21

Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18011-B21

Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18010-B21

Intel Xeon-Gold 6226R (2.9GHz/16-core/150W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P23443-B21

Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18009-B21

Intel Xeon-Gold 5220R (2.2GHz/24-core/150W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P23444-B21

Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18008-B21

Intel Xeon-Gold 5218R (2.1GHz/20-core/125W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P23439-B21

Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18007-B21

Intel Xeon-Gold 5217 (3.0GHz/8-core/115W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18006-B21

Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18005-B21

Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18004-B21

Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18003-B21

Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P23441-B21

Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10.

P18002-B21

Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P23440-B21

Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO2 Processor Kit for HPE ProLiant DX1x0r Gen10

P18001-B21

Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DX1x0r Gen10

P18000-L21

HPE Memory

Registered DIMMs (RDIMMs) for 2nd Generation Intel Xeon Scalable Series

HPE DX 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18448-B21

• Standalone: P00920-B21

HPE DX 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18449-B21

• Standalone: P00922-B21

HPE DX 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18450-B21

• Standalone: P00924-B21

HPE DX 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart FIO Memory Kit

P18453-B21

• Standalone: P00930-B21

Load Reduced DIMMs (LRDIMMs) for 2nd Generation Intel Xeon Scalable Series

HPE DX 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart FIO Memory Kit

P18451-B21

• Standalone: P00926-B21

Notes:

- Minimum 1 DIMMs are required per processor; up to 8 DIMMs per processor.

- HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE DDR4 SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10. For additional information, please see the HPE DDR4 SmartMemory QuickSpecs at:

http://www8.hpe.com/h20195/v2/GetHTML.aspx?docname=c04380279

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

- Depending on the memory configuration and processor model, the memory speed may run at 2666MHz. 2400MHz, 2133MHz. Please see Memory Population Table or the Online Memory Configuration Tool at:

http://h22195.www2.hpe.com/MemoryTool/Home/Legal

HPE Networking

FlexibleLOM Adapters

HPE DX Ethernet 10Gb 2-port 562FLR-T FIO Adapter

P18458-B21

• Standalone: 817745-B21

HPE DX Ethernet 1Gb 4-port 366FLR FIO Adapter

P18459-B21

• Standalone: 665240-B21

HPE DX Ethernet 10/25Gb 2-port 640FLR-SFP28 FIO Adapter

P18461-B21

• Standalone: 817749-B21

Media Module Adapters

HPE DX Ethernet 10Gb 2-port 568FLR-SFP+ Media Module FIO Adapter

P19147-B21

• Standalone: 866467-B21

HPE DX Ethernet 10Gb 2-port 568FLR-MMT FIO Adapter

P19149-B21

• Standalone: 868227-B21

HPE Drives

Midline - 12G SAS - SFF Drives

HPE DX 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e FIO HDD

P17956-B21

• Standalone: 765466-B21

Midline - 12G SAS - LFF Drives

HPE DX 2TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware FIO HDD

P17962-B21

• Standalone: 833926-B21

HPE DX 4TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware FIO HDD

P17963-B21

• Standalone: 833928-B21

HPE DX 6TB  SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e FIO HDD

P17964-B21

• Standalone: 861746-B21

HPE DX 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware FIO HDD

P17965-B21

• Standalone: 834031-B21

HPE DX 12TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware FIO HD

P17966-B21

• Standalone: 881781-B21

SSD Selection

Read Intensive - SATA - LFF - Solid State Drives

HPE DX 1.92TB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware FIO SSD

P19093-B21

HPE DX 3.84TB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware FIO SSD

P19097-B21

HPE DX 3.84TB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware FIO SSD

P19134-B21

Read Intensive - SATA - SFF - Solid State Drives

HPE DX 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware FIO SSD

P17970-B21

HPE DX 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware FIO SSD

P18736-B21

HPE DX 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware FIO SSD

P19133-B21

• Standalone: P05946-B21

Mixed Use - SATA - LFF Solid State Drives

HPE DX 960GB SATA 6G Mixed Use LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware FIO SSD

P19090-B21

HPE DX 1.92TB SATA 6G Mixed Use LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware FIO SSD

P18137-B21

HPE DX 960GB SATA 6G Mixed Use LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware FIO SSD

P19099-B21

HPE DX 1.92TB SATA 6G Mixed Use LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware FIO SSD

P19132-B21

Mixed Use - SATA - SFF - Solid State Drives

HPE DX 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware FIO SSD

P17968-B21

HPE DX 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware FIO SSD

P17969-B21

HPE DX 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware FIO SSD

P17973-B21

HPE DX 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware FIO SSD

P18054-B21

HPE Rack Options

Rail Kits

HPE 2U Shelf-Mount Adjustable Rail Kit

822731-B21

HPE Support Services

HPE 3 Year Next Business Day with Defective Media Retention DX190r Gen10 Hardware Service

HN4Y2E

HPE 3 Year 24x7 DX190r Gen10 Hardware Service

HN4Y3E

HPE 3 Year 24x7 with Defective Media Retention DX190r Gen10 Hardware Service

HN4Y4E

HPE 5 Year Next Business Day DX190r Gen10 Hardware Service

HN4Y5E

HPE 5 Year Next Business Day with Defective Media Retention DX190r Gen10 Hardware Service

HN4Y6E

HPE 5 Year 24x7 DX190r Gen10 Hardware Service

HN4Y7E

HPE 5 Year 24x7 with Defective Media Retention DX190r Gen10 Hardware Service

HN4Y8E

System Unit Specifications

Server Dimensions  (L x W x D)

3.32 x 7.27 x 27.36 in (8.43 x 18.45 x 69.47 cm)

Weight (approximate)

Maximum

25.1 lb (11.39 kg)

System Inlet Temperature Standard Operating Support

10° to 35°C

(50° to 95°F)

At sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.

Extended Ambient Operating Support

5° to 10°C

(41° to 50°F) and 35° to 40°C

(95° to 104°F)

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

-30° to 60°C

(-22° to 140°F).

Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity (non-condensing)

Operating

8% to 90%

Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95%

Relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft).

This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft)

Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Notes: Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.r2200 Chassis.

Notes: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.

Thermal limitations

For a full list of thermal limitations please see the HPE ProLiant DX190r Gen 10 Server User Guide.

https://support.hpe.com/hpsc/doc/public/display?docId=emr_na-a00027947en_us&docLocale=en_US

Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

06-Dec-2021

Version 6

Changed

Removed 128G Memory SKU

Overview and Configuration Information sections were updated

15-Nov-2021

Version 5

Changed

Service and Support and Core options sections were updated.

Obsolete SKUs were removed

06-Apr-2020

Version 4

Changed

Standard Features section was updated.

24-Feb-2020

Version 3

Changed

Configuration Information, and Core Options sections were updated.

06-Jan-2020

Version 2

Changed

Core Options section was updated.

30-Jul-2019

Version 1

New

New QuickSpecs

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

VMware is a registered trademark of VMware, Inc. in the United States and/or other jurisdictions.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

a00073752enw - 16521 - WorldWide  - V6 - 06-December-2021
