HPE ProLiant DL560 Generation9 (Gen9)

Business-critical workloads and virtualized environments require compact and powerful computing capacity. The HPE ProLiant DL560 Gen9 Server is designed for exactly that. To deliver performance, scalability, and expandability in a dense 2U footprint. Deploy the ideal high-density four-socket server for multi-workload compute with the latest technology. It's designed to help you achieve greater performance at the right price.

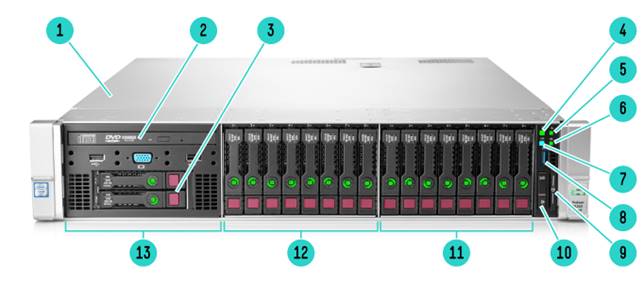

Front View

1.

Quick removal access panel

2.

Optional Optical drive. Requires Universal Media Bay

3.

Optional 2 SFF HDDs. Requires Universal Media bay.

4.

Power On/Standby button and system power LED button

5.

Health Status LED

6.

NIC Status LED

7.

UID button

8.

USB 3.0 connector

9.

Serial label pull tag

10.

Systems Insight Display (SID) (optional)

11.

Bay 3 - fixed 8 SFF Drive Bay

12.

Bay 2 - Optional 8 SFF Drive Bay

13.

Bay 1 - Optional 8 SFF Drive Bay or Universal Media Bay

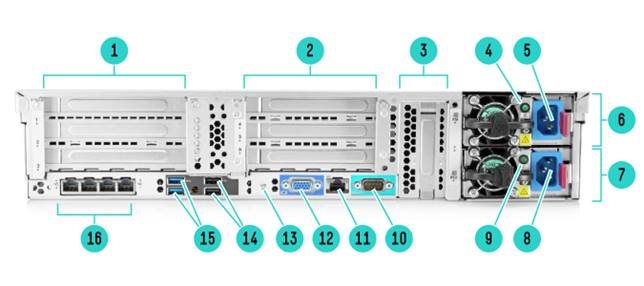

Rear View

1.

PCIe Slots (Slots 1-3 top to bottom)

2.

PCIe Slots (Slots 4-6 top to bottom)

3.

PCIe Slot  (Slot 7)

4.

Power supply power LED

5.

Power supply power connection

6.

HPE Common Slot Power Supply bay 1

7.

HPE Common Slot Power Supply bay 2

8.

Power supply power connection

9.

Power supply power LED

10.

Serial connector

11.

Dedicated iLO connector

12.

VGA (video) connector

13.

Unit ID LED

14.

USB 2.0 connectors (2)

15.

USB 3.0 connectors (3)

16.

HPE FlexibleLOM ports (Shown:4x1GbE/Optional:2x10GbE);port1 on right side

What's New

• HPE 128GB LRDIMMs for dramatic increases in total system memory capacity without sacrificing speed
• HPE Dual 8GB microSD USB Kit for redundancy in boot environments
• New Fiber Channel HBA's up to 32GB
• New 100Gb Omnipath networking card
• New 10GB 4-port networking card
• New 3.84TB SATA 6G Mixed Use SFF DS SSD

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Processor
One, Two or Four of the following depending on the server model configuration chosen

NOTE: Intel® Hyper Threading supported on all processors except E5-4627 v3 and E5-4627 v4.

NOTE: Intel® Turbo Boost Technology supported on all processors except E5-4610 v3 and E5-4610 v4.

NOTE: For the Standard Features shipped in the "Factory Integrated Models," please see the "Configuration Information - Factory Integrated Models" section.

Cache Memory

One of the following depending on model

55MB (1 x 55MB) Level 3 cache

NOTE: With the E5-4669v4 processor.

45MB (1 x 45MB) Level 3 cache

NOTE: With the E5-4667v4 and E5-4669v3 processors.

40MB (1 x 40MB) Level 3 cache

NOTE: With the E5-4660v4 and E5-4667v3 processors.

35MB (1 x 35MB) Level 3 cache

NOTE: With the E5-4650v4 and E5-4660v3 processors.

30MB (1 x 30MB) Level 3 cache

NOTE: With the E5-4640v4, E5-4655v4, E5-4650v3, E5-4640v3, and E5-4655v3 processors.

25MB (1 x 25MB) Level 3 cache

NOTE: With the E5-4610v4, E5-4620v4, E5-4627v4, E5-4620v3, E5-4627v3, and E5-4610v3 processors.

Chipset

Intel® C610 Series Chipset

Intel® Xeon® E5-4600v4 Processor Family

Intel® Xeon® E5-4600v3 Processor Family

NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management
Chipset

HPE iLO 4 (4GB NAND)
NOTE: Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model

Type:

HPE SmartMemory

DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)

DIMM Slots Available

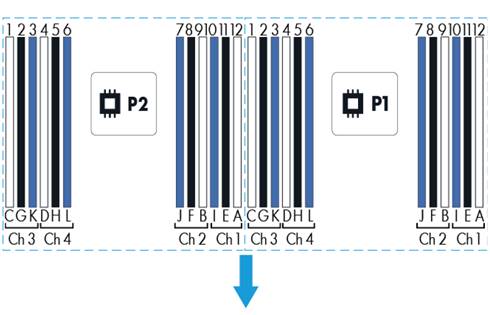

48

(12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)

Maximum Capacity (LRDIMM)

6TB

48 x 128GB LRDIMM @2400MHz

Maximum Capacity (RDIMM)

1.5TB

(48 x 32GB RDIMM @2400 MHz)

NOTE: HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs.

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

NOTE: Depending on the memory configuration (for instance: number of DIMMs and DIMMs per channel, type of memory) and processor model, the memory speed may run at 2400, 2133, 1866MHz, 1600MHz. Please see Memory Population Table below or the Online Memory Configuration Tool.

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Mirroring mode

Memory mirroring inter-socket stores a copy of memory with dynamic failover in case of failure. Once a DIMM in a mirrored set is detected as failed, the mirror failover uses its mirrored DIMM.

Demand and Patrol Scrubbing

Memory demand and patrol scrubbing prevent accumulation of correctable errors and reduces the likelihood of unplanned downtime.

Failed DIMM Isolation

Failed DIMM isolation improves the service time thus improving the overall system availability.

Data Bus ECC Protection

Data Bus ECC protection provides automatic correction from a single data bit error and detection of double data error bits. Often called single error correction/double error detection (SEC/DED).

Memory Thermal Control

Memory thermal control is used to prevent DIMMs from overheating. Achieved by slowing down the memory access rate per the temperature monitored by DIMM sensor.

Memory Mirroring
Inter-Socket

Memory mirroring inter-socket stores a copy of memory with dynamic failover in case of failure. Once a DIMM in a mirrored set is detected as failed, the mirror failover uses its mirrored DIMM.

Network Controller

The HPE ProLiant DL560 Gen9 servers offer a flexible network technology - FlexibleLOMs, which offers customers a choice of 1Gb, 10Gb, or 10Gb base-T Ethernet or converged networking in their embedded adapter. A range of NIC cards are also available to enhance networking capabilities.

NOTE: For additional details see the Networking Section of this document.

Model

Adapter

Entry Model

HPE Ethernet 1Gb 4-port 331FLR Adapter

Base Model

HPE FlexFabric 10Gb 2P 533FLR-T Adapter

Performance Model

HPE FlexFabric 10Gb 2P 533FLR-T Adapter

Expansion Slots

Primary Riser
(Standard)

Expansion Slots #

Technology

Bus
Width

Connector Width

Bus
Number

Form Factor

Notes

1

PCIe 3.0

x8

x16

7

Half length/full height

Proc 1

2

PCIe 3.0

x8

x16

10

Half length/full height

Proc 1

3

PCIe 3.0

x8

x8

13

Half length/full height

Proc 1

NOTE: PCIe slot availability is dependent on the number of processors installed.

NOTE: Connector Width indicates default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.

NOTE: Bus Width indicates the number of physical electrical lanes running to the connector. Inserting cards with PCI bridges may alter the actual bus assignment number.

Primary Riser
(Optional)

793475-B21

Expansion Slots #

Technology

Bus
Width

Connector Width

Bus
Number

Form Factor

Notes

2

PCIe 3.0

x16

x16

Half length/full height

Proc 1

3

PCIe 3.0

x8

x8

Half length/full height

Proc 1

Secondary Riser (Optional)

793474-B21

Expansion Slots #

Technology

Bus
Width

Connector Width

Bus
Number

Form Factor

Notes

4

PCIe 3.0

x16

x16

16

Half length/full height

Proc 2

5

PCIe 3.0

x8

x16

20

Half length/full height

Proc 2

6

PCIe 3.0

x8

x8

23

Half length/full height

Proc 2

Expansion Slot 7

Expansion Slots #

Technology

Bus
Width

Connector Width

Bus
Number

Form Factor

Notes

7

PCIe 3.0

x8

x16

26

Low profile

Proc 2

Storage Controller
One of the following depending on model

Entry Models

HPE Dynamic Smart Array B140i Controller

Base Models

HPE Flexible Smart Array P440ar/2GB Controller

The P440ar Flexible Smart Array controller is in the Adaptive RAID on Chip slot, enables SAS drives and has 2GB Flash Backed Write Cache for data retention.

Performance Models

HPE Smart Array P840/4G Controller

The P840 Flexible Smart Array controller enables SAS drives and has 4GB Flash Backed Write Cache for enhanced data retention.

Internal Storage Devices
One of the following depending on model

Hard Drives

None ship standard

Hard Drive Bays

8 hot plug SFF SAS/SATA HDD Bays in Entry and Base Models

16 hot plug SFF SAS/SATA HDD Bays in Performance Models

NOTE: Upgradeable to a maximum of 24. If one of the two Optional Universal Media Bay Kits is chosen, a maximum of 18 SFF drives are available as versus 24. The standard Universal Media Bay Kit occupies an 8 SFF drive bay cage and includes an optional Optical Disk Drive; another version has an optional 2SFF drive bay as well.

Optional Optical Drive

Available via Universal Media Bay Kit

NOTE: An optional optical drive can be added to either the Universal Media Bay Kit with 2SFF drive bay (793479-B21) or the Universal Media Bay Kit without 2SFF drive bay (795090-B21).

Maximum Internal Storage

CAPACITY

CONFIGURATION

Hot Plug SFF SATA

48TB

24 x 2TB

Hot Plug SFF SAS

48TB

24 x 2TB

Hot Plug SFF SATA SSD

92TB

24 x 3.84TB

Hot Plug SFF SAS SSD

92TB

24 x 3.84TB

Power Supply

One of the following depending on model

HPE 1200W Common Slot Platinum Hot Plug Power Supply

NOTE: Entry Models have a single HPE 1200W Common Slot Platinum Hot Plug Power Supply.

2 HPE 1200W Common Slot Platinum Plus Hot Plug Power Supplies

NOTE: Base and Performance Models have redundant HP1200W Common Slot Platinum Plus Hot Plug Power Supplies.

Common Slot Power Supplies

One of the following depending on power requirements:

HPE 1500W Common Slot Platinum Plus Hot Plug Power Supply

HPE 1500W Common Slot 48VDC Hot Plug Power Supply

NOTE: 1500W power supply supports high line voltage only.

HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply

HPE 1200W Common Slot Platinum Hot Plug Power Supply

Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor.

Hewlett Packard Enterprise Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HPE Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HPE CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HPE CS power supply options provide efficiency ratings of up to 94% (80 Plus Platinum) and are available in several power output options including - 1200W, 1500W - allowing the customer to "right-size" a power supply for their specific server configuration. All HPE Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations.

HPE CS Platinum Plus power supplies are required when enabling HPE's Intelligent Power Discovery (IPD) solution. IPD is the first technology to create an automated, energy-aware network between IT systems and facilities. This allows your company to reclaim millions of dollars in wasted power capacity and downtime costs across data centers. For more information on HPE's IPD solution, go to https://www.hpe.com/servers/powerdiscovery.

NOTE: Mixing of power supplies in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and operation will fail.

NOTE: All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

System Fans

Non-redundant

Redundant

6 Hot Plug Fans (with N+1 redundancy)

Interfaces

Serial

1 rear

Video

1 front (optional with Universal Media Bay kit); 1 rear

iLO 4 Remote Management

1

Micro SD Dual Slot

1

NOTE: Requires the optional HP Dual Micro SD 8GB USB kit.

USB 2.0 Ports

5 total: 2 front (optional); 2 rear; 1 internal

USB 3.0 Ports

4 total: 1 front; 2 rear, 1 internal

Operating Systems and Virtualization Software Support
for ProLiant Servers

Microsoft Windows Server

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

VMware

NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hpe.com/info/ossupport and our driver download page.

Upgradeability

Upgradeable to 4 processors

Up to 48 DIMM slots

7 PCIe 3.0 I/0 slots

NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the "Expansion Slots" section for more details.

NOTE: The HPE ProLiant DL560 Gen9 server has a dedicated FlexibleLOM slot and an Adaptive Raid On Chip (AROC) slot for HPE Flexible Smart Array controllers in addition to the 7 PCI 3.0 I/O expansion slots.

Embedded 10-Port SATA, B140i as standard

HPE Flexible Smart Array, Smart Array or Smart HBA Controllers

FlexibleLOM slot for 1GbE or 10GbE or QDR/FDR InfiniBand Networking Options

Up to 24 SFF drives; or 18 SFF drives with optional Universal Media Bay

Optional System Insight Display

Redundant Power Supplies

Industry Standard Compliance

PCIe 3.0 Compliant

ACPI 2.0. Compliant

PXE Support

WOL Support

Microsoft® Logo certifications

USB 2.0 Support

USB 3.0 Support

Energy Star

ASHRAE A3/A4

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

Graphics

Integrated Matrox G200 video standard

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)

HPE iLO 4 On System Management Memory

• 16 MB Flash
• 256 MB DDR 3 with ECC (112 MB after ECC and video)

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.

NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using RESTful API for iLO 4
• PXE boot support for IPv6 networks
• Boot support for option cards that only support a UEFI option ROM
• Network Stack configurations

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen9 Server.

Form Factor

2U Rack Form Factor

Entry, Base and Performance pre-configured models ship with Gen9 Easy Install Rail Kits and Cable Management Assembly

3.44" (8.74 cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94 cm) Length

Embedded Management

HPE Integrated Lights-Out
(HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi.

RESTful API

RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning.

Embedded Remote Support

The Hewlett Packard Enterprise embedded remote support, when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support. Learn more at http://www.hpe.com/info/insightonline/explore.

Server utilities

Smart Update

Optimize firmware and driver updates with Smart Update solutions including Smart Update Manager (SUM) and Service Pack for ProLiant (SPP). Learn more at http://www.hpe.com/servers/smartupdatemanager.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE Systems Insight Manager (HPE SIM)

HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-HPE servers.
HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/servers/hpsim.

Scripting Tool Kit and Windows PowerShell

Provision 1 to many servers using your own scripts to discover and deploy them with Scripting Tool Kit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/proliant/stk or http://www.hpe.com/servers/powershell.

RESTful Interface Tool

RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 4 to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

HPE Insight Online

HPE Insight Online, available at no additional cost as part of your Hewlett Packard Enterprise warranty or contractual support agreement with Hewlett Packard Enterprise, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at http://www.hpe.com/info/insightonline/explore.

Security

Power-on password

Serial interface control

Administrator's password

Trusted Platform Module (TPM)

TPM 2.0

NOTE: HPE Trusted Platform Module 2.0 Option (745823-B21) works with Gen9 servers with UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants. HPE Gen9 servers purchased earlier may need the latest firmware update to be compatible with the TPM 2.0 Option.

The earlier HPE Trusted Platform Module Option (488069-B21) is the TPM 1.2 version, which is also available on the DL560 Gen9 platform, however TPM 2.0 has newer technology standards incorporated. The TPM 1.2 compatible server platforms include Gen8 and Gen9 servers.

HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

Embedded Management

iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced at http://www.hpe.com/servers/iloadvanced.

Server Management

HPE Insight Control

HPE Insight Control, lets you deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, see http://www.hpe.com/info/insightcontrol.

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced at http://www.hpe.com/servers/iloadvanced.

HPE OneView

Advanced

HPE OneView Advanced is converged management that eliminates infrastructure complexity with automation simplicity. This modern architecture is designed to accelerate your IT operations across servers, storage, and network resources using software-defined approaches and automation, see http://www.hpe.com/info/oneview.

Rack and Power Infrastructure

HPE Rack and Power Infrastructure products and services create highly efficient and intelligent solutions for existing or new IT data centers. HPE Rack and Power infrastructure solutions - rack infrastructure, power protection and management, performance optimized data centers (PODs) - are the foundation you are looking for to help secure your long-term IT success. These products are designed to help you react to changes in the industry. They deliver efficient, easy-to-use capabilities to manage, monitor, deploy and provision infrastructure from entry to enterprise. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

Learn more at HPE Rack and Power Infrastructure.

High Performance Clusters

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a Hyperscale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

HPC Interconnects

NOTE: High Performance Computing (HPC) interconnect technologies are available for this server under the HPE Cluster Platform product portfolio. These high-speed interconnects are fully supported by Hewlett Packard Enterprise when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. https://www.hpe.com/info/hpc/solutions.

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than Hewlett Packard Enterprise storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

• Data Protection and Recovery Software
  Whether you're a large enterprise or a smaller business, Hewlett Packard Enterprise data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.
• Data Archive and Migration Software
  Hewlett Packard Enterprise storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.
• Storage Resource Management Software (SRM)
  Hewlett Packard Enterprise storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.
• Data Replication Software
  Hewlett Packard Enterprise offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.
• Storage Device Management Software
  Maximize your investment in Hewlett Packard Enterprise storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.
• HPE StoreVirtual VSA
  With HPE StoreVirtual VSA you can use the power of virtualization to create a virtual array within your host server. Manage it as a single pool of shared storage capacity, and scale it to match your evolving needs. HPE ProLiant Gen9 servers include a 3-year limited license for HPE StoreVirtual VSA software with 1TB of capacity at no extra cost. Simply select to install HPE StoreVirtual VSA software during server setup within Intelligent Provisioning. More information, instructional videos, and free console management software are available at http://www.hpe.com/info/vsa1TB.

NOTE: For more information about Storage Software including QuickSpecs, please see: https://www.hpe.com/us/en/storage/software-defined.html.

Solutions

Factory Express  Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hpe.com/info/factoryexpress.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. http://ocs.ext.hpe.com/.

HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement to the support for need for your IT and business.

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%¹ reduction in down time, near 100%² diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support.

 ^{1- IDC 2 - HP CSC reports 2014 - 2015}

Recommended Support

Standard: HPE Proactive Care* with 24x7 coverage, three year Support Service
HPE Proactive Care gives customers an enhanced call experience. When your products are connected to Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.
https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Optimized HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service
HPE Proactive Care gives customers an enhanced call experience. When your products are connected to Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years' proactive reporting and advice with our highest level of hardware support - Hewlett Packard Enterprise 24x7, six hour hardware call-to-repair. Hewlett Packard Enterprise is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.
https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Parts and Materials

Hewlett Packard Enterprise will provide Hewlett Packard Enterprise-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Related Services

HPE Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Installation and Startup Service
Provides for the installation and startup of Hewlett Packard Enterprise technology including BladeSystems, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).

HPE Technology Services Support Credits
Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers.

Learn more http://www.hpe.com/support/hpesc

The Hewlett Packard Enterprise Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Support Service or Hewlett Packard Enterprise contractual support agreement.

*HPE Support Center Mobile App is subject to local availability.

For more information: http://www.hpe.com/services

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HPE does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: Not all models are available in all regions. Check with your local country HPE offices for availability.

Country Code Key

xx1 = B21

Worldwide

xx1 = 291

Japan

xx1 = AA1

PRC

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
1. Factory Integrated Models must start with a CTO Server.
2. FIO indicates that this option is only available as a factory installable option.
3. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

(Base Configuration Continued)

Intel® C610 Chipset

(2) video ports (1 front optional via the Universal Media Kit upgrade option, 1 rear)

(1) dual microSD card slot
(1) Trusted Platform Module (TPM) connector

BIOS Legacy mode (field configurable) or Unified Extensible Firmware Interface (UEFI) mode (default)

Easy Install rails and cable management arm are optional

NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the "Expansion slots" section for more details.
NOTE: For the DL560 Gen9, the number of processors can be one, two or four installed. For four processors, the HPE ProLiant DL560 Gen9 CPU Mezzanine Board kit is required.

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HPE Processors

Select one or two or four processors from Core Options-Processor section below.

• If one processor is desired, select one xxxxxx-L21

• If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21
• If four processors are desired, select one xxxxxx-L21 and three xxxxxx-B21.
• For four processors, the HP ProLiant DL560 Gen9 CPU Mezzanine Board kit is required.
• Up to 4 processors supported. Mixing different processor models is not supported.
• DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

• For the Intel® C600 Chipset E5-4600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2=4600x v#, 4 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number.

HPE Memory

Select one or more memory from Core Options-Memory section below.

• UDIMM, RDIMM, and LRDIMM are all distinct memory technologies and cannot be mixed within a server.
• HPE memory options from previous generation servers are not qualified or warranted with Hewlett Packard Enterprise Gen9 systems. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9.
• If only one processor is installed, only a quarter of the total DIMM slots are available. When populating with four processors all DIMM slots are available.

Depending on the memory configuration and processor model, the memory speed may run at 2400MHz, 2133MHz, 1866MHz or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hpe.com/servers/ddr4config.

HPE Power Supplies

Select one or more power supplies from Core Options-Power Supplies section below.

• Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/hpepoweradvisor.

Mixing of power supplies in the same server is not supported. All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.

Step 3: Choose Additional Factory Integratable Options

HPE Unique Options

 Select one or more Unique options from Core Options section below.

• This section may contain FIO options, please see the Unique options section below.
• FIO indicates that this option is only available as a factory installable option.

HPE I/O Expansion Options

Select one or more Riser Kit options from Core Options section below.

• To take advantage of the additional PCI slot upgrade, the second processor must be installed.
• This section may contain FIO options, please see HPE I/O Expansion Options section below.
• FIO indicates that this option is only available as a factory installable option.

HPE Drives

Select one or more drives from Core Options-HPE Drives section below.

• The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
• Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

The HPE ProLiant Gen9 Smart Storage solutions are equipped with re-designed Small Form Factor (SFF 2.5 in) Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove."

HPE FlexibleLOM

Select a FlexibleLOM from Core Options-Networking section below.

• Only one FlexibleLOM can be added to the server. These options are upgradeable and can be changed from the original configuration after the server is shipped.
• For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
• Please see the QuickSpecs for Technical Specifications and additional information: http://www.hpe.com/servers/ProLiantNICs.

HPE Networking

Select a standup NIC adapter from Core Options-Networking section below.

• Please see the QuickSpecs for Technical Specifications and additional information: http://www.hpe.com/servers/ProLiantNICs.
• These options are upgradeable and can be changed from the original configuration after the server is shipped.
• For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

HPE Storage Controllers

Select one or more Storage options from Additional Options section below.

• The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.
• This section may contain FIO options, please see HPE Storage Controllers section below.
• FIO indicates that this option is only available as a factory installable option.

HPE Rail Kits

Select one type of rail kit from Additional Options section below.

• Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen9 server.
• To assist in the installation of the server into the rack, an optional installation tool is available by contacting your local services representative (p/n 695539-001).
• See Hewlett Packard Enterprise Rack Options in Additional Options section of this QuickSpecs for more rack kit choices.

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Unique Options

HPE ProLiant DL560 Gen9 CPU Mezzanine Board Kit

795107-B21

NOTE: This kit is required if configured with 4 processors.

HPE ProLiant DL560 Gen9 Bay2 8SFF Cage/Backplane Kit

795084-B21

NOTE: This optional kit adds 8SFF drives for Bay2.

HPE ProLiant DL560 Gen9 Bay1 8SFF Cage/Backplane Kit

795085-B21

NOTE: This optional kit adds 8SFF drives for Bay2.

HPE ProLiant DL560 Gen9 Primary 2 Slot Riser Kit

793475-B21

HPE ProLiant DL560 Gen9 Secondary 3 Slot Riser Kit

793474-B21

NOTE: This is an optional kit which can be utilized when system is populated with at least two (2) processors.

HPE ProLiant DL560 Gen9 SAS Expander Card

804228-B21

HPE Proliant DL560 Gen9 Mini SAS Y Cable Kit

797924-B21

NOTE: Required for connecting Bay1 UMB 2SFF to a P840/P440 controller, or if using controller H240 in slot7 attached to Bay3. Also needed if using controller P840/P440 in riser1 attached to Bay3.

HPE ProLiant DL560 Gen9 Mini SAS Bay1 SAS Cable Kit

797945-B21

NOTE: Required if controllers H240/P440ar/H240ar/B140i in riser1/AROC (Smart Array HBA Connector) need to be connected to Bay1, or if controllers P840/P440 in Riser2/slot7 need to be connected to Bay2/3. Also needed if controller P440 in slot7 needs to be connected to Bay2/3.

HPE ProLiant DL560 Gen9 Mini SAS Bay2 SAS Cable Kit

797946-B21

NOTE: Required if using controllers H240/P440ar/H240ar/B140i in riser1/AROC (Smart Array HBA Connector) which need to be connected to Bay2, or if using controllers P840/P440 in Riser1/2 which need to be connected to Bay2/3.

HPE ProLiant DL560 Gen9 2SFF Universal Media Bay Kit

793479-B21

NOTE: Universal Media Bay kit with a 2SFF drive bay; an optional Optical Disk Drive can be added, either DVD-ROM (726536-B21) or DVD-RW (72653-B21).

HPE ProLiant DL560 Gen9 Universal Media Bay Kit

795090-B21

NOTE: An optional Optical Disk Drive can be added, either DVD-ROM (726536-B21) or DVD-RW (72653-B21).

HPE DL560 Gen9 NVMe 6 Solid State Drive Express Bay Enablement Kit

774743-B21

HPE ProLiant DL560 Gen9 Power Module with System Insight Display Kit

795106-B21

HPE Legacy FIO Mode Setting

758959-B22

NOTE: UEFI is the default, this FIO part can be used for CTO to enable Legacy mode.

HPE Processors

E5-4600v4 series Processors

HPE DL560 Gen9 Intel Xeon E5-4610v4 (1.8GHz/10-core/25MB/105W) Processor Kit

830265-B21

HPE DL560 Gen9 Intel Xeon E5-4610v4 (1.8GHz/10-core/25MB/105W) FIO Processor Kit

830265-L21

HPE DL560 Gen9 Intel Xeon E5-4620v4 (2.1GHz/10-core/25MB/105W) Processor Kit

830267-B21

HPE DL560 Gen9 Intel Xeon E5-4620v4 (2.1GHz/10-core/25MB/105W) FIO Processor Kit

830267-L21

HPE DL560 Gen9 Intel Xeon E5-4655v4 (2.5GHz/8-core/30MB/135W) Processor Kit

830287-B21

HPE DL560 Gen9 Intel Xeon E5-4655v4 (2.5GHz/8-core/30MB/135W) FIO Processor Kit

830287-L21

HPE DL560 Gen9 Intel Xeon E5-4640v4 (2.1GHz/12-core/30MB/105W) Processor Kit

830269-B21

HPE DL560 Gen9 Intel Xeon E5-4640v4 (2.1GHz/12-core/30MB/105W) FIO Processor Kit

830269-L21

HPE DL560 Gen9 Intel Xeon E5-4650v4 (2.2GHz/14-core/35MB/105W) Processor Kit

830274-B21

HPE DL560 Gen9 Intel Xeon E5-4650v4 (2.2GHz/14-core/35MB/105W) FIO Processor Kit

830274-L21

HPE DL560 Gen9 Intel Xeon E5-4660v4 (2.2GHz/16-core/40MB/120W) Processor Kit

830276-B21

HPE DL560 Gen9 Intel Xeon E5-4660v4 (2.2GHz/16-core/40MB/120W) FIO Processor Kit

830276-L21

HPE DL560 Gen9 Intel Xeon E5-4627v4 (2.6GHz/10-core/25MB/135W) Processor Kit

830278-B21

HPE DL560 Gen9 Intel Xeon E5-4627v4 (2.6GHz/10-core/25MB/135W) FIO Processor Kit

830278-L21

HPE DL560 Gen9 Intel Xeon E5-4667v4 (2.2GHz/18-core/45MB/135W) Processor Kit

830289-B21

HPE DL560 Gen9 Intel Xeon E5-4667v4 (2.2GHz/18-core/45MB/135W) FIO Processor Kit

830289-L21

HPE DL560 Gen9 Intel Xeon E5-4669v4 (2.2GHz/22-core/55MB/135W) Processor Kit

830291-B21

HPE DL560 Gen9 Intel Xeon E5-4669v4 (2.2GHz/22-core/55MB/135W) FIO Processor Kit

830291-L21

E5-4600v3 series Processors

HPE ProLiant DL560 Gen9 Intel Xeon E5-4610v3 (1.7GHz/10-core/25MB/105W) Processor Kit

742704-B21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4610v3 (1.7GHz/10-core/25MB/105W) FIO Processor Kit

742704-L21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4620v3 (2.0GHz/10-core/25MB/105W) Processor Kit

742702-B21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4660v3 (2.1GHz/14-core/35MB/120W) Processor Kit

742696-B21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4650v3 (2.1GHz/12-core/30MB/105W) Processor Kit

742698-B21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4640v3 (1.9GHz/12-core/30MB/105W) Processor Kit

742700-B21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4640v3 (1.9GHz/12-core/30MB/105W) FIO Processor Kit

742700-L21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4627v3 (2.6GHz/10-core/25MB/135W) Processor Kit

742706-B21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4627v3 (2.6GHz/10-core/25MB/135W) FIO Processor Kit

742706-L21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4669v3 (2.1GHz/18-core/45MB/135W) Processor Kit

742708-B21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4655v3 (2.9GHz/6-core/30MB/135W) Processor Kit

742710-B21

HPE ProLiant DL560 Gen9 Intel Xeon E5-4667v3 (2.0GHz/16-core/40MB/135W) Processor Kit

789024-B21

HPE Memory

NOTE: Hewlett Packard Enterprise memory from previous generation servers is not qualified or warranted with this HPE ProLiant Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs.
NOTE: LRDIMM, RDIMM, UDIMM, and HDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen9 servers support LRDIMM, RDIMM and UDIMMs.

Registered DIMMs (RDIMMs)

HP 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805347-B21

HP 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805349-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

836220-B21

HP 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805351-B21

HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21

HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21

HP 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

728629-B21

Load Reduced DIMMs (LRDIMMs)

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805358-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805353-B21

HP 64GB (1x64GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726724-B21

HP 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726722-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2400 CAS-20-18-18 Load Reduced Memory Kit

809208-B21

HPE Optical Drives

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

NOTE: The optional Universal Media Bay Kits are required for this option. (HPE ProLiant DL560 Gen9 Universal Media Bay kit: 795090-B21 or HPE ProLiant DL560 Gen9 2SFF Universal Media Bay kit: 793479-B21).

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

NOTE: The optional Universal Media Bay Kits are required for this option. (HPE ProLiant DL560 Gen9 Universal Media Bay kit: 795090-B21 or HPE ProLiant DL560 Gen9 2SFF Universal Media Bay kit: 793479-B21).

HPE Mobile USB DVD-RW Optical Drive

701498-B21

NOTE: External.

HPE Drives

NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870759-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870757-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

12G SAS Hot Plug SFF (2.5-inch) Enterprise Drives

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872479-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872477-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872475-B21

12G SAS Hot Plug SFF (2.5-inch) Midline Drives

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

832514-B21

SSD Selection

To streamline the configuration process for HPE ProLiant Gen9 servers and to provide the best product availability, HPE recommends SSDs from the list located here: http://www.hpe.com/products/recommend

12G SAS Hot Plug SFF (2.5-inch) SC 512e Drives

HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

881457-B21

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

872481-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765464-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

870765-B21

12G SAS Hot Plug SFF (2.5-inch) SC Write Intensive Solid State Drives

HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873357-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873355-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873351-B21

12G SAS Hot Plug SFF (2.5-inch) Read Intensive Solid State Drives

HPE 7.68TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

870144-B21

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872394-B21

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875330-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872392-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875326-B21

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872390-B21

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875313-B21

HPE 480GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875311-B21

12G SAS Hot Plug SFF (2.5-inch) SC Mixed Use Solid State Drives

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873367-B21

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872386-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873365-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872382-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873363-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872376-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872374-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873359-B21

6G SATA Hot Plug SFF (2.5-inch) Write Intensive Solid State Drives

HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872355-B21

NOTE: Please see the HPE SAS Hard Drives QuickSpecs for Technical Specifications and additional information.

6G SATA Hot Plug SFF (2.5 inch) SC Midline Hard Drives

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

6G SATA Hot Plug SFF (2.5-inch) SC 512e Drives

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765455-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765453-B21

6G SATA Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives

HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877764-B21

HPE 3.8TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868830-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877758-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868826-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875513-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877752-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868822-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875511-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877746-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868818-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875509-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877740-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868814-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875503-B21

Read Intensive - 6G SATA - M.2 - Solid State Drives

HPE 960GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD

875500-B21

HPE 480GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD

875319-B21

HPE 480GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD

875498-B21

HPE 150GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD

875317-B21

NOTE: Please see the HPE Solid State Drives QuickSpecs for Technical Specifications and additional information.

6G SATA Hot Plug SFF (2.5-inch) SC Mixed Use Solid State Drives

HPE 3.84TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P00896-B21

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877788-B21

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872352-B21

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875478-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877782-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872348-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875474-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877776-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872344-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875470-B21

HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

880295-B21

HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875483-B21

Mixed Use - 6G SATA - M.2 - Solid State Drives

HPE 960GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875492-B21

HPE 480GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875490-B21

HPE 240GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875488-B21

HPE NVMe PCIe Read Intensive SFF (2.5 inch) Solid State Drives

HPE 2TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

877986-B21

HPE 1.92TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875591-B21

HPE 1TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

877984-B21

HPE 960GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875589-B21

HPE 480GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875587-B21

HPE NVMe PCIe Mixed Use SFF(2.5-inch) Solid State Drives

HPE 3.2TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

877998-B21

HPE 1.6TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

877994-B21

HPE 1.6TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875597-B21

HPE 800GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875595-B21

HPE 400GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875593-B21

M.2 SSD

HPE Universal SATA HHHL 3yr Wty M.2 Kit

878783-B21

NOTE: M.2 drives go in PCIe slots and use the B140i SATA controller only.

Hard Drive Blank Kits

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

Hard Drive Kits

HPE ProLiant DL560 Gen9 Bay2 8SFF Cage/Backplane Kit

795084-B21

HPE ProLiant DL560 Gen9 Bay1 8SFF Cage/Backplane Kit

795085-B21

NVMe Kit

HPE DL560 Gen9 NVMe 6 Solid State Drive Express Bay Enablement Kit

774743-B21

Media Bay Kits

HPE ProLiant DL560 Gen9 Universal Media Bay Kit

795090-B21

HPE ProLiant DL560 Gen9 2SFF Universal Media Bay Kit

793479-B21

NOTE: It includes a 2SFF Drive Bay.

HPE Networking

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port 331T Adapter

647594-B21

HPE Ethernet 1Gb 2-port 332T Adapter

615732-B21

HPE Ethernet 1Gb 2-port 361T Adapter

652497-B21

HPE Ethernet 1Gb 4-port 366T Adapter

811546-B21

10 Gigabit Ethernet adapters

HPE Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HPE Ethernet 10Gb 2-port 530T Adapter

656596-B21

HPE Ethernet 10Gb 2-port 546SFP+ Adapter

779793-B21

HPE Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

HPE Ethernet 10Gb 2-port 561T Adapter

716591-B21

HPE Ethernet 10Gb 2-port 562SFP+ Adapter

727055-B21

NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. Please see the related NIC QuickSpecs for Technical Specifications and additional information: http://www.hpe.com/servers/ProLiantNICs.

25 Gigabit Ethernet adapters

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter

817749-B21

HPE Ethernet 10/25Gb 2-port 640SFP28 Adapter

817753-B21

HPE Ethernet 4x25Gb 1-port 620QSFP28 Adapter

817762-B21

FlexibleLOM Adapters

HPE Ethernet 1Gb 4-port 331FLR Adapter

629135-B22

HPE Ethernet 1Gb 4-port 366FLR Adapter

665240-B21

HPE FlexFabric 10Gb 2-port 533FLR-T Adapter

700759-B21

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

HPE Ethernet 10Gb 2-port 560FLR-SFP+ Adapter

665243-B21

HPE Ethernet 10Gb 2-port 561FLR-T Adapter

700699-B21

HPE Ethernet 10Gb 2-port 546FLR-SFP+ Adapter

779799-B21

HPE FlexFabric 10Gb 2-port 556FLR-SFP+ Adapter

727060-B21

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

727054-B21

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter

817749-B21

HPE Ethernet 1Gb 4-port 331FLR FIO Adapter

684208-B21

HPE FlexFabric 10Gb 4-port 536FLR-T Adapter

764302-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hpe.com/servers/ProLiantNICs.

HPE InfiniBand

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+QSFP Adapter

764284-B21

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+FLR-QSFP Adapter

764285-B21

HPE InfiniBand QDR/Ethernet 10Gb 2-port 544+FLR-QSFP Adapter

764286-B21

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter

829335-B21

HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter

825110-B21

HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter

825111-B21

NOTE: Please see the HPE InfiniBand Options for HPE ProLiant and Integrity Servers QuickSpecs for additional information.

HPE I/O Expansion Options

HPE ProLiant DL560 Gen9 Secondary 3 Slot Riser Kit

793474-B21

HPE ProLiant DL560 Gen9 Primary 2 Slot Riser Kit

793475-B21

NOTE: This is an optional kit which can be utilized when system is populated with at least two (2) processors.

HPE Power
Supplies

HPE Common Slot Power Supply Kits

HPE 1500W Common Slot Platinum Plus Power Supply Kit

684532-B21

HPE 1200W Common Slot Platinum Hot Plug Power Supply Kit

748287-B21

HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit

656364-B21

NOTE: 94% efficiency with support for HPE Power Discovery Services.

NOTE: Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor.

NOTE: All power supplies in a server should match. Mixing Power Supplies is not supported.
NOTE: Option Kits contain the specified power supply and a PDU IEC cable.
NOTE: 1500W Power Supplies only support High Line Voltage.
NOTE: HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). please go to HPE power cords for a full list of optional.

HPE Computation and Graphics Accelerators

HPE NVIDIA Quadro P2000 Graphics Accelerator

Q0V77A

HPE Insight
Software

HPE Insight Control

HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU

C6N27A

HPE Insight Control including 1yr 24x7 TSU E-LTU

C6N28ABE

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU

C6N36A

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HPE Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately, or can be downloaded at: https://www.hpe.com/info/insightmanagement.

NOTE: For additional license options please see the HPE Insight Control QuickSpecs.

HPE Converged Infrastructure Management Software

HPE OneView Advanced (with HPE iLO Advanced)

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView Advanced (without HPE iLO Advanced)

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

NOTE: Full licenses of HPE OneView Advanced also provide the right-to-use HPE Insight Control without additional charge.

NOTE: Server provisioning (via 'HPE Insight Control server provisioning') is licensed as part of HPE OneView Advanced and provides multi-server OS and driver provisioning. Media kit #BD883A can be ordered for a physical copy of this software (USB flash drive).

NOTE: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: http://www.hpe.com/info/hpeoneview.

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

NOTE: Please see the HPE OneView QuickSpecs for Technical Specifications and additional information.

High Performance Clusters

SUSE Linux Enterprise Server HPC Compute Node 1-2 Sockets 3 Year Subscription Flx LTU

M6K35A

SUSE Linux Enterprise Server HPC Compute Node 1-2 Sockets 3 Year Subscription E-LTU

M6K35AAE

SUSE Linux Enterprise Server HPC Head Node 1-2 Sockets 3 Year Subscription 24x7 Support Flx LTU

M6K36A

SUSE Linux Enterprise Server HPC Head Node 1-2 Sockets 3 Year Subscription 24x7 Support E-LTU

M6K36AAE

HPE PCIe Workload Accelerator Options

NVME PCIe Workload Accelerators

HPE 4TB PCIe x4 Lanes Read Intensive HHHL 3yr Wty Digitally Signed Firmware Card

877831-B21

HPE 6.4TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card

877829-B21

HPE 3.2TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card

877827-B21

HPE 1.6TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card

877825-B21

NOTE: Both Legacy and UEFI BIOS modes are supported. Please see the HPE PCIe Workload Accelerators for ProLiant Servers QuickSpecs for Technical Specifications and additional information.

HPE Security

HPE Trusted Platform Module 2.0 Kit

745823-B21

NOTE: HPE Trusted Platform Module 2.0 Option (745823-B21) works with Gen9 servers with UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants. HPE Gen9 servers purchased earlier may need the latest firmware update to be compatible with the TPM 2.0 Option. The earlier HPE Trusted Platform Module Option (488069-B21) is the TPM 1.2 version, which is also available however TPM 2.0 has newer technology standards incorporated. The TPM 1.2 compatible server platforms include Gen8 and Gen9 servers. HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.

HPE Storage
Controllers

SAS Controllers

HPE Smart Array Controllers

HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller

726821-B21

HPE Smart Array P440/4GB FBWC 12Gb 1-port Int FIO SAS Controller

761872-B21

HPE Smart Array P840/4GB FBWC 12Gb 2-ports Int SAS Controller

726897-B21

HPE Smart Array P840/4GB FBWC 12Gb 2-ports Int FIO SAS Controller

761874-B21

HPE Smart Array P441/4GB FBWC 12Gb 2-ports Ext SAS Controller

726825-B21

HPE Smart Array P841/4GB FBWC 12Gb 4-ports Ext SAS Controller

726903-B21

HPE Flexible Smart Array Controllers

HPE Smart Array P440ar/2GB FBWC 12Gb 2-ports Int SAS Controller

726736-B21

HPE Smart Array P440ar/2GB FBWC 12Gb 2-ports Int FIO SAS Controller

749974-B21

HPE Smart Host Bus Adapters

HPE H240ar 12Gb 2-ports Int Smart Host Bus Adapter

726757-B21

HPE H240ar 12Gb 2-ports Int FIO Smart Host Bus Adapter

749976-B21

HPE H240 12Gb 2-ports Int Smart Host Bus Adapter

726907-B21

HPE H240 12Gb 2-ports Int FIO Smart Host Bus Adapter

761873-B21

HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter

726911-B21

Optional Upgrades

HPE 96W Smart Storage Battery with 145mm Cable for DL/ML/SL Servers

727258-B21

HPE ProLiant DL560 Gen9 SAS Expander Card

804228-B21

HPE Proliant DL560 Gen9 Mini SAS Y Cable Kit

797924-B21

HPE ProLiant DL560 Gen9 Mini SAS Bay1 SAS Cable Kit

797945-B21

HPE ProLiant DL560 Gen9 Mini SAS Bay2 SAS Cable Kit

797946-B21

Optional Software

HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

HPE Tape Backup

NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hpe.com/storage/storeever. For hardware and software compatibility of HPE tape backup products http://www.hpe.com/storage/BURAcompatibility.
NOTE: For Internal drives to be connected to DL servers please make sure that you order rack mount kits as well.

Tape Autoloaders

HPE 1/8 G2 Tape Autoloader

HPE StoreEver 1/8 G2 LTO-6 Ultrium 6250 Fibre Channel Tape Autoloader

C0H19A

HPE StoreEver 1U SAS Rack Mount Kit

AE459B

HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 FC Tape Autoloader

N7P34A

HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 SAS Tape Autoloader

N7P35A

HPE MSL2024 Tape Library

HPE StoreEver MSL2024 0-drive Tape Library

AK379A

HPE MSL4048 Tape Library

HPE StoreEver MSL4048 0-drive Tape Library

AK381A

HPE StoreEver MSL6480

HPE StoreEver MSL6480 Scalable Base Module

QU625A

HPE StoreEver MSL6480 Scaleable Expansion Module

QU626A

NOTE: Please see the HPE StoreEver MSL6480 Tape Library QuickSpecs for Technical Specifications and additional information.

Tape Drives

HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HPE StoreEver LTO-5 Ultrium 3000 SAS Tape Drive in a 1U Rack Mount Kit

EJ014B

HPE StoreEver LTO-6 Ultrium 6250 Tape Drive in a 1U Rack Mount Kit

C0L99A

HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HPE StoreEver LTO-7 Ultrium 15000 Internal Tape Drive

BB873A

HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive

BB874A

HPE Disk Backup

HPE RDX Removable Disk Backup System

HPE D3700 Enclosure

QW967A

HPE D3600 Enclosure

QW968A

HPE RDX 3TB USB 3.0 Internal Disk Backup System

P9L71A

HPE RDX+ 3TB USB 3.0 External Disk Backup System

P9L72A

HPE RDX 4TB USB 3.0 External Disk Backup System

Q2R33A

HPE StoreOnce Backup systems

HPE StoreOnce 5100 48TB System

BB915A

HPE StoreOnce 3540 24TB System

BB914A

HPE StoreOnce 3520 12TB System

BB922A

HPE StoreOnce 3100 8TB System

BB913A

NOTE: For the complete range of RDX drives and media see: https://www.hpe.com/us/en/product-catalog/storage/disk-based-backup-systems.html. For hardware and software compatibility of Hewlett Packard Enterprise disk backup products see: http://www.hpe.com/storage/spock.

NOTE: For Internal drives to be connected to DL servers please make sure that you order rack mount kit as well.

HPE Storage
Options

QLogic Fibre Channel HBAs

HPE 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

HPE StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

QW971A

HPE StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A

HPE StoreFabric SN1600Q 32Gb Single Port Fibre Channel Host Bus Adapter

P9M75A

HPE StoreFabric SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

P9D93A

HPE StoreFabric SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

P9D94A

HPE StoreFabric 84Q 4-port 8Gb Fibre Channel Host Bus Adapter

P9D91A

Emulex Fibre Channel HBAs

HPE 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B

HPE 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B

HPE StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter

C8R38A

HPE StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

C8R39A

HPE StoreFabric 84E 4-port 8Gb Fibre Channel Host Bus Adapter

E7Y63A

HPE StoreFabric SN1600E 32Gb Single Port Fibre Channel Host Bus Adapter

Q0L11A

HPE StoreFabric SN1600E 32Gb Dual Port Fibre Channel Host Bus Adapter

Q0L12A

HPE StoreFabric SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter

Q0L13A

HPE StoreFabric SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter

Q0L14A

HPE Converged Network Adapters

HPE StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A

HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter

N3U52A

HPE StoreFabric CN1200E 10Gb Converged Network Adapter

E7Y06A

HPE StoreFabric CN1200E 10GBASE-T Dual Port Converged Network Adapter

N3U51A

HPE Power Distribution Units (PDUs)

HPE Basic Power Distribution Units (PDU)

HPE 800VA - 277V Input / 230V Output NA Rack Mount Transformer

H3X09A

NOTE: Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs
for information on additional options and product specifications.

NOTE: To learn more about HPE Basic Power Distribution Units (PDU), please visit the HPE website at http://www.hpe.com/servers/pdu.

NOTE: Additional HPE Power Distribution Units are available. For a complete list of all HPE PDUs and additional information please visit: https://www.hpe.com/info/rackandpower.

HPE Intelligent Power Distribution Unit (PDU)

HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF520A

HPE Intelligent Modular 8.3kVA/CS8265C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF521A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF522A

HPE Intelligent Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V (6) C19/Horizontal NA/JP PDU

AF523A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF525A

HPE Intelligent Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU

AF526A

HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF527A

HPE Intelligent Modular 3Ph 17.3kVA/IEC 60309 60A 4-wire 48A/208V (12) C19/Horizontal NA/JP PDU

AF535A

HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C19/Horizontal INTL PDU

AF538A

HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU

AF531A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU

AF532A

HPE Intelligent Modular 3Ph 14.4kVA/CS8365C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF533A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU Kit

AF534A

HPE 5xC13 Intelligent PDU Extension Bar G2 Kit

AF547A

HPE 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar

AF528A

NOTE: Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on additional options and product specifications.

HPE Rack Mount Consoles, KVM Switches, and Keyboards

HPE Location Discovery Services

NOTE: Please see the HPE Location Discovery Services QuickSpecs for information on additional options and product specifications.

HPE Rack Mount Consoles

HP LCD8500 1U US Rackmount Console Kit

AF630A

HP LCD8500 1U UK Rackmount Console Kit

AF631A

HP LCD8500 1U DE Rackmount Console Kit

AF632A

HP LCD8500 1U FR Rackmount Console Kit

AF633A

HP LCD8500 1U JP Rackmount Console Kit

AF642A

HP LCD8500 1U RU Rackmount Console Kit

AF643A

HP LCD8500 1U INTL Rackmount Console Kit

AF644A

HP LCD8500 1U US TAA Rackmount Console Kit

AF645A

NOTE: Please see the HPE LCD8500 Console Kit QuickSpecs for information on additional options and product specifications.

HPE KVM Switches

HP 0x1x8 G3 KVM Console Switch

AF651A

HP 0x2x16 G3 KVM Console Switch

AF652A

HP TAA 0x2x16 G3 KVM Console Switch

AF653A

HP USB Remote Access Key for G3 KVM Console Switches

AF650A

HP KVM Console USB Interface Adapter

AF628A

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP KVM Console USB 2.0 Virtual Media CAC Interface Adapter

AF629A

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

HPE KVM Console USB/Display Port Interface Adapter

AF654A

HPE KVM Console USB 8-pack Interface Adapter

AF655A

NOTE: To learn more, please visit the HPE KVM Switches web page.

HPE USB Keyboard and Mouse

HPE USB US Keyboard/Mouse Kit

631341-B21

HPE USB UK Keyboard/Mouse Kit

631344-B21

HPE USB FR Keyboard/Mouse Kit

631346-B21

HPE USB ES Keyboard/Mouse Kit

631348-B21

HPE USB DE Keyboard/Mouse Kit

631358-B21

HPE USB JP Keyboard/Mouse Kit

631360-B21

HPE USB IT Keyboard/Mouse Kit

631362-B21

HPE USB CN Keyboard/Mouse Kit

631364-B21

HPE USB AE Keyboard/Mouse Kit

638212-B21

HPE USB RU Keyboard/Mouse Kit

638214-B21

HPE USB IN Keyboard/Mouse Kit

672097-D63

HPE USB AP/INTL Keyboard/Mouse Kit

672097-373

HPE USB INTL Keyboard/Mouse Kit

672097-B33

HPE USB PT Keyboard/Mouse Kit

672097-133

HPE USB TR Keyboard/Mouse Kit

672097-143

HPE USB CZ Keyboard/Mouse Kit

672097-223

HPE USB FI Keyboard/Mouse Kit

672097-353

HPE USB SE Keyboard/Mouse Kit

672097-103

HPE USB CH Keyboard/Mouse Kit

672097-113

HPE USB KR Keyboard/Mouse Kit

672097-KD3

NOTE: Please see the HPE USB Keyboard and Mouse QuickSpecs for information on additional options and product specifications.

Rail Kits

NOTE: Gen9 rail kits have changed significantly from prior generation rail kits. Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen9 server.

NOTE: Rail kits are optional for DL560 Gen9 and are no longer included standard with the server. Customers have the option to purchase their server without a rail kit.

NOTE: Ball bearing and Easy Install rail kits contain telescoping rails which allow for in-rack serviceability.

NOTE: To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

HP 2U Large Form Factor Easy Install Rail Kit

733662-B21

NOTE: Does not include CMA (733664-B21).

HP 2U Cable Management Arm for Easy Install Rail Kit

733664-B21

HPE 2U Large Form Factor Ball Bearing Rail Kit

720864-B21

NOTE: Does not include CMA (720865-B21).

HPE 2U Cable Management Arm for Ball Bearing Rail Kit

720865-B21

HPE Uninterruptible Power Systems (UPS)

HPE DirectFlow Three Phase UPS

Power Unit (1U UPS)

HPE RP12000/3 12000VA Three Phase INTL 6U Rackmount Uninterruptible Power System

AF437A

HPE Tower UPS

HPE T750 G4 UPS Models

HPE T750 G4 NA/JP Uninterruptible Power System

J2P85A

HPE T750 G4 INTL Uninterruptible Power System

J2P88A

HPE T1000 G4 UPS Models

HPE T1000 G4 NA/JP Uninterruptible Power System

J2P86A

HPE T1000 G4 INTL Uninterruptible Power System

J2P89A

HPE T1500 G4 UPS Models

HPE T1500 G4 NA/JP Uninterruptible Power System

J2P87A

HPE T1500 G4 INTL Uninterruptible Power System

J2P90A

HPE Rack-mountable UPS

HPE R/T2200 G4 UPS Models

HPE R/T2200 G4 NA/JP Uninterruptible Power System

J2R00A

HPE R/T3000 G4 UPS Models

HPE R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System

J2R01A

HPE R/T3000 G4 High Voltage NA/JP Uninterruptible Power System

J2R02A

HPE R/T3000 G4 High Voltage INTL Uninterruptible Power System

J2R04A

R1500 G4 Models

HPE R1500 G4 NA Uninterruptible Power System

J2Q99A

HPE R1500 G4 JP/TWN Uninterruptible Power System

J2R05A

HPE R1500 G4 INTL Uninterruptible Power System

J2R03A

R7000 Uninterruptible Power System (UPS)

HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

HPE R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System

AF463A

R5000 Uninterruptible Power System (UPS)

HPE R5000 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

HPE R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A

NOTE: Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on additional options and product specifications.

HPE UPS Options

HPE R/T2200 G4 Extended Runtime Module

J2R09A

HPE R/T3000 G4 Extended Runtime Module

J2R10A

HPE 2U Rack/Tower UPS Shipping Kit

L4Q11A

NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

HPE Power Cords

HPE C13 - SEV 1011 CH  250V 10Amp 1.83m Power Cord

AF565A

HPE C13 - DK-2.5A DK  250V 10Amp 1.83m Power Cord

AF566A

HPE C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord

AF567A

HPE C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord

AF568A

HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord

AF570A

HPE C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord

AF571A

HPE C13-NEMA 6-15P 10A/250V 3.6m Black Power Cord

A0N33A

HPE C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord

AF556A

HP 8AWG W/Ground Lug 48V DC 3.0m Power Cord

J6X42A

HPE USB and SD
Options

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

HPE 32GB microSD Flash Memory Card

700139-B21

HPE 8GB microSD Flash Memory Card

726116-B21

HPE 8GB Dual microSD Flash USB Drive

741279-B21

NOTE: Please see the HPE Flash Media Kits QuickSpecs for additional information.

HPE Support Services

Proactive Care

HPE 3 year Proactive Care 24x7 DL560 Gen9 Service

U8QM3E

HPE 3 year Proactive Care 24x7 with DMR DL560 Gen9 Service

U8QM4E

HPE 3 year Proactive Care Call to Repair DL560 Gen9 Service

U8QM9E

HPE 3 year Proactive Care Call to Repair 24x7 with DMR DL560 Gen9 Service

U8QN0E

HPE 3 year Proactive Care 24x7 with CDMR DL560 Gen9 Service

U8QS3E

HPE 3 year Proactive Care Call to Repair with CDMR DL560 Gen9 Service

U8QS6E

HPE 3 year Proactive Care 24x7 DL560 Gen9 with OneView Service

U8QW0E

HPE 3 year Proactive Care 24x7 with DMR DL560 Gen9 with OneView Service

U8QW1E

HPE 3 year Proactive Care Call to Repair DL560 Gen9 with OneView Service

U8QW6E

HPE 3 year Proactive Care Call to Repair 24x7 with DMR DL560 Gen9 with OneView Service

U8QW7E

HPE 3 year Proactive Care 24x7 with CDMR DL560 Gen9 w/OneView Service

U8RB0E

HPE 3 year Proactive Care Call to Repair with CDMR DL560 Gen9 w OV Service

U8RB3E

Installation & Start-up Services

HPE Install ProLiant DL560 Service

U6H58E

HPE Startup ProLiant DL560 Service

U6H60E

NOTE: Reduce the time required to get your system up and running and help minimize disruptions to your business.

NOTE: For more information, customer/resellers can contact: http://www.hpe.com/services.

HPE SmartMemory

New HPE SmartMemory now provides additional protection for your servers. With Hewlett Packard Enterprise Authentication it can verify that you have true HPE Qualified Memory in your HPE ProLiant Gen9 server. With HPE SmartMemory your new HPE ProLiant server can take advantage of additional Gen9 enhancements in performance, durability and future manageability support through HPE Active Health System.

For detailed memory configuration rules and guidelines, please use the Online DDR4 Memory Configuration Tool.

Memory Population guidelines

General Memory Population Rules and Guidelines:

.

To maximize performance, install two memory cartridges per processor and balance the total memory capacity between all installed processors.

.

When multiple processors are installed, HPE recommends installing the DIMMs in sequential alphabetical order: 4A, 9B, 1C, 12D, and so on.

.

LRDIMMs support higher densities than single- and dual-rank RDIMMs, and higher speeds than quad-rank RDIMMs. This support enables you to install more high capacity DIMMs, resulting in higher system capacities and higher bandwidth.

.

Do not mix LRDIMMs with any other DIMM type (RDIMM, LVDIMM).

.

RDIMM population is limited to a maximum of eight logical ranks per channel. Therefore, only two quad rank RDIMMs are supported per channel. If there are more than eight physical ranks per channel, LRDIMMs rank multiplication provides support for three DIMMs per channel.

.

Lockstep mode requires specific population requirements. See lock-step configuration below for more information.

NOTE: UDIMMs are not supported. This server does not support mixing LRDIMMs, RDIMMs, or UDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS initialization. For detailed memory configuration rules and guidelines, use the Online DDR4 Memory Configuration Tool on the HPE website (http://www.hpe.com/servers/ddr4memoryconfig).

Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E5-4600v3 Series Processor Family
