HPE ProLiant DL385p Generation 8 (Gen8)

With enhanced innovations in performance, feature flexibility, and management capabilities, the DL385p Gen8 is the price/performance choice for your virtualization, database, and high performance computing workloads.

Front View:

Rear View:

1.

Quick removal access panel

1.

PCIe Slots (Slots 1-3 top to bottom)

2.

Second AMD Processor

2.

PCIe Slots (Slots 4-6 top to bottom)

3.

First AMD Processor

3.

Power supply 1

4.

(24) DDR3 DIMM slots

4.

Power supply 1 Power LED

5.

Air Baffle

5.

Power supply 1 Power connection

6.

Hot-plug fans, full N+1 redundancy

6.

Power supply 2 Power connection

7.

Health LED

7.

Power supply 2 Power LED

8.

Power On/Standby button & system power LED button

8.

Power supply 2

9.

USB connector

9.

UID LED

10.

UID LED

10.

USB connectors (4)

11.

Systems Insight Display

11.

Video connector

12.

Asset Tag

12.

iLO connector

13.

USB connector

13.

Serial connector

14.

8 SFF HDD Bays

14.

FlexibleLOM ports (Shown: 4 ports 1Gb each-Port 1-4 starting Right to Left)

15.

Optional Slim Optical Bay

16.

Video connector

What's New

• Support for PCIe Accelerators.
• New HDD offering.

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

Processor
One of the following depending on model

Sixteen-Core Processors

AMD Opteron™ 6386SE (2.8GHz/16-core/16MB/140W TDP) Processor

AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W TDP) Processor

AMD Opteron™ 6378 (2.4GHz/16-core/16MB/115W TDP) Processor

AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W TDP) Processor

AMD Opteron™ 6366HE (1.8GHz/16-core/16MB/85W TDP) Processor

Twelve-Core Processors

AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W TDP) Processor

AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W TDP) Processor

Eight-Core Processors

AMD Opteron™ 6328(3.2GHz/8-core/16MB/115W TDP) Processor

AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W TDP) Processor

Quad-Core Processors

AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W TDP) Processor

NOTE: Mixing different processor models is not supported.
NOTE: All processors support up to 1600MHz DDR3 memory speeds.

Cache Memory

16MB (2x8MB) Level 3

Chipset

AMD SR5690 Northbridge and SP5100 Southbridge

Upgradeability

Upgradeable to 2 processors

Up to 24 DIMM slots available for higher memory capacities

FlexibleLOM connector for 1Gb or 10Gb networking options

8SFF (plus optional upgrade of 8SFF for up to 16SFF drives-requires second Smart Array) and other Models with 8LFF, 12LFF, or 25SFF hard drive bays

Optional 3-slot PCIe 2.0 riser (x16, x8, x8)
NOTE: The second processor must be installed to take advantage of the optional 3-slot riser.

Redundant Power Supply

Optical Drive (available on 8SFF and 8LFF Models only)

On System Management Chipset

HPE iLO (Firmware: HPE iLO 4)
NOTE: For more information, visit: http://www.hp.com/go/ilo

Memory Protection

Advanced ECC

Online Spare

Memory
One of the following depending on model

Type

HPE SmartMemory

DDR3 Load Reduced (LRDIMM) and Registered (RDIMM)

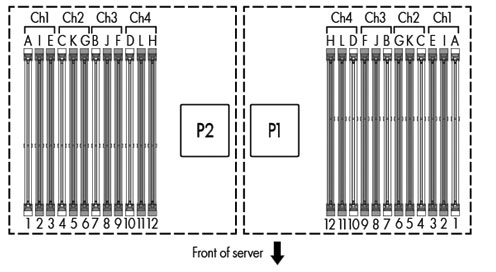

DIMM Slots Available

24 (12 DIMM slots per processor/4 channels per processor/3 DIMMs per channel)

Storage Centric Model

16GB (2x8GB) PC3-10600R (DDR3-1333) Registered DIMMS

Dedicated Workload Model

32GB (4x8GB) PC3-10600R (DDR3-1333) Registered DIMMS

Maximized Consolidation Model

32GB (4x8GB) PC3-10600R (DDR3-1333) Registered DIMMS

Maximum Capacity (LDIMM)

768GB (24 x 32GB LRDIMM @ 800MHz)

Maximum Capacity (RDIMM)

364GB (24 slots x 16GB RDIMM @1600MHz)
NOTE: Requires 2nd processor installed

NOTE: HPE memory from previous generation servers may not provide the same performance with the HPE ProLiant DL385p Gen8 Servers as HPE SmartMemory will.
NOTE: To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs.
NOTE: If only one processor is installed, only half the DIMM slots are available.
NOTE: Depending on the memory configuration, the memory speed may run at 1600MHz, 1333MHz, 1066MHz or lower. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hp.com/go/ddr3memory-configurator.

Network Controller
One of the following depending on model

HPE ProLiant Gen8 servers offer a new networking technology - FlexibleLOM. The HPE ProLiant DL385p Gen8 server offers the customer the choice of 1 Gigabit and/or 10 Gigabit networking solutions. For additional details see the Networking Section of this document. Only one FlexibleLOM may fit on a single server - see PCIe solutions for additional networking.

HPE Ethernet 1Gb 4-port 331FLR Adapter

Expansion Slots

PCIe Riser #1
(Standard)

Expansion Slots #

Technology

Bus
Width**

Connector Width

Bus Number*

Form Factor

Notes

1

PCIe 2.0

X8

X16

5

Full Length, Full Height Slot

For Processor 1

2

PCIe 2.0

X8

X8

8

Half Length, Full Height Slot

For Processor 1

3

PCIe 2.0

X4

X8

11

Half Length, Full Height Slot

For Processor 1

* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
NOTE: When populating the second optional riser slot, the second processor must be installed.

PCIe Riser #2
(Optional - Requires 2nd Processor)

Expansion Slots #

Technology

Bus
Width**

Connector Width

Bus Number*

Form Factor

Notes

4

PCIe 2.0

X16

X16

65

Full length, full height slot

For Processor 2

5

PCIe 2.0

X8

X16

68

Half length, full height slot

For Processor 2

6

PCIe 2.0

X8

X8

71

Half length, full height slot

For Processor 2

* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number.
** Indicates the number of physical electrical lanes running to the connector.
NOTE: When populating the second optional riser slot, the second processor must be installed.

HPE Server ROM

HPE ROM (Read Only Memory) is now digitally signed using the HPE Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HPE ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

The HPE ProLiant ROM is used to configure the following:

• Processor and chipset status registers
• System memory, memory map, and memory initialization
• System hardware configuration (Integrated PCI devices and optional PCIe cards).
• Customer-specific BIOS configuration (using the HPE ROM-Based Setup Utility (RBSU).

NOTE: For further information, please refer to the HPE RBSU (ROM based setup utility) user guide: http://www.hp.com/support/rbsu.

Storage Controller
One of the following depending on model

Entry Model

HPE Smart Array P420i/ZM (RAID 0/1)

Storage Centric Model

HPE Smart Array P420i/512MB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Dedicated Workload Model

HPE Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Maximized Consolidation Model

HPE Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Internal Storage Devices

Diskette Drive

None

Optical Drive

Optional: DVD-ROM, DVD-RW
NOTE: Not Available on 8+8 LFF, 12LFF or 25SFF Models.

Hard Drives

None ship standard

Drive Bays
One of the following depending on model

Entry Model

8-SFF drive bays(additional 8-SFF option)

Storage Centric Model

12-LFF drive bays

Dedicated Workload Model

8-SFF drive bays total with options for DVD OR optional second 8-SFF drive bay set (total of 16SFF drive bays, no DVD)
NOTE: Optional 2nd 8-SFF drive kit requires 2nd Smart Array Controller (PCIe) for support recommend HPE Smart Array P420 PCI card).

Maximized Consolidation Model

25-SFF drive bays total

NOTE: For best performance on the 25 Small Form Factor drive cage where less than 25 drives are installed you will need to balance the drives on the backplane's two expanders. Drive bays 1-12 are on routed to expander 1 and drive bays 13-25 are routed to expander number 2. Example: if a customer purchases 16 drives, they should split 8 drives on expander 1 and 8 drives on expander 2 for optimal performance.
NOTE: HPE ProLiant DL385p series servers offer both LFF and SFF versions. The optical drive bay is not available with +8SFF drive bay upgrade, 12-LFF, or 25-SFF drive bay models.
NOTE: 8-LFF, 12-LFF, and 25-SFF versions are not upgradeable options from the standard 8SFF model, or vice versa.
NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HPE LFF Gen8 Hard Drive Blank Kit. These part numbers for single HDD blanks below are also provided should the customer require replacement HDD blanks for their server.
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

Maximum Internal Storage

Hot Plug SFF SAS

50.0TB

25 x 2.0TB (on 25 SFF Drive Bay Models)

Hot Plug SFF SATA

50.0TB

25 x 2.0TB (on 25 SFF Drive Bay Models)

Hot Plug LFF SAS

96.0TB

12 x 8TB (on 12 LFF Drive Bay Models)

Hot Plug LFF SATA

96.0TB

12 x 8TB (on 12 LFF Drive Bay Models)

Hot Plug SFF SAS SSD

48.0TB

25 x 1.92TB (on 25 SFF Drive Bay Models)

Hot Plug LFF SATA SSD

19.2TB

12 x 1.6TB (on 12 LFF Drive Bay Models)

NOTE: Storage capacities may vary depending on Models/Drive Cages and Hard Drives selected.

Interfaces

Serial

1 (Back)

Video

2 (1 front, 1 back) not active simultaneously

FlexibleLOM Network Ports

All pre-configured models come standard with 4 x 1GB ports
(See HPE Networking section below for more details and options)

HPE iLO Remote Management Network Port

1 Gb Dedicated

SD Slot

1 Internal Secure

USB 2.0 Ports

Up to 8 total: up to 2 front, 4 back, 2 internal

Industry Standard Compliance

ACPI 2.0b Compliant
PCIe 2.0 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0 Compliant

Server Power Cords

All Pre-configured Models servers ship with a high voltage server to PDU power cord.
NOTE: HPE ProLiant DL servers no longer ship standard with a 12-foot NEMA 5-15P to C13 power cord that connects to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to power distribution units (PDUs) in data center racks and now ship standard with a PDU 6-foot C-14 to C13 power cord (A0K02A). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the 6-foot NEMA 5-15 to C13 power cord must be ordered separately (AF556A). See Power Cords section for Worldwide Power Cord options.

Power Specifications

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/proliant-energy-efficient or http://www.hp.com/go/hppoweradvisor.

NOTE: Power Specification and Technical Content for supported power supplies can be found at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111541

Common Slot Power Supply

NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.

The HPE Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HPE Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HPE CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HPE CS power supply options provide efficiency ratings of up to 94% (80 Plus Platinum) and are available in three power output options - 460W, 750W, and 1200W - allowing the customer to "right-size" a power supply for their specific server configuration. All HPE Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations.

NOTE: Mixing of power supplies in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and operation will fail.

HPE CS Platinum Plus power supplies are required when enabling the HPE Intelligent Power Discovery (IPD) solution. IPD is the first technology to create an automated, energy-aware network between IT systems and facilities. This allows your company to reclaim millions of dollars in wasted power capacity and downtime costs across data centers. For more information on the HPE IPD solution, go to http://www.hp.com/go/ipd.

It is highly recommended that you use the HPE Power Advisor in defining the "Right-Size" power supply for your needs. HPE Power Advisor can be accessed at: http://www.hp.com/go/hppoweradvisor.

NOTE: The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus independently tests power supply efficiency and publicly posts the results on http://www.80plus.org.

Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be purchased through power supply option kits (see Power Supplies for part numbers).

NOTE: Power Specification and Technical Content for supported power supplies can be found at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111541

System Fans
One of the following depending on model

2P Models have (6) (N+1 redundancy standard)

1P Models have (4) (N+1 redundancy standard)

Required Cabling

For required cabling information, refer to the Hewlett Packard Enterprise Web site at: http://www.hp.com/servers/dl385p-gen8

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
Citrix XenServer

NOTE: For more information on the HPE Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page: http://www.hp.com/support/DL385pGen8

Graphics

Integrated Matrox G200 video standard

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)

HPE iLO 4 On System Management Memory

• 16 MB Flash
• 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor
One of the following depending on model

2U Rack form factor
NOTE: All pre-configured BTO Models ship with Ball-Bearing sliding rails and cable management arm. Any customer configured models through HPE CTO must select the appropriate Rail Kit when configuring.

8 SFF Drive Bay Version:
3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 27.5" (69.85 cm) Length

8 LFF Drive Bay Version:
3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94cm) Length

12 LFF Drive Bay Version:
3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94cm) Length

25 SFF Drive Bay Version:
3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 27.5" (69.85 cm) Length

On System Management

HPE iLO Management Engine

HPE iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HPE iLO Management Engine comes standard on all HPE ProLiant Gen8 servers. The HPE iLO Management Engine portfolio includes:

• HPE iLO: The HPE iLO (Integrated Lights-Out) management processor is the core foundation for the HPE iLO Management Engine
• HPE Agentless Management: Provides built in server health monitoring and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected.
• HPE Active Health System: Always on, continuous monitoring for increased stability and shorter downtimes; 100% configuration history; Health and service alerts and easy export and upload to Service and Support.
• HPE Intelligent Provisioning: Lets customers provision and configure a single server without any separate media. No more SmartStart CDs or Smart Update Firmware DVD are needed.

- To start Intelligent Provisioning:

▫ Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self-test or POST).

▫ Please go to the Intelligent Provisioning website at http://www.hp.com/go/intelligentprovisioning for additional information and to view usage videos.

▫ Use the Service Pack for ProLiant (SPP) at http://www.hp.com/go/spp to get firmware and software updates.

• HPE iLO Mobile App: Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hp.com/go/ilo/mobileapp

NOTE: For more information, visit: http://www.hp.com/go/ilo or HPE iLO Management Engine technologies whitepaper

HPE Insight management

HPE Service Pack for ProLiant

HPE Service Pack for ProLiant (SPP) and HPE Smart Update Manager (HPE SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new Hewlett Packard Enterprise server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HPE SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that Hewlett Packard Enterprise provides 12 months of support for each Service Pack for ProLiant release.

The user experience around HPE SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HPE SUM and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HPE SUM application provides a straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hpe.com, HPE SUM provides the tools to optimize stability and consistency throughout the company. While HPE SUM and the SPP recommend the combinations of firmware and system software that Hewlett Packard Enterprise has found to be the best practice, the application gives customers the flexibility to set their own specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents. This testing ensures the highest quality as well as providing the input for HPE SUM to deploy updates taking into account all interdependencies, when determining the correct updates and order of update deployment.

NOTE: The Service Pack for ProLiant (which includes HPE SUM) can be downloaded from http://www.hp.com/go/spp/download. More information can be found: http://www.hp.com/go/SmartUpdate, http://www.hp.com/go/spp and http://www.hp.com/go/hpsum

Security

Power-on password

Serial interface control

Administrator's password

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HPE Insight management

HPE Insight Control

HPE Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HPE InsightControl also supports Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see http://www.hp.com/go/insightcontrol.

HPE Insight Control includes one year of 24 x 7 HPE Software Technical Support and Update Service ensuring rapid access to Hewlett Packard Enterprise support staff and proactive delivery of software updates. For more information about this service, see: http://www.hp.com/services/insight.

HPE iLO Advanced

HPE Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HPE ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvanced

HPE Matrix Operating Environment

The HPE Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business.

The HPE Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HPE CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS).

NOTE: For more information, visit: http://www.hp.com/go/matrixoe

High Performance Clusters

HPE Cluster Platforms

HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters

HPE HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for this server as part of the HPE Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by Hewlett Packard Enterprise when integrated within an HPE cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html

HPE Insight Cluster Management Utility

HPE Insight Cluster Management Utility (CMU) is an HPE-licensed and HPE-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HPE storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

• Data Protection and Recovery Software
  Whether you're a large enterprise or a smaller business, HPE data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.
• Data Archive and Migration Software
  The HPE storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.
• Storage Resource Management Software (SRM)
  The HPE storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.
• Data Replication Software
  Hewlett Packard Enterprise offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.
• Storage Device Management Software
  Maximize your investment in HPE storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.
• HPE StoreVirtual VSA
  With HPE StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and disconnected physical disk drives in your servers and storage devices into a single pool of logical storage capacity.

NOTE: For more information available Storage Software including QuickSpecs, please see: http://www.hp.com/go/storage/software.

HPE Insight Online

HPE Insight Online is a new addition to the HPE Support Center for one stop, secure access to product and HPE support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HPE Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. http://www.hp.com/go/insightonline

HPE Proactive Insight experience

Prevent problems with innovative, automated monitoring tools and proactive services. The HPE Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: http://www.hp.com/go/proactiveinsightexperience

Factory Express Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, EVA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

HPE Simple Configurator

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact the HPE Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator

Service and Support

HPE Technology Services for Industry Standard Servers
HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Optimized Care

Optimized Care : Supports maintaining servers at optimum performance availability

HPE Proactive Care with 6 hour call-to-repair commitment, three year Care Pack Service

HPE Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to Hewlett Packard Enterprise. This Care Pack Service combines three years’ proactive reporting and advice with our highest level reactive coverage and enhanced escalation management, the Hewlett Packard Enterprise 24x7, six hour call-to-repair hardware commitment. Hewlett Packard Enterprise is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. Service includes 24x7 collaborative software support for leading industry standard software running on your HPE ProLiant server.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8855enw.pdf

Standard Care

Standard Care : Service recommendation that maintains high level of server availability

HPE Proactive Care with 24x7 coverage, three year Care Pack Service

HPE Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to Hewlett Packard Enterprise. This Care Pack Service combines three years’ proactive reporting and advice with our 24x7 coverage and enhanced escalation management, four hour hardware response time and two hour call back for software questions on leading industry standard software running on your HPE ProLiant server. https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8855enw.pdf

Related Services

HPE ProLiant Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

Data Privacy Services

Protect your data through better media management.  HPE Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements.  Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. http://www.hp.com/services/dataprivacy

Additional HPE Pointnext operational services can be found at: http://www.hp.com/go/cpc

Get connected to Hewlett Packard Enterprise to improve your support experience

Connecting products to Hewlett Packard Enterprise will help prevent problems with 24x7monitoring, prefailure alerts, automatic call logging, and parts dispatch. With Connected products, you can have a dashboard to manage your IT anywhere, anytime, from any device.

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Care Pack or Hewlett Packard Enterprise contractual support agreement.

*HPE' Support Center Mobile App is subject to local availability

Warranty / Service Coverage

For ProLiant servers and storage systems, the services cover HPE-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22"; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by Hewlett Packard Enterprise as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more information

To learn more on HPE ProLiant servers, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HPE LFF Gen8 Hard Drive Blank Kit.
NOTE: Not all models are available in all regions. Check with your local country Hewlett Packard Enterprise offices for availability.

Entry Model

HP ProLiant DL385p Gen8 6320 1P 4GB-R P420i/ZM Hot Plug 8 SFF 460W PS Server
710723-xx1

Processor(s)

(1) AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W TDP) Processor

Cache Memory

16MB (2x8MB) Level 3

Memory

4GB (1x4GB) PC3-10600R (DDR3-1333) Registered DIMMS
NOTE: Up to 24 DIMM slots available with 2nd Processor installed (12 DIMM Slots per processor).

Network Controller

HPE Ethernet 1Gb 4-port 331FLR Adapter

Storage Controller

HPE Smart Array P420i/ZM (RAID 0/1)

Hard Drive

None ship standard; includes 6 SFF hard drive blanks, 2 open drive bays for drives(P/N 666987-B21: HPE SFF Gen8 Hard Drive Blank Kit available for additional blanks)

Internal Storage

8SFF SAS/SATA/SSD HDD Bays

Optical Drive Bay

Optional Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)

PCI-Express Slots

3 PCIe slots
NOTE: 3 additional PCIe slots available with optional PCIe Riser Cage #2-requires second processor.

Power Supply

(1) HPE 460W CS Gold Hot Plug Power Supply (92% Efficient)

Fans

(4) (N+1 redundancy standard)

Management

HPE iLO Management Engine (standard)
Optional: HPE iLO Advanced or HPE Insight Control

Form Factor

Rack (2U), HPE Friction Rail Kit Standard/ No Cable Management Arm included
NOTE: The HPE 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).
CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Storage Centric Models

HP ProLiant DL385p Gen8 6320 1P 16GB-R P420i/512 Hot Plug 12 LFF 750W PS Server
703930-xx1

Processor(s)

(1) AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W TDP) Processor

Cache Memory

16MB (2x8MB) Level 3

Memory

16GB (2x8GB) PC3-10600R (DDR3-1333) Registered DIMMS
NOTE: Up to 24 DIMM slots available with 2nd Processor installed (12 DIMM Slots per processor).

Network Controller

HPE Ethernet 1Gb 4-port 331FLR Adapter

Storage Controller

HPE Smart Array P420i/512MB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Hard Drive

None ship standard; drive cage includes 10 LFF hard drive blanks, 2 open drive bays for drives(P/N 666986-B21: HPE LFF Gen8 Hard Drive Blank Kit available for additional blanks)

Internal Storage

12 LFF SAS/SATA HDD Bays

Optical Drive Bay

None available

PCI-Express Slots

3 PCIe slots
NOTE: 3 additional PCIe slots available with optional PCIe Riser Cage #2-requires second processor.

Power Supply

(1) HPE 750W CS Platinum Plus Hot Plug Power Supply (94% Efficient)

Fans

(4) (N+1 redundancy standard)

Management

HPE iLO Management Engine (standard)
Optional: HPE iLO Advanced or HPE Insight Control

Form Factor

Rack (2U), HPE Ball Bearing Rail Kit /Cable Management Arm standard
NOTE: The HPE 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).
CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Dedicated Workload Models
NOTE: This Model is Energy Star Certified.

HP ProLiant DL385p Gen8 6344 2P 32GB-R P420i/1GB Hot Plug 8 SFF 2x750W PS Svr
703931-xx1

Processor(s)

(2) AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W TDP) Processors

Cache Memory

16MB (2x8MB) Level 3

Memory

32GB (4x8GB) PC3-10600R (DDR3-1333) Registered DIMMS
NOTE: Up to 24 DIMM slots available with 2nd Processor installed (12 DIMM Slots per processor).

Network Controller

HPE Ethernet 1Gb 4-port 331FLR Adapter

Storage Controller

HPE Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Hard Drive

None ship standard; includes 6 SFF hard drive blanks, 2 open drive bays for drives(P/N 666987-B21: HPE SFF Gen8 Hard Drive Blank Kit available for additional blanks)

Internal Storage

8 SFF SAS/SATA HDD Bays
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays (requires additional PCI controller)

Optical Drive Bay

Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)

PCI-Express Slots

6 PCIe slots
NOTE: Includes PCIe Riser Cage #2.

Power Supply

(2) HPE 750W CS Platinum Plus Hot Plug Power Supplies (94% Efficient)

Fans

(6) (N+1 redundancy standard)

Management

HPE iLO Management Engine (standard)
Optional: HPE iLO Advanced or HPE Insight Control

Form Factor

Rack (2U), HPE Ball Bearing Rail Kit /Cable Management Arm standard
NOTE: The HPE 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).
CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Maximized Consolidation Models
NOTE: These Models are Energy Star Certified.

HP ProLiant DL385p Gen8 6376 2P 32GB-R P420i/2GB Hot Plug 25 SFF 2x750W PS Svr
703932-xx1

Processor(s)

(2) AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W TDP) Processors

Cache Memory

16MB (2x8MB) Level 3

Memory

32GB (4x8GB) PC3-10600R (DDR3-1333) Registered DIMMS
NOTE: Up to 24 DIMM slots available with 2nd Processor installed (12 DIMM Slots per processor).

Network Controller

HPE Ethernet 1Gb 4-port 331FLR Adapter

Storage Controller

HPE Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Hard Drive

None ship standard; includes 23 SFF hard drive blanks, 2 open drive bays for drives (P/N 666987-B21: HPE SFF Gen8 Hard Drive Blank Kit available for additional blanks)

Internal Storage

25 SFF SAS/SATA HDD Bays

Optical Drive Bay

None Available

PCI-Express Slots

6 PCIe slots
NOTE: Includes PCIe Riser Cage #2.

Power Supply

(2) HPE 750W CS Platinum Plus Hot Plug Power Supplies (94% Efficient)

Fans

(6) (N+1 redundancy standard)

Management

HPE iLO Management Engine (standard)
Optional: HPE iLO Advanced or HPE Insight Control

Form Factor

Rack (2U), HPE Ball Bearing Rail Kit /Cable Management Arm standard
NOTE: The HPE 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).
CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Country Code Key

xx = 00

U.S.

xx = 29

Japan

xx = 37

APD

xx = 42

Europe

xx = AA

PRC

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Factory Integrated Models must start with a CTO Server.
NOTE: FIO indicates that this option is only available as a factory installable option.
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

Step 1: Base Configuration (choose one of the following configurable models)

HPE Models

HP ProLiant DL385 Gen8 8 SFF Configure-to-order Server

653203-B21

Factory Integrated Model ships with:

Drive Cage - 8-SFF Drive Bays available (See hard drives in Section 4 for options)
SID-Systems Insight Display Included
24 DIMM slots for RDIMM or LRDIMM memory installation
Smart Array P420i Controller w/ Zero Memory (ZM)
I/O slots - 3 Slots come standard:

• Slot 1 - FL/FH x8 PCIe 2.0 (x16 connector)
• Slot 2 - HL/FH x8 PCIe 2.0 (x8 connector)
• Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector)
• Additional PCIe Slots may be added with the 2nd Riser Cage option.

System Fans - 4 standard (2 additional fans included with second processor)
Drive Cage - 8SFF (drive blanks installed dependent on number of drives ordered)
USB - 4 Rear, 2 Front, 2 Internal, 1 SD slot
HPE iLO Management Engine (iLO4)
NOTE: Smart Array Cache options, Hard drives, Optical drives, Flexible NICs*, Power Supply* and Rail/CMA Kits not included in the base configuration - choose these from Steps 2 or 4 below in Options section. Additional 8-SFF Drive option requires additional HPE Smart Array Controller.
* This is a required selection.

HP ProLiant DL385p Gen8 8 LFF Configure-to-order Server

669804-B21

Factory Integrated Model ships with:

Drive Cage - 8-LFF Drive Bays available (See hard drives in Section 4 for options)
Pop Out SID-Systems Insight Display Included
24 DIMM slots for RDIMM or LRDIMM memory installation
Smart Array P420i Controller w/ Zero Memory (ZM)
I/O slots - 3 Slots come standard:

• Slot 1 - FL/FH x8 PCIe 2.0 (x16 connector)
• Slot 2 - HL/FH x8 PCIe 2.0 (x8 connector)
• Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector)
• Additional PCIe Slots may be added with the 2nd Riser Cage option.

System Fans - 4 standard (2 additional fans included with second processor)
Drive Cage - 8LFF (drive blanks installed dependent on number of drives ordered)
USB - 4 Rear, 2 Front, 2 Internal, 1 SD slot
HPE iLO Management Engine (iLO4)
NOTE: Smart Array Cache options, Hard drives, Optical drives, Flexible NICs*, Power Supply* and Rail/CMA Kits not included in the base configuration - choose these from Steps 2 or 4 below in Options section.
* Required selection.

HP ProLiant DL385p Gen8 12 LFF Configure-to-order Server

669805-B21

Factory Integrated Model ships with:

Drive Cage - 12-LFF Drive Bays available (See hard drives in Section 4 for options)
NO SID-Systems Insight Display Included
24 DIMM slots for RDIMM and LRDIMM memory installation
Smart Array P420i Controller w/ Zero Memory (ZM)
I/O slots - 3 Slots come standard:

• Slot 1 - FL/FH x8 PCIe 2.0 (x16 connector)
• Slot 2 - HL/FH x8 PCIe 2.0 (x8 connector)
• Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector)
• Additional PCIe Slots may be added with the 2nd Riser Cage option.

System Fans - 4 standard (2 additional fans included with second processor)
USB - 4 Rear, 2 Front, 2 Internal, 1 SD slot
HPE iLO Management Engine (iLO4)
NOTE: Customers can only choose from 135W processors or lower in this configure-to-order model.
NOTE: Smart Array Cache options, Hard drives, Flexible NICs*, Power Supply* and Rail/CMA Kits not included in the base configuration - choose these from Steps 2 or 4 below in Options section.
* Required selection.

HP ProLiant DL385p Gen8 25 SFF Configure-to-order Server

669803-B21

Factory Integrated Model ships with:

Drive Cage - 25-SFF Drive Bays available (See hard drives in Section 4 for options)
NO SID-Systems Insight Display Included
24 DIMM slots for RDIMM, LRDIMM, and UDIMM memory installation
1 FlexibleLOM connector (see Step2: HPE Flexible NIC section below for NIC choices to populate the embedded connector)
Smart Array P420i Controller w/ Zero Memory (ZM)
I/O slots - 3 Slots come standard:

• Slot 1 - FL/FH x8 PCIe 2.0 (x16 connector)
• Slot 2 - HL/FH x8 PCIe 2.0 (x8 connector)
• Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector)
• Additional Slots may be added via selection from the "PCI Information and Options" subsection

System Fans - 4 standard (2 additional fans included with second processor)
Drive Cage - 12LFF (drive blanks installed dependent on number of drives ordered)
USB - 4 Rear, 2 Front, 2 Internal, 1 SD slot
HPE iLO Management Engine (iLO4)
NOTE: Customers can only choose from 135W processors or lower in this configure-to-order model.
NOTE: Smart Array Cache options, Hard drives, Flexible NICs*, Power Supply* and Rail/CMA Kits not included in the base configuration - choose these from Steps 2 or 4 below in Options section.
* Required selection.

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HPE Processors

NOTE: All processors support up to 1600MHz DDR3 memory speeds.

NOTE: The 12LFF and 25SFF CTO chassis do not support processor greater than 135W

Sixteen-Core Processors

HP DL385p Gen8 AMD Opteron 6386SE (2.8GHz/16-core/16MB/140W) FIO Processor Kit

703939-L21

HP DL385p Gen8 AMD Opteron 6380 (2.5GHz/16-core/16MB/115W) FIO Processor Kit

703941-L21

HP DL385p Gen8 AMD Opteron 6378 (2.4GHz/16-core/16MB/115W) FIO Processor Kit

703943-L21

HP DL385p Gen8 AMD Opteron 6376 (2.3GHz/16-core/16MB/115W) FIO Processor Kit

703946-L21

HP DL385p Gen8 AMD Opteron 6366HE (1.8GHz/16-core/16MB/85W) FIO Processor Kit

703950-L21

Twelve-Core Processors

HP DL385p Gen8 AMD Opteron 6348 (2.8GHz/12-core/16MB/115W) FIO Processor Kit

703952-L21

HP DL385p Gen8 AMD Opteron 6344 (2.6GHz/12-core/16MB/115W) FIO Processor Kit

703954-L21

Eight-Core Processors

HP DL385p Gen8 AMD Opteron 6328 (3.2GHz/8-core/16MB/115W) FIO Processor Kit

703958-L21

HP DL385p Gen8 AMD Opteron 6320 (2.8GHz/8-core/16MB/115W) FIO Processor Kit

703960-L21

Quad-Core Processors

HP DL385p Gen8 AMD Opteron 6308 (3.5GHz/4-core/16MB/115W) FIO Processor Kit

703962-L21

HPE Memory

NOTE: To realize the performance memory capabilities listed in this document, HPE SmartMemory is recommended. For additional information, please see the HPE SmartMemory QuickSpecs.

Registered DIMMs (RDIMMs)

HPE 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

647879-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 LV Memory Kit

647883-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory

672633-B21

Load Reduced DIMMs(LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) LR CAS-9 LV Memory Kit

647885-B21

NOTE: HPE memory from previous generation servers may not provide the same performance with the HPE ProLiant DL385p Gen8 Servers as HPE SmartMemory will.
NOTE: If only one processor is installed, only half the DIMM slots are available.
NOTE: Depending on the memory configuration, the memory speed may run at 1600MHz, 1333MHz, 1066MHz or lower. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hp.com/go/ddr3memory-configurator.
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator.

HPE Networking

FlexibleLOM Adapters
NOTE: The HPE ProLiant DL385p Gen8 server requires one FlexibleLOM to be installed in the FlexibleLOM slot.

HPE Ethernet 1Gb 4-port 331FLR FIO Adapter

684208-B21

HP Ethernet 10Gb 2-port 530FLR-SFP+ FIO Adapter

684210-B21

HP FlexFabric 10Gb 2-port 554FLR-SFP+ FIO Adapter

684213-B21

HPE Ethernet 1Gb 4-port 366FLR FIO Adapter

684217-B21

HPE Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter

684218-B21

HP FlexFabric 10Gb 2-port 526FLR-SFP+ FIO Adapter

684219-B21

HP Ethernet 10Gb 2-port 561FLR-T FIO Adapter

700700-B21

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter

700752-B21

HP FlexFabric 10Gb 2-port 533FLR-T FIO Adapter

700760-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs.

HPE Power Supplies

NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.
NOTE: Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hp.com/go/hppoweradvisor.

HPE Common Slot Platinum Plus Power Supply Kits
NOTE: The following Power Supplies offer 94% Efficiency with support for Intelligent Power Discovery.

HPE 460W Common Slot Platinum Plus Hot Plug Power Supply Kit

656362-B21

HPE 750W Common Slot Platinum Plus Hot Plug Power Supply Kit

656363-B21

HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit

656364-B21

HPE Common Slot Gold Power Supplies
NOTE: The following Power Supplies offer 92% efficiency.

HPE 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

HPE 750W Common Slot Gold Hot Plug Power Supply Kit

512327-B21

HPE Common Slot -48VDC Power Supplies

HPE 750W Common Slot -48VDC Hot Plug Power Supply Kit

636673-B21

NOTE: The HPE 750W Common Slot -48VDC power supply does not ship with a power cable. It has been designed with a terminal block connection allowing for custom design of power cords by the user.

NOTE: Option Kits for AC power supplies include the power supply and one PDU IEC cable.

NOTE: HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HPE power cords please go to http://www.hp.com/products/powercords

NOTE: Power Specification and Technical Content for supported power supplies can be found at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111541

Step 3: Choose Additional Factory Integratable Options (only one of the following from each list unless otherwise noted)

HPE Rack Kits

NOTE: Rail kits are optional for Gen8 and are no longer included standard with the server (except pre-configured/BTO Models). The customer has the choice to not include rail kits with their server purchase, but it is recommended.
NOTE: HPE 2U Ball Bearing Rail Kits and Easy Install Rail Kits provide full serviceability of the server while in the Rack and have the option to include a CMA. HPE 2U Friction Rail Kits ARE NOT serviceable in the Rack and must be removed from the rack and do not include CMA.
NOTE: Additional HPE Rack Kit options can be found in "Step 4: Additional Options, HPE Rack Options - Rail Kits" section of this QuickSpecs. Only FIO options are listed here.
NOTE: To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).
CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

HP 2U FIO Friction Rail Kit
NOTE: No in-rack serviceability.

663476-B21

HPE 2U Small Form Factor Ball Bearing Gen8 Rail Kit with CMA

663478-B21

HPE 2U Large Form Factor Ball Bearing Gen8 Rail Kit with CMA

663480-B21

NOTE: In custom configurations - No Rails can be selected

HPE Insight Software

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU

C6N36A

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO E-LTU
NOTE:NOTE: The Electronic software license is available in EMEA only.

C6N36ABE

Converged Infrastructure Management Software

HPE OneView with iLO Advanced - Server hardware required on same purchase order

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

Step 4: Choose Additional Options for Factory Integration

NOTE: For additional options, please refer to the "Core Options and Additional Options" section below.

NOTE: Some options may not be integrated at the factory. Contact your local sales representative for additional information.

HPE Unique Options

HPE DL380/DL385 Gen8 8 Small Form Factor Hard Drive Backplane Cage Kit
NOTE:NOTE: With upgrade of 8SFF Cage/Bkpln, there is no Optical Drive support.
NOTE:NOTE: All cables necessary for proper installation of the 8SFF Cage are included with this Kit.
NOTE:NOTE: With upgrade of 8SFF Cage/Bkpln, an additional storage controller is required. Please go to the Storage Controller section for options available.

662883-B21

HPE DL385p Gen8 x16 2x8 PCI-E Riser Kit
NOTE:NOTE: 2nd Riser Cage requires 2nd Processor.

653214-B21

HPE Processors

Sixteen-Core Processors
NOTE: All support up to 1600MHz DDR3 memory speeds.

HPE DL385p Gen8 AMD Opteron 6386SE (2.8GHz/16-core/16MB/140W) Processor Kit

703939-B21

HPE DL385p Gen8 AMD Opteron 6380 (2.5GHz/16-core/16MB/115W) Processor Kit

703941-B21

HPE DL385p Gen8 AMD Opteron 6378 (2.4GHz/16-core/16MB/115W) Processor Kit

703943-B21

HPE DL385p Gen8 AMD Opteron 6376 (2.3GHz/16-core/16MB/115W) Processor Kit

703946-B21

HPE DL385p Gen8 AMD Opteron 6366HE (1.8GHz/16-core/16MB/85W) Processor Kit

703950-B21

Twelve-Core Processors

HPE DL385p Gen8 AMD Opteron 6348 (2.8GHz/12-core/16MB/115W) Processor Kit

703952-B21

HPE DL385p Gen8 AMD Opteron 6344 (2.6GHz/12-core/16MB/115W) Processor Kit

703954-B21

Eight-Core Processors

HPE DL385p Gen8 AMD Opteron 6328 (3.2GHz/8-core/16MB/115W) Processor Kit

703958-B21

HPE DL385p Gen8 AMD Opteron 6320 (2.8GHz/8-core/16MB/115W) Processor Kit

703960-B21

Quad-Core Processors

HPE DL385p Gen8 AMD Opteron 6308 (3.5GHz/4-core/16MB/115W) Processor Kit

703962-B21

NOTE: Up to 2 processors supported in all models.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

HPE Memory

NOTE: To realize the performance memory capabilities listed in this document, HPE SmartMemory is recommended. For additional information, please see the HPE SmartMemory QuickSpecs.

Registered DIMMs (RDIMMs)

HPE 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

647879-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 LV Memory Kit

647883-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory

672633-B21

Load Reduced DIMMs (LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) LR CAS-9 LV Memory Kit

647885-B21

NOTE: HPE memory from previous generation servers may not provide the same performance with the HPE ProLiant DL385p Gen8 Servers as HPE SmartMemory will.
NOTE: If only one processor is installed, only half the DIMM slots are available.
NOTE: Depending on the memory configuration, the memory speed may run at 1600MHz, 1333MHz, 1066MHz or lower. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hp.com/go/ddr3memory-configurator.
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator.

HPE Optical Drives

HPE 12.7mm Slim SATA DVD-ROM JackBlack Optical Drive

652232-B21

HPE 12.7mm Slim SATA DVD-RW JackBlack Optical Drive
NOTE:NOTE: Not Available on 8+8 LFF, 12LFF or 25SFF Models.

652235-B21

HPE Hard Drives

NOTE: The HPE ProLiant DL385p Gen8 Smart Storage solutions are equipped with entirely re-designed Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HPE Qualified Hard Drives and Solid State Drives. These new carriers provide status, location and activity indicators as well as caution indicators for "Do Not Remove".
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

12G SAS Hot Plug SmartDrive SFF (2.5-inch) Enterprise Drives

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759212-B21

HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759210-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759208-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

781518-B21

HPE 900GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785069-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in ) SC 3yr Wty HDD

781516-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785067-B21

12G SAS Hot Plug SmartDrive LFF (3.5-inch) Converter Enterprise Drives

HPE 600GB SAS 12G Enterprise 15K LFF (3.5in) SC 3yr Wty HDD

765424-B21

HPE 450GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD

737394-B21

HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD

737261-B21

12G SAS Hot Plug LFF (3.5in) 7.2K MDLSC HDD

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

818367-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

818365-B21

12G SAS Hot Plug SFF (2.5-inch) SC 512e Drives

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765464-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e HDD

748387-B21

12G SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

832514-B21

12G SAS Hot Plug LFF (3.5-inch) Midline (MDL) 512e Drives

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

765259-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

765257-B21

12G SAS Hot Plug LFF (3.5-inch) SC 512e Performance Drives

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD

793703-B21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD

793699-B21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

793671-B21

HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793669-B21

6G SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e HDD

791034-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive

718162-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

6G SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HPE 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HPE 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

12G SAS SFF (2.5in) RI-3 SC Solid State Drives

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816576-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816572-B21

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816568-B21

HPE 480GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816562-B21

12G SAS SFF (2.5in) MU-3 SC Solid State Drives

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822567-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822563-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822559-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822555-B21

6G SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives

HP 6TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

761477-B21

HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

695510-B21

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652766-B21

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652757-B21

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652753-B21

6G SATA 2.5in WI-PLP SCC Solid State Drives

HPE 1.2TB SATA 6G Write Intensive  LFF (3.5in) SCC 3yr Wty SSD

804680-B21

HPE 800GB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD

804674-B21

HPE 400GB SATA 6G Write Intensive  LFF (3.5in) SCC 3yr Wty SSD

804668-B21

HPE 200GB SATA 6G Write Intensive  LFF (3.5in) SCC 3yr Wty SSD

804642-B21

HPE 800GB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD

831725-B21

6G SATA 2.5in MU-PLP SCC Solid State Drives

HPE 1.6TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

804634-B21

HPE 800GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

804628-B21

HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

832417-B21

HPE 200GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

804616-B21

6G SATA 2.5in RI-PLP SCC Solid State Drives

HPE 1.6TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

804608-B21

HPE 800GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

804602-B21

HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

804596-B21

HPE 240GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

804590-B21

HPE 120GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

804584-B21

HPE 80GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

804578-B21

6G SATA 2.5in WI-PLP SC Solid State Drives

HPE 1.2TB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804677-B21

HPE 800GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804671-B21

HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804665-B21

HPE 200GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804639-B21

6G SATA 2.5in MU-PLP SC Solid State Drives

HPE 1.6TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804631-B21

HPE 800GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804625-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

832414-B21

HPE 200GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804613-B21

6G SATA 2.5in RI-PLP SC Solid State Drives

HPE 1.6TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804605-B21

HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804599-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804593-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804587-B21

HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804581-B21

HPE 80GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804575-B21

6G SATA Hot Plug SFF (2.5-inch) SC 512e Drives

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765455-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765453-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111744

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

HPE 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

6G SATA Hot Plug MU-3 SFF (2.5-inch) SC Solid State Drives

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

817011-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

816995-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

816985-B21

HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

816975-B21

HPE 120GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

816965-B21

6G SATA Hot Plug RI-3 SFF (2.5-inch) SC Solid State Drives

HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816929-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816919-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816909-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816899-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816889-B21

HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816879-B21

6G SATA Hot Plug LFF (3.5-inch) RI-3 SCC SSD

HPE 3.84TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

816933-B21

HPE 1.92TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

816923-B21

HPE 960GB SATA 6G Read Intensive LFF (2.5in) SC 3yr Wty SSD

816913-B21

HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

816903-B21

HPE 240GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

816893-B21

HPE 120GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

816883-B21

6G SATA Hot Plug LFF (3.5-inch) MU-3 SCC SSD

HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

817015-B21

HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

816999-B21

HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

816989-B21

HPE 240GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

816979-B21

HPE 120GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

816969-B21

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD

793695-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD

793683-B21

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

753874-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

693687-B21

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

628061-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

658079-B21

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

657750-B21

HPE 500GB SATA 6G Midline 7.2k LFF (3.5in) SC 1yr Wty HDD

658071-B21

6G SATA Hot Plug LFF (3.5-inch) Midline (MDL) 512e Drives

HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drives

793665-B21

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793667-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

765255-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

765253-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111725

12G SAS Hot Plug Value Endurance SFF (2.5-inch) Enterprise Value Solid State Drives

HP 1.6TB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

762263-B21

HPE 800GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

762261-B21

12G SAS Hot Plug Value Endurance LFF (3.5-inch) Enterprise Value Solid State Drives

HPE 1.6TB 12G SAS Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive

762272-B21

HPE 800GB 12G SAS Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive

762270-B21

12G SAS Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream H2 Solid State Drives

HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779176-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779172-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779168-B21

HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779164-B21

12G SAS Hot Plug SFF (2.5-inch) SC Read/Write Intensive Solid State Drives

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

802891-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802586-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802582-B21

HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802578-B21

6G SATA Hot Plug Value Endurance LFF (3.5-inch) Converter Enterprise Value M1 Solid State Drives

HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive

764945-B21

HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive

764943-B21

HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive

764941-B21

HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive

764939-B21

6G SATA Hot Plug Value Endurance LFF (3.5-inch) Converter Enterprise Value G1 Solid State Drives

HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive

756660-B21

6G SATA Hot Plug Value Endurance SFF (2.5-inch) Enterprise Value G1 Solid State Drives

HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive

756657-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives

HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

739898-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value M1 Solid State Drive

HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764929-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764927-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764925-B21

HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764923-B21

6G SATA Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives

HP 480GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive

789145-B21

6G SATA Hot Plug LFF (3.5-inch) SC Read Intensive Solid State Drives

HP 480GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive

789147-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154378

Hard Drive Kits
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

HPE Large Form Factor Hard Drive Blank Kit

666986-B21

HPE DL380/DL385 Gen8 8 Small Form Factor Hard Drive Backplane Cage Kit

662883-B21

HPE Networking

Gigabit Server adapters

HPE NC365T 4-port Ethernet Server Adapter

593722-B21

HPE Ethernet 1Gb 4-port 331T Adapter

647594-B21

HPE Ethernet 1Gb 2-port 332T Adapter

615732-B21

HPE Ethernet 1Gb 2-port 361T Adapter

652497-B21

10 Gigabit Server Adapters
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HP NC523SFP 10Gb 2-port Server Adapter

593717-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP FlexFabric 10Gb 2-port 526FLR-SFP+ Adapter

629138-B21

HPE Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HPE Ethernet 10Gb 2-port 530T Adapter

656596-B21

HPE FlexFabric 10Gb 2-port 533FLR-T Adapter

700759-B21

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

HPE FlexFabric 10Gb 2-port 556FLR-SFP+ FIO Adapter

732456-B21

NOTE: This is a FIO only part.

HPE Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

HPE Ethernet 10Gb 2-port 561FLR-T Adapter

700699-B21

HPE Ethernet 10Gb 2-port 561T Adapter

716591-B21

HPE Ethernet 10Gb 2-port 570SFP+ Adapter

718904-B21

FlexibleLOM Adapters

HP Ethernet 1Gb 4-port 331FLR Adapter

629135-B21

HPE Ethernet 1Gb 4-port 366FLR Adapter

665240-B21

HPE Ethernet 10Gb 2-port 530FLR-SFP+ Adapter

647581-B21

HP FlexFabric 10Gb 2-port 554FLR-SFP+ Adapter

629142-B21

HPE Ethernet 10Gb 2-port 560FLR-SFP+ Adapter

665243-B21

HPE Ethernet 10Gb 2-port 570FLR-SFP+ Adapter

717491-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs

HPE InfiniBand

HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544QSFP Adapter

649281-B21

NOTE: For the following two InfiniBand Adapters, only 1 FlexibleLOM can be added to the server, which is selected in Step 2 for the "Configuration Information - Factory Integrated Models" section. These two options are for upgrade or change from original configuration.

HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544FLR-QSFP Adapter

649282-B21

HPE InfiniBand FDR 2-port 545QSFP Adapter

702211-B21

NOTE: FLR Indicates new HPE FlexibleLOM Adapter series.

NOTE: Please see the QuickSpecs for additional information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154440

HPE I/O Expansion Options

HPE DL385p Gen8 x16 2x8 PCI-E Riser Kit
NOTE:NOTE: 2nd Riser Cage requires 2nd Processor.

653214-B21

HPE Power Supplies

NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.
NOTE: Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hp.com/go/hppoweradvisor.

HPE Common Slot Platinum Plus Power Supply Kits
NOTE: The following Power Supplies offer 94% Efficiency with support for Intelligent Power Discovery.

HPE 460W Common Slot Platinum Plus Hot Plug Power Supply Kit

656362-B21

HPE 750W Common Slot Platinum Plus Hot Plug Power Supply Kit

656363-B21

HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit

656364-B21

HPE Common Slot Gold Power Supplies
NOTE: The following Power Supplies offer 92% Efficiency.

HPE 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

HPE 750W Common Slot Gold Hot Plug Power Supply Kit

512327-B21

HPE Common Slot -48VDC Power Supplies
NOTE: The following Power Supplies offer 92% Efficiency.

HPE 750W Common Slot -48VDC Hot Plug Power Supply Kit
NOTE:NOTE: The HPE 750W Common Slot -48VDC power supply does not ship with a power cable. It has been designed with a terminal block connection allowing for custom design of power cords by the user.

636673-B21

NOTE: Option Kits contain optional power supply, an IEC power cable and PDU IEC cables.
NOTE: HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HPE power cords please go to http://www.hp.com/products/powercords
NOTE: Power Specification and Technical Content for supported power supplies can be found at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111541

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Insight Software

HPE Insight Control

HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU

C6N27A

HPE Insight Control including 1yr 24x7 TSU E-LTU
NOTE:NOTE: The Electronic software license is available in EMEA only.

C6N28ABE

HPE Insight Management Media Kit

C6N31A

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HPE Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.

NOTE: For additional license options please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123391

HPE Integrated Lights-Out (iLO) Advanced for ProLiant

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU
NOTE:NOTE: The Electronic software license is available in EMEA only.

E6U59ABE

HPE iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU
NOTE:NOTE: The Electronic software license is available in EMEA only.

E6U64ABE

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates 1-server LTU

512485-B21

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates 1-server LTU

BD505A

NOTE: For additional license options please see the QuickSpecs at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154343

NOTE: For more information, visit: http://www.hp.com/go/ilo

Converged Infrastructure Management Software

HPE OneView

HPE OneView with iLO Advanced

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView Physical Media Kit LTU

E5Y37A

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE Operations Analytics for HPE OneView LTU

K8G29A

HPE Operations Analytics for HPE OneView E-LTU

K8G29AAE

HPE OneView without iLO Advanced

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111367

High Performance Clusters

HPE Cluster Management Utility

HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU

QL803B

HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU

BD476A

HPE Insight Cluster Management Utility for ConvergedSystem 3yr 24x7 Flexible LTU

G2E81A

NOTE: These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.

HPE Insight Cluster Management Utility Media

BD477A

NOTE: For additional license kits please see the QuickSpecs at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735

HPE I/O Accelerator Options

Second Generation Accelerators

HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers

673646-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111683

HPE PCIe Workload Accelerator Options

Light Endurance (LE) PCIe Workload Accelerators

HPE 5.2TB FH/HL Light Endurance (LE) PCIe Workload Accelerator

775672-B21

HPE 2.6TB HH/HL Light Endurance (LE) PCIe Workload Accelerator

775670-B21

HPE 1.3TB HH/HL Light Endurance (LE) PCIe Workload Accelerator

775668-B21

HPE 1.0TB HH/HL Light Endurance (LE) PCIe Workload Accelerator

775666-B21

Value Endurance (VE) PCIe Workload Accelerators

HP 1.3TB HH/HL Value Endurance (VE) PCIe Workload Accelerator

763834-B21

HP 1.6TB HH/HL Value Endurance (VE) PCIe Workload Accelerator

763836-B21

HP 3.2TB HH/HL Value Endurance (VE) PCIe Workload Accelerator

763838-B21

HP 6.4TB FH/HL Value Endurance (VE) PCIe Workload Accelerator

763840-B21

Read Intensive (RI) PCIe Workload Accelerators

HPE 1.3TB Read Intensive-2 HH/HL PCIe Workload Accelerator

831733-B21

HPE 1.6TB Read Intensive-2 HH/HL PCIe Workload Accelerator

831735-B21

HPE 3.2TB Read Intensive-2 HH/HL PCIe Workload Accelerator

831737-B21

HPE 6.4TB Read Intensive-2 FH/HL PCIe Workload Accelerator

831739-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123190

HPE Security

HPE Trusted Platform Module Option
NOTE:NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: http://www.hp.com/go/TPM.
NOTE:NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE:NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

488069-B21

HPE 2U Security Bezel Kit

666988-B21

HPE Storage Controllers

SAS Controllers

Smart Array P222 Controller

HPE Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller

631667-B21

Smart Array P420 Controller

HPE Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller

631670-B21

HPE Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller

631671-B21

Smart Array P421 Controller

HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller

631673-B21

Smart Array P430 Controller

HPE Smart Array P430/4GB FBWC 12Gb 1-port Int SAS Controller

698530-B21

HPE Smart Array P430/2GB FBWC 12Gb 1-port Int SAS Controller

698529-B21

Smart Array P431 Controller

HPE Smart Array P431/4GB FBWC 12Gb 2-ports Ext SAS Controller

698532-B21

HPE Smart Array P431/2GB FBWC 12Gb 2-ports Ext SAS Controller

698531-B21

Smart Array P830 Controller

HPE Smart Array P830/4GB FBWC 12Gb 2-ports Int SAS Controller

698533-B21

Optional Upgrades

HPE 1GB P-series Smart Array Flash Backed Write Cache

631679-B21

HPE 2GB P-series Smart Array Flash Backed Write Cache

631681-B21

HPE 512MB P-series Smart Array Flash Backed Write Cache

661069-B21

HPE Smart Array SR SmartCache (Single Key/Single Server) LTU

D7S26A

HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU

D7S27A

HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU

D7S27AAE

HP Secure Encryption per Svr Entitlement

C9A82AAE

HPE Cable Options

HPE DL38x/DL360 Gen8 Embedded SATA Cable Kit

664009-B21

HPE Mini SAS/Straight to Straight 25 SFF Bypass Cable Assembly

726974-B21

HPE Mini SAS Straight to Straight 37in Cable Assembly

662897-B21

HPE Mini SAS/Straight to Straight Offset Bypass Cable Assembly

697611-B21

HPE Mini SAS/Straight to Straight Short Bypass Cable Assembly

697691-B21

HP DL38Xp Gen8 8 Large Form Factor (LFF) P430/830 Cable Kit

729270-B21

HP DL38Xp Gen8 12 Large Form Factor (LFF) P430/830 Cable Kit

729272-B21

HP DL38Xp Gen8 25 Small Form Factor (SFF) P430/830 Cable Kit

729274-B21

HP 6G SAS P430/830 Secondary Cable Kit

729276-B21

HP 6G SAS P430/830 Primary Cable Kit

729278-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111474
(Smart Array P222 Controller)
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111382
(Smart Array P430 Controller)
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111365
(Smart Array P431 Controller)
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111534
(Smart Array P420 Controller)
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111533
(Smart Array P421 Controller)
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04227582
(Smart Array P830 Controller)

Host Bus Adapter

HP H220 Host Bus Adapter

650933-B21

HPE H221 PCIe 3.0 SAS Host Bus Adapter

729552-B21

HPE H222 Host Bus Adapter

650926-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111455
(HBA 220)
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111475
(HBA 221)
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111514
(HBA 222)

HPE Disk Enclosures

HPE D3600 Enclosure

QW968A

HPE D3700 Enclosure

QW967A

NOTE: See the D3000 Disk Enclosure QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04227611

HP D2600 Disk Enclosure

AJ940A

HPE D2700 Disk Enclosure

AJ941A

NOTE: See the D2000 Disk Enclosure QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111697

HPE D6000 Dual I/O Module Disk Enclosure

QQ695A

NOTE: See the D6000 Disk Enclosure QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111505

HPE Tape Backup

NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HPE tape backup products see: http://www.hp.com/storage/SPOCK
NOTE: For Internal drives to be connected to DL servers please make sure that you order rack mount kit as well.

HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HPE StoreEver LTO-6 Ultrium 6250 Tape Drive in a 1U Rack Mount Kit

C0L99A

HPE StoreEver LTO-6 Ultrium 6650 SAS External Tape Drive

EH964A

HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HPE StoreEver 1/8 G2 LTO-6 Ultrium 6250 Fibre Channel Tape Autoloader

C0H19A

NOTE: Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111633

HPE Tape Storage Systems

HPE StoreEver MSL6480

HPE StoreEver MSL6480 Scalable Base Module

QU625A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111416

HPE Disk Backup

NOTE: For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HPE disk backup products see: http://www.hp.com/storage/SPOCK.

HPE RDX Removable Disk Backup System

HPE RDX 2TB USB3.0 External Disk Backup System

E7X53B

HP RDX+ 1TB External Backup System

B7B69B

HP RDX+ 500GB External Backup System

B7B66B

HPE RDX+ External Docking System

C8S07B

NOTE: Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111633

HPE Storage Options

Storage Fibre Channel HBA

NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000, Windows Server 2003 and Linux, please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs

HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AP769B

HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AP770B

Emulex Fibre Channel HBAs

HPE 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B

HPE 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B

HPE StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter

C8R38A

HPE StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

C8R39A

QLogic Fibre Channel HBAs

HPE 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

HPE StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

QW971A

HPE StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A

Converged Network Adapter

HPE StoreFabric CN1200E 10Gb Converged Network Adapter

E7Y06A

HP CN1100E Dual Port Converged Network Adapter

BK835A

HPE CN1000Q Dual Port Converged Network Adapter

BS668A

HPE StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A

HPE Uninterruptible Power Systems

HPE DirectFlow Three Phase UPS

Power Unit (1U UPS)

NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated.

HPE R12000 DirectFlow - 1U Rackmount Uninterruptible Power System

G9Y75A

HPE R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System

AF478A

Input/Output Module Options for 1U UPS

NOTE: Choose one I/O Module per UPS.

NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated.

HPE 32A 400-415 Volt Three Phase INTL R12000 DirectFlow UPS IEC309 Input/Output Module

AF488A

HPE 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output Module

AF489A

HPE 32A 380 Volt Three Phase China R12000 DirectFlow UPS Unterminated Input/Output Module

AF490A

HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output Module

AF491A

HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module

AF492A

HPE 30A 400-415 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module

G9Y76A

NOTE: All Input/Output Modules support dual output outlets except the AF484A.

HPE Tower UPS

HPE T750 G4 UPS Models

HPE T750 G4 NA/JP Uninterruptible Power System

J2P85A

HPE T750 G4 INTL Uninterruptible Power System

J2P88A

HPE T1000 G4 UPS Models

HPE T1000 G4 NA/JP Uninterruptible Power System

J2P86A

HPE T1000 G4 INTL Uninterruptible Power System

J2P89A

HPE T1500 G4 UPS Models

HPE T1500 G4 NA/JP Uninterruptible Power System

J2P87A

HPE T1500 G4 INTL Uninterruptible Power System

J2P90A

HPE Rack/Tower UPS

HPE R/T2200 G4 UPS Models

HPE R/T2200 G4 NA/JP Uninterruptible Power System

J2R00A

HPE R/T2200 G4 Extended Runtime Module
