HPE ProLiant DL385 Gen10 Server

The HPE ProLiant DL385 Gen10 Server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD® EPYC® 7xx2 Series Processors , the HPE ProLiant DL385 Gen10 Server offers greater processing power and faster memory speeds upto 2933 MT/s. This 2P, 2U server has been designed with flexibility while delivering a high maximum core count and large memory footprint. Choose this purpose-built platform for virtualization.

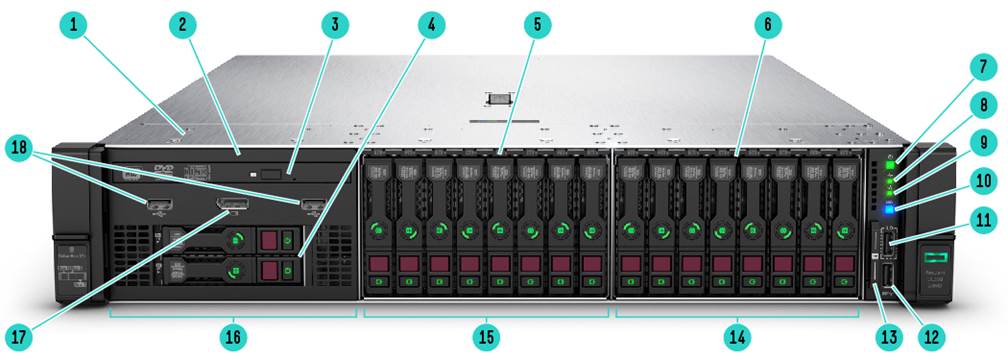

HPE ProLiant DL385 Gen10 Server - Front View

SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown

1

Quick removal access panel

10

UID button

2

Drive Bay 1. Optional Universal Media bay. 2 USB 2.0 and Display port standard shown (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional)

11

iLO Front Service Port

3

Optional Optical drive. Requires Universal Media bay

12

USB 3.0

4

Optional 2 SFF HDD, requires optional Universal Media bay

13

Serial label pull tag

5

Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)

14

Box 3

6

Drive Bay 3. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)

15

Box 2

7

Power On/Standby button and system power LED button

16

Box 1

8

Health LED

17

Optional front display port (Via Universal Media Bay)

9

NIC status

18

Optional USB 2.0 (via Universal Media Bay)

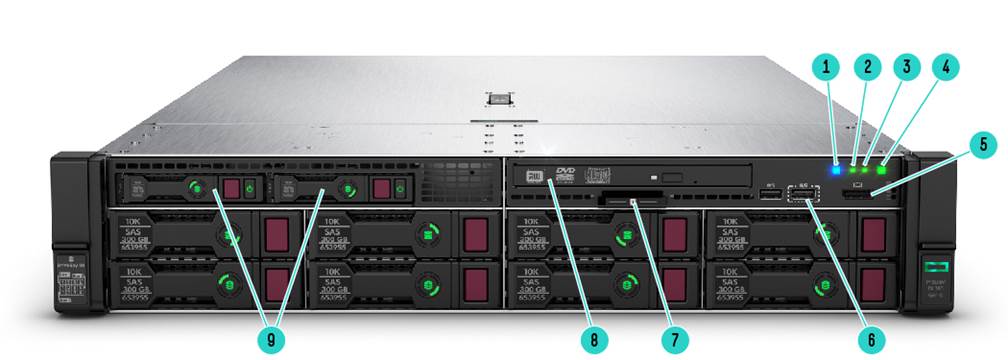

HPE ProLiant DL385 Gen10 Server - Front View

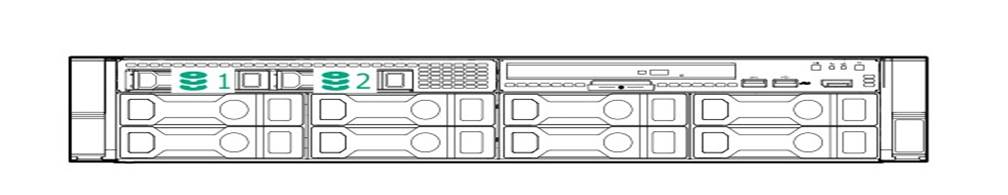

8LFF chassis with Universal media bay and optional 2SFF and optical drive shown

1

Unit ID button

6

iLO Front Service Port

2

Health LED

7

Serial label pull tag

3

NIC status

8

Optional optical drive shown (blank as standard)

4

Power On/Standby button and system power LED button

9

Optional 2 SFF Drive bay, 2 NVMe shown

5

Front display port

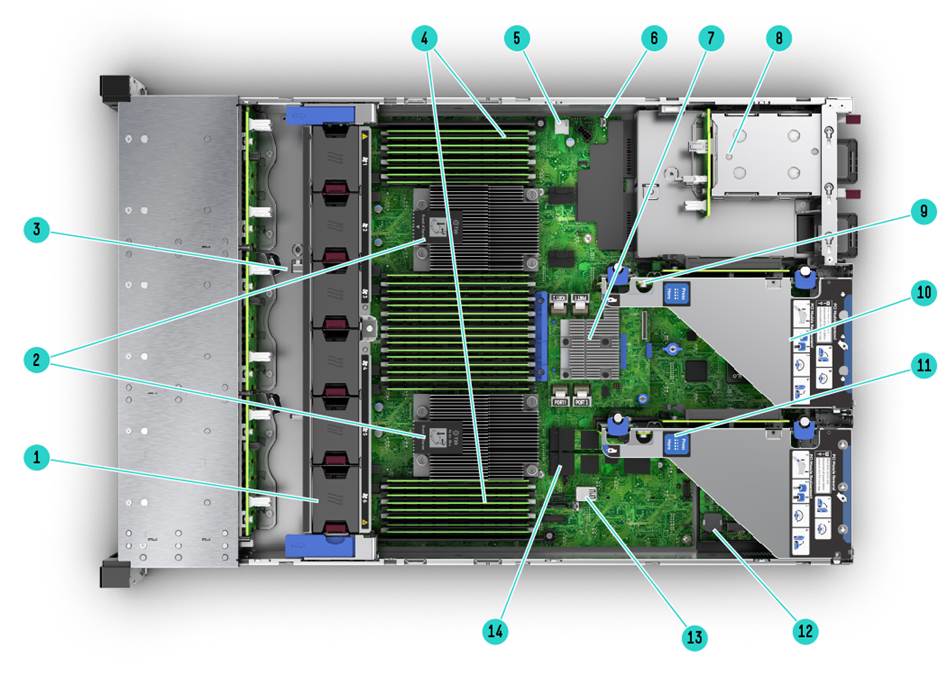

HPE ProLiant DL385 Gen10 Server - Internal View

8SFF chassis with optional 2^nd CPU, FlexLOM, Smart array shown

1.

Fan cage shown with 6 standard Hot-plug fans

(High Performance fans optional)

8

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

2.

2 Processors (heatsinks shown)

9

Connection for second (optional) riser (Requires second CPU)

3

Optional HPE Smart Storage Battery (not shown)

10

**Embedded 4x1Gbe NIC (if equipped)

4.

DDR4 DIMM slots. Shown fully populated in 32 slots

(16 per processor)

11

Primary PCIe riser, standard (Optional double wide GPU riser)

5

MicroSD card slot (Optional Dual Micro-SD option)

12

Optional Flexible LOM slot

6

Chassis intrusion detection connector

13

Internal USB 3.0 connector

7

Optional HPE Flexible Smart Array Controller

(P408i-a shown)

14.

Embedded M.2 connectors

Notes: **Embedded 4x 1GbE Adapter is not equipped on new boards for 7xx2 series processors

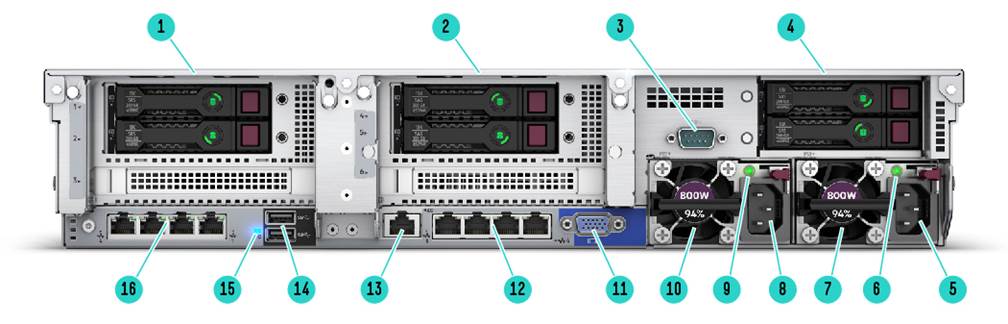

HPE ProLiant DL385 Gen10 Server - Rear View

With optional FlexLOM, Rear drives and Serial port shown

1

Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown) Optional 2SFF rear drives

9

Power supply Power LED Bay 2

2

Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Optional 2 SFF rear drives

10

HPE Flexible Slot Power Supply Bay 2

3

Optional serial port

11

VGA connector

4

Tertiary Riser (Slots 7-8 top to bottom, not shown). Optional rear 2 SFF HDD

12

**Embedded 4 x 1GbE Network Adapter( if equipped)

5

Power supply power connection.  Bay 1

13

Dedicated iLO management port

6

Power supply Power LED.  Bay1

14

USB connectors 3.0 (2)

7

HPE Flexible Slot Power Supply. Bay 1

15

Unit ID LED

8

Power supply Power connection Bay 2

16

Optional FlexibleLOM ports (Shown: 4 x 1GbE)

Notes: **Embedded 4x 1GbE Adapter is not equipped on new boards for 7xx2 series processors

What's New:

• New 2933 Memory DIMMs with capacity upto 128 GB
• New Disk Cartridge Options
• Supports the next generation AMD EPYC 7xx2 Series processor with double the core density compared to the previous  generation and memory speeds up to 2933 MT/s.
• Embedded 4x 1GbE LOM is not supported with 7xx2 series processors
• Two new SMB Base SKU ( BTO) offerings
• New SAS & SATA Solid State Drives
• New NVME Solid State Drives
• European Union (EU) Lot 9 regulation, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information

Platform Information

Form Factor

• 2U rack

Chassis Types

• 8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options

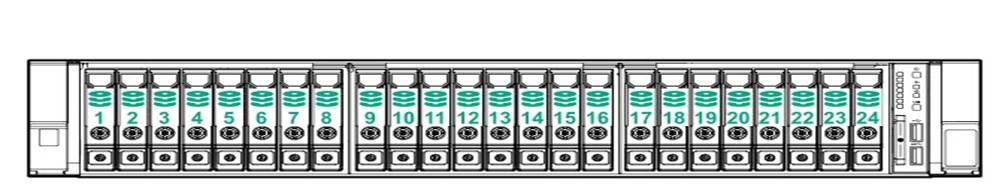

• 24 SFF bay with additional 6SFF rear drive bay option to total 30 SFF drives
• 8 LFF with Universal Media Bay

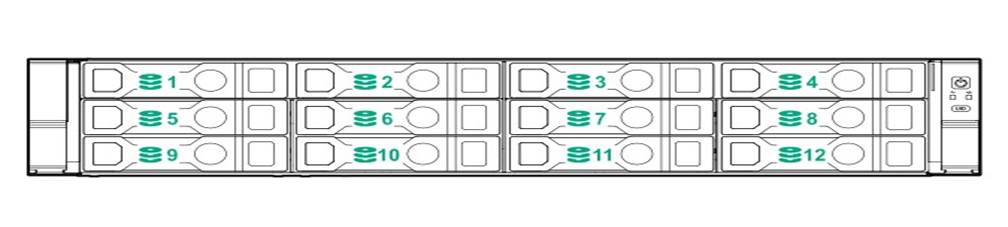

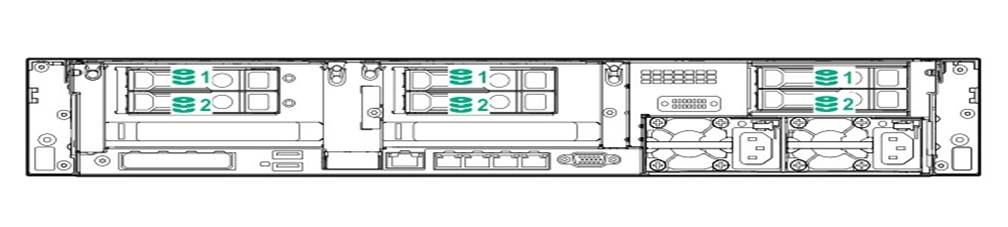

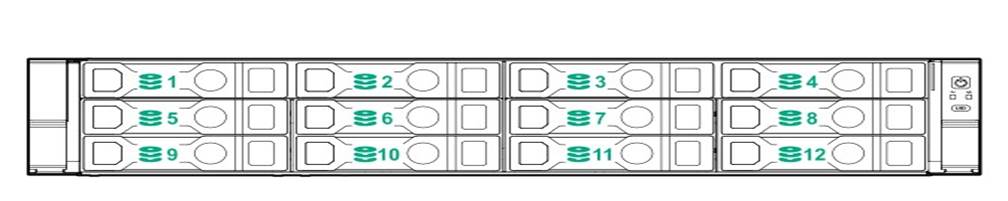

• 12 LFF with optional 4 LFF mid-plane and optional 3LFF + 2 SFF rear drive bay to total 19 LFF drives + 2 SFF drives

Notes:

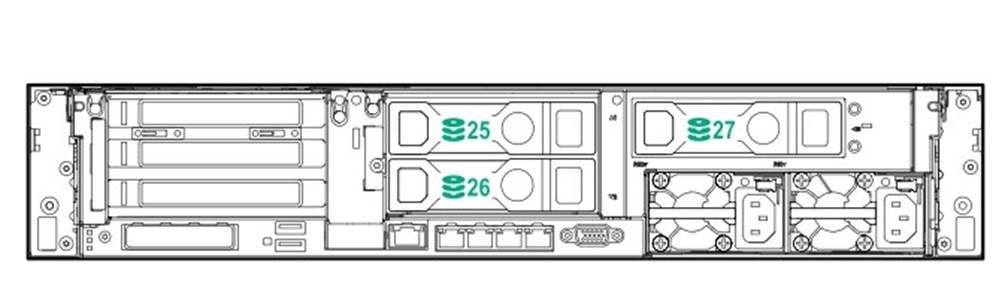

- The 3 LFF rear drive box will consume space for the secondary and tertiary riser.

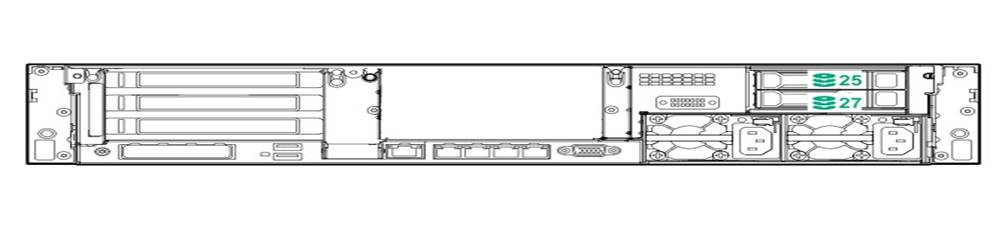

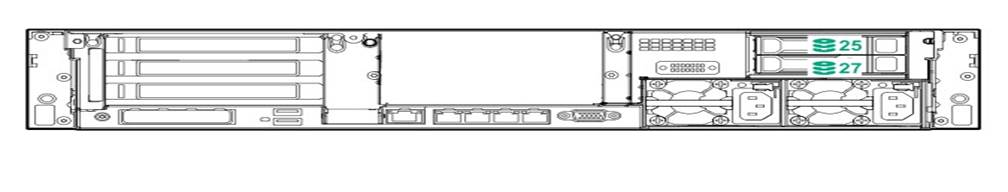

- The 8 and 12 LFF chassis also supports the 2 SFF rear drive box which allows for the user to attach a secondary or tertiary

- riser.

- The 8 NVMe drive option (826689-B21) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3.

- The Premium cage (826690-B21, 6 SAS/SATA+2 NVMe) can only be leveraged in the SFF chassis and replaces Box 1, 2

or 3.

- The Universal Media Bay (882097-B21) not available with the LFF chassis or the 24 SFF front end, and can only be populated in Box 1.

- The 8 SFF can be upgraded with additional 8SFF drive box to total 16 or 24 SFF drives. For optimal upgrade Box 2 should be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF. For CTO builds requiring 24 SFF please use the 24 SFF chassis (878613-B21). Note a field upgrade to 24 SFF will require a High Performance fan kit (867810-B21).

- The 8 LFF chassis cannot be upgraded to 12 LFF front in the field; however the 4-LFF Mid plane (882096-B21) is supported, but will also require a performance fan kit (867810-B21).

- CPU selection is limited 125W or lower with 4LFF midtray selected.

- The 8LFF chassis ships with 6-standard fans.

- All models come with the S100i Smart Array Controller with embedded software RAID support for the 2 embedded M.2 drive connectors on the system board.

System Fans

• Standard - fan types included

Notes:

- 1P models ship with 4 standard fans. The second processor option kit contains 2 additional fans.

- The 12 LFF and 24 SFF chassis ship with 6 High performance fans as standard.

- The 8LFF chassis ships with 6 standard fans as standard.

- High performance fan kit is available to meet ambient temperature environments.

- High performance fan kits are required for rear drives, Graphics (GPU) card, 180w Processors SKUs or NVMe configurations.

Processors

Up to 2 of the following depending on model.

Notes: For more information regarding AMD EPYC processors, please see the following: https://www.amd.com/en/products/epyc.

Notes: All AMD EPYC processors can support up to 2TB of memory each.

Chipset

No chipset - System on Chip (SoC) design.

On System Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

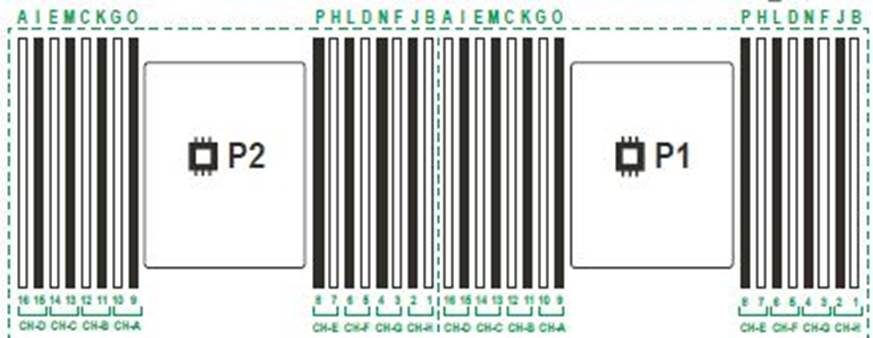

Memory

One of the following depending on model

Notes:

- The maximum memory speed is limited by the processor selection.

- Mixing of RDIMM and LRDIMM memory is not supported.

- When 2DIMMs are populated per channel, memory speed drops to 2666 MT/S

Notes: Bus Width Indicates the number of physical electrical lanes running to the connector.

Notes:

- Tertiary riser (other options available) can be leveraged without secondary riser.

- Bus width indicated the number of physical electrical lanes running to the connector.

Storage Controllers

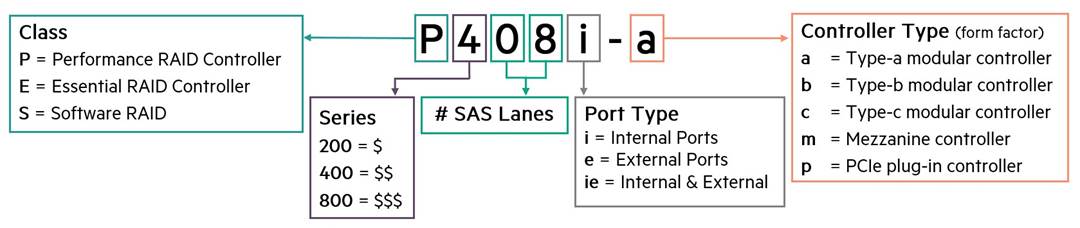

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.One of the following depending on model

Software RAID

• HPE Smart Array S100i SR Gen10 SW RAID

Notes:

- HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

- HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

- The S100i supports the 2 M.2 system board connectors. .

Notes:

- 2x m.2 drives are supported on the system board.

- UFF drives are also supported.

Graphics

Integrated Video Standard

• Video modes up to 1920 x 1200@60Hz (32 bpp)
• 16MB Video Memory

HPE iLO 5 on system management memory

• 32 MB Flash
• 4 Gbit DDR 3 with ECC protection

Power Supply

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% and 96% efficiency.

- Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% efficiency.

- 240v power input only.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Operating Systems and Virtualization Software Support for ProLiant Servers

AMD® EPYC® 7xx2 Series Processor Family

• Windows Server 2016 (Most Recent Version)
• Windows Server 2019 (Most Recent Version)
• VMware ESXi 6.5 U3
• VMware ESXi 6.7 U3
• Red Hat Enterprise Linux (RHEL) 7.6
• SUSE Linux Enterprise Server (SLES) 12 SP4
• SUSE Linux Enterprise Server (SLES) 15 SP1
• Citrix XenServer

Notes: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.

https://www.hpe.com/us/en/servers/server-operating-systems.html

Industry Standard Compliance

• ACPI 6.1 Compliant
• PCIe 3.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• PXE Support
• VGA/Display Port

Notes: This support is on the optional Universal Media Bay.

• USB 3.0 Compliant (internal)

• USB 2.0 Compliant (external ports via SUV)

Notes: This support is on the optional Universal Media Bay.

• Energy Star
• SMBIOS 3.1
• UEFI 2.6
• Redfish API
• IPMI 2.0
• Secure Digital 2.0
• Advanced Encryption Standard (AES)
• Triple Data Encrytion Standard (3DES)
• SNMP v3
• TLS 1.2
• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
• Active Directory v1.0
• European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

• ASHRAE A3/A4

Notes: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

• UEFI (Unified Extensible Firmware Interface Forum)

Notes: UEFI is the default for the DL385 Gen10. Legacy mode can be selected in the field or as a CTO option  (758959-B22).

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot and Secure Start enable for enhanced security
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack

HPE Server UEFI/Legacy ROM

• Embedded UEFI Shell
• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
• PXE boot support for IPv6 networks
• Workload Profiles for simple performance optimization

UEFI Boot Mode only:

• TPM 2.0 Support
• NVMe Boot Support
• iSCSI Software Initiator Support.
• HTTP/HTTPs Boot support as a PXE alternative.
• Boot support for option cards that only support a UEFI option ROM

Notes:

- For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

- UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers  simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).  Learn more at

https://buy.hpe.com/b2c/us/en/enterprise-software/infrastructure-management-software/system-server-management-software/hpe-system-server-software-management-software/smart-update-manager-%28sum%29/p/5182020.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.  Learn more at http://www.hpe.com/info/hpesim.

Security

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation (iLO 5 certification in progress)
• Common Criteria certification (iLO 5 certification in progress)
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
• Ability to rollback firmware
• Secure erase of NAND/User data
• TPM (Trusted Platform Module) 1.2 option
• TPM (Trusted Platform Module) 2.0 option
• Bezel Locking Kit option
• Chassis Intrusion detection option

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE iLO Advanced Premium Security Edition

HPE iLO Advanced Premium Security Edition for iLO 5 includes iLO Advanced License plus high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase. Learn more about HPE iLO Advanced Premium Security Edition at: http://www.hpe.com/servers/ilopremium.

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview.

HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

Learn more at https://www.hpe.com/servers/infosight

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

Accelerator and GPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we have created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you're critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get Faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Recommended Services

HPE Pointnext Tech Care

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00108652enw

HPE Datacenter Care

HPE Datacenter Care helps customers address the pressing needs of IT today and smoothly transform to a more agile cloud-like IT operations model. We help run and monitor your IT by offloading the day to day routine tasks, helping customers be more predictive and proactive, and saving time with one place to call with for all of their IT.

Partner with an assigned account team backed by local and global experts, access HPE enhanced call experience with priority access, use specialized support for complex, technologies, choose hardware and software support for your devices, implement proactive monitoring to stay ahead of issues , and access HPE IT best practices and IP. HPE Datacenter Care advantage options are available to add to your agreement to give you specialized expertise for performance, security, back up analysis, and much more. Datacenter Care is available as both tailored statement of work and as a packaged service for 3, 4, and 5 year terms.

https://www.hpe.com/us/en/services/datacenter-hybrid-services.html

Other related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).

DC for Hyperscale

Datacenter Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Service Credits

HPE Service Credits offers flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.

Learn more http://www.hpe.com/support/hpesc.

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

Notes: *HPE Support Center Mobile App is subject to local availability.

For more information: http://www.hpe.com/services.

Notes: HPE ProLiant DL385 Gen10 Plus Server is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA. See the specific high value options that require additional support here.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Packard Enterprise due to malfunction.

European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Country Code Key

xx1 = B21 Worldwide

Notes: The -B21 WW SKU is to be ordered in all countries other than Japan.

xx1 = 291 Japan

European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

• Factory Integrated Models must start with a CTO Server.
• FIO indicates that this option is only available as a factory installable option.
• All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
• Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

Notes:

- HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

- TAA chassis are only orderable in North America and Canada.

- The HPE ProLiant DL385 Gen10 12 LFF CTO Server ships with the cable required for the P816i-a installation.

- The cables that come standard with the 8SFF chassis for BOX3 work for the first 8 drives, and are connected to the E208 or the P408.  When the 8SFF drive cage for BOX2 or BOX1 is ordered, the cables come with the drive cage kits.

- All CTO servers are Energy Star 2.1 compliant.

- 4x 1 embedded LOM is not equipped on new boards for 7xx2 series processor

Notes:

- This aplies to CTO configurations, field upgrades may differ depending field configuration.

- 3x 8 NVMe option on SFF requires the second processor be installed and I/O cards are limited to ALOM options.

Step 2: Choose Required Options

Please select one -L21 processor required below.

For second processor, please select the same processor model with -B21 from Core Options - HPE Processors section.

For example: first processor, select 874752-L21 then for second processor, select 874752-B21.

Notes:

- 8SFF CTO 1P models ship with 4 standard fans. The second processor option kit contains 2 additional fans. 12 LFF and 24 SFF CTO Servers ship with 6 High performance fans included; 8LFF CTO Servers ship with 6 Standard fans included. High performance fan kit is available to meet ambient temperature environments are are required for rear drives or NVMe configurations. NVMe is limited to front install only.

- Mixing of 2 different processor models are NOT allowed.

- DDR4 memory speed will depend on the quantity and type of DIMMs installed.

- Processors with greater than 180W will ship with the High Performance heatsink.

- Processors with greater than 180W will require the High Performance fan kit.

Step 2a: Choose Processors (only one of the following unless otherwise noted)

Processor Option Kits

SKU

AMD® EPYC® 7xx2 Generation Processor Family

AMD EPYC 7702 (2.0GHz/64-core/200W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P16636-L21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7552 (2.2GHz/48-core/165-200W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P21862-L21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7502 (2.5GHz/32-core/180-200W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P16638-L21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7402 (2.8GHz/24-core/180-200W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P16640-L21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7352 (2.3GHz/24-core/155W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P21422-L21

Notes: Ships with Standard Heatsink

AMD EPYC 7452 (2.35GHz/32-core/155W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P16642-L21

Notes: Ships with Standard Heatsink.

AMD EPYC 7302 (3.0GHz/16-core/155W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P16643-L21

Notes: Ships with Standard Heatsink.

AMD EPYC 7262 (3.2GHz/8-core/155-180W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P16645-L21

Notes: Ships with Standard Heatsink.

AMD EPYC 7702 (2.0GHz/64-core/200W) Processor Kit for HPE ProLiant DL385 Gen10

P16636-B21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7552 (2.2GHz/48-core/165-200W) Processor Kit for HPE ProLiant DL385 Gen10

P21862-B21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7532 (2.4GHz/32-core/200W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P25769-L21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7502 (2.5GHz/32-core/180-200W) Processor Kit for HPE ProLiant DL385 Gen10

P16638-B21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7402 (2.8GHz/24-core/180-200W) Processor Kit for HPE ProLiant DL385 Gen10

P16640-B21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7352 (2.3GHz/24-core/155W) Processor Kit for HPE ProLiant DL385 Gen10

P21422-B21

Notes: Ships with Standard Heatsink

AMD EPYC 7452 (2.35GHz/32-core/155W) Processor Kit for HPE ProLiant DL385 Gen10

P16642-B21

Notes: Ships with Standard Heatsink.

AMD EPYC 7302 (3.0GHz/16-core/155W) Processor Kit for HPE ProLiant DL385 Gen10

P16643-B21

Notes: Ships with Standard Heatsink.

AMD EPYC 7282 (2.8GHz/16-core/120W) FIO Processor Kit for HPE ProLiant DL325 Gen10 Plus

P19631-L21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7272 (2.9GHz/12-core/120W) FIO Processor Kit for HPE ProLiant DL325 Gen10

P25852-L21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7252 (3.1GHz/8-core/120W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P25772-L21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7262 (3.2GHz/8-core/155-180W) Processor Kit for HPE ProLiant DL385 Gen10

P16645-B21

Notes: Ships with Standard Heatsink

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to: http://www.hpe.com/docs/amd-population-rules

For Gen10 memory speed table, please go to: http://www.hpe.com/docs/amd-speed-tables

Notes:

- Memory DIMM availability with a server platform is dependent upon completion of certification testing.

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

Registered DIMMs (RDIMMs)

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P19040-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P19042-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart

P19041-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart

P19043-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P19045-B21

Load Reduced DIMMs (LRDIMMs)

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit

P19044-B21

HPE 128GB (1x128GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit

P19047-B21

Notes:

- Mixing of x4 & x8 memory is not allowed

- 2933 MT/s DIMMs are only supported with AMD® EPYC® 7xx2 Series Processor Family

- 2933 MT/s memory SKUs offer a transfer rate of 2933 MT/s at 1 DIMM per channel and 2666 MT/s at 2 DIMMs per channel

Memory Blank Kit

HPE DDR4 DIMM Blank Kit

P07818-B21

Notes: This kit is required for processors above 126W and when 4LFF MID-Plane Carrier kit (882096-B21) is selected

Step 2c: Choose Power Supplies

Select one or two power supplies from below.

Notes: Mixing of 2 different power supplies is NOT allowed.

HPE Flex Slot Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

Notes:

- Select one or more power supplies.

- 1600W Power supplies only support high line voltage (200VAC to 240VAC).

- Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:

http://www.hpe.com/info/hppoweradvisor.

- All power supplies in a server should match. Mixing Power Supplies is not supported.

- HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE power cords for a full list of optional power cords.

Step 3: Choose Additional Factory Integratable Options

One of the following from each list may be selected if desired at time of factory integration

HPE Unique Options

Notes: DL385 has support for 4x NMVE drives when the second CPU is selected. NVME cable 871827-B21 is required and supports 2 drives each.

Description

SKU

HPE DL38X Gen10 Slot 1/2 x16/x16 FIO Riser Kit

871674-B21

Notes:

- Slot 1 or 2 in Primary location.

- Supports Full Height and Full length cards.

- Bus width x16, x16, Connector Width x16, x16.

HPE DL38X Gen10 x16/x16 GPU Slot2/3 FIO Riser Kit

871676-B21

Notes:

- Primary Riser, Connector in slot 2 & 3 for GPU support.

- Supports Full Height and Full length cards.

- Bus width x16, x16, Connector Width x16, x16.

HPE DL38X Gen10 4 NVMe Box 1 FIO Option

878186-B21

HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe Slim SAS FIO Riser Kit

871673-B21

Notes:

- Supports 3x 8 and 1-port for NVMe.

- Supports Full Height and half-length cards.

- Bus width x8, x8, x8 Connector Width x8, x8, x8.

HPE DL38X Gen10 2 NVMe FIO Option

878189-B21

Notes:

- This is a factory integrated only option.

- This will connect 2 SFF cage installed in the front of the chassis to NVMe.

- This supports NMVe only, if desired, to maintain SATA drive compatibility the 3 POS cable kit must also be selected (882100-B21).

HPE DL380X/Apollo 6500 Gen10 6+2 NVMe FIO Option

878192-B21

Notes:

- This is a factory integrated only option.

- Indicates the cage will also have an NVMe connection.

- When NVME is selected, the SAS/SATA will no longer function unless the controller selection supports it, or the 3POS cable is selected for S100i connection.

HPE DL38X Gen10 8 SFF Front Cage Removal FIO Option

873763-B21

Notes:

- This is a factory integrated only option.

- Will remove the Primary 8SFF cage in Box 3 of the 8SFF and replace with a Box blank.

HPE DL38X Gen10 Primary Riser Removal FIO Option

873766-B21

Notes:

- This is a factory integrated only option.

- Will remove the Primary shipping PCIe riser.

HPE Legacy FIO Mode Setting

758959-B22

Notes: UEFI is the default, this FIO part can be used for CTO to enable Legacy mode.

HPE Smart Memory Fast Fault Tolerance FIO Setting

875293-B21

Notes: Fast Fault Tolerance is a new feature in Gen10 server memory that enables the system to boot with full memory performance while monitoring for DRAM device failures.

HPE DL38X Gen10 x16/x16/x16 Secondary GPU FIO Riser Kit

P14373-B21

HPE DL38X Gen10 x16/x16/x16 Primary GPU FIO Riser Kit

P14374-B21

Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Unique Options

HPE DL38X NVMe 8 Solid State Drive Express Bay Enablement Kit

826689-B21

Notes:

- This option provides support for up to 8 NVMe drives, and can only be populated in Box 1, Box 2 and Box 3 of the SFF chassis.

- The HPE DL385 Gen10 High Performance fan kit is required for NVMe support (867810-B21).

- The HPE DL38X Gen10 4-port 8 NVMe SlimSAS Riser (867807-B21) is required to support this.

- If BOX 1, 2 and 3 are populated for full 24 drive NVMe support this requires 3 risers (1st 867807-B21, 2nd 873732-B21, & 3rd 867808-B21) and the on board NVMe connections with 2x NVMe cable (871827-B21).

- There are limitations on GPU support with the NVMe bay installed.

HPE DL385 Gen10 Universal Media Bay

882097-B21

Notes:

- The HPE DL385 Gen10 Universal Media bay provides front Display Port and 2xUSB 2.0; plus support for 2x SFF front drives or 2 NVMe front drives (826687-B21 and NVMe riser required see note below) and ODD support (Not included); and can only be located in Box1 in either an 8 SFF or 8+8 SFF model.

- This is a SFF model option only.

- For support of the 2 NVMe drives this will require the addition of the HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser (867806-B21) for 1P configurations.

- For 2P configurations the HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser (867808-B21) is needed or the NVMe cable (871827-B21) with the on board NVMe connections may be used.

HPE DL38X Gen10 Premium 6 SFF SAS/SATA + 2 NVMe or 8 SFF SAS/SATA Bay Kit

826690-B21

Notes:

- This kit can be supported in Box 1, 2 or 3 and provides support for up to 8 SFF SAS/SATA or 6 SAS/SATA + 2 NVMe drives per Box.

- With NVMe drives a specific riser is required for 1P. 2P enables the on board NVMe connection with the NVMe cable 871827-B21 or this can be enabled with NMVe risers.

- When adding to Box 1 the addition of the High Performance Fan kit (867810-B21) is required

.

HPE DL385 Gen10 High Performance Heatsink Kit

882098-B21

Notes:

- Required for GPU installations.

- Processor kits above 180W include a High Performance Heatsink.

HPE DL385 Gen10 1U High Performance Heat Sink Kit

P19368-B21

Notes: This kit is required for processors above 126W and when 4LFF mid-plane carrier kit (882096-B21) is selected

Notes: Both Heatsink kits - 882098-B21 & P19368-B21 cannot be selected together

HPE DL38X Gen10 High Performance Temperature Fan Kit

867810-B21

Notes:

- This kit is also required to support GPUs configurations.

- This is required for NVMe configurations.

- This kit provides maximum cooling for your Server.

- This kit is required when Box 1, 2 and 3 are populated.

HPE DL38X Gen10 2SFF HDD SAS/SATA Riser Kit

826688-B21

Notes:

- 2 SFF in the rear is only supported with a 24 SFF model or 12 LFF model.

- In the rear this leaves 1x16 slot accessible.

- Rear drives require the addition of the High Performance Fan kit (867810-B21) .

HPE DL38X Gen10 2SFF Premium HDD Front NVMe or Front/Rear SAS/SATA Kit

826687-B21

Notes:

- HPE DL38X Gen10 High Performance Temperature Fan Kit (867810-B21)

- NVMe drives require the addition of an NVMe capable riser or a 2P configuration and the NVMe cable 871827-B21 for the on board NVMe connections.

- To maintain SATA compatibility with NVMe connections, the 3 POS cable (882100-B21) must also be used.

- Drive cage can be used in the rear of the chassis, but will not support NVMe drives rear.

- Supports uFF drives.

HPE DL38X Gen10 8LFF Front 2NVMe HDD Bay Kit

873781-B21

Notes:

- Supports 2 NVMe in the Universal Media bay (included) on the 8 LFF model.

- For support of the 2 NVMe drives this will require the addition of the HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser (867806-B21) for 1P configurations.

- For 2P configurations the HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser (867808-B21) is needed or the NVME cable 871827-B21 with the on board NVMe connections may be used.

- NVMe drives require the addition of the High Performance Fan kit (867810-B21).

HPE DL38X Gen10 12Gb SAS Expander Card Kit with Cables

870549-B21

Notes:

- SAS expander to enable 24 SFF field upgrade.

- Primary population in slot 3 of the primary riser.

HPE DL3XX Gen10 Rear Serial Cable and Enablement Kit

873770-B21

HPE DL38X Gen10 8LFF Front 2SFF SAS/SATA HDD Kit

867805-B21

HPE DL385 Gen10 System Insight Display Kit

882099-B21

Notes: Systems Insight Display no longer ships as standard but is available as a Factory Integrated or field upgrade option.

HPE Processors

Processor Option Kits

SKU

AMD® EPYC® 7xx2 Generation Processor Family

AMD EPYC 7702 (2.0GHz/64-core/200W) Processor Kit for HPE ProLiant DL385 Gen10

P16636-B21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7552 (2.2GHz/48-core/165-200W) FIO Processor Kit for HPE ProLiant DL385 Gen10

P21862-L21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7502 (2.5GHz/32-core/180-200W) Processor Kit for HPE ProLiant DL385 Gen10

P16638-B21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7402 (2.8GHz/24-core/180-200W) Processor Kit for HPE ProLiant DL385 Gen10

P16640-B21

Notes: Ships with High Performance Heatsink.

AMD EPYC 7352 (2.3GHz/24-core/155W) Processor Kit for HPE ProLiant DL385 Gen10

P21422-B21

Notes: Ships with Standard Heatsink

AMD EPYC 7452 (2.35GHz/32-core/155W) Processor Kit for HPE ProLiant DL385 Gen10

P16642-B21

Notes: Ships with Standard Heatsink.

AMD EPYC 7302 (3.0GHz/16-core/155W) Processor Kit for HPE ProLiant DL385 Gen10

P16643-B21

Notes: Ships with Standard Heatsink.

AMD EPYC 7262 (3.2GHz/8-core/155-180W) Processor Kit for HPE ProLiant DL385 Gen10

P16645-B21

Notes: Ships with Standard Heatsink

Notes:

- Ships with Standard Heatsink.

- DDR4 memory speed will depend on the quantity and type of DIMMs installed.

- The xxxxxx-L21 is the first processor shipped, the xxxxxx-B21 is the 2nd processor and ships with 2 additional fans for factory or field installation.

- Processors above 180W use a High Performance Heatsink and the high performance fan kit (867810-B21).

- Processors with greater than 180W do not include the fans as the selection of processors above 180W requires the High Performance fan kit that comes with 6 fans.

Memory Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, Hewllet Packard Enterprise recommends memory from the list located here: http:hpe.com/products/recommend.

Best product availability is limited to US, Canada, and Latin America at this time.

HPE Optical Drives

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

Notes:

- HPE DL385 Gen10 Universal Media Bay Kit (882097-B21) is required for this option on a SFF model. No support in 12 LFF or 24 SFF models.

- Not supported anytime the 3 POS cable (882100-B21) is selected.

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

Notes:

- HPE DL385 Gen10 Universal Media Bay Kit (882097-B21) is required for this option on a SFF model. No support in 12 LFF or 24 SFF models.

- Not supported anytime the 3 POS cable (882100-B21) is selected.

HPE Mobile USB DVD-RW Optical Drive

701498-B21

Notes: This is only supported on USB 3.0 ports.

HPE Drives

Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872475-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870757-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872477-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870759-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872479-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

872481-B21

HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

881457-B21

Enterprise - 12G SAS - LFF Drives

HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware HDD

P04693-B21

HPE 600GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware HDD

P04695-B21

Midline - 12G SAS - SFF Drives

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

832514-B21

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

Midline - 12G SAS - LFF Drives

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872485-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872487-B21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861754-B21

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

819201-B21

HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

857644-B21

HPE 12TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

881779-B21

HPE 14TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

P09153-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF (3.5in) SC 1yr Wty 512e ISE HDD

P23863-B21

HPE 18TB SAS 12G Business Critical 7.2K LFF SC 1-year Warranty 512e ISE HDD

P37664-B21

Midline - 6G SATA - SFF Drives

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765455-B21

Midline - 6G SATA - LFF Drives

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

861691-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872489-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872491-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861750-B21

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

819203-B21

HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

857648-B21

HPE 12TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

881785-B21

HPE 14TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

P09163-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF (3.5in) SC 1yr Wty 512e ISE HDD

P23857-B21

HPE 18TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty 512e ISE HDD

P37673-B21

SSD Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, HPE recommends SSDs from the list located here: http://www.hpe.com/products/recommend.

Read Intensive - 12G SAS - SFF - Solid State Drives

HPE 960GB SAS 12G Read Intensive SFF SC PM5 SSD

P04517-B21

HPE 960GB SAS 24G Read Intensive SFF SC PM6 SSD

P26285-B21

HPE 960GB SAS 12G Read Intensive SFF SC PM1643a SSD

P19903-B21

HPE 1.92TB SAS 24G Read Intensive SFF SC PM6 SSD

P26302-B21

HPE 1.92TB SAS 12G Read Intensive SFF SC PM1643a SSD

P19905-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC PM1643a SSD

P19907-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC PM5 SSD

P04521-B21

HPE 3.84TB SAS 24G Read Intensive SFF SC PM6 SSD

P26306-B21

HPE 7.68TB SAS 12G Read Intensive SFF SC PM5 SSD

P04523-B21

HPE 7.68TB SAS 24G Read Intensive SFF SC PM6 SSD

P26310-B21

HPE 7.68TB SAS 12G Read Intensive SFF SC PM1643a SSD

P19909-B21

HPE 15.3TB SAS 24G Read Intensive SFF SC PM6 SSD

P26314-B21

HPE 15.36TB SAS 12G Read Intensive SFF SC PM1643a SSD

P19911-B21

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 800GB SAS 24G Mixed Use SFF SC PM6 SSD

P26290-B21

HPE 800GB SAS 12G Mixed Use SFF SC PM1645a SSD

P19913-B21

HPE 1.6TB SAS 24G Mixed Use SFF SC PM6 SSD

P26354-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P09092-B21

HPE 1.6TB SAS 12G Mixed Use SFF SC PM1645a SSD

P19915-B21

HPE 3.2TB SAS 24G Mixed Use SFF SC PM6 SSD

P26358-B21

HPE 3.2TB SAS 12G Mixed Use SFF SC PM1645a SSD

P19917-B21

HPE 6.4TB SAS 24G Mixed Use SFF SC PM6 SSD

P26362-B21

HPE 6.4TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P09096-B21

HPE 6.4TB SAS 12G Mixed Use SFF SC PM1645a SSD

P19919-B21

Write Intensive - 12G SAS - SFF - Solid State Drives

HPE 400GB SAS 12G Write Intensive SFF SC PM5 SSD

P04541-B21

HPE 400GB SAS 24G Write Intensive SFF SC PM6 SSD

P26295-B21

HPE 400GB SAS 12G Write Intensive SFF SC SS540 SSD

P21125-B21

HPE 800GB SAS 12G Write Intensive SFF SC PM5 SSD

P04543-B21

HPE 800GB SAS 24G Write Intensive SFF SC PM6 SSD

P26372-B21

HPE 800GB SAS 12G Write Intensive SFF SC SS540 SSD

P21127-B21

HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P09102-B21

HPE 1.6TB SAS 12G Write Intensive SFF SC PM5 SSD

P04545-B21

HPE 1.6TB SAS 24G Write Intensive SFF SC PM6 SSD

P26376-B21

HPE 1.6TB SAS 12G Write Intensive SFF SC SS540 SSD

P21129-B21

Mixed Use - 12G Value SAS - SFF - Solid State Drives

HPE 800GB SAS 12G Mixed Use SFF SC SS540 SSD

P21131-B21

HPE 1.6TB SAS 12G Mixed Use SFF SC SS540 SSD

P21133-B21

HPE 3.2TB SAS 12G Mixed Use SFF SC SS540 SSD

P21135-B21

HPE 6.4TB SAS 12G Mixed Use SFF SC SS540 SSD

P21137-B21

Read Intensive - 12G Value SAS - SFF - Solid State Drives

HPE 960GB SAS 12G Read Intensive SFF SC SS540 SSD

P21139-B21

HPE 1.92TB SAS 12G Read Intensive SFF SC SS540 SSD

P21141-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC SS540 SSD

P21143-B21

HPE 7.68TB SAS 12G Read Intensive SFF SC SS540 SSD

P21145-B21

HPE 15.3TB SAS 12G Read Intensive SFF SC SS540 SSD

P21147-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 480GB SATA 6G Mixed Use SFF SC S4610 SSD

P05976-B21

HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18432-B21

HPE 960GB SATA 6G Mixed Use SFF SC S4610 SSD

P05980-B21

HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18434-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 1.92TB SATA 6G Mixed Use SFF SC S4610 SSD

P05986-B21

HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18436-B21

HPE 3.84TB SATA 6G Mixed Use SFF SC S4610 SSD

P05994-B21

HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18438-B21

HPE 3.84TB SATA 6G Mixed Use SFF SC SM883 SSD

P21517-B21

HPE 480GB SATA 6G Mixed Use SFF SC 5300M SSD

P19947-B21

HPE 960GB SATA 6G Mixed Use SFF SC 5300M SSD

P19949-B21

HPE 1.92TB SATA 6G Mixed Use SFF SC 5300M SSD

P19951-B21

HPE 3.84TB SATA 6G Mixed Use SFF SC 5300M SSD

P19953-B21

Mixed Use - 6G SATA - LFF - Solid State Drives

HPE 480GB SATA 6G Mixed Use LFF SCC 5300M SSD

P19978-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE 240GB SATA 6G Read Intensive SFF SC PM883 SSD

P04556-B21

HPE 240GB SATA 6G Read Intensive SFF SC S4510 SSD

P05924-B21

HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18420-B21

HPE 480GB SATA 6G Read Intensive SFF SC SE4011 SSD

P06194-B21

HPE 480GB SATA 6G Read Intensive SFF SC S4510 SSD

P05928-B21

HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18422-B21

HPE 480GB SATA 6G Read Intensive SFF SC PM883 SSD

P04560-B21

HPE 960GB SATA 6G Read Intensive SFF SC PM883 SSD

P04564-B21

HPE 960GB SATA 6G Read Intensive SFF SC SE4011 SSD

P06196-B21

HPE 240GB SATA 6G Read Intensive SFF SC 5300P SSD

P19935-B21

HPE 480GB SATA 6G Read Intensive SFF SC 5300P SSD

P19937-B21

HPE 960GB SATA 6G Read Intensive SFF SC 5300P SSD

P19939-B21

HPE 1.92TB SATA 6G Read Intensive SFF SC 5300P SSD

P19941-B21

HPE 3.84TB SATA 6G Read Intensive SFF SC 5300P SSD

P19943-B21

HPE 7.68TB SATA 6G Read Intensive SFF SC 5300P SSD

P19945-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE 960GB SATA 6G Read Intensive SFF SC S4510 SSD

P05932-B21

HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18424-B21

HPE 1.92TB SATA 6G Read Intensive SFF SC PM883 SSD

P04566-B21

HPE 1.92TB SATA 6G Read Intensive SFF SC SE4011 SSD

P06198-B21

HPE 1.92TB SATA 6G Read Intensive SFF SC S4510 SSD

P05938-B21

HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18426-B21

HPE 3.84TB SATA 6G Read Intensive SFF SC PM883 SSD

P04570-B21

HPE 3.84TB SATA 6G Read Intensive SFF SC SE4011 SSD

P06200-B21

HPE 3.84TB SATA 6G Read Intensive SFF SC S4510 SSD

P05946-B21

HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18428-B21

HPE 7.68TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18430-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE 480GB SATA 6G Read Intensive LFF SCC PM883 SSD

P09687-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 480GB SATA 6G Mixed Use SFF SC SM883 SSD

P09712-B21

HPE 480GB SATA 6G Mixed Use SFF SC SE5031 SSD

P13658-B21

HPE 960GB SATA 6G Mixed Use SFF SC SM883 SSD

P09716-B21

HPE 960GB SATA 6G Mixed Use SFF SC SE5031 SSD

P13660-B21

HPE 1.92TB SATA 6G Mixed Use SFF SC SM883 SSD

P09722-B21

HPE 1.92TB SATA 6G Mixed Use SFF SC SE5031 SSD

P13662-B21

HPE 3.84TB SATA 6G Mixed Use SFF RW SE5031 SSD

P13664-B21

Mixed Use - 6G SATA - LFF - Solid State Drives

HPE 960GB SATA 6G Mixed Use LFF SCC SM883 SSD

P09718-B21

HPE 1.92TB SATA 6G Mixed Use LFF SCC SM883 SSD

P09724-B21

VRO - 6G SATA - SFF - Solid State Drives

HPE 1.92TB SATA 6G Very Read Optimized SFF SC 5210 SSD

P23487-B21

HPE 3.84TB SATA 6G Very Read Optimized SFF SC 5210 SSD

P23489-B21

HPE 7.68TB SATA 6G Very Read Optimized SFF SC 5210 SSD

P23493-B21

Read Intensive - NVMe - SFF - Solid State Drives

HPE 960GB NVMe Gen3 Mainstream Performance Read Intensive SFF SCN U.2 PE6011 SSD

P13676-B21

HPE 960GB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 CM6 SSD

P20015-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.3 CD6 SSD

P25944-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF SC U.3 PE8010 SSD

P19807-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.3 PE8010 SSD

P19809-B21

HPE 1.92TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

P10214-B21

HPE 1.92TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

P10210-B21

HPE 1.92TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

P07192-B21

HPE 1.92TB NVMe Gen3 Mainstream Performance Read Intensive SFF SCN U.2 PE6011 SSD

P13678-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 CM6 SSD

P20017-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.3 CD6 SSD

P20139-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF SC U.3 PE8010 SSD

P19811-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.3 PE8010 SSD

P19813-B21

HPE 2TB NVMe Gen3 High Performance Read Intensive SFF SCN U.2 P4510 SSD

P13695-B21

HPE 3.84TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

P10212-B21

HPE 3.84TB NVMe Gen3 Mainstream Performance Read Intensive SFF SCN U.2 PE6011 SSD

P13680-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 CM6 SSD

P20019-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.3 CD6 SSD

P20141-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF SC U.3 PE8010 SSD

P19815-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.3 PE8010 SSD

P19817-B21

HPE 4TB NVMe Gen3 High Performance Read Intensive SFF SCN U.2 P4510 SSD

P13697-B21

HPE 7.68TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

P07196-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.3 CD6 SSD

P20143-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF SC U.3 PE8010 SSD

P19819-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.3 PE8010 SSD

P19821-B21

Mixed Use - NVMe - SFF - Solid State Drives

HPE 800GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

P07179-B21

HPE 800GB NVMe Gen3 Mainstream Performance Mixed Use SFF SCN U.2 PE6031 SSD

P13668-B21

HPE 800GB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 CM6 SSD

P20094-B21

HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.3 CD6 SSD

P25953-B21

HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF SC U.3 PE8030 SSD

P19823-B21

HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.3 PE8030 SSD

P19825-B21

HPE 1.6TB NVMe Gen3 High Performance Mixed Use SFF SCN U.2 P4610 SSD

P13699-B21

HPE 1.6TB NVMe Gen3 Mainstream Performance Mixed Use SFF SCN U.2 PE6031 SSD

P13670-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 CM6 SSD

P20096-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.3 CD6 SSD

P20203-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF SC U.3 PE8030 SSD

P19827-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.3 PE8030 SSD

P19829-B21

HPE 3.2TB NVMe Gen3 Mainstream Performance Mixed Use SFF SCN U.2 PE6031 SSD

P13672-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 CM6 SSD

P20098-B21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.3 CD6 SSD

P20205-B21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.3 PE8030 SSD

P19831-B21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF SC U.3 PE8030 SSD

P19833-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 CM6 SSD

P20100-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.3 CD6 SSD

P20207-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF SC U.3 PE8030 SSD

P19835-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.3 PE8030 SSD

P19837-B21

HPE 3.2TB NVMe Gen3 High Performance Mixed Use SFF SCN U.2 P4610 SSD

P13701-B21

HPE 6.4TB NVMe Gen3 High Performance Mixed Use SFF SCN U.2 P4610 SSD

P13703-B21

HPE 6.4TB NVMe Gen3 Mainstream Performance Mixed Use SFF SCN U.2 PE6031 SSD

P13674-B21

Write Intensive - NVMe - SFF - Solid State Drives

HPE 375GB NVMe Gen3 High Performance Low Latency Write Intensive SFF SCN U.2 P4800X SSD

878014-B21

HPE 750GB NVMe Gen3 High Performance Low Latency Write Intensive SFF SCN U.2 P4800X SSD

P06952-B21

Read Intensive - M.2 - Solid State Drives

HPE 240GB SATA 6G Read Intensive M.2 2280 5300B SSD

P19888-B21

HPE 480GB SATA 6G Read Intensive M.2 2280 5300P SSD

P19890-B21

HPE 960GB SATA 6G Read Intensive M.2 2280 5300P SSD

P19892-B21

HPE Dual 240GB SATA 6G Read Intensive M.2 to SFF SCM 5300B SSD Kit

P19894-B21

HPE Dual 480GB SATA 6G Read Intensive M.2 to SFF SCM 5300P SSD Kit

P19896-B21

Hard Drive Blank Kits

HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit

878783-B21

Notes: This is a M.2 enablement standup card.

HPE Large Form Factor Hard Drive Blank Kit

666986-B21

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

Hard Drive Kits

HPE DL38X Gen10 3LFF Rear SAS/SATA Drive Kit

826685-B21

Notes:

- This is supported in the LFF model only.

- 3 LFF rear drives will consume the 2nd riser expansion slot.

HPE DL385 Gen10 4 Large Form Factor Mid-Plane Hard Drive Carrier

882096-B21

Notes:

- Supported with both the 8 and 12 LFF model.

- With this mid-tray only single-wide (8.5-inch cards with connections or less) cards are supported.

- This drive does support hot-swap drives.

- This requires High Performance Fans (867810-B21).

HPE DL38X Gen10 2SFF Premium HDD Front NVMe or Front/Rear SAS/SATA Kit

826687-B21

Notes:

- HPE DL38X Gen10 High Performance Temperature Fan Kit (867810-B21).

- NVMe drives require the addition of an NVMe capable riser, or a 2P configuration and the NVMe cable 871827-B21 for the on boards NVMe connection.

- To maintain SATA compatibility with NVMe connections, the 3 POS cable (882100-B21) must be used as well.

HPE DL38X Gen10 2SFF HDD SAS/SATA Riser Kit

826688-B21

Notes:

- Supports 2 SFF rear in Riser1 or 2 location - max 2 supported SFF model.

- Supports 2 SFF rear in Riser1 or 2 location in LFF model. Note is 3 LFF rear option is selected maximum of one in riser 1 location.

- Supports uFF drives.

HPE DL38X NVMe 8 Solid State Drive Express Bay Enablement Kit

826689-B21

Notes:

- This option provides support for up to 8NVMe drives, and can be populated in all Boxes in the 8 SFF model.

- A maximum of 24 NVMe drives only are supported.

- This will require the HPE DL38X Gen10 4-port 8 NVMe SlimSAS Riser (867807-B21).

- For full 24 drive NVMe support this requires 3 risers; 1st (867807-B21), 2nd (873732-B21) & 3rd (867808-B21) and the on board NVMe conntections with 2x NVMe cable (871827-B21).

- Supporting 24 NMVe limits I/O support to the ALOM slot.

HPE DL38X Gen10 Premium 6 SFF SAS/SATA + 2 NVMe or 8 SFF SAS/SATA Bay Kit

826690-B21

Notes:

- This option provides supports for up to 8 SAS/SATA SFF drives or a combination of 6 SATA/SATA and 2 NVMe drives in the same cage, and can be populated in all Boxes in the SFF model.

- For support of the 2 NVMe drives this will require the addition of the HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser (867806-B21) for 1P configurations. Notes: For 2P configurations the HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser (867808-B21) or the NVME cable (871827-B21) with the on board NVMe connections me be used.

- NVMe drives require the addition of the High Performance Fan kit (867810-B21).

HPE DL38X Gen10 SFF Box1/2 Cage/Backplane Kit

826691-B21

Notes: Supports 8 SAS/SAFA SFF drives in Box 1 or 2 to a max of 24 SFF SAS/SATA front.

HPE DL38X Gen10 8LFF Front 2NVMe HDD Bay Kit

873781-B21

Notes:

- Supports 2 NVMe in the Universal Media bay (included) on the 8 LFF model.

- For support of the 2 NVMe drives this will require the addition of the HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser (867806-B21) for 1P configurations.

- For 2P configurations the HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser (867808-B21) is needed or the NVMe cable (871827-B21) with the on board NVMe connections may be used.

- NVMe drives require the addition of the High Performance Fan kit (867810-B21).

Hard Drive Kits

HPE DL38X Gen10 8LFF Front 2SFF SAS/SATA HDD Kit

867805-B21

Notes: For 2 SFF SAS/SATA in UMB on 8 LFF model only.

Media Bay Kits

HPE DL385 Gen10 Universal Media Bay

882097-B21

Notes:

- The HPE DL385 Gen10 Universal Media bay provides front Display Port and 2xUSB 2.0; plus support for 2x SFF front drives or 2 NVME front drives (826687-B21 and NVMe riser required see notes below)and ODD support (Not included); and can only be located in Box1 in either an 8 SFF or 8+8 SFF model.

- This is a SFF model option only.

- For support of the 2 NVMe drives this will require the addition of the HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser (867806-B21) for 1P configurations.

- For 2P configurations the HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser (867808-B21) is needed or the NVMe cable (871827-B21) with the on board NVMe connections may be used.
