HPE ProLiant DL380 Gen10 Server

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty makes it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.

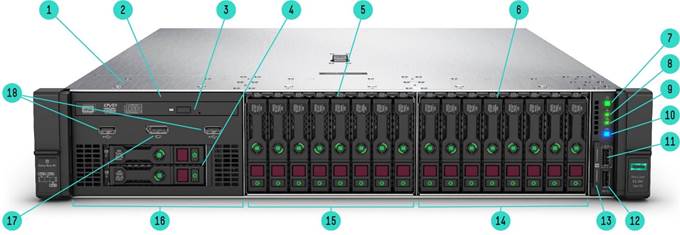

Front View - SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown

1.

Quick removal access panel

10.

UID button

2.

Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional)

11.

iLO Front Service Port

3.

Optional Optical drive. Requires Universal Media bay

12.

USB 3.0

4.

Optional 2 SFF HDD, requires optional Universal Media bay

13.

Serial label pull tag

5.

Drive Bay 2. NVMe shown

(8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)

14.

Box 3

6.

8 SFF Drive Cage Bay

15.

Box 2

7.

Power On/Standby button and system power LED button

16.

Box 1

8.

Health LED

17.

Optional front display port (Via Universal Media Bay)

9.

NIC status¹

18.

Optional USB 2.0 (via Universal Media Bay)

Notes: ¹ Front NIC LED display doesn't support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

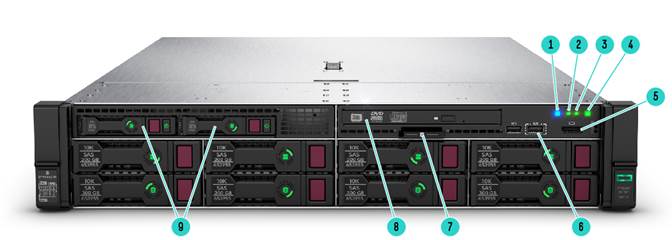

Front View - 8LFF chassis with Universal media bay and optional 2SFF and optical drive shown

1.

UID button

6.

iLO Front Service Port

2.

Health LED

7.

Serial label pull tag

3.

NIC status

8.

Optional optical drive shown (blank as standard)

4.

Power On/Standby button and system power LED button

9.

Optional 2 SFF Drive bay, 2 NVMe shown

5.

Front display port

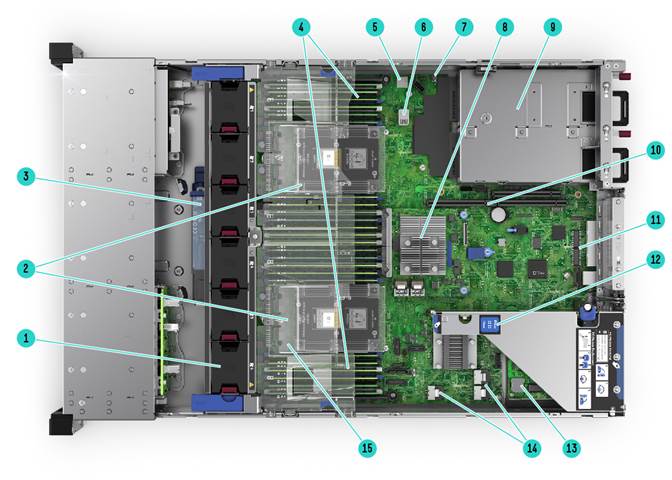

Internal View 8SFF chassis - with optional 2^nd CPU, FlexLOM, Smart array shown

1.

Fan cage shown with 6 standard Hot-plug fans (High Performance temperature fans optional)

9..

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

2.

2 Processors, heatsink showing

10.

Connection for second (optional) riser (Requires second CPU)

3.

Optional HPE Smart Hybrid Capacitor or HPE Smart Storage Battery

11.

Embedded 4x1Gbe NIC (if equipped)¹

4.

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

12.

Primary PCIe riser, standard (Optional double wide GPU riser)

5.

MicroSD card slot (Optional Dual Micro-SD option)

13.

FlexibleLOM slot (Optional, depending on model selected)

6.

Internal USB 3.0 connector

14.

X4 SATA ports (1, 2 and 3)

7.

Chassis intrusion detection connector

15.

Clear air baffle

8.

Optional HPE Smart Array (P408i-a shown) Clear air baffle

Notes: ¹ Networking Choice (NC) models do not include an embedded NIC and have a FlexibleLOM pre-selected for Build-to-Order (BTO) models; Configure-to-Order (CTO) models require a primary networking choice of FlexibleLOM or select networking adapters NIC adapters. See "FlexibleLOM Adapters" and/or "HPE Networking" sections for available options.

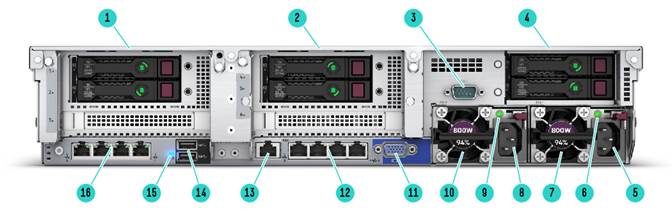

Rear View - With optional FlexLOM, Rear drives and Serial port shown.

1.

Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives

9.

Power supply Power LED

2.

Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear

10.

HPE Flexible Slot Power Supply bay 2 (800W shown)

3.

Optional serial port

11.

VGA connector

4.

Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)

12.

Embedded 4 x 1GbE Network Adapter (if equipped) ¹

5.

Power supply Power connection

13.

Dedicated iLO management port

6.

Power supply Power LED

14.

USB connectors 3.0 (2)

7.

HPE Flexible Slot Power Supply bay 1 (800W shown)

15.

Unit ID LED

8.

Power supply Power connection

16.

FlexibleLOM ports (4 x 1GbE shown); optional, depending on model

Notes: ¹ Networking Choice (NC) models do not include an embedded NIC and have a FlexibleLOM pre-selected for Build-to-Order (BTO) models; Configure-to-Order (CTO) models require a primary networking choice of FlexibleLOM or select networking adapters NIC adapters. See "FlexibleLOM Adapters" and/or "HPE Networking" sections for available options.

What's New

• North America BTO SKU - HPE ProLiant DL380 Gen10 5218 2.3GHz 16-core 1P 192GB-R P408i-a 8SFF 800W PS Server (P63680-B21)

Platform Information

Form Factor

• 2U rack

Chassis Types

• 8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options

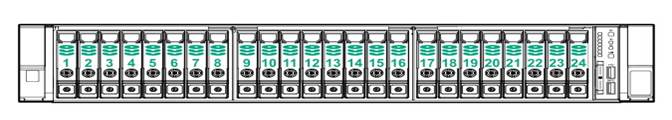

• 24 SFF bay with additional 6SFF rear drive bay option to total 30 SFF drives
• 8 LFF with Universal Media Bay
• 12 LFF with optional 4 LFF mid-plane and optional 3LFF + 2 SFF rear drive bay to total 19 LFF drives + 2 SFF drives

Notes:

­  The 3 LFF rear drive box will consume space for the secondary and tertiary riser.

­  The 8 and 12 LFF chassis also supports the 2 SFF rear drive box which allows for the user to attach a secondary or tertiary riser.

­  The 8 NVMe drive option (826689-B21) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3, however there is a maximum of 20 NVMe drives supported with Partial population of Box 1.

­  The Premium cage (826690-B21, 6 SAS/SATA+2 NVMe) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3.

­  The Universal Media Bay (826708-B21) not available with the LFF chassis or the 24 SFF front end, and can only be populated in Box 1.

­  The 8 SFF can be upgraded with additional 8SFF drive box to total 16 or 24 SFF drives. For optimal upgrade Box 2 should be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF. For CTO builds requiring 24 SFF please use the 24 SFF chassis (868704-B21) or (P19719-B21). Note a field upgrade to 24 SFF will require a High Performance fan kit (867810-B21).

­  The 8 LFF chassis cannot be upgraded to 12 LFF front in the field; however, the 4-LFF Mid plane (826686-B21) is supported, but will also require a performance fan kit (867810-B21).

­  The 8LFF chassis ships with 6-standard fans.

­  All models come with the S100i Smart Array Controller with embedded software RAID support for 12 drives. The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser.

 System Fans

• Standard - fan types included

Notes:

­  1P models typically ship with 4 standard fans. The second processor option kit contains 2 additional fans. 1P Models have (4) (N+1 redundancy standard).

­  2P models typically ship with 6 standard fans. 2P Models have (6) (N+1 redundancy standard).

­  The 12 LFF and 24 SFF chassis ship with 6 High performance fans as standard.

­  The 8LFF chassis ships with 6 standard fans as standard.

­  High performance fan kit is available to meet ambient temperature environments.

­  High performance fan kits are required for rear drives, Graphics (GPU) card or NVMe configurations.

Processors - Up to 2 of the following depending on model.

The 2nd digit of the processor model number "x1xx" and "x2xx" is used to denote the processor generation (i.e. 1=1st generation and 2=2nd generation)

Notes: Field upgrades from 1^st generation processors (x1xx) to 2^nd generation processors (x2xx) not supported.

"U" processors (i.e. 6212U) only supported in single socket configurations

For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

This table covers the public Intel offering only.

Notes: More than 1.5 TB memory per socket requires memory higher than 128 GB capacity

Notes:

­ Platinum - 8200 Series - Supports 6-Channel DDR4 @ 2933 MT/s providing up to 1TB memory capacity per socket (up to 2TB/socket on M series and up to 4.5TB/socket on L series); Intel Optane Persistent Memory for HPE (select SKUs), Vector Neural Network Instructions (VNNI) for inference acceleration, Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA). 48 lanes PCIe 3.0, advanced RAS

­ Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other processors will ship with the Standard heatsink.

Notes:

­  Platinum - 8100 Series -2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2666 MT/s providing up to 768GB memory capacity (1.5 TB on select processor SKUs). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

­  Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other processors will ship with the Standard heatsink.

Notes:

­  ¹ Gold Processor 5222 supports 2933 DDR4 and 2 512-bit FMA units

­  ² Gold Processor 5218B has consistent features with the 5218 processor but is from a different die. Mixing both 5218B & 5218 in a system is not supported

­  ³ Gold Processor 5218N processor available April 2019, Intel® Speed Select Technology-Base Frequency enablement via System ROM upgrade targeting June 2019

­  Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other processors will ship with the Standard heatsink.

­  ⁴ Configuration support and facilities-requirements matrix for Gold Processor 6256 and Gold Processor 6250 listed below:

Notes: ¹Must install DDR4 DIMM blanks (P07818-B21) on all empty DIMM slots

Notes:

­ Gold - 6200 & 5200 Series - 6-Channel DDR4 @ 2933 MT/s (6200 & 5222 SKUs only)  or 2666 MT/s (all Gold 5200 SKUs except 5222 @ 2933 MT/s); providing up to 1TB memory capacity per socket (up to 2TB/socket on M series and up to 4.5TB/socket on L series); Support for Intel Optane Persistent Memory for HPE (select SKUs), Vector Neural Network Instructions (VNNI) for inference acceleration.

­  Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA for 6200 series and 5222; 1 x 512-bit FMA for 5200 series, except for 5222) 48 lanes PCIe 3.0, advanced RAS

­  Gold - 5100, 6100 Series - 2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666) providing up to 768GB memory capacity (1.5 TB on select SKUs).  Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA) (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.

­  Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other processors will ship with the Standard heatsink.

Notes: ⁴  Silver Processors 4215R and 4215 support Intel Optane Persistent Memory for HPE

Notes:

­  Silver - 4200 Series - 6-Channel DDR4 @ 2400 MT/s, providing up to 1TB memory capacity per socket; Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration; Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (1x 512-bit FMA).48 lanes PCIe 3.0, standard RAS

­  Silver - 4100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz providing up to 768 GB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Notes: Bronze - 3200 Series - 6-Channel DDR4 @ 2133 MT/s, providing up to 1TB memory capacity per socket; Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration; Intel AVX-512 (1x 512-bit FMA); 48 lanes PCIe 3.0, standard RAS

Notes: Bronze - 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MHz providing up to 768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Chipset

Intel C621 Chipset

For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

HPE iLO 5 ASIC

Read and learn more in the iLO QuickSpecs.

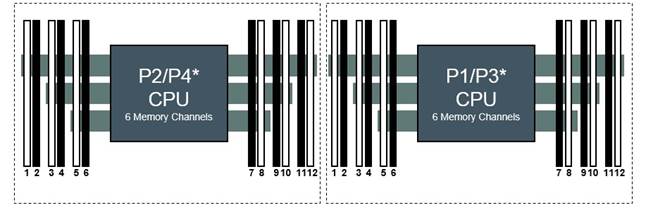

Memory

One of the following depending on model.

Notes:

­  Intel Optane Persistent Memory for HPE only supported with select 2nd generation Intel Xeon Scalable Series Processors ONLY (82xx/62xx/52xx/4215R/4215) and can only be mixed with either RDIMMs or LRDIMMs.

­  HPE NVDIMMs are only supported on 1st generation Intel Xeon Scalable Series Processors and can only be mixed with RDIMMs.

­  Maximum memory per socket is dependent on processor selection. 2^nd generation processors supporting 2 TB or 4.5 TB per CPU are indicated by the "M" and "L" in the processor model names (i.e. 8276M and 8276L). 1^st generation processors supporting 1.5 TB per CPU are indicated by the "M" in the processor model names (i.e. 8160M)

­  Maximum memory per socket is dependent on processor selection. Processors supporting 1.5 TB per CPU is indicated by the "M" in the processor model names (i.e. 8160M).

­  Mixing of RDIMM and LRDIMM memory is not supported.

­  For General Server Memory and HPE NVDIMM Population Rules and Guidelines for Gen10 see details here:

http://www.hpe.com/docs/memory-population-rules

­  For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

­  To realize the performance memory capabilities listed in this document, HPE DDR4 Smart Memory is required.

­  For additional information, please see the HPE DDR4 Smart Memory QuickSpecs.

Memory Protection

Expansion Slots

Notes:

­  Bus Width Indicates the number of physical electrical lanes running to the connector.

­  The specifications above correspond with the default primary riser which also supports dual m.2 cards. Additional Primary Riser options and specifications noted in the "Riser Information" table within this document.

Notes:

­  Bus Width Indicates the number of physical electrical lanes running to the connector.

­  The Secondary Riser requires Processor 2 to be populated 870548-B21

­  The specifications above correspond with the x8/x16/x8 Secondary Riser Kit (870548-B21). Additional Secondary Riser options and specifications noted in the "Riser Information" table within this document.

Notes:

­  Bus Width Indicates the number of physical electrical lanes running to the connector.

­  The Tertiary Riser requires Processor 2 to be populated

­  The specifications above correspond with the 2x8 Tertiary Riser Kit (875780-B21). Additional Tertiary Riser options and specifications noted in the "Riser Information" table within this document

Graphics

Integrated Video Standard

• Video modes up to 1920 x 1200@60Hz (32 bpp)
• 16MB Video Memory

HPE iLO 5 on system management memory

• 32 MB Flash
• 4 Gbit DDR 3 with ECC protection

Maximum Internal Storage

Notes:

­  2x m.2 drives are supported on the Primary Riser. If RAID 1 is required, then also select HPE FIO Enable Smart Array SW RAID (784308-B21) to enable Software RAID.

­  UFF drives are also supported.

Internal Storage Devices

One of the following depending on model

• Optical Drive

Ships standard in Performance Models

Optional: DVD-ROM, DVD-RW

• Hard Drives

None ship standard

Power Supply

• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

• HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

­  Available in 94% and 96% efficiency.

­  Also available in -48VDC and 227VAC/380VDC power inputs.

• HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

­  Available in 94% efficiency.

­  Also available in -48VDC

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page to review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Notes: Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.

HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Storage Controllers

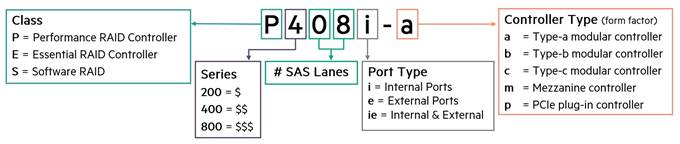

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the https://www.hpe.com/psnow/doc/a00047736enw

One of the following depending on model

Software RAID

• HPE Smart Array S100i SR Gen10 SW RAID

Notes:

­ HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

­ HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

­ The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser. If more than 8 SATA devices are being supported on this controller, then a Qty=1 of the SAS 3POS Cable Kit (826709-B21) is required.

­ The S100i supports Windows only

­ For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

 Essential RAID Controller

• HPE Smart Array E208i-a SR Gen10 Controller
• HPE Smart Array E208i-p SR Gen10 Controller
• HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

• Broadcom MegaRAID MR416i-a Controller for HPE
• Broadcom MegaRAID MR416i-p Controller for HPE
• Broadcom MegaRAID MR216i-a Controller for HPE
• Broadcom MegaRAID MR216i-p Controller for HPE
• HPE Smart Array P408i-a SR Gen10 Controller
• HPE Smart Array P408i-p SR Gen10 Controller
• HPE Smart Array P408e-p SR Gen10 Controller
• HPE Smart Array P816i-a SR Gen10 Controller

Notes:

­  Performance RAID Controllers require the HPE Smart Hybrid Capacitor (P02377-B21) or the HPE Smart Storage Battery (P01366-B21) which are sold separately.

­  For additional details, please see https://www.hpe.com/psnow/doc/a00047736enw

­  Broadcom MegaRAID controllers are not supported with Windows Server 2012 R2 on HPE Gen10 servers

Interfaces

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

 UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot and Secure Start enable for enhanced security
• Embedded UEFI Shell
• Operating system specific functionality
• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
• Support for > 2.2 TB (using GPT) boot drives
• PXE boot support for IPv6 networks
• USB 3.0 Stack
• Workload Profiles for simple performance optimization

UEFI Boot Mode only:

• TPM 2.0 Support
• iSCSI Software Initiator Support.
• NVMe Boot Support
• HTTP/HTTPs Boot support as a PXE alternative.
• Platform Trust Technology (PTT) can be enabled.
• Boot support for option cards that only support a UEFI option ROM

Notes:

­  For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

­  UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.

Industry Standard Compliance

• ACPI 6.1 Compliant
• PCIe 3.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• PXE Support
• VGA/Display Port

Notes: This support is on the optional Universal Media Bay.

• USB 3.0 Compliant (internal)
• USB 2.0 Compliant (external ports via SUV)

Notes: This support is on the optional Universal Media Bay.

• Energy Star
• SMBIOS 3.1
• Redfish API
• IPMI 2.0
• Secure Digital 4.0
• TPM 1.20 and 2.0 Support
• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP v3
• TLS 1.2
• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
• Active Directory v1.0
• ASHRAE A3/A4

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit http://www.hpe.com/servers/ashrae

• European Union ErP Lot 9 Regulation

Notes: Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.

HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

• UEFI (Unified Extensible Firmware Interface Forum) 2.6

Notes: UEFI is the default for the DL380 Gen10. Legacy mode can be selected in the field or as a CTO option (758959-B22); some configuration restrictions apply.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning..

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.  Learn more at http://www.hpe.com/info/hpesim.

Security

• UEFI Secure Boot and Secure Start support
• Tamper-free updates - components digitally signed and verified
• Immutable Silicon Root of Trust
• Ability to rollback firmware
• FIPS 140-2 validation
• Secure erase of NAND/User data
• Common Criteria certification
• TPM (Trusted Platform Module) 1.2 option
• Configurable for PCI DSS compliance
• TPM (Trusted Platform Module) 2.0 option
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Bezel Locking Kit option
• Support for Commercial National Security Algorithms (CNSA)
• Chassis Intrusion detection option
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

 HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in HPE GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the HPE GreenLake architecture, security, and unified operations.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here: https://www.hpe.com/info/com-supported-servers

 HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers.

To learn more visit http://www.hpe.com/info/oneview.

 HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

Learn more at https://www.hpe.com/servers/infosight

 HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

Accelerator and GPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

Pre-Configured models ship with the configurations below.

• Pre-Configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
• Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will not be shipped inside the server.
• Network Choice models do not include embedded LOM.

Network Choice Models

SKU Number

P20245-B21

P20245-291

Model Name

HPE ProLiant DL380 Gen10 6242 2.8GHz 16-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server

Chassis

HPE ProLiant DL380 Gen10 8SFF NC Configure-to-order Server

Processor

6242 (16 core, 2.8 GHz, 150W)

Number of Processors

One

Memory

32 GB (1x32 GB, 2933 MT/s)

Network Controller

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter
Notes: No embedded networking

Storage Controller

HPE Smart Array P408i-a SR Gen10 x8 Lanes 2GB Cache SAS 12G Modular Controller

Included Hard Drives

None ship standard, 8 SFF supported

Internal Storage

8 SFF (upgradeable to 24 SFF front + 6 SFF rear)

Optical Drive

Optional

Expansion Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

4x Standard

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response

Network Choice Models

SKU Number

P20249-B21

P20249-291

P23465-B21

P23465-291

P24840-B21

Model Name

HPE ProLiant DL380 Gen10 5218 2.3GHz 16-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 32GB-R P408i-a NC 8SFF 500W PS Server

HPE ProLiant DL380 Gen10 4210R 2.4GHz 10-core 1P 32GB-R P408i-a NC 24SFF 800W PS Server

Chassis

HPE ProLiant DL380 Gen10 8SFF NC Configure-to-order Server

HPE ProLiant DL380 Gen10 8SFF NC Configure-to-order Server

HPE ProLiant DL380 Gen10 24SFF NC Configure-to-order Server

Processor

5218 (16 core, 2.3 GHz, 125W)

4208 (8 core, 2.1 GHz, 85W)

4210R (10 core, 2.4 GHz, 100W)

Number of Processors

One

Memory

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2667 MT/s due to processor limitation.

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2400 MT/s due to processor limitation.

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2400 MT/s due to processor limitation.

Network Controller

HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter
Notes: No embedded networking

Storage Controller

HPE Smart Array P408i-a SR Gen10 x8 Lanes 2GB Cache SAS 12G Modular Controller

Included Hard Drives

None ship standard, 8 SFF supported

None ship standard, 8 SFF supported

None ship standard, 24 SFF supported

Internal Storage

8 SFF (upgradeable to 24 SFF front + 6 SFF rear)

8 SFF (upgradeable to 24 SFF front + 6 SFF rear)

24 SFF (upgradeable + 6 SFF rear)

Optical Drive

Optional

Expansion Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

6x Standard

4x Standard

6x Performance

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response

Network Choice Models

SKU Number

P24841-B21

P24841-291

P24842-B21

P24842-291

P24844-B21

P24844-291

Model Name

HPE ProLiant DL380 Gen10 4210R 2.4GHz 10-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 4214R 2.4GHz 12-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 5218R 2.1GHz 20-core 1P 32GB-R S100i NC 8SFF 800W PS Server

Chassis

HPE ProLiant DL380 Gen10 8SFF NC Configure-to-order Server

Processor

4210R (10 core, 2.4 GHz, 100W)

4214R (12 core, 2.4 GHz, 100W)

5218R (20 core, 2.1 GHz, 125W)

Number of Processors

One

Memory

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2400 MT/s due to processor limitation.

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2400 MT/s due to processor limitation.

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2667 MT/s due to processor limitation.

Network Controller

HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter
Notes: No embedded networking

HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter
Notes: No embedded networking

HPE Ethernet 10Gb 2-port FLR-SFP+ X710-DA2 Adapter
Notes: No embedded networking

Storage Controller

HPE Smart Array P408i-a SR Gen10 x8 Lanes 2GB Cache SAS 12G Modular Controller

HPE Smart Array P408i-a SR Gen10 x8 Lanes 2GB Cache SAS 12G Modular Controller

-

Included Hard Drives

None ship standard, 8 SFF supported

Internal Storage

8 SFF (upgradeable to 24 SFF front + 6 SFF rear)

Optical Drive

Optional

Expansion Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

4x Standard

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response

Network Choice Models

SKU Number

P24846-B21

P24846-291

P24849-B21

P24849-291

P40717-B21

Model Name

HPE ProLiant DL380 Gen10 6226R 2.9GHz 16-core 1P 32GB-R S100i NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 6248R 3.0GHz 24-core 1P 32GB-R S100i NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 4215R 3.2GHz 8-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server

Chassis

HPE ProLiant DL380 Gen10 8SFF NC Configure-to-order Server

Processor

6226R (16 core, 2.9 GHz, 150W)

6248R (24 core, 3.0 GHz, 205W)

4215R (8 core, 3.2 GHz, 130W)

Number of Processors

One

Memory

32 GB (1x32 GB, 2933 MT/s)

32 GB (1x32 GB, 2933 MT/s)

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2400 MT/s due to processor limitation.

Network Controller

HPE Ethernet 10Gb 2-port FLR-SFP+ X710-DA2 Adapter
Notes: No embedded networking

HPE Ethernet 10Gb 2-port FLR-SFP+ X710-DA2 Adapter
Notes: No embedded networking

1x Embedded 4 x 1GbE Network Adapter
Notes: No embedded networking

Storage Controller

-

-

HPE Smart Array P408i-a SR Gen10 x8 Lanes 2GB Cache SAS 12G Modular Controller

Included Hard Drives

None ship standard, 8 SFF supported

Internal Storage

8 SFF (upgradeable to 24 SFF front + 6 SFF rear)

Optical Drive

Optional

Expansion Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

4x Standard

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response

Network Choice Models

SKU Number

P24845-291

P24847-291

P24848-291

Model Name

HPE ProLiant DL380 Gen10 5222 3.8GHz 4-core 1P 32GB-R S100i NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 6234 3.3GHz 8-core 1P 32GB-R S100i NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 4215R 3.2GHz 8-core 1P 32GB-R S100i NC 8SFF 800W PS Server

Chassis

HPE ProLiant DL380 Gen10 8SFF NC Configure-to-order Server

Processor

5222 (4 core, 3.8 GHz, 105W)

6234 (8 core, 3.3 GHz, 130W)

4215R (8 core, 3.2 GHz, 130W)

Number of Processors

One

Memory

32 GB (1x32 GB, 2933 MT/s)

32 GB (1x32 GB, 2933 MT/s)

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2400 MT/s due to processor limitation.

Network Controller

HPE Ethernet 10Gb 2-port FLR-SFP+ X710-DA2 Adapter
Notes: No embedded networking

Included Hard Drives

None ship standard, 8 SFF supported

Internal Storage

8 SFF (upgradeable to 24 SFF front + 6 SFF rear)

Optical Drive

Optional

Expansion Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

4x Standard

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response

Network Choice Models

SKU Number

P56960-421

P56962-421

P56964-421

Model Name

HPE ProLiant DL380 Gen10 4215R 3.2GHz 8-core 1P 32GB-R MR416i-p NC 8SFF BC 800W PS Server

HPE ProLiant DL380 Gen10 5218 2.3GHz 16-core 1P 32GB-R MR416i-p NC 8SFF BC 800W PS Server

HPE ProLiant DL380 Gen10 5218R 2.1GHz 20-core 1P 32GB-R MR416i-p NC 8SFF BC 800W PS Server

Chassis

HPE ProLiant DL380 Gen10 8SFF BC NC Configure-to-order System

Processor

4215R (8 core, 3.2 GHz, 130W)

5218 (16 core, 2.3 GHz, 125W)

5218R (20 core, 2.1 GHz, 125W)

Number of Processors

One

Memory

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2400 MT/s due to processor limitation.

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2667 MT/s due to processor limitation.

32 GB (1x32 GB, 2933 MT/s)
Notes: Runs at 2667 MT/s due to processor limitation.

Network Controller

HPE Ethernet 10Gb 2-port 535FLR-T Adapter
Notes: No embedded networking

Storage Controller

HPE MR416i-p Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller

Included Hard Drives

None ship standard, 8 SFF supported

Internal Storage

8 SFF Chassis (upgradeable to 24 SFF front + 2 SFF rear)

Optical Drive

Optional

Expansion Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Fans

4x Standard

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response

Network Choice Models

SKU Number

P56965-421

P56966-421

Model Name

HPE ProLiant DL380 Gen10 6226R 2.9GHz 16-core 1P 32GB-R MR416i-p NC 8SFF BC 800W PS Server

HPE ProLiant DL380 Gen10 6248R 3.0GHz 24-core 1P 32GB-R MR416i-p NC 8SFF BC 800W PS Server

Chassis

HPE ProLiant DL380 Gen10 8SFF BC NC Configure-to-order System

Processor

6226R (16 core, 2.9 GHz, 150W)

6248R (24 core, 3.0 GHz, 205W)

Number of Processors

One

Memory

32 GB (1x32 GB, 2933 MT/s)

Network Controller

HPE Ethernet 10Gb 2-port 535FLR-T Adapter
Notes: No embedded networking

Storage Controller

HPE MR416i-p Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller

Included Hard Drives

None ship standard, 8 SFF supported

Internal Storage

8 SFF Chassis (upgradeable to 24 SFF front + 2 SFF rear)

Optical Drive

Optional

Expansion Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Fans

4x Standard

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response

Network Choice Models

SKU Number

P56967-AA1

P56968-AA1

Model Name

HPE ProLiant DL388 Gen10 3206R 1.9GHz 8-core 1P 16GB-R MR416i-p NC 8SFF BC 500W PS Server

HPE ProLiant DL388 Gen10 4210R 2.4GHz 10-core 1P 16GB-R MR416i-p NC 8SFF BC 800W PS Server

Chassis

HPE ProLiant DL380 Gen10 8SFF BC NC Configure-to-order System

Processor

3206R (8 core, 1.9 GHz, 85W)

4210R (10 core, 2.4 GHz, 100W)

Number of Processors

One

Memory

16 GB (1x16 GB, 2933 MT/s)
Notes: Runs at 2133 MT/s due to processor limitation.

16 GB (1x16 GB, 2933 MT/s)
Notes: Runs at 2400 MT/s due to processor limitation.

Network Controller

HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter
Notes: No embedded networking

Storage Controller

HPE MR416i-p Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller

Included Hard Drives

None ship standard, 8 SFF supported

Internal Storage

8 SFF Chassis (upgradeable to 24 SFF front + 2 SFF rear)

Optical Drive

Optional

Expansion Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

4x Standard

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Security

TPM disabled for shipments to China

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response

Country Code Key

• -B21 = Worldwide
• -291 = Japan
• -421 = Europe, the Middle East and Africa
• -AA1 = China
