HPE ProLiant DL360 Gen10 Plus server

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.

The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 Smart Memory up to 4.0 TB per socket. Introducing PCIe Gen4 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.

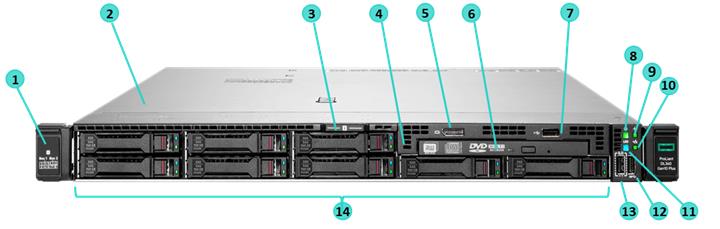

8 SFF Front View - 8 SFF + optional Universal Media Bay, optical drive, and SAS drives shown

1.

Drive support label

8.

Power On/Standby button and system power LED

2.

Quick removal access panel

9.

Health LED

3.

Serial number/iLO information pull tab

10.

NIC status LED

4.

Universal Media Bay (optional):

11.

UID button/LED

- Option: Optical drive bay + Display port & USB 2.0

12.

USB 3.0 port

- port kit (shown)

13.

iLO Service Port

- Option: 2 SFF 12G x1 SAS/SATA cage

14.

Drive bays; optional backplanes::

- Option: 2 SFF 24G x4 Tri-Mode U.3 cage

- Option: 8 SFF 12G x1 SAS/SATA

- Option: 2 SFF 16G x4 NVMe U.2 cage

- Option: 8 SFF 24G x1 Tri-Mode U.3

5.

Display Port (optional)

- Option: 8 SFF 24G x4 Tri-Mode U.3

6.

Optical drive (optional - shown)

- Option: 8 SFF 16G x4 NVMe U.2

7.

USB 2.0 port (optional)

Notes:

­ Systems Insight Display (SID) module will include #8-12 above (will not include #13 - iLO Service Port).

­ Front NIC LED display supports NIC LED ACT/LINK indication from embedded/On-board LOM (not available in this system) or OCP NIC cards with Scan Chain feature.

­ Front NIC LED display doesn't support NIC LED ACT/LINK indication from OCP NIC without Scan Chain, PCIe type NIC adapters or any legacy ALOM /FLOM NIC adapters (not available in this system).

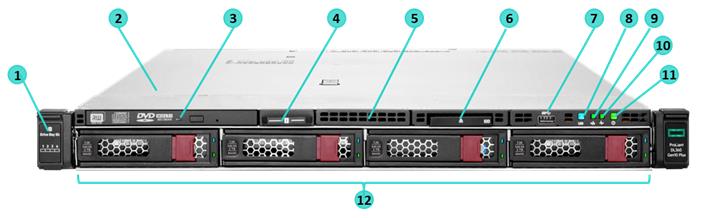

4 LFF Front View - 4 LFF + Optional Systems Insight Display (SID), optical drive and SAS drives shown

1.

Drive support label

7

USB 3.0 Port

2.

Quick removal access panel

8.

UID button/LED

3.

Optical drive (optional - shown)

9.

NIC status LED

4.

Serial number/iLO information pull tab

10.

Health LED

5.

Option: Display port & USB 2.0 port Kit (blank shown)

11.

Power On/Standby button and system power LED

6.

Option: Systems Insight Display (SID)¹ - Shown

12.

SAS/SATA drive bays

Notes:

­ ¹This option will lose iLO Service Port.

­ Front NIC LED display supports NIC LED ACT/LINK indication from embedded/On-board LOM (not available in this system ) or OCP NIC cards with Scan Chain feature.

­ Front NIC LED display doesn't support NIC LED ACT/LINK indication from OCP NIC without Scan Chain, PCIe type NIC adapters or any legacy ALOM /FLOM NIC adapters (not available in this system).

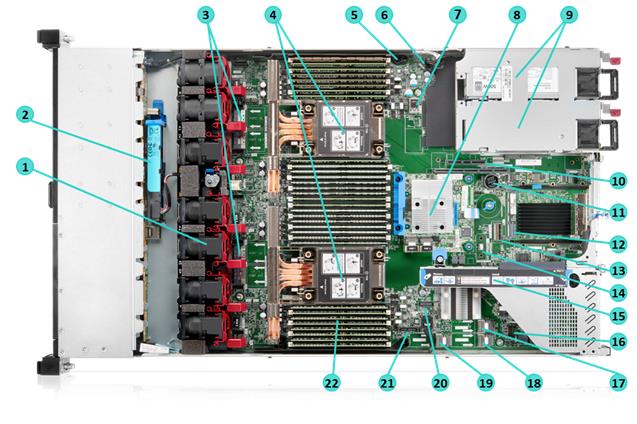

Internal View - Standard for all DL360 Gen10 Plus

1.

Hot plug fans (single rotor standard)

12.

x16 OCP connector (supports various NICs up to

- 1 CPU - 5 fans

200GbE)

- 2 CPUs - 7 fans

13.

Vertical slimline SAS connector (AROC lane recovery)

Option: High Performance fans

14.

TPM 2.0 (included on Pre-Configured Models)

2.

Option: HPE Smart Hybrid Capacitor or HPE Smart

15.

Primary (CPU1) PCIe 4.0 riser

Storage Battery

- Standard: 2x 16 slots, AUX power block

3.

4 x8 NVMe ports (1A - 2B)

- Option: 1 x16 and 1 x8 slots + 2x PCIe M.2

4.

Up to 2 processors

- connectors with HW RAID support

(shown with high performance heat sinks)

- Option: (SFF only): 1 x16 and 1 x8 slots + 1 x8

5.

Optional Chassis Intrusion Detection connector

- NVMe connector

6.

Hard Drive backplane power connector

16.

Optional front Display Port / USB 2.0 port connector

7.

Dual internal USB 3.0 connector

17.

x4 SATA port 1

8.

Storage Controller (Type -a shown)

18.

x4 SATA port 2

9.

Up to 2 Power Supplies for redundant power

19.

x4 SATA port 3

10.

Secondary (CPU2) PCIe 4.0 riser

20.

Front Power USB 3.0 connector

- Option: Low Profile x16

21.

Optical/SATA port

- Option: Full Height x16 (lose slot 2 on Primary riser)

22.

DDR4 DIMM slots (Fully populated 32 DIMMs shown)

11.

System Battery

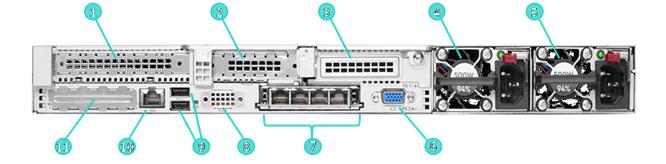

Rear View - Standard for all DL360 Gen10 Plus

1.

Slot 1 PCIe 4.0 - Full Height

6.

Video (VGA) port

2.

Slot 2 PCIe 4.0 - Low Profile

7.

OCP 3.0 Adapter (if equipped)¹

3.

Option: Slot 3 PCIe 4.0 (Requires 2^nd processor)

8.

Option: Serial port (knockout blank shown)

- Low Profile and Full Height options

9.

USB 3.0 Ports

4.

Power Supply 2

10.

iLO Management Port

5.

Power Supply 1

11.

Blank cover, not available for use

Notes: ¹ Supports various NICs, up to 200GbE.

What's New

• New Pre-configured SKUs using Broadcom Tri-mode controllers
• New Pre-configured SKU using HPE SR100i Gen10 Plus FIO Software RAID/VROC SATA controller
• HPE NVMe Gen4 High Performance Low Latency Write Intensive SFF BC U.2 P5800X SSD drives
• HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit
• Energy Star 4.0 Compliance
• European Union Erp Lot 9 Regulation

Platform Information

Form Factor

• 1U rack

Chassis Types

• 8 SFF with options for aditional 2 SFF drive bays: 12G x1 SAS/SATA, 24G x4 Tri-Mode or 16G x4 NVMe
• 4 LFF

System Fans

• Single rotor hot plug fans by default

Notes:

- Optional High Performance Fan Kit available (includes 7 fans).

- The DL360 Gen10 Plus will support up to 7 fans with fan redundancy built in. One fan rotor failure will place server in degraded mode but fully functional. Two fan rotor failures could provide warning and imminent server shutdown

Processors - Up to 2 of the following, depending on model.

Notes:

- The 2nd digit of the processor model number "x3xx" is used to denote the processor generation (i.e. 3 = 3rd generation).

- This table covers the public Intel offering only.

- For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Notes:

- 4.0TB maximum RAM per socket.

- 64 PCIe 4.0 lanes.

- 1.5 MB L3 cache/core, except on 6354 and 6346 processors (2.16 and 2.25 MB L3/core respectively).

- "U" processors (i.e. 6314U, 6312U) only supported in single socket configurations.

- Intel SST-CP (Core Power)- Enables flexibility for workloads that benefit from higher base frequency on a subset of the processor's cores. While the max turbo frequency across the cores remain constant across the cores, a subset of the cores can be assigned as to run at a higher base frequency than specified, while the other cores run at lower base frequency.

- Intel SST-TF (Turbo Frequency)- Enables flexibility for workloads that benefit from higher turbo frequency on a subset of the processor's cores. While the base frequency remains constant across the cores, a subset of the cores can be assigned to run at a higher turbo frequency than specified, while the other cores run at lower turbo frequency.

- Intel SST-BF (Base Frequency)- Allows the configuration of a guaranteed higher base frequency, for a specific number of cores, to support those workloads and applications that are not optimized for turbo frequencies.

- Intel Speed select SST-BF, SST-TF, SST-CP supported on Gold and Platinum processors. Power Profile (SST-PP) suppported on Y, and select V, S and N processors.

Notes:

- 8-Channel DDR4 @ 3200 MT/s (lower DDR4 speed may be used in segment optimized processors (i.e. Cloud, NFV, etc).

- Support for Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

- 2 socket capable, 3 UPI @ 11.2 GT/s.

- Advanced RAS (except 8358P), AVX-512 2 FMA, SGX 64GB, TME-MT 64 keys.

- ¹Deterministic base frequency rating only applicable to VM workloads. Other workloads may see throttling.

- ²Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- ³Single socket capable even though not being a "U" processor. No dual socket support.

- ⁴Default Speed Select Performance Profile value.

- ⁵Does not support Sub-NUMA 2 (SNC2).

- ⁶Does not support Intel Speed Select Technology - Base Frequency (SST-BF).

Notes:

- 8-channel DDR4 @ 3200 MT/s (lower DDR4 speed may be used in segment optimized processors (i.e. NFV, etc).

- Support for Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

- 2 sockets capable, 3 UPI @ 11.2 GT/s.

- Advanced RAS, AVX-512 2 FMA, SGX 64GB, TME-MT 64 keys.

- ¹Deterministic base frequency rating only applicable for NFV workloads. Other workloads may see throttling.

- ²Single socket capable, no dual socket support

- ³Default Speed Select Performance Profile value.

Notes:

- 8-channel DDR4 @ 2933 MT/s (lower DDR4 speed may be used in segment optimized processors (i.e. NFV, etc).

- Support for Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

- 2 sockets capable, 3 UPI @ 11.2 GT/s.

- Advanced RAS, AVX-512 2 FMA, SGX 64GB, TME-MT 64 keys.

- ¹Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- ²Deterministic base frequency rating only applicable for NFV workloads. Other workloads may see throttling.

- ³Default Speed Select Performance Profile value.

Notes:

- 8-channel DDR4 @ 2667 MT/s.

- 2 sockets capable, 2 UPI @ 10.4 GT/s.

- Standard RAS, AVX-512 2 FMA, SGX 8GB, TME-MT 64 keys.

- ¹Supports Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

- ²Default Speed Select Performance Profile value.

Chipset

Intel C621A Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

System Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

Memory

Notes:

- All processors support up to 6TB memory per socket.

- Mixing RDIMM and LRDIMM memory is not supported.

- To realize the performance memory capabilities listed in this document, HPE DDR4 Smart Memory is required.

- For additional information, please see the HPE DDR4 Smart Memory QuickSpecs.

- Intel Persistent Memory 200 series only supported on Gold and Platinum Processors.

- For General Server Memory and Persistent Memory Population Rules and Guidelines for Gen10 Plus see details here: http://www.hpe.com/docs/memory-population-rules

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Expansion Slots

Field upgrade riser cards setting after factory installation and shipment is currently not available

Notes: The specifications above correspond with the default primary riser.

Notes:

­  Does not include M.2 media, 22110 capable.

­  Requires high performance fan kit (P26477-B21).

Notes: Requires high performance fan kit (P26477-B21).

Notes: If secondary full height kit is installed, then primary PCIe Slot #2 cannot be used. Only 2 full height slots are supported.

Internal Storage Devices

• Optical Drive

Available on 8 SFF and 4 LFF CTO Servers as an option (DVD-ROM or DVD-RW)

• Hard Drives

None ship standard

Storage Controllers

NVMe Boot Devices

• HPE DL36X Gen10 Plus x16/x8 M.2 NS204i-r Riser
• HPE NS204i-p NVMe PCIe3 OS Boot Device

Software RAID

• HPE Smart Storage SR100i SR Gen10 Plus SW RAID

Notes:

- All models feature an embedded storage controller, capable of operating on AHCI or SR100i modes, with embedded software supporting RAID for either up to 14 SATA drives or 2 NVMe SSDs. In addition, all models feature 2 x8 PCIe 4.0 connectors per socket for NVMe SSDs, which must be used on SR100i mode. NVMe SSDs are qualified on SFF models only.

- HPE Smart Storage SR100i SR Gen10 Plus SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select Legacy mode setting (758959-B22).

- HPE Smart Storage SR100i SR Gen10 Plus SW RAID is off by default and must be enabled.

- Supports Microsoft Windows Server only.

- For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

• Intel VROC NVMe for HPE ProLiant Gen10 Plus

Notes:

- All models feature 2 x8 PCIe 4.0 connectors per socket for NVMe connectivity. On 2P configurations, these provide support for up to 8 direct attach NVMe bays. Options available to connect 2 additional bays.

- Only supported on SFF models.

- Intel VROC for HPE ProLiant Gen10 Plus is an enterprise, hybrid Software RAID solution specifically designed for NVMe SSDs connected directly to the CPU. Intel VROC is a software-based solution utilizing Intel CPU to RAID or HBA direct connected drives and supports both Intel® SFF SSDs and HPE SFF SSDs.

- RAID Support- 0/1/5/10.

- Windows, Linux, VMware OS support.

- Host Tools- Windows GUI/CLI, Linux CLI.

- UEFI Support- HII Utility, OBSE.

- Active health monitoring of NVMe M.2 drives requires use of SMART tools.

- Intel VROC NVMe for HPE ProLiant Gen10 Plus will operate in UEFI mode only. For legacy support an additional Tri-Mode controller will be needed, and for CTO orders please also select Legacy mode setting (758959-B22).

- For NVMe SSDs only, no PCIe card support.

- Intel VROC NVMe is off by default and requires licensing, see options for details.

• Intel Intel VROC SATA for HPE ProLiant Gen10 Plus

Notes:

- All models feature an embedded storage controller, with embedded software SATA RAID support for up to 14 bays.

- Intel VROC for HPE ProLiant Gen10 Plus is an enterprise, hybrid Software RAID solution specifically designed for SSDs. Intel VROC is a software-based solution utilizing Intel CPU to RAID or HBA direct connected drives and supports both Intel® SFF SSDs and HPE SFF SSDs.

- RAID Support- 0/1/5/10

(for 8SFF Backplane Cage, Bay 1-4 & Bay 5-8 are in different RAID groups)

- Windows and Linux OS support.

- Host Tools- Windows GUI/CLI, Linux CLI.

- UEFI Support- HII Utility, OBSE.

- iLO Support- IML, Alert, SNMP, AHS.

- iLO Redfish- Redfish Read.

- ** Requires AMS & iLO 2.42.

- Intel VROC SATA for HPE ProLiant Gen10 Plus will operate in UEFI mode only. For legacy support an additional storage controller will be needed, and for CTO orders please also select Legacy mode setting (758959-B22).

- Intel VROC SATA is off by default and must be enabled.

Maximum physical drive per array varies with platform maximum storage specification. More technical details is available at

Intel VROC for HPE ProLiant QuickSpecs

Essential RAID Controllers

• Broadcom MR216i-a Tri-Mode Controller for HPE Gen10 Plus
• Broadcom MR216i-p Tri-Mode Controller for HPE Gen10 Plus
• HPE Smart Array E208i-a SR Gen10 Controller
• HPE Smart Array E208i-a SR G10 LH Controller
• HPE Smart Array E208i-p SR Gen10 Controller
• HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controllers

• Microchip SR932i-p Tri-Mode Controller for HPE Gen10 Plus
• Microchip SR416i-a Tri-Mode Controller for HPE Gen10 Plus
• Broadcom MR416i-p Tri-Mode Controller for HPE Gen10 Plus
• Broadcom MR416i-a Tri-Mode Controller for HPE Gen10 Plus
• HPE Smart Array P408i-a SR Gen10 Controller
• HPE Smart Array P408i-a SR G10 LH Controller
• HPE Smart Array P408i-p SR Gen10 Controller
• HPE Smart Array P408e-p SR Gen10 Controller
• HPE Smart Array P816i-a SR Gen10 Controller
• HPE Smart Array P816i-a SR G10 LH Controller

Notes: If an accelerator needs to be installed on slots 2 or 3, then an LH storage controller (low profile heatsink) should be ordered to allow it to fit in the server.

For additional details, please see:

HPE Smart Array SR Gen10 Controllers for HPE ProLiant DL, ML and Apollo Servers.

Maximum Storage

Graphics

• Integrated video standard
• Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)
• 16 MB Video Memory
• HPE iLO 5 on system management memory
• 32 MB Flash
• 4 Gbit DDR3 with ECC protection

Power Supply

• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

• HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% and 96% efficiency.

- Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% efficiency.

- 1600W Power supplies only support high line voltage (200 VAC to 240 VAC).

• HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit

Notes:

- Available in 96% efficiency.

- 1800-2200W Titanium Power supply only supports high line voltage (200 VAC to 240 VAC).

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

 All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the HPE Power Cords and  Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

 For information on power specifications and technical content visit  HPE Flexible Slot Power Supplies.

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

Industry Standard Compliance

• ACPI 6.3 Compliant
• PCIe 4.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• PXE Support
• USB 3.0 Compliant
• USB 2.0 Compliant (only on optional Universal Media Bay)
• SMBIOS 3.2
• Redfish API
• IPMI 2.0
• Secure Digital 4.0
• TPM 1.2 and 2.0 support
• Energy Star

For new Energy Star 4.0 compliance, please go to HPE One Config Advanced for details. Compliant skus are listed within P68503-B21 (ENERGY STAR 4.0 FIO Trigger Configuration Kit for HPE)

• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP v3
• TLS 1.2
• DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)
• Active Directory v1.0
• ASHRAE A3/A4

Notes:

- For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit http://www.hpe.com/servers/ashrae

- Under Standard Operating Support conditions, there is no time limitation for operating the servers in ASHRAE Class A2 conditions, unless otherwise specified in the applicable product information.

• European Union Erp Lot 9 Regulation

European Union (EU) eco-design regulations for server and storage products, known as Lot 9, establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 Plus servers are compliant with Lot9 requirements.

Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

Beginning on January 1^st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, or Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.

 HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

•   UEFI (Unified Extensible Firmware Interface Forum) 2.6

Notes: UEFI is the default for the DL360 Gen10 Plus. Legacy mode can be selected in the field or as a factory option (758959-B22); some configuration restrictions apply.

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 Plus servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

 UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot and Secure Start enable for enhanced security
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
• PXE boot support for IPv6 networks
• Workload Profiles for simple performance optimization

UEFI Boot Mode only:

• TPM 2.0 Support
• NVMe Boot Support
• Platform Trust Technology (PTT) can be enabled.
• iSCSI Software Initiator Support.
• HTTP/HTTPs Boot support as a PXE alternative.
• Boot support for option cards that only support a UEFI option ROM

Notes:

- For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

- UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Plus Server.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for one or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

Learn more at https://www.hpe.com/us/en/servers/smart-update.html.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9, Gen10 and Gen10 Plus HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell.

Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim.

Security

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation
• Common Criteria certification
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• iLO Security Modes
• Granular control over iLO interfaces
• Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised FW
• Ability to rollback firmware
• Secure erase of NAND
• TPM (Trusted Platform Module)
• Bezel Locking Kit
• Chassis Intrusion detection option

HPE Trusted Platform Module

HPE Trusted Platform Module 2.0 is included on Pre-Configured models and can be enabled and disabled using the BIOS.

Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE GreenLake for Compute Ops Management

HPE is intelligently transforming compute management with an intuitive cloud operating experience through HPE GreenLake cloud platform to streamline and secure operations from edge-to-cloud. Automated key lifecycle tasks, for onboarding, updating, managing, and monitoring HPE servers, brings agility and greater efficiencies to wherever compute devices reside via a unified single browser-based interface. Manage single locations or multiple, distributed sites. Keep tens to thousands of servers secure with batch policy controls and automated updates.

Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and fixes. The management application resides in the HPE GreenLake cloud platform (access via https://console.greenlake.hpe.com) and leverages the HPE GreenLake architecture, security, and unified operations.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE GreenLake for Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here:

https://www.hpe.com/info/com-supported-servers

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9, Gen10 and Gen10 Plus servers. To learn more visit http://www.hpe.com/info/oneview.

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

Accelerator and GPGPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you're critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

Pre-Configured models ship with the configurations below.

• Options can be selected from the Core or Additional options section of this QuickSpecs. Yet Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will not be shipped inside the server.
• Network Choice models do not include embedded LOM.

Network Choice Models

SKU Number

P55240-B21

P55240-291

P55241-B21

P55241-291

P55242-B21

P55242-291

Model Name

HPE ProLiant DL360 Gen10 Plus 4309Y 2.8GHz 8-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server

HPE ProLiant DL360 Gen10 Plus 4310 2.1GHz 12-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server

HPE ProLiant DL360 Gen10 Plus 4314 2.4GHz 16-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server

Chassis

HPE ProLiant DL360 Gen10 Plus 8SFF NC Configure-to-order Server

Processor

4309Y (8 core, 2.8 GHz, 105W)
Notes: 8/8/8 cores would result in 2.8/2.6/2.3 GHz operating points at 105W/95W/85W TDPs.

4310 (12 core, 2.1 GHz, 120W)

4314 (16 core, 2.4 GHz, 135W)
Notes: Supports Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

Number of Processors

One with standard heatsink

Memory

32 GB (1x32 GB, 3200 MT/s)
Notes: Runs at 2667 MT/s due to processor limitation.

Network Controller

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
Notes: No embedded networking

Storage Controller

HPE MR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller

Included Hard Drives

None ship standard, 8 SFF supported

Optical Drive

P55240-B21: Not included (Optical Drive options available)

P55241-B21: Not included (Optical Drive options available)

P55242-B21: Not included (Optical Drive options available)

P55240-291: Optional DVD via Universal Media Bay or USB connectivity

P55241-291: Optional DVD via Universal Media Bay or USB connectivity

P55242-291: Optional DVD via Universal Media Bay or USB connectivity

Expansion Slots

2 PCIe: 1 x16 FH, 1 x16 LP

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

7x High Performance fans

Management

HPE iLO 5

Rail Kit

HPE ProLiant DL300 Gen10 Plus 1U SFF Easy Install Rail Kit
Notes: Server does not support shelf mounted rail kits ("L" brackets).

Security

TPM (Trusted Platform Module)

Form Factor

1U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.

Network Choice Models

SKU Number

P55243-B21

P55243-291

P55273-421

P55274-421

Model Name

HPE ProLiant DL360 Gen10 Plus 5315Y 3.2GHz 8-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server

HPE ProLiant DL360 Gen10 Plus 4309Y 2.8GHz 8-core 1P 32GB-R MR416i-a NC 8SFF 800W PS EU Server

HPE ProLiant DL360 Gen10 Plus 4310 2.1GHz 12-core 1P 32GB-R MR416i-a NC 8SFF 800W PS EU Server

Chassis

HPE ProLiant DL360 Gen10 Plus 8SFF NC Configure-to-order Server

Processor

5315Y (8 core, 3.2 GHz, 140W)
Notes: 8/6/4 cores would result in 3.2/3.2/3.4 GHz operating points at 140W/125W/115W TDPs.

4309Y (8 core, 2.8 GHz, 105W)
Notes: 8/8/8 cores would result in 2.8/2.6/2.3 GHz operating points at 105W/95W/85W TDPs.

4310 (12 core, 2.1 GHz, 120W)

Number of Processors

One with standard heatsink

Memory

32 GB (1x32 GB, 3200 MT/s)
Notes: Runs at 2933 MT/s due to processor limitation.

32 GB (1x32 GB, 3200 MT/s)
Notes: Runs at 2667 MT/s due to processor limitation.

32 GB (1x32 GB, 3200 MT/s)
Notes: Runs at 2667 MT/s due to processor limitation.

Network Controller

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
Notes: No embedded networking

Storage Controller

HPE MR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller

Included Hard Drives

None ship standard, 8 SFF supported

Optical Drive

P55243-B21:
Not included (Optical Drive options available)

Not included (Optical Drive options available)

Not included (Optical Drive options available)

P55243-291:
Optional DVD via Universal Media Bay or USB connectivity

Expansion Slots

2 PCIe: 1 x16 FH, 1 x16 LP

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
Notes: The -421 SKU is to be ordered in European Union countries for Lot 9 compliance.

1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
Notes: The -421 SKU is to be ordered in European Union countries for Lot 9 compliance.

Fans

7x High Performance fans

Management

HPE iLO 5

Rail Kit

HPE ProLiant DL300 Gen10 Plus 1U SFF Easy Install Rail Kit
Notes: Server does not support shelf mounted rail kits ("L" brackets).

Security

TPM (Trusted Platform Module)

Form Factor

1U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.

Network Choice Models

SKU Number

P55275-421

P55276-421

Model Name

HPE ProLiant DL360 Gen10 Plus 4314 2.4GHz 16-core 1P 32GB-R MR416i-a NC 8SFF 800W PS EU Server

HPE ProLiant DL360 Gen10 Plus 5315Y 3.2GHz 8-core 1P 32GB-R MR416i-a NC 8SFF 800W PS EU Server

Chassis

HPE ProLiant DL360 Gen10 Plus 8SFF NC Configure-to-order Server

Processor

4314 (16 core, 2.4 GHz, 135W)
Notes: Supports Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

5315Y (8 core, 3.2 GHz, 140W)
Notes: 8/6/4 cores would result in 3.2/3.2/3.4 GHz operating points at 140W/125W/115W TDPs.

Number of Processors

One with standard heatsink

Memory

32 GB (1x32 GB, 3200 MT/s)
Notes: Runs at 2667 MT/s due to processor limitation.

32 GB (1x32 GB, 3200 MT/s)
Notes: Runs at 2933 MT/s due to processor limitation.

Network Controller

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
Notes: No embedded networking

Storage Controller

HPE MR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller

Included Hard Drives

None ship standard, 8 SFF supported

Optical Drive

Not included (Optical Drive options available)

Expansion Slots

2 PCIe: 1 x16 FH, 1 x16 LP

Power Supply

1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
Notes: The -421 SKU is to be ordered in European Union countries for Lot 9 compliance.

Fans

7x High Performance fans

Management

HPE iLO 5

Rail Kit

HPE ProLiant DL300 Gen10 Plus 1U SFF Easy Install Rail Kit
Notes: Server does not support shelf mounted rail kits ("L" brackets).

Security

TPM (Trusted Platform Module)

Form Factor

1U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.

Country Code Key

• -B21 = Worldwide
• -291 = Japan
• -421 = Europe, the Middle East and Africa

HPE Smart Choice purchase program

The HPE Smart Choice purchase program features popular fully configured products that can be quoted in minutes and shipped quickly through HPE Authorized Partners. Products are configured and tested in an HPE factory and stocked at HPE Authorized Distributors and Partners. The products arrive in a single box, making onsite integration easier and more efficient for partners and customers. Additionally, there are aggressively priced HPE Tech Care Services available only through the HPE Smart Choice program when you purchase an HPE Smart Choice product.

For additional information on the HPE Smart Choice purchase program, please visit: https://www.hpe.com/psnow/doc/a50009219enw

Notes:

­ The -B21 SKU is to be ordered in countries in Americas and Asia-Pacific (other than Japan or PRC).

­ The -421 SKU is to be ordered in European Union countries for Lot 9 compliance.

Step 2: Choose Options

Please select one or two matching processors.

For example: for a single Xeon-Platinum 8380 processor configuration select 1x P36941-B21. If dual Xeon-Platinum 8380 processor configuration, select 2x P36941-B21

Notes:

- Mixing of 2 different processor models is not supported.

- CTO server includes 5 standard fans. Dual processor configurations require 7 fans, either standard or high performance (dependent on processor model).

- Processors with TDP equal to or greater than 150W require High Performance Heatsink (P26479-B21).

- Processors with TDP equal to or greater than 205W require High Performance Fan Kit (P26477-B21).

- Options as NVMe SSDs, 100GbE or greater NICs/HCAs, accelerators, 24G SAS drives -among others- require high performance fans.

- Processors with TDP up to 140W, or starting at 230W -both included- require DIMM blanks kit (P07818-B21).

- DIMM blanks kit (P07818-B21) recommended with processor TDPs ranging from 150W to 225W -both included- as enhance cooling.

- Each processor feeds 2 x8 front NVMe connectors, supporting up to 4 drives. Socket must populated for NVMe connectors to be usable.

Step 2a: Choose Processor Options

Processor Option Kits

3^rd Generation Intel Xeon-Platinum

Notes:

- All SKUs below ship with processor only. Adequate fans and heatsinks (standard, or high performance) must be selected.

- 3200 MT/S maximum memory speed unless otherwise noted.

- 64GB SGX Enclave unless otherwise noted.

Intel Xeon-Platinum 8380 2.3GHz 40-core 270W Processor for HPE

P36941-B21

Notes:

- Requires High Performance Heatsink (P26479-B21), Fans (P26477-B21) and DIMM blanks kit (P07818-B21).

- 512GB SGX Enclave.

Intel Xeon-Platinum 8368 2.4GHz 38-core 270W Processor for HPE

P36940-B21

Notes:

- Requires High Performance Heatsink (P26479-B21), Fans (P26477-B21) and DIMM blanks kit (P07818-B21).

- 512GB SGX Enclave.

Intel Xeon-Platinum 8362 2.8GHz 32-core 265W Processor for HPE

P45418-B21

Notes:

- Requires High Performance Heatsink (P26479-B21), Fans (P26477-B21) and DIMM blanks kit (P07818-B21).

- Does not support Intel Speed Select Technology - Base Frequency (SST-BF).

Intel Xeon-Platinum 8360Y 2.4GHz 36-core 250W Processor for HPE

P36939-B21

Notes:

- 36/32/24 cores would result in 2.4/2.5/2.6 GHz operating points at 250W/250W/220W TDPs.

- Requires High Performance Heatsink (P26479-B21), Fans (P26477-B21) and DIMM blanks kit (P07818-B21).

Intel Xeon-Platinum 8358P 2.6GHz 32-core 240W Processor for HPE

P37598-B21

Notes:

- Requires High Performance Heatsink (P26479-B21), Fans (P26477-B21) and DIMM blanks kit (P07818-B21).

- 8GB SGX Enclave.

Intel Xeon-Platinum 8358 2.6GHz 32-core 250W Processor for HPE

P36938-B21

Notes: Requires High Performance Heatsink (P26479-B21), Fans (P26477-B21) and DIMM blanks kit (P07818-B21).

Intel Xeon-Platinum 8352Y 2.2GHz 32-core 205W Processor for HPE

P36929-B21

Notes:

- 32/24/16 cores would result in 2.2/2.3/2.6 GHz operating points at 205W/185W/185W TDPs.

- Requires High Performance Heatsink (P26479-B21) and Fans (P26477-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Platinum 8352V 2.1GHz 36-core 195W Processor for HPE

P37599-B21

Notes:

- Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- 36/32/24 cores would result in 2.1/2.0/2.0 GHz operating points at 195W/180W/155W TDPs.

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2933 MT/s max. memory speed.

- 8GB SGX Enclave.

Intel Xeon-Platinum 8352M 2.3GHz 32-core 185W Processor for HPE

P45414-B21

Notes:

- 32/28/24 cores would result in 2.3/2.4/2.6 GHz operating points 185W/185W/185W TDPs.

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- Does not support Intel Speed Select Technology - Base Frequency (SST-BF).

3^rd Generation Intel Xeon-Gold

Notes:

- All SKUs below ship with processor only. Adequate fans and heatsinks (standard, or high performance) must be selected.

- 3200 MT/S maximum memory speed unless otherwise noted.

- 64GB SGX Enclave unless otherwise noted.

Intel Xeon-Gold 6354 3.0GHz 18-core 205W Processor for HPE

P36935-B21

Notes:

- Requires High Performance Heatsink (P26479-B21) and Fans (P26477-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Gold 6348 2.6GHz 28-core 235W Processor for HPE

P36937-B21

Notes: Requires High Performance Heatsink (P26479-B21), Fans (P26477-B21) and DIMM blanks kit (P07818-B21).

Intel Xeon-Gold 6346 3.1GHz 16-core 205W Processor for HPE

P36934-B21

Notes:

- Requires High Performance Heatsink (P26479-B21) and Fans (P26477-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Gold 6342 2.8GHz 24-core 230W Processor for HPE

P36936-B21

Notes:

- Requires High Performance Heatsink (P26479-B21) and Fans (P26477-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Gold 6338N 2.2GHz 32-core 185W Processor for HPE

P37603-B21

Notes:

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2677 MT/s max. memory speed.

Intel Xeon-Gold 6338 2.0GHz 32-core 205W Processor for HPE

P36928-B21

Notes:

- Requires High Performance Heatsink (P26479-B21) and Fans (P26477-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Gold 6336Y 2.4GHz 24-core 185W Processor for HPE

P36926-B21

Notes:

- 24/12/8 cores would result in 2.4/2.9/3.1 GHz operating points at 185W/150W/150W TDPs.

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Gold 6334 3.6GHz 8-core 165W Processor for HPE

P36933-B21

Notes:

- Requires High Performance Heatsink (P26479-B21) and Fans (P26477-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Gold 6330N 2.2GHz 28-core 165W Processor for HPE

P37604-B21

Notes:

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2667 MT/s max. memory speed.

Intel Xeon-Gold 6330 2.0GHz 28-core 205W Processor for HPE

P36927-B21

Notes:

- Requires High Performance Heatsink (P26479-B21) and Fans (P26477-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2933 MT/s max. memory speed.

Intel Xeon-Gold 6326 2.9GHz 16-core 185W Processor for HPE

P36932-B21

Notes:

- Requires High Performance Heatsink (P26479-B21) and Fans (P26477-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Gold 6312U 2.4GHz 24-core 185W Processor for HPE

P37611-B21

Notes:

- Requires High Performance Heatsink (P26479-B21) and Fans (P26477-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Gold 5320 2.2GHz 26-core 185W Processor for HPE

P36925-B21

Notes:

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2933 MT/s max. memory speed.

Intel Xeon-Gold 5318Y 2.1GHz 24-core 165W Processor for HPE

P36924-B21

Notes:

- 24/24/22 cores would result in 2.1/1.9/2.0 GHz operating points at 165W/150W/150W TDPs.

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2933 MT/s max. memory speed.

Intel Xeon-Gold 5318S 2.1GHz 24-core 165W Processor for HPE

P37612-B21

Notes:

- Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- 24/20 cores would result in 2.1/2.0 GHz operating points at 150W/135W TDPs.

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2933 MT/s max. memory speed.

Intel Xeon-Gold 5318N 2.1GHz 24-core 150W Processor for HPE

P37605-B21

Notes:

- Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- 24/24/22 cores would result in 2.1/1.9/2.0 GHz operating points at 165W/150W/150W TDPs.

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2667 MT/s max. memory speed.

Intel Xeon-Gold 5317 3.0GHz 12-core 150W Processor for HPE

P36931-B21

Notes:

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2933 MT/s max. memory speed.

Intel Xeon-Gold 5315Y 3.2GHz 8-core 140W Processor for HPE

P36930-B21

Notes:

- 8/6/4 cores would result in 3.2/3.2/3.4 GHz operating points at 140W/125W/115W TDPs.

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

- 2933 MT/s max. memory speed.

3^rd Generation Intel Xeon-Silver

Notes:

- All SKUs below ship with processor only. Adequate fans and heatsinks (standard, or high performance) must be selected.

- 2667 MT/S maximum memory speed.

- 8GB SGX Enclave unless otherwise noted.

Intel Xeon-Silver 4316 2.3GHz 20-core 150W Processor for HPE

P36923-B21

Notes:

- Requires High Performance Heatsink (P26479-B21).

- DIMM blanks kit (P07818-B21) recommended as enhance cooling.

Intel Xeon-Silver 4314 2.4GHz 16-core 135W Processor for HPE

P36922-B21

Notes:

- Requires DIMM blanks kit (P07818-B21).

- Supports Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

Intel Xeon-Silver 4310 2.1GHz 12-core 120W Processor for HPE

P36921-B21

Notes: Requires DIMM blanks kit (P07818-B21).

Intel Xeon-Silver 4309Y 2.8GHz 8-core 105W Processor for HPE

P36920-B21

Notes:

- 8/8/8 cores would result in 2.8/2.6/2.3 GHz operating points at 105W/95W/85W TDPs.

- Requires DIMM blanks kit (P07818-B21).

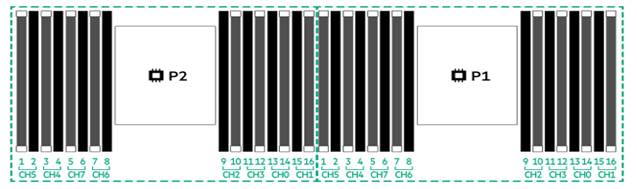

Step 2b: Choose Memory Options

Please select one or more memory DIMMs from below.

For new Gen10 Plus memory population rule whitepaper and optimal memory performance guidelines, please go to:

http://www.hpe.com/docs/memory-population-rules

For Gen10 Plus memory speed table, please go to: https://www.hpe.com/docs/memory-speed-table

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Plus Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: https://www.hpe.com/psnow/doc/a50004620enw.

Notes:

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, 12 or 16.

- For additional information, please see the HPE DDR4 Smart Memory QuickSpecs

Registered DIMMs (RDIMMs)

HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P06035-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P06033-B21

HPE 32GB (1x32GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P40007-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P06031-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P06029-B21

HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07525-B21

Load Reduced DIMMs (LRDIMMs)

Notes: Mixing of 3DS and non-3DS DIMMs not allowed.

HPE 256GB (1x256GB) Octal Rank x4 DDR4-3200 CAS-26-22-22 Load Reduced 3DS Smart Memory Kit

P06039-B21

Notes:

- Requires High Performance Fan Kit (P26477-B21) and DIMM blanks kit (P07818-B21).

- Support limited to 25°C maximum inlet temperature.

- Not supported with HPE IB HDR/EN 200Gb 2p QSFP56 OCP3 Adapter.

HPE 128GB (1x128GB) Quad Rank x4 DDR4-3200 CAS-22-22-22 Load Reduced Smart Memory Kit

P06037-B21

HPE DIMM blanks

HPE DDR4 DIMM Blank Kit

P07818-B21

Notes:

- Required by processors with TDP up to 140W, or starting at 230W (both included).

- Recommended with processor TDPs ranging from 150W to 225W -both included- as enhance cooling.

Step 2c: Choose Power Supplies

Please select one or two power supplies from below.

Notes: Mixing of 2 different power supplies is NOT supported.

HPE Flex Slot Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38995-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 800W Flex Slot Hot Plug Universal Low Halogen High Voltage AC/DC Power Supply Kit

865428-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

Step 2d: Choose backplane (8 SFF server only)

If front drives are needed in the 8 SFF server, please select one backplane from list below.

Notes: No optional backplanes available for LFF models, 4-bay 12G x1 SAS/SATA already included with server.

HPE DL360 Gen10 Plus Basic Carrier (BC) drive backplanes

Notes

- For all backplanes below:

o Supports Basic Carrier Drives.

o Includes cabling.

HPE ProLiant DL360 Gen10 Plus 8SFF SAS/SATA 12G BC Backplane Kit

P26427-B21

Notes:

- Supports SAS and SATA Basic Carrier (BC) drives.

- UBM2.

- Can be connected to Broadcom Tri-mode controllers when using the following Tri-mode to SAS/SATA cables:

o HPE DL36x G10+ 8SFF SAS/SATA TM Cbl Kit         P55882-B21

o HPE DL36x G10+ 2SFF SAS/SATA TM Cbl Kit         P55883-B21

HPE ProLiant DL360 Gen10 Plus 8SFF x1 Tri-Mode 24G U.3 BC Backplane Kit

P26431-B21

Notes:

- Supports SATA, SAS and NVMe Basic Carrier (BC) drives.

- NVMe SSDs must be U.3.

- Requires High Performance Fan Kit (P26477-B21).

- No NVMe Direct Attach support.

- Not supported with SR932i-p Tri-Mode controller.

- Can't be connected to Smart Array (SAS/SATA) controllers or embedded SATA ports.

- UBM3.

HPE ProLiant DL360 Gen10 Plus 8SFF x4 Tri-Mode 24G U.3 BC Backplane Kit

P26429-B21

Notes:

- Supports SATA, SAS and NVMe Basic Carrier (BC) drives.

- NVMe SSDs must be U.3.

- Requires High Performance Fan Kit (P26477-B21).

- Supports NVMe Direct Access and slotted Tri-Mode controllers.

- Includes Direct Access cables.

- Requires 8 SFF cable (P26451-B21) for Tri-Mode controllers.

- Can't be connected to Smart Array (SAS/SATA) controllers, nor to embedded SATA ports.

- UBM3.

HPE ProLiant DL360 Gen10 Plus 8SFF x4 NVMe 16G U.2 BC Backplane Kit

P26433-B21

Notes:

- Supports NVMe (U.2 and non-static U.3) Basic Carrier (BC) SSDs.

- Requires High Performance Fan Kit (P26477-B21).

- Supports NVMe Direct Access and SR932i-p Tri-Mode controller.

- Includes Direct Access cables.

- Requires 8 SFF cable (P26451-B21) for SR932i-p Tri-Mode controller.

- Does not support HPE Smart Storage SR100i SR Gen10 Plus SW RAID.

- Maximum of 8 U.2 drives per controller.

- Can't be connected to Smart Array (SAS/SATA) controllers or embedded SATA ports.

- UBM4.

Step 3: Choose Additional (FIO) Factory Integratable Options

Each of the following may be selected if desired at time of factory integration

HPE Gen10 TPM 1.2 FIO Setting

872108-B21

Notes: TPM 2.0 is set as default, for 1.2 TPM setting instead, please select this option.

HPE Legacy FIO Mode Setting

758959-B22

Notes: UEFI is the default, this FIO part can be used for CTO to enable Legacy mode.

HPE ProLiant DL360 Gen10 Plus Direct Attach Full NVMe FIO Trigger System Setting

P26445-B21

Notes: Intructs HPE Configurator to prepopulate 8+2 SFF NVMe capable backplanes, high-performance fan kit and primary NVMe riser as defaults.

HPE Smart Memory Fast Fault Tolerance FIO Setting

875293-B21

Notes:

­ Enables Fast Fault Tolerance mode, an HPE Memory RAS feature introduced in HPE Gen10 servers that survives up to two DRAM failures.

­ This RAS feature combines Adaptive Double DRAM Device Correction (ADDC) with HPE Advanced Error Detection Technology, resultin in significantly better memory reliability and availability that what ADDDC provides on its own. For more information see our Memory RAS feature technical whitepaper.

HPE 12 DIMM SNC2 Hemi SGX FIO Enablement Kit

P26933-B21

Notes:

­ Instructs factory to populate 12 DIMMs/socket in the optimal way required by Sub-NUMA Clustering (SNC).

­ Only applicable to 12 DIMM/socket counts.

­ For supported 8 DIMM, 12 DIMM, and 16 DIMM SGX memory population configuration please see page 4 of the guide: Server Memory and Persistent Memory population rules for HPE Gen10 Plus servers with 3rd Gen Intel Xeon Scalable processors

HPE Server Identity FIO Setting

P41905-B21

Notes: Initial Device Identity (IDevID) certificates are part of a Zero Trust Architecture. This SKU intructs factory to provision IdevID on HPE iLO.

HPE ProLiant Platform Certificate and IDevID iLO FIO Setting

P42104-B21

Notes:

­ Directs HPE manufacturing site to create, digitally sign and store a platform certificate on the server.

­ Requires HPE Trusted Platform Module (TPM).

HPE ProLiant DL300 Gen10 Plus Platform RAS OS Control FIO Setting

P27078-B21

Notes:

­ Firmware first is ProLiant servers BIOS default selection. In this mode monitoring functionality built into the design of the server is first on the scene of correctable problems to determine quickly and accurately what's wrong and how to fix it. Firmware first enables many platform-specific actions for errors including predictive fault analysis. This technology functions independently of the operating system and does not depend on O/S-based tools.

­ This SKU instructs factories to enable O/S first mode, a BIOS switch that allows experienced customers to have the operating system handle correctable hardware errors. On this mode, more errors could be observed, including soft ones that do not necessarily indicate issues with the component or cause warranty replacement.

HPE CE Mark Removal FIO Enablement Kit

P35876-B21

Notes:

Correlated to the new EU Lot9 Regulation addressed in the Power Supplies section.

For EU Lot9 out-of-scope countries, incl. rest of EMEA, the Americas, Asia-Pacific & Japan and China.

- Users will be able to select non-compliant Power Supplies on this server.

- If a non-compliant PSU is selected as FIO/0D1, the Configurator will auto populate SKU P35876-B21 [HPE CE Mark Removal FIO Enable Kit] which directs to use the non-CE bearing variant of agency and COO labels. Then the unit is not-importable into the EU Lot9 in scope countries.

- If CE Mark Removal SKU is deleted from configuration, without removing non-compliant Power Supply, this will be identified as unbuildable configuration, until the 96% efficient (Titanium) FlexSlot power supply is mandated to meet the Lot9 requirements.

HPE Security Options

HPE Server Security Optimized Service for HPE ProLiant (R9S59A) is an optional security upgrade intended for agencies and regulated industries with enhanced security and compliance needs. Applying this option to a DL3XX Gen10/Gen10 Plus CTO server ensures it is hardened by turning on advanced safeguards in place against cyber-exploits throughout the server lifecycle.  An iLO Advanced License required for High Security Mode and compatible intrusion detection device option kits are prerequisites for the full optimization service.

Step 4: Choose Additional Options for Factory Integration from Core and Additional Option sections below

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Unique Options

Risers

Field upgrade riser cards setting after factory installation and shipment is currently not available

HPE ProLiant DL36X Gen10 Plus x16/x8 PCIe M.2 NS204i-r Riser Kit

P26463-B21

Notes:

- M.2 media not included, 22110 capable.

- Requires High Performance Fan Kit (P26477-B21).

HPE ProLiant DL36X Gen10 Plus 8SFF 2NVMe CPU1 Riser Kit

P26465-B21

Notes:This kit is not available on the 4 LFF model.

HPE ProLiant DL36X Gen10 Plus Low Profile Riser Kit

P26471-B21

HPE ProLiant DL36X Gen10 Plus Full Height Riser Kit

P26467-B21

Notes:

- D = Default on server; O = Optional; N = not supported or slot/connector not present.

- ¹Supports 2x 22110 M.2 media, not included.

- ²Provides HW RAID 1 capabilities utilizing inbox Windows, Linux or VMware drivers.

- ³Requires High Performance Fan Kit (P26477-B21).

- ⁴Not supported on 4 LFF models.

- ⁵When secondary full height kit is installed, then primary PCIe Slot #2 cannot be used. Only 2 full height slots are supported.

- A ^Max Qty=1 of the following list of Secondary riser options is allowed per server.  This means that only one item can be selected from the following list:

o HPE DL36x Gen10+ 2P FH Riser Kit (P26467-B21)

o HPE DL36x Gen10+ LP Riser Kit (P26471-B21)

o HPE ProLiant DL36X Gen10 Plus x16 FH GPU Secondary Riser Power Cable v2 Kit (P50027-B21)

- Requires the selection of a 2nd Processor

- IMPORTANT!!!  With the installation of this option into the server, you will lose physical access to the PCIe Slot 2 that is located on the Default / Primary Riser.  The "PCIe Card Capacity Limits" must account for this reduction of PCIe slots.

- ⁶GPU max 75W

- ⁷Slot 1 only, no slot 2 support

- *For additional details on ProLiant DL Gen10 Plus server risers. Please visit:

https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00043229enw

Cooling Options

HPE ProLiant DL360 Gen10 Plus Standard Heat Sink Kit

P37863-B21

HPE ProLiant DL360 Gen10 Plus High Performance Heat Sink Kit

P26479-B21

Notes: Required for processors with a TDP equal or greater than 150W.

HPE ProLiant DL36X Gen10 Plus Standard Fan Kit

P37861-B21

Notes:

- Includes 2 fans, complements base server default (5) to system max. of 7 required by 2P configs.

- Supports processors with a TDP equal or lower than 195W.

HPE ProLiant DL36X Gen10 Plus High Performance Fan Kit

P26477-B21

Notes:

- Includes 7 fans, required by processors with a TDP equal or greater than 205W, and select options.

- Required for Extended Ambient Operating Support.

HPE DDR4 DIMM Blank Kit

P07818-B21

Notes:

- Instructs factory to install blanks on unused DIMM slots. Max. 1 kit per system.

- Required by processors with TDP up to 140W, or starting at 230W (both included).

- Recommended with processor TDPs ranging from 150W to 225W -both included- as enhance cooling.

Notes:

- ¹Both minimum and maximum limits included (e.g greater or equal to, and up to including).

- ²CPU TDP driven. Options as NVMe SSDs, 100GbE or greater NICs/HCAs, accelerators or 24G SAS drives -among others- require high performance fans.

- ³Recommended with processor TDPs ranging from 185W to 225W -both included- as enhance cooling.

- ⁴Required.

Universal Media Bay Options

HPE ProLiant DL360 Gen10 Plus 2SFF SAS/SATA 12G BC Drive Cage Kit

P26435-B21

Notes:

- Supports SAS and SATA Basic Carrier (BC) Drives.

- Requires an 8 SFF backplane (12G x1 SAS/SATA, 24G Tri-Mode, or 16G x4 NVMe).

- Includes cabling.

- Can't be connected to Tri-Mode controllers.

- UBM2.

HPE ProLiant DL360 Gen10 Plus 2SFF x4 Tri-Mode 24G U.3 BC Drive Cage Kit

P26437-B21

Notes:

- Supports SAS, SATA and NVMe Basic Carrier (BC) Drives.

- Requires an 8 SFF backplane (12G x1 SAS/SATA, 24G x1 Tri-Mode or 24G x4 Tri-Mode).

- Cannot be mixed with 8SFF 16G x4 NVMe U.2 backplane (P26433-B21).

- Includes Direct Access cables.

- NVMe SSDs must be U.3.

- Requires High Performance Fan Kit (P26477-B21).

- Supports NVMe Direct Access and Tri-Mode controllers.

- Requires 2 SFF cable (P36657-B21) for Tri-Mode controllers.

- Can't be connected to Smart Array (SAS/SATA) controllers or embedded SATA ports.

- UBM3.

HPE ProLiant DL360 Gen10 Plus 2SFF x4 NVMe 16G U.2 BC Drive Cage Kit

P26439-B21

Notes:

- Supports NVMe (U.2 and non-static U.3) Basic Carrier (BC) SSDs.

- Requires an 8 SFF backplane (12G x1 SAS/SATA or 16G x4 NVMe).

- Cannot be mixed with U.3 backplanes (P26429-B21 or P26431-B21).

- Includes Direct Access cables

- Requires High Performance Fan Kit  (P26477-B21).

- Supports NVMe Direct Access and Tri-Mode controllers.

- Requires 2 SFF cable (P36657-B21) for Tri-Mode controllers.

- UBM4.

HPE ProLiant DL360 Gen10 Plus 8SFF Display Port/USB/Optical Drive Blank Kit

P40003-B21

Notes: This kit is required for Optical Drive option (8 SFF model only).

HPE ProLiant DL360 Gen10 Plus LFF Display Port/USB Kit

P26455-B21

Optical Drive Options

HPE Mobile USB DVD-RW Optical Drive

701498-B21

Notes: This kit is supported on USB 3.0 ports only.

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

Notes:

- Requires Universal Media Bay Kit (P40003-B21) to install on 8 SFF models.
