HPE ProLiant DL320e Generation 8 (Gen8) v2: технические характеристики и документация
В архивеOverview
|
HPE ProLiant DL320e Generation 8 (Gen8) v2 | |||
|
| |||
|
Do you need an entry-level short-depth server utilizing the latest technology to keep you competitive? | |||
|
|
| ||
|
|
| ||
|

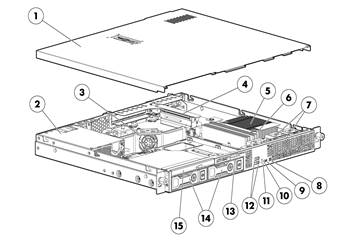

Front View: |
Rear View: | ||
|
1. |
Access Panel |
1. |
Expansion slot 2, PCIe x8 |
|
2. |
Power Supply |
2. |
Expansion slot 1, PCIe x16 |
|
3. |
Fan Assembly |
3. |
Integrated Power Supply |
|
4. |
PCI Riser Cage |
4. |
T-10/T-15 Torx screwdriver |
|
5. |
Processor |
5. |
NIC1/shared iLO connector |
|
6. |
DIMMS |
6. |
Video Connector |
|
7. |
Fan Assembly |
7. |
NIC Connector 2 |
|
8. |
Power On/Standby button and LED |
8. |
USB 3.0 Connector |
|
9. |
UID LED button |
9. |
iLO4 Connector |
|
10. |
Health LED |
10. |
USB 3.0 Connector |
|
11. |
NIC status LED |
11. |
NIC link LED |
|
12. |
2 USB Connectors |
12. |
USB2.0 Connectors |
|
13. |
Serial number/iLO information pull tab |
|
|
|
14. |
Hard Drive Bays |
|
|
|
15. |
Optical drive |
|
|
|
| |||
|
What's New |
|
Standard Features
|
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. | |
|
Processor |
Entry Processors |
|
Intel® Pentium® G3240 (3.1GHz/2-core/3MB/54W) Processor Intel® Pentium® G3220 (3.0GHz/2-core/3MB/54W) Processor | |
|
Intel® Pentium® G3420 (3.2GHz/2-core/3MB/54W) Processor | |
|
Base Processors | |
|
Intel® CoreTM i3-4150 (3.5GHz/2-core/3MB/54W, HT) Processor Intel® CoreTM i3-4130 (3.4GHz/2-core/3MB/54W, HT) Processor | |
|
Intel® CoreTM i3-4130T (2.9GHz/2-core/3MB/35W, HT) Processor | |
|
Performance Processors | |
|
Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W) | |
|
Intel® Xeon® E3-1231v3 (3.4GHz/4-core/8MB/80W, HT) | |
|
Intel® Xeon® E3-1241v3 (3.5GHz/4-core/8MB/80W, HT) | |
|
Intel® Xeon® E3-1271v3 (3.6GHz/4-core/8MB/80W, HT) | |
|
Intel® Xeon® E3-1281v3 (3.7GHz/4-core/8MB/82W, HT) | |
|
Intel® Xeon® E3-1230v3 (3.3GHz/4-core/8MB/80W, HT) | |
|
Intel® Xeon® E3-1230Lv3 (1.8GHz/4-core/8MB/25W, HT) | |
|
Intel® Xeon® E3-1240v3 (3.4GHz/4-core/8MB/80W, HT) | |
|
Intel® Xeon® E3-1265Lv3 (2.5GHz/4-core/8MB/45W, HT) | |
|
Intel® Xeon® E3-1270v3 (3.5GHz/4-core/8MB/80W, HT) | |
|
Intel® Xeon® E3-1280v3 (3.6GHz/4-core/8MB/82W, HT) | |
|
NOTE: HT indicates that the processor model supports Intel® /Hyper-Threading Technology (depends on the processor). | |
|
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs and CPU installed (options for 1600MHz, 1333MHz). | |
|
| |
|
Cache Memory |
8MB (1x8MB) Level 3 |
|
| |
|
Chipset |
Intel® C222 Series Chipset |
|
NOTE: For more information regarding Intel® chipsets, please see the following URL: | |
|
| |
|
Upgradeability |
Up to 4 DIMM slots available for higher Memory capacity |
|
Up to 4 bay SFF Hot plug Drive Cage; Or 2 bay LFF Hot plug or Non hot plug Drive Cages | |
|
2 PCIe 3.0 expansion slots | |
|
Optical Drive Bay | |
|
| |
|
On System Management Processor |
HPE iLO (Firmware: HPE iLO 4) |
|
NOTE: For more information, visit: http://www.hp.com/go/ilo. | |
|
| |
|
Memory Protection |
ECC |
|
| |
|
Memory |
Type |
HPE SmartMemory |
|
Unbuffered (UDIMM) | ||
|
DIMM Slots Available |
4 DIMMs (2 Channels/ 2 DIMMs per channel) | |
|
Maximum Capacity (UDIMM) |
32GB (4 x 8GB@1600MHz) | |
|
NOTE: HPE memory from previous generation servers are not fully compatible with the HPE ProLiant DL320e Gen8 Servers. NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1600MHz, or 1333MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hp.com/go/ddr3memory-configurator. | ||
|
| ||
|
Network Controller |
HPE Ethernet 1Gb 2-port NC332i Adapter |
|
| |
|
Expansion Slots |
Expansion |
Technology |
Bus |
Connector Width |
Form Factor |
Notes |
|
1 |
PCIe 3.0 |
x8 |
x16 |
Half-length, full-height slot |
| |
|
2 |
PCIe 3.0 |
x4 |
x8 |
Low profile slot |
| |
|
*Indicates the number of physical electrical lanes running to the connector. | ||||||
|
| ||||||
|
HPE Server ROM |
HPE ROM (Read Only Memory) is now digitally signed using the HPE Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.
NOTE: For further information, please refer to the HPE RBSU (ROM based setup utility) user guide: http://www.hp.com/support/rbsu. |
|
| |
|
Storage Controller |
Base Models |
HPE Dynamic Smart Array B120i Controller |
|
Performance Models |
HPE Smart Array P222/512MB FBWC controller | |
|
NOTE:
The DL320e Gen8 v2 can support other advanced controllers as well, depending
on model and configuration | ||
|
| ||
|
Internal Storage Devices |
Diskette Drive |
None |
|
Optical Drive |
Optional | |
|
DVD-RW & DVD-ROM | ||
|
Hard Drives |
None ship standard (Base Models and Performance Models) | |
|
Hard Drive Bays |
4 SFF drive bays or 2 LFF Non hot plug/Hot plug | |
|
NOTE: HPE ProLiant DL320e Series servers offer both SFF, and LFF versions in CTO. The Optical Drive bay is available with both models. | ||
|
| ||
|
Maximum Internal Storage |
Hot Plug SFF SAS |
4.8TB |
4 x 1.2TB |
|
Hot Plug SFF SATA |
4.0TB |
4 x 1TB | |
|
Hot Plug LFF SAS |
16.0TB |
2 x 8TB | |
|
Hot Plug LFF SATA |
16.0TB |
2 x 8TB | |
|
Hot Plug SFF SAS SSD |
3.2 TB |
4 x 800GB | |
|
Hot Plug SFF SATA SSD |
3.2 TB |
4 x 800GB | |
|
Hot Plug LFF SATA SSD |
1.6 TB |
2 x 800GB | |
|
Non-Hot Plug LFF SATA |
6TB |
2 x 3TB | |
|
| |||
|
Interfaces |
Video |
1 Rear standard video |
|
HPE iLO Remote Management Network Port |
1Gb Dedicated | |
|
Micro SD slot |
1 Internal | |
|
USB 2.0 Ports |
5 total: 2 rear, 2 front, 1 internal (Optional) | |
|
USB 3.0 Ports |
2 total: 2 rear | |
|
| ||
|
Industry Standard Compliance |
ACPI 2.0b Compliant |
|
PCIe 3.0 | |
|
PXE Support | |
|
WOL Support | |
|
USB 2.0 Compliant | |
|
USB 3.0 Compliant | |
|
| |
|
Server Power Cords |
All Pre-configured Models servers ship with a high voltage server to PDU power cord. |
|
| |
|
Power Specifications |
To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/proliant-energy-efficient or http://www.hp.com/go/hppoweradvisor. |
|
| |
|
Common Slot Power Supply |
NOTE: The default power supply for DL320e Gen8v2 server is a 250W Non Hot Plug, Non Redundant (ATX) power supply for all regions. A Common Slot 48V DC power supply (750W, 94% efficiency) supporting NEBS compliance is available only for the 4 SFF configuration. |
|
| |
|
System Fans |
2 front fan assemblies and 1 center fan assembly ship standard, non-redundant |
|
| |
|
Operating Systems and Virtualization Software Support for ProLiant Servers |
Microsoft Windows Server |
|
NOTE: For more information on the HPE Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from Hewlett Packard Enterprise, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page: http://www.hp.com/support/DL320eGen8v2. | |
|
| |
|
Graphics |
Integrated Matrox G200 video standard
HPE iLO 4 On System Management Memory
|
|
| |
|
Form Factor |
1U Rack form factor |
|
4 SFF Drive Bay Version: | |
|
2 LFF Drive Bay Version: | |
|
| |
|
On System Management |
HPE iLO Management Engine |
HPE iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HPE iLO Management Engine comes standard on all HPE ProLiant Gen8 servers. The HPE iLO Management Engine portfolio includes:
NOTE: For more information, visit: http://www.hp.com/go/ilo or HPE iLO Management Engine technologies whitepaper |
|
| ||
|
HPE Insight Management |
HPE Service Pack for ProLiant (SPP) |
HPE Service Pack for ProLiant (SPP) and HPE Smart Update Manager (HPE SUM) version 5 provide a new, comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HPE server hardware launches. By enabling all firmware to be updated online and integrating firmware and system software updates in one operation HPE SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that Hewlett Packard Enterprise provides 12 months of support on each Service Pack for ProLiant. The user experience around HPE SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HPE SUM version 5 and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HPE SUM application has been re-written to provide a more straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hpe.com, HPE SUM provides the tools to optimize stability and consistency throughout the company. While HPE SUM and the SPP will recommend the combinations of firmware and system software that Hewlett Packard Enterprise has found to be the best practice, the application gives customers the flexibility to set their own specific baseline. The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HPE SUM to deploy updates taking into account all interdependencies, when determining the correct updates and order of update deployment. NOTE: The Service Pack for ProLiant (which includes HPE SUM 5) can be downloaded from http://www.hp.com/go/spp/download. More information can be found: http://www.hp.com/go/spp and http://www.hp.com/go/hpsum |
|
| ||
|
Security |
Power-on password |
|
Administrator's password | |
|
| |
|
Warranty |
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
Optional Features
|
HPE Insight management software |
HPE Insight Control |
HPE Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HPE Insight Control also supports Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see http://www.hp.com/go/insightcontrol. HPE Insight Control includes one year of 24 x 7 HPE Software Technical Support and Update Service ensuring rapid access to Hewlett Packard Enterprise support staff and proactive delivery of software updates. For more information about this service, see: http://www.hp.com/services/insight. |
|
HPE iLO Essentials |
HPE iLO Essentials license ideal for small and medium business customers. The specially created HPE iLO Essentials (a subset of iLO Advanced functionality) saves SMB customers time and money, by ease of remote server set up through the interactive virtual media, lowering operational costs with remote access via the Integrated Remote Console, and faster time to resolution with email-based proactive notifications. With this newly designed HPE iLO Essentials license SMB customers now have the option of a server management package solely design and priced just right for their IT environments. HPE iLO Essentials is available on all HPE ProLiant Gen8 e-series making this an ideal solution for small business owners. For more information, see: http://www.hp.com/go/iLO/essentials | |
|
HPE iLO Advanced |
HPE Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HPE ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvanced | |
|
| ||
|
Storage Software |
Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HPE storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.
NOTE: For more information available Storage Software including QuickSpecs, please see: http://www.hp.com/go/storage/software. |
|
| |
|
HPE Insight Online |
HPE Insight Online is a new addition to the HPE Support Center for one stop, secure access to product and Hewlett Packard Enterprise support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HPE Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. http://www.hp.com/go/insightonline |
|
| |
|
HPE Proactive Insight experience |
Prevent problems with innovative, automated monitoring tools and proactive services. The HPE Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: http://www.hp.com/go/proactiveinsightexperience |
|
| |
|
Factory Express Portfolio for Servers and Storage |
HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. |
|
| |
|
HPE Simple Configurator |
SCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact the Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator |
Service and Support
|
Service and Support |
HPE Technology Services for Industry Standard Servers and BladeSystem |
|
| |
|
Optimized Care |
Supports maintaining servers at optimum performance availability |
|
| |
|
Standard Care |
Supports maintaining high level of server availability HPE Foundation Care 24x7 connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en |
|
| |
|
Related Services |
HPE ProLiant Server Hardware Installation Factory Express for Servers and storage HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
Data Privacy Services Protect your data through better media management. HPE Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. http://www.hp.com/services/dataprivacy Additional HPE Pointnext operational services can be found at: http://www.hp.com/go/cpc |
|
| |
|
Get connected to Hewlett Packard Enterprise to improve your support experience |
Connecting products to Hewlett Packard Enterprise will help prevent problems with 24x7monitoring, prefailure alerts, automatic call logging, and parts dispatch. With Connected products, you can have a dashboard to manage your IT anywhere, anytime, from any device. |
|
| |
|
HPE Support Center |
Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc |
|
| |
|
Parts and Materials |
Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
| |
|
For more information |
To learn more on HPE ProLiant servers and HPE BladeSystem servers, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant |
Pre-configured Models
|
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. | ||
|
Entry Models | ||
|
HP ProLiant DL320e Gen8 v2 G3240 1P 2GB-U Non-hot Plug 2 LFF Entry Server
|
Processor(s) |
(1) Intel® Pentium® G3240 (3.1 GHz/2-core/3MB/54W) Processor |
|
Cache Memory |
8MB (1x8MB) Level3 | |
|
Memory |
2GB (1 x 2GB) Unbuffered DIMMs PC3-12800E (1600MHz) | |
|
Network Controller |
HPE Ethernet 1Gb 2-port NC332i Adapter | |
|
Storage Controller |
HPE Dynamic Smart Array B120i Controller | |
|
Hard Drive |
None ship standard | |
|
Internal Storage |
2 bay LFF Non Hot Plug Drive Cage; includes 2LFF Hard Drive blanks | |
|
Optical Drive Bay |
None ships standard | |
|
PCI-Express Slots |
1 PCIe3 x16 and 1 PCIe3 x8 | |
|
Power Supply |
250 Watts Non-Hot Plug, Non redundant Power Supply for all regions | |
|
Fans |
2 front fan assemblies and 1 center fan assembly ship standard, non-redundant | |
|
Management |
HPE iLO Management Engine (standard) | |
|
Form Factor |
1U | |
|
Warranty |
Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
Base Models |
|
|
|
HP ProLiant DL320e Gen8 v2 E3-1220v3 1P 4GB-U B120i Server |
Processor(s) |
(1) Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W, HT) Processor |
|
Cache Memory |
8MB (1x8MB) Level3 | |
|
Memory |
4GB (1 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz) | |
|
Network Controller |
HPE Ethernet 1Gb 2-port NC332i Adapter | |
|
Storage Controller |
HPE Dynamic Smart Array B120i Controller | |
|
Hard Drive |
None ship standard | |
|
Internal Storage |
2 bay LFF Hot Plug Drive Cage; includes 1 LFF hard drive blank | |
|
Optical Drive Bay |
None ships standard | |
|
PCI-Express Slots |
1 PCIe3 x16 and 1 PCIe3 x8 | |
|
Power Supply |
250 Watts Non-Hot Plug, Non redundant Power Supply for all regions | |
|
Fans |
2 front fan assemblies and 1 center fan assembly ship standard, non-redundant | |
|
Management |
HPE iLO Management Engine (standard) | |
|
Form Factor |
1U | |
|
Warranty |
Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
| ||
|
Performance Models | ||
|
HP ProLiant DL320e Gen8 v2 E3-1241v3 1P 8GB-U P222 Hot Plug 4 SFF Perf Svr |
Processor(s) |
(1) Intel® Xeon® E3-1241v3 (3.5GHz/4-core/8MB/80W, HT) Processor |
|
Cache Memory |
8MB (1x8MB) Level3 | |
|
Memory |
8GB (1 x 8GB) Unbuffered DIMMs PC3-12800E (1600MHz) | |
|
Network Controller |
HPE Ethernet 1Gb 2-port NC332i Adapter | |
|
Storage Controller |
HPE Smart Array P222/512MB FBWC Controller | |
|
Hard Drive |
None ship standard | |
|
Internal Storage |
4 bay SFF Hot Plug Drive Cage; includes 3 SFF hard drive blanks | |
|
Optical Drive Bay |
None ships standard | |
|
PCI-Express Slots |
1 PCIe3 x16 and 1 PCIe3 x8 | |
|
Power Supply |
250 Watts Non-Hot Plug, Non redundant Power Supply for all regions | |
|
Fans |
2 front fan assemblies and 1 center fan assembly ship standard, non-redundant | |
|
Management |
HPE iLO Management Engine (standard) | |
|
Form Factor |
1U | |
|
Warranty |
Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
| ||
|
Country Code Key |
xx = 00 |
U.S. |
|
xx = 20 |
Brazil | |
|
xx = 29 |
Japan | |
|
xx = 37 |
APD | |
|
xx = 42 |
Europe | |
|
xx = AA |
PRC |
Configuration Information - Factory Integrated Models
|
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements. | ||
|
Step 1: Base Configuration (choose one of the following configurable models) | ||
|
HPE Models |
HP ProLiant DL320e Gen8 v2 Non-hot Plug 2 LFF Configure-to-order Server |
722313-B21 |
|
Factory Integrated Model ships with: |
| |
|
1U Chassis with 2 LFF Non-Hot Plug Drive Cage HPE 250W power supply HPE Dynamic Smart Array B120i SATA Controller (RAID 0/1/10) |
| |
|
HP ProLiant DL320e Gen8 v2 Hot Plug 2 LFF Configure-to-order Server |
722314-B21 | |
|
Factory Integrated Model ships with: |
| |
|
1U Chassis with 2 LFF Hot Plug Drive Cage |
| |
|
HPE ProLiant DL320e Gen8 v2 Hot Plug 4 SFF Configure-to-order Server |
722315-B21 | |
|
Factory Integrated Model ships with: |
| |
|
1U Chassis with 4 SFF Hot plug Drive Cage |
| |
|
| ||
|
Step 2: Choose Required Options (only one of the following from each list unless otherwise noted) | ||
|
HPE Processors |
Base Processors |
|
|
HP DL320e Gen8 v2 Intel Core i3-4150 (3.5GHz/2-core/3MB/54W) FIO Processor Kit
|
768916-L21 | |
|
Performance Processors |
| |
|
HP DL320e Gen8 v2 Intel Xeon E3-1281v3 (3.7GHz/4-core/8MB/82W) FIO Processor Kit
|
768917-L21 | |
|
HP DL320e Gen8 v2 Intel Xeon E3-1271v3 (3.6GHz/4-core/8MB/80W) FIO Processor Kit
|
768918-L21 | |
|
HP DL320e Gen8 v2 Intel Xeon E3-1241v3 (3.5GHz/4-core/8MB/80W) FIO Processor Kit
|
768914-L21 | |
|
HP DL320e Gen8 v2 Intel Xeon E3-1231v3 (3.4GHz/4-core/8MB/80W) FIO Processor Kit
|
768915-L21 | |
|
HP DL320e Gen8 v2 Intel Xeon E3-1230Lv3 (1.8GHz/4-core/8MB/25W) FIO Processor Kit |
741411-L21 | |
|
HP DL320e Gen8 v2 Intel Xeon E3-1220v3 (3.1GHz/4-core/8MB/80W) FIO Processor Kit |
718257-L21 | |
|
HP DL320e Gen8 v2 Intel Xeon E3-1265Lv3 (2.5GHz/4-core/8MB/45W) FIO Processor Kit |
718261-L21 | |
|
HPE Memory |
NOTE: To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs. |
|
|
Unbuffered with ECC DIMMs (UDIMMs) |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713975-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713977-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713979-B21 | |
|
Unbuffered with ECC DIMMs (UDIMMs) |
| |
|
HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669320-B21 | |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory |
647905-B21 | |
|
HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669322-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit |
647907-B21 | |
|
HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669324-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit |
647909-B21 | |
|
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. |
| |
|
HPE Power Supplies |
NOTE: Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hp.com/go/hppoweradvisor. |
|
|
HPE DL320e Gen8 v2 250W FIO Power Supply Unit Kit |
748334-B21 | |
|
NOTE: Non redundant Power Supply for all regions |
| |
|
HPE 750W Common Slot -48VDC Hot Plug Power Supply Kit |
636673-B21 | |
|
| ||
|
Step 3: Choose Additional Factory Integratable Options | ||
|
HPE USB Cable Kit |
HP Gen8 FIO Internal USB Kit |
662961-B21 |
|
| ||
|
HPE Security |
HP DL320eGen8 v2 Entry Rack Ear FIO Kit |
723903-B21 |
|
NOTE: For more rail kit options see "Additional Options" section of this QuickSpecs. |
| |
|
| ||
|
HPE Insight Software |
HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU |
C6N36A |
|
HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO E-LTU |
C6N36ABE | |
|
| ||
|
Converged Infrastructure Management Software |
HPE OneView with iLO Advanced - Server hardware required on same purchase order |
|
|
HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU |
E5Y43A | |
|
| ||
|
Step 4: Choose Additional Options for Factory Integration |
|
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. |
Core Options
|
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information. | ||
|
HPE Memory |
NOTE: To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs. |
|
|
Unbuffered with ECC DIMMs (UDIMMs) |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713975-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713977-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713979-B21 | |
|
Unbuffered with ECC DIMMs (UDIMMs) |
| |
|
HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669320-B21 | |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory |
647905-B21 | |
|
HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669322-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit |
647907-B21 | |
|
HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669324-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit |
647909-B21 | |
|
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. |
| |
|
| ||
|
HPE Optical Drives |
HPE 9.5mm SATA DVD-RW JackBlack Optical Drive |
652241-B21 |
|
HPE 9.5mm SATA DVD-ROM JackBlack Optical Drive
|
652238-B21 | |
|
| ||
|
HPE Hard Drives |
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components. |
|
|
12G SAS Hot Plug SmartDrive LFF (3.5-inch) Converter Enterprise Drives |
| |
|
HPE 600GB SAS 12G Enterprise 15K LFF (3.5in) SC 3yr Wty HDD
|
765424-B21 | |
|
HPE 450GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD
|
737394-B21 | |
|
HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD
|
737261-B21 | |
|
12G SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives |
| |
|
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD
|
759212-B21 | |
|
HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD
|
759210-B21 | |
|
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD
|
759208-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) Enterprise Drives |
| |
|
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD
|
781518-B21 | |
|
HPE 900GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD
|
785069-B21 | |
|
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in ) SC 3yr Wty HDD
|
781516-B21 | |
|
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD
|
785067-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) SC 512e Drives |
| |
|
HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD
|
765466-B21 | |
|
HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
|
765464-B21 | |
|
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e HDD
|
791034-B21 | |
|
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e HDD
|
748387-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives |
| |
|
HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD
|
832514-B21 | |
|
12G SAS Hot Plug LFF (3.5-inch) SC HDD |
| |
|
HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD
|
793703-B21 | |
|
HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD
|
793699-B21 | |
|
12G SAS Hot Plug LFF (3.5-inch) Midline (MDL) 512e Drives |
| |
|
HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
|
765259-B21 | |
|
HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
|
765257-B21 | |
|
12G SAS Hot Plug LFF (3.5-inch) SC 512e Performance Drives |
| |
|
HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD
|
793671-B21 | |
|
HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive |
793669-B21 | |
|
12G SAS Hot Plug LFF (3.5in) 7.2K MDLSC HDD |
| |
|
HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
|
818367-B21 | |
|
HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
|
818365-B21 | |
|
6G SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives |
| |
|
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive |
718162-B21 | |
|
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652589-B21 | |
|
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652583-B21 | |
|
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652572-B21 | |
|
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652564-B21 | |
|
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652611-B21 | |
|
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652605-B21 | |
|
6G SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives |
| |
|
HPE 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
652749-B21 | |
|
HPE 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
652745-B21 | |
|
6G SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives |
| |
|
HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
695510-B21 | |
|
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
652766-B21 | |
|
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
652757-B21 | |
|
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
652753-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives |
| |
|
HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD |
655710-B21 | |
|
HPE 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
655708-B21 | |
|
6G SATA 2.5in WI-PLP SCC SSD |
| |
|
HPE 1.2TB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804680-B21 | |
|
HPE 800GB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804674-B21 | |
|
HPE 400GB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804668-B21 | |
|
HPE 200GB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804642-B21 | |
|
6G SATA 2.5in MU-PLP SCC SSD |
| |
|
HPE 1.6TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
|
804634-B21 | |
|
HPE 800GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
|
804628-B21 | |
|
HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
|
832417-B21 | |
|
HPE 200GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
|
804616-B21 | |
|
6G SATA 2.5in RI-PLP SCC SSD |
| |
|
HPE 1.6TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804608-B21 | |
|
HPE 800GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804602-B21 | |
|
HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804596-B21 | |
|
HPE 240GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804590-B21 | |
|
HPE 120GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804584-B21 | |
|
HPE 80GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
804578-B21 | |
|
6G SATA 2.5in WI-PLP SC SSD |
| |
|
HPE 1.2TB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
804677-B21 | |
|
HPE 800GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
804671-B21 | |
|
HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
804665-B21 | |
|
HPE 200GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
804639-B21 | |
|
6G SATA 2.5in MU-PLP SC SSD |
| |
|
HPE 1.6TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
804631-B21 | |
|
HPE 800GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
804625-B21 | |
|
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
832414-B21 | |
|
HPE 200GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
804613-B21 | |
|
6G SATA 2.5in RI-PLP SC SSD |
| |
|
HPE 1.6TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804605-B21 | |
|
HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804599-B21 | |
|
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804593-B21 | |
|
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804587-B21 | |
|
HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804581-B21 | |
|
HPE 80GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804575-B21 | |
|
6G SATA Hot Plug MU-3 SFF (2.5-inch) SC Solid State Drives |
| |
|
HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
817011-B21 | |
|
HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
816995-B21 | |
|
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
816985-B21 | |
|
HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
816975-B21 | |
|
HPE 120GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
816965-B21 | |
|
6G SATA Hot Plug RI-3 SFF (2.5-inch) SC Solid State Drives |
| |
|
HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816929-B21 | |
|
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816919-B21 | |
|
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816909-B21 | |
|
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816899-B21 | |
|
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816889-B21 | |
|
HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816879-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) RI-3 SCC SSD |
| |
|
HPE 3.84TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
816933-B21 | |
|
HPE 1.92TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
816923-B21 | |
|
HPE 960GB SATA 6G Read Intensive LFF (2.5in) SC 3yr Wty SSD
|
816913-B21 | |
|
HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
816903-B21 | |
|
HPE 240GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
816893-B21 | |
|
HPE 120GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD
|
816883-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) MU-3 SCC SSD |
| |
|
HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
|
817015-B21 | |
|
HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
|
816999-B21 | |
|
HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
|
816989-B21 | |
|
HPE 240GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
|
816979-B21 | |
|
HPE 120GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
|
816969-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) SC 512e Performance Drives |
| |
|
HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive |
793667-B21 | |
|
HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drives |
793665-B21 | |
|
6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives |
| |
|
HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD |
693687-B21 | |
|
HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
628061-B21 | |
|
HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD |
658079-B21 | |
|
HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD |
657750-B21 | |
|
HPE 500GB SATA 6G Midline 7.2k LFF (3.5in) SC 1yr Wty HDD |
658071-B21 | |
|
6G SATA Hot Plug SFF (2.5-inch) SC 512e Drives |
| |
|
HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
|
765455-B21 | |
|
HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
|
765453-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) Midline (MDL) 512e Drives |
| |
|
HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
|
765255-B21 | |
|
HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
|
765253-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) SC HDD |
| |
|
HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD
|
793695-B21 | |
|
HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD
|
793683-B21 | |
|
6G SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives |
| |
|
HPE 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive |
628065-B21 | |
|
HPE 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive |
659339-B21 | |
|
HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD |
659337-B21 | |
|
HPE 500GB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD |
659341-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
12G SAS Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream H2 Solid State Drives |
| |
|
HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
779168-B21 | |
|
HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
779164-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) SC Write Intensive Solid State Drives |
| |
|
HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
802582-B21 | |
|
HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
802578-B21 | |
|
12G SAS SFF (2.5in) RI-3 SC Solid State Drives |
| |
|
HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816576-B21 | |
|
HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816572-B21 | |
|
HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816568-B21 | |
|
HPE 480GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816562-B21 | |
|
12G SAS SFF (2.5in) MU-3 SC Solid State Drives |
| |
|
HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
822567-B21 | |
|
HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
822563-B21 | |
|
HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
822559-B21 | |
|
HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
822555-B21 | |
|
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives |
| |
|
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
718171-B21 | |
|
HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
734362-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives |
| |
|
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
717965-B21 | |
|
HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
734360-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) EV Solid State Drives |
| |
|
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717971-B21 | |
|
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717969-B21 | |
|
6G SATA Value Endurance Hot Plug LFF (3.5-inch) SCC EV Solid State Drives |
| |
|
HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Conveter Enterprise Value 3yr Wty Solid State Drive |
739900-B21 | |
|
HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive |
739890-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) SC EV Solid State Drives |
| |
|
HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
739898-B21 | |
|
HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
739888-B21 | |
|
6G SATA Hot Plug LFF Value Endurance (3.5-inch) Converter Enterprise Value G1 Solid State Drives |
| |
|
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive |
756660-B21 | |
|
6G SATA Hot Plug LFF Value Endurance (3.5-inch) SCC Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive |
757342-B21 | |
|
6G SATA Hot Plug SFF Value Endurance (2.5-inch) SC Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
757339-B21 | |
|
6G SATA Hot Plug SFF Value Endurance (2.5-inch) Enterprise Value G1 Solid State Drives |
| |
|
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756657-B21 | |
|
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives |
| |
|
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
718183-B21 | |
|
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
718177-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value M1 Solid State Drive |
| |
|
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
764927-B21 | |
|
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
764925-B21 | |
|
HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
764923-B21 | |
|
6G SATA Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives |
| |
|
HP 480GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
789145-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) SC Read Intensive Solid State Drives |
| |
|
HP 480GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
789147-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
Hard Drive Kits |
| |
|
HPE Large Form Factor Hard Drive Blank Kit |
666986-B21 | |
|
HPE Small Form Factor Hard Drive Blank Kit |
666987-B21 | |
|
| ||
|
HPE Networking |
Gigabit Ethernet Adapters |
|
|
HPE NC365T 4-port Ethernet Server Adapter |
593722-B21 | |
|
HPE Ethernet 1Gb 2-port 332T Adapter |
615732-B21 | |
|
HPE Ethernet 1Gb 2-port 361T Adapter |
652497-B21 | |
|
10 Gigabit Ethernet Adapters |
| |
|
HP NC523SFP 10Gb 2-port Server Adapter |
593717-B21 | |
|
HP NC552SFP 10Gb 2-port Ethernet Server Adapter |
614203-B21 | |
|
HPE Ethernet 10Gb 2-port 560SFP+ Adapter |
665249-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs. |
| |
|
Switches |
| |
|
HPE PS1810-24G Switch |
J9834A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
|
Additional Options
|
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information. | ||
|
HPE Insight Software |
HPE Insight Control |
|
|
HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU |
C6N27A | |
|
HPE Insight Control including 1yr 24x7 TSU E-LTU |
C6N28ABE | |
|
HP Insight Control Server Provisioning Media Kit |
BD883A | |
|
HPE Insight Management Media Kit |
C6N31A | |
|
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key. |
| |
|
NOTE: For additional license options please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123391 |
| |
|
HPE Integrated Lights-Out (iLO) |
| |
|
HPE Integrated Lights-Out (iLO) Advanced for ProLiant |
| |
|
HPE iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU |
E6U59ABE | |
|
HPE iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU |
E6U64ABE | |
|
HPE iLO Advanced including 1yr 24x7 Technical Support and Updates 1-server LTU |
512485-B21 | |
|
HPE iLO Advanced including 3yr 24x7 Tech Support and Updates 1-server LTU |
BD505A | |
|
HPE iLO Essentials |
| |
|
HPE iLO Essentials including 3yr 24x7 Technical Support and Updates E-LTU |
E6U61ABE | |
|
HPE iLO Essentials including 1yr 24x7 Technical Support and Updates E-LTU |
E6U62ABE | |
|
HPE iLO Essentials including 3yr 24x7 Tech Support and Updates 1-server LTU |
BD774A | |
|
HPE iLO Essentials including 1yr 24x7 Tech Support and Updates 1-server LTU |
BD775A | |
|
NOTE: For additional license options please see the QuickSpecs at: |
| |
|
| ||
|
Converged Infrastructure Management Software |
HPE OneView |
|
|
HPE OneView with iLO Advanced |
| |
|
HPE OneView Physical Media Kit LTU |
E5Y37A | |
|
HPE OneView including 3yr 24x7 Support Physical 1-server LTU |
E5Y34A | |
|
HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU |
E5Y35AAE | |
|
HPE OneView without iLO Advanced |
| |
|
HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU
|
P8B24A | |
|
HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU
|
P8B26AAE | |
|
HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU
|
P8B31A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
High Performance Clusters |
HPE Cluster Management Utility |
|
|
HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU |
QL803B | |
|
HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU |
BD476A | |
|
HPE Insight Cluster Management Utility Media |
BD477A | |
|
NOTE: For additional license kits please see the QuickSpecs at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735 |
| |
|
| ||
|
HPE Security |
HPE Trusted Platform Module Option |
488069-B21 |
|
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLockerTM Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: http://www.hp.com/go/TPM. |
| |
|
HPE 1U Security Bezel Kit |
664918-B21 | |
|
| ||
|
HPE Storage Controllers |
SAS Controllers |
|
|
Smart Array P222 Controller |
| |
|
HPE Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller |
631667-B21 | |
|
Smart Array P421 Controller |
| |
|
HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller |
631673-B21 | |
|
HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller |
631674-B21 | |
|
Smart Array P431 Controller |
| |
|
HPE Smart Array P431/4GB FBWC 12Gb 2-ports Ext SAS Controller |
698532-B21 | |
|
HPE Smart Array P431/2GB FBWC 12Gb 2-ports Ext SAS Controller |
698531-B21 | |
|
Optional Upgrades |
| |
|
HPE Smart Array SR SmartCache (Single Key/Single Server) LTU |
D7S26A | |
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU |
D7S27A | |
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU |
D7S27AAE | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
Host Bus Adapter |
| |
|
HPE H221 PCIe 3.0 SAS Host Bus Adapter |
729552-B21 | |
|
HPE H222 Host Bus Adapter |
650926-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HPE Networking Switches |
HPE PS1810-24G Switch |
J9834A |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HPE Disk Backup |
NOTE: For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HPE disk backup products see: http://www.hp.com/storage/SPOCK. |
|
|
HPE RDX 2TB USB3.0 External Disk Backup System
|
E7X53B | |
|
HP RDX+ 1TB External Backup System |
B7B69B | |
|
HP RDX+ 500GB External Backup System |
B7B66B | |
|
HPE RDX+ External Docking System
|
C8S07B | |
|
NOTE: Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111633 |
| |
|
| ||
|
HPE Uninterruptible |
HPE DirectFlow Three Phase UPS |
| |
|
Power Unit (1U UPS) |
| ||
|
NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. |
| ||
|
HPE R12000 DirectFlow - 1U Rackmount Uninterruptible Power System
|
G9Y75A | ||
|
HPE R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System
|
AF478A | ||
|
Input/Output Module Options for 1U UPS |
| ||
|
NOTE: Choose one I/O Module per UPS. NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. |
| ||
|
HPE 32A 400-415 Volt Three Phase INTL R12000 DirectFlow UPS IEC309 Input/Output Module
|
AF488A | ||
|
HPE 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output Module
|
AF489A | ||
|
HPE 32A 380 Volt Three Phase China R12000 DirectFlow UPS Unterminated Input/Output Module
|
AF490A | ||
|
HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output Module
|
AF491A | ||
|
HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module
|
AF492A | ||
|
HPE 30A 400-415 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module
|
G9Y76A | ||
|
NOTE: All Input/Output Modules support dual output outlets except the AF484A. |
| ||
|
Power Unit (2U UPS) |
| ||
|
NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. |
| ||
|
HPE R18000 DirectFlow - 2U Rackmount Uninterruptible Power System
|
AF479A | ||
|
Input/Output Module Options for 2U UPS |
| ||
|
NOTE: Choose one I/O Module per UPS. NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. |
| ||
|
HPE 32A 400-415 Volt Three Phase INTL R18000 DirectFlow UPS IEC309 Input/Output Module
|
AF483A | ||
|
HPE 30A 380 Volt Three Phase China R18000 DirectFlow UPS Unterminated Input/Output Module
|
AF485A | ||
|
HPE 30A 480 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module
|
AF486A | ||
|
HPE 30A 480 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module
|
AF487A | ||
|
HPE 30A 400 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module
|
D9Q02A | ||
|
HPE 30A 400-415V Three Phase NA R18000 DirectFlow UPS 1:1 IEC309 Input/Output Module
|
AF484A | ||
|
NOTE: All Input/Output Modules support dual output outlets except the AF484A. |
| ||
|
Battery Pack Options |
| ||
|
NOTE: Choose up to two Battery Packs per UPS (must be the same). NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. |
| ||
|
HPE DirectFlow UPS - 1U Rackmount Lithium-ion Battery Pack
|
AF480A | ||
|
HPE DirectFlow UPS - 3U Rackmount VRLA Battery Pack
|
AF482A | ||
|
NOTE: Please see the QuickSpecs for additional information: |
| ||
|
HPE Rack/Tower UPS |
| ||
|
HPE R/T2200 G4 UPS Models |
| ||
|
HPE R/T2200 G4 NA/JP Uninterruptible Power System
|
J2R00A | ||
|
HPE R/T3000 G4 UPS Models |
| ||
|
HPE R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System
|
J2R01A | ||
|
HPE R/T3000 G4 High Voltage NA/JP Uninterruptible Power System
|
J2R02A | ||
|
HPE R/T3000 G4 High Voltage INTL Uninterruptible Power System
|
J2R04A | ||
|
HPE Rack Models |
| ||
|
R1500 G4 Models |
| ||
|
HPE R1500 G4 NA Uninterruptible Power System
|
J2Q99A | ||
|
HPE R1500 G4 JP/TWN Uninterruptible Power System
|
J2R05A | ||
|
HPE R1500 G4 INTL Uninterruptible Power System
|
J2R03A | ||
|
R7000 |
| ||
|
HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System
|
AF462A | ||
|
R5000 |
| ||
|
HPE R5000 3U L630 High Voltage NA/JP Uninterruptible Power System
|
AF460A | ||
|
NOTE: Please see the QuickSpecs for additional information: |
| ||
|
NOTE: For additional information on HPE Uninterruptible Power Systems please go to: http://www.hp.com/servers/rackups. |
| ||
|
NOTE: For additional information on sizing your HPE UPS, please reference: http://www.upssizer.com |
| ||
|
|
| ||
|
HPE Basic Power Distribution Units |
HPE Basic Power Distribution Unit: 1U/0U Version |
|
|
HPE Basic 1.9kVA/L5-20P 16A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU |
H5M54A | |
|
HPE Basic 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU |
H5M56A | |
|
HPE Basic Power Distribution Unit: Half Height Version |
| |
|
HPE Basic 2.8kVA/L5-30P 24A/120V Outlets (18) 5-20R/Vertical NA/JP PDU |
H5M55A | |
|
HPE Basic 4.9kVA/60320 C20 Detachable 16A/230V Outlets (20) C13/Vertical WW PDU |
H5M57A | |
|
HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (20) C13/Vertical NA/JP PDU |
H5M58A | |
|
HPE Basic 7.3kVA/60309 5-wire 32A/230V Outlets (20) C13/Vertical INTL PDU |
H5M68A | |
|
HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13/Vertical NA/JP PDU |
H5M61A | |
|
HPE Basic Power Distribution Unit: Mid Height Version |
| |
|
HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU |
H5M59A | |
|
HPE Basic 7.3kVA/60309 3-wire 32A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU |
H5M70A | |
|
HPE Basic 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (6) C19/Vertical NA PDU |
H5M60A | |
|
HPE Basic 11kVA/60309 63A 3-wire 48A/230V Outlets (30) C13 (6) C19/Vertical INTL PDU |
H5M71A | |
|
HPE Basic 9.2kVA/50A Terminal Block 40A/230V Outlets (30) C13 (6) C19/Vertical WW PDU |
H5M75A | |
|
HPE Basic 3Ph 5.7kVA/ L21-20P 16A/120-208V Outlets (24) C13 (3) 5-20R/Vertical NA/JP PDU |
H5M63A | |
|
HPE Basic 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (24) C13 (3) C19 (3) 5-20R/Vertical NA/JP PDU |
H5M64A | |
|
HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU |
H5M62A | |
|
HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU |
H5M72A | |
|
HPE Basic Power Distribution Unit: Full Height Version |
| |
|
HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (36) C13 (6) C19/Vertical INTL PDU |
H5M73A | |
|
HPE Basic 3Ph 11kVA/60309 16A/240V Outlets (36) C13 (6) C19/Vertical NA PDU |
H5M67A | |
|
HPE Basic Power Distribution Unit: 480/277 Volt Version |
| |
|
HPE 800VA - 277V Input / 230V Output NA Rack Mount Transformer |
H3X09A | |
|
NOTE: Please see the QuickSpecs for additional information: |
| |
|
| ||
|
HPE Metered Power Distribution Units (PDU) |
HPE Remote Monitored Power Distribution Unit: 1U Version |
|
|
HPE Metered 2.8kVA/L5-30P 24A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU |
D9N43A | |
|
HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU |
D9N46A | |
|
HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (12) C13/Horizontal NA/JP PDU |
D9N44A | |
|
HPE Remote Monitored Power Distribution Unit: Half Height Version |
| |
|
HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (16) C13/Vertical WW PDU |
D9N45A | |
|
HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (12) C13/Vertical NA/JP PDU
|
G9Z05A | |
|
HPE Metered 7.3kVA/60309 3-wire 32A/230V Outlets (12) C13/Vertical INTL PDU
|
G9Z06A | |
|
HPE Remote Monitored Power Distribution Unit: Mid Height Version |
| |
|
HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU |
D9N47A | |
|
HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlets (20) C13 (4) C19/Vertical INTL PDU |
D9N48A | |
|
HPE Metered 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (3) C19/Vertical NA/JP PDU |
D9N51A | |
|
HPE Metered 3Ph 5.7kVA/L21-20P 16A/120-208V Outlets (13) C13 (3)5-20R/Vertical NA/JP PDU |
D9N52A | |
|
HPE Metered 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (18) C13 (3) C19 (3) 5-20R/Vertical NA/JP PDU |
D9N53A | |
|
HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (18) C13 (3) C19/Vertical INTL PDU |
D9N55A | |
|
HPE Remote Monitored Power Distribution Unit: Full Height Version |
| |
|
HPE Metered 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (3) C19/Vertical NA PDU |
D9N49A | |
|
HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlet (32) C13 (4) C19/Vertical INTL PDU |
D9N50A | |
|
HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (30) C13 (3) C19/Vertical INTL PDU |
D9N57A | |
|
HPE Metered 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU |
D9N58A | |
|
HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (30) C13 (3) C19/Vertical NA/JP PDU |
D9N61A | |
|
HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (24) C13 (3) C19/Vertical NA/JP PDU |
D9N54A | |
|
HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU |
D9N59A | |
|
HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU |
D9N60A | |
|
HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlet (30) C13 (3) C19/Vertical INTL PDU |
D9N56A | |
|
HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (12) C13 (12) C19/Vertical NA/JP PDU |
D9N62A | |
|
HPE Metered 3Ph 19.9kVA/L22-30P 24A/277V Outlets (30) RF-203P-HP/Vertical NA PDU |
D9N63A | |
|
HPE Environmental Sensor for Remote Monitored PDUs |
| |
|
HP Environmental Sensor for Remote Monitored and Managed PDUs |
E2D53A | |
|
NOTE: Please see the QuickSpecs for additional information: |
| |
|
| ||
|
HPE Intelligent Power Distribution Unit (PDU) |
iPDU Core Units |
|
|
HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU |
AF520A | |
|
HPE Intelligent Modular 8.3kVA/CS8265C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU |
AF521A | |
|
HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU |
AF522A | |
|
HPE Intelligent Modular 3Ph 14.4kVA/CS8365C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU |
AF533A | |
|
HPE Intelligent Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V (6) C19/Horizontal NA/JP PDU |
AF523A | |
|
HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU |
AF525A | |
|
HPE Intelligent Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU |
AF526A | |
|
HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU |
AF527A | |
|
HPE Intelligent Modular 3Ph 17.3kVA/IEC 60309 60A 4-wire 48A/208V (12) C19/Horizontal NA/JP PDU |
AF535A | |
|
HPE Intelligent Modular 3Ph 17.3kVA/IEC 60309 30A 5-wire 24A/240V (12) C19/Horizontal NA/JP PDU |
AF537A | |
|
HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C19/Horizontal INTL PDU |
AF538A | |
|
iPDU Kits with Standard Extension Bars |
| |
|
HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU |
AF531A | |
|
HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU |
AF532A | |
|
HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU Kit |
AF534A | |
|
iPDU Extension Bars |
| |
|
HPE 5xC13 Intelligent PDU Extension Bar G2 Kit |
AF547A | |
|
HPE 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar |
AF528A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HPE Metered and Switched Power Distribution Units (PDU) |
Half Height Models |
|
|
HPE Metered Switched 3.6kVA/60320 C20 Detachable 16A/230V Outlets (7) C13 (1) C19/Vertical WW PDU
|
H8B49A | |
|
Full Height Models |
| |
|
HPE Metered Switched 2.8kVA/L5-30P 24A/120V Outlets (24) 5-20R /Vertical NA/JP PDU
|
H8B48A | |
|
HPE Metered Switched 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU
|
H8B50A | |
|
HPE Metered Switched 7.3kVA/60309 3-wire 32A/230V Outlets (20) C13 (4) C19/Vertical INTL PDU
|
H8B51A | |
|
HPE Metered Switched 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (6) C19/Vertical NA/JP PDU
|
H8B52A | |
|
HPE Metered Switched 3Ph 8.6kVA/L21-30P 24A/208V Outlets (20)C13 (3)C19 (1)5-20R/Vertical NA/JP PDU
|
H8B53A | |
|
HPE Metered Switched 3Ph 11kVA/60309 5-wire 16A/230V Outlets (21) C13 (3) C19/Vertical INTL PDU
|
H8B54A | |
|
HPE Metered Switched 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU
|
H8B55A | |
|
HPE Metered Switched 3Ph 17.3kVA/60309 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU
|
H8B56A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HPE Rack Series |
HPE Intelligent Series Racks |
|
|
HP 36U 600mm x 1075mm Enterprise Pallet Rack |
BW895A | |
|
HP 36U 600mm x 1075mm Enterprise Shock Rack |
BW896A | |
|
HPE 42U 600mm x 1075mm Enterprise Pallet Rack |
BW903A | |
|
HP 42U 600mm x 1075mm Enterprise Shock Rack |
BW904A | |
|
HP 47U 600mm x 1075mm Enterprise Pallet Rack |
BW911A | |
|
HP 47U 600mm x 1075mm Enterprise Shock Rack |
BW912A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications such as height, width, depth, weight, and color: |
| |
|
| ||
|
HPE Rack Options |
HPE LCD8500 1U Rackmount Console Kit Models |
|
|
HP LCD8500 1U US Rackmount Console Kit |
AF630A | |
|
HP LCD8500 1U UK Rackmount Console Kit |
AF631A | |
|
HP LCD8500 1U DE Rackmount Console Kit |
AF632A | |
|
HP LCD8500 1U FR Rackmount Console Kit |
AF633A | |
|
HP LCD8500 1U JP Rackmount Console Kit |
AF642A | |
|
HP LCD8500 1U RU Rackmount Console Kit |
AF643A | |
|
HP LCD8500 1U INTL Rackmount Console Kit |
AF644A | |
|
HP LCD8500 1U US TAA Rackmount Console Kit |
AF645A | |
|
HPE LCD8500 1U Rackmount Console Kit Options |
| |
|
HP Kit LCD 1.83m Latch Display Port Cable |
G7T29A | |
|
HPE Location Discovery Services LCD8500 Kit
|
TL052A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HPE USB Keyboard and Mouse |
| |
|
HPE USB US Keyboard/Mouse Kit |
631341-B21 | |
|
HPE USB UK Keyboard/Mouse Kit |
631344-B21 | |
|
HPE USB FR Keyboard/Mouse Kit |
631346-B21 | |
|
HPE USB ES Keyboard/Mouse Kit |
631348-B21 | |
|
HPE USB DE Keyboard/Mouse Kit |
631358-B21 | |
|
HPE USB JP Keyboard/Mouse Kit |
631360-B21 | |
|
HPE USB IT Keyboard/Mouse Kit |
631362-B21 | |
|
HPE USB CN Keyboard/Mouse Kit |
631364-B21 | |
|
HPE USB AE Keyboard/Mouse Kit |
638212-B21 | |
|
HPE USB RU Keyboard/Mouse Kit |
638214-B21 | |
|
HPE USB IN Keyboard/Mouse Kit |
672097-D63 | |
|
HPE USB AP/INTL Keyboard/Mouse Kit |
672097-373 | |
|
HPE USB INTL Keyboard/Mouse Kit |
672097-B33 | |
|
HPE USB PT Keyboard/Mouse Kit |
672097-133 | |
|
HPE USB TR Keyboard/Mouse Kit |
672097-143 | |
|
HPE USB CZ Keyboard/Mouse Kit |
672097-223 | |
|
HPE USB FI Keyboard/Mouse Kit |
672097-353 | |
|
HPE USB SE Keyboard/Mouse Kit |
672097-103 | |
|
HPE USB CH Keyboard/Mouse Kit |
672097-113 | |
|
HPE USB KR Keyboard/Mouse Kit |
672097-KD3 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HPE Server Console Switches |
| |
|
HP 0x1x8 G3 KVM Console Switch |
AF651A | |
|
HP 0x2x16 G3 KVM Console Switch |
AF652A | |
|
HP TAA 0x2x16 G3 KVM Console Switch |
AF653A | |
|
HP USB Remote Access Key for G3 KVM Console Switches |
AF650A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HPE Server Console Switch G2 with Virtual Media & CAC |
| |
|
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software |
AF618A | |
|
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software |
AF619A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HPE 1x4 USB/PS2 KVM Console Switch |
| |
|
HP 1x4 USB/PS2 KVM Console Switch |
AF611A | |
|
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF620A | |
|
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF621A | |
|
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF622A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
Rail Kits |
| |
|
HPE 1U Friction Rail Kit |
727604-B21 | |
|
HP 1U Short Friction Rail Kit |
775612-B21 | |
|
| ||
|
HPE USB and SD Options |
HPE Flash Media Kits for USB Drives |
|
|
HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit |
737953-B21 | |
|
HPE Enterprise Mainstream Flash Media Kits for Memory Cards |
| |
|
HPE 8GB microSD Enterprise Mainstream Flash Media Kit |
726116-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HPE Pointnext operational services |
Proactive Care |
|
|
HPE 3 year Proactive Care 24x7 ProLiant DL320e Service |
U6F03E | |
|
HPE 3 year Proactive Care 24x7 with DMR ProLiant DL320e Service |
U6F04E | |
|
HPE 3 year Proactive Care 24x7 with CDMR DL320e Service |
U9A26E | |
|
Foundation Care |
| |
|
HPE 3 year Foundation Care 24x7 DL320e Service |
U2GH5E | |
|
HPE 3 year Foundation Care 24x7 wDMR DL320e Service |
U2GH6E | |
|
HPE 3 year Foundation Care 24x7 wCDMR DL320e Service |
U2GH7E | |
|
Installation Services |
| |
|
HPE Installation DL320e/DL120 Service |
U6F51E | |
|
HPE Startup DL320e/DL120 Service |
U6F53E | |
|
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack |
|
Memory
|
HPE SmartMemory |
|
|
|
Standard Memory Plus Optional Memory |
|
Up to 32 GB memory is available with the optional installation of 4 x 8GB PC3-12800E UDIMM ECC DDR3 UDIMM Memory kits, operating at 1600MHz when fully populated at 2 DIMMs per Channel in 4 slots. |
|
|
|
General Memory Population Rules and Guidelines:
Farthest DIMM (either CHA or CHB) should always be populated first |
|
|
| ||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||
|
Following are memory options available from Hewlett Packard Enterprise: |
| |
|
HPE Memory |
NOTE: To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535 |
|
|
NOTE: HPE memory from previous generation servers are not fully compatible with the DL320e Gen8 Server. |
| |
|
Unbuffered with ECC DIMMs (UDIMMs) |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713975-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713977-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713979-B21 | |
|
Unbuffered with ECC DIMMs (UDIMMs) |
| |
|
HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669320-B21 | |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory |
647905-B21 | |
|
HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669322-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit |
647907-B21 | |
|
HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669324-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit |
647909-B21 | |
|
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. |
| |
Storage
|
|
1 - 2 |
2 x 3.5" (LFF) SAS/SATA hard drive bays |
|
A |
Optical Drive Bay: Optional DVD-RW drive | |
|
|
|
|
|
|
1 - 4 |
4 x 2.5" (SFF) SAS/SATA hard drive bays |
|
A |
Optical Drive Bay: Optional DVD-RW drive |
Technical Specifications
|
System Unit |
Dimensions (H x W x D) |
4 SFF |
1.7 x 17.11 x 15.07 inches (4.32 x 43.46 x 38.30 cm) | |
|
2 LFF |
1.7 x 17.11 x 15.07 inches (4.32 x 43.46 x 38.30 cm) | |||
|
Weight (approximate) |
Maximum |
4 SFF - 8.0 kg, 17.64 lb | ||
|
| ||||
|
Minimum |
2 LFF NHP - 7.0 kg, 15.43 lb | |||
|
|
|
| ||
|
Input Requirements |
Rated Input Voltage |
90 to 264VAC | ||
|
|
Maximum Input Current |
6 Amps (at 100VAC) to 3 Amps (at 200 VAC) | ||
|
|
Rated Input Frequency |
47 to 63 Hz | ||
|
Power Supply Output |
Rated Steady-State Power |
250 W (at 100 VAC), | ||
|
NOTE: 250W Power Supplies have approximately 85% efficiency when operating at 230V,50 Hz (under 50% load conditions). | ||||
|
| ||||
|
System Inlet Temperature |
Operating |
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. | ||
|
Non-operating |
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr). | |||
|
Relative Humidity |
Operating |
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. | ||
|
Non-operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | |||
|
Altitude |
Operating |
3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). | ||
|
Non-operating |
9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). | |||
|
Acoustic Noise |
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). | |||
|
Idle | ||||
|
LWAd |
4.8 B (Base Model) | |||
|
4.9 B (Performance Model) | ||||
|
LpAm |
32 dBA (Base Model) | |||
|
33 dBA (Performance Model) | ||||
|
Operating |
||||
|
LWAd |
4.8 B (Base Model) | |||
|
5.1 B (Performance Model) | ||||
|
LpAm |
32 dBA (Base Model) | |||
|
35 dBA (Performance Model) | ||||
|
NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels | ||||
|
Emissions Classification (EMC) |
FCC Rating |
Class A | ||
|
Normative Standards |
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1 | |||
|
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. | ||||
|
| ||||
|
HPE Dynamic Smart Array B120i Controller |
Dimensions |
Embedded |
|
Disk Drive Interface - Transfer rate |
Up to 6Gb/s SATA (Serial ATA) | |
|
SATA Connectors |
6 internal SATA connectors | |
|
Server Interface |
x4 PCIe 2.0 | |
|
SATA Speed |
6Gb/s SATA links | |
|
Cache Memory |
Zero Memory RAID has no cache memory | |
|
Logical Drives Supported |
Up to 8 logical volumes (6 physical drives) | |
|
Host Memory Addressing |
64-bit, supporting greater than 4GB server memory space | |
|
Hot Plug Support |
Yes | |
|
RAID Support |
RAID 0 (Striping), RAID 1 (Mirroring) | |
|
RAID 1+0 (Striping & Mirroring) | ||
|
| ||
|
HPE Ethernet 1Gb 2-port NC332i Adapter |
Compatibility |
IEEE 802.3 10Base-T |
|
Data Transfer Method |
PCI Express, one lanes (x1) | |
|
Controller |
BCM5720 | |
|
Network Transfer Rate |
10Base-T (Half and/or Full-Duplex) | |
|
100Base-T (Half and/or Full--Duplex) | ||
|
1000Base-T (Half and/or Full-Duplex) | ||
|
Connector |
RJ-45 | |
|
Cable Support |
10Base-T | |
|
100Base-TX | ||
|
1000BaseTX | ||
|
| ||
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change | |||||||||||||||||||
|
23-Oct-2017 |
From Version 26 to 27 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. | |||||||||||||||||||
|
16-Feb-2016 |
From Version 25 to 26 |
Added |
New Hard Drives offering was added to HPE Hard Drives section. | |||||||||||||||||||
|
Changed |
Additional Options section was revised. | |||||||||||||||||||||
|
Removed |
Obsolete SKUs were removed from the HPE Hard Drives, HPE Tape Backup, HPE Tape Storage Systems, and HPE Disk Storage Systems. | |||||||||||||||||||||
|
17-Dec-2015 |
From Version 24 to 25 |
Added |
Smart Buy models were added to the NA version. | |||||||||||||||||||
|
01-Dec-2015 |
From Version 23 to 24 |
Added |
New Hard Drives offering was added to HPE Hard Drives section. | |||||||||||||||||||
|
Changed |
What's New was updated. | |||||||||||||||||||||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. | |||||||||||||||||||||
|
09-Oct-2015 |
From Version 22 to 23 |
Removed |
Server model 722547-xx1 was removed from Pre-configured Models. | |||||||||||||||||||
|
28-Sep-2015 |
From Version 21 to 22 |
Added |
Added new 6Gb SATA Solid State Drives. Added new HPE OneView management software. | |||||||||||||||||||
|
Removed |
Obsolete SKUS were removed from the QuickSpecs. | |||||||||||||||||||||
|
17-Aug-2015 |
From Version 20 to 21 |
Added |
New optical drive option was added to HPE Optical Drives. New Solid State Drives offering was added to HPE Hard Drives section. | |||||||||||||||||||
|
Changed |
Internal Storage Devices section was revised. | |||||||||||||||||||||
|
01-Jun-2015 |
From Version 19 to 20 |
Added |
New Hard Drives were added to Core Options. | |||||||||||||||||||
|
Changed |
Maximun Internal Storage was revised. | |||||||||||||||||||||
|
Removed |
Obsolete SKUs were removed from Configuration Information - Factory Integrated Models, Core Options, and Additional Options. | |||||||||||||||||||||
|
23-Apr-2015 |
From Version 18 to 19 |
Changed |
Common Slot Power Supply, Power Supply in Pre-configured Models, Configuration Information - Factory Integrated Models, HPE Uninterruptible Power Systems, and Technical Specifications were revised. | |||||||||||||||||||
|
30-Mar-2015 |
From Version 17 to 18 |
Added |
New Hard Drives added to Core Options. | |||||||||||||||||||
|
Changed |
HPE Pointnext operational services was revised. | |||||||||||||||||||||
|
Removed |
Removed obsolete SKUs from HPE Processors. | |||||||||||||||||||||
|
01-Mar-2015 |
From Version 16 to 17 |
Changed |
Common Slot Power and Power Supply information was revised in Standard Features, Pre-Configured Models, and Configuration Information - Factory Integrated Models sections. Rail Kits was revised in Additional Options section. Technical Specifications section was revised. | |||||||||||||||||||
|
Removed |
HPE Tower UPS SKUs were removed from Additional Options section. | |||||||||||||||||||||
|
09-Feb-2015 |
From Version 15 to 16 |
Added |
New Hard Drives, DirectFlow UPS, Rack and Tower G4 Models, LCD8500 1U Rackmount Models and Options were added to the Additional Options section. | |||||||||||||||||||
|
Changed |
What's New was changed to: Latest 6G SATA Drives, 12G SAS Drives, and 6G SATA Solid State Drives New DirectFlow Three Phase UPS, Rack and Tower G4 models, and LCD8500 1U Rackmount SKU's Service and Support section was revised. HPE Uninterruptible Power Systems, HPE Rack Options, and HPE Pointnext operational services in Additional Options section were revised. | |||||||||||||||||||||
|
01-Dec-2014 |
From Version 14 to 15 |
Added |
HPE 1.6TB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive and HPE 1.6TB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive were added to HPE Hard Drives. | |||||||||||||||||||
|
Changed |
HPE Pointnext operational services section has been revised. | |||||||||||||||||||||
|
29-Sep-2014 |
From Version 13 to 14 |
Added |
New Solid State Drives were added. HPE Managed Power Distribution Units (maPDU) was added to Additional Options. | |||||||||||||||||||
|
Changed |
Service and Support section was revised. HPE Hard Drives was revised in Core Options section. | |||||||||||||||||||||
|
18-Aug-2014 |
From Version 12 to 13 |
Added |
New Hard Drives were added. HPE Remote mPDUs half height version were added. | |||||||||||||||||||
|
Changed |
Standard Features, Configuration Information - Factory Integrated Models, and Technical Specifications sections were revised. | |||||||||||||||||||||
|
08-July-2014 |
From Version 11 to 12 |
Changed |
Common Slot Power Supply in Standard Features was revised. Pre-configured Models, and Technical Specifications were revised. HPE Power Supplies, and HPE Security were revised in Configuration Information - Factory Integrated Models. | |||||||||||||||||||
|
Removed |
HPE 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive, and 6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives were removed from Core Options. | |||||||||||||||||||||
|
10-Jun-2014 |
From Version 10 to 11 |
Added |
768645-xx1 was added to Performance Models. | |||||||||||||||||||
|
Changed |
Entry and Based Models were revised. What's new, Standard Features, Configuration Information, Additional Options, Memory and Technical Specifications were revised. | |||||||||||||||||||||
|
09-May-2014 |
From Version 9 to 10 |
Changed |
Service and Support, Memory, Hard Drives, Storage Controllers, Disk Enclosures, and Basic and Remote Monitoring Power Distribution Units were revised. | |||||||||||||||||||
|
13-Dec-2013 |
From Version 7 to 8 |
Changed |
HPE Insight Control including 1yr 24x7 Support ProLiant Ml/DL/BL-bundle FIO Electronic License was added to Step 3 in Configuration Information HPE 1.2TB 6G SAS 10k rpm SFF SC Dual Port Enterprise 3yr Warranty Hard Drive was added to Hard Drives HPE SmartCache and HPE H221 PCIe 3.0 SAS Host Bus Adapter were added to Storage Controllers HPE Basic Power Distribution Units and HPE Remote Monitoring Power Distribution Units were revised in Additional Options HPE Power Distribution Units was removed from Additional Options | |||||||||||||||||||
|
30-Sep-2013 |
From Version 6 to 7 |
Added |
Entry and Base Processors were added Canonical Ubuntu Server was added to Operating Systems and Virtualization Software Support for ProLiant Servers Converged Infrastructure Management Software was added HPE Disk Backup was added to Additional Options HPE Remote Monitoring Power Distribution Units was added to Additional Options | |||||||||||||||||||
|
20-Sep-2013 |
From Version 5 to 6 |
Changed |
HPE Dynamic Smart Array B120i Controller in Technical Specifications was revised. | |||||||||||||||||||
|
10-Sep-2013 |
From Version 4 to 5 |
Changed |
HPE Insight Management, Memory, Hard Drives, Networking, High Performance Clusters, Storage Controllers, HPE Power Distribution Units, and HPE Pointnext operational services were revised. | |||||||||||||||||||
|
20-Aug-2013 |
From Version 3 to 4 |
Changed |
Changes made to correct the overview image. | |||||||||||||||||||
|
19-Aug-2013 |
From Version 2 to 3 |
Changed |
Changes made in the North America and Canada versions only. | |||||||||||||||||||
|
26-Jul-2013 |
From Version 1 to 2 |
Changed |
Corrected the second image in the Storage section. | |||||||||||||||||||
| ||||||||||||||||||||||
