HP ProLiant DL980 Generation 7 (G7)

HP ProLiant DL980 G7 with HP PREMA Architecture is an eight socket server built to handle the largest x86 enterprise environments with confidence. The DL980 G7 blends industry standard economies with advanced mission critical capabilities to deliver balanced scaling, self-healing resiliency and breakthrough efficiencies needed in essential enterprise compute environments. Whether housing a single very large data intensive workload, or many consolidated or virtualized workloads to improve resource utilization, the DL980 G7 featuring HP PREMA Architecture with Smart CPU caching and a resilient system fabric, is designed to reduce bottlenecks, improve throughput and performance, as well as deliver enhanced reliability not previously available in an x86 environment.

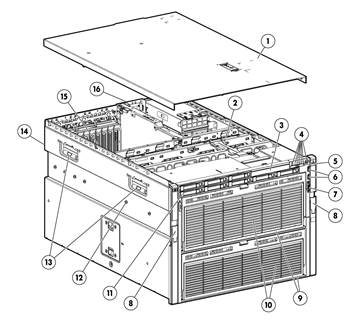

Front View:

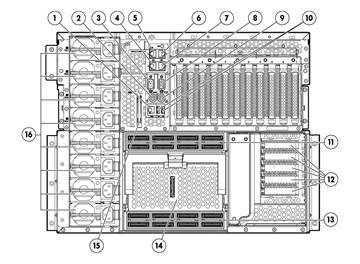

Rear View:

1.

Quick removal access panel

1.

Integrated Lights-Out 3 port

2.

8 hot plug redundant fans standard on all models, upper four fan positions shown, lower four not shown

2.

Mouse port

3.

DVD drive bay

3.

Serial port

4.

Front panel LED display and Power button

4.

Gigabit NIC port

5.

Slide-out System Insight Display

5.

Gigabit NIC port

6.

Two front accessible USB 2.0 ports

6.

Gigabit NIC port

7.

One front video port

7.

Gigabit NIC port

8.

Quick release lever for fast server access

8.

Video port

9.

Upper and lower front accessible processor and memory drawer

9.

Keyboard port

10.

Support for up to eight 10-core Intel Xeon processors (4 processors in upper and 4 processors in the lower drawer)

10.

Two USB ports

11.

Support for up to 8 small form factor (SFF) SAS drives

11.

Upper XNC ports

12.

Universal tool-less "Snap In" Sliding Rail Solution

12.

Up to 5 low profile slots supported

13.

Server lifting handles

13.

Lower XNC ports

14.

8U rack form factor

14.

XNC module

15.

Up to 11 full height/full length slots supported

15.

Service tool

16.

Hot Plug Redundant Power Supplies (4 or 8 depending on the model)

16.

Power supplies (4 or 8 depending on the model)

What's New

• Expanded maximum card limits for Converged Network Adapters to four cards per server
• Support for HP StoreFabric SN1000 16Gb Host Bus Adapters
• Support for HP Smart Array P421 Controller
• Support for HP Ethernet 10Gb 2-port 530T Adapter
• Support for HP 3TB G2 Multi Level Cell PCIe ioDrive2 IO Accelerator
• Support for HP ProLiant DL980 331i SPI Board based on integrated 331i quad port 1GbE networking controller
• Support for HP ProLiant NC375i SPI Board based on integrated NC375i quad-port 1GbE networking controller

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

Processor
Four or Eight of the following processors depending on model

Ten-Core Processors

Intel® Xeon® E7-2850 (2.00GHz/10-core/24MB/130W) Processor

Intel® Xeon® E7-2860 (2.26GHz/10-core/24MB/130W) Processor

Intel® Xeon® E7-4870 (2.4GHz/10-core/30MB/130W) Processor

Eight-Core Processors

Intel® Xeon® E7-2830 (2.13GHz/8-core/24MB/105W) Processor

Six-Core Processors

Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) Processor

Cache Memory
One of the following depending on Model

30MB (1x30MB) Level 3 cache
NOTE: For E7-4870 Processor only.

24MB (1 x 24MB) Level 3 cache
NOTE: For E7-2830, E7-2850 and E7-2860.

18MB (1 x 18MB) Level 3 cache
NOTE: For E7-4807 Processor only.

Chipset

Industry Standard Intel® 7500 Chipset

Hewlett-Packard DL980 G7 Node Controller

NOTE: Up to three Industry Standard Intel® 7500 Chipsets with six high-speed interconnects up to 6.4GT/s.
NOTE: For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/

Upgradeability

Upgradeable to eight processors

Memory Protection

Advanced ECC

Mirrored Memory

Online Spare Memory Rank

Dynamic Device Data Correction (Intel Xeon E7 Family)

Memory

Type

PC3-10600R Registered Low Voltage (1.35V) DIMMs (DDR3)

Maximum

4TB (128 x 32GB)

Network Controller
Choose one of the following

HP ProLiant DL980 NC375i SPI Board
NOTE: Optional Dual Port 10GbE upgrade (replaces two 1G ports).
HP ProLiant DL980 331i SPI Board
NOTE: Does not support 10GbE upgrade

Expansion Slot Restrictions

Up to 16 I/O cards are supported within the DL980 server, however due to I/O port space limitations, no more than 11 of any combination of the following I/O cards may be installed in the DL980 server at one time:

• HP SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter (PN 614988-B21)

Storage Controller

HP Smart Array P410i controller with optional FBWC

The Flash Backed Write Cache (FBWC) increases cache data retention capabilities from two days of existing battery backed write cache (BBWC) to infinite data retention.

• Standard on 4P Models, optional on factory integrated models
• Transportable data protection
• Increases overall controller performance

Internal Storage Devices

Diskette Drive

None

Optical Drive

Slimline DVD-RW Drive standard

Hard Drives

None ship standard

Hard Disk Drive
Backplane

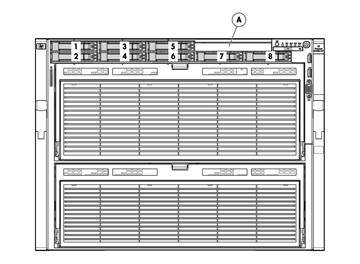

Internal SAS backplane supports up to eight SFF hard disk drives

Maximum Internal Storage

Hot Plug SFF SAS

7.2TB

8 x 900GB

Hot Plug SFF SAS SSD

3.2TB

8 x 400GB

Interfaces

Serial

1

Video

1 front; 1 rear

SD slot

1

Network RJ-45

4

iLO 3 Remote Management

1

Keyboard

1

Pointing Device (Mouse)

1

USB 2.0 Ports

6 total: 2 front (video); 2 rear (video, NIC); 2 internal

Industry Standard Compliance

ACPI 2.0. Compliant

PCIE 2.0 Compliant

PXE Support

WOL Support

Physical Address Extension (PAE) Support

Microsoft® Logo certifications

USB 2.0 Support

Server Power Cords

One 6' highline (IEC-IEC) power cord per power supply is shipped standard with each system.
NOTE: If customers require a local power cord, they can check the power cord matrix for the appropriate country specific sku. Please see the following power cord matrix for details: http://www.hp.com/go/powercordmatrix

Power Supply

NOTE: Rear accessible Hot Plug Power Supplies with option for redundancy (Redundant power supplies are standard on some models).

E7-2800 4P Model:

(4) 1200W Common Slot Platinum Power Supplies (220VAC only)

E7-4800 4P Model:

(8) 1200W Common Slot Platinum Power Supplies (220VAC only)

NOTE: The HP ProLiant DL980 G7 requires four power supplies to operate. With four power supplies there is no power redundancy. Eight power supplies are required for power redundancy. The level of redundancy will be reported during the system power on.

System Fans

8 Hot plug, redundant fans ship standard

Required Cabling

For required cabling information, refer to the HP Web site at: www.hp.com/servers/dl980

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Microsoft Windows Server Hyper V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
Oracle Linux
VMware

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page www.hp.com/support/DL980G7.

Graphics

Integrated ATI ES1000 with 32MB embedded video SDRAM
Max Resolution 1280 x 1024 x 16M color

Form Factor

Rack (8U = 14 inches)

Ships with Quick Deploy Sliding Rail System, an ambidextrous cable management arm and quick release levers for fast and easy serviceability and in-rack tool-less access to major components.

HP Insight management software

HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: www.hp.com/go/foundation.

The foundation pack includes:

• HP SmartStart
• HP Management DVD
• HP ProLiant Smart Update Firmware DVD

SmartStart version supported (minimum): SmartStart 8.5
http://www.hp.com/servers/smartstart

NOTE: In an effort to support reducing our environmental impact, the HP Insight Foundation Suite for ProLiant media will be available as a selectable option for this server at time of order of a CTO SKU. This will allow customers to order the number of media kits that best meet their needs and eliminate receiving unnecessary duplicate media.

HP Integrated Lights-Out (iLO)

HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP iLO functions without additional software and can be accessed from any location via a web browser. HP iLO works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. HP iLO can be purchased stand-alone and it also is included with the purchase of HP Insight Control. For more information, visit: www.hp.com/go/iLO

Intelligent Manageability

HP Systems Insight Manager
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support
Hot Spare Boot
NOTE: Upon the event of a failed processor in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s).

Security

Power-on password
Keyboard password
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Removable CD-ROM or DVD drive

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Insight management software

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.

HP Insight Dynamics for ProLiant

HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. As a powerfully integrated by design toolkit to accelerate complex technology projects and simplify daily operations that ultimately enable IT Staff personnel to dynamically keep pace with the organizations changing business requirements. It enables them to plan capacity and power continuously, balance across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a self-service portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics

High Performance Clusters

HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters

HP HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html

HP Cluster Management Utility

HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used to manage large-scale Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu

HP HPC Linux Value Pack

HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported specially priced software bundle for the development and deployment of applications on HPC Cluster Platforms. Value Pack includes the Platform HPC Enterprise Edition suite of tools including the LSF workload scheduler, the HP-MPI parallelization library. Also included are the HP Unified Parallel C compiler and the HP Shmem library, as well as the execution environments for the libraries and compiler. HP HPC Linux Value Pack

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

HP Simple Configurator

SCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator

Service and Support

HP Technology Services for Industry Standard Servers

HP Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to HP to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HP Care Pack Services

HP Care Pack Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Optimized Care

Delivers support services to maintain servers at optimum performance availability. The services included are:

HP Proactive Care Advanced - 24x7 coverage, three year Care Pack Service

Achieve a higher return on your product investment with the personal attention from a locally assigned Account Support Manager who delivers recommendations designed to improve availability and performance.  Leverage your system’s ability to connect to HP for automated problem detection and rapid critical event management to increase stability and reduce unplanned downtime. This recommendation provides 24x7 coverage with four-hour response for hardware and two-hour callback for supported software. Collaborative call management comes with Proactive Care Advanced or you may choose full support from HP where we own all cases through to resolution.   HP is a leading provider of support services for most operating systems used on HP BladeSystem with long, successful partnerships with vendors such as Microsoft, Red Hat, VMware, SUSE and others. Purchasing software support from HP simplifies troubleshooting and shortens time to resolution with one call for hardware or software questions.

http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA5-3259ENW&cc=us&lc=en

Standard Care

Support services to maintain high level of server availability. The services included are:

HP Proactive Care with 24x7 coverage, three year Care Pack Service

HP Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to HP.  This Care Pack Service combines three years’ proactive reporting and advice with our 24x7 coverage and enhanced escalation management, four hour hardware response time and two hour call back for software questions on leading industry standard software running on your HP ProLiant server. http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Related Services

HP Datacenter Care service

HP Datacenter Care helps you improve IT stability and security, increase the value of IT, and enable agility and innovation.  It is a structured framework of repeatable, tested, and globally available services “building blocks.” You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HP Datacenter Care, you benefit from a personalized relationship with HP via a single point of accountability for HP and others’ products.  For more information, visit www.hp.com/services/datacentercare

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Factory Express for Servers and storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

Data Privacy Services

Protect your data through better media management.  HP Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements.  Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. www.hp.com/services/dataprivacy

Additional HP Care Pack services can be found at: http://www.hp.com/go/cpc

Get connected to HP to improve your support experience

Prevent problems with innovative, automated monitoring tools and proactive services. Combining Proactive Care Services with our remote support technology such as Insight Online provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: www.hp.com/go/proactiveinsightexperience

Parts and Materials

HP will provide HP-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction.

For more information

To learn more on HP Business Critical System services, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/bcs

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.

HP ProLiant DL980 G7 E7-4870 2.4GHz 10 Core 4p Server
AM447A

Processor(s)

(4) Intel® Xeon® E7-4870 (2.4GHz/10-core/30MB/130W) Processors

Cache Memory

30MB (1 x 30MB) Level 3 cache

Memory

256GB (32 x 8GB) PC3-10600R Registered DIMMs (DDR3)

Network Controller

HP NC375i Integrated Quad Port Gigabit Server Adapter

Storage Controller

HP Smart Array P410i Controller with 512MB FBWC

Hard Drives

None ship standard

Internal Storage

7.2TB max (with optional 900GB SAS hard drives)

Optical Drive

Slimline DVD-RW Drive standard

Power Supply

Eight 1200W Common Slot Platinum power supplies standard
(fifth - eighth power supply are for redundancy)

Fans

8 Hot plug, redundant fans ship standard

Integrated Lights-Out

HP Integrated Lights-Out 3 (iLO 3) management processor (integrated on system board)

Insight Control

HP Insight Control No Media single server license, including 1year of 24x7 Technical Support

Form Factor

Rack 8U

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

HP ProLiant DL980 G7 E7-2860 2.26GHz 10 Core 4p Server
AM448A

Processor(s)

(4) Intel® Xeon® E7-2860 (2.26GHz/10-core/24MB/130W) Processors

Cache Memory

24MB (1 x 24MB) Level 3 cache

Memory

128GB (16 x 8GB) PC3-10600R Registered DIMMs (DDR3)

Network Controller

HP NC375i Integrated Quad Port Gigabit Server Adapter

Storage Controller

HP Smart Array P410i Controller with 512MB FBWC

Hard Drives

None ship standard

Internal Storage

7.2TB max (with optional 900GB SAS hard drives)

Optical Drive

Slimline DVD-RW Drive standard

Power Supply

Four1200W Common Slot Platinum power supplies standard

Fans

8 Hot plug, redundant fans ship standard

Integrated Lights-Out

HP Integrated Lights-Out 3 (iLO 3) management processor (integrated on system board)

Insight Control

HP Insight Control No Media single server license, including 1year of 24x7 Technical Support

Form Factor

Rack 8U

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

HP ProLiant DL980 G7 E7-2830 2.13GHz 8 Core 4p Server
AM449A

Processor(s)

(4) Intel® Xeon® E7-2830 (2.13GHz/8-core/24MB/105W) Processors

Cache Memory

24MB (1 x 24MB) Level 3 cache

Memory

128GB (16 x 8GB) PC3-10600R Registered DIMMs (DDR3)

Network Controller

HP NC375i Integrated Quad Port Gigabit Server Adapter

Storage Controller

HP Smart Array P410i Controller with 512MB FBWC

Hard Drives

None ship standard

Internal Storage

7.2TB max (with optional 900GB SAS hard drives)

Optical Drive

Slimline DVD-RW Drive standard

Power Supply

Four 1200W Common Slot Platinum power supplies standard

Fans

8 Hot plug, redundant fans ship standard

Integrated Lights-Out

HP Integrated Lights-Out 3 (iLO 3) management processor (integrated on system board)

Insight Control

HP Insight Control No Media single server license, including 1year of 24x7 Technical Support

Form Factor

Rack 8U

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is only available as a factory installable option.
NOTE: USE AM451A when configuring the system with Intel Xeon® E7-4800 and E7-2800 Series Processor.

Step 1: Base Configuration

HP Model

HP ProLiant DL980 G7 Configure-to-order Server
NOTE: Use with Intel Xeon® E7-4800 and E7-2800 Series Processors only

AM451A

Factory Integrated Model ships with:

Choose between:
HP ProLiant DL980 NC375i SPI Board Or
HP ProLiant DL980 331i SPI Board
Eight HP Memory Boards
Five PCI-express slots
HP Smart Array P410i/Zero Memory Controller
Four 1200W Common Slot Platinum hot-plug power supplies
Eight redundant hot plug fans
SFF SAS drive cage
HP Integrated Lights-Out 3 (iLO 3) management processor (integrated on system board)
Rack form factor, 8U

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HP Processors

NOTE: Each processor kit contains four processors.
NOTE: If eight processors are desired select one xxxxxx-L21 and one xxxxxx-B21. Additionally one HP DL980 CPU Assembly: P/N: AM450A for Intel® Xeon® E7-4800 and E7-2800 Series Processors will be required. AM451A is required base configuration for Intel® Xeon® E7-4800 and E7-2800 Series Processors.

Ten-Core Processors

HP DL980 G7 Intel® Xeon® E7-2850 (2.0Ghz/10-core/24MB/130W) FIO 4-processor Kit
NOTE: QPI speed is 6.4GT/s

650768-L21

HP DL980 G7 Intel® Xeon® E7-2860 (2.26GHz/10-core/24MB/130W) FIO 4-processor Kit
NOTE: QPI speed is 6.4GT/s

650769-L21

HP DL980 G7 Intel® Xeon® E7-4870 (2.4GHz/10-core/30MB/130W) FIO 4-processor Kit
NOTE: QPI speed is 6.4GT/s

650770-L21

Eight-Core Processors

HP DL980 G7 Intel® Xeon® E7-2830 (2.13GHz/8-core/24MB/105W) FIO 4-processor Kit
NOTE: QPI speed is 6.4GT/s

650767-L21

Six-Core Processors

HP DL980 G7 Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) FIO 4-processor Kit
NOTE: QPI speed is 4.8GT/s

650766-L21

HP Memory

Registered DIMMs (RDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

500656-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593339-B21

HP DL980 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Reg CAS-9 Memory Kit
NOTE: For Intel Xeon E7 Family only.

A0R57A

HP DL980 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Reg CAS-9 Memory Kit

A0R56A

HP DL980 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Reg CAS-9 LP Memory Kit
NOTE: For Intel Xeon E7 Family only.

A0R58A

HP DL980 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Reg CAS-9 LP Memory
NOTE: For Intel Xeon E7 Family only.

A0R59A

HP DL980 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Reg CAS-7 LP Memory
NOTE: For Intel Xeon E7 Family only.

A0R61A

HP DL980G7 (E7) Memory Cartridge

A0R60A

HP Optical Drives

HP Slim 12.7mm SATA DVD-ROM Optical Drive

481041-B21

HP Slim 12.7mm SATA DVD-RW Optical Drive

481043-B21

Step 3: Choose Additional Factory Integratable Options (only one of the following from each list unless otherwise noted)
NOTE: This is a list of supported options. Some may be discontinued.

HP Insight Software

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License

582765-B21

HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License

TC203A

Step 4: Choose Additional Options for Factory Integration

NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.

HP Unique Options

HP DL580 G7 PCI Express Kit
NOTE: Adds four PCI-E 2.0 x8, one PCI-E 2.0 x4 and one PCI-E 1.1 x4.

588137-B21

HP DL580 G7 PCI-X Combo Express Kit
NOTE: Adds two PCI-E 2.0 x16, one PCI-E 2.0 x4 and two PCI-X.
NOTE: Suggested Slot placement:

1. Slot 3 PCIe2 x 16 (16,8,4,2,1)
2. Slot 6 PCIe2 x 16 (16,8,4,2,1)
3. Slot 9 PCIe2 x 16 (8,4,2,1)*
4. Slot 11 PCIe2 x 16 (8,4,2,1)*
   Slot 9 and 11 are physically a x16 slot but will operate electrically at x8

588139-B21

HP DL980 G7 Low Profile PCI-E I/O Expansion Kit with Riser Card
NOTE: Adds four PCI-E 2.0 x8, one PCI-E 2.0 x4.

AM434A

HP DL980 E7 Series CPU Installation Assembly
NOTE: Required for 8P configurations only. This part number will be used for Intel Xeon E7-4800 and E7-2800 Series Processors.

AM450A

HP Processors

NOTE: Each processor kit contains four processors. 8P configurations require one HP DL980 CPU Assembly (P/N: AM450A)

Ten-Core Processors

HP DL980 G7 Intel® Xeon® E7-2850 (2.0Ghz/10-core/24MB/130W) 4-processor Kit
NOTE: QPI speed is 6.4GT/s

650768-B21

HP DL980 G7 Intel® Xeon® E7-2860 (2.26GHz/10-core/24MB/130W) 4-processor Kit
NOTE: QPI speed is 6.4GT/s

650769-B21

HP DL980 G7 Intel® Xeon® E7-4870 (2.4GHz/10-core/30MB/130W) 4-processor Kit
NOTE: QPI speed is 6.4GT/s

650770-B21

Eight-Core Processors

HP DL980 G7 Intel® Xeon® E7-2830 (2.13GHz/8-core/24MB/105W) 4-processor Kit
NOTE: QPI speed is 6.4GT/s

650767-B21

Six-Core Processors

HP DL980 G7 Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) 4-processor Kit
NOTE: QPI speed is 4.8GT/s

650766-B21

HP Memory

Registered DIMMs (RDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

500656-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593339-B21

HP DL980 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Reg CAS-9 Memory Kit
NOTE: For Intel Xeon E7 Family only.

A0R57A

HP DL980 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Reg CAS-9 Memory Kit

A0R56A

HP DL980 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Reg CAS-9 LP Memory Kit
NOTE: For Intel Xeon E7 Family only.

A0R58A

HP DL980 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Reg CAS-9 LP Memory
NOTE: For Intel Xeon E7 Family only.

A0R59A

HP DL980 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Reg CAS-7 LP Memory
NOTE: For Intel Xeon E7 Family only.

A0R61A

HP DL980G7 (E7) Memory Cartridge

A0R60A

NOTE: Eight memory boards come standard in all pre-configured and CTO models. A maximum of 16 memory boards are supported in the server (requires installation of the HP DL980 CPU Assembly P/N: AM450A).

HP Optical Drives

HP Slim 12.7mm SATA DVD-ROM Optical Drive

481041-B21

HP Slim 12.7mm SATA DVD-RW Optical Drive

481043-B21

HP Hard Drives

NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 1200GB 12G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

785079-B21

HP 900GB 12G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

785075-B21

HP 600GB 12GSAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

785073-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581284-B21

HP 300GB 12G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

785071-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive

627117-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)

12G SAS 10K SFF (2.5-inch) ENT HDD

HP 1.2TB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785079-B21

HP 900GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785075-B21

HP 600GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785073-B21

HP 300GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785071-B21

12G SAS ME (2.5-inch) EM SSD

HP 800GB 12G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive

741144-B21

HP 400GB 12G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive

741140-B21

HP 200GB 12G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive

741136-B21

12G SAS HE (2.5-inch) EP SSD

HP 800GB 12G SAS High Endurance SFF 2.5-in Enterprise Performance 3yr Wty Solid State Drive

741157-B21

HP 400GB 12G SAS High Endurance SFF 2.5-in Enterprise Performance 3yr Wty Solid State Drive

741153-B21

HP 200GB 12G SAS High Endurance SFF 2.5-in Enterprise Performance 3yr Wty Solid State Drive

741148-B21

6G SAS Hot Plug Enterprise Performance Solid State Drives

HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive

632494-B21

HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive

632492-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html (Worldwide)

6G SAS Hot Plug Enterprise Mainstream Solid State Drives

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream 3yr Warranty Solid State Drive

690821-B21

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Warranty Solid State Drive

690819-B21

12G SAS Hot Plug Enterprise Mainstream Solid State Drives

HP 200GB 12G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Warranty Solid State Drive

779162-B21

HP 400GB 12G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream 3yr Warranty Solid State Drive

779166-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html (Worldwide)

6G SATA VE SFF (2.5-inch) EV G1 Solid State Drive

HP 480GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty G1 Solid State Drive

756666-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty G1 Solid State Drive

756651-B21

HP 120GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty G1 Solid State Drive

756630-B21

6G SATA LE SFF (2.5-inch) EL G1 Solid State Drive

HP 960GB 6G SATA Light Endurance SFF 2.5-in Enterprise Light 3yr Wty G1 Solid State Drive

756611-B21

HP Networking

Integrated Network Adapters

HP ProLiant DL980 NC375i SPI Board
NOTE: For more details on the NC375i adapter, please check the QuickSpec:
http://h18004.www1.hp.com/products/quickspecs/13471_div/13471_div.html

A0R66A

HP ProLiant DL980 331i SPI Board
NOTE: For more details on the 331i adapter, please check the QuickSpec:
http://h18004.www1.hp.com/products/quickspecs/14215_div/14215_div.html

A0R67A

Gigabit Ethernet Adapters

HP NC112T PCI Express Gigabit Server Adapter

503746-B21

HP NC360T PCI-E Dual Port Gigabit Server Adapter

412648-B21

HP NC375T PCI Express Quad Port Gigabit Server Adapter

538696-B21

HP NC365T 4-port Ethernet Server Adapter

593722-B21

HP NC382T PCIe Dp Mfn Gigabit Svr Adapter

458492-B21

HP Ethernet 1Gb 2-port 361T Adapter

652497-B21

HP Ethernet 1Gb 4-port 331T Adapter

647594-B21

HP Ethernet 1Gb 2-port 332T Adapter

615732-B21

10 Gigabit Ethernet Adapters

HP NC523SFP 10Gb 2-port Server Adapter

593717-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HP Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

HP Ethernet 10Gb 2-port 530T Adapter

656596-B21

NOTE: The DL980 G7 can support up to

1. Either four NC523SFP or four NC552 SFP or four 530SFP or four 560SFP or four 530T per server under Windows Server 2008 R2 and RHEL.
2. Eight NC550SFP are supported under RHEL and SUSE.

One NC524SFP with either three NC523SFP or three NC552SFP or three 530SFP+ or or three 560SFP+or three 530T or seven NC550SFP.
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs

HP InfiniBand

HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA

592520-B21

NOTE: Please see the QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

HP I/O Expansion Options

HP DL580 G7 PCI-X Combo Express Kit
NOTE: Adds two PCI-E 2.0 x16, one PCI-E 2.0 x4 and two PCI-X.
NOTE: Suggested Slot placement:

1. Slot 3 PCIe2 x 16 (16,8,4,2,1)
2. Slot 6 PCIe2 x 16 (16,8,4,2,1)
3. Slot 9 PCIe2 x 16 (8,4,2,1)*
4. Slot 11 PCIe2 x 16 (8,4,2,1)*
   Slot 9 and 11 are physically a x16 slot but will operate electrically at x8

588139-B21

HP DL580 G7 PCI Express Kit
NOTE: Adds four PCI-E 2.0 x8, one PCI-E 2.0 x4 and one PCI-E 1.1 x4.

588137-B21

HP DL980 G7 Low Profile PCI-E I/O Expansion Kit with Riser Card
NOTE: Adds four PCI-E 2.0 x8, one PCI-E 2.0 x4.

AM434A

HP Power Supplies

NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor

HP Integrity 1200W Common Slot High Efficiency Power Supply Kit

AM470A

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.

HP Insight Software

HP Insight Control
NOTE: This is a list of supported options. Some may be discontinued.

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Tracking License

TC275A

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

HP Insight Control for Linux
NOTE: This is a list of supported options. Some may be discontinued.

HP Insight Control for Linux Media Kit

TC208A

NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux (click on Download button).
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html

HP Integrated Lights-Out Advanced (iLO Advanced)

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License

TA850AAE

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License

512485-B21

NOTE: This license allows 1 server to be deployed and managed via HP iLO Advanced. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
NOTE: Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: For additional license kits, including electronic delivery options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html

High Performance Clusters

HP Cluster Management Utility
NOTE: This is a list of supported options. Some may be discontinued.

HP Cluster Management Utility Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.

QL803A

HP Cluster Management Utility Media
NOTE: Order a minimum of one license per cluster to purchase media including software and documentation, which will be delivered to the customer, and also licenses CMU management. No license key is delivered or required.

433257-B21

NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html

HP HPC Linux Value Pack
NOTE: This is a list of supported options. Some may be discontinued.

HP High Performance Computing Linux Value Pack 1 Processor Flexible License for ProLiant Servers
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one socket (a.k.a. processor). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.

TC293B

NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html

HP Graphics Options

HP DL580/DL585/DL980 Power Cable Kit
NOTE: The HP ProLiant DL980 G7 can support up to 4 (225W) or 3 (300W) Graphic Cards and/or GPGPU Accelerator Options
NOTE: An option kit will be required per Graphic Card and/or GPGPU Accelerator Options.
NOTE: Depending on the number of GPGPUs required, customers will need to purchase the following I/O expansion boards: DL580G7 PCI-X / PCI Express I/O Exp. Kit: PN: 588139-B21 (Adds two PCI-E 2.0 x16, one PCI-E 2.0 x4 and two PCI-X).

631660-B21

HP I/O Accelerator Options

HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers

673642-B21

HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers

673644-B21

HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers

673646-B21

HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers
NOTE: Use only on x16 slots for adequate power wattage (Up to 6 cards can be factory integrated in HP ProLiant DL980 Server)

673648-B21

HP 3TB G2 FH/HL PCIe ioDrive2 IO Accelerator for ProLiant Servers
NOTE: Up to 10 cards can be factory integrated in HP ProLiant DL980 Server

721458-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13587_div/13587_div.html
(Worldwide)

HP Security - TPM

HP Trusted Platform Module Option

488069-B21

NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

HP Storage Controllers

SAS Controllers

Smart Array P212 Controller

HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller

462834-B21

Smart Array P411 Controller

HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller

462830-B21

HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller

578229-B21

HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller

572531-B21

HP P421 Smart Array Controller

HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller

631673-B21

HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller

631674-B21

HP ProLiant DL980 P421 Supercap Mounting Kit
NOTE:

• Up to ten cards are supported. However, a maximum of three cards are supported for factory integration on HP ProLiant DL980 server.
• For FBWC functionality, HP ProLiant DL980 P421 Mounting Kit is required and is included on factory integrated orders of the HP Smart Array P421 SAS Controller on the HP ProLiant DL980 server.
• For stand-alone orders of the HP Smart Array P421 SAS Controller to use with the HP ProLiant DL980 server, one HP ProLiant P421 Mounting Kit is required for each HP Smart Array P421 SAS Controller.

A0R93A

Smart Array P812 Controller

HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller

487204-B21

Optional Upgrades
NOTE: Maximum of two battery or FBWC kits (for Smart Array Controllers) can be installed in upper full height/full length (FH/FL) I/O slot area. Maximum of one battery or FBWC kit (for Smart Array Controller) can be installed in lower low profile (LP) I/O slot area.

HP 650 mAh P-Series Battery
NOTE: Supported on HP Smart Array P212 Controller and HP Smart Array P411 Controller only.

462969-B21

HP 1GB Flash Backed Cache

534562-B21

HP 512MB Flash Backed Write Cache

534916-B21

HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License
NOTE: This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customers will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HP Software Technical Support Services.

516471-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13558_div/13558_div.html
(Smart Array P812 Controller)
http://h18004.www1.hp.com/products/quickspecs/14229_div/14229_div.html
(Smart Array P421 Controller)
http://h18000.www1.hp.com/products/quickspecs/13200_div/13200_div.html
(Smart Array Advanced Pack)

SAS HBA

HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter
NOTE: This is a 2 x4 External Port HBA
NOTE: This is only approved for the HP P2000 G3 SAS Modular Smart Array.

614988-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18004.www1.hp.com/products/quickspecs/13651_div/13651_div.html
(SC08e 6Gb HBA)

HP Power Cords

HP C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord

AF565A

HP C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord

AF566A

HP C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord

AF568A

HP C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord

AF570A

HP C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord

AF571A

HP C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord

AF567A

HP Tape Backup

NOTE: This is a list of supported options. Some may be discontinued.
NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HP tape backup products see: http://www.hp.com/storage/SPOCK.

HP StorageWorks DAT 320 USB (1) in 1U Rack-mount Kit

AP835A

HP DAT 320 SAS Internal Tape Drive
NOTE: For installation into 1U SAS rack kit (AE459B) or 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

AJ830A

HP Ultrium 920 SAS Internal Tape Drive
NOTE: For installation into 1U SAS rack kit (AE459B) or 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

EH847A

HP StoreEver LTO-4 Ultrium 1760 SAS Internal WW Tape Drive
NOTE: For installation into 1U SAS rack kit (AE459B) or 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

EH919A

HP StoreEver LTO-4 Ultrium 1840 SAS Internal Tape Drive
NOTE: For installation into 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

EH860A

HP StoreEver LTO-5 Ultrium 3280 SAS Internal Tape Drive
NOTE: For installation into 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

EH899A

HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation. Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

BL536A

HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library
NOTE: Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

BL537A

HP MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library
NOTE: Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

BL538A

HP MSL8096 2 LTO-5 Ultrium 3000 SAS Tape Library
NOTE: Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

BL539A

HP Disk Backup

NOTE: This is a list of supported options. Some may be discontinued.
NOTE: For the complete range of D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk backup products see: http://www.hp.com/storage/SPOCK.

HP D2D Backup Systems with Backup Data Deduplication

HP D2D2504i Backup System
NOTE: 3.0TB of useable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

EJ002B

HP D2D4112 Backup System
NOTE: 9.0TB (expandable to 18.0TB) of useable network disk backup capacity. Fibre Channel SAN connected appliance. Direct server attach is not supported, requires connection via SAN fabric.

EH993B

HP RDX Removable Disk Backup Systems USB

HP RDX500 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay available for drive installation into the server. 500GB of disk capacity per data cartridge.

AJ934A

HP Storage Options

Storage Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs

HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AP769B

HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AP770B

Emulex Fibre Channel HBAs

HP StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter
NOTE: Max of 4 per server.

C8R38A

HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter
NOTE: Max of 4 per server.

C8R39A

HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B

HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B

QLogic Fibre Channel HBAs

HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter
NOTE: Max of 4 per server

QW971A

HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter
NOTE: Max of 4 per server

QW972A

HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

Converged Network Adapter

HP CN1100E Dual Port Converged Network Adapter
NOTE: There is a maximum of four CN1100E 2P Converged Network Adapters allowed in this server

BK835A

HP CN1000Q Dual Port Converged Network Adapter
NOTE: There is a maximum of four CN1100E 2P Converged Network Adapters allowed in this server.
NOTE: When ordered with NC524SFP maximum of one (1) CN1000E or CN1100E
or CN1000Q is supported

BS668A

HP Disk Storage Systems

MSA SAN Storage Arrays
NOTE: This is a list of supported options. Some may be discontinued.

NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html
(Worldwide)

Disk Enclosures

HP D2600 Disk Enclosure

AJ940A

HP D2700 Disk Enclosure

AJ941A

NOTE: Please see the QuickSpecs for additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html (Worldwide)

HP Uninterruptible Power Systems

HP Rack-mountable UPS

HP R1500 G3 Uninterruptible Power Supply (UPS)

HP R1.5kVA G3 1U NA Uninterruptible Power System

AF469A

HP R1.5kVA G3 1U JP/TW Uninterruptible Power System

AF470A

HP R1.5kVA G3 1U INTL Uninterruptible Power System

AF471A

NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14059_div/14059_div.html (Worldwide)

HP R/T3000 Uninterruptible Power System (UPS)
NOTE: This is a list of supported options. Some may be discontinued.

HP R/T3000 3300VA High Voltage NA/JPN 2U Rackmount Uninterruptible Power System

AF453A

HP R/T3000 3300VA INTL 2U Rackmount Uninterruptible Power System

AF454A

NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13417_div/13417_div.html (Worldwide)

HP R/T3000 G2 Uninterruptible Power System (UPS)

HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System

AF466A

HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System

AF467A

HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System

AF468A

NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14058_div/14058_div.html (Worldwide)

HP Rack-Mountable R5500 UPS
NOTE: This is a list of supported options. Some may be discontinued.

HP R5500 6000VA INTL 3U Rackmount Uninterruptible Power System

AF416A

HP R5500 5000kVA NA/JP 3U Rackmount Uninterruptible Power System

AF426A

NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/11871_div/11871_div.html (Worldwide)

R5000 Uninterruptible Power System (UPS)

HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A

HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14109_div/14109_div.html (Worldwide)

R7000 Uninterruptible Power System (UPS)

HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System

AF463A

NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14110_div/14110_div.html (Worldwide)

NOTE: For additional information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups.
NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com.

NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.

HP Power Distribution Unit

HP Monitored Power Distribution Unit: Half Rack Version
NOTE: This is a list of supported options. Some may be discontinued.

HP 4.9kVA 24A Single Input Single Phase NA/JP Monitored Power Distribution Unit

AF914A

HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit

AF915A

HP Monitored Power Distribution Unit: Full Rack Version
NOTE: This is a list of supported options. Some may be discontinued.

HP 8.6kVA 24A Single Input Three Phase NA/JP Monitored Power Distribution Unit

AF504A

HP 8.3kVA 40A Single Input Single Phase NA/JP Monitored Power Distribution Unit

AF506A

HP 11kVA 16A Single Input Three Phase INTL Monitored Power Distribution Unit

AF508A

HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit

AF510A

NOTE: Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html
(Worldwide)

Modular Power Distribution Units 1U/0U (Up to 32 outlets)
NOTE: This is a list of supported options. Some may be discontinued.
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).

HP 7.3kVA 32A High Voltage INTL Power Distribution Unit

252663-B31

HP 3.6kVA 16A High Voltage INTL Power Distribution Unit
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements.

252663-B24

NOTE: Please see the following QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html (Worldwide)
NOTE: For additional information on HP Power Distribution Units including accessories please go to: www.hp.com/go/pdu.

NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.

HP Rack Series

HP Rack 10000 G2 Series (Carbon/Graphite Metallic)
NOTE: This is a list of supported options. Some may be discontinued.

HP 10642 G2 Shock Universal Rack

AF002A

HP 10647 G2 Pallet Universal Rack

AF031A

HP 10642 G2 1200mm deep Shock Rack

AF092A

HP 10647 G2 1200mm deep Shock Rack

AF094A

NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.

NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)

NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

NOTE: The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment: Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

Quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment range of 24" - 36". The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.

HP Rack Options

HP KVM Switch Options

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP 1-pack PS/2 Virtual Media Interface Adapter
NOTE: Requires PS/2 and one USB port on server.

AF604A

HP Server Console 0x2x8 Port Analog Switch

AF616A

HP Server Console 0x2x16 Port Analog Switch

AF617A

HP KVM CAT5 1-pack PS/2 Interface Adapter

262588-B21

HP KVM CAT5 8-pack PS/2 Interface Adapter

262587-B21

NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x4 KVM Console 6ft PS2 Cable

AF612A

HP USB and SD Options

HP USB Standard Keyboard DT528A ABA

DT528A#ABA

NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software like SmartStart. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.

HP Care Pack Services

Installation & Start-up Services

HP Install ProLiant DL980 Hardware only

UV304E

HP Startup ProLiant DL58x Service

U4618E

HP Installation and Startup for Insight Control Server Deployment - previously Rapid Deployment Pack

U5683E

NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant DL980 G7 Models

Memory Subsystem Architecture
Intel Xeon E7 Family, 7500 and 6500 series memory architecture is designed to take advantage of multiple stages of memory interleaving to reduce latency and increase bandwidth.

Each Intel Xeon E7, 7500 and 6500 series processor contains two Memory Controllers as shown in the Processor/Memory interconnect figure below. Each Memory controller has two Scalable Memory Interface (SMI) buses operating in lockstep where each SMI bus connects to a memory buffer. The purpose of the buffer is to convert SMI to DDR3. Each buffer has two DDR3 channels and can support up to four DIMMs for a total of eight DIMMs per cartridge.

• The number of DIMMs or ranks does not affect memory frequency, but can affect memory bandwidth and performance. All DIMMs will run at the highest possible frequency for a given processor.
• DDR3 memory speed is a function of the processors QPI bus speed such that
  • Processors with a QPI speed of 6.4GT will run memory at 1066MHz
  • Processors with a QPI speed of 4.8GT will run memory at 800 MHz

DIMM Installation guidelines
Each memory cartridge can support up to 8 DIMMs, for a system total of 128 DIMMs. When installing DIMM modules in the Memory Cartridge observe the following minimum guidelines:

• UDIMMs are not supported
• Minimum allowable configuration is 16 DIMMs (two DIMMs on each of the two cartridges connected to processor one through four.
• DIMMs must be installed as Quads (four DIMMs with identical characteristics). For configuration simplicity HP recommends using identical part numbered DIMMs throughout when possible.
• DIMM Quads MUST be populated in sequence by letter designation. Install DIMMs 1A and 8A on each cartridge first, followed by DIMMs 3B and 6B on each cartridge, then DIMMs 2C and 7C, and finally DIMMs 4D and 5D last.
• Maximum performance is achieved by balancing DIMM Quads by letter groupings across all memory cartridges. All 1A and 8A DIMMs should be installed (preferably with the same size DIMMs in all memory cartridges across the entire system) first, followed by the B DIMMs, C DIMMs and D DIMMs.

AMP modes Online Sparing and Memory Mirroring have further requirements beyond these listed here. Please refer to the user guide for additional memory configuration requirements.

Memory Cartridge population guidelines
This server contains 8 memory cartridge slots within each processor memory drawer. Observe the following guidelines:

• A memory cartridge must be installed in each slot.
• To maximize performance distribute the total memory capacity evenly between all memory cartridges.
• When operating the system in 40-bit address mode and installing 64x 16GB DIMMs (1TB total memory), the 64 DIMMs must be spread evenly across all 16 memory cartridges, or some of the memory will not be recognized.
• Memory configurations larger than 1TB require the use of 44-bit addressing mode.

Hemisphere mode
The Xeon EX architecture incorporates hemisphere mode, a high performance interleaving technology. Hemisphere mode allows interleaving between the two processor memory controllers internal to each processor.

The DL980 G7 always uses Hemisphere mode. This requires that for each processor, the two memory cartridges attached to the processor have matching memory configurations. If the two memory configurations are not equal, the DL980 G7 will ignore (waste) the extra memory in the larger configuration.
Memory Performance Optimization
The DL980 G7 supports 128 DIMMs across eight multi-core processors. While there are many DIMM population configurations that can support any desired total memory size, optimal performance can only be achieved when DIMMs are populated to take advantage of the Xeon EX architecture. The largest contributor to performance is to populate each DDR3 channel in each memory cartridge. To achieve this, the minimum DIMM count per cartridge is four. Maximum bandwidth is reached by fully populating all memory cartridges with the maximum number of eight DIMMs per cartridge.

• The more ranks per DIMM the higher the performance, so Quad rank DIMMs perform better than dual rank DIMMs.
• Performance is best when the installed DIMMs are all of equal size.

NOTE: Memory configurations listed do not apply to "Factory Integrated Models". Only registered (RDIMM) speeds of 1066 or 1333 running at 1066 are supported. UDIMMs are not supported.

The following memory options are available from HP:

HP Memory

Registered DIMMs (RDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

500656-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593339-B21

HP DL980 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Reg CAS-9 Memory Kit
NOTE: For Intel Xeon E7 Family only.

A0R57A

HP DL980 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Reg CAS-9 Memory Kit

A0R56A

HP DL980 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Reg CAS-9 LP Memory Kit
NOTE: For Intel Xeon E7 Family only.

A0R58A

HP DL980 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Reg CAS-9 LP Memory
NOTE: For Intel Xeon E7 Family only.

A0R59A

HP DL980 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Reg CAS-7 LP Memory
NOTE: For Intel Xeon E7 Family only.

A0R61A

HP DL980G7 (E7) Memory Cartridge

A0R60A

A

DVD drive bay

1-8

SFF SAS internal drive cage

Drive Support

Quantity
Supported

Position
Supported

Controller

Removable Media

HP Slimline DVD Optical drive

1

A

Integrated SATA

HP Slim SATA DVD RW Optical Drive

1

A

Integrated SATA

Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

Quantity
Supported

Position
Supported

Controller

1200GB 12G SAS 10K

900GB 12G SAS 10K
600GB 12GSAS 10K
450GB 6G SAS 10K
300GB 12G SAS 10K
300GB 6G SAS 15K
146GB 6G SAS 15K
72GB 6G SAS 15K

Up to 8

1-8

HP Smart Array P410i Controller (standard on server)
HP Smart Array P812/1GB FBWC Controller

SATA Hot Plug Midline (MDL) Solid State Drives

Quantity
Supported

Position
Supported

Controller

120GB 3G SATA SFF 60GB 3G SATA SFF

Up to 8

1-8

HP Smart Array P410i Controller (standard on server)
HP Smart Array P812/1GB FBWC Controller

6G SAS Hot Plug Enterprise Performance Solid State Drives

Quantity
Supported

Position
Supported

Controller

400GB 6G SAS SLC SFF 200GB 6G SAS SLC SFF
400GB 6G SAS MLC SFF
200GB 6G SAS MLC SFF

Up to 8

1-8

HP Smart Array P410i Controller (standard on server)
HP Smart Array P812/1GB FBWC Controller

6G SAS Hot Plug Enterprise Mainstream Solid State Drives

Quantity
Supported

Position
Supported

Controller

400GB 6G SAS MLC SFF
200GB 6G SAS MLC SFF

Up to 8

1-8

HP Smart Array P410i Controller (standard on server)
HP Smart Array P812/1GB FBWC Controller

External Storage

Quantity
Supported

Position
Supported

Host Controller or Adapter

D2600 Disk Enclosure

Up to 4

External

HP Smart Array P212/ 256 MB Controller

Up to 8

External

HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812 Controller

D2700 Disk Enclosure

Up to 2

External

HP Smart Array P212/256 MB Controller

Up to 4

External

HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812 Controller

Maximum Storage Capacity - (External SAS Enclosure Attached)

Internal

7.2TB (8 x 900GB SFF SAS Drives)

External

960TB (80 MSA60 enclosures x 12 drive bays each x 1TB SATA Drives)

Tape and Disk-Based Backup

NOTE: For the complete range of tape drives, autoloaders, libraries and media, including the internal fitting models, see: http://www.hp.com/go/tape. For the complete range of D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range ofRDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk and tape backup products see: http://www.hp.com/storage/SPOCK.

Position
Supported

Controller

Controller Part Number

HP USB Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
1U USB Rack-Mount Kit

External

USB 2.0 Port

N/A

HP SAS Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
1U Rack-Mount Kit
3U Rack-Mount Kit

External

HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller

462828-B21

HP SAS Tape Autoloaders and Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096

External

HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller

462828-B21
