HP ProLiant DL360e Generation 8 (Gen8): технические характеристики и документация
В архивеOverview
|
HP ProLiant DL360e Generation 8 (Gen8) | |||
|
| |||
|
Essential features packed in a 1U footprint to deliver the key elements for file and print and single application workloads. Value, performance, flexible storage, enhanced management and superior serviceability makes the DL360e the 2P system right-sized for both SMB and enterprise customers. | |||
|
|
| ||
|

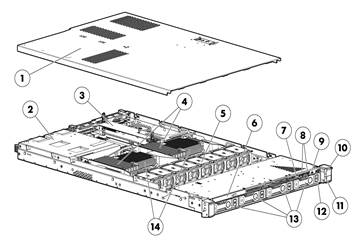

Front View: |
Rear View: | ||
|
1. |
Access Panel |
1. |
PCIe 3.0 Full-height/half -length (250mm) x16 expansion slot |
|
2. |
Redundant Hot Plug Power Supplies (upgradeable option) |
2. |
PCIe 2.0 Low Profile x8 expansion slot |
|
3. |
Removable Riser Cage assembly for 1 x PCIe 3.0 x16 + 1 x PCIe 2.0 x8 |
3. |
Power supply bay 1 (Primary Power Supply) |
|
4. |
12 DIMM slots: DDR3 Registered (RDIMM), Load Reduced (LRDIMM) or Unbuffered (UDIMM) memory |
4. |
Power supply bay 2 (Shown populated: Optional) |
|
5. |
Removable hot-plug fan modules for easy serviceability |
5. |
Unit ID LED/button |
|
6. |
Optical Disk Drive Bay |
6. |
HP Ethernet 1Gb 4-port 366i Adapter |
|
7. |
Video connector |
7. |
Serial connector |
|
8. |
USB Connectors |
8. |
Video connector |
|
9. |
Unit ID LED/button |
9. |
USB connectors |
|
10. |
Health LED |
10. |
iLO connector |
|
11. |
NIC activity LED |
11. |
USB connectors |
|
12. |
Power On/Standby button |
|
|
|
13. |
Drive Bays |
|
|
|
14. |
Up to two Intel® E5-2400/ E5-2400v2 Series processors |
|
|
Standard Features
|
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. | |
|
Processor |
Entry Processors - E5-2400v2 series Processors |
|
NOTE: All support up to 1333MHz DDR3 memory speeds. | |
|
Intel® Xeon® E5-2407v2(2.4GHz/4-core/10MB/6.4GT/s QPI/80W, DDR3-1333,) | |
|
Intel® Xeon® E5-2403v2(1.8GHz/4-core/10MB/6.4GTs QPI/80W, DDR3-1333,) | |
|
Base Processors - E5-2400v2 series Processors | |
|
NOTE: All support up to 1600MHz DDR3 memory speeds. | |
|
Intel® Xeon® E5-2430v2(2.5GHz/6-core/15MB/7.2GT/s QPI/80W, DDR3-1600,HT, Turbo2- 3/3/4/4/5/5) Turbo | |
|
Intel® Xeon® E5-2430Lv2(2.4GHz/6-core/15MB/7.2GT/s QPI/60W, DDR3-1600,HT, Turbo2- 3/3/4/4/5/5) Turbo | |
|
Intel® Xeon® E5-2420v2(2.2GHz/6-core/15MB/7.2GT/s QPI/80W, DDR3-1600,HT, Turbo2- 3/3/4/4/5/5) Turbo | |
|
Intel® Xeon® E5-2440v2(1.9GHz/8-core/20MB/7.2GT/s QPI/95W, DDR3-1600,HT, Turbo2- 3/3/4/4/5/5) Turbo | |
|
Performance Processors - E5-2400v2 series Processors | |
|
NOTE: All support up to 1600MHz DDR3 memory speeds. | |
|
Intel® Xeon® E5-2450v2(2.5GHz/8-core/20MB/8.0GT/s QPI/95W, DDR3-1600,HT, Turbo2- 5/5/6/6/7/7/8/8) Turbo + | |
|
Intel® Xeon® E5-2470v2(2.4GHz/10-core/25MB/8.0GT/s QPI/95W, DDR3-1600,HT, Turbo2- 5/5/6/6/7/7/8/8) Turbo+ | |
|
Intel® Xeon® E5-2450Lv2(1.7GHz/10-core/25MB/8.0GT/s QPI/60W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8) Turbo+ | |
|
Entry Processors - E5-2400 series Processors | |
|
NOTE: All support up to 1066MHz DDR3 memory speeds. | |
|
Intel® Xeon® E5-2407(2.2GHz/4 -core/10MB/6.4GT-s QPI/80W, DDR3-1066) | |
|
Intel® Xeon® E5-2403(1.8GHz/4 -core/10MB/6.4GT-s QPI/80W, DDR3-1066) | |
|
Base Processors - E5-2400 series Processors | |
|
NOTE: All support up to 1333MHz DDR3 memory speeds. | |
|
Intel® Xeon® E5-2440(2.4GHz/6 -core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Turbo | |
|
Intel® Xeon® E5-2430(2.2GHz/6 -core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT,Turbo2- 3/3/4/4/5/5) Turbo | |
|
Intel® Xeon® E5-2430L(2.0GHz/6 -core/15MB/7.2GT-s QPI/60W, DDR3-1333,HT, Turbo2- 3/3/4/4/5/5) Turbo | |
|
Intel® Xeon® E5-2420(1.9GHz/6 -core/15MB/7.2GT/s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Turbo | |
|
Performance Processors - E5-2400 series Processors | |
|
NOTE: All support up to 1600MHz DDR3 memory speeds. | |
|
Intel® Xeon® E5-2470(2.3GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600,HT, Turbo2- 5/5/6/6/7/7/8/8) Turbo+ | |
|
Intel® Xeon® E5-2450(2.1GHz/8 -core/20MB/8.0GT-s QPI/95W, DDR3-1600,HT, Turbo2- 5/5/6/6/7/7/8/8) Turbo+ | |
|
Intel® Xeon® E5-2450L(1.8GHz/8 -core/20MB/8.0GT-s QPI/70W, DDR3-1600,HT, Turbo2- 2/2/3/3/4/4/5/5) Turbo+ | |
|
NOTE: Up to 2 processors supported. Performance/Energy Star Model configurations include two processors with 8 fans. | |
|
| |
|
Cache Memory |
25MB (1x25MB) Level 3 cache |
|
20MB (1 x 20MB) Level 3 cache | |
|
15MB (1 x 15MB) Level 3 cache | |
|
10MB (1 x 10MB) Level 3 cache | |
|
NOTE: All processor models above list the L3 Cache associated with that particular processor. | |
|
| |
|
Chipset |
Intel® C600 Series Chipset |
|
Intel® E5-2400 Processor Family | |
|
Intel® E5-2400v2 Processor Family | |
|
NOTE: For more information regarding Intel® chipsets, please see the following URL: | |
|
| |
|
Upgradeability |
Upgradeable to two processors (20 cores) |
|
NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2400 to E5-2400 v2. Please contact HP Technology Sales (http://www.hp.com/support), your local HP Re-seller, or reference the following Customer Advisory: ProLiant Servers-Instructions for Upgrading an HP ProLiant Gen8 Server from an Intel Xeon Processor E5-2400 to an Intel Xeon Processor E5-2400 v2, regarding critical details before upgrading. An explanation of requirements and limitations are provided | |
|
Up to 12 DIMM slots | |
|
NOTE: To take advantage of DIMMs 7-12, a second processor must be installed | |
|
10 Gigabit networking options via standup card | |
|
Up to 8 SFF Hard Drive Bays; or 4 LFF Hard Drive Bays | |
|
Redundant Power Supply | |
|
Redundant Fan | |
|
Optical Drive Bay (8 SFF/4 LFF) | |
|
| |
|
On System Management Chipset |
HP iLO (Firmware: HP iLO 4) |
|
NOTE: For more information, visit: http://www.hp.com/go/ilo. | |
|
| |
|
Memory Protection |
Advanced ECC |
|
Online Spare | |
|
Lock-step | |
|
| |
|

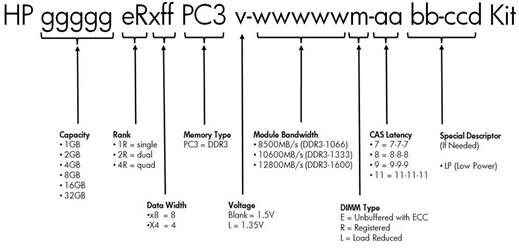

Memory |
Type |
HP SmartMemory |
|
DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM) | ||
|

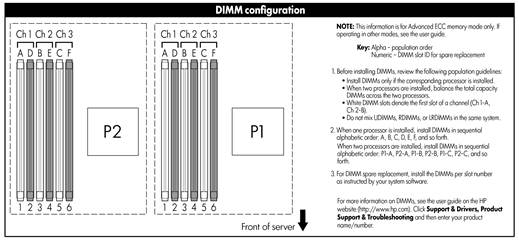

DIMM Slots Available |
12 (6 DIMM slots per processor, 3 channels per processor, 2 DIMMs per channel) | |
|
Standard (Entry Models - SAS) |
4GB (1 x 4GB) Registered DIMMs PC3L-10600R (1333MHz) or 4GB (1 x 4GB) Registered DIMMs PC3L-12800R (1600MHz) | |
|
Standard (Entry Models - SATA) |
4GB (1 x 4GB) Registered DIMMs PC3L-10600R (1333MHz) or 4GB (1 x 4GB) Registered DIMMs PC3L-12800R (1600MHz) | |
|
Standard (Base Models) |
8GB (2 x 4GB) Registered DIMMs PC3L-10600R (1333MHz) or 8GB (1 x 8GB) Registered DIMMs PC3L-12800R (1600MHz) | |
|
Maximum Capacity (LRDIMM) |
384GB (12 x 32GB LRDIMM @1333MHz) | |
|
Maximum Capacity (RDIMM) |
192GB (12 x 16GB RDIMM @1600MHz or 1333MHz) | |
|
Maximum Capacity (UDIMM) |
96GB (12 x 8GB UDIMM @1333MHz) | |
|
NOTE: HP memory from previous generation servers are not fully compatible with the HP ProLiant DL360e Gen8 Server. | ||
|
| ||
|
Network Controller |
HP Ethernet 1Gb 4-port 366i Adapter |
|
NOTE: The HP ProLiant DL360e Gen8 server offers the customer a quad-port NIC standard with the option to upgrade with a variety of networking options. | |
|
| |
|
Expansion Slots |
Expansion |
Technology |
Bus |
Connector Width |
Form Factor |
Notes |
|
1 |
PCIe 3.0 |
x16 |
x16 |
Full-height, half-length slot (250mm) |
| |
|
2 |
PCIe 2.0 |
x4 |
x8 |
Low profile slot |
| |
|
*Indicates the number of physical electrical lanes running to the connector. | ||||||
|
| ||||||
|
HP Server ROM |
HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.
NOTE: For further information, please refer to HP's RBSU (ROM based setup utility) user guide: http://www.hp.com/support/rbsu. |
|
| |
|
Storage Controller |
Entry Model - SAS |
HP Dynamic Smart Array B320i Controller |
|
Entry Model - SATA |
HP Dynamic Smart Array B120i Controller | |
|
Base Models |
HP Dynamic Smart Array B320i/512MB FBWC Controller | |
|
Performance Models |
HP Smart Array P420/1GB FBWC Controller (RAID 0/1/1+0/5/5+0+6/6+0) | |
|
| ||
|
Internal Storage Devices |
Diskette Drive |
None |
|
Optical Drive |
Optional | |
|
DVD-ROM, DVD-RW | ||
|
Hard Drives |
None ship standard | |
|
Hard Drive Bays |
8 SFF drive bays total with Optical drive bay | |
|
4 LFF drive bays total with Optical drive bay. | ||
|
| ||
|
Maximum Internal Storage |
Hot Plug SFF SAS |
9.6TB |
8 x 1.2TB |
|
Hot Plug SFF SATA |
8.0TB |
8 x 1TB | |
|
Hot Plug LFF SAS |
16.0TB |
4 x 4TB | |
|
Hot Plug LFF SATA |
16.0TB |
4 x 4TB | |
|
Hot Plug SFF SAS SSD |
6.4TB |
8 x 800GB | |
|
Hot Plug SFF SATA SSD |
6.4TB |
8 x 800GB | |
|
Hot Plug LFF SATA SSD |
3.2TB |
4 x 800GB | |
|
| |||
|
Interfaces |
Serial |
1 |
|
Video |
1 Front Mini-Video connector/ 1 Rear standard video (not active simultaneously) | |
|
HP iLO Remote Management Network Port |
1Gb Dedicated | |
|
SD slot |
1 Internal secure | |
|
USB 2.0 Ports |
7 total: 4 rear, 2 front, 1 internal (secure) | |
|
Network Ports |
4x1GbE ports | |
|
| ||
|
Industry Standard Compliance |
ACPI 2.0b Compliant |
|
PCIe 3.0 | |
|
PXE Support | |
|
WOL Support | |
|
Microsoft® Logo certifications | |
|
USB 2.0 Compliant | |
|
| |
|
Server Power Cords |
All Pre-configured Models servers ship with a high voltage server to PDU power cord. |
|
| |
|
Power Specifications |
To review typical system power ratings use the HP Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/hppoweradvisor. |
|
| |
|
Common Slot Power Supply |
NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported. HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HP CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HP CS power supply options provide efficiency ratings of up to 96% (Titanium) and are available in three power output options - 460W, 750W, and 1200W - allowing the customer to "right-size" a power supply for their specific server configuration. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations. |
|
| |
|
System Fans |
4 Hot-Plug Non-redundant Fans ship standard in 1P Models
|
|
8 Hot-Plug Redundant Fans ship standard in 2P Models | |
|
NOTE: Customers may separately purchase a redundant fan with the 661530-B21 option kit. Additional fans to support redundancy are also included in -B21 processor option kits when upgrading from a one processor to a two processor model. | |
|
| |
|
Required Cabling |
For required cabling information, refer to the Web site at: |
|
| |
|
Operating Systems and Virtualization Software Support for ProLiant Servers |
Microsoft Windows Server |
|
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our OS Support Matrix at: http://www.hp.com/go/ossupport and our driver download page http://www.hp.com/support/DL360eGen8. | |
|
| |
|
Graphics |
Integrated Matrox G200 video standard
HP iLO 4 On System Management Memory
|
|
| |
|
Form Factor |
1U Rack form factor |
|
8 SFF Drive Bay Version: | |
|
4 LFF Drive Bay Version: | |
|
| |
|
On System Management |
HP iLO Management Engine |
HP iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 servers. The HP iLO Management Engine portfolio includes:
NOTE: For more information, visit: http://www.hp.com/go/ilo or HP iLO Management Engine technologies whitepaper |
|
| ||
|
Security |
Power-on password |
|
Serial interface control | |
|
Administrator's password | |
|
| |
|
Warranty |
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
Optional Features
|
HP Insight Management Software |
HP Insight Control |
HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HP Insight Control also supports Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see http://www.hp.com/go/insightcontrol. HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, see: http://www.hp.com/services/insight. |
|
HP iLO Essentials |
HP iLO Essentials license ideal for small and medium business customers. The specially created HP iLO Essentials (a subset of iLO Advanced functionality) saves SMB customers time and money, by ease of remote server set up through the interactive virtual media, lowering operational costs with remote access via the Integrated Remote Console, and faster time to resolution with email-based proactive notifications. With this newly designed HP iLO Essentials license SMB customers now have the option of a server management package solely design and priced just right for their IT environments. HP iLO Essentials is available on all HP ProLiant Gen8 e-series making this an ideal solution for small business owners. For more information, see: http://www.hp.com/go/iLO/essentials | |
|
HP iLO Advanced |
HP Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HP ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvance | |
|
HP Matrix Operating Environment |
The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business. | |
|
| ||
|
High Performance Clusters |
HP Cluster Platforms |
HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters. |
|
HP HPC Interconnects |
High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html | |
|
HP Insight Cluster Management Utility |
HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu | |
|
| ||
|
Storage Software |
Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities. Storage software that gets the job done:
NOTE: For more information available Storage Software including QuickSpecs, please see: http://www.hp.com/go/storage/software. |
|
| |
|
HP Insight Online |
HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. http://www.hp.com/go/insightonline | |
|
| ||
|
HP Proactive Insight experience |
Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: http://www.hp.com/go/proactiveinsightexperience | |
|
| ||
|
HPC Interconnects |
NOTE: High Performance Computing (HPC) interconnect technologies are available for this server under the HP Cluster Platform product portfolio. These high-speed interconnects are fully supported by HP when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPC Clusters with InfiniBand Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html | |
|
InfiniBand |
PCI-Express Generation 2 adapters | |
|
| ||
|
Factory Express Portfolio for Servers and Storage |
HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. |
|
| |
|
HP Simple Configurator |
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator |
Service and Support
|
Service and Support |
HP Technology Services for Industry Standard Servers
Protect your business beyond warranty with HP Care Pack Services HP Care Pack Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select. |
|
| |
|
Optimized Care |
Optimized Care: Supports maintaining servers at optimum performance availability |
|
| |
|
Standard Care |
Standard Care: Service recommendation that maintains high level of server availability HP Foundation Care 24x7 connects you to HP 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HP server. Simplify your support experience and make HP your first call for hardware or software questions. http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en |
|
| |
|
Related Services |
HP ProLiant Server Hardware Installation Factory Express for Servers and storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
Data Privacy Services Protect your data through better media management. HP Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. http://www.hp.com/services/dataprivacy Additional HP Care Pack services can be found at: http://www.hp.com/go/cpc |
|
| |
|
Get connected to HP to improve your support experience |
Prevent problems with innovative, automated monitoring tools and proactive services. Combining Proactive Care Services with our remote support technology such as Insight Online provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: http://www.hp.com/go/proactiveinsightexperience |
|
| |
|
HP Support Center |
Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc |
|
| |
|
Warranty / Service Coverage |
For ProLiant servers and storage systems, the services cover HP-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply. |
|
| |
|
For more information |
To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant |
Pre-configured Models
|
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. | ||
|
Entry Models - SAS | ||
|
HP ProLiant DL360e Gen8 E5-2403 1P 4GB-R Hot Plug 8 SFF 460W PS Entry Server |
Processor |
(1) Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W, DDR3-1066) Processor |
|
Cache Memory |
10MB (1 x 10MB) L3 cache | |
|
Memory |
4GB (1 x 4GB) Registered DIMMs PC3L-10600R (1333MHz) | |
|
Network Controller |
HP Ethernet 1Gb 4-port 366i Adapter | |
|
Storage Controller |
HP Dynamic Smart Array B320i Controller | |
|
Hard Drive |
None ship standard; includes 7 SFF hard drive blanks | |
|
Internal Storage |
8 SFF HDD Bays | |
|
Optical Drive Bay |
1; (Optional: DVD-ROM, DVD-RW) | |
|
PCI-Express Slots |
2 standard (1-FH/HL (250mm), 1-LP) | |
|
Power Supply |
(1) HP 460W CS Gold Hot Plug Power Supply (92% Efficient) | |
|
Fans |
4 Hot-Plug Non-redundant Fans | |
|
Management |
HP iLO Management Engine (standard) | |
|
Form Factor |
Rack (1U) | |
|
Warranty |
Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
| ||
|
HP ProLiant DL360e Gen8 E5-2403v2 1P 4GB-R B320i Hot Plug SAS 8 SFF 460W PS Svr |
Processor |
(1) Intel® Xeon® E5-2403v2 (1.8GHz/4-core/10MB/80W, DDR3-1333066) Processor |
|
Cache Memory |
10MB (1x10MB) L3 cache | |
|
Memory |
4GB (1x4GB) DDR3 RDIMM PC3L-12800R (1600MHz) | |
|
Network Controller |
HP Ethernet 1Gb 4-port 366i Adapter | |
|
Storage Controller |
HP Dynamic Smart Array B320i Controller | |
|
Hard Drive |
None ship standard; includes 7 SFF hard drive blanks | |
|
Internal Storage |
8 SFF HDD Bays | |
|
Optical Drive Bay |
1; (Optional: DVD-ROM, DVD-RW) | |
|
PCI-Express Slots |
2 standard (1-FH/HL (250mm), 1-LP) | |
|
Power Supply |
(1) HP 460W CS Gold Hot Plug Power Supply (92% Efficient) | |
|
Fans |
4 Hot-Plug Non-redundant Fans | |
|
Form Factor |
Rack (1U) | |
|
Warranty |
Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
| ||
|
Entry Models - SATA | ||
|
HP ProLiant DL360e Gen8 E5-2403 1P 4GB-R Hot Plug 4 LFF 460W PS Entry Svr |
Processor |
(1) Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W, DDR3-1066) Processor |
|
Cache Memory |
10MB (1 x 10MB) L3 cache | |
|
Memory |
4GB (1 x 4GB) Registered DIMMs PC3L-10600R (1333MHz) | |
|
Network Controller |
HP Ethernet 1Gb 4-port 366i Adapter | |
|
Storage Controller |
HP Dynamic Smart Array B120i Controller | |
|
Hard Drive |
None ship standard; includes 3 LFF hard drive blanks | |
|
Internal Storage |
4 LFF HDD Bays | |
|
Optical Drive Bay |
1; (Optional: DVD-ROM, DVD-RW) | |
|
PCI-Express Slots |
2 standard (1-FH/HL (250mm), 1-LP) | |
|
Power Supply |
(1) HP 460W CS Gold Hot Plug Power Supply (92% Efficient) | |
|
Fans |
4 Hot-Plug Non-redundant Fans | |
|
Management |
HP iLO Management Engine (standard) | |
|
Form Factor |
Rack (1U) | |
|
Warranty |
Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
| ||
|
HP ProLiant DL360e Gen8 E5-2403v2 1P 4GB-R B120i Hot Plug SATA 4 LFF 460W PS Svr |
Processor |
(1) Intel® Xeon® E5-2403 v2 (1.8GHz/4-core/10MB/80W, DDR3-1333) Processor |
|
Cache Memory |
10MB (1 x 10MB) L3 cache | |
|
Memory |
4GB (1x4GB) DDR3 RDIMM PC3L-12800R (1600MHz) | |
|
Network Controller |
HP Ethernet 1Gb 4-port 366i Adapter | |
|
Storage Controller |
HP Dynamic Smart Array B120i Controller | |
|
Hard Drive |
None ship standard | |
|
Internal Storage |
4 LFF HDD Bays | |
|
Optical Drive Bay |
1; (Optional: DVD-ROM, DVD-RW) | |
|
Power Supply |
(1) HP 460W CS Gold Hot Plug Power Supply (92% Efficient) | |
|
Fans |
4 Hot-Plug Non-redundant Fans | |
|
Form Factor |
Rack (1U) | |
|
Warranty |
Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
| ||
|
Base Models | ||
|
HP ProLiant DL360e Gen8 E5-2407 1P 8GB-R Hot Plug 8 SFF 460W PS Base Server |
Processor |
(1) Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/6.4GT-s QPI/80W, DDR3-1066, HT) Processor |
|
Cache Memory |
10MB (1 x 10MB) L3 cache | |
|
Memory |
8GB (2 x 4GB) Registered DIMMs PC3L-10600R (1333MHz) | |
|
Network Controller |
HP Ethernet 1Gb 4-port 366i Adapter | |
|
Storage Controller |
HP Dynamic Smart Array B320i/512 MB FBWC Controller | |
|
Hard Drive |
None ship standard; includes 7 SFF hard drive blanks | |
|
Internal Storage |
8 SFF HDD Bays | |
|
Optical Drive Bay |
1; (Optional: DVD-ROM, DVD-RW) | |
|
PCI-Express Slots |
2 standard (1-FH/HL (250mm), 1-LP) | |
|
Power Supply |
(1) HP 460W CS Gold Plus Hot Plug Power Supply (92% Efficient) | |
|
Fans |
4 Hot-Plug Non-redundant Fans | |
|
Management |
HP iLO Management Engine (standard) Optional: HP iLO Essentials or HP Insight Control | |
|
Form Factor |
Rack (1U) | |
|
Warranty |
Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
| ||
|
HP ProLiant DL360e Gen8 E5-2407v2 1P 8GB-R B320i/512 Ht Plg SAS 8SFF 460W PS Svr |
Processor |
(1) Intel® Xeon® E5-2407v2 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W, DDR3-1333) Processor |
|
Cache Memory |
10MB (1 x 10MB) L3 cache | |
|
Memory |
8GB (1x8GB) DDR3 RDIMM PC3L-12800R (1600MHz) | |
|
Network Controller |
HP Ethernet 1Gb 4-port 366i Adapter | |
|
Storage Controller |
HP Dynamic Smart Array B320i/512 MB FBWC Controller | |
|
Hard Drive |
None ship standard | |
|
Internal Storage |
8 SFF HDD Bays | |
|
Optical Drive Bay |
1; (Optional: DVD-ROM, DVD-RW) | |
|
Power Supply |
(1) HP 460W CS Gold Plus Hot Plug Power Supply (92% Efficient) | |
|
Fans |
4 Hot-Plug Non-redundant Fans | |
|
Form Factor |
Rack (1U) | |
|
Warranty |
Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
| ||
|
Performance Models | ||
|
HP ProLiant DL360e Gen8 E5-2430 2P 24GB-R P420 Hot Plug 8 SFF 2x460W PS Perf Svr |
Processor |
(2) Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, 2- 3/3/4/4/5/5) Processor |
|
Cache Memory |
20MB (1x20MB) Level 3 | |
|
Memory |
24GB (6 x 4GB) Registered DIMMs PC3L-10600R (1333MHz) | |
|
Network Controller |
HP Ethernet 1Gb 4-port 366i Adapter | |
|
Storage Controller |
HP Smart Array P420/1GB FBWC Controller (RAID 0/1/1+0/5/5+0+6/6+0) | |
|
Hard Drive |
None ship standard; includes 7 SFF hard drive blanks | |
|
Internal Storage |
8 SFF HDD Bays | |
|
Optical Drive Bay |
1; (Optional: DVD-ROM, DVD-RW) | |
|
PCI-Express Slots |
2 standard (1-FH/HL (250mm), 1-LP) | |
|
Power Supply |
(2) HP 460W CS Gold Plus Hot Plug Power Supplies (92% Efficient) | |
|
Fans |
8 Hot-Plug Redundant Fans | |
|
Management |
HP iLO Management Engine (standard) HP Insight Control Standard | |
|
Energy Star |
Meets Energy Star requirements | |
|
Form Factor |
Rack (1U) | |
|
Warranty |
Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response | |
|
| ||
|
Country Code Key |
xx = 00 |
U.S. |
|
xx = 20 |
Brazil | |
|
xx = 29 |
Japan | |
|
xx = 37 |
APD | |
|
xx = 42 |
Europe | |
|
xx = AA |
PRC |
Configuration Information - Factory Integrated Models
|
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements. | ||
|
Step 1: Base Configuration (choose one of the following configurable models) | ||
|
HP Models |
HP ProLiant DL360e Gen8 8 SFF Configure-to-order Server |
661189-B21 |
|
NOTE: New options are available for Rack Rail Kits; these options are no longer standard on-board with this Model Part Number. Please see HP Rack Options below for optional required options. |
| |
|
Includes: |
| |
|
Factory Integrated Model ships with: |
| |
|
2 x HP Smart Socket Guides for fast processor installation
System Fans - 4 (4 additional fans included with second processor kit) |
| |
|
|
| |
|
HP ProLiant DL360e Gen8 4 LFF Configure-to-order Server |
661190-B21 | |
|
NOTE: New options are available for Rack Rail Kits; these options are no longer standard on-board with this Model Part Number. Please see HP Rack Options below for optional required options. |
| |
|
Includes: |
| |
|
Factory Integrated Model ships with: |
| |
|
2 x HP Smart Socket Guides for fast processor installation
System Fans - 4 (4 additional fans included with second processor) |
| |
|
| ||
|
Step 2: Choose Required Options (only one of the following from each list unless otherwise noted) | ||
|
HP Memory |
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide) |
|
|
Registered DIMMs (RDIMMs) |
| |
|
NOTE: The following memory is supported by the E5-2400 v2 series Processors. |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713981-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713983-B21 | |
|
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713985-B21 | |
|
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
731765-B21 | |
|
NOTE: The following memory is supported by the E5-2400 series Processors. |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647893-B21 | |
|
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
647895-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647897-B21 | |
|
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
647899-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
690802-B21 | |
|
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647901-B21 | |
|
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
672631-B21 | |
|
Unbuffered with ECC DIMMs (UDIMM) |
| |
|
NOTE: The following memory is supported by the E5-2400 v2 series Processors. |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713975-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713977-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713979-B21 | |
|
NOTE: The following memory is supported by the E5-2400 series Processors. |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669320-B21 | |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647905-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669322-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647907-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669324-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647909-B21 | |
|
Load Reduced DIMMs (LRDIMMs) |
| |
|
NOTE: The following memory is supported by the E5-2400 v2 and 2400 series Processors. |
| |
|
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit |
647903-B21 | |
|
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. |
| |
|
| ||
|
HP Power Supplies |
NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported. |
|
|
HP Common Slot Titanium Power Supply Kits |
| |
|
HP 750W Common Slot Titanium Hot Plug Power Supply Kit |
697581-B21 | |
|
HP Common Slot Platinum Plus Power Supply Kits |
| |
|
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit |
656362-B21 | |
|
HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit |
656363-B21 | |
|
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit |
656364-B21 | |
|
HP Common Slot Gold Power Supplies |
| |
|
HP 460W CS Gold Ht Plg Power Supply Kit |
503296-B21 | |
|
HP 750W Common Slot Gold Hot Plug Power Supply Kit |
512327-B21 | |
|
HP Common Slot -48VDC Power Supplies |
| |
|
HP 750W Common Slot -48VDC Hot Plug Power Supply Kit |
636673-B21 | |
|
NOTE: Option Kits for AC power supplies include the power supply and one PDU IEC cable. |
| |
|
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to http://www.hp.com/products/powercords |
| |
|
| ||
|
Step 3: Choose Additional Factory Integratable Options | ||
|
HP Rack Kits |
NOTE: Gen8 rail kits have changed significantly from prior generation rail kits. Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen8 server. |
|
|
HP 1U FIO Friction Rail Kit |
663200-B21 | |
|
| ||
|
HP Insight Software |
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License |
C6N36A |
|
| ||
|
HP Converged Infrastructure Management Software |
HP OneView for ProLiant DL Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic |
E5Y43A |
|
| ||
|
Step 4: Choose Additional Options for Factory Integration |
|
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. |
Core Options
|
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information. | ||
|
HP Processors |
Entry Processors - E5-2400v2 series Processors |
|
|
HP DL360e Gen8 Intel® Xeon® E5-2407v2 (2.4GHz/4-core/10MB/80W) Processor Kit |
708483-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2403v2 (1.8GHz/4-core/10MB/80W) Processor Kit |
708481-B21 | |
|
Base Processors - E5-2400v2 series Processors |
| |
|
HP DL360e Gen8 Intel® Xeon® E5-2430v2 (2.5GHz/6-core/15MB/80W) Processor Kit |
708487-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2430Lv2 (2.4GHz/6-core/15MB/60W) Processor Kit |
746525-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2420v2 (2.2GHz/6-core/15MB/80W) Processor Kit |
708485-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2440v2 (1.9GHz/8-core/20MB/95W) Processor Kit |
708489-B21 | |
|
Performance Processors - E5-2400v2 series Processors |
| |
|
HP DL360e Gen8 Intel® Xeon® E5-2450v2 (2.5GHz/8-core/20MB/95W) Processor Kit |
708491-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2470v2 (2.4GHz/10-core/25MB/95W) Processor Kit |
708493-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2450Lv2 (1.7GHz/10-core/25MB/60W) Processor Kit |
746527-B21 | |
|
Entry Processors - E5-2400 series Processors |
| |
|
HP DL360e Gen8 Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) Processor Kit |
660664-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W) Processor Kit |
660666-B21 | |
|
Base Processors - E5-2400 series Processors |
| |
|
HP DL360e Gen8 Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) Processor Kit |
660656-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) Processor Kit |
660658-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) Processor Kit |
660670-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) Processor Kit |
660660-B21 | |
|
Performance Processors - E5-2400 series Processors |
| |
|
HP DL360e Gen8 Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) Processor Kit |
660650-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) Processor Kit |
660652-B21 | |
|
HP DL360e Gen8 Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W) Processor Kit |
660668-B21 | |
|
NOTE: Up to 2 processors supported. |
| |
|
| ||
|
HP Memory |
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide) |
|
|
Registered DIMMs (RDIMMs) |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713981-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713983-B21 | |
|
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
731765-B21 | |
|
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713985-B21 | |
|
NOTE: The above memory is supported by the E5-2400 v2 series Processors. |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647893-B21 | |
|
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
647895-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647897-B21 | |
|
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
647899-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
690802-B21 | |
|
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647901-B21 | |
|
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
672631-B21 | |
|
NOTE: The above memory is supported by the E5-2400 series Processors. |
| |
|
Unbuffered with ECC DIMMs (UDIMM) |
||
|
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713975-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713977-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713979-B21 | |
|
NOTE: The above memory is supported by the E5-2400 v2 series Processors. |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669320-B21 | |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647905-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669322-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647907-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669324-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647909-B21 | |
|
NOTE: The above memory is supported by the E5-2400 series Processors. |
| |
|
Load Reduced DIMMs (LRDIMMs) for E5-2xxx series Processors |
| |
|
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit |
647903-B21 | |
|
NOTE: The above memory is supported by the E5-2400 v2 and E5-2400 series Processors. |
| |
|
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. |
| |
|
| ||
|
HP Optical Drives |
HP 9.5mm SATA DVD-ROM JackBlack Optical Drive |
652238-B21 |
|
HP 9.5mm SATA DVD-RW JackBlack Optical Drive |
652241-B21 | |
|
| ||
|
HP Hard Drives |
NOTE: The HP ProLiant DL360e Gen8 Smart Storage solutions are equipped with entirely re-designed Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HP Qualified Hard Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove". |
|
|
12G SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives |
| |
|
HP 600GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
759212-B21 | |
|
HP 450GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
759210-B21 | |
|
HP 300GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
759208-B21 | |
|
HP 1.2TB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
781518-B21 | |
|
HP 900GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
785069-B21 | |
|
HP 600GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
781516-B21 | |
|
HP 300GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
785067-B21 | |
|
HP 1.8TB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 512e 3yr Warranty Hard Drive |
791034-B21 | |
|
12G SAS Hot Plug SmartDrive LFF (3.5-inch) Converter Enterprise Drives |
| |
|
HP 600GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive |
765424-B21 | |
|
HP 450GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive |
737394-B21 | |
|
HP 300GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive |
737261-B21 | |
|
12G SAS Hot Plug LFF (3.5-inch) Midline (MDL) 512e Drives |
| |
|
HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive |
765259-B21 | |
|
HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive |
765255-B21 | |
|
HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive |
765257-B21 | |
|
HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive |
765253-B21 | |
|
6G SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives |
| |
|
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652589-B21 | |
|
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652583-B21 | |
|
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652572-B21 | |
|
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652564-B21 | |
|
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652611-B21 | |
|
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652605-B21 | |
|
6G SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives |
| |
|
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
652749-B21 | |
|
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
652745-B21 | |
|
6G SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives |
| |
|
HP 6TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
761477-B21 | |
|
HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
695510-B21 | |
|
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
652766-B21 | |
|
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
652757-B21 | |
|
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
652753-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives |
| |
|
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
655710-B21 | |
|
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
655708-B21 | |
|
6G SATA Hot Plug SFF (2.5-inch) SC 512e Drives |
| |
|
HP 2TB 6G SATA 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive |
765455-B21 | |
|
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive |
765453-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) SC 512e Performance Drives |
| |
|
HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive |
793667-B21 | |
|
HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drives |
793665-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
12G SAS Hot Plug Value Endurance SFF (2.5-inch) Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
762263-B21 | |
|
HP 800GB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
762261-B21 | |
|
12G SAS Hot Plug Value Endurance LFF (3.5-inch) Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 12G SAS Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
762272-B21 | |
|
HP 800GB 12G SAS Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
762270-B21 | |
|
12G SAS High Endurance Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives |
| |
|
HP 400GB 12G SAS High Endurance SFF 2.5-in SC Enterprise Performance 3yr Wty Solid State Drive |
741155-B21 | |
|
12G SAS Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream H2 Solid State Drives |
| |
|
HP 1.6TB 12G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream SC 3yr Wty H2 Solid State Drive |
779176-B21 | |
|
HP 800GB 12G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream SC 3yr Wty H2 Solid State Drive |
779172-B21 | |
|
HP 400GB 12G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream SC 3yr Wty H2 Solid State Drive |
779168-B21 | |
|
HP 200GB 12G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream SC 3yr Wty H2 Solid State Drive |
779164-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) SC 512e Drives |
| |
|
HP 2TB 12G SAS 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive |
765466-B21 | |
|
HP 1TB 12G SAS 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive |
765464-B21 | |
|
12G SAS Hot Plug LFF (3.5-inch) SC 512e Performance Drives |
| |
|
HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive |
793671-B21 | |
|
HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive |
793669-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) SC Read/Write Intensive Solid State Drives |
| |
|
HP 1.92TB 12G SAS Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
802891-B21 | |
|
HP 800GB 12G SAS Write Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
802586-B21 | |
|
HP 400GB 12G SAS Write Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
802582-B21 | |
|
HP 200GB 12G SAS Write Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
802578-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives |
| |
|
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
717965-B21 | |
|
HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
734360-B21 | |
|
6G SATA 2.5in WI-PLP SCC SSD |
| |
|
HP 1.2TB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804680-B21 | |
|
HP 800GB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804674-B21 | |
|
HP 400GB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804668-B21 | |
|
HP 200GB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804642-B21 | |
|
HP 800GB 6G SATA Write Intensive-2 LFF 3.5-in LPC 3yr Wty Solid State Drive |
831725-B21 | |
|
6G SATA 2.5in MU-PLP SCC SSD |
| |
|
HP 1.6TB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804634-B21 | |
|
HP 800GB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804628-B21 | |
|
HP 480GB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
832417-B21 | |
|
HP 200GB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804616-B21 | |
|
6G SATA 2.5in RI-PLP SCC SSD |
| |
|
HP 1.6TB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804608-B21 | |
|
HP 800GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804602-B21 | |
|
HP 480GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804596-B21 | |
|
HP 240GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804590-B21 | |
|
HP 120GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804584-B21 | |
|
HP 80GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804578-B21 | |
|
6G SATA 2.5in WI-PLP SC SSD |
| |
|
HP 1.2TB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804677-B21 | |
|
HP 800GB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804671-B21 | |
|
HP 400GB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804665-B21 | |
|
HP 200GB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804639-B21 | |
|
6G SATA 2.5in MU-PLP SC SSD |
| |
|
HP 1.6TB 6G SATA Mixed Use-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804631-B21 | |
|
HP 800GB 6G SATA Mixed Use-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804625-B21 | |
|
HP 480GB 6G SATA Mixed Use-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
832414-B21 | |
|
HP 200GB 6G SATA Mixed Use-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804613-B21 | |
|
6G SATA 2.5in RI-PLP SC SSD |
| |
|
HP 1.6TB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804605-B21 | |
|
HP 800GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804599-B21 | |
|
HP 480GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804593-B21 | |
|
HP 240GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804587-B21 | |
|
HP 120GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804581-B21 | |
|
HP 80GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804575-B21 | |
|
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives |
| |
|
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
718171-B21 | |
|
HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
734362-B21 | |
|
6G SATA Hot Plug Value Endurance LFF (3.5-inch) Converter Enterprise Value G1 Solid State Drives |
| |
|
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive |
756660-B21 | |
|
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive |
756639-B21 | |
|
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive |
756624-B21 | |
|
6G SATA Hot Plug Value Endurance SFF (2.5-inch) Enterprise Value G1 Solid State Drives |
| |
|
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756657-B21 | |
|
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756636-B21 | |
|
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756621-B21 | |
|
6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives |
| |
|
HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
753874-B21 | |
|
HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
693687-B21 | |
|
HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
628061-B21 | |
|
HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
658079-B21 | |
|
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
657750-B21 | |
|
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
658071-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
757339-B21 | |
|
HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717973-B21 | |
|
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717971-B21 | |
|
HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
739898-B21 | |
|
HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
739888-B21 | |
|
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717969-B21 | |
|
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive |
757342-B21 | |
|
HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
718189-B21 | |
|
HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Conveter Enterprise Value 3yr Wty Solid State Drive |
739900-B21 | |
|
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
718183-B21 | |
|
HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive |
739890-B21 | |
|
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
718177-B21 | |
|
6G SATA Hot Plug Light Endurance SFF (2.5-inch) Enterprise Light G1 Solid State Drives |
| |
|
HP 960GB 6G SATA Light Endurance SFF 2.5-in SC Enterprise Light 3yr Wty G1 Solid State Drive |
756601-B21 | |
|
6G SATA Hot Plug Light Endurance LFF (3.5-inch) Enterprise Light G1 Solid State Drives |
| |
|
HP 960GB 6G SATA Light Endurance LFF 3.5-in SC Converter ENT Light 3yr Wty G1 Solid State Drive |
756604-B21 | |
|
6G SATA Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives |
| |
|
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691868-B21 | |
|
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691866-B21 | |
|
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691864-B21 | |
|
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691862-B21 | |
|
6G SATA Mainstream Endurance Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives |
| |
|
HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691860-B21 | |
|
HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691856-B21 | |
|
HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691854-B21 | |
|
HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691852-B21 | |
|
6G SATA Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives |
| |
|
HP 240GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
789135-B21 | |
|
HP 480GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
789145-B21 | |
|
HP 960GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
789155-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) SC Read Intensive Solid State Drives |
| |
|
HP 960GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
789157-B21 | |
|
HP 480GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
789147-B21 | |
|
HP 240GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
789137-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HP Networking |
Gigabit Ethernet Adapters |
|
|
HP NC112T PCI Express Gigabit Server Adapter |
503746-B21 | |
|
HP NC365T 4-port Ethernet Server Adapter |
593722-B21 | |
|
HP Ethernet 10Gb 2-port 530T Adapter |
656596-B21 | |
|
HP Ethernet 1Gb 2-port 361T Adapter |
652497-B21 | |
|
HP Ethernet 1Gb 4-port 331T Adapter |
647594-B21 | |
|
HP Ethernet 1Gb 2-port 332T Adapter |
615732-B21 | |
|
10 Gigabit Ethernet Adapters |
| |
|
HP NC552SFP 10Gb 2-port Ethernet Server Adapter |
614203-B21 | |
|
HP NC523SFP 10Gb 2-port Server Adapter |
593717-B21 | |
|
HP Ethernet 10Gb 2-port 530SFP Adapter |
652503-B21 | |
|
HP Ethernet 10Gb 2-port 560SFP+ Adapter |
665249-B21 | |
|
HP Ethernet 10Gb 2-port 561T Adapter |
716591-B21 | |
|
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter. |
| |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs |
| |
|
| ||
|
HP InfiniBand |
HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA |
592520-B21 |
|
HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544QSFP Adapter |
649281-B21 | |
|
QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA |
583211-B21 | |
|
NOTE: Please see the QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html |
| |
|
| ||
|
HP Power Supplies |
NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported. |
|
|
HP Common Slot Titanium Power Supply Kits |
| |
|
HP 750W Common Slot Titanium Hot Plug Power Supply Kit |
697581-B21 | |
|
NOTE: The following Power Supply offers up to 96% Efficiency support for Intelligent Power Discovery. |
| |
|
HP Common Slot Platinum Plus Power Supply Kits |
| |
|
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit |
656362-B21 | |
|
HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit |
656363-B21 | |
|
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit |
656364-B21 | |
|
NOTE: The above Power Supplies offer 94% Efficiency with support for Intelligent Power Discovery.* |
| |
|
HP Common Slot Gold Power Supplies |
| |
|
HP 460W CS Gold Ht Plg Power Supply Kit |
503296-B21 | |
|
HP 750W Common Slot Gold Hot Plug Power Supply Kit |
512327-B21 | |
|
NOTE: The following Power Supplies offer 92% Efficiency. |
| |
|
HP Common Slot -48VDC Power Supplies |
| |
|
HP 750W Common Slot -48VDC Hot Plug Power Supply Kit |
636673-B21 | |
|
NOTE: The following Power Supplies offer 92% Efficiency. |
| |
|
NOTE: Option Kits for AC power supplies include the power supply and one PDU IEC cable. |
| |
|
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to http://www.hp.com/products/powercords |
| |
|
NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html |
| |
|
| ||
|
HP Graphic Options |
HP DL360 Gen8 Front Video Adapter Kit |
655915-B21 |
|
NVIDIA Quadro K4000 PCI-E Graphics Adapter |
730870-B21 | |
|
| ||
Additional Options
|
HP Insight Software |
HP Insight Control |
|
|
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License |
C6N27A | |
|
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License |
C6N28ABE | |
|
HP Insight Control Server Provisioning Media Kit |
BD883A | |
|
HP Insight Management Media Kit |
C6N31A | |
|
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key. |
| |
|
NOTE: For additional license options please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html |
| |
|
HP Integrated Lights-Out (iLO) Advanced for ProLiant |
| |
|
HP iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU |
E6U59ABE | |
|
HP iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU |
E6U64ABE | |
|
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License |
512485-B21 | |
|
HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates |
BD505A | |
|
HP iLO Essentials |
| |
|
HP Integrated Lights-Out Essentials including 3yr 24x7 Technical Support and Updates E-LTU |
E6U61ABE | |
|
HP Integrated Lights-Out Essentials including 1yr 24x7 Technical Support and Updates E-LTU |
E6U62ABE | |
|
HP Integrated Lights-Out Essentials including 3yr 24x7 Tech Support and Updates Single Svr License |
BD774A | |
|
HP Integrated Lights-Out Essentials including 1yr 24x7 Tech Support and Updates Single Svr License |
BD775A | |
|
NOTE: For additional license options please see the QuickSpecs at: |
| |
|
NOTE: For more information, visit: http://www.hp.com/go/ilo. |
| |
|
| ||
|
HP Converged Infrastructure Management Software |
HP OneView without iLO Advanced |
|
|
HP OneView incl 3yr 24x7 Supp Phys 1 Svr Lic |
E5Y34A | |
|
HP OneView Media Kit Phys No Lic |
E5Y37A | |
|
HP OneView incl 3yr 24x7 Supp Flex Qty E-LTU |
E5Y35AAE | |
|
HP OneView without iLO Advanced |
| |
|
HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU |
E5Y39AAE | |
|
HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic |
E5Y38A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
High Performance Clusters |
HP Cluster Management Utility |
|
|
HP Insight Cluster Management Utility 1yr 24x7 Flexible License |
QL803B | |
|
HP Insight Cluster Management Utility for ConvergedSystem 3yr 24x7 Flexible License |
G2E81A | |
|
HP Insight Cluster Management Utility 3yr 24x7 Flexible License |
BD476A | |
|
HP Insight Cluster Management Utility Media |
BD477A | |
|
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html. |
| |
|
| ||
|
HP I/O Accelerator Options |
Second Generation Accelerators |
|
|
HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers |
673642-B21 | |
|
HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers |
673644-B21 | |
|
HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers |
673646-B21 | |
|
HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers |
673648-B21 | |
|
HP 700GB HH/HL Mainstream Endurance (ME) PCIe Workload Accelerator |
729305-B21 | |
|
HP 350GB HH/HL High Endurance (HE) PCIe Workload Accelerator |
708088-B21 | |
|
HP 700GB HH/HL High Endurance (HE) PCIe Workload Accelerator |
708090-B21 | |
|
HP 1.0TB HH/HL Light Endurance (LE) PCIe Workload Accelerator |
775666-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HP Security |
HP 1U Security Bezel Kit |
664918-B21 |
|
HP Trusted Platform Module Option |
488069-B21 | |
|
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: http://www.hp.com/go/TPM. |
| |
|
| ||
|
HP Storage Controllers |
SAS Controllers |
|
|
Smart Array P222 Controller |
| |
|
HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller |
631667-B21 | |
|
HP Smart Array P430 Controller |
| |
|
HP Smart Array P430/2GB FBWC 12Gb 1-port Int SAS Controller |
698529-B21 | |
|
NOTE: Supported on 8SFF models only. Cable kit PN: 725598-B21 is mandatorily required with P430 controller on DL360e Gen8. |
| |
|
HP Smart Array P430/4GB FBWC 12Gb 1-port Int SAS Controller |
698530-B21 | |
|
HP Smart Array P420 Controller |
| |
|
HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller |
631670-B21 | |
|
HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller |
631671-B21 | |
|
HP Smart Array P431 Controller |
| |
|
HP Smart Array P431/2GB FBWC 12Gb 2-ports Ext SAS Controller |
698531-B21 | |
|
HP Smart Array P431/4GB FBWC 12Gb 2-ports Ext SAS Controller |
698532-B21 | |
|
HP Smart Array P421 Controller |
| |
|
HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller |
631673-B21 | |
|
HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller |
631674-B21 | |
|
HP Smart Array P822 Controller |
| |
|
HP Smart Array P822/2GB FBWC 6Gb 2-ports-Int/4-ports Ext SAS Controller |
615418-B21 | |
|
Optional Upgrades |
| |
|
HP 2GB P-series Smart Array Flash Backed Write Cache |
631681-B21 | |
|
HP 512MB B-series 36 inch Dynamic Smart Array Flash Backed Write Cache for ML/DL |
631922-B21 | |
|
HP Secure Encryption No Media E-LTU per Drive |
D8S85AAE | |
|
HP 1U Gen8 Smart Array Cable Kit |
672242-B21 | |
|
HP Gen8 2-port SATA Cable Kit |
675856-B21 | |
|
HP DL360e Gen8 Internal SAS P430/830 Cable Kit |
725598-B21 | |
|
HP SAS License Key No Media 1 Single Server License for B320i |
BC393A | |
|
HP SmartCache No Media 24x7 Technical Support 1 Svr License |
D7S26A | |
|
HP SmartCache No Media 24x7 Technical Support Flexible License |
D7S27A | |
|
HP SmartCache No Media 24x7 Technical Support Electronic License |
D7S27AAE | |
|
HP Secure Encryption No Media Flexible License per Drive |
D8S84A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP Host Bus Adapters |
| |
|
HP H222 Host Bus Adapter |
650926-B21 | |
|
HP H220 Host Bus Adapter |
650933-B21 | |
|
HP H221 PCIe 3.0 SAS Host Bus Adapter |
729552-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
SCSI HBA |
| |
|
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter |
412911-B21 | |
|
NOTE: Please see the following QuickSpecs for additional information: |
| |
|
| ||
|
HP Cable Options |
HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable |
AJ833A |
|
HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable |
AJ834A | |
|
HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable |
AJ836A | |
|
HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable |
AJ837A | |
|
HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable |
AJ838A | |
|
HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable |
AJ839A | |
|
HP B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable |
AP818A | |
|
HP B-series SFP+ to SFP+ Active Copper 3.0m Direct Attach Cable |
AP819A | |
|
HP B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable |
AP820A | |
|
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable |
QK732A | |
|
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable |
QK733A | |
|
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable |
QK734A | |
|
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable |
QK735A | |
|
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable |
QK736A | |
|
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable |
QK737A | |
|
| ||
|
HP Tape Backup |
NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HP tape backup products see: http://www.hp.com/storage/SPOCK and http://www.hp.com/go/ebs. |
|
|
HP StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive |
EH958B | |
|
HP StoreEver LTO-5 Ultrium 3280 SAS External Tape Drive |
EH900B | |
|
HP StoreEver 1U USB Rack-mount Kit |
A8007B | |
|
HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit |
C0L99A | |
|
HP StoreEver LTO-6 Ultrium 6650 SAS Internal Tape Drive |
EH963A | |
|
HP StoreEver LTO-6 Ultrium 6650 SAS External Tape Drive |
EH964A | |
|
HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive |
EH969A | |
|
HP StoreEver LTO-6 Ultrium 6250 External Tape Drive |
EH970A | |
|
HP StoreEver 1/8 G2 LTO-6 Ultrium 6250 FC Tape Autoloader |
C0H19A | |
|
HP StoreEver MSL6480 Scalable Base Module |
QU625A | |
|
| ||
|
HP Disk Backup |
HP RDX Removable Disk Backup System |
|
|
HP RDX320 USB3.0 External Disk Backup System |
B7B63A | |
|
HP RDX500 USB3.0 Internal Disk Backup System |
B7B64A | |
|
HP RDX500 USB 3.0 External Disk Backup System |
B7B66A | |
|
HP RDX1000 USB3.0 Internal Disk Backup System |
B7B67A | |
|
HP RDX1000 USB 3.0 External Disk Backup System |
B7B69A | |
|
HP RDX 2TB USB3.0 External Disk Backup System |
E7X53A | |
|
HP RDX 2TB USB3.0 Internal Disk Backup System |
E7X52A | |
|
NOTE: Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information: http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html (Worldwide) |
| |
|
NOTE: For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk backup products see: http://www.hp.com/storage/SPOCK. |
| |
|
| ||
|
HP Storage Options |
Fibre Channel HBA |
|
|
Brocade Fibre Channel HBAs |
| |
|
HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter |
AP769B | |
|
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter |
AP770B | |
|
Emulex Fibre Channel HBAs |
||
|
HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter |
AJ762B | |
|
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter |
AJ763B | |
|
HP StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter |
C8R38A | |
|
HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter |
C8R39A | |
|
QLogic Fibre Channel HBAs |
| |
|
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter |
AK344A | |
|
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter |
AJ764A | |
|
HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter |
QW971A | |
|
HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter |
QW972A | |
|
Converged Network Adapter |
| |
|
HP CN1100E Dual Port Converged Network Adapter |
BK835A | |
|
HP CN1000Q Dual Port Converged Network Adapter |
BS668A | |
|
HP StoreFabric CN1100R Dual Port Converged Network Adapter |
QW990A | |
|
| ||
|
HP Uninterruptible Power Systems |
HP DirectFlow Three Phase UPS |
|
|
Power Unit (1U UPS) |
| |
|
NOTE: #0D1 will appear after the part number on the sales order if HP factory integration is indicated. |
| |
|
HP R12000 DirectFlow - 1U Rackmount Uninterruptible Power System |
G9Y75A | |
|
HP R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System |
AF478A | |
|
Input/Output Module Options for 1U UPS |
| |
|
NOTE: Choose one I/O Module per UPS. NOTE: #0D1 will appear after the part number on the sales order if HP factory integration is indicated. |
| |
|
HP 32A 400-415 Volt Three Phase INTL R12000 DirectFlow UPS IEC309 Input/Output Module |
AF488A | |
|
HP 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output Module |
AF489A | |
|
HP 32A 380 Volt Three Phase China R12000 DirectFlow UPS Unterminated Input/Output Module |
AF490A | |
|
HP 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output Module |
AF491A | |
|
HP 30A 480 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module |
AF492A | |
|
HP 30A 400-415 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module |
G9Y76A | |
|
NOTE: All Input/Output Modules support dual output outlets except the AF484A. |
| |
|
HP Tower UPS |
| |
|
HP T750 G4 UPS Models |
| |
|
HP T750 G4 NA/JP Uninterruptible Power System |
J2P85A | |
|
HP T750 G4 INTL Uninterruptible Power System |
J2P88A | |
|
HP T1000 G4 UPS Models |
| |
|
HP T1000 G4 NA/JP Uninterruptible Power System |
J2P86A | |
|
HP T1000 G4 INTL Uninterruptible Power System |
J2P89A | |
|
HP T1500 G4 UPS Models |
| |
|
HP T1500 G4 NA/JP Uninterruptible Power System |
J2P87A | |
|
HP T1500 G4 INTL Uninterruptible Power System |
J2P90A | |
|
HP Rack/Tower UPS |
| |
|
HP R/T2200 G4 UPS Models |
| |
|
HP R/T2200 G4 NA/JP Uninterruptible Power System |
J2R00A | |
|
HP R/T3000 G4 UPS Models |
| |
|
HP R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System |
J2R01A | |
|
HP R/T3000 G4 High Voltage NA/JP Uninterruptible Power System |
J2R02A | |
|
HP R/T3000 G4 High Voltage INTL Uninterruptible Power System |
J2R04A | |
|
HP Rack-mountable UPS |
| |
|
HP R1500 G4 Uninterruptible Power Supply (UPS) |
| |
|
HP R1500 G4 NA Uninterruptible Power System |
J2Q99A | |
|
HP R1500 G4 INTL Uninterruptible Power System |
J2R03A | |
|
HP R1500 G4 JP/TWN Uninterruptible Power System |
J2R05A | |
|
NOTE: Please see the QuickSpecs for additional information: |
| |
|
R5000 Uninterruptible Power System (UPS) |
| |
|
HP R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System |
AF461A | |
|
HP R5000 3U L630 High Voltage NA/JP Uninterruptible Power System |
AF460A | |
|
NOTE: Please see the QuickSpecs for additional information: |
| |
|
R7000 Uninterruptible Power System (UPS) |
| |
|
HP R7000 4U 50A High Voltage NA/JP Uninterruptible Power System |
AF462A | |
|
HP R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System |
AF463A | |
|
NOTE: Please see the QuickSpecs for additional information: |
| |
|
NOTE: For additional information on HP Uninterruptible Power Systems please go to: http://www.hp.com/servers/rackups. |
| |
|
| ||
|
HP Basic Power Distribution Units (bPDU) |
HP Basic Power Distribution Unit: 1U/0U Version |
|
|
HP 1.9kVA 120 Volt L5-20 Input (12xNEMA 5-20R) NA/JP Basic PDU |
H5M54A | |
|
HP 3.6kVA 200-240 Volt Detachable C20 Input ( 12xC13) WW Basic PDU |
H5M56A | |
|
HP Basic Power Distribution Unit: Half Height Version |
| |
|
HP 2.8kVA 120 Volt L5-30 Input (18xNEMA 5-20R) NA/JP Basic PDU |
H5M55A | |
|
HP 3.6kVA 200-240 Volt Detachable C20 Input (18xC13) WW Basic PDU |
H5M57A | |
|
HP 4.9kVA 208 Volt L6-30 Input (20xC13) NA/JP Basic PDU |
H5M58A | |
|
HP 7.3kVA 230 Volt IEC309 32A Input (20xC13) INTL Basic PDU |
H5M68A | |
|
HP 8.6kVA 208 Volt L15-30 3-Phase Input (18xC13) NA/JP Basic PDU |
H5M61A | |
|
HP Basic Power Distribution Unit: Mid Height Version |
| |
|
HP 4.9kVA 208 Volt L6-30 Input (24xC13/6xC19) NA/JP Basic PDU |
H5M59A | |
|
HP 7.3kVA 230 Volt IEC309 32A Input (24xC13/6xC19) INTL Basic PDU |
H5M70A | |
|
HP 8.3kVA 208 Volt CS8265C Input (30xC13/6xC19) NA/JP Basic PDU |
H5M60A | |
|
HP 11kVA 230 Volt IEC309 63A Input (30xC13/6xC19) INTL Basic PDU |
H5M71A | |
|
HP Hardwired 200-240 Volt Input (30xC13/6xC19) WW Basic PDU |
H5M75A | |
|
HP 5.7kVA 208 Volt L21-20 3-Phase Input (24xC13/3xNEMA 5-20R) NA/JP Basic PDU |
H5M63A | |
|
HP 8.6kVA 208 Volt L21-30 3-Phase Input (24xC13/3xC19/3xNEMA 5-20R) NA/JP Basic PDU |
H5M64A | |
|
HP 8.6kVA 208 Volt L15-30 3-Phase Input (24xC13/6xC19) NA/JP Basic PDU |
H5M62A | |
|
HP 11kVA 400 Volt IEC309 16A 3-Phase Input (30xC13/6xC19) INTL Basic PDU |
H5M72A | |
|
HP Basic Power Distribution Unit: Full Height Version |
| |
|
HP 11kVA 400 Volt IEC309 16A 3-Phase Input (36xC13/6xC19) INTL Basic PDU |
H5M73A | |
|
HP 11kVA 400 Volt IEC309 30A 3-Phase Input (36xC13/6xC19) NA Basic PDU |
H5M67A | |
|
HP Basic Power Distribution Unit: 480/277 Volt Version |
| |
|
HP 19.9kVA 480 Volt IEC309 30A 3-Phase Input (30 Outlet) NA Basic PDU |
H3X08A | |
|
HP 277 Volt options for H3X08A |
| |
|
HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer |
H3X09A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
NOTE: Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit: http://www.hp.com/go/rackandpower. |
| |
|
| ||
|
HP Remote Monitored Power Distribution Units (mPDU) |
HP Remote Monitored Power Distribution Unit: 1U Version |
|
|
HP 2.8kVA 120 Volt L5-30 Input (12xNEMA 5-20R)NA/JP Monitored PDU |
D9N43A | |
|
HP 3.6kVA 200-240 Volt Detachable C20 Input (12xC13) WW Monitored PDU |
D9N46A | |
|
HP 4.9kVA 208 Volt L6-30 Input (12xC13) NA/JP Monitored PDU |
D9N44A | |
|
HP Remote Monitored Power Distribution Unit: Half Height Version |
| |
|
HP 3.6kVA 200-240 Volt Detachable C20 Input (16xC13) WW Monitored PDU |
D9N45A | |
|
HP 4.9kVA 208 Volt L6-30 Input (12xC13) NA/JP Monitored PDU |
G9Z05A | |
|
HP 7.3kVA 230 Volt IEC309 32A Input (12xC13) INTL Monitored PDU |
G9Z06A | |
|
HP Remote Monitored Power Distribution Unit: Mid Height Version |
| |
|
HP 4.9kVA 208 Volt L6-30 Input (20xC13/4xC19) NA/JP Monitored PDU |
D9N47A | |
|
HP 7.3kVA 230 Volt IEC309 32A Input (20xC13/4xC19) INTL Monitored PDU |
D9N48A | |
|
HP 8.6kVA 208 Volt L15-30 3-Phase Input (18xC13/3xC19) NA/JP Monitored PDU |
D9N51A | |
|
HP 5.7kVA 208 Volt L21-20 3-Phase Input (18xC13/3xNEMA 5-20R) NA/JP Monitored PDU |
D9N52A | |
|
HP 8.6kVA 208 Volt L21-30 3-Phase Input (20xC13/3xC19/3xNEMA 5-20R) NA/JP Monitored PDU |
D9N53A | |
|
HP 11kVA 400 Volt IEC309 16A 3-Phase Input (18xC13/3xC19) INTL Monitored PDU |
D9N55A | |
|
HP Remote Monitored Power Distribution Unit: Full Height Version |
| |
|
HP 8.3kVA 208 Volt CS8265C Input (30xC13/3xC19) NA Monitored PDU |
D9N49A | |
|
HP 7.3kVA 230 Volt IEC309 32A Input (32xC13/4xC19) INTL Monitored PDU |
D9N50A | |
|
HP 11kVA 400 Volt IEC309 16A 3-Phase Input (30xC13/3xC19) INTL Monitored PDU |
D9N57A | |
|
HP 14.4kVA 208 Volt CS8365C 3-Phase Input (12xC13/12xC19)NA Monitored PDU |
D9N58A | |
|
HP 16.6kVA 400 Volt IEC309 30A 3-Phase Input (30xC13/3xC19) NA Monitored PDU |
D9N61A | |
|
HP 16.6kVA 400 Volt IEC309 30A 3-Phase Input (12xC13/12xC19) NA Monitored PDU |
D9N62A | |
|
HP 17.3kVA 208 Volt IEC309 60A 3-Phase Input (24xC13/3xC19) NA/JP Monitored PDU |
D9N54A | |
|
HP 17.3kVA 208 Volt IEC309 60A 3-Phase Input (12xC13/12xC19) NA/JP Monitored PDU |
D9N59A | |
|
HP 19.9kVA 480 Volt 3-Phase (30 Outlet) NA Monitored PDU |
D9N63A | |
|
HP 22kVA 400 Volt IEC309 32A 3-Phase Input (30xC13/3xC19) INTL Monitored PDU |
D9N56A | |
|
HP 22kVA 400 Volt IEC309 32A 3-Phase Input (12xC13/12xC19) INTL Monitored PDU |
D9N60A | |
|
HP Environmental Sensor for Remote Monitored PDUs |
| |
|
HP Environmental Sensor for Remote Monitored and Managed PDUs |
E2D53A | |
|
NOTE: Please see the QuickSpecs for additional information: |
| |
|
| ||
|
HP Intelligent Power Distribution Units (iPDU) |
iPDU Core Units |
|
|
HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit |
AF520A | |
|
HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit |
AF521A | |
|
HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit |
AF522A | |
|
HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit |
AF523A | |
|
HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit |
AF525A | |
|
HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit |
AF526A | |
|
HP 22kVA 32A Three Phase INTL Core Intelligent Modular Power Distribution Unit |
AF527A | |
|
HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit |
AF535A | |
|
HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit |
AF537A | |
|
HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit |
AF538A | |
|
iPDU Kits with Standard Extension Bars |
| |
|
HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit |
AF531A | |
|
HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit |
AF532A | |
|
HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit |
AF533A | |
|
HP 7.3kVA 32A Single Phase INTL Intelligent Modular Power Distribution Kit |
AF534A | |
|
iPDU Extension Bars |
| |
|
HP 5xC13 Intelligent PDU Extension Bar G2 Kit |
AF547A | |
|
HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar |
AF528A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HP Managed Power Distribution Units (maPDU) |
Half Height Models |
|
|
HP 3.6kVA 200-240 Volt Detachable C20 Input (7xC13/1xC19) WW Managed PDU |
H8B49A | |
|
Full Height Models |
| |
|
HP 2.8kVA 120 Volt L5-30 Input (24x NEMA 5-20) NA/JP Managed PDU |
H8B48A | |
|
HP 4.9kVA 208 Volt L6-30 Input (20xC13/4xC19) NA/JP Managed PDU |
H8B50A | |
|
HP 7.3kVA 200-240 Volt IEC309 32A Input (20xC13/4xC19) INTL Managed PDU |
H8B51A | |
|
HP 8.6kVA 208 Volt L15-30 3 Phase Input (18xC13/6xC19) NA/JP Managed PDU |
H8B52A | |
|
HP 8.6kVA 208 Volt L21-30 3 Phase Input (20xC13/3xC19/1x NEMA 5-20) NA/JP Managed PDU |
H8B53A | |
|
HP 11kVA 400 Volt IEC309 16A 3 Phase Input (21xC13/3xC19) INTL Managed PDU |
H8B54A | |
|
HP 14.4kVA 208V CS8365C 3 Phase Input (12xC13/12xC19) NA/JP Managed PDU |
H8B55A | |
|
HP 17.3kVA 208V IEC309 60A 3 Phase Input (12xC13/12xC19) NA/JP Managed PDU |
H8B56A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HP Rack Series |
HP Intelligent Series Rack |
|
|
HP 636 1075mm Pallet Intelligent Rack |
BW895A | |
|
HP 636 1075mm Shock Intelligent Rack |
BW896A | |
|
HP 642 1075mm Pallet Intelligent Rack |
BW903A | |
|
HP 642 1075mm Shock Intelligent Rack |
BW904A | |
|
HP 647 1075mm Pallet Intelligent Rack |
BW911A | |
|
HP 647 1075mm Shock Intelligent Rack |
BW912A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications such as height, width, depth, weight, and color: |
| |
|
| ||
|
HP Rack Options |
HP LCD8500 1U Rackmount Console Kit Models |
|
|
HP LCD8500 1U US Rackmount Console Kit |
AF630A | |
|
HP LCD8500 1U UK Rackmount Console Kit |
AF631A | |
|
HP LCD8500 1U DE Rackmount Console Kit |
AF632A | |
|
HP LCD8500 1U FR Rackmount Console Kit |
AF633A | |
|
HP LCD8500 1U JP Rackmount Console Kit |
AF642A | |
|
HP LCD8500 1U RU Rackmount Console Kit |
AF643A | |
|
HP LCD8500 1U INTL Rackmount Console Kit |
AF644A | |
|
HP LCD8500 1U US TAA Rackmount Console Kit |
AF645A | |
|
HP LCD8500 1U Rackmount Console Kit Options |
| |
|
HP Kit LCD 1.83m Latch Display Port Cable |
G7T29A | |
|
HP Location Discovery Services LCD8500 Kit |
TL052A | |
|
HP Rack LED Light Kit |
BW939A | |
|
HP Location Discovery Services |
| |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP 36U Location Discovery Kit |
BW945A | |
|
HP 42U Location Discovery Kit |
BW946A | |
|
HP 47U Location Discovery Kit |
BW947A | |
|
HP USB Keyboard and Mouse |
| |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP USB BFR with PVC Free US Keyboard/Mouse Kit |
631341-B21 | |
|
HP USB BFR with PVC Free UK Keyboard/Mouse Kit |
631344-B21 | |
|
HP USB BFR with PVC Free FR Keyboard/Mouse Kit |
631346-B21 | |
|
HP USB BFR with PVC Free ES Keyboard/Mouse Kit |
631348-B21 | |
|
HP USB BFR with PVC Free DE Keyboard/Mouse Kit |
631358-B21 | |
|
HP USB BFR with PVC Free JP Keyboard/Mouse Kit |
631360-B21 | |
|
HP USB BFR with PVC Free IT Keyboard/Mouse Kit |
631362-B21 | |
|
HP USB BFR with PVC Free CN Keyboard/Mouse Kit |
631364-B21 | |
|
HP USB BFR with PVC Free AE Keyboard/Mouse Kit |
638212-B21 | |
|
HP USB BFR with PVC Free RU Keyboard/Mouse Kit |
638214-B21 | |
|
HP USB BFR with PVC Free IN Keyboard/Mouse Kit |
672097-D63 | |
|
HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit |
672097-373 | |
|
HP USB BFR with PVC Free PT Keyboard/Mouse Kit |
672097-133 | |
|
HP USB BFR with PVC Free TR Keyboard/Mouse Kit |
672097-143 | |
|
HP USB BFR with PVC Free CZ Keyboard/Mouse Kit |
672097-223 | |
|
HP USB BFR with PVC Free FI Keyboard/Mouse Kit |
672097-353 | |
|
HP USB BFR with PVC Free SE Keyboard/Mouse Kit |
672097-103 | |
|
HP USB BFR with PVC Free CH Keyboard/Mouse Kit |
672097-113 | |
|
HP USB BFR with PVC Free KR Keyboard/Mouse Kit |
672097-KD3 | |
|
HP Server Console Switches |
| |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP 0x1x8 G3 KVM Console Switch |
AF651A | |
|
HP 0x2x16 G3 KVM Console Switch |
AF652A | |
|
HP TAA 0x2x16 G3 KVM Console Switch |
AF653A | |
|
HP USB Remote Access Key for G3 KVM Console Switches |
AF650A | |
|
HP Server Console Switch G2 with Virtual Media & CAC |
| |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software |
AF618A | |
|
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software |
AF619A | |
|
KVM USB Cnsl Itfc Adapter 1PK ALL |
336047-B21 | |
|
HP IP Console Switch G2 with Virtual Media & CAC |
| |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP 1x4 USB/PS2 KVM Console Switch |
AF611A | |
|
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF620A | |
|
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF621A | |
|
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF622A | |
|
Rail Kits |
| |
|
NOTE: The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001). Caution: HP recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation. |
| |
|
HP 1U Small Form Factor Ball Bearing Rail Kit |
663201-B21 | |
|
HP 1U Cable Management Arm for Ball Bearing Rail Kit |
663203-B21 | |
|
HP Rack Cable Management Velcro Clips |
379820-B21 | |
|
HP 1U Large Form Factor Ball Bearing Rail Kit |
663202-B21 | |
|
HP 1U Small Form Factor Easy Install Rail Kit |
734807-B21 | |
|
HP 1U Large Form Factor Easy Install Rail Kit |
734809-B21 | |
|
HP 1U Cable Management Arm for Easy Install Rail Kit |
734811-B21 | |
|
| ||
|
HP USB and SD Options |
HP Flash Media Kits for USB Drives |
|
|
HP Enterprise Mainstream Flash Media Kits for Memory Cards |
| |
|
HP 8GB SD Enterprise Mainstream Flash Media Kit |
726113-B21 | |
|
HP 32GB SD Enterprise Mainstream Flash Media Kit |
700136-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP USB BFR with PVC Free Intl Keyboard/Mouse Kit |
672097-B33 | |
|
| ||
|
HP Care Pack Services |
Proactive Care |
|
|
HP 3 year 4 hour 24x7 ProLiant DL360e Proactive Care Service |
U6D63E | |
|
HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL360e Proactive Care Service |
U6D64E | |
|
HP 3 year 4-Hour 24x7 with Comprehensive Defective Material Retention DL360e ProactiveCare Service |
U9B02E | |
|
HP 3 year 4-Hour 24x7 w/Comprehensive Defective MaterialRetention DL360e w/IC ProactiveCare Service |
U9B13E | |
|
HP 3 year 4 hour 24x7 ProLiant DL360e with Insight Control Proactive Care Service |
U6G82E | |
|
HP 3 year 4 hour 24x7 w/Defective Media Retention DL360e with Insight Control Proactive Care Service |
U6G83E | |
|
NOTE: Collaborative Support plus Proactive services delivered by the onshore, local language Advanced Solution Center (ASC), end-to-end case ownership from a Technical Solution Specialists and Technical Account Manager who remotely delivers firmware/software revision management, proactive scans and incident trend reports. Recommended for customers running a virtualized infrastructure and/or customers who desire an enhanced call support experience. |
| |
|
Foundation Care |
| |
|
HP 3 year 24x7 DL360e Foundation Care Service |
U2GL2E | |
|
HP 3 year 24x7 with Defective Media Retention DL360e Foundation Care Service |
U2GL3E | |
|
HP 3 year 24x7 with Comprehensive Defective Material Retention DL360e Foundation Care Service |
U2GL4E | |
|
HP 3 year 24x7 DL360e w/IC Foundation Care Service |
U2HY4E | |
|
HP 3 year 24x7 with Defective Media Retention DL360e w/IC Foundation Care Service |
U2HY5E | |
|
HP 3 year 24x7 with Comprehensive Defective Material Retention DL360e w/IC Foundation Care Service |
U2HY6E | |
|
Installation Services |
| |
|
HP Installation ProLiant DL160/DL360e Service |
U6E11E | |
|
HP Startup ProLiant DL160/DL360e Service |
U6E13E | |
|
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack |
|
Memory
|
HP SmartMemory |
|
|
|
Memory population guidelines |
|
|
|
|
|
General Memory Population Rules and Guidelines:
|
|
|
|
Intel Gen8 Supported Memory Bandwidth for HP ProLiant Gen8 Intel® Xeon®E5-2400v2 Series Processor Family | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intel Gen8 Supported Memory Bandwidth for HP ProLiant Gen8 Intel® Xeon®E5-2400 Series Processor Family | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
NOTE: To realize the performance memory capabilities listed above HP SmartMemory is required. ## RBSU setting required. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DIMM slot and configuration diagrams
| ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||
|
Memory Speed by Processor Model | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||
|
Standard and Maximum Memory Capacity (Pre-configured Models) | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||
|
DDR3 memory options part number decoder | ||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||
|
HP Memory |
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide) |
|
|
NOTE: HP memory from previous generation servers are not fully compatible with the DL360e Gen8 Server. |
| |
|
Registered DIMMs (RDIMMs) |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713981-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713983-B21 | |
|
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
731765-B21 | |
|
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713985-B21 | |
|
NOTE: The above memory is supported by the E5-2400 v2 series Processors. |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647893-B21 | |
|
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
647895-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647897-B21 | |
|
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
647899-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
690802-B21 | |
|
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647901-B21 | |
|
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
672631-B21 | |
|
NOTE: The above memory is supported by the E5-2400 series Processors. |
| |
|
Unbuffered with ECC DIMMs (UDIMM) |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713975-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713977-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit |
713979-B21 | |
|
NOTE: The above memory is supported by the E5-2400 v2 series Processors. |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669320-B21 | |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647905-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669322-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647907-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669324-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647909-B21 | |
|
NOTE: The above memory is supported by the E5-2400 series Processors. |
| |
|
Load Reduced DIMMs (LRDIMMs) |
| |
|
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit |
647903-B21 | |
|
NOTE: The above memory is supported by the E5-2400 v2 and E5-2400 series Processors. |
| |
|
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. |
|
Storage
|
|
A |
Optional DVD-ROM/DVD-RW |
|
1-8 |
8 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays | |
|
|
|
|
|
|
A |
Optional DVD-ROM/DVD-RW |
|
1-4 |
4 x LFF SATA/SAS/SSD Hot Pluggable Hard Drives Bays | |
|
| ||
|
External Storage | |||
|
Quantity |
Position |
Host Controller or Adapter | |
|
D2600 Disk Enclosure |
Up to 4 |
External |
HP Smart Array P222/512MB FBWC Controller |
|
Up to 8 |
External |
HP Smart Array P421/1GB FBWC Controller | |
|
D2700 Disk Enclosure |
Up to 2 |
External |
HP Smart Array P222/512MB FBWC Controller |
|
Up to 4 |
External |
HP Smart Array P421/1GB FBWC Controller | |
Technical Specifications
|
System Unit |
Dimensions (H x W x D) |
8 SFF |
1.7 x 17.1 x 27.5 inches (4.32 x 43.46 x 69.9 cm) | ||
|
4 LFF |
1.7 x 17.1 x 29.5 inches (4.32 x 43.46 x 75.0 cm) | ||||
|
Weight |
Maximum |
8 SFF (17.14 kg) |
| ||
|
4 LFF (17.40 kg) |
| ||||
|
Minimum |
8 SFF (13.20kg) | ||||
|
Input Requirements |
Rated Line Voltage |
100 to 120 VAC | |||
|
Rated Input Current |
4.5 Amps (at 120VAC) to 2.2 Amps (at 240 VAC) | ||||
|
Rated Input Frequency |
50 to 60 Hz | ||||
|
BTU Rating |
Maximum |
1773 BTU / hr (at 120 VAC), 1715 (at 240 VAC) | |||
|
Power Supply Output |
Rated Steady-State Power
|
460 W (at 100 to 120 VAC), | |||
|
750 W (at 100 to 120 VAC), | |||||
|
Maximum Peak Power
|
460 W (at 100 to 120 VAC), | ||||
|
750 W (at 100 to 120 VAC), | |||||
|
System Inlet Temperature |
Operating |
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. | |||
|
Non-operating |
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr). | ||||
|
Relative Humidity |
Operating |
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. | |||
|
Non-operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | ||||
|
Altitude |
Operating |
3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). | |||
|
Non-operating |
9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). | ||||
|
Acoustic Noise |
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). | ||||
|
Idle | |||||
|
LWAd |
(1P non-redundant) 4.7 B Average Bystander | ||||
|
|
|
(2P redundant) 5.0B Average Bystander | |||
|
LpAm |
(1P non-redundant) 33dBA | ||||
|
|
|
(2P redundant) 35 dBA | |||
|
Operating |
|||||
|
LWAd |
(1P non-redundant) 4.7 B Average Bystander | ||||
|
|
|
(2P redundant) 5.0B Average Bystander | |||
|
LpAm |
(1P non-redundant) 33 dBA | ||||
|
|
|
(2P redundant) 35 dBA | |||
|
Emissions Classification (EMC) |
FCC Rating |
Class A | |||
|
Normative Standards |
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1 | ||||
|
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. | |||||
|
| |||||
|
HP Dynamic Smart Array B120i Controller |
Dimensions |
Embedded |
|
Disk Drive and Enclosure Interface - Transfer rate |
Up to 6Gb/s SATA (Serial ATA) | |
|
SAS Connectors |
6 internal SATA connectors | |
|
Server Interface |
x4 PCIe 2.0 | |
|
SAS Speed |
6Gb/s SATA links | |
|
Cache Memory |
Zero Memory RAID has no cache memory | |
|
Logical Drives Supported |
Up to 8 logical volumes (6 physical drives) | |
|
Host Memory Addressing |
64-bit, supporting greater than 4GB server memory space | |
|
RAID Support |
RAID 0 (Striping), RAID 1 (Mirroring) | |
|
RAID 1+0 (Striping & Mirroring) | ||
|
| ||
|
HP Dynamic Smart Array B320i Controller |
Dimensions |
Embedded |
|
Disk Drive and Enclosure Interface - Transfer rate |
Up to 6Gb/s SATA (Serial ATA) | |
|
SAS Connectors |
2 internal x4 connectors | |
|
Server Interface |
x4 PCIe 2.0 | |
|
SAS Speed |
6Gb/s SAS links | |
|
Cache Memory |
Zero Memory RAID has no cache memory | |
|
Logical Drives Supported |
Zero Memory, Up to 2 logical volumes (6 physical drives) | |
|
Host Memory Addressing |
64-bit, supporting greater than 4GB server memory space | |
|
RAID Support |
RAID 0 (Striping), RAID 1 (Mirroring) | |
|
RAID 1+0 (Striping & Mirroring) | ||
|
RAID 5 with optional 512MB FBWC | ||
|
NOTE: SAS mode requires purchase of SAS license key. For more information please visit http://www.hp.com/go/saslicense | ||
|
| ||
|
HP Smart Array P420Controller |
Dimensions |
Low Profile PCIe Form Factor |
|
Disk Drive and Enclosure Interface - transfer rate |
6Gb/s SAS (Serial Attached SCSI) | |
|
3Gb/s SATA (Serial ATA) | ||
|
SAS Connectors |
2 internal 4X connectors | |
|
Cache Memory Speed |
DDR2-800MHz with 40 or 72-bit wide bus | |
|
Server Interface |
x4 PCIe 2.0 provides 2GB/s maximum bandwidth | |
|
SAS Speed |
8 6Gb/s SAS links provide 4.8GB/s maximum bandwidth | |
|
Cache Memory |
Zero Memory RAID has no cache memory | |
|
Logical Drives Supported |
Up to 64 logical drives with cache | |
|
Host Memory Addressing |
64-bit, supporting greater than 4GB server memory space | |
|
RAID Support |
RAID 6, 60 (Advanced Data Guarding) | |
|
RAID 5, 50 (Distributed Data Guarding) | ||
|
| ||
|
HP Ethernet 1Gb 4-port 331FLR Adapter |
Network Interface |
10Base-T/100Base-TX/1000Base-TX | |
|
Compatibility |
IEEE 802.3 10Base-T | ||
|
IEEE 802.3ab 1000Base-T | |||
|
IEEE 802.3u 100Base-TX | |||
|
IEEE 1588, IEEE 802.1AS | |||
|
IEEE 802.3az - Energy Efficient Ethernet (EEE) | |||
|
Data Transfer Method |
PCI Express, four lanes (x4) | ||
|
Controller |
Intel I350 Powerville | ||
|
Network Transfer Rate |
10Base-T (Half-Duplex) |
10 Mb/s per port, 40 Mb/s Combined | |
|
10Base-T (Full-Duplex) |
20 Mb/s per port, 80 Mb/S Combined | ||
|
100Base-TX (Half-Duplex) |
100 Mb/s per port, 400 Mb/s Combined | ||
|
100Base-TX (Full-Duplex) |
200 Mb/s per port, 800 Mb/s Combined | ||
|
1000Base-TX (Half and Full-Duplex) |
1000Mb/s per port, 4000 Mb/s Combined | ||
|
Connector |
Four RJ-45 | ||
|
Cable Support |
10Base-T |
Categories 3, 4 or 5 UTP; up to 328 ft (100 m) | |
|
10/100/1000Base-TX |
Category 5 UTP; up to 328 ft (100 m) | ||
|
| |||
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
17-Aug-2015 |
From Version 47 to 48 |
Added |
New Solid State Drives offering was added to HP Hard Drives section. |
|
01-Jun-2015 |
From Version 46 to 47 |
Added |
New Hard Drives were added to Core Options. |
|
Removed |
Obsolete SKUs were removed from Configuration Information - Factory Integrated Models, Core Options, and Additional Options. | ||
|
30-Mar-2015 |
From Version 45 to 46 |
Added |
New Hard Drives added to Core Options. |
|
09-Feb-2015 |
From Version 44 to 45 |
Added |
New Hard Drives, DirectFlow UPS, Rack and Tower G4 Models, LCD8500 1U Rackmount Models and Options were added to the Additional Options section. |
|
Changed |
HP Uninterruptible Power Systems, HP Rack Options, and HP Care Pack Services in Additional Options section were revised. | ||
|
01-Dec-2014 |
From Version 43 to 44 |
Added |
HP 1.6TB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive and HP 1.6TB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive were added to HP Hard Drives. |
|
Removed |
Proactive Care Services (U6D69E, U6D70E, U6G84E, and U6G85E) and Proactive Care Personalized Support Option were removed from HP Care Pack Services. | ||
|
01-Nov-2014 |
From Version 42 to 43 |
Changed |
Service and Support section was revised. |
|
29-Sep-2014 |
From Version 41 to 42 |
Added |
New Solid State Drives were added. HP Managed Power Distribution Units (maPDU) was added to Additional Options. |
|
Changed |
Service and Support section was revised. HP Hard Drives was revised in Core Options section. Memory section was revised. | ||
|
Removed |
HP Power Distribution Units was removed from Additional Options. | ||
|
09-Sep-2014 |
From Version 40 to 41 |
Changed |
Memory section was revised. |
|
18-Aug-2014 |
From Version 39 to 40 |
Added |
New Hard Drives were added. HP Remote mPDUs half height were added. |
|
Changed |
Configuration Information - Factory Integrated Models, Core Options, Additional Options, and Memory sections were revised. | ||
|
16-Jun-2014 |
From Version 37 to 39 |
Changed |
Hard Drives, Insight Software, I/O Expansion Options, Cable Options, Power Distribution Units, and USB and SD Options were revised. |
|
25-Apr-2014 |
From Version 36 to 37 |
Changed |
Changes made throughout the entire QuickSpecs. |
|
22-Jan-2014 |
From Version 35 to 36 |
Changed |
The link in the Note was corrected in the Standard Features/ Upgradeability section. |
|
13-Jan-2014 |
From Version 34 to 35 |
Changed |
Changes made to the North America and Canada versions only. |
|
09-Jan-2014 |
From Version 33 to 34 |
Changed |
Changes made throughout the entire QuickSpecs. |
|
16-Dec-2013 |
From Version 32 to 33 |
Changed |
Changes made to the North America and Canada versions only. |
|
15-Nov-2013 |
From Version 31 to 32 |
Changed |
Minor change made to the Core Options/ Hard Drives Section. |
|
11-Oct-2013 |
From Version 30 to 31 |
Added |
Converged Infrastructure Management Software was added HP 600GB 6G SATA Value Endurance SFF and LFF SC Enterprise Value Solid State Drives and HP 300GB 6G SATA Value Endurance SFF and LFF SC Enterprise Value Solid State Drives were added to Hard Drives HP Remote Monitoring Power Distribution Units was added to Additional Options HP 8GB SD Enterprise Mainstream Flash Media Kit was added to HP USB and SD Options |
|
20-Sep-2013 |
From Version 28 to 30 |
Changed |
HP Dynamic Smart Array B120i Controller in Technical Specifications was revised. |
|
10-Sep-2013 |
From Version 27 to 28 |
Changed |
Changes made to the following sections: Standard Features - HP Insight Management Optional Features - High Performance Clusters Pre-configured Models Memory Core Options - HP Hard Drives |
|
08-Jul-2013 |
From Version 26 to 27 |
Removed |
Notes removed from the HP Storage Controllers section. |
|
12-Jun-2013 |
From Version 25 to 26 |
Changed |
Changes made to the North America and Canada versions only. |
|
31-May-2013 |
From Version 24 to 25 |
Changed |
Changes made to the North America and Canada versions only. |
|
27-May-2013 |
From Version 23 to 24 |
Changed |
Changes made in the following sections: Standard Features: Processor, Maximum Internal Storage Core Options: HP Hard Drives, HP InfiniBand, Additional Options: HP I/O Accelerator Options, HP Tape Backup, Added HP Basic Power Distribution Units |
|
29-Apr-2013 |
From Version 22 to 23 |
Changed |
Technical Specifications: Updated HP Dynamic Smart Array B120i Controller section. |
|
25-Mar-2013 |
From Version 21 to 22 |
Added |
Configuration Information: Added NOTE to HP Power Supplies Core Options: Added NOTE to HP Power Supplies |
|
|
|
Removed |
Additional Options: Removed 641027-B21, 600279-B21 and 600282-B21 from the HP I/O Accelerator Options section. |
|
15-Mar-2013 |
From Version 20 to 21 |
Changed |
Changes made to the North America and Canada versions only. |
|
05-Mar-2013 |
From Version 19 to 20 |
Added |
Optional Features: Added HP Proactive Insight experience section. |
|
19-Feb-2013 |
From Version 18 to 19 |
Changed |
Changes made in the following sections: Standard Features: Maximum Internal Storage Optional Features: HP Insight Management, Added Storage Software Models section Configuration Information: Step 2 - HP I/O Expansion Options, Step 3 - added HP Insight Software Core Options: Hard Drives, HP Networking Additional Options: Changes made in the Insight Control, HP Tape Backup, HP Care Pack Services |
|
21-Dec-2012 |
From Version 17 to 18 |
Changed |
Additional Options: in HP Cable Options = changed HP Premier Flex LC/LC Multi-mode OM4 5 fiber 5m Cable to a 2 fiber 5m Cable. |
|
14-Dec-2012 |
From Version 16 to 17 |
Changed |
Configuration Information - Factory Integrated Models: in Step 1 change to note. Additional Options: changes made in HP Storage Controllers |
|
07-Dec-2012 |
From Version 15 to 16 |
Removed |
Removed the HP Backup & Recovery Software, HP Disk Backup, and HP Disk Storage Systems from the Additional Options section. |
|
|
|
Changed |
Standard Features: Graphics, On System Management Optional Features: HP Insight Management Pre-Configured Models: Corrected a note location within SKU 668812-xx1 Configuration Information: Step 1 - Added Notes, Step 2 - HP Power Supplies section changes Core Options: Optical Drives, HP Hard Drives, HP Power Supplies Additional Options: Completely revised the HP Insight Software section, HP Rack Series, HP Rack Options & HP Care Pack Services |
|
02-Nov-2012 |
From Version 14 to 15 |
Changed |
Change was made in the Technical Specifications section. |
|
19-Oct-2012 |
From Version 12 to 14 |
Changed |
Change made to SKU description in Additional Options section. |
|
07-Sep-2012 |
From Version 11 to 12 |
Changed |
Change made in the Models and Configuration Information section only. |
|
05-Sep-2012 |
From Version 10 to 11 |
Changed |
Change made in the Technical Specifications section only. |
|
31-Aug-2012 |
From Version 9 to 10 |
Changed |
Note Change made in the Models, Configuration Information and Additional Options sections. |
|
27-Aug-2012 |
From Version 8 to 9 |
Changed |
Change made in Standard Features section. |
|
22-Aug-2012 |
From Version 7 to 8 |
Changed |
Changes made Technical Specifications. |
|
17-Aug-2012 |
From Version 6 to 7 |
Changed |
Changes made throughout the QuickSpecs. |
|
03-Jul-2012 |
From Version 5 to 6 |
Changed |
Change made in the Additional Options section. |
|
26-Jun-2012 |
From Version 4 to 5 |
Changed |
Changes made in Pre-Configured Models, Configuration Information, Core Options and Additional Options and Memory sections. |
|
19-Jun-2012 |
From Version 3 to 4 |
Changed |
Corrected the order of the processors in the Standard Features and Core Options sections. |
|
15-Jun-2012 |
From Version 2 to 3 |
Changed |
Made changes in Standard Features, Pre-Configured Models, Configuration Information, Core Options and Additional Options. |
|
08-Jun-2012 |
From Version 1 to 2 |
Changed |
Added Care Pack Services. |
|
© Copyright 2015 Hewlett-Packard Development Company, L.P. |
