HP ProLiant DL320e Generation 8 (Gen8) | |||
|
| |||
|
The latest 1P rack server, HP ProLiant DL320e Gen8 Server series, is a new entry level rack-optimized platform, ideal for single-application IT infrastructure, web and edge-of-network applications. The ProLiant DL320e Gen8 Server is not only affordable but is more powerful by enabling powerful quad-core processor computing performance with larger memory & storage capacity, all in a small package. The DL320e Gen8 supports the latest technology, such as Intel® Xeon® E3 Pentium processors, PCI-e Gen3, DDR3 1600MHz memory, up to 12TB internal storage, RAID solution as well as High Efficiency Hot Plug Redundant Power Supply Kit. HP ProLiant DL320e Gen8 Server series supports HP iLO Management Engine, a complete set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. | |||
|
|
| ||
|
|
| ||
|

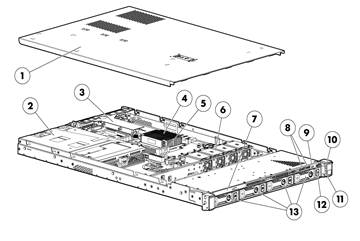

Front View: |
Rear View: | ||
|
1. |
Access Panel |
1. |
Expansion slot 2, PCIe x16 |
|
2. |
Power Supply |
2. |
Expansion slot 1, PCIe x8 |
|
3. |
PCI Riser Cage |
3. |
Power Supply 2 |
|
4. |
Processor |
4. |
Power Supply 1 |
|
5. |
DIMMs |
5. |
Dedicated iLO port |
|
6. |
Fans |
6. |
UID LED button |
|
7. |
Optical drive |
7. |
Serial Connector |
|
8. |
2 USB Connectors |
8. |
Video Connector |
|
9. |
UID LED button |
9. |
USB Connectors |
|
10. |
Health LED |
10. |
NIC Connector 1 |
|
11. |
NIC status LED |
11. |
USB Connectors |
|
12. |
Power On/Standby button and LED |
12. |
NIC Connector 2 |
|
13. |
Hard Drive Bays |
|
|
|
| |||
|
What's New | |||
| |||
Standard Features
|
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. | |
|
Processor |
Entry Processors |
|
Intel® Pentium® G2120 (3.1GHz/2-core/3MB/55W) Processor | |
|
Performance Processors | |
|
Intel® Xeon® E3-1220Lv2 (2.3GHz/2-core/3MB/17W, HT) | |
|
Intel® Xeon® E3-1220v2 (3.1GHz/4-core/8MB/69W) | |
|
Intel® Xeon® E3-1230v2 (3.3GHz/4-core/8MB/69W, HT) | |
|
Intel® Xeon® E3-1240v2 (3.4GHz/4-core/8MB/69W, HT) | |
|
Intel® Xeon® E3-1270v2 (3.5GHz/4-core/8MB/69W, HT) | |
|
Intel® Xeon® E3-1290v2 (3.7GHz/4-core/8MB/87W, HT) | |
|
NOTE: HT indicates that the processor model supports Intel® /Hyper-Threading Technology (Depends on the processor). | |
|
| |
|
Cache Memory |
8MB (1x8MB) Level 3 |
|
3MB (1x3MB) Level 3 | |
|
| |
|
Chipset |
Intel® C204 Series Chipset |
|
NOTE: For more information regarding Intel® chipsets, please see the following URL: | |
|
| |
|
Upgradeability |
Up to 4 DIMM slots available for higher Memory capacity |
|
Up to 8 bay SFF Hot plug Drive Cage; Or 4 bay LFF Hot plug or Non hot plug Drive Cages | |
|
1 PCIe 2.0 expansion slot | |
|
1 PCIe 3.0 I/O slot for additional communications and storage expansion (depends on processor) | |
|
Redundant Power Supply | |
|
Optical Drive Bay | |
|
| |
|
On System Management Processor |
HP iLO (Firmware: HP iLO 4) |
|
NOTE: For more information, visit: http://www.hp.com/go/ilo. | |
|
| |
|
Memory Protection |
ECC |
|
| |
|
Memory |
Type |
HP SmartMemory |
|
Unbuffered (UDIMM) | ||
|
DIMM Slots Available |
4 DIMMs (2 Channels/ 2 DIMMs per channel) | |
|
Maximum Capacity (UDIMM) |
32GB (4 x 8GB@1600MHz) | |
|
NOTE: HP memory from previous generation servers are not fully compatible with the HP ProLiant DL320e Gen8 Server. | ||
|
| ||
|
Network Controller |
HP Ethernet 1Gb 2-port 330i Adapter |
|
| |
|
Expansion Slots |
Expansion |
Technology |
Bus |
Connector Width |
Form Factor |
Notes |
|
1 |
PCIe 2.0 |
x4 |
x8 |
Low profile slot |
| |
|
2 |
PCIe 3.0 |
x16 |
x16 |
Half-length, full-height slot |
| |
|
*Indicates the number of physical electrical lanes running to the connector. | ||||||
|
| ||||||
|
HP Server ROM |
HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.
NOTE: For further information, please refer to HP's RBSU (ROM based setup utility) user guide: http://www.hp.com/support/rbsu. |
|
| |
|
Storage Controller |
Entry Models |
HP Dynamic Smart Array B120i Controller |
|
Base Models |
HP Dynamic Smart Array B120i Controller | |
|
Performance Models |
HP Smart Array P222/512MB FBWC controller | |
|
NOTE: The DL320e Gen8 can support other advanced controllers as well, depending on model and configuration | ||
|
| ||
|
Internal Storage Devices |
Diskette Drive |
None |
|
Optical Drive |
Optional | |
|
DVD-ROM, DVD-RW | ||
|
Hard Drives |
None ship standard (Base Models and Performance Models) | |
|
1x NHP 500GB SATA 3.5" drive (Entry Models) | ||
|
Hard Drive Bays |
8 SFF drive bays or 4 LFF Non hot plug/Hot plug | |
|
NOTE: HP ProLiant DL320e Series servers offer both SFF, and LFF versions in CTO. The Optical Drive bay is available with both models. | ||
|
| ||
|
Maximum Internal Storage |
Hot Plug SFF SAS |
9.6TB |
8 x 1.2TB |
|
Hot Plug SFF SATA |
8.0TB |
8 x 1TB | |
|
Hot Plug LFF SAS |
16.0TB |
4 x 4TB | |
|
Hot Plug LFF SATA |
16.0TB |
4 x 4TB | |
|
Hot Plug SFF SAS SSD |
6.4TB |
8 x 800GB | |
|
Hot Plug SFF SATA SSD |
6.4TB |
8 x 800GB | |
|
Hot Plug LFF SATA SSD |
3.2TB |
4 x 800GB | |
|
Non-Hot Plug LFF SATA |
12.0 TB |
4 x 3TB | |
|
| |||
|
Interfaces |
Serial |
1 |
|
Video |
1 Rear standard video | |
|
HP iLO Remote Management Network Port |
1Gb Dedicated | |
|
SD slot |
1 Internal | |
|
USB 2.0 Ports |
7 total: 4 rear, 2 front, 1 internal (Optional) | |
|
| ||
|
Industry Standard Compliance |
ACPI 2.0b Compliant |
|
PCIe 3.0 | |
|
PXE Support | |
|
WOL Support | |
|
USB 2.0 Compliant | |
|
| |
|
Server Power Cords |
All Pre-configured Models servers ship with a high voltage server to PDU power cord. |
|
| |
|
Power Specifications |
To review typical system power ratings use the HP Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/proliant-energy-efficient or http://www.hp.com/go/hppoweradvisor. |
|
| |
|
Common Slot Power Supply |
NOTE: The default power supply for DL320e Gen8 server is a 350W Non Hot Plug, Non Redundant (ATX) power supply with 85% efficiency. HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HP CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. The 460W HP CS power supply option provides an efficiency rating of up to 94%. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations. |
|
| |
|
System Fans |
4 fan modules ship standard, non-redundant |
|
| |
|
Operating Systems and Virtualization Software Support for ProLiant Servers |
Microsoft Windows Server |
|
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page: http://www.hp.com/support/DL320eGen8. | |
|
| |
|
Graphics |
Integrated Matrox G200 video standard
HP iLO 4 On System Management Memory
|
|
| |
|
Form Factor |
1U Rack form factor |
|
8 SFF Drive Bay Version: | |
|
4 LFF Drive Bay Version: | |
|
| |
|
On System Management |
HP iLO Management Engine |
HP iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 servers. The HP iLO Management Engine portfolio includes:
NOTE: For more information, visit: http://www.hp.com/go/ilo or HP iLO Management Engine technologies whitepaper |
|
| ||
|
HP Insight Management |
HP Service Pack for ProLiant |
HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HP server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HP SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that HP provides 12 months of support for each Service Pack for ProLiant release. |
|
| ||
|
Security |
Power-on password |
|
Administrator's password | |
|
| |
|
Warranty |
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
Optional Features
|
HP Insight management software |
HP Insight Control |
HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HP Insight Control also supports Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see http://www.hp.com/go/insightcontrol. HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, see: http://www.hp.com/services/insight. |
|
HP iLO Essentials |
HP iLO Essentials license ideal for small and medium business customers. The specially created HP iLO Essentials (a subset of iLO Advanced functionality) saves SMB customers time and money, by ease of remote server set up through the interactive virtual media, lowering operational costs with remote access via the Integrated Remote Console, and faster time to resolution with email-based proactive notifications. With this newly designed HP iLO Essentials license SMB customers now have the option of a server management package solely design and priced just right for their IT environments. HP iLO Essentials is available on all HP ProLiant Gen8 e-series making this an ideal solution for small business owners. For more information, see: http://www.hp.com/go/iLO/essentials | |
|
HP iLO Advanced |
HP Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HP ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvanced | |
|
HP Matrix Operating Environment |
The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business. The HP Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HP CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS). NOTE: For more information, visit: http://www.hp.com/go/matrixoe | |
|
| ||
|
High Performance Clusters |
HP Cluster Platforms |
HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters. |
|
HP HPC Interconnects |
High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html | |
|
HP Insight Cluster Management Utility |
HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu | |
|
| ||
|
Storage Software |
Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.
NOTE: For more information available Storage Software including QuickSpecs, please see: http://www.hp.com/go/storage/software. |
|
| |
|
HP Insight Online |
HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. http://www.hp.com/go/insightonline |
|
| |
|
HP Proactive Insight experience |
Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: http://www.hp.com/go/proactiveinsightexperience |
|
| |
|
Factory Express Portfolio for Servers and Storage |
HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. |
|
| |
|
HP Simple Configurator |
SCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator |
Service and Support
|
Service and Support |
HP Technology Services for Industry Standard Servers
Protect your business beyond warranty with HP Care Pack Services HP Care Pack Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select. |
|
| |
|
Optimized Care |
Optimized Care: Supports maintaining servers at optimum performance availability HP Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to HP. This Care Pack Service combines three years’ proactive reporting and advice with our 24x7 coverage and enhanced escalation management, four hour hardware response time and two hour call back for software questions on leading industry standard software running on your HP ProLiant server. http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855ENW.pdf |
|
| |
|
Standard Care |
Standard Care: Service recommendation that maintains high level of server availability HP Foundation Care 24x7 connects you to HP 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HP server. Simplify your support experience and make HP your first call for hardware or software questions. http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en |
|
| |
|
Related Services |
HP ProLiant Server Hardware Installation Factory Express for Servers and storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
Data Privacy Services Protect your data through better media management. HP Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. http://www.hp.com/services/dataprivacy Additional HP Care Pack services can be found at: http://www.hp.com/go/cpc |
|
| |
|
Get connected to HP to improve your support experience |
Prevent problems with innovative, automated monitoring tools and proactive services. Combining Proactive Care Services with our remote support technology such as Insight Online provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: http://www.hp.com/go/proactiveinsightexperience |
|
| |
|
HP Support Center |
Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc |
|
| |
|
Warranty / Service Coverage |
For ProLiant servers and storage systems, the services cover HP-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply. |
|
| |
|
For more information |
To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant |
Pre-configured Models
|
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. |
|
Base Models | ||
|
HP ProLiant DL320e Gen8 E3-1220v2 1P 4GB-U Hot Plug 4 LFF 350W PS Server |
Processor(s) |
(1) Intel® Xeon® E3-1220v2 (3.1GHz/4-core/8MB/69W, HT) Processor |
|
Cache Memory |
8MB (1x8MB) Level3 | |
|
Memory |
4GB (1 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz) | |
|
Network Controller |
HP Ethernet 1Gb 2-port 330i Adapter | |
|
Storage Controller |
HP Dynamic Smart Array B120i Controller | |
|
Hard Drive |
None ship standard | |
|
Internal Storage |
4 bay LFF Hot Plug Drive Cage; includes 3 LFF hard drive blanks | |
|
Optical Drive Bay |
None ships standard | |
|
PCI-Express Slots |
1 PCIe3 x16 and 1 PCIe2 x8 | |
|
Power Supply |
350 Watts Non-Hot Plug, Non redundant Power Supply | |
|
Fans |
4 fan modules ship standard, non-redundant | |
|
Management |
HP iLO Management Engine (standard) | |
|
Form Factor |
1U, HP Friction Rail Kit | |
|
Warranty |
Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. | |
|
| ||
|
Performance Models | ||
|
HP ProLiant DL320e Gen8 E3-1240v2 1P 8GB-U P222 Hot Plug 4 LFF 350W PS Server |
Processor(s) |
(1) Intel® Xeon® E3-1240v2 (3.4GHz/4-core/8MB/69W, HT) Processor |
|
Cache Memory |
8MB (1x8MB) Level3 | |
|
Memory |
8GB (2 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz) | |
|
Network Controller |
HP Ethernet 1Gb 2-port 330i Adapter | |
|
Storage Controller |
HP Smart Array P222/512MB FBWC Controller | |
|
Hard Drive |
None ship standard | |
|
Internal Storage |
4 bay LFF Hot Plug Drive Cage; includes 3 LFF hard drive blanks | |
|
Optical Drive Bay |
None ships standard | |
|
PCI-Express Slots |
1 PCIe2 x8 available | |
|
Power Supply |
350 Watts Non-Hot Plug, Non redundant Power Supply | |
|
Fans |
4 fan modules ship standard, non-redundant | |
|
Management |
HP iLO Management Engine (standard) | |
|
Form Factor |
1U, HP Friction Rail Kit | |
|
Warranty |
Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response | |
|
| ||
|
Country Code Key |
xx = 00 |
U.S. |
|
xx = 20 |
Brazil | |
|
xx = 29 |
Japan | |
|
xx = 37 |
APD | |
|
xx = 42 |
Europe | |
|
xx = AA |
PRC |
Configuration Information - Factory Integrated Models
|
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements. | ||
|
Step 1: Base Configuration (choose one of the following configurable models) | ||
|
HP Models |
HP ProLiant DL320e Gen8 Hot Plug 4 LFF Configure-to-order Server |
675597-B21 |
|
Factory Integrated Model ships with: |
| |
|
1U Chassis with 4 LFF Hot Plug Drive Cage |
| |
|
HP ProLiant DL320e Gen8 Hot Plug 8 SFF Configure-to-order Server |
675598-B21 | |
|
Factory Integrated Model ships with: |
| |
|
1U Chassis with 8 SFF Hot Plug Drive Cage |
| |
|
HP ProLiant DL320e Gen8 Non-hot Plug 4 LFF Configure-to-order Server |
675596-B21 | |
|
Factory Integrated Model ships with: |
| |
|
1U Chassis with 4 LFF Non hot plug Drive Cage |
| |
|
| ||
|
Step 2: Choose Required Options (only one of the following from each list unless otherwise noted) | ||
|
HP Processors |
Performance Processors |
|
|
HP DL320e Gen8 Intel® Xeon® E3-1220Lv2 (2.3GHz/2-core/3MB/17W) FIO Processor Kit |
682789-L21 | |
|
HP DL320e Gen8 Intel® Xeon® E3-1220v2 (3.1GHz/4-core/8MB/69W) FIO Processor Kit |
682787-L21 | |
|
HP DL320e Gen8 Intel® Xeon® E3-1230v2 (3.3GHz/4-core/8MB/69W) FIO Processor Kit |
682785-L21 | |
|
HP DL320e Gen8 Intel® Xeon® E3-1240v2 (3.4GHz/4-core/8MB/69W) FIO Processor Kit |
682783-L21 | |
|
HP DL320e Gen8 Intel® Xeon® E3-1270v2 (3.5GHz/4-core/8MB/69W) FIO Processor Kit |
682781-L21 | |
|
HP DL320e Gen8 Intel® Xeon® E3-1290v2 (3.7GHz/4-core/8MB/87W) FIO Processor Kit |
682777-L21 | |
|
HP Memory |
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide) |
|
|
Unbuffered with ECC DIMMs (UDIMMs) |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669320-B21 | |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647905-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669322-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647907-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669324-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647909-B21 | |
|
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. |
| |
|
HP Power Supplies |
NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: http://www.hp.com/go/hppoweradvisor. |
|
|
HP 350W 1U Factory Integrated Power Supply Kit |
675450-B21 | |
|
HP Common Slot Platinum Plus Power Supply Kits |
| |
|
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit |
656362-B21 | |
|
HP Common Slot Gold Power Supplies |
| |
|
HP 460W CS Gold Ht Plg Power Supply Kit |
503296-B21 | |
|
HP DL320e Gen8 Factory Integrated RPS Enablement Kit |
675451-B21 | |
|
NOTE: Option Kits for AC power supplies include the power supply and one PDU IEC cable. |
| |
|
NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html |
| |
|
| ||
|
Step 3: Choose Additional Factory Integratable Options | ||
|
HP USB Kit |
HP Gen8 FIO Internal USB Kit |
662961-B21 |
|
| ||
|
HP Rail Kits |
NOTE: Gen8 rail kits have changed significantly from prior generation rail kits. Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen8 server. |
|
|
HP 1U FIO Friction Rail Kit |
663200-B21 | |
|
| ||
|
HP Insight Software |
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License |
C6N36A |
|
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic License |
C6N36ABE | |
|
| ||
|
Converged Infrastructure Management Software |
HP OneView with iLO Advanced - Server hardware required on same purchase order |
|
|
HP OneView for ProLiant DL Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic |
E5Y43A | |
|
| ||
|
Step 4: Choose Additional Options for Factory Integration |
|
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. |
Core Options
|
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information. | ||
|
HP Unique Options |
HP DL320e Gen8 Mini SAS Cable Kit |
685018-B21 |
|
| ||
|
HP Memory |
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide) |
|
|
Unbuffered with ECC DIMMs (UDIMMs) |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669320-B21 | |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647905-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669322-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647907-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669324-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647909-B21 | |
|
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. |
| |
|
| ||
|
HP Optical Drives |
HP 9.5mm SATA DVD-ROM JackBlack Optical Drive |
652238-B21 |
|
HP 9.5mm SATA DVD-RW JackBlack Optical Drive |
652241-B21 | |
|
| ||
|
HP Hard Drives |
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components. |
|
|
12G SAS Hot Plug SmartDrive SFF (2.5-inch) Enterprise Drives |
| |
|
HP 1.8TB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 512e 3yr Warranty Hard Drive |
791034-B21 | |
|
HP 1.2TB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
781518-B21 | |
|
HP 900GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
785069-B21 | |
|
HP 600GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
759212-B21 | |
|
HP 600GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
781516-B21 | |
|
HP 450GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
759210-B21 | |
|
HP 300GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
759208-B21 | |
|
HP 300GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
785067-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) SC HDD |
| |
|
HP 600GB 12G SAS 15K rpm SFF (2.5-inch) SC 512e Enterprise 3yr Warranty Hard Drive |
748387-B21 | |
|
12G SAS Hot Plug LFF (3.5-inch) SC HDD |
| |
|
HP 8TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive |
793703-B21 | |
|
HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive |
793699-B21 | |
|
12G SAS Hot Plug SmartDrive LFF (3.5-inch) Converter Enterprise Drives |
| |
|
HP 600GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive |
765424-B21 | |
|
HP 450GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive |
737394-B21 | |
|
HP 300GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive |
737261-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) SC 512e Drives |
| |
|
HP 2TB 12G SAS 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive |
765466-B21 | |
|
HP 1TB 12G SAS 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive |
765464-B21 | |
|
12G SAS Hot Plug LFF (3.5-inch) Midline (MDL) 512e Drives |
| |
|
HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive |
765259-B21 | |
|
HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive |
765257-B21 | |
|
12G SAS Hot Plug LFF (3.5-inch) SC 512e Performance Drives |
| |
|
HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive |
793671-B21 | |
|
HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive |
793669-B21 | |
|
6G SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives |
| |
|
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive |
718162-B21 | |
|
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652589-B21 | |
|
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652583-B21 | |
|
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652572-B21 | |
|
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652564-B21 | |
|
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652611-B21 | |
|
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652605-B21 | |
|
6G SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives |
| |
|
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
652749-B21 | |
|
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
652745-B21 | |
|
6G SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives |
| |
|
HP 6TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
761477-B21 | |
|
HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
695510-B21 | |
|
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
652766-B21 | |
|
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
652757-B21 | |
|
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
652753-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
6G SATA Hot Plug SFF (2.5-inch) SC HDD |
| |
|
HP 8TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive |
793695-B21 | |
|
HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive |
793683-B21 | |
|
6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives |
| |
|
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
655710-B21 | |
|
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
655708-B21 | |
|
6G SATA 2.5in WI-PLP SCC SSD |
| |
|
HP 1.2TB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804680-B21 | |
|
HP 800GB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804674-B21 | |
|
HP 400GB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804668-B21 | |
|
HP 200GB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804642-B21 | |
|
HP 800GB 6G SATA Write Intensive-2 LFF 3.5-in LPC 3yr Wty Solid State Drive |
831725-B21 | |
|
6G SATA 2.5in MU-PLP SCC SSD |
| |
|
HP 1.6TB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804634-B21 | |
|
HP 800GB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804628-B21 | |
|
HP 480GB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
832417-B21 | |
|
HP 200GB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804616-B21 | |
|
6G SATA 2.5in RI-PLP SCC SSD |
| |
|
HP 1.6TB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804608-B21 | |
|
HP 800GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804602-B21 | |
|
HP 480GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804596-B21 | |
|
HP 240GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804590-B21 | |
|
HP 120GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804584-B21 | |
|
HP 80GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive |
804578-B21 | |
|
6G SATA 2.5in WI-PLP SC SSD |
| |
|
HP 1.2TB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804677-B21 | |
|
HP 800GB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804671-B21 | |
|
HP 400GB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804665-B21 | |
|
HP 200GB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804639-B21 | |
|
6G SATA 2.5in MU-PLP SC SSD |
| |
|
HP 1.6TB 6G SATA Mixed Use-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804631-B21 | |
|
HP 800GB 6G SATA Mixed Use-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804625-B21 | |
|
HP 480GB 6G SATA Mixed Use-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
832414-B21 | |
|
HP 200GB 6G SATA Mixed Use-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804613-B21 | |
|
6G SATA 2.5in RI-PLP SC SSD |
| |
|
HP 1.6TB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804605-B21 | |
|
HP 800GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804599-B21 | |
|
HP 480GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804593-B21 | |
|
HP 240GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804587-B21 | |
|
HP 120GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804581-B21 | |
|
HP 80GB 6G SATA Read Intensive-2 SFF 2.5-in SC 3yr Wty Solid State Drive |
804575-B21 | |
|
6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives |
| |
|
HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
753874-B21 | |
|
HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
693687-B21 | |
|
HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
628061-B21 | |
|
HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
658079-B21 | |
|
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
657750-B21 | |
|
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
658071-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) RI-3 SCC SSD |
| |
|
HP 3.84TB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816933-B21 | |
|
HP 1.92TB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816923-B21 | |
|
HP 960GB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816913-B21 | |
|
HP 480GB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816903-B21 | |
|
HP 240GB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816893-B21 | |
|
HP 120GB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816883-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) MU-3 SCC SSD |
| |
|
HP 1.92TB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
817015-B21 | |
|
HP 960GB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816999-B21 | |
|
HP 480GB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816989-B21 | |
|
HP 240GB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816979-B21 | |
|
HP 120GB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
816969-B21 | |
|
6G SATA Hot Plug RI-3 SFF (2.5-inch) SC Solid State Drives |
| |
|
HP 3.84TB 6G SATA Read Intensive-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816929-B21 | |
|
HP 1.92TB 6G SATA Read Intensive-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816919-B21 | |
|
HP 960GB 6G SATA Read Intensive-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816909-B21 | |
|
HP 480GB 6G SATA Read Intensive-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816899-B21 | |
|
HP 240GB 6G SATA Read Intensive-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816889-B21 | |
|
HP 120GB 6G SATA Read Intensive-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816879-B21 | |
|
6G SATA Hot Plug MU-3 SFF (2.5-inch) SC Solid State Drives |
| |
|
HP 1.92TB 6G SATA Mixed Use-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
817011-B21 | |
|
HP 960GB 6G SATA Mixed Use-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816995-B21 | |
|
HP 480GB 6G SATA Mixed Use-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816985-B21 | |
|
HP 240GB 6G SATA Mixed Use-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816975-B21 | |
|
HP 120GB 6G SATA Mixed Use-3 SFF 2.5-in SC 3yr Wty Solid State Drive |
816965-B21 | |
|
6G SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives |
| |
|
HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive |
628065-B21 | |
|
HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive |
659339-B21 | |
|
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive |
659337-B21 | |
|
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive |
659341-B21 | |
|
6G SATA Hot Plug SFF (2.5-inch) SC 512e Drives |
| |
|
HP 2TB 6G SATA 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive |
765455-B21 | |
|
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive |
765453-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) Midline (MDL) 512e Drives |
| |
|
HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive |
765255-B21 | |
|
HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive |
765253-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) SC 512e Performance Drives |
| |
|
HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive |
793667-B21 | |
|
HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drives |
793665-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
12G SAS Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State |
| |
|
HP 1.6TB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
762263-B21 | |
|
HP 800GB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
762261-B21 | |
|
12G SAS Hot Plug Value Endurance LFF (3.5-inch) Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 12G SAS Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
762272-B21 | |
|
HP 800GB 12G SAS Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
762270-B21 | |
|
12G SAS Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream H2 Solid State Drives |
| |
|
HP 1.6TB 12G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream SC 3yr Wty H2 Solid State Drive |
779176-B21 | |
|
HP 800GB 12G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream SC 3yr Wty H2 Solid State Drive |
779172-B21 | |
|
HP 400GB 12G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream SC 3yr Wty H2 Solid State Drive |
779168-B21 | |
|
HP 200GB 12G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream SC 3yr Wty H2 Solid State Drive |
779164-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) SC Read/Write Intensive Solid State Drives |
| |
|
HP 1.92TB 12G SAS Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
802891-B21 | |
|
HP 800GB 12G SAS Write Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
802586-B21 | |
|
HP 400GB 12G SAS Write Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
802582-B21 | |
|
HP 200GB 12G SAS Write Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
802578-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives |
| |
|
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
717965-B21 | |
|
HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
734360-B21 | |
|
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives |
| |
|
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
718171-B21 | |
|
HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
734362-B21 | |
|
6G SATA Hot Plug Value Endurance LFF (3.5-inch) Converter Enterprise Value M1 Solid State Drives |
| |
|
HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive |
764945-B21 | |
|
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive |
764943-B21 | |
|
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive |
764941-B21 | |
|
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive |
764939-B21 | |
|
6G SATA Hot Plug Value Endurance LFF (3.5-inch) Converter Enterprise Value G1 Solid State Drives |
| |
|
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive |
756660-B21 | |
|
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive |
756639-B21 | |
|
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive |
756624-B21 | |
|
6G SATA Hot Plug Value Endurance SFF (2.5-inch) Enterprise Value G1 Solid State Drives |
| |
|
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756657-B21 | |
|
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756636-B21 | |
|
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756621-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
757339-B21 | |
|
HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717973-B21 | |
|
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717971-B21 | |
|
HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
739898-B21 | |
|
HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
739888-B21 | |
|
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717969-B21 | |
|
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive |
757342-B21 | |
|
HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
718189-B21 | |
|
HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Conveter Enterprise Value 3yr Wty Solid State Drive |
739900-B21 | |
|
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
718183-B21 | |
|
HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive |
739890-B21 | |
|
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
718177-B21 | |
|
6G SATA Hot Plug Light Endurance SFF (2.5-inch) Enterprise Light G1 Solid State Drives |
| |
|
HP 960GB 6G SATA Light Endurance SFF 2.5-in SC Enterprise Light 3yr Wty G1 Solid State Drive |
756601-B21 | |
|
6G SATA Hot Plug Light Endurance LFF (3.5-inch) Enterprise Light G1 Solid State Drives |
| |
|
HP 960GB 6G SATA Light Endurance LFF 3.5-in SC Converter ENT Light 3yr Wty G1 Solid State Drive |
756604-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value M1 Solid State Drive |
| |
|
HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty M1 Solid State Drive |
764929-B21 | |
|
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty M1 Solid State Drive |
764927-B21 | |
|
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty M1 Solid State Drive |
764925-B21 | |
|
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty M1 Solid State Drive |
764923-B21 | |
|
6G SATA Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives |
| |
|
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691868-B21 | |
|
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691866-B21 | |
|
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691864-B21 | |
|
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691862-B21 | |
|
6G SATA Mainstream Endurance Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives |
| |
|
HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691860-B21 | |
|
HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691856-B21 | |
|
HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691854-B21 | |
|
HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691852-B21 | |
|
6G SATA Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives |
| |
|
HP 960GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
789155-B21 | |
|
HP 480GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
789145-B21 | |
|
HP 240GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
789135-B21 | |
|
6G SATA Hot Plug LFF (3.5-inch) SC Read Intensive Solid State Drives |
| |
|
HP 960GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
789157-B21 | |
|
HP 480GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
789147-B21 | |
|
HP 240GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive |
789137-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
Hard Drive Kits |
| |
|
HP Large Form Factor Hard Drive Blank Kit |
666986-B21 | |
|
HP Small Form Factor Hard Drive Blank Kit |
666987-B21 | |
|
| ||
|
HP Networking |
Gigabit Ethernet Adapters |
|
|
HP NC112T PCI Express Gigabit Server Adapter |
503746-B21 | |
|
HP NC365T 4-port Ethernet Server Adapter |
593722-B21 | |
|
HP Ethernet 1Gb 2-port 361T Adapter |
652497-B21 | |
|
HP Ethernet 1Gb 4-port 331T Adapter |
647594-B21 | |
|
HP Ethernet 1Gb 2-port 332T Adapter |
615732-B21 | |
|
10 Gigabit Ethernet Adapters |
| |
|
HP NC523SFP 10Gb 2-port Server Adapter |
593717-B21 | |
|
HP NC552SFP 10Gb 2-port Ethernet Server Adapter |
614203-B21 | |
|
HP Ethernet 10Gb 2-port 530T Adapter |
656596-B21 | |
|
HP Ethernet 10Gb 2-port 560SFP+ Adapter |
665249-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs. |
| |
|
| ||
|
HP Power Supplies |
NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: http://www.hp.com/go/hppoweradvisor |
|
|
HP Common Slot Platinum Plus Power Supply Kits |
| |
|
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit |
656362-B21 | |
|
HP Common Slot Gold Power Supplies |
| |
|
HP 460W CS Gold Ht Plg Power Supply Kit |
503296-B21 | |
|
NOTE: Option Kits for AC power supplies include the power supply and one PDU IEC cable. |
| |
|
NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html |
|
Additional Options
|
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information. | ||
|
HP Management Hardware |
HP Dedicated iLO Management Port Kit |
674845-B21 |
|
| ||
|
HP Insight Software |
HP Insight Control |
|
|
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License |
C6N27A | |
|
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License |
C6N28ABE | |
|
HP Insight Control Server Provisioning Media Kit |
BD883A | |
|
HP Insight Management Media Kit |
C6N31A | |
|
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic License |
C6N36ABE | |
|
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key. |
| |
|
NOTE: For additional license options please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html |
| |
|
HP Integrated Lights-Out (iLO) |
| |
|
HP Integrated Lights-Out (iLO) Advanced for ProLiant |
| |
|
HP iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU |
E6U59ABE | |
|
HP iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU |
E6U64ABE | |
|
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License |
512485-B21 | |
|
HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates |
BD505A | |
|
HP iLO Essentials |
| |
|
HP Integrated Lights-Out Essentials including 3yr 24x7 Technical Support and Updates E-LTU |
E6U61ABE | |
|
HP Integrated Lights-Out Essentials including 1yr 24x7 Technical Support and Updates E-LTU |
E6U62ABE | |
|
HP Integrated Lights-Out Essentials including 3yr 24x7 Tech Support and Updates Single Svr License |
BD774A | |
|
HP Integrated Lights-Out Essentials including 1yr 24x7 Tech Support and Updates Single Svr License |
BD775A | |
|
NOTE: For additional license options please see the QuickSpecs at: NOTE: For more information, visit: http://www.hp.com/go/ilo. |
| |
|
| ||
|
Converged Infrastructure Management Software |
HP OneView |
|
|
HP OneView with iLO Advanced |
| |
|
HP OneView Media Kit Phys No Lic |
E5Y37A | |
|
HP OneView incl 3yr 24x7 Supp Phys 1 Svr Lic |
E5Y34A | |
|
HP OneView incl 3yr 24x7 Supp Flex Qty E-LTU |
E5Y35AAE | |
|
HP OneView without iLO Advanced |
| |
|
HP OneView w/o iLO including 3yr 24x7 Support 1 Server LTU |
P8B24A | |
|
HP OneView w/o iLO including 3yr 24x7 Support Flex Quantity E-LTU |
P8B26AAE | |
|
HP OneView w/o iLO including 3yr 24x7 Support FIO 1 Server LTU |
P8B31A | |
|
HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic |
E5Y38A | |
|
HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU |
E5Y39AAE | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
High Performance Clusters |
HP Cluster Management Utility |
|
|
HP Insight Cluster Management Utility 1yr 24x7 Flexible License |
QL803B | |
|
HP Insight Cluster Management Utility for ConvergedSystem 3yr 24x7 Flexible License |
G2E81A | |
|
HP Insight Cluster Management Utility 3yr 24x7 Flexible License |
BD476A | |
|
HP Insight Cluster Management Utility Media |
BD477A | |
|
NOTE: For additional license kits please see the QuickSpecs at http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html. |
| |
|
| ||
|
HP Security |
HP Trusted Platform Module Option |
488069-B21 |
|
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: http://www.hp.com/go/TPM. |
| |
|
HP 1U Security Bezel Kit |
664918-B21 | |
|
| ||
|
HP Storage Controllers |
SAS Controllers |
|
|
Smart Array P222 Controller |
| |
|
HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller |
631667-B21 | |
|
Smart Array P420 Controller |
| |
|
HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller |
631670-B21 | |
|
HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller |
631671-B21 | |
|
Smart Array P421 Controller |
| |
|
HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller |
631673-B21 | |
|
HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller |
631674-B21 | |
|
Optional Upgrades |
| |
|
HP 2GB P-series Smart Array Flash Backed Write Cache |
631681-B21 | |
|
HP DL320e Gen8 Mini SAS Cable Kit |
685018-B21 | |
|
HP SmartCache No Media 24x7 Technical Support 1 Svr License |
D7S26A | |
|
HP SmartCache No Media 24x7 Technical Support Flexible License |
D7S27A | |
|
HP SmartCache No Media 24x7 Technical Support Electronic License |
D7S27AAE | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
Host Bus Adapter |
| |
|
HP H220 Host Bus Adapter |
650933-B21 | |
|
HP H221 PCIe 3.0 SAS Host Bus Adapter |
729552-B21 | |
|
HP H222 Host Bus Adapter |
650926-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
SCSI HBA |
| |
|
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter |
412911-B21 | |
|
NOTE: Please see the following QuickSpecs for additional information: |
| |
|
| ||
|
HP Tape Backup |
NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HP tape backup products see: http://www.hp.com/storage/SPOCK and http://www.hp.com/go/ebs. |
|
|
HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit |
C0L99A | |
|
HP StoreEver LTO-6 Ultrium 6650 SAS Internal Tape Drive |
EH963A | |
|
HP StoreEver LTO-6 Ultrium 6650 SAS External Tape Drive |
EH964A | |
|
HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive |
EH969A | |
|
HP StoreEver LTO-6 Ultrium 6250 External Tape Drive |
EH970A | |
|
HP StoreEver 1/8 G2 LTO-6 Ultrium 6250 FC Tape Autoloader |
C0H19A | |
|
| ||
|
HP Tape Storage Systems |
HP StoreEver MSL6480 |
|
|
HP StoreEver MSL6480 Scalable Base Module |
QU625A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HP Disk Backup |
NOTE: For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk backup products see: http://www.hp.com/storage/SPOCK. |
|
|
HP RDX Removable Disk Backup System |
| |
|
HP RDX320 USB3.0 External Disk Backup System |
B7B63A | |
|
HP RDX500 USB3.0 Internal Disk Backup System |
B7B64A | |
|
HP RDX1000 USB3.0 Internal Disk Backup System |
B7B67A | |
|
HP RDX 2TB USB3.0 Internal Disk Backup System |
E7X52A | |
|
NOTE: Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information: http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html (Worldwide) |
| |
|
| ||
|
HP Disk Storage Systems |
Disk Enclosures |
|
|
HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle |
E7W32A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP D6000 w/70 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 280TB Bundle |
E7W31A | |
|
HP D6000 w/35 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 140TB Bundle |
E7W30A | |
|
HP D6000 w/70 3TB 6G SAS 7.2K LFF Dual port MDL HDD 210TB Bundle |
QQ700A | |
|
HP D6000 w/35 3TB 6G SAS 7.2K LFF Dual port MDL HDD 105TB Bundle |
QQ699A | |
|
HP D6000 w/70 2TB 6G SAS 7.2K LFF Dual port MDL HDD 140TB Bundle |
QQ698A | |
|
HP D6000 w/35 2TB 6G SAS 7.2K LFF Dual port MDL HDD 70TB Bundle |
QQ697A | |
|
HP D6000 Dual I/O Module Disk Enclosure |
QQ695A | |
|
NOTE: Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information: http://h18000.www1.hp.com/products/quickspecs/14419_div/14419_div.html (Worldwide) |
| |
|
| ||
|
HP Storage Options |
Fibre Channel HBA |
|
|
QLogic Fibre Channel HBAs |
| |
|
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter |
AK344A | |
|
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter |
AJ764A | |
|
Converged Network Adapter |
||
|
HP CN1000Q Dual Port Converged Network Adapter |
BS668A | |
|
HP StoreFabric CN1100R Dual Port Converged Network Adapter |
QW990A | |
|
| ||
|
HP Uninterruptible Power Systems |
HP DirectFlow Three Phase UPS |
|
|
Power Unit (1U UPS) |
| |
|
NOTE: #0D1 will appear after the part number on the sales order if HP factory integration is indicated. |
| |
|
HP R12000 DirectFlow - 1U Rackmount Uninterruptible Power System |
G9Y75A | |
|
HP R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System |
AF478A | |
|
Input/Output Module Options for 1U UPS |
| |
|
NOTE: Choose one I/O Module per UPS. NOTE: #0D1 will appear after the part number on the sales order if HP factory integration is indicated. |
| |
|
HP 32A 400-415 Volt Three Phase INTL R12000 DirectFlow UPS IEC309 Input/Output Module |
AF488A | |
|
HP 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output Module |
AF489A | |
|
HP 32A 380 Volt Three Phase China R12000 DirectFlow UPS Unterminated Input/Output Module |
AF490A | |
|
HP 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output Module |
AF491A | |
|
HP 30A 480 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module |
AF492A | |
|
HP 30A 400-415 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module |
G9Y76A | |
|
HP Tower UPS |
| |
|
HP T750 G4 UPS Models |
| |
|
HP T750 G4 NA/JP Uninterruptible Power System |
J2P85A | |
|
HP T750 G4 INTL Uninterruptible Power System |
J2P88A | |
|
HP T1000 G4 UPS Models |
| |
|
HP T1000 G4 NA/JP Uninterruptible Power System |
J2P86A | |
|
HP T1000 G4 INTL Uninterruptible Power System |
J2P89A | |
|
HP T1500 G4 UPS Models |
| |
|
HP T1500 G4 NA/JP Uninterruptible Power System |
J2P87A | |
|
HP T1500 G4 INTL Uninterruptible Power System |
J2P90A | |
|
HP Rack/Tower UPS |
| |
|
HP R/T2200 G4 UPS Models |
| |
|
HP R/T2200 G4 NA/JP Uninterruptible Power System |
J2R00A | |
|
HP R/T3000 G4 UPS Models |
| |
|
HP R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System |
J2R01A | |
|
HP R/T3000 G4 High Voltage NA/JP Uninterruptible Power System |
J2R02A | |
|
HP R/T3000 G4 High Voltage INTL Uninterruptible Power System |
J2R04A | |
|
HP Rack-mountable UPS |
| |
|
HP R1500 G4 Uninterruptible Power Supply (UPS) |
| |
|
HP R1500 G4 NA Uninterruptible Power System |
J2Q99A | |
|
HP R1500 G4 INTL Uninterruptible Power System |
J2R03A | |
|
HP R1500 G4 JP/TWN Uninterruptible Power System |
J2R05A | |
|
R5000 Uninterruptible Power System (UPS) |
| |
|
HP R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System |
AF461A | |
|
HP R5000 3U L630 High Voltage NA/JP Uninterruptible Power System |
AF460A | |
|
NOTE: Please see the QuickSpecs for additional information: |
| |
|
R7000 Uninterruptible Power System (UPS) |
| |
|
HP R7000 4U 50A High Voltage NA/JP Uninterruptible Power System |
AF462A | |
|
HP R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System |
AF463A | |
|
NOTE: Please see the QuickSpecs for additional information: |
| |
|
NOTE: For additional information on HP Uninterruptible Power Systems please go to: http://www.hp.com/servers/rackups. |
| |
|
NOTE: For additional information on sizing your HP UPS, please reference: http://www.upssizer.com |
| |
|
| ||
|
HP Basic Power Distribution Units (bPDU) |
HP Basic Power Distribution Unit: 1U/0U Version |
|
|
HP 1.9kVA 120 Volt L5-20 Input (12xNEMA 5-20R) NA/JP Basic PDU |
H5M54A | |
|
HP 3.6kVA 200-240 Volt Detachable C20 Input ( 12xC13) WW Basic PDU |
H5M56A | |
|
HP Basic Power Distribution Unit: Half Height Version |
| |
|
HP 2.8kVA 120 Volt L5-30 Input (18xNEMA 5-20R) NA/JP Basic PDU |
H5M55A | |
|
HP 3.6kVA 200-240 Volt Detachable C20 Input (18xC13) WW Basic PDU |
H5M57A | |
|
HP 4.9kVA 208 Volt L6-30 Input (20xC13) NA/JP Basic PDU |
H5M58A | |
|
HP 7.3kVA 230 Volt IEC309 32A Input (20xC13) INTL Basic PDU |
H5M68A | |
|
HP 8.6kVA 208 Volt L15-30 3-Phase Input (18xC13) NA/JP Basic PDU |
H5M61A | |
|
HP Basic Power Distribution Unit: Mid Height Version |
| |
|
HP 4.9kVA 208 Volt L6-30 Input (24xC13/6xC19) NA/JP Basic PDU |
H5M59A | |
|
HP 7.3kVA 230 Volt IEC309 32A Input (24xC13/6xC19) INTL Basic PDU |
H5M70A | |
|
HP 8.3kVA 208 Volt CS8265C Input (30xC13/6xC19) NA/JP Basic PDU |
H5M60A | |
|
HP 11kVA 230 Volt IEC309 63A Input (30xC13/6xC19) INTL Basic PDU |
H5M71A | |
|
HP Hardwired 200-240 Volt Input (30xC13/6xC19) WW Basic PDU |
H5M75A | |
|
HP 5.7kVA 208 Volt L21-20 3-Phase Input (24xC13/3xNEMA 5-20R) NA/JP Basic PDU |
H5M63A | |
|
HP 8.6kVA 208 Volt L21-30 3-Phase Input (24xC13/3xC19/3xNEMA 5-20R) NA/JP Basic PDU |
H5M64A | |
|
HP 8.6kVA 208 Volt L15-30 3-Phase Input (24xC13/6xC19) NA/JP Basic PDU |
H5M62A | |
|
HP 11kVA 400 Volt IEC309 16A 3-Phase Input (30xC13/6xC19) INTL Basic PDU |
H5M72A | |
|
HP Basic Power Distribution Unit: Full Height Version |
| |
|
HP 11kVA 400 Volt IEC309 16A 3-Phase Input (36xC13/6xC19) INTL Basic PDU |
H5M73A | |
|
HP 11kVA 400 Volt IEC309 30A 3-Phase Input (36xC13/6xC19) NA Basic PDU |
H5M67A | |
|
HP Basic Power Distribution Unit: 480/277 Volt Version |
| |
|
HP 19.9kVA 480 Volt IEC309 30A 3-Phase Input (30 Outlet) NA Basic PDU |
H3X08A | |
|
HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer |
H3X09A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
NOTE: Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit http://www.hp.com/go/rackandpower. |
| |
|
| ||
|
HP Remote Monitoring Power Distribution Units (mPDU) |
HP Remote Monitored Power Distribution Unit: 1U Version |
|
|
HP 2.8kVA 120 Volt L5-30 Input (12xNEMA 5-20R)NA/JP Monitored PDU |
D9N43A | |
|
HP 3.6kVA 200-240 Volt Detachable C20 Input (12xC13) WW Monitored PDU |
D9N46A | |
|
HP 4.9kVA 208 Volt L6-30 Input (12xC13) NA/JP Monitored PDU |
D9N44A | |
|
HP Remote Monitored Power Distribution Unit: Half Height Version |
| |
|
HP 3.6kVA 200-240 Volt Detachable C20 Input (16xC13) WW Monitored PDU |
D9N45A | |
|
HP Remote Monitored Power Distribution Unit: Mid Height Version |
| |
|
HP 4.9kVA 208 Volt L6-30 Input (20xC13/4xC19) NA/JP Monitored PDU |
D9N47A | |
|
HP 7.3kVA 230 Volt IEC309 32A Input (20xC13/4xC19) INTL Monitored PDU |
D9N48A | |
|
HP 8.6kVA 208 Volt L15-30 3-Phase Input (18xC13/3xC19) NA/JP Monitored PDU |
D9N51A | |
|
HP 5.7kVA 208 Volt L21-20 3-Phase Input (18xC13/3xNEMA 5-20R) NA/JP Monitored PDU |
D9N52A | |
|
HP 8.6kVA 208 Volt L21-30 3-Phase Input (20xC13/3xC19/3xNEMA 5-20R) NA/JP Monitored PDU |
D9N53A | |
|
HP 11kVA 400 Volt IEC309 16A 3-Phase Input (18xC13/3xC19) INTL Monitored PDU |
D9N55A | |
|
HP Remote Monitored Power Distribution Unit: Full Height Version |
| |
|
HP 8.3kVA 208 Volt CS8265C Input (30xC13/3xC19) NA Monitored PDU |
D9N49A | |
|
HP 7.3kVA 230 Volt IEC309 32A Input (32xC13/4xC19) INTL Monitored PDU |
D9N50A | |
|
HP 11kVA 400 Volt IEC309 16A 3-Phase Input (30xC13/3xC19) INTL Monitored PDU |
D9N57A | |
|
HP 14.4kVA 208 Volt CS8365C 3-Phase Input (12xC13/12xC19)NA Monitored PDU |
D9N58A | |
|
HP 16.6kVA 400 Volt IEC309 30A 3-Phase Input (30xC13/3xC19) NA Monitored PDU |
D9N61A | |
|
HP 16.6kVA 400 Volt IEC309 30A 3-Phase Input (12xC13/12xC19) NA Monitored PDU |
D9N62A | |
|
HP 17.3kVA 208 Volt IEC309 60A 3-Phase Input (24xC13/3xC19) NA/JP Monitored PDU |
D9N54A | |
|
HP 17.3kVA 208 Volt IEC309 60A 3-Phase Input (12xC13/12xC19) NA/JP Monitored PDU |
D9N59A | |
|
HP 17.3kVA 208 Volt IEC309 60A 3-Phase Watertight Input (12xC13/12xC19) NA/JP Monitored PDU |
G9Z07A | |
|
HP 19.9kVA 480 Volt 3-Phase (30 Outlet) NA Monitored PDU |
D9N63A | |
|
HP 22kVA 400 Volt IEC309 32A 3-Phase Input (12xC13/12xC19) INTL Monitored PDU |
D9N60A | |
|
HP 22kVA 400 Volt IEC309 32A 3-Phase Input (30xC13/3xC19) INTL Monitored PDU |
D9N56A | |
|
HP 22kVA 400 Volt IEC309 32A 3-Phase Watertight Input (12xC13/12xC19) INTL Monitored PDU |
G9Z08A | |
|
HP Environmental Sensor for Remote Monitored PDUs |
| |
|
HP Environmental Sensor for Remote Monitored and Managed PDUs |
E2D53A | |
|
NOTE: Please see the QuickSpecs for additional information: |
| |
|
| ||
|
HP Intelligent Power Distribution Units (iPDU) |
iPDU Core Units |
|
|
HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit |
AF520A | |
|
HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit |
AF521A | |
|
HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit |
AF522A | |
|
HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit |
AF533A | |
|
HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit |
AF523A | |
|
HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit |
AF525A | |
|
HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit |
AF526A | |
|
HP 22kVA 32A Three Phase INTL Core Intelligent Modular Power Distribution Unit |
AF527A | |
|
HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit |
AF535A | |
|
HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit |
AF537A | |
|
HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit |
AF538A | |
|
iPDU Kits with Standard Extension Bars |
| |
|
HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit |
AF531A | |
|
HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit |
AF532A | |
|
HP 7.3kVA 32A Single Phase INTL Intelligent Modular Power Distribution Kit |
AF534A | |
|
iPDU Extension Bars |
| |
|
HP 5xC13 Intelligent PDU Extension Bar G2 Kit |
AF547A | |
|
HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar |
AF528A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HP Managed Power Distribution Units (maPDU) |
Half Height Models |
|
|
HP 3.6kVA 200-240 Volt Detachable C20 Input (7xC13/1xC19) WW Managed PDU |
H8B49A | |
|
Full Height Models |
| |
|
HP 2.8kVA 120 Volt L5-30 Input (24x NEMA 5-20) NA/JP Managed PDU |
H8B48A | |
|
HP 4.9kVA 208 Volt L6-30 Input (20xC13/4xC19) NA/JP Managed PDU |
H8B50A | |
|
HP 7.3kVA 200-240 Volt IEC309 32A Input (20xC13/4xC19) INTL Managed PDU |
H8B51A | |
|
HP 8.6kVA 208 Volt L15-30 3 Phase Input (18xC13/6xC19) NA/JP Managed PDU |
H8B52A | |
|
HP 8.6kVA 208 Volt L21-30 3 Phase Input (20xC13/3xC19/1x NEMA 5-20) NA/JP Managed PDU |
H8B53A | |
|
HP 11kVA 400 Volt IEC309 16A 3 Phase Input (21xC13/3xC19) INTL Managed PDU |
H8B54A | |
|
HP 14.4kVA 208V CS8365C 3 Phase Input (12xC13/12xC19) NA/JP Managed PDU |
H8B55A | |
|
HP 17.3kVA 208V IEC309 60A 3 Phase Input (12xC13/12xC19) NA/JP Managed PDU |
H8B56A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HP Rack Series |
HP Intelligent Series Racks |
|
|
HP 36U 600mm x 1075mm Enterprise Pallet Rack |
BW895A | |
|
HP 36U 600mm x 1075mm Enterprise Shock Rack |
BW896A | |
|
HP 42U 600mm x 1075mm Enterprise Pallet Rack |
BW903A | |
|
HP 42U 600mm x 1075mm Enterprise Shock Rack |
BW904A | |
|
HP 47U 600mm x 1075mm Enterprise Pallet Rack |
BW911A | |
|
HP 47U 600mm x 1075mm Enterprise Shock Rack |
BW912A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications such as height, width, depth, weight, and color: |
| |
|
| ||
|
HP Rack Options |
HP Location Discovery Services |
|
|
HP 36U Location Discovery Kit |
BW945A | |
|
HP 42U Location Discovery Kit |
BW946A | |
|
HP 47U Location Discovery Kit |
BW947A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP USB Keyboard and Mouse |
| |
|
HP USB BFR with PVC Free US Keyboard/Mouse Kit |
631341-B21 | |
|
HP USB BFR with PVC Free UK Keyboard/Mouse Kit |
631344-B21 | |
|
HP USB BFR with PVC Free FR Keyboard/Mouse Kit |
631346-B21 | |
|
HP USB BFR with PVC Free ES Keyboard/Mouse Kit |
631348-B21 | |
|
HP USB BFR with PVC Free DE Keyboard/Mouse Kit |
631358-B21 | |
|
HP USB BFR with PVC Free JP Keyboard/Mouse Kit |
631360-B21 | |
|
HP USB BFR with PVC Free IT Keyboard/Mouse Kit |
631362-B21 | |
|
HP USB BFR with PVC Free CN Keyboard/Mouse Kit |
631364-B21 | |
|
HP USB BFR with PVC Free AE Keyboard/Mouse Kit |
638212-B21 | |
|
HP USB BFR with PVC Free RU Keyboard/Mouse Kit |
638214-B21 | |
|
HP USB BFR with PVC Free IN Keyboard/Mouse Kit |
672097-D63 | |
|
HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit |
672097-373 | |
|
HP USB BFR with PVC Free Intl Keyboard/Mouse Kit |
672097-B33 | |
|
HP USB BFR with PVC Free PT Keyboard/Mouse Kit |
672097-133 | |
|
HP USB BFR with PVC Free TR Keyboard/Mouse Kit |
672097-143 | |
|
HP USB BFR with PVC Free CZ Keyboard/Mouse Kit |
672097-223 | |
|
HP USB BFR with PVC Free FI Keyboard/Mouse Kit |
672097-353 | |
|
HP USB BFR with PVC Free SE Keyboard/Mouse Kit |
672097-103 | |
|
HP USB BFR with PVC Free CH Keyboard/Mouse Kit |
672097-113 | |
|
HP USB BFR with PVC Free KR Keyboard/Mouse Kit |
672097-KD3 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP Server Console Switches |
| |
|
HP 0x1x8 G3 KVM Console Switch |
AF651A | |
|
HP 0x2x16 G3 KVM Console Switch |
AF652A | |
|
HP TAA 0x2x16 G3 KVM Console Switch |
AF653A | |
|
HP USB Remote Access Key for G3 KVM Console Switches |
AF650A | |
|
HP KVM Console USB Interface Adapter |
AF628A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP Server Console Switch G2 with Virtual Media & CAC |
| |
|
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software |
AF618A | |
|
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software |
AF619A | |
|
HP KVM Console USB 2.0 Virtual Media CAC Interface Adapter |
AF629A | |
|
KVM USB Cnsl Itfc Adapter 1PK ALL |
336047-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP 1x4 USB/PS2 KVM Console Switch |
| |
|
HP 1x4 USB/PS2 KVM Console Switch |
AF611A | |
|
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF620A | |
|
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF621A | |
|
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF622A | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
Rail Kits |
| |
|
HP 1U Cable Management Arm for Ball Bearing Rail Kit |
663203-B21 | |
|
HP 1U Small Form Factor Ball Bearing Rail Kit |
663201-B21 | |
|
HP 1U Large Form Factor Ball Bearing Rail Kit |
663202-B21 | |
|
| ||
|
HP USB and SD Options |
HP Flash Media Kits for USB Drives |
|
|
HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit |
737953-B21 | |
|
HP Enterprise Mainstream Flash Media Kits for Memory Cards |
| |
|
HP 8GB SD Enterprise Mainstream Flash Media Kit |
726113-B21 | |
|
HP 32GB SD Enterprise Mainstream Flash Media Kit |
700136-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
| ||
|
HP Care Pack Services |
Proactive Care |
|
|
HP 3 year 4 hour 24x7 ProLiant DL320e Proactive Care Service |
U6F03E | |
|
HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL320e Proactive Care Service |
U6F04E | |
|
HP 3 year 4-Hour 24x7 with Comprehensive Defective Material Retention DL320e ProactiveCare Service |
U9A26E | |
|
Foundation Care | ||
|
HP 3 year 24x7 DL320e Foundation Care Service |
U2GH5E | |
|
HP 3 year 24x7 with Defective Media Retention DL320e Foundation Care Service |
U2GH6E | |
|
HP 3 year 24x7 with Comprehensive Defective Material Retention DL320e Foundation Care Service |
U2GH7E | |
|
Installation Services |
| |
|
HP Installation DL320e/DL120 Service |
U6F51E | |
|
HP Startup DL320e/DL120 Service |
U6F53E | |
|
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack |
| |
Memory
|
HP SmartMemory |
|
|
|
Standard Memory Plus Optional Memory |
|
Up to 32 GB memory is available with the optional installation of 4 x 8GB PC3-12800E UDIMM ECC DDR3 UDIMM Memory kits, operating at 1600MHz when fully populated at 2 DIMMs per Channel in 4 slots. |
|
|
|
General Memory Population Rules and Guidelines:
Farthest DIMM (either CHA or CHB) should always be populated first |
|
|
| ||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||
|
Following are memory options available from HP: |
| |
|
HP Memory |
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide) |
|
|
NOTE: HP memory from previous generation servers are not fully compatible with the DL320e Gen8 Server. |
| |
|
Unbuffered with ECC DIMMs (UDIMMs) |
| |
|
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669320-B21 | |
|
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647905-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669322-B21 | |
|
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647907-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit |
669324-B21 | |
|
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit |
647909-B21 | |
|
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. |
| |
Storage
|
|
1 - 4 |
4 x 3.5" (LFF) SAS/SATA hard drive bays |
|
A |
Optical Drive Bay: Optional DVD-ROM, or DVD-RW drive | |
|
|
|
|
|
|
1 - 8 |
8 x 2.5" (SFF) SAS/SATA hard drive bays |
|
A |
Optical Drive Bay: Optional DVD-ROM, or DVD-RW drive |
Technical Specifications
|
System Unit |
Dimensions (H x W x D) |
8 SFF |
1.7 x 17.11 x 27.5 inches (4.32 x 43.46 x 69.90 cm) | |
|
4 LFF |
1.7 x 17.11 x 29.5 inches (4.32 x 43.46 x 75.0 cm) | |||
|
Weight (approximate) |
Maximum |
8 SFF/4 LFF - 16.2/16.8 kg, 35.7/37.0 lb | ||
|
| ||||
|
Minimum |
8 SFF/4 LFF - 10.9/11.9 kg, 24.0/26.2 lb | |||
|
Input Requirements |
Rated Line Voltage |
100 to 120 VAC | ||
|
Rated Input Current |
6 Amps (at 100VAC) to 3 Amps (at 200 VAC) | |||
|
Rated Input Frequency |
50 to 60 Hz | |||
|
Power Supply Output |
Rated Steady-State Power
|
350 W (at 100 to 120 VAC), | ||
|
Maximum Peak Power |
400 W (at 100 to 120 VAC), | |||
|
System Inlet Temperature |
Operating |
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. | ||
|
Non-operating |
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr). | |||
|
Relative Humidity |
Operating |
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. | ||
|
Non-operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | |||
|
Altitude |
Operating |
3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). | ||
|
Non-operating |
9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). | |||
|
Acoustic Noise |
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). | |||
|
Idle (Note 1) | ||||
|
LWAd |
5.0 B | |||
|
LpAm |
35 dB Average Bystander | |||
|
Operating |
||||
|
LWAd |
5.1 B | |||
|
LpAm |
35 dB Average Bystander | |||
|
NOTE: Values are subject to change without notification and are for reference only. | ||||
|
Emissions Classification (EMC) |
FCC Rating |
Class A | ||
|
Normative Standards |
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1 | |||
|
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. | ||||
|
| ||||
|
HP Dynamic Smart Array B120i Controller |
Dimensions |
Embedded |
|
Disk Drive and Enclosure Interface - Transfer rate |
Up to 6Gb/s SATA (Serial ATA) | |
|
Connectors |
6 internal SATA connectors | |
|
Server Interface |
x4 PCIe 2.0 | |
|
SATA Speed |
6Gb/s SATA links | |
|
Cache Memory |
Zero Memory RAID has no cache memory | |
|
Logical Drives Supported |
Up to 8 logical volumes (6 physical drives) | |
|
Host Memory Addressing |
64-bit, supporting greater than 4GB server memory space | |
|
Hot Plug Support |
Yes | |
|
RAID Support |
RAID 0 (Striping), RAID 1 (Mirroring) | |
|
RAID 1+0 (Striping & Mirroring) | ||
|
| ||
|
HP Ethernet 1Gb 2-port 330i Adapter |
Compatibility |
IEEE 802.3 10Base-T | |
|
Data Transfer Method |
PCI Express, four lanes (x8) | ||
|
Controller |
BCM5717 | ||
|
Network Transfer Rate |
10Base-T (Half-Duplex) |
| |
|
10Base-T (Full-Duplex) |
| ||
|
100Base-TX (Half-Duplex) |
| ||
|
100Base-TX (Full-Duplex) |
| ||
|
1000Base-TX (Half and Full-Duplex) |
| ||
|
Connector |
RJ-45 | ||
|
Cable Support |
10Base-T |
| |
|
100Base-TX |
| ||
|
1000BaseTX |
| ||
|
| |||
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
28-Sep-2015 |
From Version 33 to 34 |
Added |
Added new 6Gb SATA Solid State Drives. Added new HP OneView management software. |
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. | ||
|
17-Aug-2015 |
From Version 32 to 33 |
Added |
New Solid State Drives offering was added to HP Hard Drives section. |
|
01-Jun-2015 |
From Version 31 to 32 |
Added |
New Hard Drives were added to Core Options. |
|
Removed |
Obsolete SKUs were removed from Core Options and Additional Options. | ||
|
30-Mar-2015 |
From Version 30 to 31 |
Added |
New Hard Drives added to Core Options. |
|
09-Feb-2015 |
From Version 29 to 30 |
Added |
New Hard Drives, DirectFlow UPS, Rack and Tower G4 Models, LCD8500 1U Rackmount Models and Options were added to the Additional Options section. |
|
Changed |
HP Uninterruptible Power Systems, HP Rack Options, and HP Care Pack Services in Additional Options section were revised. | ||
|
01-Dec-2014 |
From Version 28 to 29 |
Added |
HP 1.6TB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive and HP 1.6TB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive were added to HP Hard Drives. |
|
Removed |
Proactive Care Services (U6F09E and U6F10E), Collaborative Support, and Proactive Care Personalized Support Option were removed from HP Care Pack Services. | ||
|
01-Nov-2014 |
From Version 27 to 28 |
Changed |
The Service and Support section was updated. |
|
29-Sep-2014 |
From Version 26 to 27 |
Added |
New Solid State Drives were added. HP Managed Power Distribution Units (maPDU) was added to Additional Options. |
|
Changed |
Service and Support section was revised. HP Hard Drives was revised in Core Options section. | ||
|
09-Sep-2014 |
From Version 25 to 26 |
Added |
12G SAS Hot Plug VE SFF (2.5in) SC EV SSD and 12G SAS Hot Plug VE SFF (2.5in) SCC EV SSD hard drives were added to Core Options section. |
|
18-Aug-2014 |
From Version 24 to 25 |
Added |
New Hard Drives were added. |
|
Changed |
Core Options and Additional Options sections were revised. | ||
|
10-Jun-2014 |
From Version 23 to 24 |
Added |
Additional Options – Added HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License and HP iLO Advanced Electronic License with 3yr 24x7 Tech Support and Updates to HP Insight Software. Additional Options - HP RDX 2TB USB3.0 Internal Disk Backup System and HP RDX 2TB USB3.0 External Disk Backup System were added to HP Disk Backup. HP D6000 Disk Enclosures. HP KVM Console USB Interface Adapter and HP KVM Console USB 2.0 Virtual Media CAC Interface Adapter were added to Server Console Switches. |
|
Changed |
Core Options, Additional Options and Memory were revised. HP Remote Monitoring Power Distribution Units (mPDU) was revised. 2GB USB Flash Media Drive Key Kit was removed from HP Flash Media Kits for USB Drives. | ||
|
Removed |
6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives – Removed from Hard Drives. HP H221 Host Bus Adapter – Removed from Storage Controllers. | ||
|
18-Apr-2014 |
From Version 22 to 23 |
Changed |
Service and Support, Memory, Hard Drives, HP Insight Software, Tape Backup, and Basic and Remote Monitoring Power Distribution Units were revised. |
|
18-Feb-2014 |
From Version 21 to 22 |
Changed |
Hard Drives were revised. |
|
13-Dec-2013 |
From Version 20 to 21 |
Changed |
Intel Pentium G2100T Processor and Intel Core i3-3220T and -3240 Processors were removed from Processors HP Power Distribution Units was removed from Additional Options HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic License was added to Insight Software HP SmartCache and HP H221 PCIe 3.0 SAS Host Bus Adapter were added to Storage Controllers HP 1.2TB 6G SAS 10k rpm SFF SC Dual Port Enterprise 3yr Warranty Hard Drive was added and 3G SATA MLC Hot Plug SFF and LFF Enterprise Mainstream Solid State Drives were removed from Hard Drives HP Basic Power Distribution Units and HP Remote Monitoring Power Distribution Units were revised in Additional Options HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit was added and HP 4GB SD Enterprise Performance Flash Media Kit was removed from HP Flash Media Kits for USB Drives |
|
11-Oct-2013 |
From Version 19 to 20 |
Added |
Converged Infrastructure Management Software was added HP 300 GB and 600 GB SATA Value Endurance SFF and LFF Enterprise Boot Solid State Drives were added to Hard Drives HP Remote Monitoring Power Distribution Units were added to Additional Options HP 8GB SD Enterprise Mainstream Flash Media Kit was added to HP USB and SD options |
|
20-Sep-2013 |
From Version 18 to 19 |
Changed |
HP Dynamic Smart Array B120i Controller in Technical Specifications was revised. |
|
10-Sep-2013 |
From Version 17 to 18 |
Changed |
Processors, Memory, Insight Management, High Performance Clusters, Storage Controllers, Storage Options, and Power Distribution Units were revised. |
|
21-Aug-2013 |
From Version 16 to 17 |
Changed |
Overview image callouts were revised. |
|
01-Aug-2013 |
From Version 15 to 16 |
Changed |
Overview image callouts were revised. |
|
21-Jun-2013 |
From Version 14 to 15 |
Changed |
Overview image was revised. |
|
12-Jun-2013 |
From Version 13 to 14 |
Changed |
Changes were made in the North America and Canada versions only. |
|
15-May-2013 |
From Version 12 to 13 |
Added |
Additional Options: Added HP Basic Power Distribution Units section. |
|
Removed |
Additional Options: Removed HP I/O Accelerator Options section. | ||
|
Changed |
Standard Features: Updated Maximum Internal Storage section Optional Features: Activated HYPERLINK in Storage Software section. Pre-Configured Models: Updated Performance Models section. Core Options: Updated HP Hard Drives, HP USB and SD Options and HP Care Pack Services sections. Technical Specifications: Updated HP Dynamic Smart Array B120i Controller section. | ||
|
29-Apr-2013 |
From Version 10 to 11 |
Changed |
Technical Specifications: Updated HP Dynamic Smart array B120i Controller section. |
|
26-Apr-2013 |
From Version 9 to 10 |
Changed |
Changes made in the the Pre-Configured Models Section- Performance Models > Management Section |
|
25-Mar-2013 |
From Version 8 to 9 |
Added |
Added a Note to the Power Supplies section. |
|
25-Feb-2013 |
From Version 7 to 8 |
Changed |
Changes made to the following sections: Optional Features: HP Insight management, Added Storage Software & HP Proactive Insight experience Models Configuration Information: Step 3 Core Options: Hard Drives, HP Networking Additional Options: HP Insight Software, HP USB and SD Options, HP Care Pack Services |
|
04-Jan-2013 |
From Version 6 to 7 |
Removed |
Removed 6G SAS MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives |
|
07-Dec-2012 |
From Version 5 to 6 |
Changed |
Changes made to the following sections: Standard Features: Upgradeability, Storage Controller, Graphics, On System Management HP Insight software throughout the QuickSpec Models |
|
Removed |
Removed HP iLO Advance License, HP Backup & Recovery Software and HP Disk Storage Systems from the Additional Options section. External Storage from the Storage section. | ||
|
17-Nov-2012 |
From Version 4 to 5 |
Removed |
Removed a Note from the Tape Backup section. |
|
02-Nov-2012 |
From Version 3 to 4 |
Changed |
Changes were made in the Technical Specifications section. |
|
28-Sep-2012 |
From Version 1 to 2 |
Changed |
Changes were made in Overview, Standard Features, Configuration Information, Core Options and Memory sections. |
|
© Copyright 2015 Hewlett-Packard Development Company, L.P.
|
