HP ProLiant DL120 Generation 7 (G7)
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Overview

HP ProLiant DL120 Generation 7 (G7)
The HP ProLiant DL120 G7 Server is an entry-level rack-optimized server providing you with all the confidence of an HP ProLiant server. The single processor, 1U server is ideal for single-application IT infrastructure, web and edge-of-network applications. The HP ProLiant DL120 provides two PCI-Express slots with optional upgrades, including HP HBAs and Smart Array Controllers, which provide support for SAS hard disk drives. The DL120 G7 supports HP iLO 3 Remote Management which provides cost-effective remote management from anywhere, anytime. Plus, you get the cost-effective solution of a single-processor platform with the performance advantages of quad-core technology.

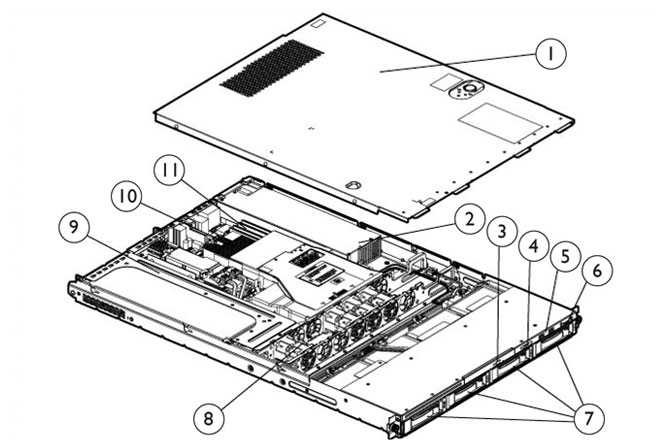

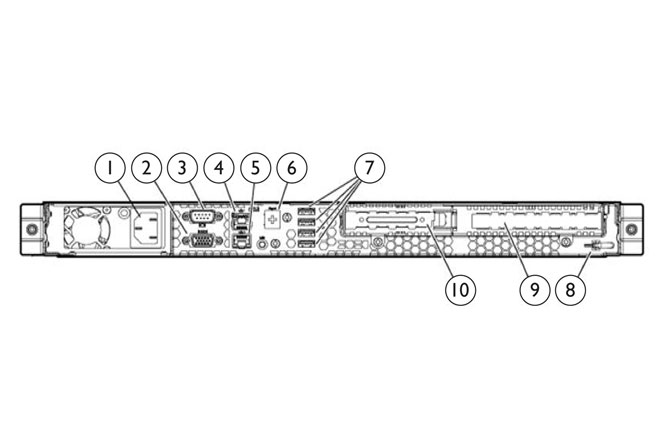

Front View: Rear View:
1. Cover 1. Power cord connector
2. Power Supply 2. Video connector
3. Optional Slim 9.5mm DVD ROM 3. Serial connector
4. System ID Tag 4. NIC 1 connector
5. Front USB connectors (2) 5. NIC 2 connector / shared iLO3 management port
6. Power Button, UID Button, and Front LED Indicators 6. iLO3 dedicated LAN port (optional)

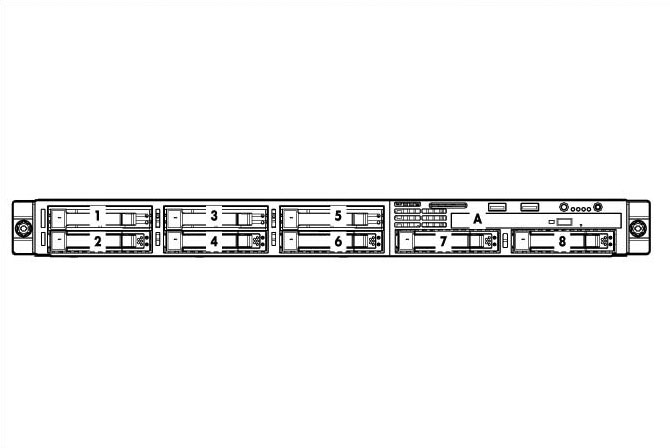

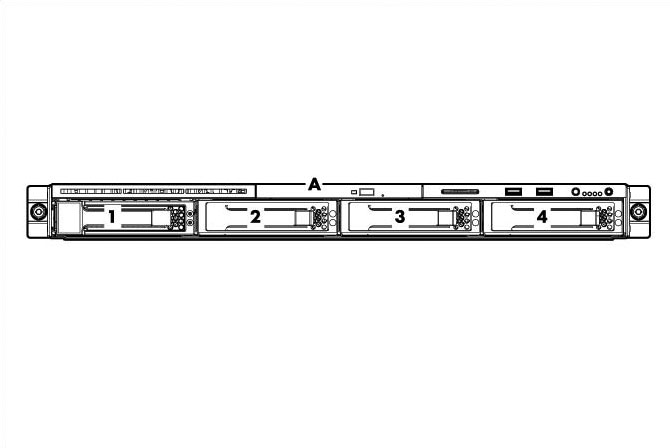

7. Support for up to four LFF Hot Plug SATA/SAS or eight SFF Hot Plug SATA/SAS Hard Drives 7. USB connectors (4)
8. Non Hot Plug Dual Rotor Fans (4) 8. T10/T15 tool
9. Two PCI express Slots (one x16, one x4 Lanes) 9. Expansion slot 4, PCI e2 x16
10. Processor Socket 10. Expansion slot 3, PCI e2 x8
11. Four PC3-10600E UB ECC DDR3 Memory Slots
What's New
  • Support for HP 1.2TB 6G SAS 10K 2.5in DP ENT HDD
  • Support for HP 4TB 3G SATA 7.2k 3.5in MDL HDD
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Standard Features
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model		 Quad-Core Processors
Intel® Xeon® E3-1280 (3.50GHz/4-core/8MB/95W), 1333, HT, Turbo 1/2/3/4 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® E3-1270 (3.40GHz/4-core/8MB/80W), 1333, HT, Turbo 1/2/3/4 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® E3-1240 (3.30GHz/4-core/8MB/80W),1333, HT, Turbo 1/2/3/4 Processor
Intel® Xeon® E3-1230 (3.20GHz/4-core/8MB/80W), 1333, HT, Turbo 1/2/3/4 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® E3-1220 (3.10GHz/4-core/8MB/80W),1333, Turbo 1/2/3/4 Processor
Dual-Core Processors
Intel® Xeon® E3-1220L (2.2GHz/2-core/3MB/20W), 1333, Turbo 0/0/0/10 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Core™ i3-2130 (3.40GHz/2-core/3MB/65W), 1333, HT Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Core™ i3-2120 (3.30GHz/2-core/3MB/65W), 1333, HT Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Core™ i3-2100 (3.10GHz/2-core/3MB/65W),1333, HT Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Pentium® G860 (3.0GHz/2-core/3MB/65W), 1333 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Pentium® G850 (2.90GHz/2-core/3MB/65W), 1333 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Pentium® G840 (2.80GHz/2-core/3MB/65W), 1333 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Pentium® G630 (2.70GHz/2-core/3MB/65W), 1066 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Pentium® G620 (2.60GHz/2-core/3MB/65W), 1066 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Celeron® G530 (2.40GHz/2-core/2MB/65W), 1066 Processor
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
Cache Memory
One of the following depending on Model		 Integrated 1x8MB Level3 Intel® Smart Cache
Integrated 1x3MB Level3 Intel® Smart Cache
Chipset Intel® C200 Series Chipset
Memory Protection ECC
Memory
One of the following depending on Model		 Type DDR3 1333MHz Unbuffered (UDIMM)
DIMM Slots Total 4 DIMM slots
Standard (Entry Model) 2GB (1x2GB) UDIMM
Standard (Base Models) 4GB (2x2GB) UDIMM
Standard (Performance Models) 4GB (2x2GB) UDIMM
Maximum Memory Supports up to 32GB DDR3 1333 Unbuffered ECC DIMM
Supports up to 4 UDIMMs
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1333MHz or 1066MHz. Please see the Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.
Network Controller HP NC112i 1-Port Ethernet Server Adapter (x2)
Expansion Slots
Technology
Bus
Width***
Connector Width
Bus Number*
Device No.**
 Form
Factor
Notes
1
(Standard)
PCIe G2
X16
x16
0
1
 Full length, full height slot
2
(Standard)		 PCIe G2 X4 x8 0 6 Half height, low profile slot
  * Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus)
*** Indicates the number of physical electrical lanes running to a PCI-e connector.
Storage Controllers Entry and Base Model HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Transfer rate: 3Gb/s SATA
NOTE: SATA Hot Plug available via Hot Plug Advance Pack for B110i
NOTE: Hot Plug SAS and SATA controllers available via PCI card option.
NOTE: Available upgrade: HP Smart Array Hot Plug Advance Pack for B110i.
Performance Model HP Smart Array P212/256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: Available upgrades: Battery Kit upgrade (for BBWC), and Smart Array Advanced Pack (SAAP).
Internal Storage Devices Drives Optical Drive Optional 9.5mm DVD-ROM, or DVD-RW Drive
Hard Drives
One of the following depending on Model		 Entry Model
(Cold Plug)		 Up to 4 pluggable SATA/SAS 3.5" drives supported.
1x250GB pluggable SATA 3.5" drive ships standard
NOTE: SAS requires optional HBA or SA card
NOTE: SATA Hot Plug functionality available via Hot Plug Advance Pack for B110i
Base Model
(Cold Plug)		 Up to 4 pluggable SATA/SAS 3.5" drives supported.
1x250GB pluggable SATA 3.5" drive ships standard
NOTE: SAS requires optional HBA or SA card.
NOTE: SATA Hot Plug functionality available via Hot Plug Advance Pack for B110i
Performance Model
(Hot Plug)		 Up to 4 hot plug SATA/SAS 3.5" drives supported. None ships standard
Maximum Internal Storage
One of the following depending on Model		 Hot Plug SAS 8.0TB (4 x 2TB) 3.5" SAS
Hot Plug SATA 16.0TB (4 x 4TB) 3.5" SATA
Interfaces Serial 1
Graphics 1 (rear)
Network RJ-45 2
Optional iLO 3
remote RJ-45
management port		 1
NOTE: This is shared NIC port for iLO. If users do not purchase iLO dedicated NIC option card they can still use this port as shared NIC Port
USB 2.0 7 (2 front, 1 internal, 4 rear)
NOTE: Internal USB port (optional) for flexible storage, security, or USB drive key deployment.
Industry Standard Compliance ACPI 3.0a
PCI Express Rev 2.0
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0
IPMI 2.0
DCMI 1.0
Serial ATA Gen ll
Server Power Cords North America One 6' Highline (IEC-IEC) power cord ships standard
Japan One 6' Highline (IEC) power cord and one 6' Lowline power cord ship standard
ROW One 6' Highline (IEC) power cord ships standard
NOTE: HP ProLiant DL120 G7 server ship standard worldwide with a C13 to C14 2M Highline jumper cord. Japanese models also include a 2M Lowline power cord. If customers require a local power cord, they can check the power cord matrix for the appropriate country specific cord. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
Power Supply

Auto-sensing PFC Power Supply, CE Mark Compliant
System Fans 4 dual rotor fans ship standard.
Required Cabling For required cabling information, refer to the Web site at: www.hp.com/servers/dl120G7.
Operating Systems and Virtualization Software

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport
Graphics

Integrated Matrox G200eH, 16MB video standard

  • 16 bit color: maximum resolution of 1920 x 1200
  • 32 bit color: maximum resolution of 1280 x 1024
NOTE: iLO Remote Console is operational in all video mode and color depths. Remote Console viewing displays 15bpp or 32768 colors.
NOTE: The resolution and frequency limitations of the attached monitor will further limit the combinations of resolution and depth.
Form Factor Rack (1U), (1.75 in/44.45 mm), 27.56" deep
NOTE: Fixed mounting rails included with all models.
HP Insight management software HP Insight Foundation suite for ProLiant

Insight Foundation is being baselined at version v8.70 which means the following:

  • Its Media Kit (contains 2 SmartStart CDs, the Firmware DVD, and the Management DVD) will continue to ship with all supported ProLiant G7 or earlier BTO servers until the last supported server is no longer shipping.
  • The Media Kit will not be updated past version 8.70.
  • ProLiant G7 or earlier CTO servers are able to order the Media Kit with the understanding that the media is not updated. Please check specific server QuickSpecs for availability of CTO Kit.
  • PSP and Firmware DVD downloads will be updated through 2Q 2012 at the HP Insight Foundation Suite for ProLiant downloads tab: http://www.hp.com/go/foundation

Customers are urged to use the replacement product, HP Service Pack for ProLiant, instead of Insight Foundation Suite which is found at these location:

  • www.hp.com/go/spp
  • www.hp.com/go/spp/download
HP Integrated Lights-Out Standard (iLO 3)

HP Integrated Lights-Out Standard (iLO 3) simplifies server setup, health monitoring, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP iLO functions without additional software and can be accessed from any location via a web browser. HP iLO works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. For more information, visit: www.hp.com/go/iLO
Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at: http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, software and latest drivers

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options; downloaded from Software and Drivers download pages website at: http://www.hp.com/go/support and from www.hp.com/servers/easysetup. Contains the following:

  • HP Insight Management Agents for Systems Insight Manager (SIM) Integration
  • HP Systems Management Homepage
  • Array Configuration Utility (ACU)
  • Array Diagnostics Utility (ADU)
  • HP Insight Diagnostics
Security Power-on password
Keyboard password
USB Port control
Removable DVD-ROM Drive Assembly (optional)
Dedicated/Shared LO100 management NIC port
Administrator's password
iLO 3 (Integrated Lights-Out 3) has 12 customizable user accounts and SSL encryption
iLO 3 can be disabled via a Global Setting
iLO Advanced supports directory services integration
Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Optional Features
HP Insight Control management software

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, visit : www.hp.com/go/insightcontrol.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.

NOTE: HP Insight Control 7.2 introduces Insight Control server provisioning, a new capability ideal for multi-server OS and firmware provisioning to ProLiant and BladeSystem servers. Insight Control server provisioning is included and licensed as part of HP Insight Control. A media kit, "HP Insight Control server provisioning USB media kit" (# BD883A), including a USB, is available for customers who require a physical copy of the media loaded with Insight Control server provisioning software. Please note that this media kit is separate and in addition to the HP Insight Management DVD media kit (P/N C6N31A)
Insight Control server deployment HP Insight Control server deployment is a deployment solution for HP ProLiant and Integrity servers hosted on a Windows CMS. It automates the process of deploying and provisioning server software, enabling companies to quickly and easily adapt to changing business demands. Insight Control server deployment includes software optimizations for HP servers, including the HP scripting toolkits, configuration jobs for leading industry-standard operating systems, sample unattended files, and HP server support packs that include software drivers, management agents, and important documentation. Deploying servers can be accomplished either through imaging or through scripting.

Insight Control server deployment is hosted on a Windows server and is intended for heterogeneous environments deploying Windows, Linux, VMware ESX and Microsoft Hyper-V systems.

Insight Control server deployment includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.
Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

  • Data Protection and Recovery Software
    Whether you're a large enterprise or a smaller business, HP data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.
  • Data Archive and Migration Software
    HP's storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.
  • Storage Resource Management Software (SRM)
    HP's storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.
  • Data Replication Software
    HP offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.
  • Storage Device Management Software
    Maximize your investment in HP storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.
  • HP StoreVirtual VSA
    With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and disconnected physical disk drives in your servers and storage devices into a single pool of logical storage capacity.

NOTE: For more information available Storage Software including QuickSpecs, please see: www.hp.com/go/storage/software.
HP Proactive Insight experience Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: www.hp.com/go/proactiveinsightexperience
Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Simple Configurator HP Simple Configurator SCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Service and Support
Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift of base warranty. You can get the support you need by choosing from one of a number of service packaged solutions we have designed to address wider set of customer support needs.
HP Technology Services meets business challenges with services offered in three packages:

Optimized Care Package, Standard Care Package, and Basic Care Package
Available for each product group. Such packaged solutions enable customers to optimize technology operations, minimize risk and drive better business outcomes with easy-to-buy, easy-to-use scalable support packages for servers, storage, networking and software.
Optimized Care Package

Supports maintaining servers at optimum performance availability

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
3-Year HP 6 hour Hardware Support Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 hours of the initial service request to the HP Global Solution Center.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EN.pdf
Additional Services
Software OS (Microsoft, Linux (SUSE/Red Hat) Installation and Start Up and Software Support) plus Microsoft or Linux education courses +30 Proactive Select Credits, Factory Express.
Standard Care Package

Package that maintains high level of server availability

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service
Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf
Additional Services
Software OS (Microsoft, Linux (SUSE/Red Hat) Installation and Start Up and Software Support); +10 Proactive Select Credits, Factory Express.
Basic Care Package

Delivers minimum recommended support service level

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
3-Year HP 13x5 4 hour Response, Hardware Support Onsite Service
Delivers increased equipment availability and productivity with rapid remote support and onsite response for your HP server and storage hardware.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf
Additional Services
Software OS (Microsoft, Linux (SUSE/Red Hat) Installation and Start Up and Software Support), Factory Express.
Insight Remote Support

The packages include HP Insight Remote Support that uses proven technology to deliver secure, reliable 24x7 remote monitoring, diagnoses, and problem resolution. It is available at no additional cost to all warranty, HP Care Pack Service, and service agreement customers.
For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Pre-configured Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
Entry Model

HP ProLiant DL120 G7 i3-2100 2GB-U 250GB LFF Cold Plug SATA B110i RAID 400W Svr
628690-xx1

 Processor (1) Intel® Core™ i3-2100 (3.10GHz/2-core/3MB/65W,1333, HT) Processor
Cache Memory 3MB Intel® Smart Cache
Memory 2GB (1 x 2GB) PC3-10600E DDR3 UB ECC
NOTE: Total of 4 DIMM slots
Network Controller HP NC112i 1-port Ethernet Server (x2)
Storage Controller HP Smart Array B110i SATA RAID Controller
Hard Drives 1 x 250GB 3.5" SATA
Internal Storage Up to 4 large form factor Cold Plug drives
Optical Drive None ships standard
Management HP Integrated Lights-Out Standard (iLO 3)
Power Supply Auto-sensing PFC Power Supply, CE Mark Compliant
Form Factor 1U
Warranty Server Warranty includes 1 year Next Day Parts replacement, 1-Years Labor, 1-Years Onsite support.
NOTE: A HP Smart Array Hot Plug Advance Pack for B110i w/1y 24x7 Supp Physical 1 Svr LTU (TC421A) is required for Hot plug system.
Base Model

HP ProLiant DL120 G7 E3-1220 4GB-U 250GB LFF Cold Plug SATA B110i RAID 400W Svr
628691-xx1

 Processor (1) Intel® Xeon® E3-1220 (3.10GHz/4-core/8MB/80W,1333, Turbo 1/2/3/4) Processor
Cache Memory 8MB Intel® Smart Cache
Memory 4GB (2 x 2GB) PC3-10600E DDR3 UB ECC
NOTE: Total of 4 DIMM slots
Network Controller HP NC112i 1-port Ethernet Server (x2)
Storage Controller HP Smart Array B110i SATA RAID Controller
Hard Drives 1 x 250GB 3.5" SATA
Internal Storage Up to 4 large form factor drives
Optical Drive None ships standard
Management HP Integrated Lights-Out Standard (iLO 3)
Power Supply Auto-sensing PFC Power Supply, CE Mark Compliant
Form Factor 1U
Warranty Server Warranty includes 1 year Next Day Parts replacement, 1-Years Labor, 1-Years Onsite support.
NOTE: A HP Smart Array Hot Plug Advance Pack for B110i w/1y 24x7 Supp Physical 1 Svr LTU (TC421A) is required for Hot plug system.
Performance Model

HP ProLiant DL120 G7 E3-1240 4GB-U P212/256 RAID 400W PS Server
628692-xx1

 Processor (1) Intel® Xeon® E3-1240 (3.30GHz/4-core/8MB/80W,1333, HT, Turbo 1/2/3/4) Processor
Cache Memory 8MB Intel® Smart Cache
Memory 4GB (2 x 2GB) PC3-10600E DDR3 UB ECC
NOTE: Total of 4 DIMM slots
Network Controller HP NC112i 1-Port Ethernet Server (x2)
Storage Controller HP Smart Array P212/256MB Controller
Hard Drives None ships standard
Internal Storage Up to 4 large form factor Hot Plug drives
Optical Drive None ships standard
Management HP Integrated Lights-Out Standard (iLO 3)
Power Supply Auto-sensing PFC Power Supply, CE Mark Compliant
Form Factor 1U
Warranty Server Warranty includes 1 year Next Day Parts replacement, 1-Years Labor, 1-Years Onsite support.
NOTE: A HP Smart Array Hot Plug Advance Pack for B110i w/1y 24x7 Supp Physical 1 Svr LTU (TC421A) is required for Hot plug system
Country Code Key xx=00 US
xx=29 Japan
xx=37 APD (Asia excluding Japan)
xx=42 EURO
xx=AA PRC
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration (choose one of the following configurable models)
Models HP ProLiant DL120 G7 Pluggable 4 LFF Configure-to-order Server
647339-B21
Includes:

Embedded NC112i Gigabit Server Adapter (x2)


1 full length PCI Express Gen2 x16 slot (x16 connector) and 1 half length low profile PCI Express x4 slot (x8 connector)
HP Integrated Lights-Out Standard (iLO 3)
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
Rack (1U) form factor, (1.75 in/44.45 mm)
One Highline IEC Power Cord
4 Non-Hot Plug Fans
Fixed, mounting rails

HP ProLiant DL120 G7 Hot Plug 8 SFF Configure-to-order Server 647340-B21
NOTE: This configuration requires the HP Smart Array P410 Controller be purchased separately to support 8SFF HDDs.
Includes:
Embedded NC112i Gigabit Server Adapter (x2)
1 full length PCI Express Gen2 x16 slot (x16 connector) and 1 half length low profile PCI Express x4 slot (x8 connector)
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
Rack (1U) form factor, (1.75 in/44.45 mm)
One Highline IEC Power Cord
4 Non-Hot Plug Fans
Fixed, mounting rails
Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP ProcessorQuad-Core Processors
HP DL120 G7 Intel® Xeon® E3-1280 (3.50GHz/4-core/8MB/95W) FIO Processor Kit641916-L21
HP DL120 G7 Intel® Xeon® E3-1270 (3.40GHz/4-core/8MB/80W) FIO Processor Kit641915-L21
HP DL120 G7 Intel® Xeon® E3-1240 (3.30GHz/4-core/8MB/80W) FIO Processor Kit641914-L21
HP DL120 G7 Intel® Xeon® E3-1230 (3.20GHz/4-core/8MB/80W) FIO Processor Kit641913-L21
HP DL120 G7 Intel® Xeon® E3-1220 (3.10GHz/4-core/8MB/80W) FIO Processor Kit641912-L21
Dual-Core Processors
HP DL120 G7 Intel® Xeon® E3-1220L (2.2GHz/2-core/3MB/20W) FIO Processor Kit641911-L21
HP DL120 G7 Intel® Core™ i3-2130 (3.40GHz/2-core/3MB/65W) FIO Processor Kit663419-L21
HP DL120 G7 Intel® Xeon® i3-2120 (3.30GHz/2-core/3MB/65W) FIO Processor Kit644361-L21
HP DL120 G7 Intel® Xeon® i3-2100 (3.10GHz/2-core/3MB/65W) FIO Processor Kit644360-L21
HP DL120 G7 Intel® Pentium® G860 (3.0GHz/2-core/3MB/65W) FIO Processor Kit663418-L21
HP DL120 G7 Intel® Pentium® G850 (2.90GHz/2-core/3MB/65W) FIO Processor Kit656610-L21
HP DL120 G7 Intel® Pentium® G840 (2.80GHz/2-core/3MB/65W) FIO Processor Kit656609-L21
HP DL120 G7 Intel® Pentium® G620 (2.60GHz/2-core/3MB/65W) FIO Processor Kit 656608-L21
HP DL120 G7 Intel® Celeron G530 (2.40GHz/2-core/2MB/65W) FIO Processor Kit 663416-L21
HP MemoryUnbuffered with ECC DIMMs (UDIMM)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit500672-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647909-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
HP Power SuppliesHP 365W Redundant Power Supply Kit w/ Backplane532092-B21
HP 400W Power Supply FIO Kit with Right Angle Connector663420-B21
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords
Step 3: Choose Additional Factory Integration Only Options (only one of the following from each list unless otherwise noted)
HP Storage Controllers SAS Controllers
HP Smart Array P212/256 BBWC 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller 491191-B21
HP Smart Array P410/ZM 2-ports Int PCIe x8 FIO SAS Controller 462860-B21
HP Smart Array P410/256 BBWC 2-ports Int PCIe x8 FIO SAS Controller 491195-B21
HP Smart Array P411/256 BBWC 2-ports Ext PCIe x8 FIO SAS Controller 491193-B21
HP Insight Software HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License C6N36A
HP Insight Foundation Software HP ProLiant Foundation Pack Single Release Factory Integrated Software 534516-B21
Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options and Additional Options" section below.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Core Options
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Unique Options HP Internal USB Cable G6 Kit
NOTE: This option required to connect a USB device internally.		 536769-B21

HP Memory

 Unbuffered with ECC DIMMs (UDIMM)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647909-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient

HP Optical Drives

 HP 9.5mm SATA DVD-ROM Optical Drive 481045-B21
HP 9.5mm SATA DVD-RW Optical Drive 481047-B21
HP Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 1.2TB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 693648-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 619291-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581284-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507127-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-B21
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 516828-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 516816-B21
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 516814-B21
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507616-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507614-B21
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 605835-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive 625609-B21
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 507750-B21
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 4TB 3G SATA 7.2k rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 694374-B21
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 454146-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 458928-B21
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive 571230-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html (Worldwide)
HP Networking HP NC112T PCI Express Gigabit Server Adapter 503746-B21
HP NC360T PCI-E Dual Port Gigabit Server Adapter
412648-B21
HP NC365T 4-port Ethernet Server Adapter 593722-B21
HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter
394793-B21
HP NC373T PCI-E Multifunction Gigabit Server Adapter
394791-B21
HP NC375T PCI Express Quad Port Gigabit Server Adapter 538696-B21
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter
458492-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs
HP I/O Expansion Options HP Dedicated iLO Management Port Option 514206-B21
HP Power SuppliesHP 365W Redundant Power Supply Kit w/ Backplane
532092-B21
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Additional Options
HP Insight Software HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License C6N28AAE
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License C6N27A
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License C6N36AAE
HP Insight Control Server Provisioning Media Kit BD883A
HP Insight Management Media Kit C6N31A
NOTE: HP Insight Management Media Kit contains DVDs without licenses. Contains HP Systems Insight Manager, HP Insight Control, HP Matrix Operating Environment, and Virtual Connect Enterprise Manager software. Uses an integrated installer to perform quick and accurate software installation and updates.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Management Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Integrated Lights-Out (iLO) Advanced
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License
NOTE: This license allows 1 server to be deployed and managed via HP iLO Advanced. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.		 512485-B21
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License TA850AAE
NOTE: For additional license kits, including electronic delivery options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
HP Insight Control server deployment
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License T9082AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License 452151-B21
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The Insight Software Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightcontrol (click on Download button).
NOTE: For additional license options please see the Insight Control QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Security HP Trusted Platform Module Option
488069-B21
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline.
NOTE: For more information about TPM, including a white paper, go to: www.hp.com/go/TPM
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.
HP Storage Controllers SAS Controllers
Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462828-B21
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462834-B21
Smart Array P410 Controller
HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller 462862-B21
HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller 462864-B21
HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller 578230-B21
HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller 572532-B21
Smart Array P411 Controller
HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller 572531-B21
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller 462830-B21
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller 462832-B21
HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller 578229-B21
Optional Upgrades
HP 1GB Flash Backed Cache 534562-B21
HP 512MB Flash Backed Write Cache 534916-B21
HP 256MB P-series Cache Upgrade
NOTE: Supported on HP Smart Array P212 Controller only.		 462968-B21
HP 512MB P-Series Battery Backed Write Cache Upgrade
NOTE: Supported on HP Smart Array P411 Controller only.		 462967-B21
HP 650 mAh P-Series Battery
NOTE: To enable BBWC on the 256MB cache.
NOTE: Supported on HP Smart Array P212 Controller, and HP Smart Array P411only.		 462969-B21
HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License 516471-B21
HP Smart Array Hot Plug Advance Pack for B110i w/1y 24x7 Supp Physical 1 Svr LTU
NOTE: This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customers will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HP Software Technical Support Services.		 TC421A
SCSI HBA
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter 412911-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
(Smart Array P410 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13200_div/13200_div.html
(Smart Array Advanced Pack)
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
HP Tape Backup

NOTE: For the complete range of Storage tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HP Storage tape backup products see: http://www.hp.com/storage/SPOCK.
NOTE: Connection using the HP P212 SAS Smart Array Controller (462828-B21) recommended.


HP DAT 160 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral bay available for installation into the server.		 Q1587B


HP DAT 320 SAS Internal Tape Drive AJ830A
HP StoreEver LTO-2 Ultrium 448 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral bay available for installation into the server.		 DW085B
HP StoreEver LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral bay available for installation into the server.		 EH847B
HP Ultrium 920 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral bay available for installation into the server.
EH847A
HP 1/8 G2 Ultrium 920 SAS Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack-Mount Kit (AH166A) for rack installation.
AH558A
HP MSL8048 0-drive Tape Library AU300A
HP MSL4048 0-Drive Tape Library AK381A
HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library BL537A
HP MSL2024 0-Drive Tape Library AK379A
HP MSL2024 Ultrium 920 SAS Tape Library AH559A
HP Disk Backup NOTE: For the complete range of Storage D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of Storage RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP Storage disk backup products see: http://www.hp.com/storage/SPOCK.
HP Storage D2D Backup Systems with Backup Data Deduplication
HP StoreOnce D2D2502i Backup System
NOTE: 1.5TB of usable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
EJ001C
HP StoreOnce D2D2504i Backup System
NOTE: 3.0TB of usable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
USB Removable Media RDX Disk Backup Systems
EJ002C
USB Removable Media RDX Disk Backup Systems
HP RDX1000 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay available for drive installation into the server. 1 TB of disk capacity per data cartridge.		 BV847A
HP RDX1000 USB3.0 Internal Disk Backup System
 B7B67A
HP RDX500 USB3.0 Internal Disk Backup System B7B64A
HP RDX320 USB3.0 Internal Disk Backup System B7B62A
HP RDX320 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay available for drive installation into the server. 320GB of disk capacity per data cartridge.		 AJ767A
HP RDX500 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay available for drive installation into the server. 500GB of disk capacity per data cartridge.		 AJ934A
HP Modular Smart Array Disk Enclosures
HP D2600 Disk Enclosure AJ940A
HP D2700 Disk Enclosure AJ941A
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html

HP Uninterruptible Power Systems

 HP Rack-mountable UPS
HP R1500 G3 Uninterruptible Power Supply (UPS)
HP R1.5kVA G3 1U NA Uninterruptible Power System AF469A
HP R1.5kVA G3 1U JP/TW Uninterruptible Power System AF470A
HP R1.5kVA G3 1U INTL Uninterruptible Power System AF471A
NOTE: Please see QuickSpecs Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14059_div/14059_div.html (Worldwide)
HP R/T3000 UPS
HP R/T3000 G2 Uninterruptible Power System (UPS)
HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System AF466A
HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System AF467A
HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System AF468A
NOTE: Please see QuickSpecs Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14058_div/14058_div.html (Worldwide)
HP Rack-Mountable R5000 UPS
HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System AF460A
HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power System AF461A
HP R5KVA and R7KVA 3U Extended Runtime Module AF464A
NOTE: Please see QuickSpecs Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14109_div/14109_div.html (Worldwide)
HP Rack-Mountable R7000 UPS
HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System AF463A
HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System AF462A
NOTE: Please see QuickSpecs Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14110_div/14110_div.html (Worldwide)
NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.

HP Power Distribution Units

 HP Monitored Power Distribution Unit: Full Rack Version
HP 8.6kVA 24A Single Input Three Phase NA/JP Monitored Power Distribution Unit
AF504A
HP 8.3kVA 40A Single Input Single Phase NA/JP Monitored Power Distribution Unit
AF506A
HP 11kVA 16A Single Input Three Phase INTL Monitored Power Distribution Unit
AF508A
HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit
AF510A
HP Monitored Power Distribution Unit: Half Rack Version
HP 4.9kVA 24A Single Input Single Phase NA/JP Monitored Power Distribution Unit
AF914A
HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit
AF915A
Modular Power Distribution Units 1U/0U (Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).
HP 4.9kVA 24A High Voltage NA/JP Modular Power Distribution Unit 252663-D72
HP 8.3kVA 40A High Voltage NA/JP Modular Power Distribution Unit 252663-D73
HP 7.3kVA 32A High Voltage INTL Modular Power Distribution Unit 252663-B31
HP 3.6kVA 16A High Voltage INTL Modular Power Distribution Unit
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements.		 252663-B24
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html (Worldwide)
NOTE: For additional information on HP Power Distribution Units including accessories please go to: www.hp.com/go/pdu.
NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
HP Rack Options HP USB Keyboard and Mouse
HP USB BFR with PVC Free IN Keyboard/Mouse Kit 672097-D63
HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit 672097-373
HP USB BFR with PVC Free Intl Keyboard/Mouse Kit 672097-B33
HP USB BFR with PVC Free PT Keyboard/Mouse Kit 672097-133
HP USB BFR with PVC Free TR Keyboard/Mouse Kit 672097-143
HP USB BFR with PVC Free CZ Keyboard/Mouse Kit 672097-223
HP USB BFR with PVC Free FI Keyboard/Mouse Kit 672097-353
HP USB BFR with PVC Free SE Keyboard/Mouse Kit 672097-103
HP USB BFR with PVC Free CH Keyboard/Mouse Kit 672097-113
HP USB BFR with PVC Free KR Keyboard/Mouse Kit
 672097-KD3
HP USB BFR with PVC Free US Keyboard/Mouse Kit 631341-B21
HP USB BFR with PVC Free UK Keyboard/Mouse Kit 631344-B21
HP USB BFR with PVC Free FR Keyboard/Mouse Kit 631346-B21
HP USB BFR with PVC Free ES Keyboard/Mouse Kit 631348-B21
HP USB BFR with PVC Free DE Keyboard/Mouse Kit 631358-B21
HP USB BFR with PVC Free JP Keyboard/Mouse Kit 631360-B21
HP USB BFR with PVC Free IT Keyboard/Mouse Kit 631362-B21
HP USB BFR with PVC Free CN Keyboard/Mouse Kit 631364-B21
HP USB BFR with PVC Free AE Keyboard/Mouse Kit 638212-B21
HP USB BFR with PVC Free RU Keyboard/Mouse Kit 638214-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13972_div/13972_div.html (Worldwide)
HP Serial Console Server Switches
HP Server Console 0x2x8 Port Analog Switch AF616A
HP Server Console 0x2x16 Port Analog Switch
AF617A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html (Worldwide)
HP Server Console Switch G2 with Virtual Media & CAC
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software AF618A
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software AF619A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html (Worldwide)
HP IP Console Switch G2 with Virtual Media & CAC
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software AF620A
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software AF621A
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software AF622A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html
(Worldwide)
HP Care Pack Services Hardware Services On-site Service
HP 3 year 4 hour 13x5 ProLiant DL120 Hardware Support
UJ252E
HP 3 year 4 hour 24x7 ProLiant DL120 Hardware Support
UJ253E
Hardware Services Next Business Day On-Site Service

HP 3 year Next business day ProLiant DL120 Hardware Support
UJ251E
Installation Services
HP 3 year 6 hour 24x7 Call to Repair ProLiant DL120 Hardware Support UJ254E
HP Installation ProLiant DL120 Service UJ261E
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Memory

HP ProLiant DL120 G7 Models

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
Standard Memory
SATA Models:
2GB, 4GB or 8GB of PC3-10600E DDR3 UDIMM running at 1333MHz with ECC capabilities memory installed.

SAS Models
4GB of PC3-10600R UDIMM running at 1333MHz
Standard Memory Plus Optional Memory
Up to 32 GB memory is available with the optional installation of 4 x 8GB PC3-10600E UDIMM ECC DDR3 SDRAM DIMM Memory kits, operating at 1333MHz when fully populated at 2 DIMMs per Channel in 4 slots.

NOTE: The below chart does not represent all possible memory configurations.
NOTE: For best performance, it is recommended that customer installs memory in identical pairs (Slots 1 and 3 are interleaving pair. Slots 2 and 4 are interleaving pair).

Some DIMM installation guidelines are summarized below:

  • The HP ProLiant DL120 G7 Server has four memory slots
  • There are two channels per server with two DIMM slot per channel
  • Memory channel A consists of the two (2) DIMMs that are closest to the processor
  • Memory channel B consists of the two (2) DIMMs that are furthest from the processor
  • Different types of processors have different types of memory support.
  • Support for single/dual-rank 1066/1333 MT/s ECC UDIMM (unbuffered DIMMS)
  • The server supports up to 32GB (4 x8GB) for Unbuffered DIMMs
  • No support for RDIMMs; Non-ECC UDIMMs
  • 1.35 V LV-DIMM is supported, but will be performed at 1.5V
  • Do not install DIMMs if the processor is not installed
  • Populate DIMMs from heaviest load (double-rank) to lightest load (single-rank)
  • Non-ECC DIMMs are not supported
  • Always use HP qualified DIMM
  • Farthest DIMM (either CHA or CHB) should always be populated first"

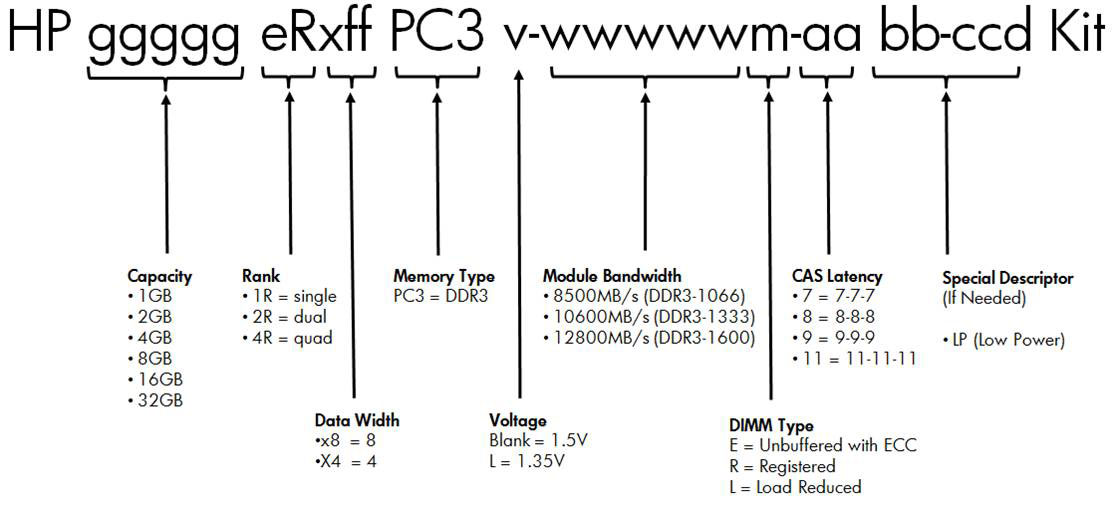

DDR3 memory options part number decoder


The UDIMM installing sequence:
  DIMM1C DIMM2A DIMM3D DIMM4B
1 DIMMs Empty DIMM Empty Empty
2 DIMMs Empty DIMM Empty DIMM
3 DIMMs DIMM DIMM Empty DIMM
4 DIMMs DIMM DIMM DIMM DIMM


Following are memory options available from HP:
HP Memory Unbuffered with ECC DIMMs (UDIMM)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647909-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant energy efficient features, see: www.hp.com/go/proliant-energy-efficient
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Storage
1- 4
 Four SATA or SAS drive bays
A Optical Drive Bay: Optional DVD-ROM, or DVD-RW drive
1-8 Eight SFF Hot-Plug SATA or SAS drive bays
A Optical Drive Bay: Optional DVD-ROM, or DVD-RW drive

Drive Support


Quantity
Supported

Position
Supported

Controller

Removable Media

9.5mm IDE DVD-ROM or DVD-RW Drive
Up to 1
A
 HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

Quantity
Supported
Position
Supported
 Controller
1.2TB 6G SAS 10K
900GB 6G SAS 10K
600GB 6G SAS 10K
450GB 6G SAS 10K
300GB 6G SAS 10K
146GB 6G SAS 15K
Up to 8
1-8
 HP Smart Array P410 Controller
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

Quantity
Supported
Position
Supported
 Controller
600GB 6G SAS 15K
450GB 6G SAS 15K
300GB 6G SAS 15K
Up to 4
1-4
 HP Smart Array P212 Controller
HP Smart Array P410 Controller
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
 Controller
2TB 6G SAS 7.2K
1TB 6G SAS 7.2K
Up to 4
1-4
 HP Smart Array P212 Controller
HP Smart Array P410 Controller
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
 Controller
1TB 6G SAS 7.2K
500GB 6G SAS 7.2K
Up to 8
1-8
 HP Smart Array P410 Controller
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
 Controller
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 8
1-8
 HP Smart Array P410 Controller
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
 Controller
4TB 3G SATA 7.2K
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 4
1-4
 HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Smart Array Hot Plug Advanced Pack for B110i needs to be purchased to enable Hot Plug
HP Smart Array P212 Controller
HP Smart Array P410 Controller
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives

Quantity
Supported
Position
Supported
 Controller
250GB 3G SATA 7.2K
Up to 4
1-4
 HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Smart Array Hot Plug Advanced Pack for B110i needs to be purchased to enable Hot Plug
HP Smart Array P212 Controller
HP Smart Array P410 Controller

Maximum Storage Capacity - (SAS drives)
Internal

8.0TB (4 x 2TB SAS)
External 16.0TB (8 x 2TB SAS)
Total 24.0TB

Maximum Storage Capacity - (SATA Drives)
Internal

16.0TB (4 x 4TB SATA)
External 32.0TB (8 x 4TB SATA)
Total 48.0TB
External Storage

Quantity
Supported
Position
Supported
 Controller
70 HP Modular Smart Array
Up to 8
External
 HP Smart Array P212/256MB Controller
HP Smart Array P212/256MB Controller
HP Smart Array P411/256MB Controller
Tape and Disk Backup
NOTE: For the complete range of tape drives, autoloaders, libraries and media, including the internal fitting models, see: http://www.hp.com/go/tape. For the complete range of D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk and tape backup products see: http://www.hp.com/storage/SPOCK.

Position
Recommended Controller

Part Number
HP SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit		 External HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter 412911-B21

HP USB Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
1U USB Rack-Mount Kit		 External USB 2.0 Port N/A

HP SAS Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
1U Rack-Mount Kit
3U Rack-Mount Kit		 External HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462828-B21

HP SCSI Tape Autoloaders
DAT 72x10 Autoloader
1/8 G2 Autoloader		 External HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter 412911-B21

HP SCSI Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000		 External HP U320e SCSI Dual Channel Host Bus Adapter AH627A

HP SAS Tape Autoloaders and Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096		 External HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462828-B21

HP Fibre Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000		 External Please consult the EBS connectivity matrix at: http://www.hp.com/go/ebs for connectivity information and the supported Fibre Channel HBAs shown in this QuickSpecs.

HP USB RDX Removable Disk Backup System
RDX160
RDX320
RDX500
RDX750		 External USB 2.0 port N/A

HP D2D Backup Systems, iSCSI
D2D2500i
D2D4000i		 External Embedded Network Controller. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

HP D2D Backup Systems, Fibre Channel
D2D4000fc		 External Direct server attach is not supported, requires connection via SAN fabric. See: http://www.hp.com/storage/SPOCK
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Power Specifications
HP 365W Redundant Power Supply Kit w/ Backplane 532092-B21
Input Voltage Range (Vrms) 100 to 240
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms) 100 120 200 208 220 230 240
Maximum Rated Output Wattage 320 320 360 360 360 360 360
Nominal Input Current (A rms) 4.15 3.41 2.23 2.16 2.03 1.94 1.86
Max Rated Input Wattage Rating (Watts) 412 406 445 445 444 443 443
Max. Rated VA (Volt-Amp) 413 407 447 447 446 446 445
Efficiency (%) at Max. Rated Output Wattage 77.4 78.5 80.5 80.6 80.7 80.8 81.0
Power Factor 0.99
Leakage Current (mA) 0.75 0.75 0.85 0.90 0.95 0.95 1.00
Maximum Inrush Current (A peak) 35
Maximum Inrush Current duration (mS) 20
Maximum British Thermal Unit Rating (BTU-Hr) 1354 1334 1462 1462 1459 1456 1456
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Technical Specifications
System Unit Dimensions (H x W x D)
(with bezel)		 44.45 x 448.1 x 700.0 mm (1. 75" x 17.64" x 27.56")
Weight
(approximate)		 Maximum
(four hard drives, power supply, and processor installed)		 26.23 lb
Minimum
(one hard drive, power supply, and processor installed)		 22.84 lb
Input Requirements
(For 400W power supply)		 Range Line Voltage 90 - 132 VAC,
180 - 264 VAC
Rated Input Current 6 A (at 100 VAC),
3 A (at 200 VAC)
Rated Input Frequency 47 to 63 Hz
Rated Input Power <570W (at 100 VAC)
570W (at 200 VAC)
BTU Rating Maximum 1943 BTU/hr (at 100 VAC)
1943 BTU/hr (at 200 VAC)
Power Specifications To review typical system power ratings use the Power Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor
Power Supply Output
(For 400W power supply)		 Rated Steady-State Power 400 W (at 100 VAC),
400 W (at 200 VAC)
Maximum Peak Power 430 W (at 100 VAC),
430 W (at 200 VAC)
System Inlet Temperature Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating -30° to 65°C (-22° to 149°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)		 Operating 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude Operating 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle

LWAd
 5.9 B
LpAm
 42.3 dBA
Operating

LWAd
 5.9 B
LpAm
 43.6 dBA
Emissions Classification (EMC) FCC Rating Class A
Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
Integrated Lights-Out Standard (iLO 3)
integrated on system board		 Architecture PCI Express based health and remote management ASIC
Processor PCI Express RISC processor core running at 250MHz
Upgradeability Option firmware upgradeable via Flash ROM
Video Support 1600 x 1200 DVR max resolution
Interfaces One Ethernet Sideband connection (10/100/1000 Mb/s)
One Ethernet network connection (10/100Mb/s)
Memory 128-MB SDRAM with ECC
Operating System
Support		 Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit and 64 bit)
Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Red Hat Linux 5.5 (32 bit and 64 bit)
Red Hat Linux 6.0 (32 bit and 64 bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 4.1
Microsoft Windows 7
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Client System Support Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Client Browser Support Microsoft Internet Explorer 8
Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.6 (on supported Windows and Linux systems)
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
Command Line Support Secure Shell and serial port access
Security Secure Socket Layer
Secure Shell version 2 (Password and certificate)
Advanced Encryption Standard (AES) and Triple Data Encryption
AES encryption of video
RC4 encryption of video
Directory Support Services Standard (3DES) on browser, CLP and XML scripting interface
Active Directory v1.0 (Windows 2008)
Driver Support HP ProLiant iLO 3 Management Controller Driver Package
iLO Management Channel Interface Driver
Management protocols supported SNMPv1, IPMI 2.0 (System and LAN interface), DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP RIBCL XML

HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)

 Simultaneous drive transfer channels 4 channels
Transfer rate synchronous
(maximum theoretical)		 150 MB/s per channel; 300 MB/s in RAID 0 pair
Data transfer method Intel® 82801IR Integrated Serial ATA Host Controller (non-RAID mode)
Intel® 82801IR Integrated Serial ATA Host Controller (RAID Mode)
Drive support Serial ATA
Data transfer modes Legacy Mode
Combined Mode
Protocol Serial ATA
Feature NCQ (Native Command Queuing); AHCI (Advanced Host Controller Interface)
RAID levels supported 0, 1
RAID Features Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support
NOTE: This controller does not support Hot Plug functions or LED functions.
RAID OS Support

Microsoft Windows Server 2008.
Linux (Red Hat, SuSE, UnitedLinux)
HP NC112i 1-port Ethernet Server Adapter Network Interface 10Base-T/
100Base-TX/
1000Base-TX
Ports Single Port
  802.3, 802.3u, 802.3x, 802.3ab, 802.3ad, 802.1p, 802.1Q
PCIe Rev. 2.0 (2.5 GHz) x1
FCC (U.S. only) Class B
DOC (Canada) Class B
CE EN 55024, EN55022 Class B
VCCI Class II
UL 1950
CSA 950
EN 60950
CE
ACPI 1.0
MicroSoft WHQL (Windows Hardware Quality Labs)
Data Transfer Method Singlelane (x1)
Controller Intel 82574L
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector RJ-45 connector
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive 571230-B21 Capacity 250,059MB
Height 1.04 in (26.4 mm)
Width 4.36 in (110.7 mm)
Depth 7.25 in (184.2 mm)
Interface Serial ATA
Transfer Rate (Maximum) 3Gb/s
Native Command Queuing Supported
Seek Time (typical reads, including settling) Single Track 2.0 ms
Average <11 ms
Full-Stroke 21.0 ms
Rotational Speed 7,200 rpm
Physical Configuration Bytes/Sector 512
Logical Blocks 488,397,168
Operating Temperature (system inlet air temperature) 50° to 95° F (10° to 35° C)
Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Power Specifications      Technical Specifications      Summary of Changes line.gif (50 bytes)

Summary of Changes
Date
Version History
Action
Description of Change
23-Jan-2015
From Version 21 to 22ChangedDIMM support changed in Memory section:
No support for RDIMMs; Non-ECC UDIMMs
1.35 V LV-DIMM is supported, but will be performed at 1.5V
25-Mar-2013 From Version 20 to 21AddedAdded a NOTE to the Power Supplies section in both the Configuration Information and Core Options sections.
25-Feb-2013 From Version 19 to 20ChangedConfiguration Information - Factory Integrated Models: Removed products 582765-B21 and TC203A from Step 3 HP Insight Software.
AddedOptional Features: Added Storage Software
Core Options: Added 693648-B21 and 694374-B21 to HP Hard Drives
Storage: Added 1.2TB 6G SAS 10K to SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives, 4TB 3G SATA 7.2K to SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
ChangedUpdated What's New with Support for HP 1.2TB 6G SAS 10K 2.5in DP ENT HDD and Support for HP 4TB 3G SATA 7.2k 3.5in MDL HDD
Standard Features: updated Maximum Internal Storage for Sata
Optional Features: Completely updated HP Insight Control in HP Insight Control Management Software
Configuration Information - Factory Intergrated Models: Updated p/n 534516-B21
Additional Options: Completely updated HP Insight Software- HP Insight Control, Updated product descriptions in HP Tape Backup for AJ830A, DW085B and EH847B, updated product descriptions in HP Disk Backup for EJ001C, EJ002C, B7B67A, B7B64A and B7B62A and Update product descriptions in HP Rack Options
Storage: Updated Maximum Storage Capacity - (SATA Drives) amounts
24-Sep-2012 From Version 18 to 19ChangedChanges made in Optional Features section.
24-Aug-2012From Version 17 to 18ChangedChanges made throughout the QuickSpec.
© Copyright 2013 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
