В архивеOverview
|

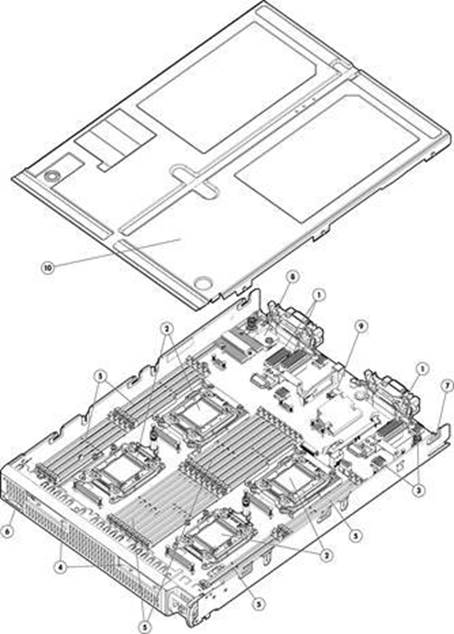

HPE ProLiant BL660c Gen8 Server Blade | |||
|
| |||
|
HPE ProLiant BL660c Gen8 Server Blade | |||
|
1. |
Three (3) PCIe 3.0 mezzanine I/O expansion slots |
6. |
HPE c-Class Blade SUV (Serial, USB, VGA) connector |
|
2. |
Up to four (4) Intel® Xeon® E5-4600 and E5-4600v2 families of processors |
7. |
MicroSDHC card connector |
|
3. |
Two FlexibleLOM connectors |
8. |
Trusted Platform Module (TPM) connector |
|
4. |
Two (2) small form factor (SFF) hot-plug drive bays |
9. |
Internal USB 2.0 connector |
|
5. |
Thirty-two (32) DDR3 DIMM memory slots (8 per processor) |
10 |
Access panel |
|
| |||
|
What's New | |||
| |||
Standard Features
|
NOTE: This document covers the HPE ProLiant BL660c Gen8 server blade only. For information on HPE BladeSystems c-Class Enclosures and HPE BladeSystem c-Class interconnect and mezzanine options, please see the following: HPE BladeSystem c-Class Enclosures QuickSpecs:
NOTE: For proper BladeSystem operation, the minimum required versions of HPE Onboard Administrator and HPE Virtual Connect are required and available via the HPE Service Pack for ProLiant, please see http://www.hp.com/go/spp/download. | |||
|
| |||
|
Processor |
E5-4600 v2 series Processors | ||
|
HPE BL660c Gen8 E5-4657Lv2 (2.4GHz/12-core/30MB/115W) Processor | |||
|
HPE BL660c Gen8 E5-4650v2 (2.4GHz/10-core/25MB/95W) Processor | |||
|
HPE BL660c Gen8 E5-4640v2 (2.2GHz/10-core/20MB/95W) Processor | |||
|
HPE BL660c Gen8 E5-4627v2 (3.3GHz/8-core/16MB/130W) Processor | |||
|
HPE BL660c Gen8 E5-4620v2 (2.6GHz/8-core/20MB/95W) Processor | |||
|
HPE BL660c Gen8 E5-4610v2 (2.3GHz/8-core/16MB/95W) Processor | |||
|
HPE BL660c Gen8 E5-4607v2 (2.6GHz/6-core/15MB/95W) Processor | |||
|
HPE BL660c Gen8 E5-4603v2 (2.2GHz/4-core/10MB/95W) Processor | |||
|
E5-4600 series Processors | |||
|
Intel® Xeon® E5-4650 (2.7GHz/8-core/20MB/130W) Processor | |||
|
Intel® Xeon® E5-4650L (2.6GHz/8-core/20MB/115W) Processor | |||
|
Intel® Xeon® E5-4640 (2.4GHz/8-core/20MB/95W) Processor | |||
|
Intel® Xeon® E5-4620 (2.2GHz/8-core/16MB/95W) Processor | |||
|
Intel® Xeon® E5-4617 (2.9GHz/6-core/15MB/130W) Processor | |||
|
Intel® Xeon® E5-4610 (2.4GHz/6-core/15MB/95W) Processor | |||
|
Intel® Xeon® E5-4607 (2.2GHz/6-core/12MB/95W) Processor | |||
|
Intel® Xeon® E5-4603 (2.0GHz/4-core/10MB/95W) Processor | |||
|
| |||
|
Cache Memory |
30MB Level 3 | ||
|
25MB Level 3 | |||
|
20MB Level 3 | |||
|
16MB Level 3 | |||
|
15MB Level 3 | |||
|
12MB Level 3 | |||
|
10MB Level 3 | |||
|
| |||
|
Chipset |
Intel® C600 Series Chipset | ||
|
| |||
|
Upgradeability |
Upgradeable to four (4) processors. | ||
|
| |||
|
On System Management Chipset |
HPE iLO (Firmware: HPE iLO 4) | ||
|
| |||
|
Memory Protection |
Data bus ECC protection | ||
|
Advanced ECC / SDDC | |||
|
Rank sparring (on line spare) | |||
|
Lockstep mode | |||
|
DIMM address/control bus parity protection | |||
|
Failed DIMM isolation | |||
|
Demand scrubbing | |||
|
Patrol scrubbing | |||
|
Memory thermal control | |||
|
Memory mirroring inter-socket | |||
|
| |||
|

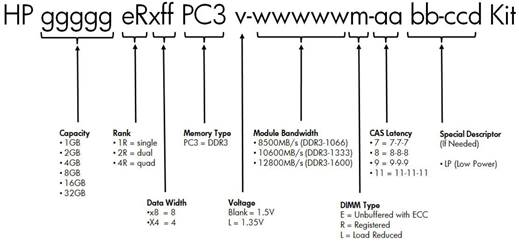

Memory |
Type |
HPE SmartMemory | |
|
Maximum (LRDIMM) |
1.0TB (32 x 32GB) up to 1866MHz at 1.5V | ||
|
Maximum (RDIMM) |
512GB (32 x 16GB) up to 1600MHz at 1.35V | ||
|
NOTE: HPE memory from previous generation servers are not qualified or warranted with this server. NOTE: HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HPE SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html | |||
|
| |||
|
Network Controller |
Two (2) HPE FlexibleLOM connectors for one or two dual-port FlexibleLOMs | ||
|
| |||
|
Expansion Slots |
Three (3) I/O expansion mezzanine slots:
Mezzanine card options include:
|
||
|
| |||
|
HPE Server ROM |
HPE
ROM (read only memory) is now digitally signed using the Hewlett Packard
Enterprise Corporate Signing Service. This signature is verified before
the flash process starts, reducing accidental programming and preventing
malicious efforts to corrupt system ROM. The HPE ProLiant ROM is used to configure the following:
NOTE:
For
further information, please refer to the HPE RBSU (ROM based setup utility)
user guide at http://www.hp.com/support/rbsu. |
||
|
| |||
|
Storage Controller |
All Models |
One (1) embedded HPE Smart Array P220i Controller | |
|
| |||
|
Maximum Internal Storage |
Hot Plug SFF SAS |
3.2TB |
2 x2.6TB |
|
Hot Plug SFF SATA |
3.2TB |
2 x 1.6TB | |
|
Hot Plug SFF SAS SSD |
4.0TB |
2 x 2.0TB | |
|
NOTE: The ProLiant BL660c Gen8 server includes the new HPE hot plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers are not compatible with the ProLiant BL660c Gen8 drive bays. | |||
|
| |||
|
Interfaces |
Micro SDHC Slot |
One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot | |
|
USB 2.0 Port |
One (1) internal USB 2.0 connector for USB flash media drive keys | ||
|
NOTE: The above options are for integrated hypervisor virtualization environments needing a low cost boot solution with the highest performance and reliability. | |||
|
| |||
|
Industry Standard Compliance |
ACPI 2.0 | ||
|
Microsoft® Logo certifications | |||
|
USB 2.0 Support | |||
|
IMPI 2.0 | |||
|
Secure Digital 2.0 | |||
|
TMP 1.2 Support | |||
|
IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed) | |||
|
Advanced Encryption Standard (AES) | |||
|
Triple Data Encryption Standard (3DES) | |||
|
SNMP | |||
|
SSL 2.0 | |||
|
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP) | |||
|
Active Directory v1.0 | |||
|
PCIe 3.0 | |||
|
SR-IOV capability (requires network adapter and operating system support) | |||
|
| |||
|
Operating Systems and Virtualization Software Support for ProLiant Servers |
Microsoft Windows Server
| ||
|
| |||
|
Enclosures |
Enclosures Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs:
NOTE:
For
additional enclosure information, please see http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html. |
||
|
| |||
|
Graphics |
Integrated Matrox G200 video standard
HPE iLO 4 On System Management Memory
|
||
|
| |||
|
Form Factor |
HPE ProLiant BL660c Gen8 is a single-wide, full-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures. | ||
|
| |||
|
On System Management |
HPE iLO Management Engine |
HPE
iLO Management Engine is a comprehensive set of embedded management
features supporting the complete lifecycle of the server, from initial
deployment, through ongoing management, to service alerting and remote
support. HPE iLO Management Engine comes standard on all HPE ProLiant
Gen8 servers. The HPE iLO Management Engine portfolio includes:
- To start Intelligent Provisioning: § Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self test or POST). § Please go to the Intelligent Provisioning website at http://www.hp.com/go/intelligentprovisioning for additional information and to view usage videos. § Use the Service Pack for ProLiant (SPP) at http://www.hp.com/go/spp to get firmware and software updates. -
HPE
iLO Mobile App:
Enables the ability to access, deploy, and manage your server anytime
from anywhere from select smartphones and mobile devices. For additional
information please visit: http://www.hp.com/go/ilo/mobileapp NOTE:
For more information, visit: http://www.hp.com/go/ilo
or HPE iLO Management Engine technologies whitepaper |
|
|
| |||
|
HPE Insight management software |
HPE Service Pack for ProLiant (SPP) |
HPE Service Pack for ProLiant (SPP) and HPE Smart Update Manager (HPE SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HPE server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HPE SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that Hewlett Packard Enterprise provides 12 months of support for each Service Pack for ProLiant release. | |
|
| |||
|
Security |
- SSL encryption - Secure Shell version 2 - Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface - AES and RC4 encryption of video External USB port enable/disable Network server mode Serial interface control TPM (Trusted Platform Module) 1.2 option Advanced Encryption Standard (AES) Intel® Advanced Encryption Standard-New Instructions (AES-NI)
Intet
TXT (require the TPM module option) |
||
|
| |||
|
Availability |
Memory Data Bus ECC protection provides automatic correction from a single data bit error and detection of double data error bits. Often called single error correction/double error detection (SEC/DED). Advanced ECC uses single device data correction (SDDC) to detect and correct single and all multi-bit error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8 requires lockstep mode). Memory online spare mode (also known as rank spare mode) detects a rank that is degrading and switches operation to the spare rank. Hewlett Packard Enterprise offers the rank sparing rather than DIMM sparing as rank sparing uses less spare memory resulting in reduced overhead. Memory lockstep mode is used to correct a single x8 DRAM device failure on a DIMM. The DIMMs in each paired memory channel must have identical HPE part numbers. Memory demand and patrol scrubbing prevent accumulation of correctable errors and reducing the likelihood of unplanned downtime. Failed DIMM isolation improves the service time thus improving the overall system availability. Address parity protection available on RDIMMs and LRDIMMs detects address bit errors to improve service time and overall system availability. Memory thermal control is used to prevent DIMMs from overheating. Achieved by slowing down the memory access rate per the temperature monitored by DIMM sensor. Memory mirroring inter-socket stores a copy of memory with dynamic failover in case of failure. Once a DIMM in a mirrored set is detected as failed, the mirror failover uses its mirrored DIMM. | ||
|
Mezzanine options and I/O One or two FlexibleLOM connectors each supporting two (i.e. redundant) Ethernet ports routed to redundant interconnect modules. Multiple mezzanine I/O expansion slots that support a wide variety of mezzanine cards each supporting multiple data paths routed to redundant interconnect modules. Network Adapter Teaming (bonding) provides network fault tolerance, transmit load balancing, and switch-assisted load balancing. | |||
|
Storage Two (2) hot-plug SAS/SATA/SSD drive bays. Integrated HPE Smart Array P220i Controller with 512MB FBWC capability, RAID 0 and 1, and upgradeable firmware with recovery ROM capability. Up to eight optional HPE D2200sb and/or D22020sb Storage Blades for attachment of up to 12 drives per Storage Blade (up to 96 drives total) within the c-Class enclosure. Optional dual-port Fibre Channel mezzanine card(s) for redundant SAN connections. | |||
|
Processor/Chipset Processor internal sensors & thermal control protection against over-temperature conditions. Cache parity/ECC protects cache data from accidental data corruption. Machine Check Architecture (MCA) detects and captures hardware errors such as system bus, memory ECC, parity, and cache, and improves service time. Intel® QPI Protocol Protection allows detection of data errors using a checksum of 8-bits. Core Disable for FRB (fault resilient boot) allows a system to power-on despite a failing core-pair. It uses BIST (built-in self test) results to detect a failure and disables the target core-pair upon subsequent boot. | |||
|
Server Blade Enclosure Infrastructure Pooled power for true N+N power redundancy through up to six (6) hot-plug, high-efficiency, common slot enclosure-based power supplies (configuration dependent). Up to ten (10) redundant enclosure-based hot-plug HPE Active Cool fans that scale to meet future demands and optimize airflow, reduce power draw, and improve acoustic performance. Dual grid power providing redundant rack enclosure power feeds to the server blade enclosure. HPE Dynamic Power Saver Mode the total enclosure power consumption is monitored in real time and automatically adjusted with changes in demand for improved efficiency and reliability. HPE Dynamic Power Capping safely limits power usage without impacting performance by capping peak usage instead of average power usage, removes risk to electrical infrastructure with a fast-acting, hardware-based capping algorithm, and reclaims more power by dynamically controlling power limits based on workload demand. Up to eight interconnect modules per server blade enclosure providing four simultaneous redundant fabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, Pass Thru Ethernet, etc. Enclosure crosslinks between adjacent enclosures to provide interconnect module-to-module connections or as Virtual Connect module stacking links. Optional enclosure redundant Onboard Administrator system management module. | |||
|
| |||
|
Warranty |
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Certain restrictions and exclusions apply. Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
| ||
Optional Features
|
Fibre Channel Support |
Up to three (3) optional Fibre Channel mezzanine HBAs are supported on the HPE ProLiant BL660c Gen8. | |
|
| ||
|
Compatible SAN |
HPE ProLiant BL660c Gen8 server blades are optimized for HPE MSA, EVA and XP. HPE ProLiant BL660c Gen8 server blades are compatible with select 3rd party SANs. Please see blade storage page for more details at | |
|
| ||
|
HPE Virtual Connect |
HPE Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to data and storage networks, and reduces costs. Unique HPE Flex-10 technology makes maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect FlexFabric modules extend those capabilities to allocate one function per port to storage connections. HPE Virtual Connect Enterprise Manager (VCEM) provides server management software with a central console to administer network connections and workloads for thousands of servers. For more information on Virtual Connect Enterprise Manager, see http://www8.hp.com/h20195/v2/GetPDF.aspx/c04154443.pdf. For more information on Virtual Connect Ethernet, Fibre Channel, Converged Network and management options, see http://www.hp.com/go/virtualconnect. | |
|
| ||
|
HPE Insight management software |
HPE Insight Control |
HPE Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, see http://www.hp.com/go/insightcontrol. HPE Insight Control includes one year of 24 x 7 HPE Software Technical Support and Update Service ensuring rapid access to Hewlett Packard Enterprise support staff and proactive delivery of software updates. For more information about this service, see http://www.hp.com/services/insight. |
|
HPE Matrix Operating Environment |
The HPE Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business. The HPE Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HPE CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS). For more information, see http://www.hp.com/go/matrixoe. | |
|
HPE iLO Scale-Out |
The HPE iLO Scale-Out license ideal for web/hosting/cloud service providers and High Performance Computing environments. This license is a specific subset of iLO Advanced functionality, provides fast remote access through Text Console via SSH, lower operational cost with Dynamic power capping, and faster time to resolution through Email-based Alerting and proactive notifications. With this newly designed HPE iLO Scale-Out license HPC customers now have a server management package solely design and priced for their massive data environments. HPE iLO Scale-Out is available on all HPE ProLiant Gen8 BL and SL platforms. For more information, see: http://www.hp.com/go/iLO/scale-out | |
|
HPE iLO Advanced |
HPE Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HPE ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvance | |
|
| ||
|
HPE OneView |
The HPE OneView architecture combines server, storage, and networking with control of datacenter environmentals into a single, integrated management platform. Architected to deliver lifecycle management for the complete Converged Infrastructure, it facilitates collaboration, removes friction, collapses cycle times, eliminates error-prone work, and accelerates time to value. HPE OneView v1.0 combines management of servers and virtual connect with open integration to automate and customize existing tools and processes. With OneView, you'll work smarter-with greater visibility and control-and fully capitalize on the benefits of a Converged Infrastructure. | |
|
| ||
|
High Performance Clusters |
HPE Cluster Platforms |
HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters |
|
HPE HPC Interconnects |
HPE HPC Interconnects High Performance Computing (HPC) interconnect technologies are available for this server as part of the HPE Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by Hewlett Packard Enterprise when integrated within an HPE cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html | |
|
HPE Insight Cluster Management Utility |
HPE Insight Cluster Management Utility (CMU) is an Hewlett Packard Enterprise-licensed and Hewlett Packard Enterprise-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu | |
|
| ||
|
Storage Software |
Whether
you need to solve a specific data protection, archiving, or storage
command and control challenge, or deliver on strategic consolidation,
compliance, or continuity initiatives, look no further than HPE storage
software. Our storage software helps you reduce costs, simplify storage
infrastructure, protect vital assets and respond faster to business
opportunities.
NOTE: For more information available Storage Software including QuickSpecs, please see: http://www.hp.com/go/storage/software. |
|
|
| ||
|
HPE Insight Online |
HPE Insight Online is a new addition to the HPE Support Center for one stop, secure access to product and HPE support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HPE Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. http://www.hp.com/go/insightonline. | |
|
| ||
|
Factory Express Portfolio for Servers and Storage |
HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches. | |
|
| ||
|
HPE Simple Configurator |
SCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact the Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hp.com/SimplifiedConfig/Index | |
Service and Support
|
Service and Support |
HPE Technology Services for Industry Standard Servers HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time. Protect your business beyond warranty with HPE Pointnext operational services HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select. |
|
| |
|
Recommended HPE Pointnext operational services for your HPE product | |
|
Optimized Care |
HPE Proactive Care Advanced - 24x7 coverage, three year Care Pack Service Achieve a higher return on your product investment with the personal attention from a locally assigned Account Support Manager who delivers recommendations designed to improve availability and performance. Leverage your systemâs ability to connect to Hewlett Packard Enterprise for automated problem detection and rapid critical event management to increase stability and reduce unplanned downtime. This recommendation provides 24x7 coverage with four-hour response for hardware and two-hour callback for supported software. Collaborative call management comes with Proactive Care Advanced or you may choose full support from Hewlett Packard Enterprise where we own all cases through to resolution. Hewlett Packard Enterprise is a leading provider of support services for most operating systems used on HPE BladeSystem with long, successful partnerships with vendors such as Microsoft, Red Hat, VMware, SUSE and others. Purchasing software support from Hewlett Packard Enterprise simplifies troubleshooting and shortens time to resolution with one call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA5-3259ENW&cc=us&lc=en |
|
| |
|
Standard Care |
HPE Proactive Care with 24x7 coverage, three year Care Pack Service HPE Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to Hewlett Packard Enterprise. This Care Pack Service combines three yearsâ proactive reporting and advice with our 24x7 coverage and enhanced escalation management, four hour hardware response time and two hour call back for software questions on leading industry standard software running on your HPE ProLiant server. https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8855enw.pdf |
|
| |
|
Related Services |
HPE ProLiant Server Hardware Installation Factory Express for Servers and storage HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
Data Privacy Services Protect your data through better media management. HPE Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. http://www.hp.com/services/dataprivacy Additional HPE Pointnext operational services can be found at: http://www.hp.com/go/cpc |
|
| |
|
Get connected to Hewlett Packard Enterprise to improve your support experience |
Connecting products to Hewlett Packard Enterprise will help prevent problems with 24x7monitoring, prefailure alerts, automatic call logging, and parts dispatch, plus current data will be available for the proactive reports that are part of Proactive Care Services. With Connected products, you can have a dashboard to manage your IT anywhere, anytime, from any device. |
|
| |
|
HPE Support Center |
Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc The HPE Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. NOTE: HPE Support Center Mobile App is subject to local availability. |
|
| |
|
Parts and Materials |
Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
For more information |
To learn more on HPE ProLiant servers and HPE BladeSystem servers, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized ServiceOne Channel Partner. Or visit: http://www.hp.com/services/bladesystem |
Pre-configured Models
|
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. | ||
|
E5-4600v2 series Processors | ||
|
Performance Models | ||
|
HP ProLiant BL660c Gen8 E5-4650v2 4P 128GB-R Server |
Processor(s) |
Four (4) Intel® Xeon® E5-4650v2 (2.4GHz/10-core/25MB/95W) |
|
Cache Memory |
25MB Level 3 cache | |
|
Memory |
128GB (8x 16GB) PC3L-14900R (DDR3-1866) Registered DIMMs at 1.5V | |
|
Network Controller |
Two (2) HPE FlexFabric 10Gb 2-port 534FLB FlexibleLOMs | |
|
Storage Controller |
HPE Smart Array P220i Controller with 512MB FBWC and RAID 0, 1 | |
|
Hard Drive |
None ship standard; includes 2 SFF hard drive blanks | |
|
Internal Storage |
SAS: 2.4TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB | |
|
Optical Drive Bay |
None | |
|
Expansion Slots |
3 standard - Slot 1 supports Type A mezzanine Cards. Slots 2 and 3 support Type A and Type B mezzanine cards. | |
|
Management |
HPE iLO Management Engine (standard) | |
|
Form Factor |
Up to four (4) full-height server blades supported in the HPE BladeSystem c3000 Enclosure | |
|
Warranty |
Server warranty includes 3 year parts, 3 year labor, 3-year on-site support. | |
|
| ||
|
Base Model | ||
|
HP ProLiant BL660c Gen8 E5-4620v2 4P 128GB-R Server |
Processor(s) |
Four (4) Intel® Xeon® E5-4620v2 (2.6GHz/8-core/20MB/95W) |
|
Cache Memory |
20MB Level 3 cache | |
|
Memory |
128GB (8x 16GB) PC3L-12800R (DDR3-1600) Registered DIMMs at 1.35V | |
|
Network Controller |
Two (2) HPE FlexFabric 10Gb 2-port 534FLB FlexibleLOMs | |
|
Storage Controller |
HPE Smart Array P220i Controller with 512MB FBWC and RAID 0, 1 | |
|
Hard Drive |
None ship standard; includes 2 SFF hard drive blanks | |
|
Internal Storage |
SAS: 2.4TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB | |
|
Optical Drive Bay |
None | |
|
Expansion Slots |
3 standard - Slot 1 supports Type A mezzanine Cards. Slots 2 and 3 support Type A and Type B mezzanine cards. | |
|
Management |
HPE iLO Management Engine (standard) | |
|
Form Factor |
Up to four (4) full-height server blades supported in the HPE BladeSystem c3000 Enclosure | |
|
Warranty |
Server warranty includes 3 year parts, 3 year labor, 3-year on-site support. | |
|
| ||
|
Entry Model | ||
|
HP ProLiant BL660c Gen8 E5-4607v2 2P 64GB-R Server |
Processor(s) |
Two (2) Intel® Xeon® E5-4607v2 (2.6GHz/6-core/15MB/95W) |
|
Cache Memory |
15MB Level 3 cache | |
|
Memory |
64GB (4x 16GB) PC3L-12800R (DDR3-1600) Registered DIMMs at 1.35V | |
|
Network Controller |
Two (2) HPE FlexFabric 10Gb 2-port 534FLB FlexibleLOMs | |
|
Storage Controller |
HPE Smart Array P220i Controller with 512MB FBWC and RAID 0, 1 | |
|
Hard Drive |
None ship standard; includes 2 SFF hard drive blanks | |
|
Internal Storage |
SAS: 2.4TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB | |
|
Optical Drive Bay |
None | |
|
Expansion Slots |
3 standard - Slot 1 supports Type A mezzanine Cards. Slots 2 and 3 support Type A and Type B mezzanine cards. | |
|
Management |
HPE iLO Management Engine (standard) | |
|
Form Factor |
Up to four (4) full-height server blades supported in the HPE BladeSystem c3000 Enclosure | |
|
Warranty |
Server warranty includes 3 year parts, 3 year labor, 3-year on-site support. | |
Configuration Information - Factory Integrated Models
|
NOTE: This section lists some of the steps required to configure a Factory Integrated Model or configure-to-order (CTO) server. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. | |||
|
Step 1: Base Server Blade Configuration (Select a configurable Blade) | |||
|
Models |
HP ProLiant BL660c Gen8 10Gb FlexibleLOM Configure-to-order Blade Server |
679118-B21 | |
|
Each configurable model ships with: |
| ||
|
Two (2) FlexibleLOM connectors providing a choice of supported FlexibleLOMs (see Step 2) |
| ||
|
| |||
|
Step 2: Choose Required Options (one of the following from each list unless otherwise noted) | |||
|
HPE Processors |
NOTE: The BL660c Gen8 supports two or four processors; one and three processor configurations are not supported. |
| |
|
E5-4600v2 series Processors |
| ||
|
HP BL660c Gen8 Intel Xeon E5-4657Lv2 (2.4GHz/12-core/30MB/115W) FIO 2-processor Kit |
727590-L21 | ||
|
HP BL660c Gen8 Intel Xeon E5-4650v2 (2.4GHz/10-core/25MB/95W) FIO 2-processor Kit |
727576-L21 | ||
|
HP BL660c Gen8 Intel Xeon E5-4640v2 (2.2GHz/10-core/20MB/95W) FIO 2-processor Kit |
727578-L21 | ||
|
HP BL660c Gen8 Intel Xeon E5-4627v2 (3.3GHz/8-core/16MB/130W) FIO 2-processor Kit |
727588-L21 | ||
|
HP BL660c Gen8 Intel Xeon E5-4620v2 (2.6GHz/8-core/20MB/95W) FIO 2-processor Kit |
727580-L21 | ||
|
HP BL660c Gen8 Intel Xeon E5-4610v2 (2.3GHz/8-core/16MB/95W) FIO 2-processor Kit |
727582-L21 | ||
|
HP BL660c Gen8 Intel Xeon E5-4607v2 (2.6GHz/6-core/15MB/95W) FIO 2-processor Kit |
727584-L21 | ||
|
HP BL660c Gen8 Intel Xeon E5-4603v2 (2.2GHz/4-core/10MB/95W) FIO 2-processor Kit |
727586-L21 | ||
|
HPE Memory |
NOTE: HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant Server. |
| |
|
HPE SmartMemory |
| ||
|
Registered DIMMs (RDIMMs) - E5-4600 v2 series Processors |
| ||
|
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713981-B21 | ||
|
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit |
708637-B21 | ||
|
HPE 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
731765-B21 | ||
|
HPE 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit |
731761-B21 | ||
|
HPE 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713985-B21 | ||
|
HPE 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit |
708641-B21 | ||
|
Registered DIMMs (RDIMMs) - E5-4600 series Processors |
| ||
|
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647893-B21 | ||
|
HPE 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
647895-B21 | ||
|
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit |
647897-B21 | ||
|
HPE 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
647899-B21 | ||
|
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
690802-B21 | ||
|
HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit |
647901-B21 | ||
|
HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
672631-B21 | ||
|
HP 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 LV Memory Kit |
761501-B21 | ||
|
NOTE: When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage FIO Memory Kits are used, all DIMM slots for the associated processor sockets must be fully populated with these 24GB DIMMs. If two processor sockets are populated, all 16 DIMM slots must be populated with 24GB DIMMs. If all four processor sockets are populated, all 32 DIMM slots must be populated with 24GB DIMMs. |
| ||
|
Load Reduced DIMMs (LRDIMMs) - E5-4600 v2 series Processors |
| ||
|
HPE 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit |
708643-B21 | ||
|
Load Reduced DIMMs (LRDIMMs) - E5-4600 series Processors |
| ||
|
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600 (DDR3-1333) LRDIMM CAS-9 LP Memory Kit |
647903-B21 | ||
|
HPE Networking |
FlexibleLOM Adapters |
| |
|
NOTE: The ProLiant BL660c Gen8 supports one or two FlexibleLOMs. |
| ||
|
10/20 GbE Ethernet FlexibleLOMs |
|||
|
HPE FlexFabric 20Gb 2-port 630FLB FIO Adapter |
700066-B21 | ||
|
HP Flex-10 10Gb 2-port 530FLB FIO Adapter |
684211-B21 | ||
|
HP FlexFabric 10Gb 2-port 534FLB FIO Adapter |
700742-B21 | ||
|
HP FlexFabric 10Gb 2-port 554FLB FIO Adapter |
684212-B21 | ||
|
HPE Ethernet 10Gb 2-port 560FLB FIO Adapter |
684214-B21 | ||
|
HPE Storage Controllers |
Optional Upgrades |
||
|
HP 512MB FBWC for BL660c FIO Kit |
694033-B21 | ||
|
NOTE: Please see the Smart Array Advanced Pack 2.0 QuickSpecs for Technical Specifications and additional information at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154413. |
| ||
|
| |||
|
Step 3: Choose Additional Factory Integration Options | |||
|
HPE Insight Software |
HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU |
C6N36A | |
|
Converged Infrastructure Management Software |
HPE OneView with iLO Advanced - Server hardware required on same purchase order |
| |
|
HPE OneView for Blade Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU |
F6Q89A | ||
|
HPE Storage Blades |
HPE D2220sb Configure-to-order Storage Blade |
QW918A | |
|
| |||
|
Step 4: Choose Additional Options for Factory Integration | |||
|
NOTE: For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following:
|
|||
Core Options
|
HPE Networking |
10/20Gb Ethernet Mezzanines |
|
|
NOTE: All 10Gb Ethernet adapters are Type A mezzanine cards that can be installed in any of the BL660c Gen8 mezzanine slots. |
| |
|
HPE FlexFabric 20Gb 2-port 650M Adapter
|
700767-B21 | |
|
HPE FlexFabric 20Gb 2-port 630M Adapter |
700076-B21 | |
|
HPE Ethernet 10Gb 2-port 560M Adapter |
665246-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111406 |
| |
|
HP FlexFabric 10Gb 2-port 554M Adapter |
647590-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111536. |
||
|
HP Flex-10 10Gb 2-port 552M Adapter |
674764-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111477. |
| |
|
HPE FlexFabric 10Gb 2-port 534M Adapter |
700748-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111370 |
| |
|
HP Flex-10 10Gb 2-port 530M Adapter |
631884-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111538. |
| |
|
10/20Gb Ethernet FlexibleLOM Adapters |
| |
|
NOTE: All 1Gb Ethernet adapters are Type A mezzanine cards that can be installed in any of the BL660c Gen8 mezzanine slots. |
| |
|
HPE Ethernet 1Gb 4-port 366M Adapter |
615729-B21 | |
|
10Gb Ethernet FlexibleLOM Adapters |
| |
|
NOTE: The server supports one or two FlexibleLOMs. |
| |
|
HPE FlexFabric 20Gb 2-port 630FLB Adapter |
700065-B21 | |
|
HPE Flex-10 10Gb 2-port 530FLB Adapter |
656590-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111539. |
| |
|
HP FlexFabric 10Gb 2-port 534FLB Adapter |
700741-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111370 |
| |
|
HPE FlexFabric 10Gb 2-port 554FLB Adapter |
647586-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111537. |
| |
|
HPE Ethernet 10Gb 2-port 560FLB Adapter |
655639-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111516. |
| |
|
1Gb Ethernet FlexibleLOM Adapters |
| |
|
NOTE: The server supports one or two FlexibleLOMs. Two are already included in the Pre-configured Models and the first one is added per Step 2 for Factory Integrated Models. The 1GbE FlexibleLOM option below is used to change the original 10Gb FlexibleLOM(s) that originally came with the server. |
| |
|
HP Ethernet 1Gb 2-port 361FLB Adapter |
652500-B21 | |
|
HPE Infiniband Mezzanine Adapters |
| |
|
NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active (regardless of operating mode). When installed in any other mezzanine slot, both ports are active. |
| |
|
HP InfiniBand QDR/EN 10Gb Dual Port 544M Adapter |
644160-B21 | |
|
HP InfiniBand FDR/EN 10/40Gb Dual Port 544M Adapter |
644161-B22 | |
|
HPE InfiniBand FDR 2-port 545M Adapter |
702213-B21 | |
|
NOTE: InfiniBand QDR and FDR speeds are only supported on the HPE BladeSystem c7000 Enclosure. For additional information, please see the HPE BladeSystem c7000 Enclosure and InfiniBand QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126044 |
| |
|
| ||
|
HPE Fibre Channel |
HPE LPe1605 16Gb Fibre Channel HBA for BladeSystem c-Class |
718203-B21 |
|
HPE LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class |
659818-B21 | |
|
HPE QMH2572 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class |
651281-B21 | |
|
HPE QMH2672 16Gb Fibre Channel Host Bus Adapter |
710608-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126962 |
| |
|
| ||
|
HPE Processors |
NOTE: The BL660c Gen8 supports two or four processors; one and three processor configurations are not supported. |
|
|
E5-4600 v2 series Processors |
| |
|
HP BL660c Gen8 Intel Xeon E5-4657Lv2 (2.4GHz/12-core/30MB/115W) 2-processor Kit |
727590-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4650v2 (2.4GHz/10-core/25MB/95W) 2-processor Kit |
727576-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4640v2 (2.2GHz/10-core/20MB/95W) 2-processor Kit |
727578-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4627v2 (3.3GHz/8-core/16MB/130W) 2-processor Kit |
727588-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4620v2 (2.6GHz/8-core/20MB/95W) 2-processor Kit |
727580-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4610v2 (2.3GHz/8-core/16MB/95W) 2-processor Kit |
727582-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4607v2 (2.6GHz/6-core/15MB/95W) 2-processor Kit |
727584-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4603v2 (2.2GHz/4-core/10MB/95W) 2-processor Kit |
727586-B21 | |
|
E5-4600 series Processors |
| |
|
HPE BL660c Gen8 Intel Xeon E5-4650 (2.7GHz/8-core/20MB/130W) 2-processor Kit |
679098-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4650L (2.6GHz/8-core/20MB/115W) 2-processor Kit |
679110-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4640 (2.4GHz/8-core/20MB/95W) 2-processor Kit |
679100-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4620 (2.2GHz/8-core/16MB/95W) 2-processor Kit |
679102-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4617 (2.9GHz/6-core/15MB/130W) 2-processor Kit |
679112-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4610 (2.4GHz/6-core/15MB/95W) 2-processor Kit |
679104-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4607 (2.2GHz/6-core/12MB/95W) 2-processor Kit |
679106-B21 | |
|
HP BL660c Gen8 Intel Xeon E5-4603 (2.0GHz/4-core/10MB/95W) 2-processor Kit |
679108-B21 | |
|
| ||
|
HPE Memory |
NOTE: HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document. For additional information, please see the HPE SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html |
|
|
HPE SmartMemory |
| |
|
Registered DIMMs (RDIMMs) - E5-4600 v2 series Processors |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713981-B21 | |
|
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit |
708637-B21 | |
|
HPE 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
731765-B21 | |
|
HPE 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit |
731761-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713985-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit |
708641-B21 | |
|
Registered DIMMs (RDIMMs) - E5-4600 series Processors |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647893-B21 | |
|
HPE 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
647895-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit |
647897-B21 | |
|
HPE 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
647899-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
690802-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit |
647901-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
672631-B21 | |
|
HP 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 LV Memory Kit |
761501-B21 | |
|
NOTE: When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage FIO Memory Kits are used, all DIMM slots for the associated processor sockets must be fully populated with these 24GB DIMMs. If two processor sockets are populated, all 16 DIMM slots must be populated with 24GB DIMMs. If all four processor sockets are populated, all 32 DIMM slots must be populated with 24GB DIMMs. |
| |
|
Load Reduced DIMMs (LRDIMMs) - E5-4600 v2 series Processors |
| |
|
HPE 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit |
708643-B21 | |
|
Load Reduced DIMMs (LRDIMMs) - E5-4600 series Processors |
| |
|
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600 (DDR3-1333) LRDIMM CAS-9 LP Memory Kit |
647903-B21 | |
|
| ||
|
HPE Hard Drives |
NOTE: The ProLiant BL660c Gen8 server includes the new HPE hot-plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers are not compatible with the BL660c Gen8 drive bays. |
|
|
HPE SAS Hot Plug SmartDrive Carriers for Gen8 Servers only |
| |
|
6G SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives |
| |
|
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive |
718162-B21 | |
|
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652589-B21 | |
|
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652583-B21 | |
|
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652572-B21 | |
|
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652564-B21 | |
|
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652611-B21 | |
|
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive |
652605-B21 | |
|
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD
|
759212-B21 | |
|
HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD
|
759210-B21 | |
|
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD
|
759208-B21 | |
|
6G SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives |
| |
|
HPE 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
652749-B21 | |
|
HPE 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
652745-B21 | |
|
12G SAS (2.5-inch) 512e SC HDD |
| |
|
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e HDD
|
748387-B21 | |
|
HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
|
765464-B21 | |
|
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e HDD
|
791034-B21 | |
|
HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD
|
765466-B21 | |
|
6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives |
| |
|
HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD |
655710-B21 | |
|
HPE 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
655708-B21 | |
|
6G SATA (2.5-inch) 512e SC HDD |
| |
|
HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
|
765453-B21 | |
|
HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
|
765455-B21 | |
|
6G SATA 2.5in WI-PLP SC SSD |
| |
|
HPE 1.2TB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
804677-B21 | |
|
HPE 800GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
804671-B21 | |
|
HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
804665-B21 | |
|
HPE 200GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
804639-B21 | |
|
6G SATA 2.5in MU-PLP SC SSD |
| |
|
HPE 1.6TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
804631-B21 | |
|
HPE 800GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
804625-B21 | |
|
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
832414-B21 | |
|
HPE 200GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
804613-B21 | |
|
6G SATA (2.5in) RI-PLP SC SSD |
| |
|
HPE 1.6TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804605-B21 | |
|
HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804599-B21 | |
|
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804593-B21 | |
|
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804587-B21 | |
|
HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804581-B21 | |
|
HPE 80GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
804575-B21 | |
|
6G SATA SFF (2.5in) RI-1 SC SSD |
| |
|
HPE 120GB 6G SATA Read Intensive-1 SFF 2.5-in SC 3yr Wty Solid State Drive
|
838404-B21 | |
|
HPE 240GB 6G SATA Read Intensive-1 SFF 2.5-in SC 3yr Wty Solid State Drive
|
838406-B21 | |
|
HPE 480GB 6G SATA Read Intensive-1 SFF 2.5-in SC 3yr Wty Solid State Drive
|
838408-B21 | |
|
HPE 960GB 6G SATA Read Intensive-1 SFF 2.5-in SC 3yr Wty Solid State Drive
|
838410-B21 | |
|
HPE 1.92TB 6G SATA Read Intensive-1 SFF 2.5-in SC 3yr Wty Solid State Drive
|
838412-B21 | |
|
6G SATA 2.5in SFF RI-3 SC SSD |
| |
|
HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816929-B21 | |
|
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816919-B21 | |
|
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816909-B21 | |
|
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816899-B21 | |
|
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816889-B21 | |
|
HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816879-B21 | |
|
6G SATA 2.5in SFF MU-3 SC SSD |
| |
|
HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
817011-B21 | |
|
HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
816995-B21 | |
|
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
816985-B21 | |
|
HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
816975-B21 | |
|
HPE 120GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
816965-B21 | |
|
12G SAS Hot Plug SFF (2.5-inch) SC ENT HDD |
| |
|
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD
|
781518-B21 | |
|
HPE 900GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD
|
785069-B21 | |
|
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in ) SC 3yr Wty HDD
|
781516-B21 | |
|
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD
|
785067-B21 | |
|
12G SAS SFF (2.5in) RI-3 SC SSD |
| |
|
HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816576-B21 | |
|
HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816572-B21 | |
|
HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816568-B21 | |
|
HPE 480GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
816562-B21 | |
|
12G SAS SFF (2.5in) MU-3 SC SSD |
| |
|
HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
822567-B21 | |
|
HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
822563-B21 | |
|
HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
822559-B21 | |
|
HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD
|
822555-B21 | |
|
12G SAS Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream H2 Solid State Drives |
| |
|
HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
779164-B21 | |
|
HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
779168-B21 | |
|
HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
779172-B21 | |
|
HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
779176-B21 | |
|
12G SAS Value Endurance SFF (2.5-inch) SC Enterprise Value Solid State Drives |
| |
|
HP 1.6TB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
757339-B21 | |
|
HP 1.6TB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
762263-B21 | |
|
HPE 800GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD |
762261-B21 | |
|
6G SATA Read Intensive (2.5-inch) SC G2 Solid State Drive |
| |
|
HP 480GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive |
789145-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives |
||
|
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
717965-B21 | |
|
HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive |
734360-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives |
| |
|
HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717973-B21 | |
|
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717971-B21 | |
|
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
717969-B21 | |
|
NOTE: Please see the QuickSpecs for technical specifications and information at: |
| |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value M1 Solid State Drives |
| |
|
HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
764923-B21 | |
|
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
764925-B21 | |
|
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
764927-B21 | |
|
HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
764929-B21 | |
|
6G SATA VE Hot Plug SFF(2.5-inch) SC EV G1 Solid State Drives |
| |
|
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756657-B21 | |
|
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756636-B21 | |
|
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive |
756621-B21 | |
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Boot Solid State Drives |
| |
|
HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
739898-B21 | |
|
HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive |
739888-B21 | |
|
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives |
| |
|
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691868-B21 | |
|
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691866-B21 | |
|
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
691862-B21 | |
|
12G SAS Write Intensive SFF (2.5-inch) SC 3yr Wty H2 Solid State Drive |
| |
|
HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
802578-B21 | |
|
HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
802582-B21 | |
|
HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD
|
802586-B21 | |
|
HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD
|
802891-B21 | |
Additional Options
|
HPE Insight Software |
HPE Insight Control |
|
|
HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU |
C6N27A | |
|
HPE Insight Control including 1yr 24x7 TSU E-LTU |
C6N28ABE | |
|
HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO E-LTU |
C6N36ABE | |
|
HP Insight Control Server Provisioning Media Kit |
BD883A | |
|
HPE Insight Management Media Kit |
C6N31A | |
|
NOTE: HPE Insight Management Media Kit contains DVDs without licenses. Contains HPE Systems Insight Manager, HPE Insight Control, HPE Matrix Operating Environment, and Virtual Connect Enterprise Manager software. Uses an integrated installer to perform quick and accurate software installation and updates. |
| |
|
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key. |
| |
|
| ||
|
Converged Infrastructure Management Software |
HPE OneView |
|
|
HPE OneView with iLO Advanced |
| |
|
HPE OneView including 3yr 24x7 Support Physical 1-server LTU |
E5Y34A | |
|
HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU |
E5Y35AAE | |
|
HPE OneView Physical Media Kit LTU |
E5Y37A | |
|
HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU
|
P8B24A | |
|
HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU
|
P8B26AAE | |
|
HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU
|
P8B31A | |
|
NOTE: For additional license kits please see the QuickSpecs at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111367. |
| |
|
| ||
|
Cloud Management Software |
Helion Software |
|
|
HPE Helion OpenStack |
| |
|
HPE Helion OpenStack 5yr 9x5 Support RTU |
P9A13A | |
|
HPE Helion OpenStack 5yr 9x5 Support E-RTU |
P9A13AAE | |
|
HPE Helion OpenStack 5yr 24x7 Support RTU |
P9A14A | |
|
HPE Helion OpenStack 5yr 24x7 Support E-RTU |
P9A14AAE | |
|
HPE Helion Platform |
| |
|
HPE Helion Platform 5yr 9x5 Support RTU |
P9A15A | |
|
HPE Helion Platform 5yr 9x5 Support E-RTU |
P9A15AAE | |
|
HPE Helion Platform 5yr 24x7 Support RTU |
P9A16A | |
|
HPE Helion Platform 5yr 24x7 Support E-RTU |
P9A16AAE | |
|
HPE Helion Dev Plat |
| |
|
HPE Helion Development Platform 5yr 9x5 Support RTU |
P9A17A | |
|
HPE Helion Development Platform 5yr 9x5 Support E-RTU |
P9A17AAE | |
|
HPE Helion Development Platform 5yr 24x7 Support RTU |
P9A18A | |
|
HPE Helion Development Platform 5yr 24x7 Support E-RTU |
P9A18AAE | |
|
NOTE: For additional information on HPE Helion Portfolio please go to: http://www8.hp.com/us/en/cloud/helion-portfolio.html#!&pd1=2&pd3=2&pd5=2 |
| |
|
| ||
|
Volume Software Options |
Vertica for Hadoop |
|
|
HPE Vertica for SQL on Hadoop 1-node 1yr Subscription 24x7 Support E-LTU
|
P9J18AAE | |
|
| ||
|
HPE iLO Advanced License |
HPE Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem Remote Management |
|
|
HPE iLO Advanced for BladeSystem including 3yr 24x7 Technical Support and Updates E-LTU |
E6U63ABE | |
|
HPE iLO Advanced for BladeSystem including 3yr 24x7 Tech Support and Updates 1-server LTU |
BD502A | |
|
HPE iLO Advanced for BladeSystem including 1yr 24x7 Technical Support and Updates E-LTU |
E6U60ABE | |
|
HPE iLO Advanced for BladeSystem including 1yr 24x7 Support 1-server LTU |
512488-B21 | |
|
HPE iLO Advanced for BladeSystem including 1yr 24x7 Support 8-server LTU |
512489-B21 | |
|
HPE Integrated Lights-Out (iLO) |
| |
|
HPE iLO Scale Out |
| |
|
HPE iLO Scale-Out 3yr 24x7 Tech Support and Updates Flexible Quantity LTU |
BD776A | |
|
HPE iLO Scale-Out 1yr 24x7 Tech Support and Updates Flexible Quantity LTU |
BD778A | |
|
HPE iLO Scale-Out including 3yr 24x7 Tech Support and Updates Flex Qty E-LTU |
BD776AAE | |
|
HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Flex Qty E-LTU |
BD778AAE | |
|
HPE iLO Scale-Out including 3yr 24x7 Tech Support and Updates Tracking LTU |
BD777A | |
|
HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Tracking LTU |
BD779A | |
|
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one or three years of 24 x 7 HPE Software Technical Support Service. |
| |
|
| ||
|
High Performance Clusters |
HPE Cluster Management Utility |
|
|
HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU |
QL803B | |
|
HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU |
BD476A | |
|
HPE Insight Cluster Management Utility Media |
BD477A | |
|
| ||
|
HPE I/O Accelerator Options |
NOTE: The HPE I/O Accelerator Options are Type B mezzanine cards that can be installed in BL660c Gen8 mezzanine slots 2 and 3. |
|
|
HPE 1.2TB Read Intensive Mezzanine PCIe Workload Accelerator for BladeSystem c-Class
|
794603-B21 | |
|
HPE 1.6TB Read Intensive Mezzanine PCIe Workload Accelerator for BladeSystem c-Class
|
794605-B21 | |
|
| ||
|
HPE Security |
HPE Trusted Platform Module Option |
488069-B21 |
|
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. |
| |
|
| ||
|
HPE Storage Controller |
HPE Smart Array P721m Controller |
|
|
HP Smart Array P721m/2GB FBWC 6Gb 4-ports Ext Mezzanine SAS Controller |
650072-B21 | |
|
HP Smart Array P721m/512 FBWC 6Gb 4-ports Ext Mezzanine SAS Controller |
655636-B21 | |
|
NOTE: For additional information, please see the HPE BladeSystem c7000 Enclosure and InfiniBand QuickSpecs at: |
| |
|
| ||
|
HPE InfiniBand Mezzanines |
NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active (regardless of operating mode). When installed in any other mezzanine slot, both ports are active. |
|
|
HPE InfiniBand FDR 2-port 545M Adapter |
702213-B21 | |
|
HP InfiniBand QDR/EN 10Gb Dual Port 544M Adapter |
644160-B21 | |
|
HP InfiniBand FDR/EN 10/40Gb Dual Port 544M Adapter |
644161-B22 | |
|
NOTE: InfiniBand QDR and FDR speeds are only supported on the HPE BladeSystem c7000 Enclosure. For additional information, please see the HPE BladeSystem c7000 Enclosure and InfiniBand QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126044 |
| |
|
| ||
|
HPE Ultrium Tape Blades |
NOTE: The ProLiant BL660c Gen8 supports up to two expansion blades (Ultrium Tape Blade(s), HPE D2200sb/D2220sb Storage Blade(s), and/or PCI Expansion Blade(s) ) that directly connect to the server via the enclosure midplane. |
|
|
HP StoreEver LTO-5 Ultrium SB3000c Tape Blade |
BS580B | |
|
NOTE: LTO-5 Ultrium tape technology. |
| |
|
| ||
|
HPE Storage Blades |
NOTE: The ProLiant BL660c Gen8 supports up to two expansion blades (Ultrium Tape Blade(s), HPE D2200sb/D2220sb Storage Blade(s), and/or PCI Expansion Blade(s) that directly connect to the server via the enclosure midplane |
|
|
HPE D2220sb Build-to-order Storage Blade |
QW917A | |
|
NOTE: For additional information, please see the QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111399 |
| |
|
| ||
|
HPE Expansion Blade |
HPE BLc PCI Expansion Blade |
448018-B21 |
|
NOTE: The PCI Expansion Blade provides PCI card slots for an adjacent c-Class Server Blade. |
| |
|
| ||
|
HPE Flash Media Kits for USB Drives |
HPE Enterprise Mainstream Flash Media Kits for Memory Cards |
|
|
HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit |
737953-B21 | |
|
HPE 8GB microSD Enterprise Mainstream Flash Media Kit |
726116-B21 | |
|
HPE 32GB microSD Mainstream Flash Media Kit |
700139-B21 | |
|
| ||
|
HPE Pointnext operational services |
Proactive Care - Collaborative Support plus Proactive services delivered by the on shore/near shore Advanced Solution Center (ASC) and backed by the global delivery organization, end-to-end case ownership from a Technical Solution Specialists and Technical Account Manager who remotely delivers firmware/software revision management, proactive scans and incident trend reports. Recommended for customers running a virtualized infrastructure and/or customers who desire an enhanced call support experience. |
|
|
HPE 3 year Proactive Care 24x7 ProLiant BL6xxc Service |
U3B32E | |
|
HPE 3 year Proactive Care 24x7 with DMR ProLiant BL6xxc Service |
U3B35E | |
|
HPE 3 year Proactive Care Call to Repair ProLiant BL6xxc Service |
U3B38E | |
|
HPE 3 year Proactive Care Call to Repair 24x7 with DMR ProLiant BL6xxc Service |
U3B41E | |
|
Proactive Care Personalized Support Environmental Option - to add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who delivers support planning and brings technical expertise and best practices advice for the customer's environment. |
| |
|
Installation Services - reduce the time required to get your system up and running and help minimize disruptions to your business. |
||
|
HPE Install c-Class Server Blade Service |
UE493E | |
|
HPE Hardware Installation during Non Standard Hours c-Class Server Blade Service |
UG869E | |
|
Additional HPE Pointnext operational services can be found at: http://www.hp.com/go/cpc |
| |
Memory
|
For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: Memory Subsystem Architecture Memory Population Rules and Guidelines:
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Memory Speed by Processor Model | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Processor Models |
Supported Memory Speeds | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E5-4650v2, E5-4640v2, E5-4627v2, E5-4650Lv2 |
1866/1600/1333/1066MHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E5-4607v2, E5-4603v2, E5-4620, E5-4617, E5-4610, E5-4607 |
1333/1066MHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E5-4603, E5-4607 |
1066MHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Standard and Maximum Memory Capacity (Pre-configured Models) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pre Configured Models |
Standard Memory |
Maximum Memory Plus Optional Memory |
Standard Memory Replaced with Optional Memory | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intel Xeon E5-4650v2, E5-4620v2 |
128GB |
512GB |
1024GB | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intel Xeon E5-4650, E5-4620, and E5-4617 |
128GB |
384GB |
1024GB | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
NOTE: Capacity references are rounded to the common gigabyte (GB) values.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Memory options part number decoder | ||
|
| ||
|
Following are memory options available from HP: | ||
|
HPE Memory |
NOTE: HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HPE SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html |
|
|
HPE SmartMemory |
| |
|
Registered DIMMs (RDIMMs) - E5-4600v2 series Processors |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713981-B21 | |
|
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit |
708637-B21 | |
|
HPE 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
731765-B21 | |
|
HPE 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit |
731761-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
713985-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit |
708641-B21 | |
|
Registered DIMMs (RDIMMs) - E5-4600 series Processors |
| |
|
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
647893-B21 | |
|
HPE 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
647895-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit |
647897-B21 | |
|
HPE 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
647899-B21 | |
|
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
690802-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit |
647901-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit |
672631-B21 | |
|
HP 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 LV Memory Kit |
761501-B21 | |
|
Load Reduced DIMMs (LRDIMMs) - E5-4600v2 series Processors |
| |
|
HPE 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit |
708643-B21 | |
|
Load Reduced DIMMs (LRDIMMs) - E5-4600 series Processors |
| |
|
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600 (DDR3-1333) LRDIMM CAS-9 LP Memory Kit |
647903-B21 | |
|
NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at http://www.hp.com/go/ddr3memory-configurator. |
| |
Storage
|
|
1-2. |
2 x SFF hot-plug SAS, SATA, SAS SDD; and SATA SSD hard drives | |||
|
| |||||
|
Hard Drives | |||||
|
NOTE: The ProLiant BL660c Gen8 server includes the new HPE hot-plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers are not compatible with the BL660c Gen8 drive bays. | |||||
|
SAS Hot Plug SmartDrive SFF (2.5-inch) Enterprise Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
1.2TB 6G SAS 10K |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
1TB 6G SAS 7.2K |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
1TB 6G SAS 7.2K |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
12G SAS High Endurance Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
800GB 12G SAS |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
12G SAS Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
800GB 12G SAS |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
120GB 6G SATA VE Boot |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
6G SATA VE Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
800GB 6G SATA VE |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Boot Solid State Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
600GB 6G SATA VE Boot |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
800GB 6G SATA ME |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
800GB 6G SAS ME |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
|
6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
400GB 6G SAS SLC |
2 |
1-2 |
HPE Smart Array P220i Controller | ||
Technical Specifications
|
System Unit |
Dimensions |
366.27mm (14.42") x 56.54mm (2.23") x 516.67mm (20.34") | |
|
Weight |
Maximum: 4 processors, 2 FlexibleLOMs, 32 DIMMs, 2 hard drives, 3 mezzanine cards, and 2 flash cache batteries installed |
27.1 lb (12.3 kg) | |
|
Minimum: 2 processors, 1 FlexibleLOM, and 2 DIMMs installed |
20.2 lb (9.2 kg) | ||
|
Power Specifications |
For power specifications including input requirements, BTU rating, and power supply output, please see the:
To
review typical system power ratings use the HPE Power Advisor which
is available via the online tool located at http://www.hp.com/go/hppoweradvisor. |
||
|
System Inlet Temperature |
Operating |
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight. | |
|
Non-operating |
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr). | ||
|
Relative Humidity |
Operating |
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. | |
|
Non-operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | ||
|
Altitude |
Operating |
3,050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1,500 ft/min). | |
|
Non-operating |
9,144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1,500 ft/min). | ||
|
Acoustic Noise |
For acoustic noise specifications, please see the HPE BladeSystem c-Class Enclosures QuickSpecs located at: | ||
|
| |||
|
HPE Smart Array P220i Controller |
Disk Drive Interface |
6G SAS (Serial Attached SCSI) | |
|
Server Interface |
x4 PCI Express host interface | ||
|
Cache Memory Speed |
512MB flash backed write cache (FBWC) cache standard with Pre-configured Models and optional on Factory Integrated Models | ||
|
Logical Drives Supported |
64 (with included 512MB cache) | ||
|
Host Memory Addressing |
64-bit, supporting servers memory space greater than 4GB | ||
|
RAID Support |
RAID 1 (mirroring) and RAID 0 (striping) | ||
|
Other |
Upgradeable firmware with recovery ROM | ||
|
| |||
|
HPE FlexFabric 10Gb |
Type |
Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosencing 1Gb/10Gb Ethernet capability) | |
|
Network Processor |
Emulex BE3 | ||
|
Data Transfer Method |
x8 PCI Express 2.0 | ||
|
Network Transfer Rate |
Two ports, each at 20Gbps full duplex; 40Gbps aggregate full duplex theoretical bandwidth | ||
|
IEEE Compliance |
802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4) and 802.3x | ||
|
Standard Features |
ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing | ||
|
| |||
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett Packard Enterprise Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to:http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. | |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change | ||||||||||||||||||||||
|
23-Oct-2017 |
From Version 34 to 35 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. | ||||||||||||||||||||||
|
31-Mar-2016 |
From Version 33 to 34 |
Changed |
Core Options and Additional Options sections were updated. | ||||||||||||||||||||||
|
Added |
SKUs added in Core Options and Additional Options sections: | ||||||||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: | ||||||||||||||||||||||||
|
11-Dec-2015 |
From Version 32 to 33 |
Changed |
Core Options and Additional Options were updated. | ||||||||||||||||||||||
|
Added |
SKUs added: | ||||||||||||||||||||||||
|
Removed |
Obsolete SKUs deleted: | ||||||||||||||||||||||||
|
28-Sep-2015 |
From Version 31 to 32 |
Change |
Links updated in QuicSpecs. | ||||||||||||||||||||||
|
Added |
SKUs added: P8B24A, P8B26AAE, P8B31A, 700767-B21 | ||||||||||||||||||||||||
|
17-Aug-2015 |
From Version 30 to 31 |
Changed |
Standard Features section was updated. | ||||||||||||||||||||||
|
Added |
SKUs added in Core Options section: C9A82AAE, 804677-B21, 804671-B21, 804665-B21, 804639-B21, 804631-B21, 804625-B21, 832414-B21, 804613-B21, 804605-B21, 804599-B21, 804593-B21, 804587-B21, 804581-B21, 804575-B21 | ||||||||||||||||||||||||
|
Remove |
Obsolete SKUs deleted: AQ697B, QW914A, QW915A, U6W98E | ||||||||||||||||||||||||
|
01-Jun-2015 |
From Version 29 to 30 |
Changed |
Information updated on Core Options Section. | ||||||||||||||||||||||
|
Added |
SKUs Added on Core Options Section: 748387-B21, 791034-B21 | ||||||||||||||||||||||||
|
Removed |
Obsolete SKUs Deleted: 679098-L21, 679110-L21, 679100-L21, 679102-L21, 679112-L21, 679104-L21, 741151-B21, 679106-L21, 679108-L21, 679114-B21, 679115-B21, 679116-B21, 741159-B21 | ||||||||||||||||||||||||
|
30-Mar-2015 |
From Version 28 to 29 |
Added |
SKUs Added: 802578-B21, 802582-B21, 802586-B21, 802891-B21, 765453-B21, 765455-B21, 765464-B21, 781518-B21, 785069-B21, 765466-B21, 789135-B21, 789145-B21, 789155-B21, 794603-B21, 794605-B21, 781516-B21, 785067-B21 | ||||||||||||||||||||||
|
Removed |
Obsolete SKUs deleted: 741146-B21, 741138-B21, 741142-B21 | ||||||||||||||||||||||||
|
09-Feb-2015 |
From Version 27 to 28 |
Changed |
Optional Features, Core Options and Service and Support sections were updated | ||||||||||||||||||||||
|
Added |
SKUs Added on HPE Hard Drives: 779164-B21, 779168-B21, 779172-B21, 779176-B21, 764923-B21, 764925-B21, 764927-B21, 764929-B21 | ||||||||||||||||||||||||
|
01-Dec-2014 |
From Version 26 to 27 |
Changed |
Service and Support, Configuration Information - Factory Integrated Models and Core Options sections were updated | ||||||||||||||||||||||
|
Added |
SKU Added on Hard Drives: 757339-B21 | ||||||||||||||||||||||||
|
Removed |
SKUs deleted per missing compatibility confirmation: E5Y43A, E5Y43AAE | ||||||||||||||||||||||||
|
29-Sep-2014 |
From Version 25 to 26 |
Changed |
Pre-configured Models, Configuration Information - Factory Integrated Models sections were updated | ||||||||||||||||||||||
|
Added |
SKUs added on HPE Hard Drives: 756657-B21, 756636-B21, 756621-B21, 756601-B21 | ||||||||||||||||||||||||
|
Removed |
Obsolete SKUs removed: 716324-B21, 761501-B21 | ||||||||||||||||||||||||
|
18-Aug-2014 |
From Version 24 to 25 |
Changed |
Models, Memory, Storage were sections updated | ||||||||||||||||||||||
|
Added |
SKUs added on Hard Drives section: 759212-B21, 759210-B21, 759208-B21 | ||||||||||||||||||||||||
|
10-Jun-2014 |
From Version 23 to 24 |
Removed |
Processors, Cache Memory, Networking, Hard Drives, and Storage Controllers were revised. | ||||||||||||||||||||||
|
25-Apr-2014 |
From Version 22 to 23 |
Removed |
Removed June launch SKUs. | ||||||||||||||||||||||
|
31-Mar-2014 |
From Version 19 to 22 |
Changed |
Changes made throughout. | ||||||||||||||||||||||
|
03-Mar-2014 |
From Version 18 to 19 |
Changed |
Memory was revised. | ||||||||||||||||||||||
|
18-Feb-2014 |
From Version 17 to 18 |
Changed |
Changes were made throughout. | ||||||||||||||||||||||
|
16-Dec-2013 |
From Version 16 to 17 |
Changed |
Core Options, Additional Options, Memory, and Hard Drives were revised. | ||||||||||||||||||||||
|
11-Oct-2013 |
From Version 15 to 16 |
Added |
Added Support for 6G SATA Value Endurance Boot Solid State Hard Drives | ||||||||||||||||||||||
|
10-Sep-2013 |
From Version 14 to 15 |
Changed |
Core Options, Additional Options, Memory, and Hard Drives were revised. | ||||||||||||||||||||||
|
10-Jun-2013 |
From Version 13 to 14 |
Changed |
Changes made to the following sections Standard Features - Operating System and Virtualization software support for ProLiant servers Core Options - HPE Networking, updated part numbers Additions Options - HPE Storage Blades | ||||||||||||||||||||||
|
17-May-2013 |
From Version 12 to 13 |
Changed |
Standard Features: Updated Memory section. | ||||||||||||||||||||||
|
13-May-2013 |
From Version 11 to 12 |
Removed |
Overview- Removed the What's New Section | ||||||||||||||||||||||
|
Changed |
Configuration Information- Updated Step 3 Additional Options- HPE Infiniband Mezzanines, HPE Storage Blades, and HPE Pointnext operational services | ||||||||||||||||||||||||
|
25-Mar-2013 |
From Version 9 to 10 |
Removed |
Removed the word "Platinum" throughout various sections of the document. | ||||||||||||||||||||||
|
01-Mar-2013 |
From Version 8 to 9 |
Changed |
Core Options: Added p/n 665246-B21 to HPE Networking section. | ||||||||||||||||||||||
|
21-Feb-2013 |
From Version 7 to 8 |
Changed |
Changes made throughout the QuickSpecs. | ||||||||||||||||||||||
|
19-Oct-2012 |
From Version 6 to 7 |
Changed |
Changes made throughout the QuickSpecs. | ||||||||||||||||||||||
|
01-Oct-2012 |
From Version 5 to 6 |
Changed |
Changes made in the Networking sections. | ||||||||||||||||||||||
|
28-Sep-2012 |
From Version 4 to 5 |
Changed |
Changes made in the Options and Memory sections. | ||||||||||||||||||||||
|
24-Sep-2012 |
From Version 3 to 4 |
Changed |
Change made in Standard Features, Optional Features and Technical Specifications sections. | ||||||||||||||||||||||
|
24-Aug-2012 |
From Version 2 to 3 |
Changed |
Changes were made throughout the QuickSpecs. | ||||||||||||||||||||||
|
17-Aug-2012 |
From Version 1 to 2 |
Changed |
Changes were made in Additional Options and Technical Specifications sections. | ||||||||||||||||||||||
| |||||||||||||||||||||||||
