HPE ProLiant BL460c Gen9 Server Blade | |||
|
| |||
|

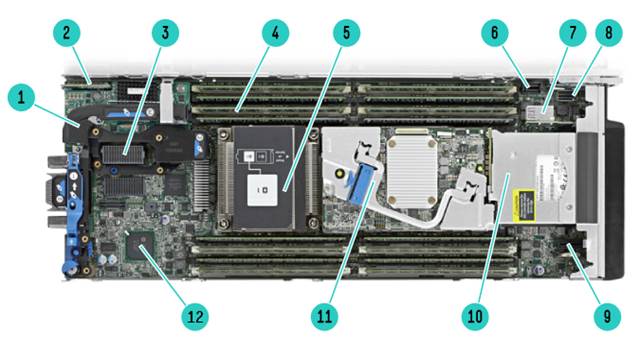

HPE ProLiant BL460c Gen9 Server Blade - Internal View | |||
|
1. |
FlexibleLOM adapter |
7. |
USB 3.0 and TPM |
|
2. |
Nand Flash & Micro SD |
8. |
Embedded SATA Connector |
|
3. |
Mezzanine Slots (x16 PCI 3.0) |
9. |
Solid State Device Connector |
|
4. |
Sixteen (16) DDR4 DIMM slots (8 per processor) |
10. |
Two hot-plug drive bays |
|
5. |
Up to two (2) Intel® Xeon® E5-2600 v3 or v4 family processors |
11. |
HPE Smart Controller Options |
|
6. |
HPE BLc 12W Smart Storage Battery connector |
12. |
iLO Management Engine |
|
| |||
|
What's New | |||
| |||
Standard Features
|
NOTE: This document covers the HPE ProLiant BL460c Gen9 server blade only. For information on HPE BladeSystems c-Class Enclosures and HPE BladeSystem c-Class Interconnect and Mezzanine Components, please see the following: HPE BladeSystem c-Class Enclosures QuickSpecs:
NOTE: For optimal cooling and system performance the BL460c Gen9 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans. NOTE: For proper BladeSystem operation, the minimum required versions of HPE Onboard Administrator and HPE Virtual Connect are required and available via the HPE Service Pack for ProLiant, please see http://h17007.www1.hpe.com/us/en/enterprise/servers/products/service_pack/spp/index.aspx | ||||
|
| ||||
|
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. | ||||
|
Processor |
E5-2600 v4 series Processors | |||
|
HPE BL460c Gen9 Intel® Xeon® E5-2690v4 (2.6GHz/14-core/35MB/135W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2683v4 (2.1GHz/16-core/40MB/120W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2650Lv4 (1.7GHz/14-core/35MB/65W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2630v4 (2.2GHz/10-core/20MB/85W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2623v4 (2.6GHz/4-core/10MB/85W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2699v4 (2.2GHz/22-core/55MB/145W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2698v4 (2.2GHz/20-core/50MB/135W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2697v4 (2.3GHz/18-core/45MB/145W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2697Av4 (2.6GHz/16-core/40MB/145W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2667v4 (3.2GHz/8-core/25MB/135W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2643v4 (3.4GHz/6-core/20MB/135W) | ||||
|
HPE BL460c Gen9 Intel® Xeon® E5-2637v4 (3.5GHz/4-core/15MB/135W) | ||||
|
NOTE: All processors within the server must be identical. NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2609 v4, E5-2603 v4, E5-2603 v3 and E5-2609 v3. | ||||
|
| ||||
|
Cache Memory |
55MB (1x55MB) L3 cache | |||
|
NOTE: For Twenty two-core processors. | ||||
|
50MB (1x50MB) L3 cache | ||||
|
NOTE: For Twenty-core processors. | ||||
|
45MB (1x45MB) L3 cache | ||||
|
NOTE: For Eighteen-core processors. | ||||
|
40MB (1x40MB) L3 cache | ||||
|
NOTE: For Sixteen-core processors. | ||||
|
35MB (1x35MB) L3 cache | ||||
|
NOTE: For Fourteen-core processors. | ||||
|
30MB (1x30MB) L3 cache | ||||
|
NOTE: For Twelve-core processors. | ||||
|
25MB (1x25MB) L3 cache | ||||
|
NOTE: For Ten or Eight-core processors. | ||||
|
20MB (1x20MB) L3 cache | ||||
|
NOTE: For Six, Eight, or Ten-core processors. | ||||
|
15MB (1x15MB) L3 cache | ||||
|
NOTE: For Quad or Six-core processors. | ||||
|
10MB (1x10MB) L3 cache | ||||
|
NOTE: For Quad-core processors. | ||||
|
| ||||
|
Chipset |
Intel® C610 Series Chipset | |||
|
Intel® E5-2600 v3 or v4 Processor Family | ||||
|
NOTE: For more information regarding Intel chipsets, please see the following: http://www.intel.com/content/www/us/en/chipsets/chipsets-overview.html | ||||
|
| ||||
|
Upgradeability |
Upgradeable to two (2) processors | |||
|
| ||||
|
On System Management Chipset |
HPE iLO (Firmware HPE iLO4 2.0), 4GB NAND with 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the iLO QuickSpecs. | |||
|
NOTE: For more information, visit: https://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html | ||||
|
| ||||
|
Memory Protection |
Advanced ECC | |||
|
Memory Mirroring | ||||
|
Memory Online Spare Mode (Rank Spare Mode) | ||||
|
| ||||
|
Memory |
Type |
HPE SmartMemory | ||
|
DDR4 Load Reduced (LRDIMM), or Registered (RDIMM) | ||||
|
Standard (Pre-configured Models) |
256GB (8 x 32GB) DDR4 2400MT/s LDIMMs at 1.2V 128GB (4x 32GB) DDR4 2400MT/s LDIMMs at 1.2V 64GB (4 x 16GB) DDR4 2400MT/s RDIMMs at 1.2V 32GB (2 x 16GB) DDR4 2400MT/s RDIMMs at 1.2V 16GB (2 x 8GB) DDR4 2400MT/s RDIMMs at 1.2V | |||
|
Maximum (LRDIMM) |
2TB (16 x 128GB) up to 2400MT/s at 1.2V | |||
|
Maximum (RDIMM) |
512GB (16 x 32GB) up to 2133MT/s at 1.2V | |||
|
NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535 NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server. https://memoryconfigurator.hpe.com/DDR4memoryconfig/Home/SelectServer | ||||
|
| ||||
|
Network Controller |
One (1) 20Gb 2-port FlexFabric FLB, 10Gb 2-port HPE FlexFabric FLB, or 10Gb 2-port Ethernet FLB One (1) HPE Ethernet 10Gb 2-port 560FLB FlexibleLOM One (1) HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM Standard iLO Network Controller: | |||
|
| ||||
|
Expansion Slots |
Two (2) I/O expansion mezzanine slots:
Mezzanine card options include:
| |||
|
| ||||
|
HPE Server ROM |
HPE ROM (read only memory) is now digitally signed using the HPE Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM. HPE ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system. HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis. The HPE ProLiant ROM is used to configure the following:
NOTE: For further information, please refer to the HPE RBSU (ROM based setup utility) user guide: | |||
|
| ||||
|
HPE Server UEFI /Legacy ROM |
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode. NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://www.hpe.com/us/en/product-catalog/detail/pip.6935826.html
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:
NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. NOTE: HPE UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory. | |||
|
| ||||
|
Storage Controller |
All BTO Models |
One (1) HPE Smart Array P244br Controller with 1GB Flash-Backed Write Cache (FBWC) supporting RAID 0 and RAID 1, or HPE H244br Smart HBA. NOTE: For NVMe support, please select the NVMe FIO setting (825555-B21) available on CTO models only. | ||
|
| ||||
|
Maximum Internal Storage |
Hot Plug SFF SAS |
4.0TB |
2 x 2.0TB | |
|
Hot Plug SFF SATA |
4.0TB |
2 x 2.0TB | ||
|
Hot Plug SFF SAS SSD |
7.68TB |
2 x 3.84TB | ||
|
Hot Plug SFF SATA SSD |
7.68TB |
2 x 3.84TB | ||
|
Hot Plug SFF NVMe SSD |
4.0TB |
2 x 2.0TB | ||
|
NOTE: The ProLiant BL460c Gen9 server includes the HPE hot plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers (prior to Gen8) are not compatible with the ProLiant BL460c Gen9 drive bays. | ||||
|
| ||||
|
Interfaces |
Micro SDHC Slot |
One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot | ||
|
USB 3.0 Port |
One (1) internal USB 3.0 connector for USB flash media drive keys | |||
|
NOTE: The above options are intended for integrated hypervisor virtualization environments. | ||||
|
| ||||
|
Industry Standard Compliance |
ACPI 2.0 ASHRAE A3 FIPS 140-2 Level-1 certification Energy Star NOTE: Energy Star Family level certification covering all BL460c Gen9 E5-2600 v3 configurations that do not include the Intel Xeon E5-2699v3 processor. For more information, visit https://www.hpe.com/us/en/about/environment/eco-labels.html | |||
|
| ||||
|
Operating Systems and Virtualization Software Support for ProLiant Servers |
Microsoft Windows Server | |||
|
NOTE: For more information on the HPE Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.hpe.com/us/en/servers/server-operating-systems.html and our driver download page: | ||||
|
| ||||
|
Enclosures |
Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs:
Server blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures. | |||
|
| ||||
|
Graphics
|
Integrated Matrox G200eh video controller
| |||
|
HPE iLO Management On System Management Memory
| ||||
|
| ||||
|
Form Factor |
HPE ProLiant BL460c Gen9 is a half-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures. | |||
|
| ||||
|
Embedded Management |
HPE Integrated Lights Out |
Monitor your servers for ongoing management, service alerting, reporting and remote management with iLO. Learn more at https://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html | ||
|
UEFI |
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at https://www.hpe.com/us/en/product-catalog/detail/pip.6935826.html | |||
|
HPE RESTful API |
RESTful API is an application programming interface. RESTful Web Service API served by iLO's web server. https://www.hpe.com/us/en/servers/restful-api.html. | |||
|
Intelligent Provisioning |
Provision servers by discovering and deploying 1 to few servers with Intelligent Provisioning. Learn more at https://www.hpe.com/us/en/product-catalog/detail/pip.5219984.html
| |||
|
Server Utilities |
HPE Smart Update |
Optimize firmware and driver updates with HPE Smart Update solutions. Learn more at http://h17007.www1.hpe.com/us/en/enterprise/servers/products/service_pack/hpsum/index.aspx | ||
|
HPE Systems Insight Manager (HPE SIM) |
HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-Hewlett Packard Enterprise servers. HPE SIM also integrates with HPE SUM to provide quick and seemless firmware updates. Learn more at https://www.hpe.com/us/en/product-catalog/detail/pip.489496.html | |||
|
Scripting Tool Kit and Windows PowerShell |
Provision 1 to many servers using your own scripts to discover and deploy them with HPE Scripting Tool Kit for Windows and Linux or HPE Scripting Tools for Windows PowerShell. | |||
|
HPE RESTful Interface Tool |
HPE RESTful API tool is a scripting tool to provision servers using RESTful API Interface to discover and deploy servers at scale. Learn more at https://www.hpe.com/us/en/servers/restful-api.html | |||
|
HPE iLO Mobile Application |
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: https://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html | |||
|
| ||||
|
Security |
- SSL encryption - Secure Shell version 2 - Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface - AES and RC4 encryption of video
| |||
|
| ||||
|
Availability |
Memory
Mezzanine options and I/O
Storage
NOTE: For NVMe support, please select the NVMe FIO setting (825555-B21) available on CTO models only. Processor/Chipset
Server Blade Enclosure Infrastructure
| |||
|
| ||||
|
Warranty |
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Certain restrictions and exclusions apply. Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details. | |||
Optional Features
|
Fibre Channel Support |
Up to two (2) optional Fibre Channel mezzanine HBAs are supported on the HPE ProLiant BL460c Gen9. | |
|
| ||
|
Compatible SAN |
HPE ProLiant BL460c Gen9 server blades are optimized for HPE MSA, EVA, 3PAR and XP. HPE ProLiant BL460c Gen9 server blades are compatible with select 3rd party SANs. Please see blade storage page for more details at https://www.hpe.com/us/en/integrated-systems/bladesystem.html. | |
|
| ||
|
HPE Virtual Connect |
HPE Virtual Connect is an interconnect option for c-Class BladeSystem that simplifies server connectivity to data and storage networks, and reduces costs. Unique HPE Flex-10 technology makes maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect FlexFabric modules extend those capabilities to allocate one function per port to storage connections (FCoE). HPE OneView's software-defined approach to infrastructure management enables central console to administer network connections and workloads for thousands of servers, see For more information on Virtual Connect Ethernet, Fibre Channel, Converged Network and management options, see https://www.hpe.com/us/en/integrated-systems/virtual-connect.html | |
|
| ||
|
Embedded Management |
iLO Advanced for BladeSystem |
HPE iLO Advanced for BladeSystem licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced at https://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html
|
|
Server Management |
HPE OneView |
Powerful converged management of servers, storage, and network for IT service automation and infrastructure simplicity. |
|
HPE Matrix Operating Environment |
The HPE Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business. The HPE Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HPE CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS). For more information, visit: http://h20392.www2.hpe.com/portal/swdepot/displayProductInfo.do?productNumber=HPID | |
|
HPE Insight Cluster Management Utility (CMU) |
HPE Insight Cluster Management Utility is a Hyperscale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. | |
|
| ||
|
High Performance Clusters |
HPE Cluster Platforms |
HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. https://www.hpe.com/us/en/solutions/hpc-high-performance-computing.html |
|
HPE HPC Interconnects |
High Performance Computing (HPC) interconnect technologies are available for this server as part of the HPE Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by Hewlett Packard Enterprise when integrated within an HPE cluster. | |
|
| ||
|
Storage Software |
Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HPE storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.
NOTE: For more information available Storage Software including QuickSpecs, please see: http://www.hpe.com/storage | |
|
| ||
|
HPE Insight Online |
HPE Insight Online is part of the HPE Support Center for one stop, secure access to product and HPE support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HPE Remote Support tools. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. https://h20392.www2.hpe.com/portal/swdepot/displayProductInfo.do?productNumber=RSSWMBASE | |
|
| ||
|
Get connected to HPE |
To get the most from your investment in Hewlett Packard Enterprise servers, get connected to Hewlett Packard Enterprise using our innovative remote support technology which provides system health monitoring, pre-failure alert notification and more. | |
|
| ||
|
Expansion Blade Support |
Supports one (1) optional D2220sb storage or PCI expansion blade | |
|
NOTE: Expansion blade support requires the use of either the HPE Dynamic Smart Array B140i or the HPE Smart Array P246br controller. NOTE: Expansion blade support requires server firmware versions from SPP 2015.04 or later. | ||
|
| ||
|
Factory Express Portfolio for Servers and Storage |
HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. | |
|
| ||
|
HPE Simple Configurator |
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact the HPE Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome | |
Recommended Support Services for BL460
|
Service and Support |
Protect your business beyond warranty with HPE Support Services Connect your devices Unlock all of the benefits of your technology investment by connecting your products to HP Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support. 1 - IDC 2 - HP CSC reports 2014 - 2015
|
|
Optimized Support recommendation |
HPE Proactive Care Advanced - 24x7 coverage, three year Support Service This services helps achieve a higher return on your product investment with personalized support from a local assigned Account Support Manager who will share best practice advice and personalized recommendations designed to help improve availability and performance to increase stability and reduce unplanned downtime. Leverage your system's ability to connect to Hewlett Packard Enterprise for pre-failure alerts, automatic call logging and parts dispatch. For business critical incidents, this service offers critical event management to reduce mean time to resolution. This recommendation provides 24x7 coverage with four-hour response for hardware and collaborative support that offers two-hour callback for supported software issues. Collaborative software management is included with independent software vendors unless you have your software support from Hewlett Packard Enterprise where we own all cases from start through to resolution. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA5-3259ENW&cc=us&lc=en |
|
Standard Support recommendation |
HPE Proactive Care - 24x7 coverage, three year Support Service HPE Proactive Care gives customers an enhanced call experience plus helps preventing problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice when your products are connected to Hewlett Packard Enterprise. This Service combines three years' proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. In addition, this service includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.
|
|
Related Services |
HPE Server Hardware Installation Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner. https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf Data Center Care Services HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with Hewlett Packard Enterprise via a single point of accountability for HPE and others' products. For more information, visit https://www.hpe.com/us/en/services/datacenter-hybrid-services.html Data Privacy Services Protect your data through better media management. HPE Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure with Defective Media Retention and Comprehensive Defective Material Retention, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. https://www.hpe.com/us/en/services/platform-consulting-services.html
HPE Education Services Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. For more information: http://www.hpe.com/services |
Models
|
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. | ||
|
E5-2600 v4 series Processors | ||
|
HPE ProLiant BL460c Gen9 E5-2620v4 1P 16GB-R Server 813193-B21 |
Processor(s) |
(1) Intel® Xeon® E5-2620 v4 (2.1GHz/8-core/20MB/8GT-s QPI/85W, DDR4-2133) |
|
Cache Memory |
20MB (1x20MB) Level 3 cache | |
|
Memory |
16GB (2x 8GB) 2400MT/s (DDR4-2400) Registered DIMMs at 1.2V) NOTE: Total of 16 DIMM slots. Only eight (8) usable with single processor. | |
|
Network Controller |
HPE FlexFabric 10Gb 2-port 536FLB FlexibleLOM | |
|
Storage Controller |
HPE Smart HBA H244br Controller with RAID 0,1 | |
|
Hard Drive |
None ship standard NOTE: NVMe SSDs not available on this model. | |
|
Internal Storage |
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 3.84TB; SATA SSD: 3.84TB | |
|
Optical Drive Bay |
None | |
|
Expansion Slots |
2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A and Type B mezzanine cards. | |
|
Management |
HPE iLO Management (standard) Optional: HPE OneView or HPE Insight Control | |
|
Form Factor |
Up to eight (8) half-height blades supported in the HPE BladeSystem c3000 Enclosure | |
|
Up to sixteen (16) half-height blades supported in HPE BladeSystem c7000 Enclosure | ||
|
Warranty |
Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support. | |
|
| ||
|
HPE ProLiant BL460c Gen9 E5-2640v4 1P 32GB-R Server 813194-B21 |
Processor(s) |
(1) Intel® Xeon® E5-2640 v4 (2.4GHz/10-core/25MB/8GT-s QPI/90W, DDR4-2133) |
|
Cache Memory |
25MB (1x25MB) Level 3 cache | |
|
Memory |
32GB (2x 16GB) 2400MT/s (DDR4-2400) Registered DIMMs at 1.2V) NOTE: Total of 16 DIMM slots. | |
|
Network Controller |
HPE FlexFabric 10Gb 2-port 536FLB FlexibleLOM | |
|
Storage Controller |
HPE Smart Array P244br Controller with RAID 0,1 | |
|
Hard Drive |
None ship standard NOTE: NVMe SSDs not available on this model. | |
|
Internal Storage |
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 3.84TB; SATA SSD: 3.84TB | |
|
Optical Drive Bay |
None | |
|
Expansion Slots |
2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A and Type B mezzanine cards. | |
|
Management |
HPE iLO Management (standard) Optional: HPE OneView or HPE Insight Control | |
|
Form Factor |
Up to eight (8) half-height blades supported in the HPE BladeSystem c3000 Enclosure | |
|
Up to sixteen (16) half-height blades supported in HPE BladeSystem c7000 Enclosure | ||
|
Warranty |
Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support. | |
|
| ||
|
HPE ProLiant BL460c Gen9 E5-2650v4 2P 64GB-R Server 813195-B21 |
Processor(s) |
(2) Intel® Xeon® E5-2650 v4 (2.2GHz/12-core/30MB/9.6GT-s QPI/90W, DDR4-2400) |
|
Cache Memory |
30MB (1x30MB) Level 3 cache | |
|
Memory |
64GB (4x 16GB) 2400MT/s (DDR4-2400) Registered DIMMs at 1.2V) NOTE: Total of 16 DIMM slots. | |
|
Network Controller |
HPE FlexFabric 10Gb 2-port 536FLB FlexibleLOM | |
|
Storage Controller |
HPE Smart Array P244br Controller with RAID 0,1 | |
|
Hard Drive |
None ship standard NOTE: NVMe SSDs not available on this model. | |
|
Internal Storage |
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 3.84TB; SATA SSD: 3.84TB | |
|
Optical Drive Bay |
None | |
|
Expansion Slots |
2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A and Type B mezzanine cards. | |
|
Management |
HPE iLO Management (standard) Optional: HPE OneView or HPE Insight Control | |
|
Form Factor |
Up to eight (8) half-height blades supported in the HPE BladeSystem c3000 Enclosure | |
|
Up to sixteen (16) half-height blades supported in HPE BladeSystem c7000 Enclosure | ||
|
Warranty |
Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support. | |
|
| ||
|
HPE ProLiant BL460c Gen9 E5-2660v4 2P 128GB-R Server
813196-B21 |
Processor(s) |
(2) Intel® Xeon® E5-2660 v4 (2.0GHz/14-core/35MB/9.6GT-s QPI/105W, DDR4-2400) |
|
Cache Memory |
35MB (1x35MB) Level 3 cache | |
|
Memory |
128GB (4x 32GB) 2400MT/s (DDR4-2400) Registered DIMMs at 1.2V) NOTE: Total of 16 DIMM slots. | |
|
Network Controller |
HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM | |
|
Storage Controller |
HPE Smart Array P244br Controller with RAID 0,1 | |
|
Hard Drive |
None ship standard NOTE: NVMe SSDs not available on this model. | |
|
Internal Storage |
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 3.84TB; SATA SSD: 3.84TB | |
|
Optical Drive Bay |
None | |
|
Expansion Slots |
2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A and Type B mezzanine cards. | |
|
Management |
HPE iLO Management (standard) Optional: HPE OneView or HPE Insight Control | |
|
Form Factor |
Up to eight (8) half-height blades supported in the HPE BladeSystem c3000 Enclosure | |
|
Up to sixteen (16) half-height blades supported in HPE BladeSystem c7000 Enclosure | ||
|
Warranty |
Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support. | |
|
| ||
|
HPE ProLiant BL460c Gen9 E5-2680v4 2P 256GB-R Server 813197-B21 |
Processor(s) |
(2) Intel® Xeon® E5-2680 v4 (2.4GHz/14-core/35MB/9.6GT-s QPI/120W, DDR4-2400) |
|
Cache Memory |
35MB (1x35MB) Level 3 cache | |
|
Memory |
256GB (8x 32GB) 2400MT/s (DDR4-2400) Registered DIMMs at 1.2V) NOTE: Total of 16 DIMM slots. | |
|
Network Controller |
HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM | |
|
Storage Controller |
HPE Smart Array P244br Controller with RAID 0,1 | |
|
Hard Drive |
None ship standard NOTE: NVMe SSDs not available on this model. | |
|
Internal Storage |
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 3.84TB; SATA SSD: 3.84TB | |
|
Optical Drive Bay |
None | |
|
Expansion Slots |
2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A and Type B mezzanine cards. | |
|
Management |
HPE iLO Management (standard) Optional: HPE OneView or HPE Insight Control | |
|
Form Factor |
Up to eight (8) half-height blades supported in the HPE BladeSystem c3000 Enclosure | |
|
Up to sixteen (16) half-height blades supported in HPE BladeSystem c7000 Enclosure | ||
|
Warranty |
Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support. | |
Configuration Information - Factory Integrated Models
|
NOTE: This section lists some of the steps required to configure a Factory Integrated Model (configure-to-order or CTO server). To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. | ||
|
Step 1: Base Server Blade Configuration (Select a configurable Blade) | ||
|
Models |
HPE ProLiant BL460c Gen9 E5-v4 10Gb/20Gb FlexibleLOM Configure-to-order Blade Server |
813198-B21 |
|
Configurable Models ship with: |
| |
|
One (1) FlexibleLOM connector providing a choice for one (1) of the supported 10Gb/20Gb FlexibleLOMs (see Step 2) |
| |
|
| ||
|
Step 2: Choose Required Options (one of the following from each list unless otherwise noted) | ||
|
HPE Processors |
NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor. |
|
|
E5-2600 v4 series Processors |
| |
|
HPE BL460c Gen9 Intel Xeon E5-2690v4 (2.6GHz/14-core/35MB/135W) FIO Processor Kit |
819852-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2683v4 (2.1GHz/16-core/40MB/120W) FIO Processor Kit |
819851-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2680v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit |
819842-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2650v4 (2.2GHz/12-core/30MB/105W) FIO Processor Kit |
819840-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor Kit |
819839-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2630v4 (2.2GHz/10-core/25MB/85W) FIO Processor Kit |
819845-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2620v4 (2.1GHz/8-core/20MB/85W) FIO Processor Kit |
819838-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2698v4 (2.2GHz/20-core/50MB/135W) FIO Processor Kit |
819855-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2697v4 (2.3GHz/18-core/45MB/145W) FIO Processor Kit |
819854-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2697Av4 (2.6GHz/16-core/40MB/145W) FIO Processor Kit |
819857-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO Processor Kit |
819853-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2667v4 (3.2GHz/8-core/25MB/135W) FIO Processor Kit |
819850-L21 | |
|
E5-2600 v4 series Processors |
| |
|
HPE BL460c Gen9 Intel Xeon E5-2650Lv4 (1.7GHz/14-core/35MB/65W) FIO Processor Kit |
819849-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2623v4 (2.6GHz/4-core/10MB/85W) FIO Processor Kit |
819844-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2699v4 (2.2GHz/22-core/55MB/145W) FIO Processor Kit |
819856-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2643v4 (3.4GHz/6-core/20MB/135W) FIO Processor Kit |
819848-L21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2637v4 (3.5GHz/4-core/15MB/135W) FIO Processor Kit |
819847-L21 | |
|
NOTE: All processors within the server must be identical. NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2609 v4, E5-2603 v4, E5-2603 v3 and E5-2609 v3. |
| |
|
HPE Memory |
NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535 NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server. NOTE: 128GB DIMMs cannot be mixed with other DIMM capacities within the server https://memoryconfigurator.hpe.com/DDR4memoryconfig/Home/Legal |
|
|
HPE SmartMemory |
| |
|
Registered DIMMs (RDIMMs) - E5-2600 v4 series Processors |
| |
|
HPE 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
805349-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2400 CAS-17-17-17 Registered Smart Memory Kit |
P00423-B21 | |
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
805351-B21 | |
|
HPE 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
805347-B21 | |
|
Registered DIMMs (RDIMMs) - E5-2600 v4 series Processors |
| |
|
HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
836220-B21 | |
|
Load Reduced DIMMs (LRDIMMs) - E5-2600 v4 series Processors |
| |
|
HPE 64GB (1x64GB) Quad Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit |
805358-B21 | |
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit |
805353-B21 | |
|
HPE 128GB (1x128GB) Octal Rank x4 DDR4-2400 CAS-20-18-18 Load Reduced Memory Kit |
809208-B21 | |
|
NOTE: For more information on ProLiant Energy Efficient Features, see: https://www.hpe.com/us/en/about/environment/eco-labels.html |
| |
|
HPE Networking |
FlexibleLOM Adapters |
|
|
NOTE: The server requires one (1) FlexibleLOM that is installed in the FlexibleLOM connectors. All FlexibleLOMs are dual port: One port is routed to interconnect module bay 1 and the other to bay 2. |
| |
|
10Gb FlexibleLOM Adapters |
| |
|
HPE FlexFabric 10Gb 2-port 536FLB Adapter |
766490-B21 | |
|
HPE Ethernet 10Gb 2-port 560FLB Adapter |
655639-B21 | |
|
NOTE: Please see the QuickSpecs for Technical Specifications and additional information. |
| |
|
20Gb FlexibleLOM Adapters |
| |
|
HPE FlexFabric 20Gb 2-port 630FLB Adapter |
700065-B21 | |
|
HPE FlexFabric 20Gb 2-port 650FLB Adapter |
700763-B21 | |
|
| ||
|
Step 3: Choose Additional Factory Integration Options | ||
|
Converged Infrastructure Management Software |
HPE OneView with iLO Advanced - Server hardware required on same purchase order |
|
|
HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU |
E5Y35AAE | |
|
HPE OneView for Blade Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU |
F6Q89A | |
|
HPE Storage Controllers |
Storage Controllers |
|
|
HPE Smart Array P244br/1GB FBWC 12Gb 2-ports Int SAS Controller |
749680-B21 | |
|
HPE Smart Array P246br/1GB FBWC 12Gb 4-ports Int SAS Controller |
726793-B21 | |
|
HPE FIO Enable Smart Array SW RAID |
784308-B21 | |
|
Storage Controllers |
| |
|
HPE H244br 12Gb 2-ports Int Smart Host Bus Adapter |
726809-B21 | |
|
NOTE: The HPE Gen9 Broadwell NVMe FIO Setting (825555-B21) is required to support SFF NVMe SSDs within the system. This option is not compatible with the HPE Smart Array P244br, HPE Smart Array P246br, or HPE Smart HBA H244br. Hewlett Packard Enterprise recommends the use of a dual M.2 solid state drive kit for boot when using this option. NOTE: The HPE Smart Array B140i Controller (chipset SATA) comes standard with the HPE BL460c Gen9 10Gb/20Gb FLB CTO Blade (727021-B21). If neither the HPE Smart Array P244br nor the HPE H244br controllers are chosen, a SATA cable will be provided to support SATA devices for the two internal drives. If RAID is required when using the B140i, please choose 'HPE FIO B140i RAID Enable Kit - BIOS Setting' (784308-B21). NOTE: The HPE Smart Array P246br controller is only required when using a PCI expansion blade or D2220sb storage blade with the BL460c Gen9. |
| |
|
| ||
|
Step 4: Choose Additional Options for Factory Integration | ||
|
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following:
| ||
|
NOTE: For optimal cooling and system performance the BL460c Gen9 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans. | ||
Core Options
|
HPE Networking |
NOTE: A 10 Gigabit Ethernet adapter supports linking at 1Gbps or 10Gbps when connected to an interconnect module with 10Gb Ethernet downlinks. |
|
|
20 Gigabit Ethernet Mezzanine Cards |
| |
|
HPE FlexFabric 20Gb 2-port 630M Adapter |
700076-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04312720 |
| |
|
HPE FlexFabric 20Gb 2-port 650M Adapter |
700767-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04347342
|
| |
|
10 Gigabit Ethernet Mezzanine Cards |
| |
|
HPE FlexFabric 10Gb 2-port 534M Adapter |
700748-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/us/en/product-catalog/servers/server-adapters.html |
| |
|
HPE Ethernet 10Gb 2-port 560M Adapter |
665246-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetPDF.aspx/c04111406.pdf |
| |
|
1 Gigabit Ethernet Mezzanine Cards |
| |
|
HPE Ethernet 1Gb 4-port 366M Adapter |
615729-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/getpdf.aspx/c04111456.pdf?ver=10 |
| |
|
FlexibleLOM Adapters |
| |
|
20Gb FlexibleLOM Adapters |
| |
|
HPE FlexFabric 20Gb 2-port 630FLB Adapter |
700065-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04312719 |
| |
|
HPE FlexFabric 20Gb 2-port 650FLB Adapter |
700763-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04347341 |
| |
|
10Gb FlexibleLOM Adapters |
| |
|
HPE FlexFabric 10Gb 2-port 536FLB Adapter |
766490-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04347246 |
| |
|
HPE Ethernet 10Gb 2-port 560FLB Adapter |
655639-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetPDF.aspx/c04111516.pdf |
| |
|
HPE Infiniband Mezzanine Adapters |
| |
|
NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active (regardless of operating mode). When installed in mezzanine slot 2, both ports are active. |
| |
|
NOTE: InfiniBand QDR and FDR speeds are only supported on the HPE BladeSystem c7000 Enclosure. For additional information, please see the HPE BladeSystem c7000 Enclosure and InfiniBand QuickSpecs at: https://www.hpe.com/h20195/v2/GetPDF.aspx/c04128339.pdf https://www.hpe.com/h20195/v2/getpdf.aspx/c04126044.pdf?ver=26 |
| |
|
HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+M Adapter |
764283-B21 | |
|
NOTE: The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode and may be installed in either mezzanine slot if operated in any other mode. |
| |
|
HPE InfiniBand FDR 2-port 545M Adapter |
702213-B21 | |
|
| ||
|
HPE Fibre Channel |
HPE Fibre Channel Adapters |
|
|
HPE LPe1605 16Gb Fibre Channel HBA for BladeSystem c-Class |
718203-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/getpdf.aspx/c04315132.pdf?ver=2 |
| |
|
HPE QMH2672 16Gb Fibre Channel Host Bus Adapter |
710608-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04126962 |
| |
|
HPE Fibre Channel Adapters |
| |
|
HPE LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class |
659818-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04163733 |
| |
|
HPE QMH2572 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class |
651281-B21 | |
|
NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04126040 |
| |
|
| ||
|
HPE Processors |
E5-2600 v4 series Processors |
|
|
HPE BL460c Gen9 Intel Xeon E5-2690v4 (2.6GHz/14-core/35MB/135W) Processor Kit |
819852-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2683v4 (2.1GHz/16-core/40MB/120W) Processor Kit |
819851-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2680v4 (2.4GHz/14-core/35MB/120W) Processor Kit |
819842-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2650v4 (2.2GHz/12-core/30MB/105W) Processor Kit |
819840-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2640v4 (2.4GHz/10-core/25MB/90W) Processor Kit |
819839-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2630v4 (2.2GHz/10-core/25MB/85W) Processor Kit |
819845-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2620v4 (2.1GHz/8-core/20MB/85W) Processor Kit |
819838-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2698v4 (2.2GHz/20-core/50MB/135W) Processor Kit |
819855-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2697v4 (2.3GHz/18-core/45MB/145W) Processor Kit |
819854-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2697Av4 (2.6GHz/16-core/40MB/145W) Processor Kit |
819857-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2695v4 (2.1GHz/18-core/45MB/120W) Processor Kit |
819853-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2667v4 (3.2GHz/8-core/25MB/135W) Processor Kit |
819850-B21 | |
|
E5-2600 v4 series Processors |
| |
|
HPE BL460c Gen9 Intel Xeon E5-2660v4 (2.0GHz/14-core/35MB/105W) Processor Kit |
819841-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2650Lv4 (1.7GHz/14-core/35MB/65W) Processor Kit |
819849-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2623v4 (2.6GHz/4-core/10MB/85W) Processor Kit |
819844-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2699v4 (2.2GHz/22-core/55MB/145W) Processor Kit |
819856-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2643v4 (3.4GHz/6-core/20MB/135W) Processor Kit |
819848-B21 | |
|
HPE BL460c Gen9 Intel Xeon E5-2637v4 (3.5GHz/4-core/15MB/135W) Processor Kit |
819847-B21 | |
|
NOTE: All processors within the server must be identical. NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2609 v4, E5-2603 v4, E5-2603 v3 and E5-2609 v3. |
| |
|
| ||
|
HPE Memory |
NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535 NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2400MT/s, 2133MT/s, 1866MT/s, or 1600MT/s. Please see table at end of document or the Online Memory Configuration Tool at: https://h22195.www2.hpe.com/DDR4memoryconfig/Home/LEGAL |
|
|
HPE SmartMemory |
||
|
Registered DIMMs (RDIMMs) - E5-2600 v4 series Processors |
| |
|
HPE 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
805349-B21 | |
|
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2400 CAS-17-17-17 Registered Smart Memory Kit |
P00423-B21 | |
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
| |
|
HPE 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
805347-B21 | |
|
Registered DIMMs (RDIMMs) - E5-2600 v4 series Processors |
| |
|
HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
836220-B21 | |
|
Load Reduced DIMMs (LRDIMMs) - E5-2600 v4 series Processors |
| |
|
HPE 64GB (1x64GB) Quad Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit |
805358-B21 | |
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit |
805353-B21 | |
|
HPE 128GB (1x128GB) Octal Rank x4 DDR4-2400 CAS-20-18-18 Load Reduced Memory Kit |
809208-B21 | |
|
| ||
|
HPE Drives |
NOTE: The ProLiant BL460c Gen9 server includes the HPE hot-plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from generation G7 servers and before are not compatible with the BL460c Gen9 drive bays. |
|
|
HPE NVMe PCIe Read Intensive SFF (2.5-inch) Solid State Drives |
| |
|
HPE 2TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
877986-B21 | |
|
HPE 480GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
875587-B21 | |
|
HPE 960GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
875589-B21 | |
|
HPE 1.92TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
875591-B21 | |
|
HPE 1TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
877984-B21 | |
|
HPE 4TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
877988-B21 | |
|
HPE NVMe PCIe Mixed Use SFF (2.5-inch) Solid State Drives |
| |
|
HPE 400GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
875593-B21 | |
|
HPE 800GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
875595-B21 | |
|
HPE 1.6TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
877994-B21 | |
|
HPE 1.6TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
875597-B21 | |
|
HPE 3.2TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
877998-B21 | |
|
HPE NVMe PCIe Write Intensive SFF (2.5-inch) SCN Drives |
| |
|
HPE 375GB NVMe x4 Lanes Write Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD |
878014-B21 | |
|
SATA Hot Plug SmartDrive SFF (2.5-inch) SSD Drives |
| |
|
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
P04556-B21 | |
|
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
P04560-B21 | |
|
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
P04564-B21 | |
|
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
P04566-B21 | |
|
HPE 3.84TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
P00896-B21 | |
|
HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
P04570-B21 | |
|
SATA Hot Plug SmartDrive SFF (2.5-inch) SSD Drives |
| |
|
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
877740-B21 | |
|
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
877746-B21 | |
|
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
877752-B21 | |
|
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
877758-B21 | |
|
HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
877764-B21 | |
|
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
877776-B21 | |
|
HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
877782-B21 | |
|
HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
877788-B21 | |
|
HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
880295-B21 | |
|
SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives |
| |
|
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
870753-B21 | |
|
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
870757-B21 | |
|
HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
870759-B21 | |
|
HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD |
832514-B21 | |
|
HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD |
765466-B21 | |
|
HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
881457-B21 | |
|
SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives |
| |
|
HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
870765-B21 | |
|
HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD |
765464-B21 | |
|
SATA (SFF 2.5-inch) Hard Drives |
| |
|
HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD |
655710-B21 | |
|
HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD |
765455-B21 | |
|
12G SAS Write Intensive SFF (2.5-inch) SC DS SSD |
| |
|
HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
873351-B21 | |
|
HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
873355-B21 | |
|
12G SAS Write Intensive SFF (2.5-inch) SC DS SSD |
| |
|
HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
873357-B21 | |
|
12G SAS Read Intensive SFF (2.5-inch) SC SSD |
| |
|
HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875326-B21 | |
|
HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875313-B21 | |
|
HPE 480GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875311-B21 | |
|
HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
872390-B21 | |
|
HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
872392-B21 | |
|
HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
872394-B21 | |
|
12G SAS Read Intensive SFF (2.5-inch) SC SSD |
| |
|
HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875330-B21 | |
|
HPE 7.68TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
870144-B21 | |
|
HPE 15.3TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
870148-B21 | |
|
12G SAS Mixed Use SFF (2.5-inch) SC SSD |
| |
|
HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
873359-B21 | |
|
HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
873363-B21 | |
|
HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
873365-B21 | |
|
HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
872374-B21 | |
|
HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
872376-B21 | |
|
HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
872382-B21 | |
|
HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
872386-B21 | |
|
12G SAS Mixed Use SFF (2.5-inch) SC SSD |
| |
|
HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
873367-B21 | |
|
6G SAS Mixed Use SFF (2.5-inch) SC Solid State Drive |
| |
|
HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875478-B21 | |
|
HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875474-B21 | |
|
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875470-B21 | |
|
HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875483-B21 | |
|
12G SAS SFF (2.5-inch) SC 3yr Wty H2 Drive |
| |
|
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
872481-B21 | |
|
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
872479-B21 | |
|
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
872477-B21 | |
|
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
872475-B21 | |
|
12G SATA 2.5in RI-3 SFF SC SSD |
| |
|
HPE 3.84TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
P00896-B21 | |
|
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875513-B21 | |
|
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875511-B21 | |
|
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875509-B21 | |
|
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
875503-B21 | |
|
NOTE: The mixing of standard SAS drives with SAS SSD is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported |
| |
Additional Options
|
HPE iLO Advanced License |
HPE Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem Remote Management |
|
|
HPE iLO Advanced for BladeSystem Electronic License with 3yr Support on iLO Licensed Features |
E6U63ABE | |
|
HPE iLO Advanced for BladeSystem 1-server License with 3yr Support on iLO Licensed Features |
BD502A | |
|
HPE iLO Advanced for BladeSystem Electronic License with 1yr Support on iLO Licensed Features |
E6U60ABE | |
|
HPE iLO Advanced for BladeSystem 1-server License with 1yr Support on iLO Licensed Features |
512488-B21 | |
|
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one or three years of 24 x 7 HPE Software Technical Support Service. |
| |
|
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one or three year of 24 x 7 HPE Software Technical Support Service. |
||
|
| ||
|
HPE OneView Software for Converged Mgmt |
HPE OneView |
|
|
HPE OneView with iLO Advanced |
| |
|
HPE OneView including 3yr 24x7 Support Physical 1-server LTU |
E5Y34A | |
|
HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU |
E5Y35AAE | |
|
HPE OneView Physical Media Kit LTU |
E5Y37A | |
|
HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU |
P8B24A | |
|
HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU |
P8B26AAE | |
|
HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU |
P8B31A | |
|
NOTE: For additional license kits please see the QuickSpecs at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154343 |
||
|
| ||
|
High Performance Clusters |
HPE Cluster Management Utility |
|
|
HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU |
QL803B | |
|
HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU |
BD476A | |
|
NOTE: These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement. |
| |
|
HPE Insight Cluster Management Utility Media |
BD477A | |
|
NOTE: For additional license kits please see the QuickSpecs at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04111735 |
||
|
| ||
|
HPE Security |
HPE Security |
|
|
HPE Trusted Platform Module Option |
488069-B21 | |
|
HPE Trusted Platform Module 2.0 Kit |
745823-B21 | |
|
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLockerTM Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008 R2 and 2012. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 R2 and 2012 has not been tampered with while the system was offline. https://support.hpe.com/hpsc/doc/public/display?docId=emr_na-hpesbhf03789en_us NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment. |
| |
|
| ||
|
HPE Storage Controllers |
HPE Storage Controllers |
|
|
HPE Smart Array P244br/1GB FBWC 12Gb 2-ports Int SAS Controller |
749680-B21 | |
|
HPE Smart Array P246br/1GB FBWC 12Gb 4-ports Int SAS Controller |
726793-B21 | |
|
HPE BL460c G9 Broadwell NVMe FIO Setting |
825555-B21 | |
|
HPE Storage Controllers |
| |
|
HPE H244br 12Gb 2-ports Int Smart Host Bus Adapter |
726809-B21 | |
|
NOTE: The HPE Gen9 Broadwell NVMe FIO Setting (825555-B21) is required to support SFF NVMe SSDs within the system. This option is not compatible with the HPE Smart Array P244br, HPE Smart Array P246br, or HPE Smart HBA H244br. HPE recommends recommends the use of a dual M.2 solid state drive kit for boot when using this option. NOTE: The HPE Smart Array B140i Controller (chipset SATA) comes standard with the HPE BL460c Gen9 10Gb/20Gb FLB CTO Blade (727021-B21). If neither the HPE Smart Array P244br nor the HPE H244br controllers are chosen, a SATA cable will be provided to support SATA devices for the two internal drives. If RAID is required when using the B140i, please choose 'HPE FIO B140i RAID Enable Kit - BIOS Setting' (784308-B21). NOTE: The HPE Smart Array P246br controller is only required when using a PCI expansion blade or D2220sb storage blade with the BL460c Gen9. |
| |
|
| ||
|
HPE Secure Encryption |
HPE Secure Encryp Per Svr Entitlement |
C9A82AAE |
|
NOTE: HPE Secure Encryption is supported on the HPE Smart Array P244br and H244br (running in RAID mode) as an option. HPE Secure Encryption licensing is based on the number of physical drives requiring encryption. |
||
|
NOTE: For more information about HPE Secure Encryption, go to https://www.hpe.com/us/en/product-catalog/detail/pip.6532260.html |
| |
|
| ||
|
HPE InfiniBand Mezzanine Adapters |
HPE InfiniBand Mezzanine Adapters |
|
|
NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active (regardless of operating mode). When installed in any other mezzanine slot, both ports are active. |
| |
|
NOTE: InfiniBand QDR and FDR speeds are only supported on the HPE BladeSystem c7000 Enclosure. For additional information, please see the HPE BladeSystem c7000 Enclosure and InfiniBand QuickSpecs at: https://www.hpe.com/h20195/v2/GetPDF.aspx/c04128339.pdf https://www.hpe.com/h20195/v2/getpdf.aspx/c04126044.pdf?ver=26 |
| |
|
HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+M Adapter |
764283-B21 | |
|
NOTE: The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode and may be installed in any mezzanine slot if operated in any other mode. |
| |
|
HPE InfiniBand FDR 2-port 545M Adapter |
702213-B21 | |
|
| ||
|
HPE Flash Media Kits for USB Drives |
HPE Flash Media Kits for USB Drives |
|
|
HPE Enterprise Mainstream Flash Media Kits for Memory Cards - Recommended |
| |
|
HPE 8GB microSD Flash USB Drive |
737953-B21 | |
|
HPE 8GB microSD Flash Memory Card |
726116-B21 | |
|
HPE 32GB microSD Flash Memory Card |
700139-B21 | |
|
HPE 8GB Dual microSD Flash USB Drive |
741279-B21 | |
|
| ||
|
HPE Care Pack Services |
Proactive Care Services |
|
|
HPE 3 year Proactive Care 24x7 BL4xxc Gen9 Service |
U7BN8E | |
|
HPE 3 year Proactive Care 24x7 with DMR BL4xxc Gen9 Service |
U7BN9E | |
|
HPE 3 year Proactive Care Advanced 24x7 BL4xxc Gen9 Service |
U7BT6E | |
|
HPE 3 year Proactive Care Advanced 24x7 with DMR BL4xxc Gen9 Service |
U7CF8E | |
|
Installation Services |
| |
|
HPE Install c-Class Server Blade Service |
UE493E | |
Memory
|
For detailed memory configuration rules and guidelines, please use the Online DDR4 Memory Configuration Tool: https://memoryconfigurator.hpe.com/ddr4memoryconfig/home/legal
| |||||||
|
| |||||||
|
| |||||||
|
Supported Memory Bandwidth on Intel® Xeon® E5-2600 v4 series Processors | |||||||
|
DIMM Rank |
Register DIMM (RDIMM) |
Load Reduced (LRDIMM) | |||||
|
Single Rank (1R) |
Dual Rank (2R) |
Dual Rank (2R) |
Quad Rank (4R) |
Octal Rank(8R) | |||
|
DIMM Capacity |
8GB |
16GB |
16GB |
32GB |
32GB |
64GB |
128GB |
|
Voltage |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
|
SLOTS THAT CAN BE POPULATED | |||||||
|
16 slot servers |
16 |
16 |
16 |
16 |
16 |
16 |
|
|
MAXIMUM CAPACITY (GB)* | |||||||
|
16 slot servers |
128 |
256 |
256 |
512 |
512 |
1024 |
|
|
POPULATED DIMM SPEED (MT/s) | |||||||
|
1 DIMM Per Channel |
2400 |
2400 |
2400 |
2400 |
2400 |
2400 |
|
|
2 DIMM Per Channel |
2133 |
2133 |
2133 |
2133 |
2400 |
2400 |
|
|
NOTE: Maximum Capacity will vary based on individual serve platform qualification schedule | |||||||
|
Memory options part number decoder
| ||||||
|
|
Item |
Description |
Definition |
| ||
|
|
1 |
Capacity |
8 GByte 16 GByte 32 GByte |
| ||
|
|
2 |
Rank |
1R = Single-rank |
| ||
|
|
3 |
Data width |
x4 = 4-bit |
| ||
|
|
4 |
Memory generation |
DDR4 |
| ||
|
|
5 |
Max. Memory speed |
2133MT/s |
| ||
|
|
6 |
CasLatency |
P = 15 |
| ||
|
|
6 |
DIMM type |
R = RDIMM (registered)
|
| ||
|
Following are memory options available from Hewlett Packard Enterprise: | ||||||
|
HPE Memory |
NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs at: https://www.hpe.com/us/en/servers/memory.html |
| ||||
|
Registered DIMMs (RDIMMs) - E5-2600 v4 series Processors |
||||||
|
HPE 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
805349-B21 | |||||
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
805351-B21 | |||||
|
HPE 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
805347-B21 | |||||
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit |
805353-B21 | |||||
|
HPE 128GB (1x128GB) Octal Rank x4 DDR4-2400 CAS-20-18-18 Load Reduced Memory Kit |
809208-B21 | |||||
|
Load Reduced DIMMs (LRDIMMs) - E5-2600 v4 series Processors |
| |||||
|
HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
836220-B21 | |||||
Storage
|
| |
|

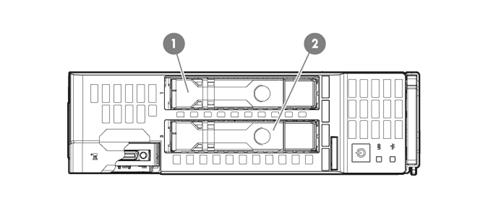

1-2 |
2 x SFF hot-plug SAS, SATA, SAS SDD, and SATA SSD hard drives |
Technical Specifications
|
System Unit |
Dimensions |
7.11 x 2.18 x 20.37 in (18.07 x 5.54 x 51.76 cm) | |
|
Weight |
Maximum: all processors, 16 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed) |
14.00 lb (6.33 kg) | |
|
Minimum: one processor and 2 DIMMs installed |
10.50 lb (4.75 kg) | ||
|
Power Specifications |
For power specifications including input requirements, BTU rating, and power supply output, please see the:
To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at https://paonline56.itcs.hpe.com. | ||
|
NOTE: For optimal cooling and system performance the BL460c Gen9 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans. | |||
|
System Inlet Temperature |
Operating |
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight.
Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F). | |
|
Non-operating |
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr). | ||
|
Extended Ambient Operating Support |
For Approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft) NOTE: Qualifications for extended ambient configurations are detailed at: http://www.hpe.com/servers/ashrae
| ||
|
Relative Humidity |
Operating |
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. | |
|
Non-operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | ||
|
Altitude |
Operating |
3,050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1,500 ft/min). | |
|
Non-operating |
9,144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1,500 ft/min). | ||
|
Acoustic Noise |
For acoustic noise specifications, please see the HPE BladeSystem c-Class Enclosures QuickSpecs located at:
|
||
|
| |||
|
HPE Smart Array P244br Controller |
Disk Drive Interface |
12Gb/s SAS (Serial Attached SCSI) | |
|
Server Interface |
x8 PCIe 3.0 provides 8GB/s maximum bandwidth | ||
|
Cache Memory |
1GB flash backed write cache (FBWC) cache standard | ||
|
Logical Drives Supported |
64 (with included 1GB cache) | ||
|
Host Memory Addressing |
64-bit, supporting servers memory space greater than 4GB | ||
|
RAID Support |
RAID 1 (mirroring), RAID 0 (striping), RAID 10 | ||
|
Other |
Upgradeable firmware with recovery ROM | ||
|
| |||
|
HPE Smart HBA H244br Controller |
Disk Drive Interface |
12Gb/s SAS (Serial Attached SCSI) | |
|
Server Interface |
x8 PCIe 3.0 provides 8GB/s maximum bandwidth | ||
|
Cache Memory |
None | ||
|
Logical Drives Supported |
64 | ||
|
Host Memory Addressing |
64-bit, supporting servers memory space greater than 4GB | ||
|
RAID Support |
RAID 1 (mirroring) and RAID 0 (striping) | ||
|
Other |
Upgradeable firmware with recovery ROM | ||
|
| |||
|
HPE Dynamic Smart Array B140i Controller |
Disk Drive Interface |
6Gb/s SATA (Serial ATA) | |
|
Server Interface |
Embedded x4 PCIe 2.0 | ||
|
SAS Connectors Cache Memory |
2 internal SATA ports None | ||
|
SAS Speed Logical Drives Supported |
6Gb/s SATA links Up to 10 logical volumes (2 physical drives) | ||
|
Host Memory Addressing |
64-bit, supporting greater than 4GB server memory space | ||
|
Hot Plug Support RAID Support |
Yes RAID 1 (Mirroring) RAID 0 (Striping) | ||
|
Other |
Upgradeable firmware with recovery ROM | ||
|
| |||
|
HPE FlexFabric 10Gb |
Type |
Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing 1Gb/10Gb Ethernet capability) | |
|
Network Processor |
QLogic 57840S with integrated MAC/PHY | ||
|
Data Transfer Method |
x8 PCI Express 3.0 | ||
|
Network Transfer Rate |
Two ports, each at 20Gbps full duplex; 40Gbps aggregate full duplex theoretical bandwidth | ||
|
IEEE Compliance |
802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4) and 802.3x | ||
|
Standard Features |
Full hardware offload of iSCSI and FCoE storage protocol processing for highest performance converged Ethernet data and storage networks. Dual-port 10GbE Flex-10 FlexibleLOM network adapter that provides the flexibility to choose the type of LOM to meet growing infrastructure needs Industry-leading throughput and latency performance Supports the HPE Flex-10 blade interconnect technology User configurable bandwidth settings when combined with the 10Gb Flex-10 Virtual Connect module. From 100Mb/s to10Gb/s on up to four "Physical Function" NICs per port, in increments of 100Mb/s for NIC. The combined bandwidth of NICs cannot exceed port bandwidth i.e. 10 Gb. Up to 40Gb/s bi-directional near line rate throughput Hardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE) Improved small packet performance Support for Preboot eXecution Environment (PXE) Integrated PHY and MAC Supports for SR-IOV Support for Network Partitioning (NPAR) | ||
|
HPE FlexFabric 20Gb |
Type |
Integrated dual-port KR2 20Gb FlexibleLOM with FlexFabric (Flex-20, FCoE, RoCE, Tunnel Offload with VXLAN/NVGRE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing Ethernet speed capability) | |
|
Network Processor |
Emulex XE-104 | ||
|
Data Transfer Method |
x8 PCI Express 3.0 | ||
|
Network Transfer Rate |
Two ports, each at 40 Gbps bi-directional; 80 Gbps aggregate bi-directional theoretical bandwidth | ||
|
IEEE Compliance |
802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad/LACP, 802.1AB(LLDP), 802.1Qbg, 802.1Qbb, 802.1Qaz, 802.3ap | ||
|
Standard Features |
Dual 20Gb ports provide up to 80Gb bi-directional per adapter Multi-speed adapter operates at either 20GbE or 10GbE Converges FCoE or RoCE with LAN traffic on a single Ethernet wire Tunnel Offload support for VXLAN and NVGRE RDMA over Converged Ethernet (RoCE) for greater server efficiency and lower latency (6125XLG only) Advanced storage offload processing freeing up valuable CPU cycles Supports UEFI and legacy boot options Mixed Storage - supports NIC + FCoE on one port, and NIC + iSCSI on the other Concurrent Storage - concurrently supports NIC, FCoE, and iSCSI storage functions on the same port (NIC + FCoE + iSCSI) Industry-leading throughput and latency performance Supports the HPE Flex-20 blade interconnect technology Over eight million small packets/s, ideal for web/mobile applications, mobile messaging, and social media User configurable bandwidth settings when combined with the 20Gb Flex-20 Virtual Connect module. From 100Mb/s to10Gb/s on up to four "Physical Function" NICs per port, in increments of 100Mb/s for NIC. The combined bandwidth of NICs cannot exceed port bandwidth i.e. 20 Gb/s. Greater bandwidth with PCIe 3.0 Jumbo Frames support Supports Wake On LAN (WOL) Support for Preboot eXecution Environment (PXE) Support for Microsoft Windows SMB Direct Optimized host virtualization density with SR-IOV support
| ||
|
| |||
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle .To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. | |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change | ||||||||||||||||||
|
01-Oct-2018 |
Version 32 |
Changed |
Configuration Information - Factory Integrated Models, Core Options, and Additional Options sections were updated. | ||||||||||||||||||
|
Removed |
Obsolete SKU was deleted: 726782-B21. | ||||||||||||||||||||
|
06-Aug-2018 |
Version 31 |
Changed |
Overview, Standard Features, Optional Features, Configuration Information - Factory Integrated Models, and Additional Options sections were updated. | ||||||||||||||||||
|
Added |
SKUs added: 749680-B21, 726793-B21, 726809-B21, 726782-B21. | ||||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: C6N36A, 761871-B21, 761878-B21, 749975-B21, 726782-B21. | ||||||||||||||||||||
|
04-Jun-2018 |
Version 30 |
Changed |
Overview, Standard Features, Configuration Information-Factory Integrated Models, Additional Options, Memory, and Technical Specifications sections were updated. | ||||||||||||||||||
|
Added |
SKUs added: | ||||||||||||||||||||
|
Removed |
SKUs were deleted: | ||||||||||||||||||||
|
02-Apr-2018 |
Version 29 |
Changed |
Standard Features, Models, Configuration Information - Factory Integrated Models, and Additional Options sections | ||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: | ||||||||||||||||||||
|
06-Nov-2017 |
Version 28 |
Added |
SKU was added in Core Options section: | ||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: | ||||||||||||||||||||
|
23-Oct-2017 |
Version 27 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. | ||||||||||||||||||
|
25-Sep-2017 |
Version 26 |
Changed |
QuickSpecs was updated. | ||||||||||||||||||
|
07-Aug-2017 |
Version 25 |
Added |
SKUs added: | ||||||||||||||||||
|
Removed |
Obsolete SKUs were removed: | ||||||||||||||||||||
|
12-Jun-2017 |
Version 24 |
Added |
New SKUs added in Core Options section: | ||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: C6N28ABE, C6N36ABE, 652572-B21, 652749-B21, 804599-B21, 804581-B21, 816929-B21, 838404-B21, 838406-B21, 838408-B21, 838410-B21, 838412-B21, 785233-B21, 802582-B21, 804677-B21, 804671-B21, 804665-B21, 804639-B21, 804625-B21, 804613-B21, 762263-B21. | ||||||||||||||||||||
|
27-Mar-2017 |
Version 23 |
Changed |
Overview, Core Options, and Additional Options sections were updated. | ||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: | ||||||||||||||||||||
|
13-Feb-2017 |
Version 22 |
Added |
SKUs added: | ||||||||||||||||||
|
Changed |
Memory section was corrected. | ||||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: | ||||||||||||||||||||
|
28-Nov-2016 |
Version 21 |
Added |
SKUs added: | ||||||||||||||||||
|
Removed |
Turn Off Skus deleted: | ||||||||||||||||||||
|
16-Sep-2016 |
Version 20 |
Changed |
QuickSpecs information was updated. | ||||||||||||||||||
|
Added |
Obsolete SKUs were deleted: | ||||||||||||||||||||
|
06-Jun-2016 |
Version 19 |
Changed |
Models, Configuration Information - Factory Integrated Models, Core Options, Memory, and Technical Specifications sections were updated. | ||||||||||||||||||
|
Added |
SKUs added in Related Options and Core Options sections: | ||||||||||||||||||||
|
31-Mar-2016 |
Version 18 |
Changed |
Overview, Standard Features, Optional Features, Recomended Support Services for BL460, Models, Confirguration Information - Factory Integrated,Core Options, Additional Options, and Memory sections were updated. | ||||||||||||||||||
|
Added |
SKUs added to QuickSpecs: | ||||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: | ||||||||||||||||||||
|
16-Feb-2016 |
Version 17 |
Changed |
Information updated in different sections. | ||||||||||||||||||
|
Added |
SKUs Added in Core Options sections: | ||||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: | ||||||||||||||||||||
|
09-Oct-2015 |
Version 16 |
Changed |
Core Options section was updated. | ||||||||||||||||||
|
Added |
SKUs added: P8B24A, P8B26AAE, P8B31A | ||||||||||||||||||||
|
Removed |
Obsolete SKUs were deleted: 756621-B21, 756657-B21, 789155-B21 | ||||||||||||||||||||
|
28-Sep-2015 |
Version 15 |
Added |
SKU added in Additional Options: 745823-B21 | ||||||||||||||||||
|
28-Aug-2015 |
Version 14 |
Changed |
Information in Core Options section was updated. | ||||||||||||||||||
|
Added |
SKUs added in Core Options section: 659818-B21, 651281-B21 | ||||||||||||||||||||
|
17-Aug-2015 |
Version 13 |
Changed |
Standard Features, Optional Features, Configuration Information - Factory Integrated Models, Core Options and Memory sections were updated. | ||||||||||||||||||
|
Added |
SKUs added in Additional Options and Core Options sections: C9A82AAE, 804677-B21, 804671-B21, 804665-B21, 804639-B21, 804631-B21, 804625-B21, 832414-B21, 804613-B21, 804605-B21, 804599-B21, 804593-B21, 804587-B21, 804581-B21, 804575-B21. | ||||||||||||||||||||
|
Removed |
Obsolete SKU deleted: F6Q89AAE | ||||||||||||||||||||
|
19-Jun-2015 |
Version 12 |
Changed |
Information updated. | ||||||||||||||||||
|
1-Jun-2015 |
Version 11 |
Changed |
Information in Optional Features, Configuration Information- Factory Integrated, and Models sections was updated. | ||||||||||||||||||
|
Added |
SKUs added: 726724-B21, 748387-B21, 791034-B21, 726793-B21 | ||||||||||||||||||||
|
Removed |
SKUs removed: 726793-B21, 741159-B21, 741151-B21 | ||||||||||||||||||||
|
6-Apr-2015 |
Version 10 |
Changed |
Industry Standard Compliance and Additional Options sections were updated | ||||||||||||||||||
|
30-Mar-2015 |
Version 9 |
Added |
SKUs Added: 741279-B21, 728629-B21, 726793-B21, 749975-B21, 726782-B21, 727261-B21, 802578-B21, 802582-B21, 802586-B21, 802891-B21, 781516-B21, 785067-B21, 765453-B21, 765455-B21, 765464-B21, 765466-B21, 789135-B21, 789145-B21, 789155-B21, 794603-B21, 794605-B21, 781518-B21, 785069-B21 | ||||||||||||||||||
|
Removed |
Obsolete SKUs Deleted: 741146-B21, 741138-B21 | ||||||||||||||||||||
|
27-Feb-2015 |
Version 8 |
Changed |
Smart Buy 779805-S01 processor was updated in Product Bulleting US version. | ||||||||||||||||||
|
9-Feb-2015 |
Version 7 |
Changed |
Core Options and Additional Options sections were updated | ||||||||||||||||||
|
Added |
SKUs Added on Hard Drives section: 779164-B21, 779168-B21, 779172-B21, 779176-B21, 764923-B21, 764925-B21, 764927-B21, 764929-B21 | ||||||||||||||||||||
|
Removed |
SKUs removed: | ||||||||||||||||||||
|
12-Dec-2014 |
Version 6 |
Changed |
Descriptions were updated throughout the QuickSpecs. | ||||||||||||||||||
|
Added |
SKU Added on HPE Smart Memory: 792278-B21 | ||||||||||||||||||||
|
1-Dec-2014 |
Version 5 |
Changed |
Overview, Standard Features, Configuration Information - Factory Integrated Models and Core Options sections were updated | ||||||||||||||||||
|
Added |
SKUs added: 759934-B21, 726720-B21, 775588-B21, 785233-B21, 757339-B21, 756657-B21, 756621-B21 | ||||||||||||||||||||
|
Removed |
SKU E5Y35AAE deleted due to compatibility issues | ||||||||||||||||||||
|
10-Oct-2014 |
Version 4 |
Changed |
Smart Buy section added to the NA version only | ||||||||||||||||||
|
8-Oct-2014 |
Version 3 |
Changed |
Network Controller, Enclosures and Compatible SAN sections were updated | ||||||||||||||||||
|
Added |
HPE I/O Accelerator Options section has been added including following SKUs: QK763A, QK762A, QK761A | ||||||||||||||||||||
|
Removed |
Expansion Blade Support section was deleted | ||||||||||||||||||||
|
17-Sep-2014 |
Version 2 |
Changed |
Changes made throughout the Standard Features, Models, SmartMemory, Core Options and Carepacks sections. | ||||||||||||||||||
|
09-Sep-2014 |
Version 1 |
Created |
New QuickSpecs | ||||||||||||||||||
| |||||||||||||||||||||
