HPE ProLiant BL420c Gen8 Server Blade

Redefining the term "entry-level" in the blade market, the BL420c Gen8 provides breakthrough server blade economics for essential enterprise workloads.

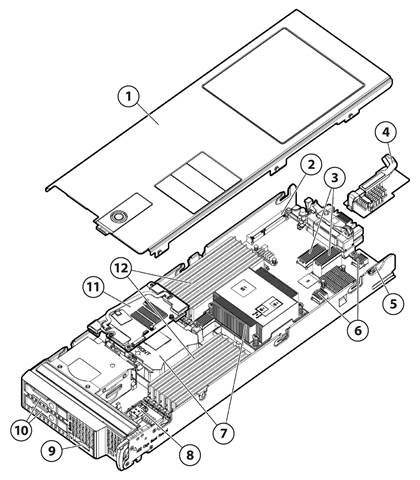

1.

Access panel

7.

Up to two (2) Intel® Xeon® E5-2400v2 or E5-2400 series processors

2.

Cache module connector

8.

Internal USB 2.0 connector and Trusted Platform Module (TPM) connectors

3.

Two (2) PCIe 3.0 mezzanine I/O expansion slots

9.

HPE c-Class Blade SUV (Serial, USB, VGA) connector

4.

FlexibleLOM Adapter

10.

Two (2) small form factor (SFF) hot-plug drive bays

5.

MicroSDHC card connector

11.

SAS controller

6.

FlexibleLOM connectors (2) supporting one (1) FlexibleLOM Adapter

12.

Twelve (12) DDR3 DIMM memory slots (6 per processor)

What's New

Support for HPE 1.6TB and 800GB 12G SAS Value Endurance SFF 2.5in SC Enterprise Value Solid State Drives

NOTE: This document covers the HPE ProLiant BL420c Gen8 server blade only. For information on HPE BladeSystems c-Class Platinum Enclosures and HPE BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:

HPE BladeSystem c-Class Enclosures QuickSpecs:

• HPE BladeSystem c3000 Enclosure QuickSpecs at http://h18000.www1.hp.com/products/QuickSpecs/12790_div/12790_div.html
  NOTE: The c3000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c7000 Enclosure QuickSpecs at http://h18000.www1.hp.com/products/QuickSpecs/12810_div/12810_div.html

NOTE: The c7000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.

• HPE BladeSystem c-Class Interconnect and Mezzanine Components at http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
  http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html



NOTE: For proper BladeSystem operation, the minimum required versions of HPE Onboard Administrator and HPE Virtual Connect are required and available via the HPE Service Pack for ProLiant, please see http://www.hp.com/go/spp/download
NOTE: For optimal cooling and system performance the BL420c Gen8 requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

Processor
One of the following depending on Model

E5-2400 v2 series Processors

Intel® Xeon® E5-2470v2 (2.4GHz/10-core/25MB/95W) Processor

Intel® Xeon® E5-2450v2 (2.5GHz/8-core/20MB/95W) Processor

Intel® Xeon® E5-2440v2 (1.9GHz/8-core/20MB/95W) Processor

Intel® Xeon® E5-2430v2 (2.5GHz/6-core/15MB/80W) Processor

Intel® Xeon® E5-2420v2 (2.2GHz/6-core/15MB/80W) Processor

Intel® Xeon® E5-2407v2 (2.4GHz/4-core/10MB/80W) Processor

Intel® Xeon® E5-2403v2 (1.8GHz/4-core/10MB/80W) Processor

Intel® Xeon® E5-2450Lv2 (1.7GHz/10-core/25MB/60W) Processor

Intel® Xeon® E5-2430Lv2 (2.4GHz/6-core/15MB/60W) Processor

E5-2400 series Processors

Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) Processor

Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) Processor

Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W) Processor

Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) Processor

Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) Processor

Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) Processor

Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) Processor

Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) Processor

Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W) Processor

NOTE: In a 2 processor configuration, there are twelve (12) total available DIMM slots.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: The BL420c Gen8 supports one or two processors.
NOTE: The BL420c Gen8 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical. Mixing different processor models is not supported.
NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2403 and E5-2407.
NOTE: The letter "L" following the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

Cache Memory
One of the following depending on Model

25MB shared L3 cache
NOTE: For Ten-core processors.

20MB shared L3 cache
NOTE: For Eight-core processors.

15MB shared L3 cache
NOTE: For Six-core processors.

10MB shared L3 cache
NOTE: For Quad-core processors.

Chipset

Intel® C600 Series Chipset

Intel® E5-2400 Processor Family

NOTE: For more information regarding Intel chipsets, please see the following: http://www.intel.com/products/server/chipsets/

Upgradeability

Upgradeable to two (2) processors
NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2400 to E5-2400 v2. Please contact HPE Technology Sales (http://www.hp.com/support), your local Hewlett Packard Enterprise Re-seller, or reference the following Customer Advisory: ProLiant Servers-Instructions for Upgrading an HPE ProLiant Gen8 Server from an Intel Xeon Processor E5-2400 to an Intel Xeon Processor E5-2400v2, regarding critical details before upgrading. An explanation of requirements and limitations are provided.

On System Management Chipset

HPE iLO (Firmware: HPE iLO 4)

NOTE: For more information, visit: http://www.hp.com/go/ilo

Memory Protection

Advanced ECC

Memory Online Spare Mode (Rank Spare Mode)

Memory Lockstep Mode

Memory
One of the following depending on Model

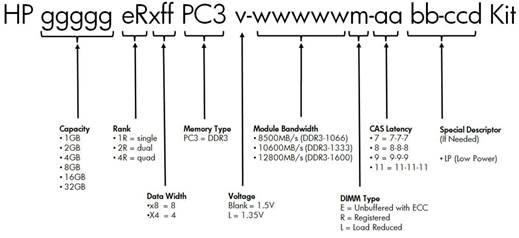

Type

HPE SmartMemory

DDR3 Load Reduced (LRDIMM), Registered (RDIMM), or Unbuffered ECC (UDIMM)

Standard (Pre-configured Models)

12GB (3 x 4GB) DDR3 1333MHz RDIMMs at 1.35V

24GB (6 x 4GB) DDR3 1600MHz RDIMMs at 1.5V

Maximum (LRDIMM)

384GB (12 x 32GB) up to 1600MHz at 1.5V

Maximum (RDIMM)

192GB (12 x 16GB) up to 1600MHz at 1.5V

192GB (12 x 16GB) up to 1333MHz at 1.35V

Maximum (UDIMM)

96GB (12 x 8GB) up to 1600MHz at 1.5V
96GB (12 x 8GB) up to 1333MHz at 1.35V

NOTE: HPE memory from previous generation servers are not qualified or warranted with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HPE SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html
NOTE: LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.
NOTE: The Intel Xeon E5-2400 Processor Family cannot be configured with the new 1866MHz HPE Smart Memory or the new 1600MHz Low Voltage (1.35v) HPE Smart Memory.
NOTE: Depending on the memory configuration and processor model, 1866MHz, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at: http://www.hp.com/go/ddr3memory-configurator.
NOTE: The Intel Xeon E5-2400v2 processor architecture supports memory speeds up to 1600MHz. 1866MHz HPE Smart Memory will run at 1600MHz.

Network Controller
One of the following depending on Model

NOTE: Supports one of the following FlexibleLOMs and iLO Management.

One (1) HPE FlexFabric 10Gb 2-port 554FLB FlexibleLOM
NOTE: Supports FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot, and autosensing 10Gb/1Gb Ethernet.
NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HPE BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
NOTE: FlexFabric capabilities require the use of an HPE Virtual Connect FlexFabric module. Fibre Channel over Ethernet (FCoE) is supported with the HPE 10GbE Pass-Thru Module, HPE 6120XG Blade Switch with the CEE license installed, HPE Cisco B22HPE Fabric Extender and HPE Cisco B22HPE Fabric Extender with 16 FET for BladeSystem c-Class. Learn more at http://www.hp.com/go/virtualconnect
One (1) HPE Flex-10 10Gb 2-port 530FLB FlexibleLOM
One (1) HPE Ethernet 10Gb 2-port 560FLB FlexibleLOM
One (1) HPE Ethernet 1Gb 2-port 361FLB FlexibleLOM
NOTE: FlexibleLOMs are not compatible with prior generation c-Class server blades

Standard iLO Network Controller:
One (1) 10/100 Mbps port for the HPE iLO 4 On System Management Chipset
One (1) 10/100 Mbps port for the HPE iLO 4 to Onboard Administrator link. The Onboard Administrator (with 10/100/1000 Mbps) to BladeSystem link is 1Gbps.

Expansion Slots

Two (2) I/O expansion mezzanine slots:

• x8 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1).
  NOTE: This expansion slot supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 4.
• x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2).
  NOTE: This expansion slot supports dual-port and quad-port mezzanine cards. For dual-port cards, one port is routed to interconnect module bay 5 and the other to bay 6. For quad-port cards, one port is routed to interconnect module bay 5, one to bay 6, one to bay 7, and one to bay 8.
  NOTE: A second processor must be installed (in processor slot 2) to have access to the second expansion slot (expansion slot 2).

Mezzanine card options include:

• Dual-port 10Gb FlexFabric,10Gb Flex-10, 10GbE options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports
• Dual-port 8Gb Fibre Channel HBA for SAN connectivity
• QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity
• I/O accelerator mezzanine options for high transaction rate local storage

HPE Server ROM

HPE ROM (read only memory) is now digitally signed using the HPE Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.
HPE ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.
HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

The HPE ProLiant ROM is used to configure the following:

• Processor and chipset status registers
• System memory, memory map, and memory initialization
• System hardware configuration (integrated PCI devices and optional PCIe cards).
• Customer-specific BIOS configuration using the HPE ROM-Based Setup Utility (RBSU).

NOTE: For further information, please refer to the HPE RBSU (ROM based setup utility) user guide: http://www.hp.com/support/rbsu

Storage Controller

One of the following depending on Model

One (1) HPE Smart Array P220i Controller with 512MB FBWC, (RAID 0 and 1)
NOTE: Upgradeable firmware with recovery ROM.
NOTE: The HPE Smart Array P220i supports two (2) small form factor (SFF) hot plug drive bays.

One (1) HPE Dynamic Smart Array B320i Controller (SATA RAID 0 and 1 standard; SAS RAID 0 and 1 standard on preconfigured models and optional with SAS License Key upgrade on Configure-to-Order models)
NOTE: HPE Dynamic Smart Array B320i supports two (2) small form factor (SFF) hot plug drive bays.
NOTE: The server supports up to a combined total of two (2) FBWC supercap options.

Available Options: Smart Array Advanced Pack Software for enhanced performance, reliability, availability, and security of system data, SAS License Key (RAID 0 and 1) and HPE 512MB FBWC for B-Series Smart Array.

Maximum Internal Storage

Hot Plug SFF SAS

4.0TB

2 x 2.0TB

Hot Plug SFF SATA

4.0TB

2 x 2.0TB

Hot Plug SFF SAS SSD

3.2TB

2 x 1.6TB

Hot Plug SFF SATA SSD

3.2TB

2 x 1.6TB

NOTE: The ProLiant BL420c Gen8 server includes the new HPE hot plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers are not compatible with the ProLiant BL420c Gen8 drive bays.

Interfaces

Micro SDHC Slot

One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port

One (1) internal USB 2.0 connector for USB flash media drive keys

NOTE: The above options are for integrated hypervisor virtualization environments needing a low cost boot solution with the highest performance and reliability.

Industry Standard Compliance

ACPI 2.0
Microsoft® Logo certifications
USB 2.0 Support
IPMI 2.0
Secure Digital 2.0
TPM 1.2 Support
IEEE (specific IEEE standards dependent on Ethernet adapter card(s) installed)
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP
SSL 2.0
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active Directory v1.0
PCIe 3.0

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Canonical Ubuntu
Oracle Solaris
VMware

NOTE: For more information on the HPE Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/info/ossupport and our driver download page http://www.hp.com/support/BL420cGen8

Enclosures

Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs:

• The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL420c Gen8 servers plugged vertically.
• The HPE BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HPE ProLiant BL420c Gen8 servers plugged horizontally.
• Server blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures.

NOTE: For additional enclosure information, please see: http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html

Graphics

Integrated Matrox G200 video standard

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)

HPE iLO 4 On System Management Memory

• 16 MB Flash
• 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

HPE ProLiant BL420c Gen8 is a half-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures.

On System Management

HPE iLO Management Engine

HPE iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HPE iLO Management Engine comes standard on all HPE ProLiant Gen8 servers. The HPE iLO Management Engine portfolio includes:

• HPE iLO: The HPE iLO (Integrated Lights-Out) management processor is the core foundation for the HPE iLO Management Engine.
• HPE Agentless Management: Provides built in server health monitoring and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected.
• HPE Active Health System Always on, continuous monitoring for increased stability and shorter downtimes; 100% configuration history; Health and service alerts and easy export and upload to Service and Support.
• HPE Intelligent Provisioning: lets customers provision and configure a single server without any separate media. No more SmartStart CDs or firmware DVD are needed.

- To start Intelligent Provisioning:

Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self test or POST).

Please go to the Intelligent Provisioning website at http://www.hp.com/go/intelligentprovisioning for additional information and to view usage videos.

Use the Service Pack for ProLiant (SPP) at http://www.hp.com/go/spp to get firmware and software updates.

• HPE iLO Mobile App: Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hp.com/go/ilo/mobileapp

NOTE: For more information, visit: http://www.hp.com/go/ilo or HPE iLO Management Engine technologies whitepaper

HPE Insight management software

HPE Service Pack for ProLiant (SPP)

HPE Service Pack for ProLiant (SPP) and HPE Smart Update Manager (HPE SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HPE server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HPE SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that Hewlett Packard Enterprise provides 12 months of support for each Service Pack for ProLiant release.
The user experience around HPE SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HPE SUM and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HPE SUM application provides a straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hpe.com, HPE SUM provides the tools to optimize stability and consistency throughout the company. While HPE SUM and the SPP recommend the combinations of firmware and system software that Hewlett Packard Enterprise has found to be the best practice, the application gives customers the flexibility to set their own specific baseline.
The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HPE SUM to deploy updates taking into account all interdependencies, when determining the correct updates and order of update deployment.
NOTE: The Service Pack for ProLiant (which includes HPE SUM) can be downloaded from http://www.hp.com/go/spp/download. More information can be found: http://www.hp.com/go/SmartUpdate, http://www.hp.com/go/spp and http://www.hp.com/go/hpsum

Security

• Power-on password
• Administrator's password
• Keyboard password (QuickLock)
• HPE iLO 4 On System Management Chipset with:

- SSL encryption

- Secure Shell version 2

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface

- AES and RC4 encryption of video

• External USB port enable/disable
• Serial interface control
• TPM (Trusted Platform Module) 1.2 option
• Advanced Encryption Standard (AES)
• Intel® Advanced Encryption Standard-New Instructions (AES-NI)

Availability

Memory

• Advanced ECC uses single device data correction (SDDC) to detect and correct single and all multi-bit error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8 requires lockstep mode).
• Memory online spare mode (also known as rank spare mode) detects a rank that is degrading and switches operation to the spare rank.
• Memory Lockstep mode is used to correct a single x8 DRAM device failure on a DIMM. The DIMMs in each paired memory channel must have identical HPE part numbers.
• Memory demand and patrol scrubbing to prevent accumulation of correctable errors and reducing the likelihood of unplanned downtime.
• Failed DIMM isolation improves the service time thus improving the overall system availability.
• Address parity protection available on RDIMMs and LRDIMMs detects address bit errors improving service time and overall system availability.

Mezzanine options and I/O

• Support for one (1) FlexibleLOM, providing two (2) (i.e. redundant) Ethernet ports
• Multiple mezzanine I/O expansion slots that support a wide variety of mezzanine cards each supporting multiple data paths routed to redundant interconnect modules.
• Network Adapter Teaming (bonding) provides network fault tolerance, transmit load balancing, and switch-assisted load balancing.

Storage

• Two (2) Small Form Factor hot-plug SAS/SATA/SSD drive bays.
• Choice of SAS controller:

- HPE Smart Array P220i Controller with 512MB FBWC, RAID 0 and 1 support, and upgradeable firmware with recovery ROM capability.

- HPE Dynamic Smart Array B320i controller with optional 512MB FBWC upgrade and/or SAS license upgrade for RAID 0 and 1 support (SAS license comes standard on pre-configured models and comes as an upgrade option when selecting Configure-to-Order models).

Optional dual-port Fibre Channel mezzanine cards for redundant SAN connections.

Processor/Chipset

• Processor internal sensors & thermal control protection against over-temperature conditions.
• Cache parity/ECC protects cache data from accidental data corruption.
• Machine Check Architecture (MCA) detects and captures hardware errors such as system bus, memory ECC, parity, and cache, and improves service time.
• Intel® QPI Protocol Protection allows detection of data errors using a checksum of 8-bits.
• Core Disable for FRB (fault resilient boot) allows a system to power-on despite a failing core-pair. It uses BIST (built-in self test) results to detect a failure and disables the target core-pair upon subsequent boot.

Server Blade Enclosure Infrastructure

• Pooled power for true N+N power redundancy through up to six (6) hot-plug, high-efficiency, enclosure-based power supplies (configuration dependent).
• Up to ten (10) redundant enclosure-based hot-plug HPE Active Cool fans that scale to meet future demands and optimize airflow, reduce power draw, and improve acoustic performance.
• Dual grid power providing redundant rack enclosure power feeds to the server blade enclosure.
• HPE Dynamic Power Saver Mode the total enclosure power consumption is monitored in real time and automatically adjusted with changes in demand for improved efficiency and reliability.
• HPE Dynamic Power Capping safely limits power usage without impacting performance by capping peak instead of average power usage, removes risk to electrical infrastructure with fast-acting, hardware-based capping algorithm, and reclaims more power by dynamically controlling power limits based on workload demand.
• Up to eight interconnect modules per server blade enclosure providing four simultaneous redundant fabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, iSCSI, etc.
• Enclosure crosslinks between adjacent to provide interconnect module-to-module connections or as Virtual Connect module stacking links.
• Optional enclosure redundant Onboard Administrator system management module.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Certain restrictions and exclusions apply. Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
NOTE: Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

Fibre Channel Support

Up to two (2) optional Fibre Channel mezzanine HBAs are supported on the HPE ProLiant BL420c Gen8.

Compatible SAN

HPE ProLiant BL420c Gen8 server blades are optimized for HPE MSA, EVA and XP.
HPE ProLiant BL420c Gen8 server blades are compatible with select 3rd party SANs. Please see blade storage page for more details at:
http://h18004.www1.hp.com/products/blades/components/c-class-sans.html

HPE Virtual Connect

HPE Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to data and storage networks, and reduces costs. Unique HPE Flex-10 technology makes maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect FlexFabric modules extend those capabilities to allocate one function per port to storage connections. HPE Virtual Connect Enterprise Manager (VCEM) provides server management software with a central console to administer network connections and workloads for thousands of servers. For more information on Virtual Connect Enterprise Manager, see http://www.hp.com/go/vcem. For more information on Virtual Connect Ethernet, Fibre Channel, Converged Network and management options, see http://www.hp.com/go/virtualconnect

HPE Insight management software

HPE Insight Control

HPE Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information about this service, see http://www.hp.com/services/insight
HPE Insight Control includes one year of 24 x 7 HPE Software Technical Support and Update Service ensuring rapid access to Hewlett Packard Enterprise support staff and proactive delivery of software updates.

HPE Matrix Operating Environment

The HPE Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business.
The HPE Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HPE CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS). For more information, see http://www.hp.com/go/matrixoe

HPE iLO Scale-Out

The HPE iLO Scale-Out license ideal for web/hosting/cloud service providers and High Performance Computing environments. This license is a specific subset of iLO Advanced functionality, provides fast remote access through Text Console via SSH, lower operational cost with Dynamic power capping, and faster time to resolution through Email-based Alerting and proactive notifications. With this newly designed HPE iLO Scale-Out HPC customers now have a server management package solely design and priced for their massive data environments. HPE iLO Scale-Out is available on all HPE ProLiant Gen8 BL and SL platforms. For more information, see: http://www.hp.com/go/iLO/scale-out

HPE iLO Advanced

HPE Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HPE ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvance

HPE OneView

The HPE OneView architecture combines server, storage, and networking with control of datacenter environmentals into a single, integrated management platform. Architected to deliver lifecycle management for the complete Converged Infrastructure, it facilitates collaboration, removes friction, collapses cycle times, eliminates error-prone work, and accelerates time to value. HPE OneView v1.0 combines management of servers and virtual connect with open integration to automate and customize existing tools and processes. With OneView, you'll work smarter-with greater visibility and control-and fully capitalize on the benefits of a Converged Infrastructure.
For more information on HPE OneView management, see: http://www.hp.com/go/oneview

High Performance Clusters

HPE Cluster Platforms

HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters

HPE HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for this server as part of the HPE Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by Hewlett Packard Enterprise when integrated within an HPE cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html

HPE Insight Cluster Management Utility

HPE Insight Cluster Management Utility (CMU) is an Hewlett Packard Enterprise -licensed and Hewlett Packard Enterprise -supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HPE storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

• Data Protection and Recovery Software
  Whether you're a large enterprise or a smaller business, HPE data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.
• Data Archive and Migration Software
  The HPE storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.
• Storage Resource Management Software (SRM)
  The HPE storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.
• Data Replication Software
  Hewlett Packard Enterprise offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.
• Storage Device Management Software
  Maximize your investment in HPE storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.

HPE StoreVirtual VSA
HPE StoreVirtual VSA allows you to create fully featured shared storage on a VMware vSphere or Microsoft Hyper-V virtualized server. This server model starting November 2013, includes a limited license for HPE StoreVirtual VSA software with 1TB of capacity. To download the license key and StoreVirtual VSA software, visit www.hp.com/go/unlockVSA.
NOTE: You will need your server serial number in order to complete the registration form. Fully functional, capacity-based licenses are available in 4TB, 10T and 50TB sizes. For more information and access to the 60-day free trial, visit: http://www.hp.com/go/tryVSA

HPE Insight Online

HPE Insight Online is a new addition to the HPE Support Center for one stop, secure access to product and HPE support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HPE Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. http://www.hp.com/go/insightonline

HPE Proactive Insight experience

Prevent problems with innovative, automated monitoring tools and proactive services. The HPE Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: http://www.hp.com/go/proactiveinsightexperience

Factory Express Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services on your specific server model please contact your sales representative or go to: http://www8.hp.com/us/en/campaigns/factory-express/server-storage-networking.html

HPE Simple Configurator

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact the HPE Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hp.com/SimplifiedConfig/Index

Service and Support

HPE Technology Services for Industry Standard Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Recommended HPE Pointnext operational services for your HPE product

Optimized Care

HPE Proactive Care Advanced - 24x7 coverage, three year Care Pack Service

Achieve a higher return on your product investment with the personal attention from a locally assigned Account Support Manager who delivers recommendations designed to improve availability and performance.  Leverage your system’s ability to connect to Hewlett Packard Enterprise for automated problem detection and rapid critical event management to increase stability and reduce unplanned downtime. This recommendation provides 24x7 coverage with four-hour response for hardware and two-hour callback for supported software. Collaborative call management comes with Proactive Care Advanced or you may choose full support from Hewlett Packard Enterprise where we own all cases through to resolution. Hewlett Packard Enterprise is a leading provider of support services for most operating systems used on HPE BladeSystem with long, successful partnerships with vendors such as Microsoft, Red Hat, VMware, SUSE and others. Purchasing software support from Hewlett Packard Enterprise simplifies troubleshooting and shortens time to resolution with one call for hardware or software questions.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA5-3259ENW&cc=us&lc=en

Standard Care

HPE Proactive Care with 24x7 coverage, three year Care Pack Service

HPE Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to Hewlett Packard Enterprise.  This Care Pack Service combines three years’ proactive reporting and advice with our 24x7 coverage and enhanced escalation management, four hour hardware response time and two hour call back for software questions on leading industry standard software running on your HPE ProLiant server. https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8855enw.pdf

Related Services

HPE ProLiant Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

Data Privacy Services

Protect your data through better media management.  HPE Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements.  Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. http://www.hp.com/services/dataprivacy

Additional HPE Pointnext operational services can be found at: http://www.hp.com/go/cpc

Get connected to Hewlett Packard Enterprise to improve your support experience

Connecting products to Hewlett Packard Enterprise will help prevent problems with 24x7monitoring, prefailure alerts, automatic call logging, and parts dispatch, plus current data will be available for the proactive reports that are part of Proactive Care Services. With Connected products, you can have a dashboard to manage your IT anywhere, anytime, from any device.

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

The HPE Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Care Pack or Hewlett Packard Enterprise contractual support agreement.

NOTE: HPE Support Center Mobile App is subject to local availability.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

For more information

To learn more on HPE ProLiant servers and HPE BladeSystem servers, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized ServiceOne Channel Partner. Or visit: http://www.hp.com/services/bladesystem

NOTE: This section lists some of the steps required to configure a Factory Integrated Model (configure-to-order or CTO server). To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: Configure-to-order server blades must start with a CTO Blade Server.
NOTE: FIO indicates that this option is only available as a factory installable option.

Step 1: Base Server Blade Configuration (Select a configurable Blade)

HPE Models

HP ProLiant BL420c Gen8 10Gb FlexibleLOM Configure-to-order Blade Server

640996-B21

Configurable Model ships with:

One (1) FlexibleLOM connector providing a choice of one (1) of the supported 10Gb FlexibleLOMs (see Step 2)
One (1) SAS controller connector providing a choice of one (1) of the supported SAS controllers (see step 2)
Two (2) HPE small form factor hot-plug SAS/SATA/SSD hard drive bays
One (1) x8 PCIe 3.0 I/O expansion slot (Type A)
One (1) x16 PCIe 3.0 I/O expansion slot (Type B)
One (1) integrated USB connector and one (1) Micro SDHC connector
One (1) TPM connector
HPE iLO Management Engine (standard)

HP ProLiant BL420c Gen8 1Gb FlexibleLOM Configure-to-order Blade Server

690142-B21

Configurable Model ships with:

One (1) FlexibleLOM connector providing a choice of one (1) of the supported 1Gb FlexibleLOMs (see Step 2)
One (1) SAS controller connector providing a choice of one (1) of the supported SAS controllers (see step 2)
Two (2) HPE small form factor hot-plug SAS/SATA/SSD hard drive bays
One (1) x8 PCIe 3.0 I/O expansion slot (Type A)
One (1) x16 PCIe 3.0 I/O expansion slot (Type B)
One (1) integrated USB connector and one (1) Micro SDHC connector
One (1) TPM connector
HPE iLO Management Engine (standard)

Step 2: Choose Required Options (one of the following from each list unless otherwise noted)

HPE Processors

For single processor configuration choose:

Core Processor Option Kits
NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.
NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and one xxxxxx-B21 in Step 4.

E5-2400 v2 series Processors

HP BL420c Gen8 Intel Xeon E5-2470 v2 (2.4GHz/10-core/25MB/95W) FIO Processor Kit

724181-L21

HP BL420c Gen8 Intel Xeon E5-2450v2 (2.5GHz/8-core/20MB/95W) FIO Processor Kit

724182-L21

HP BL420c Gen8 Intel Xeon E5-2440v2 (1.9GHz/8-core/20MB/95W) FIO Processor Kit

724183-L21

HP BL420c Gen8 Intel Xeon E5-2430 v2 (2.5GHz/6-core/15MB/80W) FIO Processor Kit

724184-L21

HP BL420c Gen8 Intel Xeon E5-2420v2 (2.2GHz/6-core/15MB/80W) FIO Processor Kit

724185-L21

HP BL420c Gen8 Intel Xeon E5-2407v2 (2.4GHz/4-core/10MB/80W) FIO Processor Kit

724188-L21

HP BL420c Gen8 Intel Xeon E5-2403v2 (1.8GHz/4-core/10MB/80W) FIO Processor Kit

724189-L21

HP BL420c Gen8 Intel Xeon E5-2450Lv2 (1.7GHz/10-core/25MB/60W) FIO Processor Kit

724190-L21

HP BL420c Gen8 Intel Xeon E5-2430Lv2 (2.4GHz/6-core/15MB/60W) FIO Processor Kit

724191-L21

NOTE: In a 2 processor configuration, there are twelve (12) total available DIMM slots.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: The BL420c Gen8 supports one or two processors.
NOTE: The BL420c Gen8 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical. Mixing different processor models is not supported.
NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2403 and E5-2407.
NOTE: The letter "L" following the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

HPE Memory

NOTE: HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant BL420c Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HPE SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html
NOTE: LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.
NOTE: A minimum of one DIMM is required per server.
NOTE: For additional memory rules and guidelines, see the "Memory" section later in this document.

HPE SmartMemory

Registered DIMMs (RDIMMs)
NOTE: The following memory is supported by the E5-2400v2 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

713981-B21

HPE 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

731765-B21

HPE 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

713983-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

713985-B21

Registered DIMMs (RDIMMs)
NOTE: The following memory is supported by the E5-2400 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647893-B21

HPE 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit

647897-B21

HPE 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit

647901-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

672631-B21

Unbuffered with ECC DIMMs (UDIMMs)
NOTE: The following memory is supported by the E5-2400v2 series Processors.

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713979-B21

Unbuffered with ECC DIMMs (UDIMMs)
NOTE: The following memory is supported by the E5-2400 series Processors.

HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647905-B21

HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit

647907-B21

HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit

647909-B21

Load Reduced DIMMs (LRDIMMs)
NOTE: The following memory is supported by the E5-2400v2 series Processors.

HPE 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit

708643-B21

Load Reduced DIMMs (LRDIMMs)
NOTE: The following memory is supported by the E5-2400 series Processors.

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600 (DDR3-1333) LRDIMM CAS-9 LP Memory Kit

647903-B21

NOTE: Depending on the memory configuration and processor model, 1866MHz, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at: http://www.hp.com/go/ddr3memory-configurator.

HPE Networking

FlexibleLOM Adapters
NOTE: The server requires one (1) FlexibleLOM that is installed in the FlexibleLOM connectors. All FlexibleLOMs are dual port: One port is routed to interconnect module bay 1 and the other to bay 2.

10Gb FlexibleLOM Adapters

HPE Ethernet 10Gb 2-port 560FLB FIO Adapter

684214-B21

HP FlexFabric 10Gb 2-port 554FLB FIO Adapter

684212-B21

HP FlexFabric 10Gb 2-port 534FLB FIO Adapter

700742-B21

HP Flex-10 10Gb 2-port 530FLB FIO Adapter

684211-B21

NOTE: HPE ProLiant BL420c Gen8 10Gb FlexibleLOM Configure-to-order Blade Server (640996-B21) must be selected in order to select one of the 10Gb FlexibleLOM Adapters

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs

1Gb FlexibleLOM Adapters

HP Ethernet 1Gb 2-port 361FLB FIO Adapter
NOTE: HPE ProLiant BL420c Gen8 1Gb FlexibleLOM Configure-to-order Blade Server (690142-B21) must be selected in order to select the 1Gb FlexibleLOM Adapter.

684216-B21

HPE Storage Controller

HP Dynamic Smart Array B320i FIO Adapter for BL420c Gen8
NOTE: B320i controller requires SAS License Key for SAS RAID 0,1 (see "HPE Storage Controllers - Optional Upgrades" below in the section labeled "Core Options").

651732-B21

HP Smart Array P220i Controller FIO Kit
NOTE: P220i Controller comes standard with 512MB FBWC.

690164-B21

Step 3: Choose Additional Factory Integration Options

HPE Insight Software

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU

C6N36A

Converged Infrastructure Management Software

HPE OneView with iLO Advanced - Server hardware required on same purchase order

HPE OneView for Blade Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

F6Q89A

Step 4: Choose Additional Options for Factory Integration

NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following:

• HPE BladeSystem c3000 Enclosure QuickSpecs:
  http://h18000.www1.hp.com/products/QuickSpecs/12790_div/12790_div.html
  NOTE: The c3000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c7000 Enclosure QuickSpecs:
  http://h18000.www1.hp.com/products/QuickSpecs/12810_div/12810_div.html
  NOTE: The c7000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c-Class Interconnect and Mezzanine Components:
  http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html and
  http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

NOTE: For optimal cooling and system performance the BL420c Gen8 requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

HPE Networking

NOTE: Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server memory.
NOTE: A 10 Gigabit Ethernet adapter supports linking at 1Gbps or 10Gbps when connected to an interconnect module with 10Gb Ethernet downlinks.
NOTE: A 10 Gigabit Ethernet adapter supports linking at only 1Gbps when connected to an interconnect module with 1Gb Ethernet downlinks.
NOTE: The 10 Gigabit Ethernet adapters on each server blade connect to a 10Gb interconnect in bays 3-8 (HPE BladeSystem c7000 Enclosure) or bays 2-4 (HPE BladeSystem c3000 Enclosure).

10 Gigabit Ethernet Mezzanines

HPE Ethernet 10Gb 2-port 560M Adapter

665246-B21

HP FlexFabric 10Gb 2-port 554M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111536.

647590-B21

HP Flex-10 10Gb 2-port 552M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111477.

674764-B21

HPE FlexFabric 10Gb 2-port 534M Adapter
NOTE:NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111370

700748-B21

HP Flex-10 10Gb 2-port 530M Adapter
 NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111538.

631884-B21

1 Gigabit Ethernet Mezzanines

HPE Ethernet 1Gb 4-port 366M Adapter
NOTE:NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111456

615729-B21

FlexibleLOM Adapters
NOTE: The server supports one (1) FlexibleLOM that is installed in the FlexibleLOM connectors and is already included in the pre-configured models. However, it must be added in Step 2 for Configure-to-order Models. The FlexibleLOM options below are used to change these original FlexibleLOMs.

10 Gigabit Ethernet FlexibleLOM Adapters

HPE Ethernet 10Gb 2-port 560FLB Adapter
NOTE:NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111516

655639-B21

HPE FlexFabric 10Gb 2-port 554FLB Adapter
NOTE:NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111537

647586-B21

HP FlexFabric 10Gb 2-port 534FLB Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111370

700741-B21

HPE Flex-10 10Gb 2-port 530FLB Adapter
NOTE:NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111539

656590-B21

1Gb FlexibleLOM Adapters

HP Ethernet 1Gb 2-port 361FLB Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111515

652500-B21

HPE Fibre Channel

HPE LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class

659818-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04163733

HPE QMH2572 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class

651281-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126040

HPE Processors

NOTE: The BL420c Gen8 supports one or two processors.
NOTE: The BL420c Gen8 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical.
NOTE: the letter "L" preceding the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

E5-2400 v2 series Processors

HP BL420c Gen8 Intel Xeon E5-2470v2 (2.4GHz/10-core/25MB/95W) Processor Kit

724181-B21

HP BL420c Gen8 Intel Xeon E5-2450v2 (2.5GHz/8-core/20MB/95W) Processor Kit

724182-B21

HP BL420c Gen8 Intel Xeon E5-2440v2 (1.9GHz/8-core/20MB/95W) Processor Kit

724183-B21

HP BL420c Gen8 Intel Xeon E5-2430v2 (2.5GHz/6-core/15MB/80W) Processor Kit

724184-B21

HP BL420c Gen8 Intel Xeon E5-2420v2 (2.2GHz/6-core/15MB/80W) Processor Kit

724185-B21

HP BL420c Gen8 Intel Xeon E5-2407v2 (2.4GHz/4-core/10MB/80W) Processor Kit

724188-B21

HP BL420c Gen8 Intel Xeon E5-2403v2 (1.8GHz/4-core/10MB/80W) Processor Kit

724189-B21

HP BL420c Gen8 Intel Xeon E5-2450Lv2 (1.7GHz/10-core/25MB/60W) Processor Kit

724190-B21

HP BL420c Gen8 Intel Xeon E5-2430Lv2 (2.4GHz/6-core/15MB/60W) Processor Kit

724191-B21

NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: The BL420c Gen8 supports one or two processors.
NOTE: The BL420c Gen8 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical. Mixing different processor models is not supported.
NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2403 and E5-2407.
NOTE: The letter "L" following the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

HPE Memory

NOTE: HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant BL420c Gen8 Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HPE SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html
NOTE: LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.

HPE SmartMemory

Registered DIMMs (RDIMMs)
NOTE: The following memory is supported by the E5-2400v2 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

713981-B21

HPE 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

731765-B21

HPE 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

713983-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

713985-B21

Registered DIMMs (RDIMMs)
NOTE: The following memory is supported by the E5-2400 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647893-B21

HPE 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit

647897-B21

HPE 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit

647901-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

672631-B21

Unbuffered with ECC DIMMs (UDIMMs)
NOTE: The following memory is supported by the E5-2400v2 series Processors.

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713979-B21

Unbuffered with ECC DIMMs (UDIMMs)
NOTE: The following memory is supported by the E5-2400 series Processors.

HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647905-B21

HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit

647907-B21

HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit

647909-B21

Load Reduced DIMMs (LRDIMMs)
NOTE: The following memory is supported by the E5-2400v2 series Processors.

HPE 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit

708643-B21

Load Reduced DIMMs (LRDIMMs)
NOTE: The following memory is supported by the E5-2400 series Processors.

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600 (DDR3-1333) LRDIMM CAS-9 LP Memory Kit

647903-B21

NOTE: Depending on the memory configuration and processor model, 1866MHz, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at: http://www.hp.com/go/ddr3memory-configurator.

HPE Hard Drives

NOTE: The ProLiant BL420c Gen8 server includes the new HPE hot-plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers are not compatible with the BL420c Gen8 drive bays.
NOTE: The mixing of standard SAS drives with SAS SSD is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.
NOTE: HPE hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: The hard drive options are not required when configuring a drive-less model.

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

HPE 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

NOTE: Please see the QuickSpecs for technical specifications and additional information at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111725.

6G SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive

718162-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

6G SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HPE 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HPE 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111744.

12G SAS (2.5-inch) 512e SC HDD

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e HDD

748387-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765464-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e HDD

791034-B21

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

12G SAS RI-3 SFF SC SSD

HPE 480GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816562-B21

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816568-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816572-B21

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816576-B21

12G SAS MU-3 SFF SC SSD

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822555-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822559-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822563-B21

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822567-B21

6G SATA (2.5-inch) 512e SC HDD

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765453-B21

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765455-B21

6G SATA 2.5in WI-PLP SC SSD

HPE 1.2TB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804677-B21

HPE 800GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804671-B21

HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804665-B21

HPE 200GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804639-B21

6G SATA 2.5in MU-PLP SC SSD

HPE 1.6TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804631-B21

HPE 800GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804625-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

832414-B21

HPE 200GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804613-B21

6G SATA 2.5in RI-PLP SC SSD

HPE 1.6TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804605-B21

HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804599-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804593-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804587-B21

HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804581-B21

HPE 80GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804575-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives

NOTE: These drives support Gen8 servers only.

HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

717965-B21

HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

734360-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives

NOTE: These drives support Gen8 servers only.

HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

717973-B21

HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

739898-B21

HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

717971-B21

HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

739888-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

717969-B21

6G SATA Value Endurance SFF (2.5-inch) SC Enterprise Value M1 Solid State Drives

HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764923-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764925-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764927-B21

HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764929-B21

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691868-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691866-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691864-B21

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691862-B21

6G SATA VE Hot Plug SFF (2.5-inch) SC EV G1 Solid State Drives

HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive

756657-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive

756636-B21

HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid State Drive

756621-B21

6G SATA LE Hot Plug SFF (2.5-inch) SC EL Solid State Drives

HP 960GB 6G SATA Light Endurance SFF 2.5-in SC Enterprise Light 3yr Wty G1 Solid State Drive

756601-B21

6G SATA Read Intensive (2.5-inch) SC G2 Solid State Drive

HP 240GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive

789135-B21

HP 480GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive

789145-B21

12G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759212-B21

HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759210-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759208-B21

12G SAS Hot Plug SFF (2.5-inch) SC ENT HDD

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

781518-B21

HPE 900GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785069-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in ) SC 3yr Wty HDD

781516-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785067-B21

12G SAS ME SFF (2.5-inch) SC Enterprise Mainstream H2 Solid State Drives

HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779164-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779168-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779172-B21

HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779176-B21

12G SAS VE SFF (2.5-inch) SC EV Solid State Drives

HP 1.6TB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

757339-B21

HP 1.6TB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

762263-B21

HPE 800GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

762261-B21

12G SAS Write Intensive SFF (2.5-inch) SC 3yr Wty H2 Solid State Drive

HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802578-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802582-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802586-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

802891-B21

NOTE: The mixing of standard SAS drives with SAS SSD is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.
NOTE: HPE Dynamic Smart Array B320i Controller requires a SAS license key for RAID 0 and 1 functionality for SAS drives when selecting a Configure-to-Order server. The SAS RAID license comes standard with preconfigured servers. SATA RAID 0/1 standard.

NOTE: Please see the QuickSpecs for technical specifications and information at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154378.

HPE Insight software

HPE Insight Control

HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU

C6N27A

HPE Insight Control including 1yr 24x7 TSU E-LTU

C6N28ABE

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO E-LTU

C6N36ABE

HP Insight Control Server Provisioning Media Kit

BD883A

HPE Insight Management Media Kit
NOTE:NOTE: HPE Insight Management Media Kit contains DVDs without licenses. Contains HPE Systems Insight Manager, HPE Insight Control, HPE Matrix Operating Environment, and Virtual Connect Enterprise Manager software. Uses an integrated installer to perform quick and accurate software installation and updates.

C6N31A

NOTE: HPE Insight Control 7.2 introduces Insight Control server provisioning, a new capability ideal for multi-server OS and firmware provisioning to ProLiant and BladeSystem servers. Insight Control server provisioning is included and licensed as part of HPE Insight Control. A media kit, "HPE Insight Control server provisioning USB media kit" (# BD883A), including a USB, is available for customers who require a physical copy of the media loaded with Insight Control server provisioning software. Please note that this media kit is separate and in addition to the "HPE Insight Management DVD media kit" (#C6N31A).

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HPE Software Technical Support Service.

NOTE: Licenses ship without media. The HPE Insight Management Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.

NOTE: For additional license kits, please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123391

HPE iLO Advanced

HPE Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem Remote Management

HPE iLO Advanced for BladeSystem including 1yr 24x7 Technical Support and Updates E-LTU
NOTE:NOTE: The Electronic software license is available in EMEA only.

E6U60ABE

HPE iLO Advanced for BladeSystem including 1yr 24x7 Support 1-server LTU

512488-B21

HPE iLO Advanced for BladeSystem including 3yr 24x7 Technical Support and Updates E-LTU
NOTE:NOTE: The Electronic software license is available in EMEA only.

E6U63ABE

HPE iLO Advanced for BladeSystem including 3yr 24x7 Tech Support and Updates 1-server LTU

BD502A

HPE Integrated Lights-Out (iLO)

HPE iLO Scale Out

HPE iLO Scale-Out 3yr 24x7 Tech Support and Updates Flexible Quantity LTU

BD776A

HPE iLO Scale-Out 1yr 24x7 Tech Support and Updates Flexible Quantity LTU

BD778A

HPE iLO Scale-Out including 3yr 24x7 Tech Support and Updates Flex Qty E-LTU

BD776AAE

HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Flex Qty E-LTU

BD778AAE

HPE iLO Scale-Out including 3yr 24x7 Tech Support and Updates Tracking LTU

BD777A

HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Tracking LTU

BD779A

NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HPE Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the iLO QuickSpecs at http://www.hp.com/go/iLO

Converged Infrastructure Management Software

HPE OneView

HPE OneView with iLO Advanced

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView Media Kit Phys No Lic

HPE OneView Physical Media Kit LTU

E5Y37A

NOTE: For additional license kits please see the QuickSpecs at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111367

Cloud Management Software

Helion Software

HPE Helion OpenStack

HPE Helion OpenStack 5yr 9x5 Support RTU

P9A13A

HPE Helion OpenStack 5yr 9x5 Support E-RTU

P9A13AAE

HPE Helion OpenStack 5yr 24x7 Support RTU

P9A14A

HPE Helion OpenStack 5yr 24x7 Support E-RTU

P9A14AAE

HPE Helion Platform

HPE Helion Platform 5yr 9x5 Support RTU

P9A15A

HPE Helion Platform 5yr 9x5 Support E-RTU

P9A15AAE

HPE Helion Platform 5yr 24x7 Support RTU

P9A16A

HPE Helion Platform 5yr 24x7 Support E-RTU

P9A16AAE

HPE Helion Dev Plat

HPE Helion Development Platform 5yr 9x5 Support RTU

P9A17A

HPE Helion Development Platform 5yr 9x5 Support E-RTU

P9A17AAE

HPE Helion Development Platform 5yr 24x7 Support RTU

P9A18A

HPE Helion Development Platform 5yr 24x7 Support E-RTU

P9A18AAE

NOTE: For additional information on HPE Helion Portfolio please go to: http://www8.hp.com/us/en/cloud/helion-portfolio.html#!&pd1=2&pd3=2&pd5=2

High Performance Clusters

HPE Cluster Management Utility

HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU

QL803B

HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU
NOTE:NOTE: These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.

BD476A

HPE Insight Cluster Management Utility Media
NOTE:NOTE: For additional license kits please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735.

BD477A

HPE I/O Accelerator Options

HPE 1.2TB Read Intensive Mezzanine PCIe Workload Accelerator for BladeSystem c-Class

794603-B21

HPE 1.6TB Read Intensive Mezzanine PCIe Workload Accelerator for BladeSystem c-Class

794605-B21

HPE Security

HPE Trusted Platform Module Option

488069-B21

NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline.
NOTE: For more information about TPM, including a white paper, go to: https://www.hpe.com/h20195/v2/getpdf.aspx/4aa5-4782enw.pdf
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

HPE Storage Controllers

HPE Smart Array P731m/2G Controller

HP Smart Array P731m/2GB FBWC 6Gb 4-ports Ext Mezzanine SAS Controller

698535-B21

NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.

HP Smart Array P731m/512 FBWC 6Gb 4-ports Ext Mezzanine SAS Controller
NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.

698536-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111381.
(Smart Array P731m Controller)

HPE Smart Array P721m Controller

HP Smart Array P721m/2GB FBWC 6Gb 4-ports Ext Mezzanine SAS Controller
NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.

650072-B21

HP Smart Array P721m/512 FBWC 6Gb 4-ports Ext Mezzanine SAS Controller
NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.

655636-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111449.
(Smart Array P721m Controller)

HPE Dynamic Smart Array B320i Specific Options:

NOTE: The following storage controller options below are not supported on the HPE Smart Array P220i controller.

HPE 512MB B-series Dynamic Smart Array Flash Backed Write Cache with 24 inch Cable

676473-B21

HPE SAS License Key No Media 1 Single Server License for B320i

BC393A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154413
(Smart Array Advanced Pack)

HPE Secure Encryption

HP Secure Encryption per Svr Entitlement

C9A82AAE

HPE InfiniBand Mezzanines

NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active (regardless of operating mode). When installed in any other mezzanine slot, both ports are active.
NOTE: InfiniBand QDR and FDR speeds are only supported on the HPE BladeSystem c7000 Enclosure. For additional information, please see the HPE BladeSystem c7000 Enclosure and InfiniBand QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126044
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154440

HP Infiniband QDR/Ethernet 10Gb 2-port 544M Adapter

644160-B21

NOTE: The QDR InfiniBand adapter may be installed in any mezzanine slot of the server.

HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544M Adapter
NOTE: The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode and may be installed in any mezzanine slot if operated in any other mode.

644161-B22

HP InfiniBand FDR 2-port 545M Adapter

702213-B21

HPE Flash Media Kits for USB Drives

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

HPE 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

HPE 32GB microSD Mainstream Flash Media Kit

700139-B21

HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit
NOTE:NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123175

737953-B21

HPE Pointnext operational services

Proactive Care - Collaborative Support plus Proactive services delivered by the on shore/near shore Advanced Solution Center (ASC) and backed by the global delivery organization, end-to-end case ownership from a Technical Solution Specialists and Technical Account Manager who remotely delivers firmware/software revision management, proactive scans and incident trend reports. Recommended for customers running a virtualized infrastructure and/or customers who desire an enhanced call support experience.

HPE 3 year Proactive Care 24x7 ProLiant BL4xxc Service

U3B14E

HPE 3 year Proactive Care 24x7 with DMR ProLiant BL4xxc Service

U3B17E

HPE 3 year Proactive Care Call to Repair ProLiant BL4xxc Service

U3B20E

HPE 3 year Proactive Care Call to Repair 24x7 with DMR ProLiant BL4xxc Service

U3B23E

Proactive Care Personalized Support Environmental Option - to add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who delivers support planning and brings technical expertise and best practices advice for the customer's environment.

Installation Services - reduce the time required to get your system up and running and help minimize disruptions to your business.

HPE Install c-Class Server Blade Service

UE493E

HPE Hardware Installation during Non Standard Hours c-Class Server Blade Service

UG869E

Additional HPE Pointnext operational services can be found at:
http://www.hp.com/go/cpc

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
http://www.hp.com/go/ddr3memory-configurator

Memory Subsystem Architecture
Each Intel® Xeon® E5-2400 family or Intel Xeon E5-2400v2 family processor socket contains three memory channels that support two DIMMs each for a total of six (6) DIMMs per installed processor or a grand total of twelve (12) DIMMs for the server. Up to 32GB capacity DIMMs are supported for 384GB of memory (12 DIMM slots x 32GB per DIMM).

Memory Population Rules and Guidelines:

• A minimum of one DIMM is required per server.
• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two processor system, only half of the DIMM slots are available.
• To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.
• RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the higher voltage.
• RDIMMs, LRDIMMs, and UDIMMs cannot be mixed.
• DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the memory type and number of installed processors.
• HPE memory from previous generation servers is not compatible with the BL420c Gen8 Server Blade.
• To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html.

• For memory population rules and additional memory guidelines, please see the BL420c Gen8 user guide at http://www.hp.com/support

Memory Speed by E5-2400 series Processor Model

Memory Speed by E5-2400 v2 series Processor Model

Standard and Maximum Memory Capacity (Pre-configured Models)

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 2GB = 2,048MB
• 4GB = 4,096MB
• 8GB = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB

Memory options part number decoder

Following are memory options available from Hewlett Packard Enterprise:
NOTE: HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant BL420c Gen8 Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HPE SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html
NOTE: LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.

HPE Memory

HPE SmartMemory

Registered DIMMs (RDIMMs)
NOTE: The following memory is supported by the E5-2400 v2 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

713981-B21

HPE 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

731765-B21

HPE 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

713983-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit

713985-B21

Registered DIMMs (RDIMMs)
NOTE: The following memory is supported by the E5-2400 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647893-B21

HPE 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit

647897-B21

HPE 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit

647901-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

672631-B21

Unbuffered with ECC DIMMs (UDIMMs)
NOTE: The following memory is supported by the E5-2400v2 series Processors.

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713979-B21

Unbuffered with ECC DIMMs (UDIMMs)
NOTE: The following memory is supported by the E5-2400 series Processors.

HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647905-B21

HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit

647907-B21

HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory Kit

647909-B21

Load Reduced DIMMs (LRDIMMs)
NOTE: The following memory is supported by the E5-2400v2 series Processors.

HPE 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit

708643-B21

Load Reduced DIMMs (LRDIMMs)
NOTE: The following memory is supported by the E5-2400 series Processors.

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600 (DDR3-1333) LRDIMM CAS-9 LP Memory Kit

647903-B21

NOTE: Depending on the memory configuration and processor model, 1866MHz, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section in this document and the Online Memory Configuration Tool for details at: http://www.hp.com/go/ddr3memory-configurator.

1-2

2 x SFF hot-plug SAS, SATA, SAS SDD, and SATA SSD hard drives

System Unit

Dimensions (H x W x D)
(with bezel)

7.11 x 2.18 x 20.37 in (18.07 x 5.54 x 51.76 cm)

Weight
(approximate)

Maximum: all processors, 12 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed)

14.00 lb (6.33 kg)

Minimum: one processor and 2 DIMMs installed

10.50 lb (4.75 kg)

Power Specifications

For power specifications including input requirements, BTU rating, and power supply output, please see the:

• HPE BladeSystem c3000 Enclosure QuickSpecs at
  http://h18000.www1.hp.com/products/QuickSpecs/12790_div/
  12790_div.html.
• HPE BladeSystem c7000 Enclosure QuickSpecs at
  http://h18000.www1.hp.com/products/QuickSpecs/12810_div/
  12810_div.html.

NOTE: For optimal cooling and system performance the BL420c Gen8 requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at: http://www.hp.com/go/hppoweradvisor.

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight.

Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.

System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3,050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

Non-operating

9,144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

Acoustic Noise

For acoustic noise specifications, please see the HPE BladeSystem c-Class Enclosures QuickSpecs located at:
HPE BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/QuickSpecs/12790_div/
12790_div.html
HPE BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/QuickSpecs/12810_div/
12810_div.html

HPE Smart Array P220i Controller

Disk Drive Interface

6Gb/s SAS (Serial Attached SCSI)

Server Interface

x4 PCI Express host interface

Cache Memory

512MB flash backed write cache (FBWC) cache standard

Logical Drives Supported

64 (with included 512MB cache)

Host Memory Addressing

64-bit, supporting servers memory space greater than 4GB

RAID Support

RAID 1 (mirroring) and RAID 0 (striping)

Other

Upgradeable firmware with recovery ROM
Online drive flash (with SAS drives)

HPE Dynamic Smart Array B320i Controller

Dimensions

Embedded

Disk Drive Interface - Transfer rate

Up to 6Gb/s SAS (Serial Attached SCSI)
Up to 6Gb/s SATA (Serial ATA)

Connectors

2 internal 4X connectors

Server Interface

x8 PCIe 3.0 provides 8GB/s maximum bandwidth

Speed

8 6Gb/s SAS links provide 4.8GB/s maximum bandwidth

Cache Memory

Zero Memory RAID has no cache memory
optional 40-bit 512MB ECC protected Flash Backed Write Cache (FBWC)

Logical Drives Supported

Zero Memory, Up to 2 logical volumes (8 physical drives)
Up to 64 logical drives with cache

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

Hot Plug Support

Yes

RAID Support

RAID 0 (Striping), RAID 1 (Mirroring)

RAID 1+0 (Striping & Mirroring)

RAID 5 with optional 512MB FBWC

NOTE: 512 MB cache is required to enable RAID 5 support

HPE FlexFabric 10Gb
2-port 554FLB FlexibleLOM

Type

Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing 1Gb/10Gb Ethernet capability)

Network Processor

Emulex BE3

Data Transfer Method

x8 PCIe 2.0

Network Transfer Rate

Two ports, each at 20Gbps full duplex; 40Gbps aggregate full duplex theoretical bandwidth
NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HPE BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
NOTE: Each port on the 554FLB adapter transmits from the server at 20Gbps (theoretical) full duplex.

IEEE Compliance

802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4) and 802.3x

Standard Features

ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
9K Jumbo frames (4K Jumbo frames when in FCoE mode)
Microsoft Windows Receive Side Scaling (RSS)
Hardware-based accelerated iSCSI
iSCSI boot
Flex-10 capability
Fibre Channel over Ethernet (FCoE)
TCP/IP offload engine (stateless TCP/IP)
Autosensing 1Gb/10Gb Ethernet

HPE Ethernet 1Gb
2-port 361FLB Adapter

Type

Dual port 1Gb Ethernet FlexibleLOM

Network Processor

Intel I350 Ethernet Controller

Data Transfer Method

x4 PCIe 2.0

Network Transfer Rate

Two ports, each at 1000 Mbps full duplex (theoretical maximum)
NOTE: The 361FLB adapter transmits from the server at only 1 Gbps full duplex per port.

IEEE Compliance

802.1p, 802.1Q, 802.3, 802.3ad, and 802.3x, IEEE1588, 802.1AS

Standard Features

ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
TCP/IP checksum offloading
large send offloading
Wake-on-LAN
jumbo frames
PXE
VLAN tagging
Virtualization
IEEE 1588, DMA Coalescing
HPE Sea of Sensors 3-D Technology

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

23-Oct-2017

From Version 32 to 33

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

11-Dec-2015

From Version 31 to 32

Added

SKUs added in Core Options and Additional Options section:

816562-B21, 816568-B21, 816572-B21, 816576-B21, 822555-B21, 822559-B21, 822563-B21, 822567-B21, P9A13A, P9A13AAE, P9A14A, P9A14AAE, P9A15A, P9A15AAE, P9A16A, P9A16AAE, P9A17A, P9A17AAE, P9A18A, P9A18AAE

Changed

Memory, Additional Options, Core Options, Configuration Information Factory Integrated Models sectios were updated.

Removed

Obsolete SKU deleted:
789155-B21, E5Y38A, E5Y39AAE, 667372-B21, 667373-B21, 667423-B21, 667374-B21, 667375-B21, 667424-B21, 667376-B21, 667421-B21, 667422-B21.

28-Sep-2015

From Version 30 to 31

Changed

Core Options section  and links were updated.

Added

SKUs added in OneView:

P8B24A, P8B26AAE, P8B31A

Removed

Obsolete SKUs were deleted:

F6Q89AAE, 741155-B21

17-Aug-2015

From Version 29 to 30

Changed

Standard Features Sections was updated.

Added

SKUs added in Additional Options and Core Options sections:

C9A82AAE, 804677-B21, 804671-B21, 804665-B21, 804639-B21, 804631-B21, 804625-B21, 832414-B21, 804613-B21, 804605-B21, 804599-B21, 804593-B21, 804587-B21, 804581-B21, 804575-B21

Removed

Obsolete SKUs deleted:

U6W98E

01-Jun-2015

From Version 28 to 29

Added

SKUs added in Core Options section:

748387-B21, 791034-B21

Removed

Obsolete SKUs removed:

741159-B21, 741151-B21

30-Mar-2015

From Version 27 to 28

Added

SKUs Added:

802578-B21, 802582-B21, 802586-B21, 802891-B21, 765453-B21, 765455-B21, 765464-B21, 781518-B21, 765466-B21, 789135-B21, 789145-B21, 789155-B21, 794603-B21, 785069-B21, 781516-B21, 785067-B21

Removed

Obsolete SKUs deleted:

741146-B21, 741138-B21, 741142-B21

09-Feb-2015

From Version 26 to 27

Changed

Service and Support section was updated

Added

HDD SSD 6G and 12G:

779164-B21, 779168-B21, 779172-B21, 779176-B21, 764923-B21, 764925-B21, 764927-B21, 764929-B21

Removed

Obsolete SKUs removed:

668356-B21, 668357-B21, 668358-B21, 668359-B21, 667372-L21, 667373-L21, 667423-L21, 667374-L21, 667375-L21, 667424-L21, 667376-L21, 667421-L21, 667422-L21

01-Dec-2014

From Version 25 to 26

Changed

Core Options and Additional Options sections were updated

Added

SKU Added on Hard Drives:

757339-B21, 756601-B21

Removed

Obsolete SKUs deleted:

653078-B21

01-Nov-2014

From Version 24 to 25

Changed

Service and Support section was updated

10-Oct-2014

From Version 23 to 24

Changed

Standard Features section was updated

Removed

Expansion Blade Support section deleted from Optional Features

HPE Ultrium Tape Blades, HPE Storage Blades and  HPE Expansion Blade sections deleted from Additional Options

29-Sep-2014

From Version 22 to 23

Added

SKUs added on HPE Hard Drives:

764929-B21, 764927-B21, 764925-B21, 764923-B21, 756657-B21, 756636-B21, 756621-B21

18-Aug-2014

From Version 21 to 22

Changed

Maximum Internal Storage on Standard Features, Models, Core Options sections were updated

Added

SKUs Added on Hard Drives:

759212-B21, 759210-B21, 759208-B21

10-Jun-2014

From Version 20 to 21

Changed

Overview, Standard Features, Preconfigured Models, Configuration Information, Core Option sections were updated

Removed

HPE Flash Media Kits for USB Drives was removed from Additional Options

31-Mar-2014

From Version 19 to 20

Changed

Hot Plug SFF SAS maximum internal storage was increased to 2.4TB

Processor, Memory, Hard Drive, HPE iLO Advanced and HPE InfiniBand Mezzanines product descriptions were revised

HPE Insight Control server deployment was removed from HPE Insight Software

18-Feb-2014

From Version 18 to 19

Changed

Processors, Memory, Converged Infrastructure Management Software, and HPE InfiniBand Mezzanine Options were revised.

22-Jan-2014

From Version 17 to 18

Changed

The link in the Note was corrected in the Standard Features/ Upgradeability section.

17-Jan-2014

From Version 16 to 17

Changed

The Note in the Standard Features/ Upgradeability section was updated.

09-Jan-2014

From Version 15 to 16

Changed

The Processors and Memory sections were revised throughout the QuickSpecs.

13-Dec-2013

From Version 14 to 15

Added

Added the following:

Support for HPE OneView Licenses

Support for HPE 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

Support for HPE 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

13-Sep-2013

From Version 13 to 14

Changed

HPE Insight Software Management, High Performance Clusters, Memory, HPE Networking, Hard Drives, and Storage Controllers were revised.

10-Jun-2013

From Version 12 to 13

Changed

HPE 2GB and 4GB Single Rack Unbuffered Memory and Storage Controller product description were revised.

13-May-2013

From Version 11 to 12

Changed

Additional Options: updated the HPE InfiniBand Mezzanines and HPE Pointnext operational services sections.

25-Mar-2013

From Version 10 to 11

Changed

Optional Features: Updated Hyperlink in the HPE Proactive Insight experience section.

Added

Standard Features: Added Notes to At A Glance section.

Configuration Information - Factory Integrated Models: Added Notes to Step 4

Removed

Removed Platinum reference from entire QS

01-Mar-2013

From Version 9 to 10

Added

Core Options: Added p/n 665246-B21

25-Feb-2013

From Version 8 to 9

Changed

Changes made in the following sections:

Standard Features: Maximum Internal Storage, HPE Insight management software, Models, Core Options: HPE Networking and Hard Drives, Additional Options: HPE Insight software and Storage

Added

What's New section

Added Step 3 to Configuration Information.

18-Jan-2013

From Version 7 to 8

Changed

Memory descriptions were updated throughout the QuickSpecs.

Added

Added Notes to the HPE I/O Accelerator Options section.

05-Dec-2012

From Version 6 to 7

Changed

Changes made to the Standard Features, Configuration Information, Options, Memory and Storage sections.

19-Oct-2012

From Version 5 to 6

Changed

Change was made to SKU description in Additional Options section.

28-Sep-2012

From Version 4 to 5

Changed

Changes were made in Standard Features and Additional Options sections.

24-Sep-2012

From Version 3 to 4

Changed

Changes were made in Standard Features, Optional Features and Additional Options sections.

13-Aug-2012

From Version 2 to 3

Changed

Changes made in Overview, Configuration Information, Core Options, Additional Options and Memory sections.

20-Jul-2012

From Version 1 to 2

Changed

Changes made in the Memory section only.
