HPE LPe1205A 8Gb FC HBA Opt: технические характеристики и документация
В архивеOverview
|

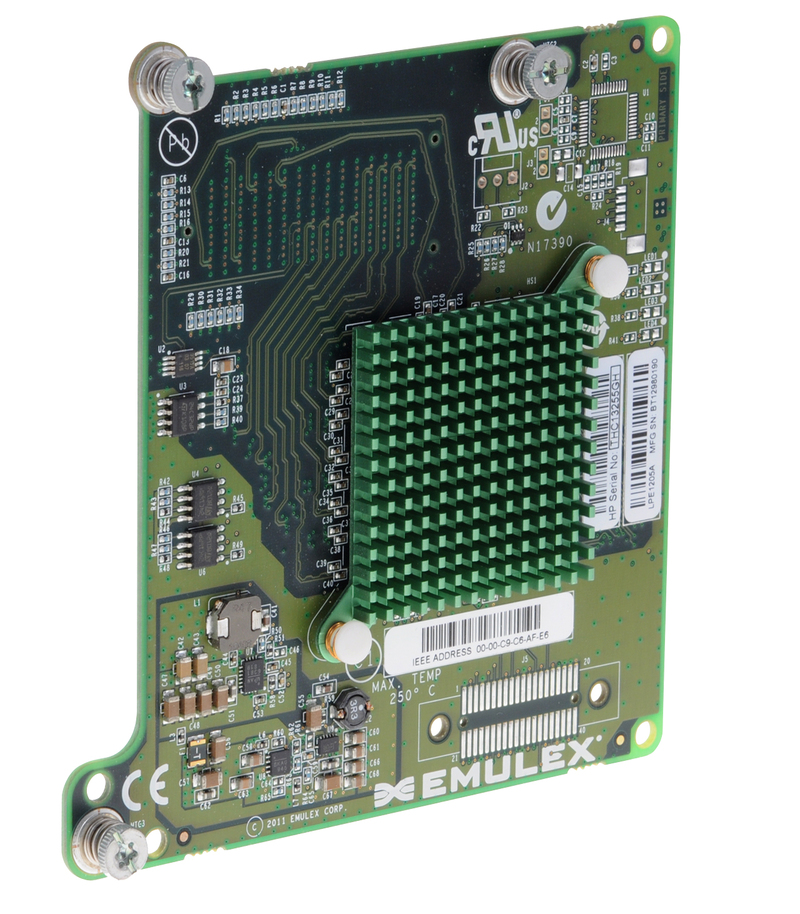

HPE LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class Extended SKU - This adapter is part of an extended catalog of products tailored for customers in specific markets or with specific workloads, requiring the utmost in performance or value, but typically have a longer lead-time. The HPE LPe1205A dual port Fibre Channel HBA provides reliable, high-performance connectivity up to 8Gb/s. The HPE LPe1205A also provides features such as data integrity, security and virtualization which are all complimentary to initiatives important to the enterprise data center. For greater system up time, the HPE LPe1205A dual port design is the ideal Fibre Channel connectivity solution for applications that rely on high-availability for business continuity. The HPE LPe1205A leverages the several generations of Fibre Channel design to provide the greatest level of performance, scalability and manageability. Using Emulex's exclusive firmware and driver architecture, the HPE LPe1205A is designed to be fully driver compatible with all Emulex HBAs. Furthermore, this architecture allows firmware to be upgraded without taking the server off-line or re-booting, and without the need to upgrade the driver. This provides hardware investment protection and ensures maximizes system uptime. As with all Emulex LightPulse Fibre Channel HBAs, the HPE LPe1205A is managed with Emulex OneCommand™ Manager (OCM) HBA management application. OCM provides a secure, centralized administration console to discover, and manage Emulex Fibre Channel HBAs on local and remote hosts. Powerful diagnostic tools and flexible interface options (GUI, CLI and Browser) provide the greatest level of manageability. Fibre Channel is the de-facto standard for virtual server storage connectivity and Emulex HBAs are fully qualified for virtual server environments.  HPE LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class
|
Platform Information
|
Models
|
Compatibility - Supported Servers | 8Gb c-Class HBA Mezzanine (Mezz) Card Applications
NOTE: The HPE LPe1205A 8Gb FC HBA for HPE BladeSystem c-Class must be deployed with the c-Class BladeSystem infrastructure and will only work with the BL c-Class Server Enclosures.
NOTE: The HPE LPe1205A 8Gb FC HBA for HPE BladeSystem c-Class is not compatible with HPE ProLiant Generation 7 and earlier server blades.
NOTE: This is a Type A mezzanine card, and can be configured in either Type A or Type B slots on HPE ProLiant Gen8 Server Blades.
| |||
Interoperability - HPE Storage and Third Party Switches |
NOTE:
*Servers must connect to a SAN and never directly to a storage device.
| ||||||
Standard Features
At a Glance Features |
| |||||||||||||||||||
Cost-savvy |
| |||
Change-ready |
| |||
Energy-thrifty |
| |||
Time-smart |
| ||||
Superior Quality and Reliability | Emulex HBAs deliver industry-leading reliability levels by utilizing a field-proven, single-chip design that minimizes components. Emulex HBAs also use a combination of parity, CRC, ECC and other advanced error checking methods to verify the integrity of data blocks, which are passed from the host interface through the HBA. |
The Most Efficient Installation and Management | Emulex management tools automate installation and provide local and remote HBA configuration and management. Emulex's unique Service Level Interface (SLI™) architecture allows complete independence of device drivers from HBA hardware and firmware. That means no reboots during most configuration changes and no need for OS specific firmware. A single driver model simplifies management across multiple generations of HBAs. In addition, Emulex HBAs have a firmware-based architecture that enables feature and performance upgrades without costly hardware changes, for long-term investment protection and seamless backward compatibility. |
Maximum SAN Performance | Emulex HBAs deliver maximum performance levels in real-world application environments, with superior fullduplex data throughput and I/Os per second. And Emulex's exclusive Dynamic Frame Multiplexing ensures consistently superior performance in mixed load environments such as disk and tape back-up applications. |
The Fastest Diagnosis and Recovery | Comprehensive diagnostic functions, coupled with detailed event logging and tracing, provide for fast, efficient SAN troubleshooting. |
The Broadest Enterprise Deployment | With the largest installed base of any Fibre Channel HBA supplier, Emulex is trusted by the world's largest, mission critical enterprises. Long-standing partnerships with leading storage vendors ensure unparalleled compatibility levels. |
Software Features | A rich suite of management tools complements the LightPulse family of enterprise Fibre Channel HBAs. As a centralized management suite, HBAnyware incorporates agent technology that provides discovery, reporting and management of local and remote HBAs with both in-band Fibre Channel and out-of-band IP support, enabling sophisticated management capabilities such as remote firmware upgrades and advanced diagnostics from a single console anywhere in the SAN. All Emulex device drivers are fully compatible with previous generations of Emulex host bus adapters. A single driver binary supports all Emulex HBAs on a given host platform, streamlining the management of device drivers in environments with multiple generations and versions of HBAs, simplifying the upgrade process, and providing investment protection. NOTE: For the latest Driver and Operating System options, please
visit: http://h17007.www1.hpe.com/us/en/enterprise/servers/supportmatrix/ |
Warranty | Maximum: The remaining warranty of the HPE product in which it is installed (to a maximum three-year, limited warranty). Minimum: One year limited warranty. NOTE:
Additional information regarding worldwide limited warranty and technical support is available at:
http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/index.aspx#.V4e3tPkrJhE
|
Service and Support
Service and Support | NOTE:
This adapter is covered under HPE Support Services/ Service Contract applied to the HPE ProLiant Server or enclosure. No separate HPE Support Services need to be purchased.
Most HPE branded options sourced from HPE that are compatible with your product will be covered under your main product support at the same level of coverage, allowing you to upgrade freely. Additional support is required on select workload accelerators, switches, racks and UPS options 12KVA and over. Coverage of the UPS battery is not included under HPE support services; standard warranty terms and conditions apply. |
Warranty and Support Services | Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS options 12KVA and over. Coverage of the UPS battery is not included under TS support services; standard warranty terms and conditions apply. |
Protect your business beyond warranty with HPE Support Services | HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to HPE to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement to the support you need for your IT and business. Protect your product, beyond warranty. |
Parts and Materials | Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
For more information | Visit the Hewlett Packard Enterprise Service and Support website. |
Technical Specifications
System Unit |
| ||
Power and Environmental Specifications |
| ||||||||||||||||
Environment-friendly Products and Approach - End-of-life Management and Recycling | Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
Summary of Changes
|
| ||||||||||
