HP ProLiant BL620c Generation 7 (G7) Server Blade: технические характеристики и документация

• Support for the HP OneView Software integrated management platform and a HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit

Four (4) integrated HP NC553i 10Gb FlexFabric adapter ports supporting 10Gb/1Gb autosensing Ethernet, FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, and iSCSI boot.

Three (3) mezzanine expansion slots as follows:

• Two (2) Type II (25 watts) x8 PCIe Gen2; mezzanine slots 2 and 3 supporting QDR IB, 4Gb and 8Gb FC, 10Gb FlexFabric, 10Gb Flex10, 10GbE, 1GbE, the Smart Array RAID controllers, and the PCI Pass-thru Expansion card.

  • Mezzanine slot's 2 ports are routed to interconnect bays 5,6,7,8 (c7000) and 3,4,3,4 (c3000)

  • Mezzanine slot's 3 ports are routed to interconnect bays 7,8,5,6 (c7000) and 3,4,3,4 (c3000)
• One (1) Type I (15 watts) x4 PCIe Gen2; mezzanine slot 1 supporting 4Gb and 8Gb FC, 10Gb FlexFabric, 10Gb Flex10, 10GbE, and 1GbE

  • Mezzanine slot's 1 ports are routed to interconnect bays 3,4,3,4 (c7000) and 2,2,2,2 (c3000)

• NOTE: HP recommends 10Gb adapters be installed in a x8 PCIe slot for optimal performance.

• NOTE: Type II slots accept both Type I or Type II cards. Type I slots accepted Type I cards only.

Integrated SAS version 2.0 (6Gb) HP Smart Array P410i Controller with RAID 0 and 1.
NOTE: The P410i is configured with no cache allowing the end user to select the desired option (if cache is desired in the first place).
NOTE: RAID 0 and 1 are supported on the P410i without the need for a cache option.
P410i 512MB and 1GB flash backed write cache (FBWC) options.
Optional Smart Array RAID mezzanine controllers (with BBWC and FBWC) for connection to external storage.
NOTE: The server supports up to a combined total of two (2) battery cache options for the P410i and/or optional Smart Array RAID controllers.
Optional HP D2200sb PCIe Storage Blade for direct attached and shared storage within the c-Class enclosures.

• ACPI 2.0 Compliant
• PCI 2.2 Compliant
• Microsoft® Logo certifications
• USB 2.0
• Secure Digital 2.0
• TMP 1.2
• IEEE (see the NC553i Technical Specifications section)
• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP
• SSL 2.0
• Active Directory v1.0 (Windows 2003)
• IPMI 2.0
• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware Server
Citrix XenServer

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page http://www.hp.com/support/BL620cG7

HP offers two different c-Class server blade enclosures to meet your individual needs:

• The HP BladeSystem c7000 rack enclosure is 10U high and holds up to 4 HP ProLiant BL680c G7 servers plugged vertically.

• The HP BladeSystem c3000 rack enclosure is 6U high and holds up to 2 HP ProLiant BL680c G7 servers plugged horizontally.

Server blades, storage blades, and interconnect modules are all designed to fit into the c7000 and c3000 enclosures.

NOTE: For optimal cooling and system performance the HP ProLiant BL620c G7 server requires the c7000 enclosure to be configured with 10fans and the c3000 enclosure to be configured with 6 fans.

For additional enclosure information, please see: http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html

Integrated Matrox G200 video standard

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

• 16 MB Flash
• 256 MB DDR 3 with ECC (112 MB after ECC and video)

Full height, single wide server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures

Insight Foundation is being baselined at version v8.70 which means the following:

• Its Media Kit (contains 2 SmartStart CDs, the Firmware DVD, and the Management DVD) will continue to ship with all supported ProLiant G7 or earlier BTO servers until the last supported server is no longer shipping.
• The Media Kit will not be updated past version 8.70.
• ProLiant G7 or earlier CTO servers are able to order the Media Kit with the understanding that the media is not updated. Please check specific server QuickSpecs for availability of CTO Kit.
• PSP and Firmware DVD downloads will be updated through 2Q 2012 at the HP Insight Foundation Suite for ProLiant downloads tab: http://www.hp.com/go/foundation

Customers are urged to use the replacement product, HP Service Pack for ProLiant, instead of Insight Foundation Suite which is found at these location:

• www.hp.com/go/spp
• www.hp.com/go/spp/download

• Intel® AES-NI
• Power-on password
• Administrator's password
• Integrated Lights-Out 3 with:
  • 12 customizable user accounts
  • SSL encryption
  • Secure Shell version 2
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface
  • AES and RC4 encryption of video
  • Disable via a global setting
• Keyboard password
• External USB port enable/disable
• Network server mode
• Serial interface control
• TPM (Trusted Platform Module) 1.2 option

Memory

• HP Memory Quarantine (based on Intel MCA Recovery technology). In conjunction with the operating system support, allows a server to recover from uncorrectable memory errors which would have otherwise caused a system crash.
• Double Device Data Correction (DDDC). DDDC provides the ability to save a DIMM from being replaced due to a bad dram device.
• Data Bus ECC protection for automatic correction from a single data bit error and detection of double data error bits.
• Advanced ECC/SDDC provides continued memory operation in the event of a single memory device failure and allows removal of a single DRAM from the memory map if it exhibits a failure and recovers its data into a new device.
  • Supports for both x4 and x8 Intel® SDDC.
• Demand Scrubbing writes corrected data back to the memory once a correctable error is detected on a read transaction.
• DIMM Address/Control Bus Parity Protection provides a means to detect and protect command and address errors.
• Memory Failover uses a mirrored DIMM once a failed DIMM in a mirrored set is detected.
• Memory Mirroring provides a copy of memory stored with dynamic failover in case of failure within socket (intra-socket) memory mirroring.
  • The system will operate in non-hemisphere mode when mirroring is enabled.
• Rank Sparring (On Line Spare) provides dynamic failover to a spare DIMM rank or spare rank pair behind the same memory controller. Cannot be enabled concurrently with memory mirroring.
  NOTE: HP offers the rank sparing rather than DIMM sparing as rank sparing uses less spare memory resulting in less overhead.
• Failed DIMM Isolation identifies a specific failing DIMM lockstep pair thereby enabling the user to replace only the failed DIMM pair. Identifies a single DIMM for correctable errors and DIMM pair for uncorrectable errors.

Virtualization

• Intel® VT-x (FlexMigration, FlexPriority, and Extended Page Tables) provides:
  • Platform control between the VMM and guest OSs for faster, more reliable and secure transfers.
  • VM migration features that enhance flexibility for failover, load balancing, disaster recovery, and maintenance.
• Intel® VT-x Real Mode & Pause Loop Exiting:
  • Real Mode allows guests to operate in real mode, removing the performance overhead and complexity of an emulator.
  • Pause Loop Exiting provides detection of spin locks in guest software and helps avoid lock-holder preemption to reduce overhead and improve performance.
• Intel® VT-d (Intel® Virtualization Technology for Directed I/O) enables the VMM to assign specific I/O devices to specific guest OSs improving security and availability.

Mezzanine options and I/O

• Optional dual-port Fibre Channel mezzanine cards for redundant SAN connections.
• Optional dual-port InfiniBand mezzanine cards for redundant high performance connections.
• Four embedded Ethernet adapter ports for redundant LAN connections.
• Multiple mezzanine I/O expansion slots each supported multiple data paths routed to redundant interconnect modules.
• Network Adapter Teaming (Bonding) provides network fault tolerance, transmit load balancing, and switch-assisted load balancing.

Processor/Chipset

• Processor Internal Sensors & Thermal Control protection against over-temperature conditions.
• Cache parity/ECC protects cache data from accidental data corruption due to particle hits.
• Machine Check Architecture (MCA) detects and captures hardware errors such as system bus, ECC, parity, cache, other.
• Enhanced MCA handling & error logging builds upon the original Machine Check Architecture to: offers more "banks" and increased "resolution" for reporting errors that cause MCA events and 2) sets check flags for the OS to poll.
• External Bus Error Recovery (ECC) enables automatic correction from a single data bit error and detection of double data error bits on the memory data bus.
• Corrupt Data Containment tags faulty data before it is consumed (often called data poisoning) to limit the impact to the currently running program and to greatly reduce the need to reset the system.
• On-Die Error Protection protects registers from particle hits.

Storage

• Two hot-plug SAS/SATA/SSD drive bays.
• Integrated HP Smart Array P410i Controller with RAID 0 and 1 standard
• Integrated HP Smart Array P410i Controller upgradeable firmware with recovery ROM capability
• HP Smart Array P410i flash backed write cache (FBWC) options to 1GB.
• Optional multiple Smart Array RAID mezzanine controllers (with BBWC and FBWC) for direct attach and shared SAS storage external to the c-Class enclosure.
• Optional HP D2200sb Storage Blade for direct attached and shared storage within the c-Class enclosure.

Intel® QuickPath Interconnect (QPI)

• QPI Link Retry restarts as cycle when a failure is detected on the link.
• QPI Clock Failover redirects the forwarded clock to one of the two failover clock lanes in the event of a forwarded clock failure.
• QPI Self-Healing enables a QPI link to map a failed lane and downshift from full to ½ width (or ½ width to ¼ width) QPI link if there are errors on the link.
• QPI Cycle Redundancy Checking (CRC) automatically detects data errors using a checksum of either 8 bits or 16 bits.
• QPI Poisoning tags an erroneous packet with a "poisoned bit" on the QPI fabric.
• QPI Lane Failover identifies a faulty lane within data paths removing them from operation reducing command/address errors.

Server Blade Enclosure Infrastructure

• Up to 10 hot-plug redundant Active Cool fans per enclosure.
• Up to 6 hot-plug high efficiency redundant power supplies per enclosure.
• Dual grid power providing redundant rack enclosure power feeds to the enclosure.
• Up to eight interconnect modules per enclosure providing four simultaneous redundant fabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, iSCSI, SAS, etc.
• Optional enclosure redundant Onboard Administrator system management module.

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

Up to three (3) optional 4Gb and/or 8Gb Fibre Channel HBA mezzanine adapters (Brocade, Emulex and QLogic options).

HP ProLiant BL620c G7 server blades are optimized for HP MSA, EVA, and XPHP and are compatible with select third party SANs. See the blade storage page for more details at http://h18004.www1.hp.com/products/blades/components/c-class-sans.html

HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to data and storage networks, and reduces costs. Unique HP Flex-10 technology makes maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect FlexFabric modules extend those capabilities to allocate one function per port to storage connections. HP Virtual Connect Enterprise Manager (VCEM) provides server management software with a central console to administer network connections and workloads for thousands of servers. For more information on Virtual Connect Enterprise Manager see: www.hp.com/go/vcem. For more information on Virtual Connect Ethernet, Fibre Channel, Converged Network and management options see: www.hp.com/go/virtualconnect

HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services on your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express

HP Technology Services for Industry Standard Servers
HP Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to HP to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HP Care Pack Services
HP Care Pack Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

HP Proactive Care with 6 hour call-to-repair commitment, three year Care Pack Service
HP Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to HP. This Care Pack Service combines three years' proactive reporting and advice with our highest level reactive coverage and enhanced escalation management, HP's 24x7, six hour call-to-repair hardware commitment. HP is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. Service includes 24x7 collaborative software support for leading industry standard software running on your HP ProLiant server.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HP Proactive Care with 24x7 coverage, three year Care Pack Service
HP Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to HP. This Care Pack Service combines three years' proactive reporting and advice with our 24x7 coverage and enhanced escalation management, four hour hardware response time and two hour call back for software questions on leading industry standard software running on your HP ProLiant server. http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Data Center Platform Consulting Services
Choose HP Technology Services Consulting to modernize and migrate your key systems. These services help fine tune your data center to improve security, management and efficiency across IT infrastructure, operations, and facilities and prepare you for the new style of IT. HP understands the needs of the data center of the future and will serve as your guide for the journey.
www.hp.com/services/consulting

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Factory Express for Servers and storage
HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

Data Privacy Services
Protect your data through better media management. HP Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. www.hp.com/services/dataprivacy

Additional HP Care Pack services can be found at: http://www.hp.com/go/cpc

Connecting products to HP will help prevent problems with 24x7monitoring, prefailure alerts, automatic call logging, and parts dispatch, plus current data will be available for the proactive reports that are part of Proactive Care Services. With Connected products, you can have a dashboard to manage your IT anywhere, anytime, from any device.

Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

HP's Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

NOTE: HP Support Center Mobile App is subject to local availability.

HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction.

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized ServiceOne Channel Partner. Or visit: www.hp.com/services/bladesystem

HP ProLiant BL620c G7 E7-2860 1P 32GB-R Server
643763-B21

HP ProLiant BL620c G7 E7-2850 1P 32GB-R Server
643764-B21

HP ProLiant BL620c G7 E7-2830 1P 32GB-R Server
643765-B21

Four (4) integrated HP NC553i 10Gb FlexFabric adapter ports supporting 10Gb/1Gb autosensing Ethernet, FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, and iSCSI boot
One (1) 10/100 network adapter port dedicated to iLO 3 Management

Four (4) integrated HP NC553i 10Gb FlexFabric adapter ports supporting 10Gb/1Gb autosensing Ethernet, FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, and iSCSI boot

One (1) 10/100 network adapter port dedicated to iLO 3 Management

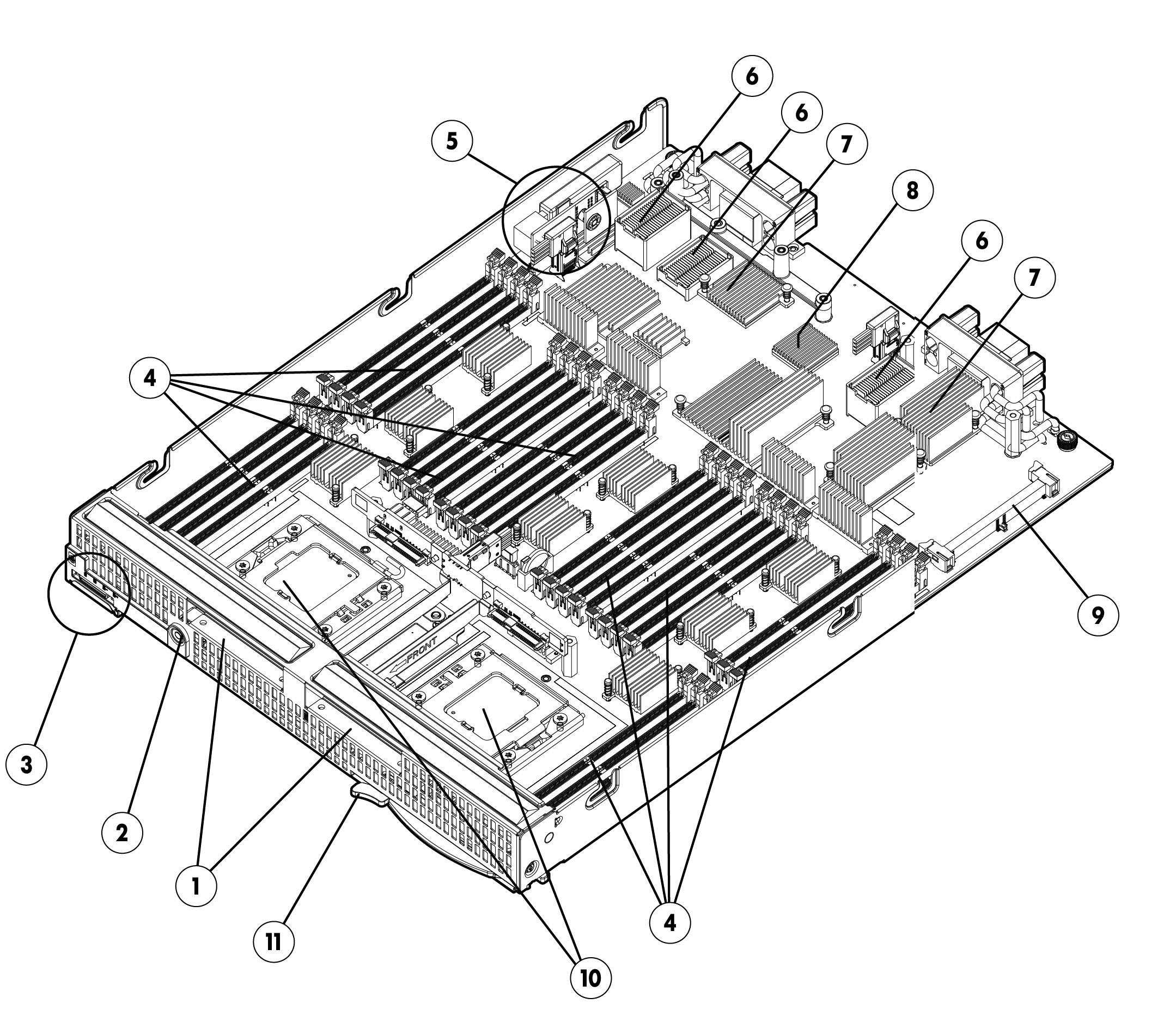

One (1) Integrated SAS version 2.0 (6Gb) HP Smart Array P410i Controller with RAID 0 and 1
NOTE: The P410i is configured with no cache allowing the end user to select the desired cache option (if cache is desired in the first place).
NOTE: RAID 0 and 1 are supported on the P410i without the need for a cache option.

Two (2) cache slots for BBWC and/or FBWC battery options.
NOTE: The server supports up to a combined total of two (2) battery cache options for the P410i and/or optional Smart Array RAID controllers.

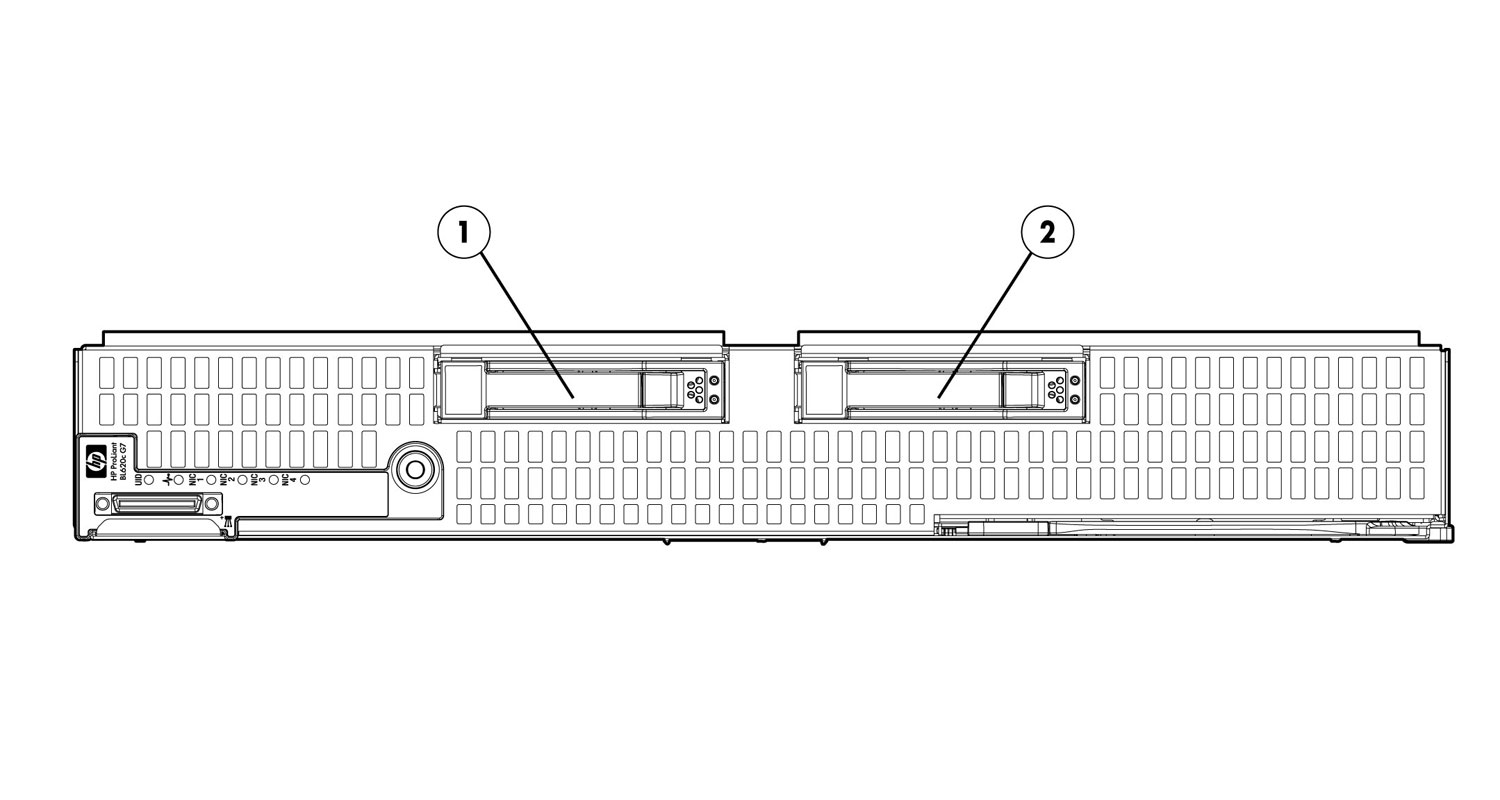

Two (2) small form factor hot-plug SAS/SATA/SSD hard drive bays

Three (3) I/O expansion slots

One (1) integrated Lights-Out 3

Integrated USB, MicroSDHC, and TPM connectors

Memory Subsystem Architecture
For maximum memory bandwidth, performance, and capacity, each processor socket contains two memory controllers. Each memory controller connects to two Intel® 7510 Scalable Memory Buffers (SMB) for a total of four SMBs per processor. Each SMB connects to four RDIMMs for a grand total of sixteen RDIMMs per installed processor (32 total RDIMMs per BL620c G7 server) providing up to 1.0TB of memory (32GB RDIMMs x 32 DIMM slots).

All RDIMMs will operate at the highest possible speed for a given processor. Memory speed is not affected by number of RDIMMs or ranks. However, memory speed is a function of the processor QPI bus speed per the following:

• Processors with a QPI speed of 6.40GT will operate memory at 1066MHz
• Processors with a QPI speed of 5.86GT will operate memory at 978MHz
• Processors with a QPI speed of 4.80GT will operate memory at 800MHz

DDR3 and DDR3L Memory Population Guidelines
An overview of the RDIMM installation guidelines are summarized below. For detailed memory configuration rules and guidelines, please see the BL620c G7 user guide at: www.hp.com/support and the Online DDR3 Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.

1. Install only HP BL620c G7 supported DDR3 and DDR3L RDIMMs.
2. RDIMMs must be installed for processor 1.
3. Populate RDIMM slots for a processor only if the processor is installed.
4. To maximize performance in multi-processor configurations, distribute the total memory capacity between all processors as evenly as possible.
5. The minimum configuration is two RDIMMs installed on processor 1.
6. RDIMMs must be installed in pairs with identical characteristics. When possible, for configuration simplicity, HP recommends using RDIMMs with identical part numbers throughout the system.
7. For best performance, HP recommends that RDIMM pairs be populated in sequence by letter designation. Install RDIMM pair (4A, 5A) first, followed by RDIMM pair (12B, 16B), RDIMM pair (2C, 7C), RDIMM pair (10D, 14D), RDIMM pair (3E, 6E), RDIMM pair (11F, 15F), and RDIMM pair (1G, 8G).
8. When installing mixed rank RDIMMs for any processor, RDIMMs with the highest number of ranks must be installed in the white RDIMM connector locations. This guarantees proper electrical signaling on the DDR3 channel since RDIMMs with higher rank counts present larger electrical loading on the DDR3 channel and must be populated at the end point of the channel.
9. 1.5V DDR3 and 1.35V DDR3L RDIMMs may be installed within the same socket. In this case, all RDIMMs on that socket will operate at 1.5V.
10. The BL620c G7 supports memory hemisphere mode (for a high-performance memory interleaving technology) as well as several advanced memory modes (AMP) including advanced ECC, online spare, and mirrored memory. Please see the BL620c G7 user guide at: www.hp.com/support for a description of each of these features and their memory configuration guidelines.
11. There are several additional recommended steps for memory performance optimization, please see the BL620c G7 user guide at: www.hp.com/support for a complete list.

Power Specifications

For power specifications including input requirements, BTU rating, and power supply output, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html
(Worldwide)
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html
(Worldwide)

NOTE: For optimal cooling and system performance the HP ProLiant BL620c G7 server requires the c7000 enclosure to be configured with 10fans and the c3000 enclosure to be configured with 6 fans.

To review typical system power ratings use the HP BladeSystem Power Sizer available at: http://www.hp.com/go/bladesystem/powercalculator.

System Inlet Temperature

• ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
• 9K Jumbo frames (4K Jumbo frames when in FCoE mode)
• Microsoft Windows Receive Side Scaling (RSS)
• FCoE or accelerated iSCSI mode
• iSCSI boot
• Flex-10 support
• TCP/IP offload engine
• 10Gb Ethernet ort 1Gb Ethernet autosensing
• Microsoft TCP chimney compliant
• Supports 8 Physical Functions (PF)
• Supports 128 Virtual Functions (VF):
  • Up to 32 VFs per PF
  • Support 128 MAC address
• Traffic Shaping and QoS across each VF and PF:
• NIC Fine-grain QoS 10 Mbps to 10Gbps in steps of 10Mbps
• HBA fine-grain QoS 1000 IOPs to 500,000 IOPs in steps of 1000 IOPS
• On-chip VM-VM switching
• Traffic steering and isolation
• Hardware based filtering for 128 VLANIDs with QinQ tag filtering
• Protection against denial-of-service attacks & malfunctioning VMs

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Skus added on Hard Drives:

• 785103-B21
• 785101-B21
• 785099-B21
• 741144-B21
• 741140-B21
• 741136-B21
• 741157-B21
• 741153-B21
• 741148-B21

© Copyright 2015 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft is a US registered trademarks of Microsoft Corporation.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes (1,000 MB). Actual formatted capacity is less.
