HPE Standard Power Supplies

Looking for high-efficiency power solutions at an entry-level price for your ProLiant Gen9 Essential Server or Gen10 ProLiant 10/100 Series Servers? HPE Standard Power Supplies offer an optimized set of features with options for both redundant and non-redundant power configurations.

The HPE 550W FIO Power Supply offers Silver-certified 80 Plus power efficiency up to 89% with an optimized set of features for non-redundant power configurations for Gen9 DL and ML 10/100 Series Servers.

The HPE 900W Gold Redundant AC Power Input Module with Power Backplane can be configured to support power redundancy in Gen9 DL and ML 10/100 Series Servers that offer only a single power supply bay, providing additional protection against power loss. With an 80 Plus Gold power efficiency rating up to 92%, this power option helps to reduce operating expenses while protecting against trapped power capacity in the data center. Hot-plug AC power input modules allow for better serviceability with fast and easy deployment and replacement.

The HPE 500W FIO Power Supply offers Gold-certified 80 Plus power efficiency up to 92% with an optimized set of features for non-redundant power configurations for Gen10 ProLiant ML350 Gen10.

HPE 550W FIO Power Supply

1.

Power Supply Identification Label

2.

C-14 Input Connector

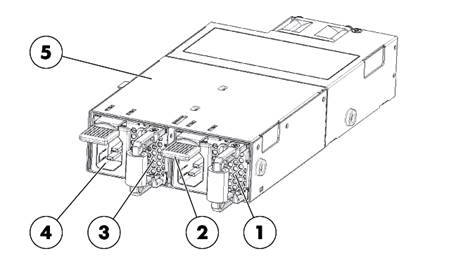

HPE 900W Gold AC 240VDC Power Input Module with Backplane

1.

AC Power Input Module #2

4.

C-14 Power Input Connector

2.

Hot-Plug Quick Release Lever

5.

Power Supply Backplane

3.

AC Power Input Module #1

HPE 500W Non Hot Plug Low Halogen FIO Power Supply

1.

Power Supply Identification Label

2.

C-14 Input Connector

3.

Cable Clip (Output Side)

Models

HPE Standard
Power Supplies

HPE ProLiant Gen9 Essential Server Power Supplies - Non-Redundant

NOTE: Supports Silver-level efficiency (89%) with a standard C14 inlet connector. No support for HPE Power Discovery Services. Only compatible with select HPE ProLiant Gen9 Essential servers.

HPE 550W Standard FIO Power Supply Kit

730941-B21

NOTE: This is a Factory Installed Option (FIO) only.

HPE ProLiant Gen9 Essential Server Power Supplies - Redundant

NOTE: Supports Gold-level efficiency (92%) with a standard C14 inlet connector. No support for HPE Power Discovery Services. Only compatible with select HPE ProLiant Gen9 Essential servers.

NOTE: Each Redundant Power Supply Backplane can support up to two (2) power input modules.  Non-redundant configurations with a single power input module installed can provide up to 900W (200 - 240VAC) and up to 550W (100 - 127VAC) of power.  Redundant configurations with two power input modules installed can provide up to 800W (200 - 240VAC) and up to 550W (100 - 127VAC) of power.

NOTE: 744689-B21 will not work with 814835-B21.

HPE 900W Standard AC 240VDC Power Input Module

775595-B21

HPE 900W Standard AC 240VDC RPS Power Backplane

814835-B21

HPE 900W Standard AC 240VDC Redundant Power Supply Kit

820792-B21

NOTE: Each Redundant Power Supply Backplane can support up to two (2) power input modules.

NOTE: 240VDC function will not work when 775595-B21 is installed in 745813-B21. Only AC input will be enable.

NOTE: Redundant AC Power Input Modules do not share power. Redundant AC Power Input Module #1 is the primary AC Power Input Module. Redundant AC Power Input Module #2 is the backup AC Power Input Module.

NOTE: HPE 900W Gold (Redundant) AC 240VDC Power Input Module (775595-B21) must be used with Power Backplane (814835-B21).

HPE ProLiant Gen10 Entry Level Server Power Supplies - Non-Redundant

NOTE: Supports Gold-level efficiency (92%) with a standard C14 inlet connector. No support for HPE Power Discovery Services. Only compatible with select HPE ProLiant Gen10 servers.

HPE 500W Low Halogen FIO Power Supply Kit

837074-B21

NOTE: This is a Factory Installed Option (FIO) only.

HPE 900W Gold Power Supply

High Efficiency

Gold certified 80 Plus power efficiency rating, up to 92% efficiency, reduces operating expenses and trapped power in the data center.

Power Redundancy

Can be configured to support power redundancy in ProLiant servers that offer only a single power supply bay, providing additional protection against power loss.

Serviceability

Hot-plug AC power input modules that allow for fast and easy deployment and replacement.

Compatibility

Available as an upgrade option for most ProLiant Gen9 10/100 Series servers, allowing spares to be shared across a wider range servers.

HPE 550W FIO Power Supply

High Efficiency

Silver certified 80 Plus power efficiency rating, up to 89% efficiency, reduces operating expenses and trapped power in the data center.

Compatibility

Standard power supply for most ProLiant Gen9 10/100 Series servers, allowing spares to be shared across a wider range servers.

HPE 500W Low
Halogen FIO Power Supply

High Efficiency

Gold certified 80 Plus power efficiency rating, up to 92% efficiency, reduces operating expenses and trapped power in the data center.

Compatibility

Standard power supply for ProLiant ML350 Gen10

80Plus Certification

The 80PLUS test protocol was developed jointly by Ecos Plug Load Solutions and the Electric Power Research Institute (EPRI) in 2003, with the program being formally launched in 2004.

The 80 PLUS performance specification requires power supplies in servers to be 80% or greater energy efficient at 20%, 50% and 100% of rated load with a true power factor of 0.9 or greater. This makes an 80 PLUS certified power supply substantially more efficient than typical power supplies found in many other electrical devices.

Who benefits from the 80PLUS power supply program?

• Commercial/Residential Consumers - empowered with information regarding energy efficient IT options that help them cut energy costs and reduce their environmental impact
• Utility/Power Providers - participation in a program that focuses on reducing power demands on overburdened grids as well as reducing power waste and its associated environmental impact

What are the efficiency requirements for each certification level?

What level of certification do HPE Entry-Level Power Supplies meet?

The HPE 550W FIO Power Supply meets 80PLUS Silver certification requirements.  The HPE 900W Gold Power Supply and 500W FIO Gold Power Supply meet 80PLUS Gold certification requirements.  To review 80Plus certification reports for all HPE Power Supply options, please refer to the 80Plus website at: http://www.80plus.com/.

Compatibility

To check for power supply compatibility, please review the appropriate HPE Server QuickSpecs at http://www.hpe.com/info/qs.

Service and Support

HPE Standard Power Supplies are supported as a part of the overall ProLiant infrastructure.

HPE Technology Services for Industry Standard Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability powered by a rich portfolio of consulting and support services designed to add value to our core products and solutions Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Support Services

HPE support services offer complete care and support expertise with committed response choices that are designed to meet your IT and business needs.

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

1- IDC Whitepaper

2- HPE CSC reports 2014 - 2015

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/services/hpsc

HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Support Services or Hewlett Packard Enterprise contractual support agreement.

NOTE: *HPE' Support Center Mobile App is subject to local availability.

Warranty / Service Coverage

For ProLiant servers and storage systems, this service covers HPE-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by Hewlett Packard Enterprise as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hpe.com/services

Related Options

VAC C13 to C14 Power Cables

HPE C13 - C14 WW 250V 10A Gray 0.7m Jumper Cord

A0K03A

HPE C13 - C14 WW 250V 10A Gray 1.37m Jumper Cord

A0K04A

HPE C13 - C14 WW 250V 10A Gray 3.0m Jumper Cord

A0K06A

HPE C13 - C14 WW 250V 10Amp 0.7m Jumper Cord

142257-B28

HPE C13 - C14 WW 250V 10Amp 1.4m Jumper Cord

142257-006

HPE C13 - C14 WW 250V 10Amp 1.4m 15 pc Jumper Cord

142257-007

HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord

A0K02A

HPE C13 - C14 WW 250V 10Amp 2.5m Jumper Cord

142257-002

HPE C13 - C14 WW 250V 10Amp 3.0m Jumper Cord

142257-003

*NOTE: The above power specifications are based on a configuration that includes a single power backplane with one AC power input modules installed.

*NOTE: The above power specifications are based on a configuration that includes a single power backplane with 2 AC power input modules installed.

HPE 550W FIO Power Supply:

Operating Temperature

41° to 122°F (5° to 50°C)

Operating Relative Humidity (%)

5% to 95%, non-condensing

Operating Elevation

The maximum ambient temperature of the power supply shall have an altitude derating, from sea level, of 1.0°C per every 304.8 m (1.8°F per every 1000ft) above sea level to a maximum of 3048m (10,000ft)

Storage Temperature

-40° to 185°F (-40 to 85°C)

Storage Relative Humidity (%)

5% to 95%, non-condensing

Storage Elevation

0 to 50,000ft (0 to 15,240m)

Input Voltage

Low Line

Rated: 100V - 127V; Min 90V to Max 132V

High Line

Rated: 200 - 240V; Min 180V to Max 264V

Input Frequency

Rated: 50 to 60Hz; Min 47Hz to Max 63Hz

Conformance Standards

CE Mark, UL, CUL, IEC, EN, KC, BSMI, CCC, TUV, CISPR Class A

Mechanical Dimensions (WxHxD)

4.23 x 1.57 x 6.9 in (10.74 x 3.99 x 17.53 cm)

Unit Weight

2.38 lbs (1.08 kg)

Kit Contents

Factory integrated 550W FIO power supply

HPE 900W AC 240VDC Power Input Module with Backplane:

Operating Temperature

41° to 122°F (5° to 50°C)

Operating Relative Humidity (%)

5% to 95%, non-condensing

Operating Elevation

5000ft (1524m); Derate operating temperature 1.0°C every 1000ft (304.8m) to maximum of 10,000ft (3048m)

Storage Temperature

-40° to 185°F (-40 to 85°C)

Storage Relative Humidity (%)

5% to 95%, non-condensing

Storage Elevation

0 to 50,000ft (0 to 15,240m)

Input Voltage

Low Line

Rated: 100V - 127V; Min 90V to Max 132V

High Line

Rated: 200 - 240V; Min 180V to Max 264V

Input Frequency

Rated: 50 to 60Hz; Min 47Hz to Max 63Hz

Conformance Standards

CE Mark, UL, cUL, IEC, EN, KCC, BSMI, CCC, TUV, C-tick, CISPR Class A

Mechanical Dimensions (WxHxD)

Backplane

Power Input Module

8.28 x 4.23 x 1.54 in (21.02 x 10.74 x 3.9 cm)

4.22 x 2.04 x 1.46 in (10.72 x 5.18 x 3.7 cm)

Unit Weight

Backplane

Power Input Module

1.79 lbs (0.82 kg)

0.77 lbs (0.35 kg)

Kit Contents

Power Backplane (814835-B21)

(1) Power backplane, installation/safety guide, documentation

AC 240VDC Power Input Module (775595-B21)

(1) AC power input module, (1) IEC C13 - C14 jumper cable, installation/safety guide, documentation

AC 240VDC Redundant Power Supply Kit (820792-B21)

Power backplane, (2) AC 240VDC power input module, (2) IEC C13 - C14 jumper cable, installation/safety guide, documentation

HPE 500W Low Halogen FIO Power Supply:

Operating Temperature

41° to 131°F (5° to 55°C)

Operating Relative Humidity (%)

5% to 95%, non-condensing

Operating Elevation

The maximum ambient temperature of the power supply shall have an altitude derating, from sea level, of 1.0°C per every 304.8 m (1.8°F per every 1000ft) above sea level to a maximum of 3048m (10,000ft)

Storage Temperature

-40° to 185°F (-40 to 85°C)

Storage Relative Humidity (%)

5% to 95%, non-condensing

Storage Elevation

0 to 50,000ft (0 to 15,240m)

Input Voltage

Low Line

Rated: 100V - 127V; Min 90V to Max 132V

High Line

Rated: 200 - 240V; Min 180V to Max 264V

Input Frequency

Rated: 50 to 60Hz; Min 45Hz to Max 63Hz

Conformance Standards

CE Mark, UL, CUL, IEC, EN, KC, BSMI, CCC, TUV, CISPR Class A

Mechanical Dimensions (WxHxD)

5.72 x 1.57 x 6.30 in (14.55 x 4.0x 16.0 cm)

Unit Weight

2.31 lbs (1.05 kg)

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

16-Oct-2017

From Version 6 to 7

Changed

Overview and Standard Features were revised.

25-Sep-2017

From Version 5 to 6

Added

New HPE 500W Low Halogen FIO Power Supply was added to the QuickSpecs.

Changed

Overview, Standard Features, and Technical Specifications were revised.

The title was changed from HPE Entry-Level Power Supplies to HPE Standard Power Supplies.

15-Aug-2016

From Version 4 to 5

Changed

Models, Standard Features, and Technical Specifications were revised.

Removed

800W Gold (Redundant) AC Power Input Module was removed from the QuickSpecs.

19-Feb-2016

From Version 3 to 4

Changed

Overview section was revised.

01-Dec-2015

From Version 2 to 3

Added

Added HPE 900W Gold (Redundant) AC 240DVC Power Input Module to QuickSpecs.

Changed

Overview, Service and Support, Power Specifications, and Technical Specifications were revised.

01-Dec-2014

From Version 1 to 2

Changed

Changes made throughout the entire QuickSpecs.
