HPE Single Phase Tower Uninterruptible Power Systems (UPS)

Looking for cost-effective power protection for your small office environment?

HPE Line Interactive Single Phase Tower Uninterruptible Power System (UPS) solutions are ideal for protecting tower servers, network-attached storage (NAS), network equipment, ATMs, ticket machines, kiosks and much more with up to eight power outlets.  Standard features include intuitive front panel displays for local management and HPE Enhance Battery Management (EBM) that help to extend the service-life of your batteries. HPE Power Protector, available via free download, enables you to remotely manage an HPE Tower UPS through USB or serial connection to a proxy server.

HPE Tower UPS solutions are backed by a 3-year limited warranty, with the first year including parts and labor. Also, standard on all HPE UPS units is our exclusive 30-day Battery Pre-Failure Warranty, which ensures that when customers receive notification from HPE Power Protector that the battery may fail, the battery is replaced free of charge while under warranty.  If purchasing an HPE Tower UPS with an HPE server, storage, or networking solution, Foundation Care Services for these products are automatically extended to your UPS at no additional charge.

Why HPE Tower UPS solutions?

• HPE Foundation Care Services purchased for servers, storage, and networking products extend to our rack and power infrastructure products at no additional cost when purchased together;
• HPE rack and power infrastructure products are designed and developed to be used specifically with our server, storage and networking products.  When used with Hewlett Packard Enterprise servers, you are able to take advantage of various server and IP-based tools used for maintaining and managing all the equipment in the rack.
• While you have many choices for rack and power infrastructure products, Hewlett Packard Enterprise offers an extensive range of rack, power, and KVM products to meet all your needs. HPE can help to simplify IT purchasing, installation, usage, and maintenance for your organization by providing a single point of contact for all your needs.

Tower UPS Models

HPE T750 G4 UPS Models

HPE T750 G4 NA/JP Uninterruptible Power System

J2P85A

HPE T750 G4 INTL Uninterruptible Power System

J2P88A

HPE T1000 G4 UPS Models

HPE T1000 G4 NA/JP Uninterruptible Power System

J2P86A

HPE T1000 G4 INTL Uninterruptible Power System

J2P89A

HPE T1500 G4 UPS Models

HPE T1500 G4 NA/JP Uninterruptible Power System

J2P87A

HPE T1500 G4 INTL Uninterruptible Power System

J2P90A

Power Protection Optimized for Smaller IT Environments

Compact tower form factor that's ideal for protecting tower servers, network-attached storage (NAS), network equipment, ATMs, ticket machines, kiosks and more with up to eight power outlets.

Manageability

• Integrated LCD Display allows for access to system status such as input voltage, load level, and system runtime, as well as access to configurable features such as audible alarm and power input sensitivity
• HPE Power Protector software supports management over the network through a proxy server via Serial and USB (HID-complaint) ports provided with the UPS

Serviceability

• HPE's Enhanced Battery Management (EBM) technology maximizes battery service life by up to 50%
• User-replaceable* batteries accessed through the front panel for easy replacement increases availability by reducing Mean Time To Repair (MTTR)
• Hot-Swappable batteries allows for continuation of UPS operation and system protection while batteries are being replaced
  NOTE: *Servicing should be performed by qualified personnel knowledgeable of batteries and required precautions.

Reliability

• Buck and boost operation corrects a wide range of input voltage variations through continuous regulation
• Battery mode operation provides a pure sine wave output signal for any sensitive equipment connected
• Protected by HPE three-year warranty covering both UPS and battery

HPE Power Protector Software

• UPS power management via HPE Power Protector available via free download from HPE.com
• Directly connect to proxy server via USB or serial connection to create UPS "administrator" configuration
• Allows for local or network-based UPS monitoring, status updates, and control over shutdown communications
• Download to other servers or IT devices to create "clients" that can be configured for graceful shut down

 What's In The Box?

• HPE Tower UPS
• USB cable (1) for connection to proxy management server
• Serial management cable (1) included for local firmware upgrades and connection to proxy management server
• UPS Documentation

Tower UPS Rear Panel

HPE T750 G4 UPS INTL

HPE T1000 G4 UPS INTL

HPE T1500 G4 UPS INTL

1. USB Communication Port

4. Socket for Connection to AC Power Source

2. RS-232 Communication Port

5. Ground Screw

3. Outlets for Connection of Critical Equipment

HPE T750 G4 UPS NA/JPN

HPE T1000 G4 UPS NA/JPN

HPE T1500 G4 UPS NA/JPN

1. USB Communication Port

4. Attached 6-ft. Input Power Cord for AC Power Source

2. RS-232 Communication Port

5. Ground Screw

3. Outlets for Connection of Critical Equipment

HPE Tower UPS Compatibility

HPE Single Phase Tower UPS Models are compatible with most IT devices and office equipment available on the market today.  Compatibility may be limited by the following conditions:

• Appropriate outlet connections available on each HPE Tower UPS model - check to ensure the model you select has the correct number and/or type of NEMA or IEC outlets required
• Available power output to support your connectivity requirements - check to ensure that your total power requirements do not exceed the wattage  capabilities of the model you have selected
• Tower UPS usage in only those countries where appropriate safety certifications have been performed - see "Product Specifications" for a list of approved Safety Markings and Certifications

Recommended HPE Server Compatibility

• HPE ProLiant MicroServer
• HPE ProLiant ML10 & ML30
• HPE ProLiant ML110 & ML150
• HPE ProLiant ML350

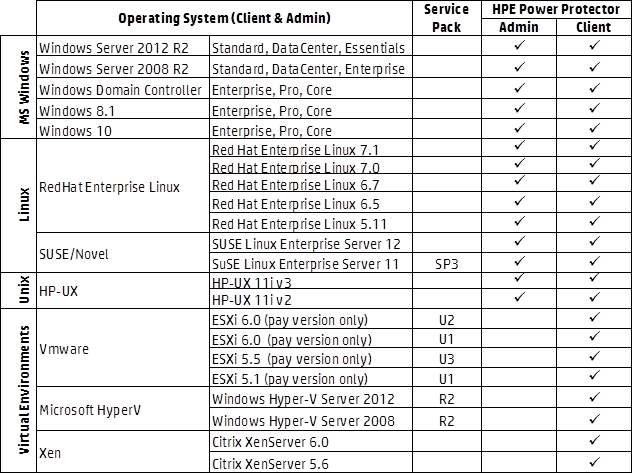

HPE Power Protector OS Compatibility

G4 Tower UPS Specifications

Electrical Input

Voltage Range

± 20% for nominal voltages of 100, 110, 120, 220, 230, and 240VAC

Frequency

50/60 Hz

Online Efficiency

>94%

Online Regulation

-10% to +6% of nominal voltage

Electrical Output

On-Battery Regulation

±5%, -10% of nominal voltage

Voltage Wave Form

Sine wave

Connections

See Model Selection Matrix

Output Protection

Firmware overload sensing and control

Battery

Battery Type

12V, sealed, maintenance-free, rechargeable, valve regulated lead-acid batteries

Backup Time

See Backup Times Chart

Recharge Time

<4 hours to charge 90% usable capacity. <24 hours for complete recharge

Communications

Serial Ports

RS232 (via RJ45 connector to DB9) and USB ports

LCD Interface

LCD Display and Button Interface

Software

HPE Power Protector management software available via download

Environmental and Safety

Operating Temperature

32° to 104° F (0° to 40° C) ( with battery)

Non-Operating Temperature

-15° to 104° F (-26° to 40° C) (without battery)

Operating Humidity

5% to 90% (non-condensing)

Storage Humidity

5% to 90% (non-condensing)

Operating Altitude

Up to 1500 m above sea level

Audible Noise

<40dB in normal operation. <45dB while on inverter

Safety Markings

NA/JPN, UL/cUL, ICES B, NOM, VCCI; INT'L: CE, TUV, RCM, EAC, KC

Safety Certifications

UL1778, CSA-C22.2 No 107.3-05, EN 62040-1, IEC 62040-1,
IEC 60950-1

HPE T750 G4 UPS Specifications

T750 G4, NA/JP
J2P85A

T750 G4, INTL
J2P88A

Load Segments

1

Unit Dimensions (WxDxH)

5.9 x 13.4 x 8.3 inch (150 x 340 x 210 mm)

Shipping Dimensions (LxWxH)

18.7x 9.4 x 12.1 inch (476 x 238 x 308 mm)

Unit/Shipping Weight

23.6 lbs. (10.7kg) / 26.4 lbs. (12 kg)

HPE T1000 G4 UPS Specifications

T1000 G4, NA/JP
J2P86A

T1000 G4, INTL
J2P89A

Load Segments

1

Unit Dimensions (WxDxH)

5.9 x 13.4x 8.3 inch (150 x 340x 210 mm)

Shipping Dimensions (LxWxH)

18.7 x 9.4 x 12.1 inch (476 x 238 x 308 mm)

Unit Weight

25.1 lbs. (11.4kg) / 28.7 lbs. (13 kg)

HPE T1500 G4 UPS Specifications

T1500 G4, NA/JP
J2P87A

T1500 G4, INTL
J2P90A

Load Segments

1

Unit Dimensions (WxDxH)

5.9 x 16.1 x 8.3inch (150 x 410 x 210 mm)

Shipping Dimensions (LxWxH)

19.6 x 9.4 x 12.1 inch (498 x238 x 308 mm)

Unit Weight

34.4 lbs. (15.6 kg) / 37.3 lbs. (16.9 kg)

Warranty

When you need it, use outstanding HPE support services for your whole data center environment. With HPE Support Services, have the security of knowing that your HPE UPS will be covered at the same service level and coverage period as your HPE server. HPE UPSs are backed by a 3-year limited warranty, with the first year including parts and labor. Also, standard on all HPE UPS units is our exclusive 30-day Battery Pre-Failure Warranty, which ensures that when customers receive notification from HPE Power Manager Software that the battery may fail, the battery is replaced free of charge under the warranty. This warranty is offered worldwide.
NOTE: $250,000 Computer/Load Protection Guarantee is also provided (applicable in North America only).

Parts and materials

Hewlett Packard Enterprise will provide Hewlett Packard Enterprise-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Supplies and consumable parts will not be provided as part of this service; standard warranty terms and conditions apply. Parts and components that have exceeded their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual or the technical product data sheet will not be provided, repaired or replaced as part of this service.

Coverage

For ProLiant servers and storage systems, this service covers HPE-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included under TS support services; standard warranty terms and conditions apply.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hpe.com/services/proliant or http://www.hpe.com/services/bladesystem

HPE Support Services

HPE Install Universal Power Supply 3KVA to Below 6KVA Service

U4693E

HPE Install Universal Power Supply Less Than 3KVA Service

U4690E

Power Cords

Choose from the list of country-specific power cords to provide both input and output power for HPE Tower Servers.

USA/Canada

HP C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord

AF556A

China

HP C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord

AF557A

Argentina

HP C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord

AF558A

Thailand / Philippines

HP C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord

AF559A

Korea

HP C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord

AF560A

Taiwan

HP C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord

AF561A

India

HP C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord

AF562A

Israel

HP C13 - SI-32 IL 250V 10Amp 1.83m Power Cord

AF564A

Switzerland

HP C13 - SEV 1011 CH  250V 10Amp 1.83m Power Cord

AF565A

Denmark

HP C13 - DK-2.5A DK  250V 10Amp 1.83m Power Cord

AF566A

South Africa

HP C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord

AF567A

European Union

HP C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord

AF568A

Australia/New Zealand

HP C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord

AF569A

UK/Hong Kong/Singapore

HP C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord

AF570A

Italy/Chile

HP C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord

AF571A

Japan

HP C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord

AF572A

Brazil

HP C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord

AF591A

HPE T750 G4 UPS Model

Part Number

Operating Voltage Settings

Power Out (VA/Watts)

Input Connection

Output Connection

J2P85A

North America/
Japan

110V - 120V

750VA/525W

Attached 1.8m NEMA 5-15 power cord (16AWG)

6 - NEMA 5-15 outlets

100V (Japan)*

750VA/500W

J2P88A

International

220V/230V/240V

750VA/525W

C14 Inlet
(Detachable country specific power cord - see "Power Cord Options" section)

6 - IEC C13 outlets

HPE T1000 G4 UPS Model

Part Number

Operating Voltage Settings

Power Out (VA/Watts)

Input Connection

Output Connection

J2P86A

North America/
Japan

120V

1000VA/700W

Attached 1.8m NEMA 5-15 power cord (16AWG)

8 - NEMA 5-15 outlets

110V

1000VA/680W

100V (Japan)*

1000VA/680W

J2P89A

International

220V/230V/240V

1000VA/700W

C14 Inlet
(Detachable country specific power cord - see "Power Cord Options" section)

8 - IEC C13 outlets

HPE T1500 G4 UPS Model

Part Number

Operating Voltage Settings

Power Out (VA/Watts)

Input Connection

Output Connection

J2P87A

North America/

Japan

120V

1440VA/1080W

Attached 1.8m NEMA 5-15 power cord (14AWG)

8 - NEMA 5-15 outlets

110V

1325VA/994W

100V (Japan)*

1200VA/980W

J2P90A

International

220V/230V/240V

1500VA/1050W

C14 Inlet
(Detachable country specific power cord - see "Power Cord Options" section)

8 - IEC C13 outlets

*NOTE: Voltage is user selectable via LCD Front Display Panel.

Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

Tower UPS Models

Load

(Percent)

Load

(Watts)

Estimated battery runtime at 100% battery charge (Minutes)

T750 G4 UPS

10%

53W

68

20%

105W

37

30%

158W

21

40%

210W

16

50%

263W

15

60%

315W

10

70%

368W

9

80%

420W

7

90%

473W

7

100%

525W

6

T1000 G4 UPS

10%

70W

65

20%

140W

32

30%

210W

21

40%

280W

16

50%

350W

12

60%

420W

10

70%

490W

9

80%

560W

8

90%

630W

7

100%

700W

6

T1500 G4 UPS

10%

108W

80

20%

216W

36

30%

324W

23

40%

432W

16

50%

540W

13

60%

648W

10

70%

756W

9

80%

864W

7

90%

972W

7

100%

1080W

6
