HPE Online Double Conversion Rackmount Uninterruptible Power System

Does your IT workload require high availability power protection?

The HPE Online Double Conversion Rackmount Uninterruptible Power System (UPS) enables high system availability by eliminating transfer time to battery power for all connected IT equipment. HPE Enhanced Battery Management technology improves battery service life by up to 50% while monitoring battery health and providing advanced notice when replacement is required. Scale system runtime from minutes to hours by adding up to four Extended Runtime Modules.

The HPE Online Double Conversion UPS includes a 1GbE Network Management Module that provides access to the UPS and its embedded web-based user interface, allowing you to monitor and manage individual UPS systems. With Eaton® Intelligent Power Manager software, users can centralize remote monitoring and management of multiple HPE UPS systems and seamlessly integrate them into virtualization and hyperconverged platforms, such as VMware and HPE SimpliVity, to manage virtual machines and extend battery runtime.

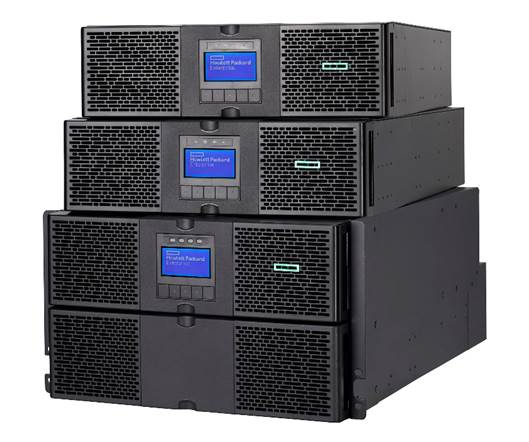

HPE Online Double Conversion Single Phase Uninterruptible Power Systems (UPS)

Models

R5000 UPS Models

HPE G2 R5000/L6-30P 24A/208V Outlets (2) L6-20R (2) L6-30R/3U NA/JP UPS

Q7G09A

HPE G2 R5000/L6-30P 24A/208V Outlets (4) C19 (1) L6-30R/3U NA/JP UPS

Q7G10A

R6000 UPS Models

HPE G2 R6000/60309 3-wire 32A/230V Outlets (4) C13 (4) C19 (1) IEC 32A/3U Rackmount INTL UPS

Q7G11A

R8000 UPS Models

HPE G2 R8000/Hardwire/208V Outlets (4) L6-20 (2) L6-30/6U Rackmount NA/JP UPS

Q7G12A

HPE G2 R8000/Hardwire/230V Outlets (6) C19 (2) IEC 32A/6U Rackmount INTL UPS

Q7G13A

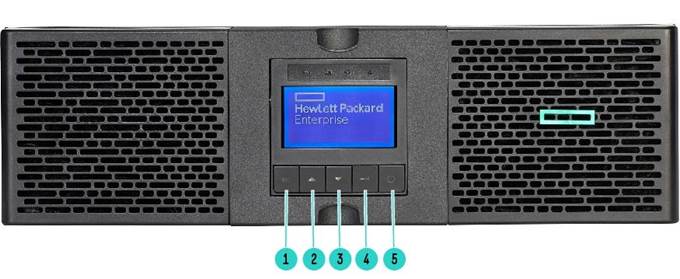

Front View R5000 UPS (Q7G09A and Q7G10A)/ R6000 UPS (Q7G11A)

1.

Escape Button

4.

Enter/Select button

2.

Scroll up button

5.

Power button

3.

Scroll down button

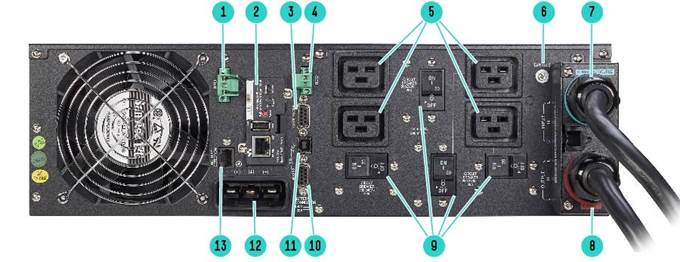

Rear View R5000 UPS (Q7G09A)

1.

Remote Power Off

8.

20A L6-20R receptacles

2.

1GbE UPS Network Management Module

9.

Circuit Breakers for L6-20R receptacles

3.

Contacts (for reporting status of UPS)

10.

RS232 Serial Communications Port

4.

Remote On/Off

11.

USB Serial Communications Port

5.

Chassis ground terminal

12.

Power from ERM

6.

Input power line cord with NEMA L6-30 plug

13.

Battery Detection (ERM)

7.

30A L6-30R receptacles

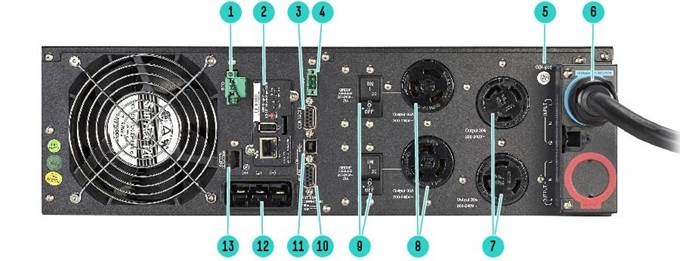

Rear View R5000 UPS (Q7G10A)

1.

Remote Power Off

8.

30A L6-30R receptacle

2.

1GbE UPS Network Management Module

9.

Circuit Breakers for C19 receptacles

3.

Contacts (for reporting status of UPS)

10.

RS232 Serial Communications Port

4.

Remote On/Off

11.

USB Serial Communications Port

5.

IEC C19 receptacles

12.

Power from ERM

6.

Chassis ground terminal

13.

Battery Detection (ERM)

7.

Input power line cord with NEMA L6-30 plug

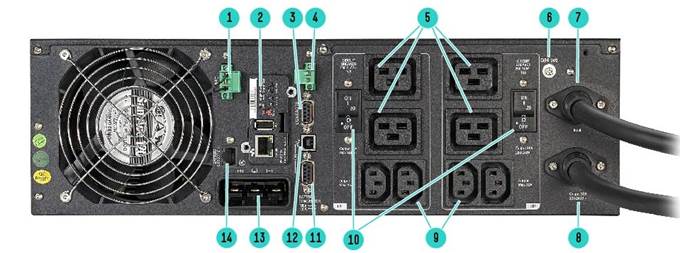

Rear View R6000 UPS (Q7G11A)

1.

Remote Power Off

8.

IEC 32A receptacle

2.

1GbE UPS Network Management Module

9.

IEC C13 receptacles

3.

Contacts (for reporting status of UPS)

10.

20A Circuit Breaker for load segments 1 & 2, respectively

4.

Remote On/Off

11.

RS232 Serial Communications Port

5.

IEC C19 receptacles

12.

USB Serial Communications Port

6.

Chassis ground terminal

13.

Power from ERM

7.

Input power cord with 3-pin IEC 32A plug

14.

Battery Detection (ERM)

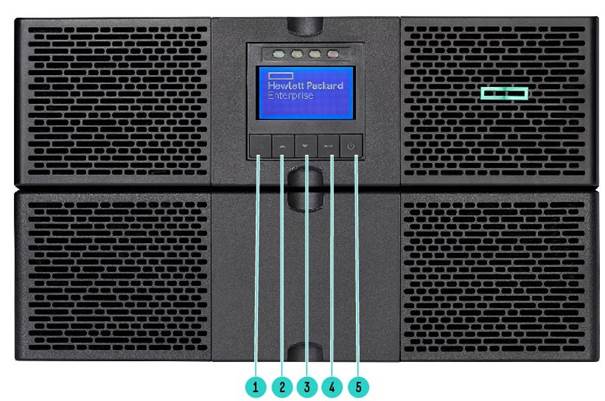

Front View R8000 UPS (Q7G12A and Q7G13A)

1.

Escape Button

4.

Enter/Select button

2.

Scroll up button

5.

Power button

3.

Scroll down button

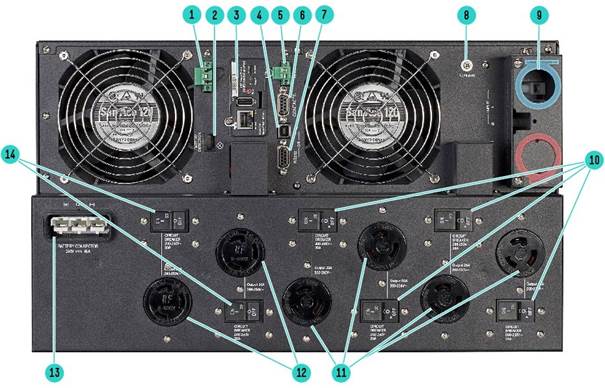

Rear View R8000 UPS (Q7G12A)

1.

Remote Power Off

8.

Chassis ground terminal

2.

Battery Detection (ERM)

9.

Hardwire input power

3.

1GbE UPS Network Management Module

10.

Circuit Breakers for L6-20R receptacles

4.

USB Serial Communications Port

11.

20A L6-20R receptacles

5.

Remote On/Off

12.

30A L6-30R receptacles

6.

Contacts (for reporting status of UPS)

13.

Power from ERM

7.

RS232 Serial Communications Port

14.

Circuit Breakers for L6-30R receptacles

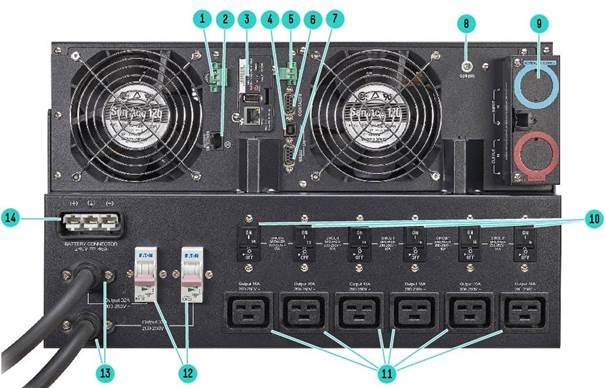

Rear View R8000 UPS (Q7G13A)

1.

Remote Power Off

8.

Chassis ground terminal

2.

Battery Detection (ERM)

9.

Hardwire input power

3.

1GbE UPS Network Management Module

10.

Circuit Breakers for C19R receptacles

4.

USB Serial Communications Port

11.

16A C19R receptacles

5.

Remote On/Off

12.

Circuit Breakers for IEC receptacles

6.

Contacts (for reporting status of UPS)

13.

32A IEC receptacles

7.

RS232 Serial Communications Port

14.

Power from ERM

XXXXXX-X21 is SKU designation formed by a common six digit part number and a -X21 suffix that identifies a SKU that is available across multiple server family lines.  Refer to the table below to find the SKU suffix that applies to the specific server product line this option can be ordered with.

-B21

-H21

-K21

COMPUTE Server Line

SPECIALIZED COMPUTE Server Line

STORAGE Line

HPE Cloudline CL2100/CL2200/CL2800/CL3100/
CL4100/CL5200/CL5800 Servers

HPE Composable Cloud for ProLiant DL

HPE ProLiant BL460c/BL660c Servers

HPE ProLiant DL20/DL160/DL180 Servers

HPE ProLiant DL325/DL360/DL380/DL385/
DL560/DL580 Servers

HPE ProLiant DX360/DX380 Servers

HPE ProLiant MicroServer

HPE ProLiant for Microsoft Azure Stack

HPE ProLiant ML30/ML110/ML350 Servers

HPE Synergy 480/660 Systems

HPE ProLiant DX170r/DX190r, DX2000 Servers

HPE ProLiant DX560 Gen10 server

HPE ProLiant DX4200 Gen10 server

HPE Apollo 35/40/70 Systems

HPE Apollo 2000/6000 Servers

HPE XL170r/XL190r/XL270d (Apollo 6500) Gen10 Server for BlueData  Software

HPE Converged System 300/500/700/750

HPE Edgeline Systems and Servers

HPE Integrity BL860c i6/BL870c i6/BL890c i6 Server Blades

HPE Integrity MC990 X Server

HPE Integrity rx2800 i6 Server

HPE Integrity Superdome

HPE SGI 8600 System

HPE Solutions for SAP HANA (TDI)

HPE Apollo 4200 Gen9/Gen10 Servers

HPE Apollo 4200 Gen10 LFF Server for BlueData Software

HPE Apollo 4510 Gen10 System

HPE D2220sb/D2500sb Storage Blade

HPE D3000/D6020/D8000 Disk Enclosures

HPE Scalable Object Storage with Scality RING

HPE SimpliVity 2600

HPE SimpliVity 325/380 Gen10

HPE Storage File Controllers

HPE StoreEasy 1460/1560/1650/1660/1860

Disclaimer: This may not be a complete listing of applicable servers

HPE Online Double Conversion UPS Technology

The HPE Online Double Conversion UPS operates by using online double conversion technology that converts incoming AC power to DC power, and then back to AC power when exiting the UPS.  The conversion to DC power supports a constant interface with the UPS battery, isolating output power from input power 100% of the time and ensuring zero transfer time to battery power.

Availability

• Enhanced Battery Management technology that uses an advanced, three-stage charging technique that increases battery service life by up to 50%
• Scale system runtime from hours to minutes by adding up to 4 Extended Runtime Modules (ERM) per UPS
• Internal bypass guarantees that connected loads will continue to have access to utility power in the event a system overload or fault has occurred.

Manageability

• Access the embedded UPS user interface using the HPE 1GbE Network Management Module that ships standard with each model
• Use HPE Power Protector to manage individual UPS systems and communicate shutdown protocols with all connected servers
• Next-generation intuitive LCD interface that provides a graphical display of all critical UPS information in a single view

Serviceability

• Enhanced Battery Management closely monitors battery health to provide advanced notice (up to 30 days) when batteries need replacement
• Hot-swappable batteries allow trained users to perform upgrades and replacements of the batteries reducing Mean Time to Repair while improving system uptime and access to power when battery maintenance is required
• Flash upgradeable firmware allow users to conveniently install firmware maintenance releases remotely using FTP

Consolidate and Centralize UPS Management with Eaton Intelligent Power Manager

HPE and Eaton are collaborating to bring increased value. Lab-tested for interoperability, Eaton's Intelligent Power Manager® (IPM) software provides the tools needed to monitor and manage power equipment in your physical or virtual environment, keeping IT devices up and running during a power or environmental event.

• Remotely monitor and manage multiple HPE power devices across your network from a single interface
• Ensure availability and data integrity of HPE SimpliVity hyperconverged systems
  • Provides a complete view of both the IT and power infrastructure in a single console
  • Dynamically move VMs with automated policies based on environmental conditions
• Recover VMs in the correct sequence based on criticality
• Mitigate equipment overheating and power anomalies through integration with HPE OneView:
  • Communicate actions to the HPE server via HPE iLO
  • Trigger preventive actions such as power capping based on environmental conditions
• Seamlessly integrate with VMware®, and other leading virtualization platforms
  • Initiate live migration of virtual machines (VMs) to automatically and transparently migrate them during power disruptions to unaffected devices
  • Suspend non-critical virtual machines, consolidate critical virtual machines, and shut down unused servers to extend battery runtime
  • Gracefully shutdown computers, VMs and host servers during an extended power outage

Eaton IPM offers three levels of licenses: Monitor, Basic and Gold. IPM Gold provides the most complete set of capabilities to enhance HPE solution performance.

UPS Network Module

All HPE G2 Online Double Conversion UPS models include the 1GbE UPS Network Module as standard.

The HPE UPS Network Module enables you to monitor and manage power environments through comprehensive control of HPE UPSs. The HPE UPS Management Module can support either a single UPS configuration or provide additional power protection with support for dual redundant UPS configuration for no-single-point-of-failure. The additional serial ports will provide greater power management control and flexible monitoring.

The management module can be configured to send alert traps to HPE Systems Insight Manager and other SNMP management programs or used as a standalone management system. This flexibility enables you to monitor and manage UPSs through the network. To facilitate day-to-day maintenance tasks, the embedded management software provides detailed system logs.

The HPE UPS Network Module provides remote management of a UPS by connecting the UPS directly to the network. Configuration & Management of the UPS from anywhere and at any time via a standard web browser.

Extended Runtime Modules (ERM)

HPE G2 R5000/6000 3U Rackmount WW Extended Runtime Module

Q7G14A

HPE G2 R8000 3U Rackmount WW Extended Runtime Module

Q7G15A

Extended Runtime Modules increase the available runtime for the larger rack mounted UPS units to allow customers to ensure all of their applications can be gracefully shutdown in the event of a power failure.

Notes: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. (Up to 4 ERMs can be chosen)

3U/6U UPS ERM Shipping Kit

HPE 3U 6U G2 Rackmount UPS and ERM Shipping Kit

Q9Z44A

HPE G2 Online Double Conversion UPS models require:

The shipping kit consists of a heavy duty shelf and required mounting hardware for attaching the UPS or ERM to the rack. This kit is an option that is only required if the UPS and or ERM are going to be mounted into a rack that will be shipped via transport. One of these kits is required per unit, whether UPS or ERM.

Jumper Cord Options

HPE C19 - C20 WW 250V 16Amp Flint Gray 2.0m Jumper Cord

AF574A

HPE C19 - C20 WW 250V 16Amp Flint Gray 1.20m Jumper Cord

AF575A

Notes: Standard, non-locking IEC jumper cable for worldwide use.

HPE C19 - C20 WW 250V 16Amp 0.7m Black Locking Power Cord

Q0R19A

HPE C19 - C20 WW 250V 16Amp 2m Black Locking Power Cord

Q0P72A

HPE C19 - C20 WW 250V 16Amp 2m 6-pack Black Locking Power Cord

Q0R17A

Notes: Locking IEC jumper cable that will lock to server, switch, or PDU input power outlet.  Compatible, but will not lock to UPS.

HPE C19 - Nema L6-20P NA/JP 250V 20Amp High Voltage 3.6m Power Cord

AF593A

Notes: NEMA to IEC jumper cord that can connect to L6-20 receptacles on NA/JPN models.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

Model Matrix - HPE G2 R5000, R6000, and R8000 UPS Models

Model

Part Number

Operating Voltage Settings

Power Out (VA/Watts)

Input Connection

Output Connection

Breaker Amp Rating/
Single of Double Pole

R5000

Q7G09A

200

5000VA / 4500W

L6-30P

(10ft power cord)

2x L6-20R

2x L6-30R

20A / Double Pole

208

5000VA / 4500W

R5000

Q7G10A

200

5000VA / 4500W

L6-30P

(10ft power cord)

4x C-19

1x L6-30R

20A / Double Pole

208

5000VA / 4500W

R6000*

Q7G11A

230V

6000VA / 5400W

IEC 32A
(10ft power cord)

4x C-13

4x C-19

1x IEC 32A

16A / Single Pole

R8000

Q7G12A

200

8000VA / 7200W

Terminal Block
(Hardwire)

4x L6-20R

2x L6-30R

20A/2 pole for 4x L6-20R

30A/2 pole for 2x L6-30R

208

8000VA / 7200W

R8000

Q7G13A

230V

8000VA / 7200W

Terminal Block
(Hardwire)

6x C-19

2x IEC 32A

16A/1pole for 6x C19

32A/1pole for 2x IEC 32A

Notes: Supports switchable load segments: LS1: 2x C-13, 2x C-19; LS2: 2x C-13, 2x C-19

Runtime Tables

R5000 UPS - Models Q7G09A, Q7G10A

R6000 UPS - Model Q7G11A

R8000 UPS - Model Q7G12A

Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

04-Dec-2023

Version 4

Changed

Service and Support Section was updated

15-Nov-2021

Version 3

Changed

Service and Support Section was updated

06-May-2019

Version 2

Changed

Configuration Information Section was updated

02-Apr-2019

Version 1

New

New QuickSpecs.

© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

a00062176enw - 16376 - Worldwide  - V4 - 04-December-2023
