HPE Basic Power Distribution Units (PDU)

HPE Basic PDUs are designed to provide reliable and cost effective power distribution for your Hewlett Packard Enterprise and non-Hewlett Packard Enterprise IT racks. Offering simple 0U and 1U installation options, HPE Basic PDUs are available in multiple form factors allowing you to configure access to power in your rack where you need it the most.

HPE Vertical Basic PDUs provide a low-profile single-piece design allowing for easy access to rear devices for maintenance.  Designed for HPE racks, but also compatible with a large variety of third party racks, they can be installed on either side of the rack with outlets facing the back of the rack for easy access and improved clearance. For higher power density configurations, they can also be installed side by side on both sides of the rack with the outlets facing in towards the center of the rack. With effective power distribution supporting from 12 to 42 outlet receptacles and power levels ranging from 2.8 kVA to 19.9kVA, HPE Vertical PDUs can provide single or three-phase power for most IT configurations.

HPE Horizontal/Modular Basic PDUs offer a unique modular architecture designed specifically for data center customers who want to maximize power distribution and space efficiencies in the rack. These PDUs consist of two building blocks - the Control Unit (core) and the Extension Bar(s) (sticks). The Control Unit is a core PDU module that offers up to six C-19 outlets which can be mounted in any 1U space or in the true 0U space on the side of HPE racks between the RETMA rails.  Extension Bars (included with some models, optional on other models) mount directly to the frame of the rack in multiple locations allowing you to configure access to power where you need it the most. HPE Horizontal/Modular PDU models support up to 42 outlet receptacles (with all Extension Bars installed) and power levels ranging from 2.8 kVA to 22kVA, with options for single or three-phase power configurations.

0U/1U Models (H5M54A shown)

Half Height Models (H5M55A shown)

Mid Height Models (H5M62A shown)

Full Height Models (H5M67A/H5M73A shown)

Vertical, Single Phase, Half-Height (22U)

HPE Basic 2.8kVA/L5-30P 24A/120V Outlets (18) 5-20R/Vertical NA/JP PDU

H5M55A

HPE Basic 4.9kVA/60320 C20 Detachable 16A/230V Outlets (20) C13/Vertical WW PDU

H5M57A

HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (20) C13/Vertical NA/JP PDU

H5M58A

HPE Basic 7.3kVA/60309 5-wire 32A/230V Outlets (20) C13/Vertical INTL PDU

H5M68A

Vertical, Three Phase, Half-Height (22U)

HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13/Vertical NA/JP PDU

H5M61A

Vertical , Single Phase, Mid-Height (36U)

HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU

H5M59A

HPE Basic 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (6) C19/Vertical NA PDU

H5M60A

HPE Basic 7.3kVA/60309 3-wire 32A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M70A

HPE Basic 9.2kVA/50A Terminal Block 40A/230V Outlets (30) C13 (6) C19/Vertical WW PDU

H5M75A

HPE Basic 11kVA/60309 63A 3-wire 48A/230V Outlets (30) C13 (6) C19/Vertical INTL PDU

H5M71A

Vertical, Three Phase, Mid-Height (36U)

HPE Basic 3Ph 5.7kVA/ L21-20P 16A/120-208V Outlets (24) C13 (3) 5-20R/Vertical NA/JP PDU

H5M63A

HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU

H5M62A

HPE Basic 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (24) C13 (3) C19 (3) 5-20R/Vertical NA/JP PDU

H5M64A

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M72A

Vertical, Three Phase, Full-Height (42U)

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (36) C13 (6) C19/Vertical INTL PDU

H5M73A

HPE Basic 3Ph 11kVA/60309 16A/240V Outlets (36) C13 (6) C19/Vertical NA PDU

H5M67A

Horizontal, Single Phase, 1U

HPE Basic 1.9kVA/L5-20P 16A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU

H5M54A

HPE Basic 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU

H5M56A

Horizontal/Modular, Single Phase, 0U/1U

HPE Basic Modular 2.8kVA/L5-30P 24A/120V Outlets (4) C19/Horizontal NA/JP PDU

252663-D71

NOTE: PDU kit ships with four (4) 7-outlet C-13 extension bars.

HPE Basic Modular 4.9kVA/L6-30P 24A/208V Outlets (4) C19/Horizontal NA/JP Core Only PDU

252663-D74

HPE Basic Modular 7.3kVA/60309 3-wire 32A/230V Outlets (4) C19/Horizontal INTL Core Only PDU

252663-B33

HPE Basic Modular 8.3kVA/CS8265C 40A/208V Outlets (4) C19/Horizontal NA/JP Core Only PDU

252663-D75

HPE Basic 9.2kVA/Terminal Block 40A/230V Outlets (4) C19/Horizontal WW PDU

252663-B21

NOTE: PDU kit ships with four (4) 7-outlet C-13 extension bars.

HPE Basic Modular 9.2kVA/60309 63A 3-wire 40A/230V Outlets (4) C19/Horizontal INTL PDU

252663-B32

NOTE: PDU kit ships with four (4) 7-outlet C-13 extension bars.

HPE Basic Modular 9.2kVA/60309 63A 3-wire 40A/230V Outlets (4) C19/Horizontal INTL Core Only PDU

252663-B34

Horizontal/Modular, Three Phase, 0U/1U

HPE Basic Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF512A

HPE Basic Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU

AF513A

HPE Basic Modular 3Ph 14.4kVA/CS8365C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF519A

HPE Basic Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF511A

HPE Basic Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF518A

Features

• Vertical and Horizontal models with power output options ranging from 1.9kVA to 22kVA
• Single and three-phase models to meet all your facility power needs
• Multiple mounting options allowing for easy access to outlets and flexible integration into your rack
• Low-profile, single-piece design does not interfere with rear maintenance area of your racks

Horizontal/Modular PDU Models

All HPE Horizontal PDUs can be installed in any U position in your rack. HPE Horizontal/Modular PDUs have a unique modular architecture designed specifically for data center customers who want to maximize power distribution and space efficiencies in the rack. Horizontal/Modular PDUs consist of two building blocks - the Control Unit (or core) offering up to six C-19 outlets and the Extension Bar (or stick) providing seven C-13 outlets per bar. The Control Unit can be installed in either a 1U space or in the 0U space between the RETMA rails on HPE racks, providing greater space efficiencies in the rack (see diagram below).  Extension Bars mount directly to the frame of the rack in multiple locations allowing you the flexibility of placing access to power where it is needed.

Horizontal, 1U, Single-Phase models

• Low-voltage (100-120V) input voltage PDU with 12x NEMA 5-20R outlets
• High-voltage (200-240V) input voltage PDU with 12x C-13 outlets
• Both models can be installed in any 1U space within your rack



Horizontal/Modular, 0U/1U, Single-Phase models

• Both low-voltage (100-120V) and high-line (200-240V) input voltage models
• Each model includes a single-phase Control Unit (core) that branches out to 4 single-phase branch circuits
• Extension Bars (sticks) can be plugged into the Control Unit, and can be mounted directly to the rack frame, spanning the entire length of the rack and providing 7x C-13 outlets per bar
• Multiple models include either 2 or 4 Extension Bars (see "Models" section for details) - Extension Bars can also be purchased separately in pairs (see "Related Options" section for details)

Horizontal/Modular, 0U/1U, Three-Phase models

• High-voltage (200-240V), three-phase input voltages
• Each model includes a three-phase Control Unit (core) that branches out to 6 single-phase branch circuits
• Optional Extension Bars (sticks) can be plugged into the Control Unit, and can be mounted directly to the rack frame, spanning the entire length of the rack and providing 7x C-13 outlets per bar

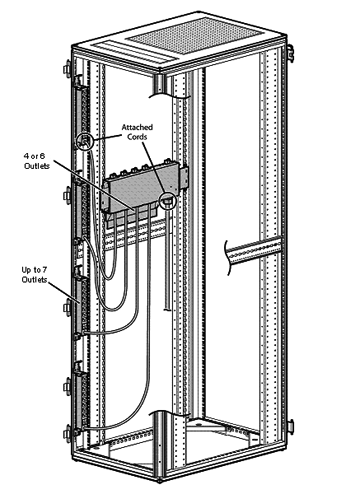

Horizontal/Modular PDU 0U Installation in HPE Rack

Vertical PDU Models

All HPE Basic Vertical PDU models use industry standard button and keyhole mounting for simple drop in installation in HPE Advanced and Enterprise Series racks, as well as many third party racks. The low profile single piece design provides multiple mounting options. For high power density requirements you can install two (2) full-height/mid-height PDU's or (4) half-height PDU's on each side of the rack with outlets facing in towards the center of the rack.

• A wide range of single and three-phase options providing up to 19.9kVA of output power
• Multiple form factors to meet the space requirements of most racks
• Mounts vertically on either side in the rear of the rack using industry standard button and keyhole mounting
• Standard mounting faces the outlet towards the rear of the rack preventing interference in the maintenance zone between rear RETMA rails.
• Using the optional configuration of facing the outlets into the rack, multiple PDUs can be mounted on one side of the rack for higher power density

Half-Height Vertical PDUs

• Designed to fit in 22U and taller racks
• Support low-voltage (100-120V) and high-line (200-240V) input voltages
• Single and three-phase models with up to 20 outlets
• Up to 2 Half-Height Basic PDUs can be mounted per side in the optional rear facing configuration in a 42U or taller rack.
• Up to 4 PDUs can be mounted on one side of a 42U or 47/48U rack using the standard inward facing configuration

Mid-Height Vertical PDUs

• Designed to fit in 36U and taller racks
• Support high input voltage (200-240V)
• Single and three-phase models with up to 36 outlets
• Three-phase Dual Voltage models provide three NEMA 5-20 convenience outlets for low voltage equipment in a high voltage rack
• When mounted in the standard rear facing configuration only 1 Mid-Height Basic PDU can be mounted per side of the rack
• Up to 2 Mid-Height  PDUs can be mounted on one side of a 42U or 47/48U rack using the optional inward facing configuration

Full Height Vertical PDUs

• Designed for 42U and taller racks
• Three-phase, high voltage models with 42 outlets
• When mounted in the standard rear facing configuration only 1 Full-Height Basic PDU can be mounted per side of the rack
• Up to 2 Full-Height  PDUs can be mounted on one side of a 42U or 47/48U rack using the optional inward facing configuration

NOTE: Facing the outlets into the rack will interfere with the lower few rack U spaces of the rear maintenance zone due to breakers on the PDUs.

Easy Installation and compatibility

Whether you choose to mount the Modular PDU in zero-U or 1U space, all required mounting brackets, accessories, and installation instructions are shipped with the product. Standard button and keyhole mounting provides simple drop in installation for Vertical PDUs in HPE Advanced and Enterprise Series Rack and many third party racks.

Warranty Upgrade Options

HPE Basic PDUs are backed by a limited 3-year warranty.
HPE Basic PDUs automatically assume the Support Services coverage level of any covered ProLiant server in the same rack.

HPE Support Services

Hewlett Packard Enterprise support services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of Hewlett Packard Enterprise support services hardware and software services are available including:

• Installation and start up
• Education courses
• Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
• Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 minutes for critical problems to 2 hours.
• System Management, Performance Services and Mission Critical Support Solution

NOTE: For more information on Hewlett Packard Enterprise support services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack
NOTE: For more complete information on Hewlett Packard Enterprise Services offerings, customers and resellers, please visit us at: http://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

Related Options

HPE Two C-13 PDU Extension Bars

HP Two C13 PDU Extension Bar

AF500A

NOTE: Kit includes two extension bars, each with a single C-19 input and seven C-13 outlets.

HPE Two Fixed Cord Extension Bars

HP Fixed Cord Extension Bars

351655-B21

NOTE: Kit includes two extension bars, each with a single C-19 input and seven C-13 receptacles on fixed (hardwired) 13-inch cords attached to the extension bars. The option is ideal for powering 1U servers and components.

HPE Support Services

HPE Install Rack and Rack Options Service

U2871E

HPE Power Cables

HP C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord

AF556A

HP C19 - Nema L6-20P NA/JP 250V 20Amp High Voltage 3.6m Power Cord

AF593A

HP C19 - NBR-14136 BR 250V 16Amp 2.5m Power Cord

AF592A

HP C19 - GB-1002 CN 250V 16Amp 2.5m Power Cord

AF584A

HP C19 - IS-1293 IN/PK/BD 250V 16Amp 2.5m Power Cord

AF582A

HP C19 - ISI-32 IL 250V 16Amp 2.5m Power Cord

AF583A

HP C19 - AS3112-3 AU/NZ 250V 15Amp 3.6m Power Cord

AF577A

HP C19 - IEC-309 DK/SE/AR 250V 16Amp 3.6m Power Cord

AF581A

HP C19 - CEE-VII EU 250V 16Amp 3.6m Power Cord

AF576A

HP C19 - CEI-23-50 IT/CL 250V 16Amp 3.6m Power Cord

AF580A

HP C19 - SABS-164 ZA 250V 16Amp 3.6m Power Cord

AF579A

HP C19 - BS-1363/A UK/HK/SG 250V 13Amp  3.6m Power Cord

359615-031

HP 240 VAC 4.5M Unterminated End NA Power Cord

E7806A

HP C19 - C20 WW 250V 16Amp 2.5m Jumper Cord

295633-B22

NOTE: HPE Basic PDU models H5M56A and H5M57A require an IEC 320-C19 to country specific plug inlet cord which is sold separately.

NOTE: Please refer to the HPE ProLiant Power Cables website for more information on power cords and cables.

HPE Jumper Cables

HP C13 - C14 WW 250V 10A Gray 0.7m Jumper Cord

A0K03A

HP C13 - C14 WW 250V 10Amp 0.7m Jumper Cord

142257-B28

HP C13 - C14 WW 250V 10Amp 1.4m Jumper Cord

142257-006

HP C13 - C14 WW 250V 10A Gray 1.37m Jumper Cord

A0K04A

HP C13 - C14 WW 250V 10Amp 1.4m 15 pc Jumper Cord

142257-007

HP C13 - C14 WW 250V 10Amp 2.0m Jumper Cord

A0K02A

HP C13 - C14 WW 250V 10Amp Flint Gray 2.0m Jumper Cord

AF573A

HP C13 - C14 WW 250V 10A Gray 3.0m Jumper Cord

A0K06A

HP C20 - C13 WW 250V 15Amp 2.0m Jumper Cord

AF590A

HP C19 - C20 WW 250V 16Amp Flint Gray 1.20m Jumper Cord

AF575A

HP C19 - C20 WW 250V 16Amp Flint Gray 2.0m Jumper Cord

AF574A

HP C19 - C20 WW 250V 16Amp 2.5m Jumper Cord

295633-B22

HP 200-250V 10A C15 to C14 .76m Jumper Cable

E7807A

NOTE: Please refer to the HPE ProLiant Power Cables website for more information on power cords and cables.

HPE Mounting Brackets

HP Vertical PDU 10K G2 Mounting Kit

H6L32A

NOTE: This kit allows for HPE Basic PDU vertical models to be mounted in HPE 10000 G2 series racks and in the HPE Value Series rack. This bracket is not needed for mounting in the HPE Advanced or Enterprise Series racks.

HPE 277 Volt options for H3X07A and H3X08A

HP LS-26 to LS-25 277 Volt 15Amp AC 0.76m Jumper Cord

TK801A

HP LS-26 to LS-25 277 Volt 15Amp AC 1.37M Jumper Cord

TK802A

HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer

H3X09A

NOTE: 720 watt, 2U transformer converts 277V to 230V for up to 4 devices.
NOTE: Please refer to the HPE ProLiant Power Cables website for more information on power cords and cables.

PDU
Output

Part Number

Input
Voltage

Current Maximum

Load
Capacity

Input Connection

Output Circuit Breakers

Outlet Connections

Half-Height Vertical Models

2.8kVA

H5M55A

100-120V

24A

2880VA @ 120V

8ft(2.4m) attached cord NEMA L5-30P

2 x 20A

18 x NEMA 5-20R

3.6kVA

H5M57A

200-240V

16A

3680VA @ 230V

IEC 60320-C20 inlet*

2 x 16A

20 x IEC C13

4.9kVA

H5M58A

200-208V

24A

4992VA @ 208V

8ft(2.4m) attached cord NEMA L6-30P

2 x 20A

20 x IEC C13

7.3kVA

H5M68A

200-240V

32A

7360VA @ 230V

8ft(2.4m) attached cord  IEC 60309  32A 3W

2 x 16A

20 x IEC C13

8.6kVA

H5M61A

200-208V
3-Phase Delta

24A

8646VA @ 208V

8ft(2.4m) attached cord NEMA L15-30

3 x 20A

18 x IEC C13

Mid-Height Vertical Models

4.9kVA

H5M59A

200-240V

24A

4992VA @ 208V

8ft(2.4m) attached cord NEMA L6-30P

2 x 20A

24 x IEC C13
6 x IEC C19

5.7kVA
(Dual Voltage)

H5M63A

100-120V/
200-208V
3-Phase WYE

16A per phase

5764VA @ 208V

8ft(2.4m) cord with attached NEMA L21-20P

3 x 20A

24 x IEC C13
3 x NEMA 5-20R

7.3kVA

H5M70A

200-240V

32A

7360VA @ 230V

8ft(2.4m) attached cord  IEC 60309 32A 3W

2 x 16A

24 x IEC C13
6 x IEC C19

8.3kVA

H5M60A

200-208V

40A

8320VA @ 208V

8ft(2.4m) attached cord CS8265C

3 x 20A

30 x IEC C13
6 x IEC C19

8.6kVA
(Dual Voltage)

H5M64A

100-120V/

200-208V 30A
3-Phase WYE

24A
per phase

8646VA @ 208V

8ft(2.4m) attached cord NEMA L21-30P

3 x 20A

24 x IEC C13
3 x IEC C19
3 x NEMA 5-20R

8.6kVA

H5M62A

200-208V
3-Phase Delta

24A

8646VA @ 208V

8ft(2.4m) attached cord NEMA 15-30P

3 x 20A

24 x IEC C13
6 x IEC C19

9.2kVA

H5M75A

200-240V

40A

9200VA @ 230V

Terminal block for hardwired installation

3 x 16A

30 x IEC C13
6 x IEC C19

11kVA

H5M71A

200-240V

48A

11040VA @ 230V

8ft(2.4m) attached cord IEC 60309 63A 3W

3 x 16A

30 x IEC C13
6 x IEC C19

11kVA

H5M72A

200-240V/
380-415V
3-Phase WYE

16A
per phase

11040VA @ 400V

8ft(2.4m) attached cord IEC 60309 16A 5W

3 x 16A

24 x IEC C13
6 x IEC C19

Full-Height Vertical Models

11kVA PDU

H5M73A

200-240V/
380-415V
3-Phase WYE

16A
per phase

11040VA @ 400V

8ft(2.4m) attached cord IEC 60309 16A 5W

3 x 16A

36 x IEC C13
6 x IEC C19

11kVA PDU

H5M67A

200-240V/
380-415V
3-Phase WYE

16A
per phase

11040VA @400V

8ft(2.4m) attached cord IEC 530P6

3 x 20A

36 x IEC C13
6 x IEC C19

13.2kVA PDU

H3X07A

277/480V
3-Phase WYE

16A
per phase

13302VA @480V

9.8ft(3m) attached cord IEC 60309 30A 5W

3 x 20A

15 x LS-26

19.9kVA PDU

H3X08A

277/480V 30A 3-Phase WYE

24A
per phase

19953VA @480V

9.8ft(3m) attached cord IEC 60309 30A 5W

6 x 20A

30 x LS-26

PDU
Output

Part Number

Input
Voltage

Current Maximum

Load
Capacity

Input Connection

Output Circuit Breakers

Outlet Connections

Horizontal Models

1.9kVA

H5M54A

100-120V

16A

1920VA @120V

8ft(2.4m) attached cord NEMA L5-20P

1 x 20A

12 x NEMA 5-20R

3.6kVA

H5M56A

200-240V

16A

3680VA @ 230V

IEC 60320-C20 inlet*

1 x 16A

12 x IEC C13

Horizontal/Modular Models

2.8kVA

252663-D71

100-125V

24A

2880VA @ 120V

11.8ft (3.6m) attached cord NEMA L5-30P

n/a

4 x IEC  C-19

3.6kVA

252663-B24

200-240V

16A

3680VA @ 230V

IEC 60320 C20 inlet

2 x 16A

2 x IEC C-19

4.9kVA

252663-D74

200-240V

24A

4992VA @ 208V

11.8ft (3.6m) attached cord NEMA L6-30P

4 x 15A

4 x IEC  C-19

4.9kVA

252663-D72

200-240V

24A

4992VA @208V

11.8ft (3.6m) attached cord NEMA L6-30P

4 x 20A

4 x IEC C-19

7.3kVA

252663-B33

200-240V

32A

7360VA @ 230V

11.8ft (3.6m) attached cord IEC 60309-32A 3W

4 x 16A

4 x IEC C-19

7.3kVA

252663-B31

200-240V

32A

7360VA @ 230V

11.8ft (3.6m) attached cord IEC 60309 32A 3W

4 x 16A

4 x IEC C-19

8.3kVA

252663-D75

200-240V

40A

8320VA @ 208V

11.8ft (3.6m) attached cord, CS8265C

4 x 15A

4 x IEC  C-19

8.3kVA

252663-D73

200-240

40A

8320VA @ 208V

11.8ft  (3.6m) attached cord CS8265C

4 x 20A

4 x IEC  C-19

8.6kVA

AF512A

200-208V
3-Phase Delta

24A

8646VA @ 208V

11.8ft (3.6m) attached cord, NEMA L15-30P

6 x 20A

6 x IEC C-19

9.2kVA

252663-B34

200-240V

40A

9200VA @ 230V

11.8ft (3.6m) attached cord, IEC 60309 63A 3W

4 x 15A

4 x IEC  C-19

9.2kVA

252663-B21

200-240V

40A

9200VA @ 230V

Terminal block for hardwired installation

4 x 16A

4 x IEC C-19

9.2kVA

252663-B32

200-240V

40A

9200VA @ 230V

11.8ft (3.6m) attached cord IEC 60309 63A 3W

4 x 16A

4 x IEC C-19

11kVA

AF513A

200-240V/
380-415V
3-Phase Wye

16A
per phase

11040 @ 230V

11.8ft (3.6m) attached cord, IEC 60309 16A 5W

6 x 16A

6 x IEC C-19

14.4kVA

AF519A

200-208V
3-Phase Delta

40A

14410VA @ 208V

11.8ft (3.6m) attached cord, CS8365C

6 x 20A

6 x IEC C-19

17.3kVA

AF511A

200-208v
3-Phase Delta

48A

17292VA @ 208V

11.8ft (3.6m) attached cord IEC 60309  60A

6 x 20A

6 x IEC C-19

22kVA

AF518A

200-240V/
346-415V
3-Phase Wye

32A
per phase

22080VA @ 230V

11.8ft (3.6m) attached cord, IEC 60309  32A 5W

6 x 16A

6 x IEC C-19

*NOTE: HPE Basic PDU models H5M56A and H5M57A require an IEC 320-C19 to country specific plug inlet cord which is sold separately.

Disclaimer: Hewlett Packard Enterprise makes no recommendations regarding power connector manufactures. Please consult a licensed professional to determine the best connector or receptacle for your specific needs.

All PDUs

Operating Temperature

50° to 122° F (10° to 50° C)

Operating Relative Humidity (%)

10% to 90%

Operating Elevation

0 to 10,000 ft (0 to 3048 m)

Storage Temperature

-4° to 140° F (-20° to 60° C)

Storage Relative Humidity (%)

5% to 95%

Storage Elevation

0 to 30,000 ft (0 to 9144 m)

Input Plug Length (attached cord units)

96 inches (243.8 cm) or 142 inches (360.7 cm)

Conformance Standards

UL, CUL - NA/JPN models
CE, TUV, KC, EAC - INTL models
UL, CUL, CE, TUV, KC, EAC - WW models

UL, CUL, CE, NOM, D - 40A models
UL, CUL, NOM - 24A models
CE, D - 32A model

Mechanical Dimensions (WxHxD)

0U/1U models

17.5 x 1.66 x 6 in (44.45 x 4.2x 15.3 cm)

Half-Height models

1.9 x 29.02 x 3.75.0 in (4.83 x 73.7x 9.5 cm)

Mid-Height models

1.9 x 55.12 x 9.5in (4.83 x 140 x 9.5 cm)

Full-Height models

1.9 x 65.59 x 3.75 in (4.83 x 166.6 x 9.5 cm)

Single Phase 4.9kVA to 9.2kVA

Unit Weight

18 lb (8.16 kg)

Shipping Dimensions (WxHxD)

21.5 x 12.25 x 13.0 in (54.61 x 31.12 x 33.02 cm)

Three Phase 8.6 kVA to 22 kVA

Unit Weight

20 lb (9.07 kg)

Shipping Dimensions (WxHxD)

21.5 x 12.25 x 15.0 in (54.61 x 31.12 x 38.1 cm)

Kit Contents

All Basic PDU models ship with:

• Mounting brackets/hardware
• Cord Retention bracket
• Tie wraps
• Shipping bracket (varies by model)
• Read me first card

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html#.V-lPA_krKiM

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html#.V-lPA_krKiM

Date

Version History

Action

Description of Change

13-Feb-2017

From Version 13 to 14

Changed

Models and Related Options were revised.

16-Feb-2016

From Version 12 to 13

Changed

Overview, Models, Standard Features, Related Options, Model Selection Matrix, PDU Plugs, and Technical Specifications were updated.

02-Oct-2015

From Version 11 to 12

Changed

SKU descriptions were updated throughout the QuickSpecs.

31-Jul-2015

From Version 10 to 11

Changed

Overview, Models, Standard Features, Related Options, Basic PDU Family Information, PDU Plugs, and Technical Specifications were updated.

11-Jun-2015

From Version 9 to 10

Added

PDU Plugs section was added to QuickSpecs.

Changed

Overview and Basic PDU Family Information sections were revised.

30-Mar-2015

From Version 8 to 9

Changed

Overview and Related Options were revised.

07-Mar-2014

From Version 7 to 8

Changed

Updates were made throughout,

01-Oct-2013

From Version 6 to 7

Changed

Corrected and error in the North America version.

16-Aug-2013

From Version 5 to 6

Changed

Changes made to the following Sections

Overview

Standard Features

Related Options

PDU Family Information

11-Jun-2013

From Version 4 to 5

Changed

Correction made to the Changes file only.

10-Jun-2013

From Version 2 to 4

Added

Added HPE Mounting Brackets to Related Options section.

10-Apr-2013

From Version 1 to 2

Changed

Changes made to the Model Selection Matrix chart.
