E-T-A -48VDC Vertical 0U Low Power Distribution Infrastructure for HPE Equipment QuickSpecs

E-T-A Breaker Panels are designed for power distribution cabinets and IT equipment rack installation. Each breaker panel is designed for 8 individual DC power outputs. One HPE S2B77A product contains two vertical 0U PDU panels, providing a total of 16 independent non-redundant or 8 redundant power outputs.

One vertical 0ULP (low power) can provide 8 independent output terminals. One output can provide a maximum of 25 A current or 1000W power load.  Breakers available with HPE product numbers are from 5 amps to 25 amps.  Breakers are located at the same side as output terminals. One PDU group supplies up to 200 A load. One group is divided into 8 channels, having a maximum 25 A per channel.

Input (supply) terminals are labeled with + and - labels.  Output terminals are labeled with numbers 1 … 8, corresponding to the circuit breaker slot above the terminal slot. All DC cables connect to the PDU using a Phoenix connector (Connector SPC 5/2-STCL-7,62) per channel unit. Input connections are UW95 Screw terminals 35 - 95 mm², AWG 4 - AWG 4/0.

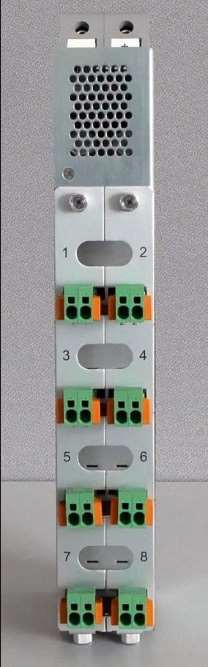

0ULP (low power) PDU front view

Each device with DC power supplies is connected to 0U low power PDU with Phoenix connector in the cable end. The connector contains 2 holes for positive (+) and negative (-) cables separately. Device grounding is connected to separate grounding plate with M4 screws per PDU. Each PDU is grounded to rack grounding busbar. The rack must be connected to the data center grounding point.

Phoenix connector

0U PDU grounding

One load connector can provide up to 25 A or 1000 W of power. If power supply load exceeds 1000W, one power supply load can be divided to two different output load connection with Y-cable. Then max power supply load is 2x25A or 2000W. One Y-cable connection requires 2 output slots and 2 circuit breakers per PDU panel.

Notes: Circuit breakers are not included in breaker panel kit, they have to be selected depending on the electrical load connected to each breaker panel output. Circuit breaker size recommendations are provided later in this document. 0ULP E-T-A DC cable length is optimized to nearest PDU. Plan 0ULP PDU location in the rack always close to target DC power supply. Both DC PSU and target 0ULP PDU need to be close the same height in the rack.

For -48V DC power distribution, the following elements are required:

- DC Breaker Panels, serving the same function as PDUs in AC setups – power distribution. Additionally, breaker panels host all circuit breakers protecting each output and device connected to it.

- Circuit Breakers to be inserted into Breaker Panels, rating to be selected according to the load connected to each output.

- Matching power cables, ideally in optimal length to avoid excess as DC cables are thicker and excess consumes more space than on AC side.

- The best cable length depends on the rack position of the breaker panel and the device connected to it.

- The grounding cables to connect the rack to the breaker panels grounding points.

- A grounding busbar to which all rack equipment is connected, and which is connected to Data Center ground by local electrician

Hewlett Packard Enterprise has two different DC power distribution solutions, which do not share the same components. Either use all HPE DC power distribution components, or use the E-T-A partner products, but do not mix the two solutions. The main difference is that E-T-A portfolio is richer, covers more deployment scenarios, and can be delivered pre-integrated in racks via Factory Express services.

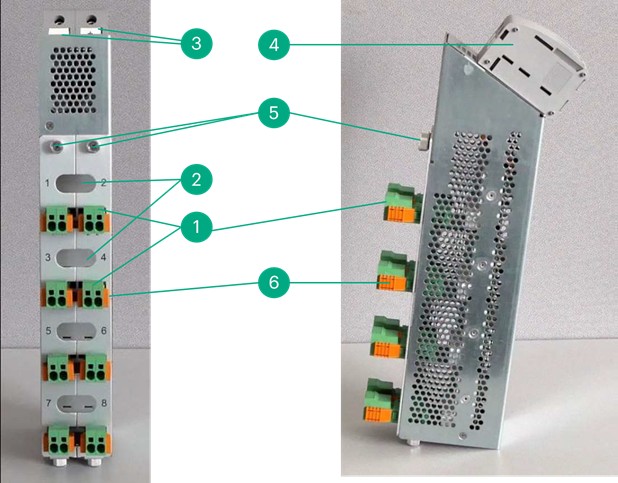

Vertical 0ULP (low power) panel with circuit breaker slots - Front and Side View

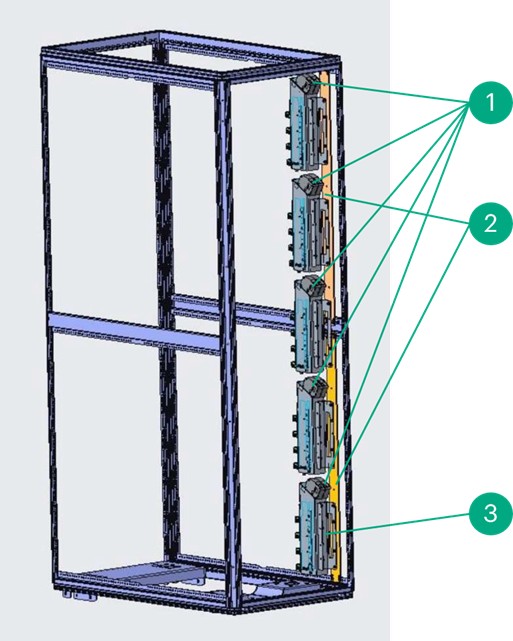

Vertical 0ULP (low power) rack solution for 42U rack

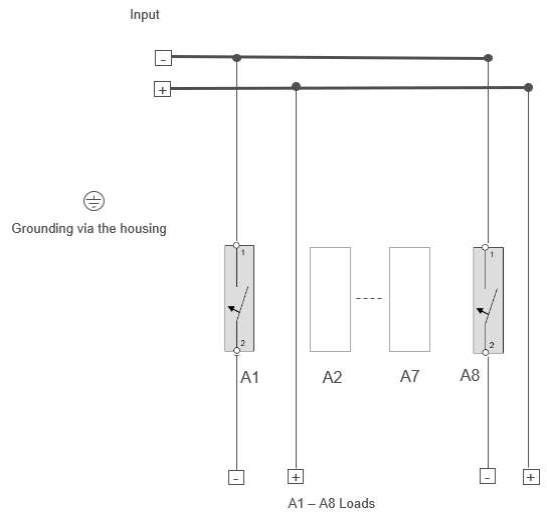

Breaker Panel internal wiring diagram – single panel A1 – A8 loads for non-redundant power

Form Factor

- E-T-A breaker panel S2B77A is a 0U rack-mounted DC power distribution unit (PDU).

- HPE G2 Advanced Series Rack Models 600 mm x 1200 mm are preferred, as 600 mm x 1075 mm may not provide enough installation space in the rear of the rack. If using 1075 mm rack, only shorter chassis (up to 640 mm in depth) can be installed with 0ULP DC PDU.

Models

E-T-A Breaker panels and compatible power distribution components

PDU Panels & grounding busbars

Description

SKU

E-T-A X22403901 0U 48VDC 2xSet 19BGT PDU

S2B77A

E-T-A 3801 0U Grounding Bar Set DC PDU

S2B78A

E-T-A X22410301 Connector Set for 0U PDU

S6J41A

Notes: The connector set S6J41A contains 8 Phoenix connector, for all output ports in one PDU. Phoenix connector can use max 6mm² DC power cables and max 25 A or 1000W power load. Grounding cable is connected separately to 0ULP grounding plate with M4 screws.

HPE ProLiant Gen10/Apollo servers Flex Slot 800W 48VDC power supply cables

Description

SKU

E-T-A 0601 0U 2xCbl Proliant 800W DC PDU

S2B79A

Notes: The supported HPE DC power supply in ProLiant Gen10 servers is 865434-B21 (HPE 800W FS 48VDC Ht Plg LH Pwr Sply Kit).

HPE ProLiant DL110/145 Gen11 Flex Slot 700W 48VDC power supply cables

Description

SKU

E-T-A X22400631 Power Cable Set

S4V30A

Notes: The supported HPE DC power supply in ProLiant DL110/145 Gen11 servers is P43150-B21 (HPE 700W FS -48VDC Ht Plg LH RAF PS Kit).

HPE ProLiant Gen11/Gen12 servers Flex Slot 1600W 48VDC power supply cables

Description

SKU

E-T-A 3701 2xCbl Proliant 1600W DC PDU

S2B80A

E-T-A X22404901 0Ulp PDU Prol Y Cbl Set

S8M27A

Notes: The supported HPE DC power supply in ProLiant Gen11/Gen12 servers is P17023-B21 (HPE 1600W FS -48VDC Ht Plg PS Kit). If the server power load is max 1000W, use S2B80A. If the server power load is over 1000W, use Y-cable S8M27A. This cable uses two load connector slots in the PDU.

HPE ProLiant Gen12 servers Flex Slot 1300W 48VDC power supply cables

Description

SKU

E-T-A X22416601 0ULP Prol 1300W Cbl Set

S8A16A

Notes: The supported HPE DC power supply in ProLiant DL32x/34x Gen12 servers is P82412-B21 (HPE 1300W M-CRPS -48VDC Ht Plg PS Kit ). Defined cable is supporting max 1000W load. For over 1000W load Y-cable solution is needed, but that cable type is not currently available.

HPE Alletra Storage MP B10000, X10000 and File 1600W 48VDC power supply cables

Description

SKU

E-T-A 3701 2xCbl Proliant 1600W DC PDU

S2B80A

E-T-A X22405201 0ulp 8325 Sw Cbl Set

S8M28A

Notes: The supported HPE DC power supply in Alletra Storage is R7C78A (HPE Alletra STG MP 1600W -48VDC PS) and for Aruba CX 8325 switch is JL861A (Aruba 8325 850W 48VDC FB PSU) and JL862A (Aruba 8325 850W 48VDC BF PSU). For the Alletra Storage switched configuration, JL862A (back-to-front) is preferred power supply.

HPE Networking Comware 51xx, 55xx, 59xx series 48VDC power cables

Description

SKU

E-T-A 1901 0U 2xCbl 5901AF Switch DC PDU

S2B83A

E-T-A 0801 0U 2xCbl 5945 Switch DC PDU

S2B82A

Notes: The supported HPE DC power supply in Comware 51xx,55xx and 5901 series switches is JD366B (HPE X361 150W DC Power Supply) and Comware 59xx series switches is JH336A (HPE SW 650W 48V NEBS DC PSU).

-48VDC circuit breakers

Description

SKU

E-T-A 9801 5A Circuit Breaker 0U DC PDU

S2B86A

E-T-A Y313999 20A Circuit Breaker DC PDU

S2B85A

E-T-A 0001 25A Circuit Breaker 0U DC PDU

S2B84A

Notes: Circuit breaker SKU contains one breaker. Redundant power supply solution requires one breaker per power supply. Correct current value can be calculated from used power by dividing with 40V, which is the lowest voltage value when power supply get power from the reserve battery system in the data center. An example calculation, if power supply uses 900W, then calculated circuit breaker value is 900 W / 40A = 22.5 A. Select the next closest circuit breaker from the table. In this case it is S2B84A (E-T-A 25A Circuit Breaker).

For the most up-to-date information on HPE Services, please refer to the HPE Services – Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

E-T-A power distribution components are compatible with select HPE equipment equipped with -48VDC power supplies. Please note that E-T-A cables cannot be used with other vendor DC power breaker panel systems and vice versa, as HPE or other vendors DC power cables are not compatible with E-T-A breaker panel. Breaker panel side connectors are physically different between the two breaker panel types.

HPE factory integration of complete racks of DC powered equipment is only available with E-T-A DC components.

Step 1: Select the required number of Breaker Panel kits

One Breaker Panel kit (S2B77A) contains two 0ULP DC PDUs and provides redundant 48V DC power for up to 8 dual power supply devices (total 16 individual DC outputs). Each 0ULP PDU has 8 outputs. Two 0ULP PDUs are needed for the redundant power solution. Each block of 8 outputs has 8x25 amps outputs. Maximum five 0ULP PDUs per side (totally ten 0ULP PDU) can be installed into one HPE G2 Advanced 42U 600 mm x 1200 mm rack.

While E-T-A components (excluding circuit breakers) are "sets" so that generally one set is enough for one device (examples: one ProLiant cable set is required for DL360 or 380 server; one Alletra storage cable set is required per enclosure), there are few exceptions. Consider for example HPE Networking Comware switches or Apollo servers, many of them can run with two power supplies, yet some models can have more.

Step 2: Select the required number of grounding busbars

Add one grounding bar set (S2B78A) per rack. SKU contains two set of grounding busbars for the redundant power supply solution. The grounding bar will be installed into rack rear side. All 0ULP PDU panels will be installed into it.

Step 3: Select the required number of DC power cables

Select the required number of optimal length cables, depending on the exact rack layout planned. One SKU contains two DC power cables for the redundant power supply solutions. Verify that DC power supply is supported by E-T-A cables. If E-T-A cable is not available, you can use S6J41A (E-T-A X22410301 Connector Set for 0U PDU) for maximum 25 A current or 1000 W power load. Maximum 6mm² DC power cable is supported. Grounding cable is connected separately to grounding plate, not to Phoenix connector.

Step 4: Select the required quantity of circuit breakers of each rating needed in your configuration

Select circuit breaker of correct rating for each power supply to be connected. Recommendations for the correct sizes are provided after the circuit breakers listing.

Factory Express Rack Integration

Ordering your choice of E-T-A power products pre-integrated into racks at HPE prior to shipping, is possible only by utilizing HPE Factory Express services.

For more than ten years, HP and latterly Hewlett Packard Enterprise, has been building, testing and deploying fully integrated, high quality data center, branch office and OEM solutions from its manufacturing facilities across the globe. Based on a robust portfolio of flexible, prepriced, integration modules, we are able to tailor a quality solution based on your requirements. Specifically, our factory in EMEA has developed capabilities for pre-integrated DC solutions including E-T-A DC Power products.

Build information such as product placement and DC cable connection plan must be supplied with each order and is mandatory for all E-T-A DC products in order for integration to take place.

Factory Express Ordering & Configuring Information Services

The relevant services to select for rack integration of E-T-A DC components are based on the Factory Express Racking & Third party Integration portfolio of services. Services to attach in OCA are as follows:

- Base Racking should be added to your choice of Shock pallet rack , i.e: P9K08A #001 - HPE 42U 600x1075mm Adv G2 Kit Shck Rack HPE Factory Express Base Racking Service

- Third Party Hardware integration HA844A1 is required, Qty x1 per E-T-A Product to be integrated. Labelling is highly recommended for-48v DC Cables, order Qty x1 HA850A1 Rack Cable Labelling Service, per rack

- HPE Base Racking XXXXXX #001:

• HPE Rack Product Placement Service  HA864A1
• Third Party Hardware integration HA844A1
• Rack Cable Labelling Service HA850A1

Notes: Factory integration services included in this solution require a Customer Intent Document (CID) to assist with the configuration and successful installation and implementation of the solution. The CID is required to be in place prior to sale. Before issuing a purchase order against this solution, please contact:

- EMEA Region CSEP@hpe.com

- AMS region easy.solutions.americas@hpe.com

- APJ region EMAP.issfe@hpe.com

Details to include in your CID document are:

- Placement of Hardware (rack position of each equipment)

- Cable layout plan (point to point)

- Cable Labeling information.

For additional information please visit:

Rack Customization Services: https://psnow.ext.hpe.com/doc/4AA5-5954EEE?from=app4AA5-5954EEE

Third Party Hardware Integration and Management Services

https://psnow.ext.hpe.com/doc/4AA5-5954EEE?from=app4AA5-5954EEE
