E-T-A -48VDC Horizontal Power Distribution Infrastructure for HPE Equipment QuickSpecs

E-T-A Breaker Panels are designed for a power distribution cabinet and IT equipment rack installation. Each breaker panel is designed for redundant and independent 2 x 8 DC power outputs in groups A and B, a total 16 individual outputs per panel. One HPE G2H95A product contains two breaker panels, providing 32 individual or 16 redundant power outputs.

Removable one-piece front plate provides access to circuit breakers, which are plug-in type hydraulic-magnetic devices rated from 0.1A to 80A.  Breakers available with HPE product numbers are from 6 amps to 80 amps.  Unused circuit breaker slots in the front plate to be covered with included plastic covers. Plastic snap-in label holder for individual marking attached below circuit breakers. Each Breaker Panel is delivered with 24 blank labels.

Input (supply) terminals are labeled A+/A- and B+/B-.  Output terminals are labeled A1+/A1- ... A8+/A8- and B1+/B1- ... B8+/B8-, with corresponding circuit breaker numbering in front.  All cables connect to the rear of the unit, with screw type terminal block connectors for inputs and outputs as shown below.

Negative pole protected, positive pole grounded solution.  M8 grounding bolts for each group on the right and left side panels. Internal grounding bridge providing option for positive supply pole to earth connection when used.  Units are delivered with grounding bridge disconnected (see the "ground jumper" in above the internal wiring diagram).

Integrated group signaling for each supply group.  Connection through 3-pole Phoenix connectors located in the rear section of the unit.

The Installation depth 310 mm (including cable strain relief).  Top and bottom covers made of perforated sheet metal for enhanced air circulation.  Circuit breaker removal tool located on the PDU's front panel reverse side.

Notes: Circuit breakers are not included in breaker panel kit; they have to be selected depending on the electrical load connected to each breaker panel output.  Circuit breaker size recommendations are provided later in this document.

For -48V DC power distribution, the following elements are required:

- DC Breaker Panels, serving the same function as PDUs in AC setups - power distribution. Additionally, breaker panels host all circuit breakers protecting each output and device connected to it.

- Circuit Breakers to be inserted into Breaker Panels, rating to be selected according to the load connected to each output.

- Matching power cables, ideally in optimal length to avoid excess as DC cables are thicker and excess consumes more space than on AC side.

- The best cable length depends on the rack position of the breaker panel and the device connected to it.

- The grounding cables to connect the rack to the breaker panels grounding points.

- A grounding bar to which all rack equipment is connected, and which is connected to Data Center ground by local electrician

Hewlett Packard Enterprise has two different DC power distribution solutions, which do not share the same components. Either use all HPE DC power distribution components, or use the E-T-A partner products, but do not mix the two. The main difference is that E-T-A portfolio is richer, covers more deployment scenarios, and can be delivered pre-integrated in racks via HPE Factory Express services.

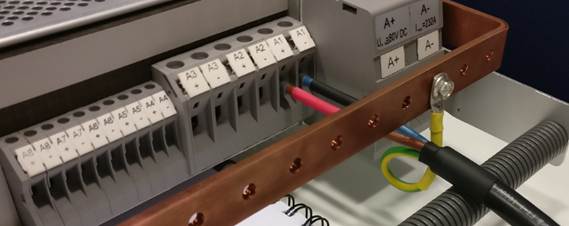

Breaker Panel rear view with power cable shown connected to output terminals and grounding bar

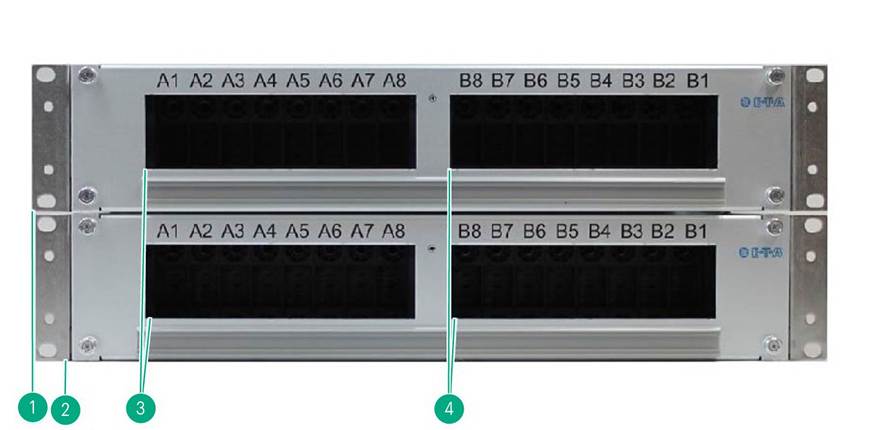

Two breaker panels with A and B side circuit breaker slots- Front View

Item

Description

Item

Description

1.

1^st breaker panel

3.

Group A circuit breakers

2.

2^nd breaker panel

4.

Group B circuit breakers

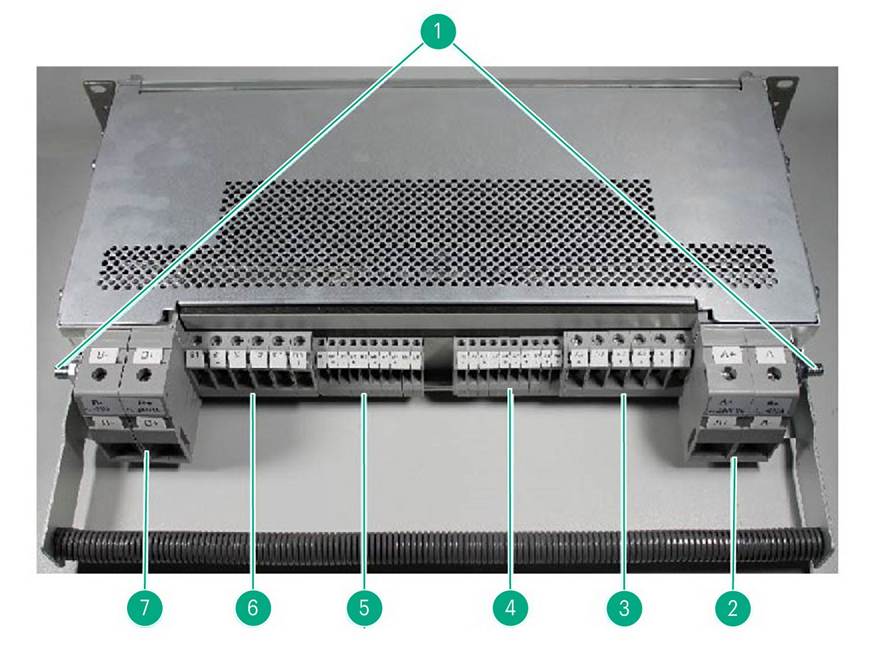

Breaker Panel input and output block connectors - Rear top view

Item

Description

Item

Description

1.

Ground connection (M8)

5.

Group B output terminals B4...B8 0.2 - 4 mm²

2.

Group A input terminals 35 - 95 mm²

6.

Group B output terminals B1...B3 1.5 - 16 mm²

3.

Group A output terminals A1...A3 1.5 - 16 mm²

7.

Group B input terminals 35 - 95 mm²

4.

Group A output terminals A4...A8 0.2 - 4 mm²

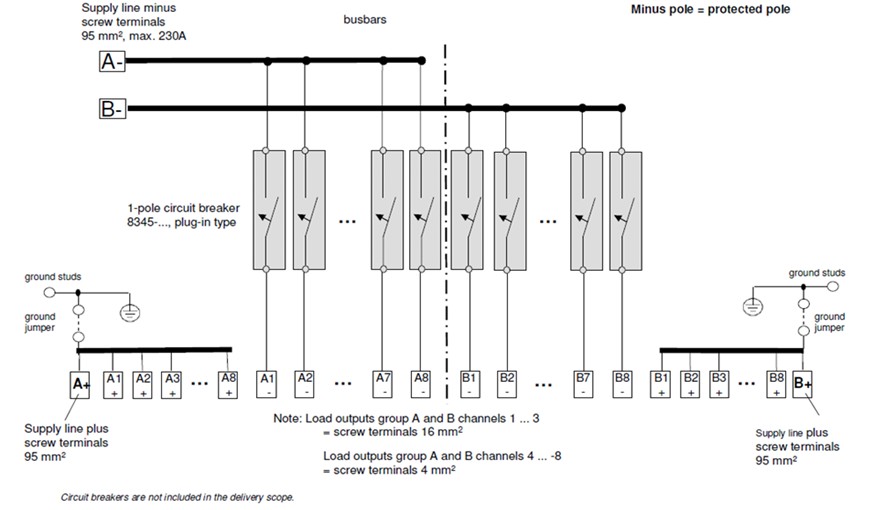

Breaker Panel internal wiring diagram - separate A and B groups for redundant power

Form Factor

- E-T-A breaker panels are 2U form factor rack mounted DC power distribution units.

- HPE product G2H95A contains two 19", 2U power distribution units, total rack space consumed 4U.

Models

E-T-A Breaker panels and compatible power distribution components

Breaker Panels and grounding bars

Description

SKU

E-T-A S541 2x16 Output DC Breaker Panels

G2H95A

E-T-A 6401 Two Grounding Bars w/ Screws

Q9N54A

E-T-A X22416601 0ULP Prol 1300W Cbl Set

S8A41A

E-T-A Grounding Cable Set

G2H96A

Notes: The grounding cable S8A41A is the preferred grounding option for S541 breaker panel.

HPE ProLiant Gen10/Apollo servers 800W Flex Slot 48VDC power supply cables

Description

SKU

E-T-A 6101 2x1.5m Proliant 48VDC Cables

Q9N58A

E-T-A 6111 2x2.3m Proliant 48VDC Cables

Q9N59A

E-T-A 6121 2x3.0m Proliant 48VDC Cables

Q9N60A

E-T-A 6131 2x3.9m Proliant 48VDC Cable

R0K18A

Notes: The supported HPE DC power supply in ProLiant Gen10 servers is 865434-B21 (HPE 800W FS 48VDC Ht Plg LH Pwr Sply Kit).

HPE ProLiant Gen11/12 servers Flex Slot 1600W 48VDC power supply cables

Description

SKU

E-T-A X22410201 2x1.5m Prol 1200W Cbl

S6L22A

E-T-A X22410202 2x2.3m Prol 1200W Cbl

S6L23A

E-T-A X22410203 2x3.0m Prol 1200W Cbl

S6L24A

Notes: The supported HPE DC power supply in ProLiant Gen11/12 servers is P17023-B21 (HPE 1600W FS -48VDC Ht Plg PS Kit). Cables are designed for use in all output terminals A1...A8 B1...B8 when server power load is max 1200W and using 30A breakers. Cable cross sectional area is 4mm².

E-T-A X22405401 2x1.5m Prol 1600W Cbl

S6L19A

E-T-A X22405402 2x2.3m Prol 1600W Cbl

S6L20A

E-T-A X22405403 2x3.0m Prol 1600W Cbl

S6L21A

Notes: The supported HPE DC power supply in ProLiant Gen11/12 servers is P17023-B21 (HPE 1600W FS -48VDC Ht Plg PS Kit). Cables are designed to use in output terminals A1...A3 B1...B3 when server load is max 1600W and using 40A (preferred) to 80A breakers. Cable cross sectional area is 6mm².

HPE Alletra Storage MP B10000, X10000 and File 1600W 48VDC power supply cables

Description

SKU

E-T-A X22405401 2x1.5m Prol 1600W Cbl

S6L19A

E-T-A X22405402 2x2.3m Prol 1600W Cbl

S6L20A

E-T-A X22405403 2x3.0m Prol 1600W Cbl

S6L21A

E-T-A X22405301 2x1.5m Aruba 8325 Cbl

S6L25A

E-T-A X22405302 2x2.3m Aruba 8325 Cbl

S6L26A

E-T-A X22405303 2x3.0m Aruba 8325 Cbl

S6L27A

Notes: Supporting HPE DC power supply in Alletra Storage is R7C78A (HPE Alletra STG MP 1600W -48VDC PS). Cables are designed to use in output terminals A1...A3 B1...B3 when server load is max 1600W and using 40A breakers. For Alletra Storage switched configurations, use Aruba 8325 cables with JL862A (Aruba 8325 850W 48VDC BF PSU) in all terminal ports A1...A8 B1...B8 with max 30A breakers.

HPE Networking Comware 59xx series 48VDC power cables

Description

SKU

E-T-A 7801 2x3.9m FF-5xxx 48VDC cables

G2H98A

Notes: Supported HPE DC power supply in Comware 59xx switches is JH336A (HPE SW 650W 48V NEBS DC PSU). For Comware 51xx, 55xx series and 5901 switches using JD366B (HPE X361 150W DC Power Supply), you can use HPE DC cables for Comware switch DC power supplies HPE DC cables with S541 DC panel.

-48VDC circuit breakers

Description

SKU

E-T-A 6A Circuit Breaker

L2Y46A

E-T-A 10A Circuit Breaker

F5V79A

E-T-A 15A Circuit Breaker

K8E32A

E-T-A 20A Circuit Breaker

F5V83A

E-T-A 30A Circuit Breaker

P9J62A

E-T-A 8345 C01a W0m1 Db1b2b 40a Breaker

S3R48A

E-T-A 8345 C01a W0m1 Db1b2b 50A Breaker

S2C04A

E-T-A 80A Circuit Breaker

F5V84A

Notes: Circuit breaker SKU contains one breaker. Redundant power supply solution requires one breaker per power supply. Correct current value can be calculated from used power by dividing with 40V, which is lowest voltage value when power supply get power from reserve battery system in the data center. An example calculation, if the power supply uses 900W, then calculated circuit breaker value is 900 W /40 A = 22.5 A. Select the next closest circuit breaker from the table. In this case it is P9J62A (E-T-A 30A Circuit Breaker).

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

E-T-A power distribution components are compatible with select HPE equipment equipped with -48VDC power supplies. Please note that E-T-A cables cannot be used with other vendor DC power breaker panel systems and vice versa, as HPE or other vendors DC power cables are not compatible with E-T-A breaker panel. Breaker panel side connectors are physically different between the two breaker panel types.

HPE factory integration of complete racks of DC powered equipment is only available with E-T-A DC components.

Step 1: Select required number of Breaker Panel kits

One Breaker Panel kit (G2H95A) contains two breaker panels and provides redundant 48V DC power for up to 16 dual power supply devices (total 32 individual DC outputs). Each breaker panel has 16 outputs arranged in two independent blocks of eight outputs for redundancy.  Each block of 8 outputs has 3x85 amps high power outputs and 5x30 amps outputs.

While E-T-A components (excluding circuit breakers) are "sets" so that generally one set is enough for one device (examples: one ProLiant cable set is required for DL360 or 380 server; one Alletra Storage cable set is required per chassis; there are few exceptions. Consider for example HPE Networking Comware switches or Apollo servers, many of them can run with two power supplies, yet some models can have more.

Step 2: Select required number of grounding bars

Add one grounding bar kit (Q9N54A) for each breaker panel kit (G2H92A). The grounding bar attaches to the back of the E-T-A breaker panel and does not consume rack space.  It is the central grounding point where all equipment connected to the breaker panel will have their ground wires connected, and which will be further on connected to the Data Center ground at installation location.

Step 3: Select required grounding cables

Select dedicated S541 grounding cable for E-T-A breaker panel. Each SKU contains one grounding cable. Recommended grounding point is described in the S541 installation guide.

All E-T-A power cables are 3-wire cables where the ground wire is within in the same cable as the 48V DC plus and minus conductors.

Step 4: Select the required number of DC power cables

Select required number of optimal length cables, depending on the planned rack layout. Choosing right length of cables is more important in DC powered racks than in AC powered ones, because DC power cables are thicker, and excess length is harder to fit into the rack.

For ProLiant Gen11/12 servers, using P17023-B21 (HPE 1600W FS -48VDC Ht Plg PS Kit), there are two different cable sets, 1200W cable with 4mm² or 1600W 6mm² cables. If you are planning to install multiple servers into the same rack, and calculated power consumption is max 1200W per server, you can use 4mm² cables for all output terminal ports A1...A8 B1...B8 per panel.

Step 5: Select the required quantity of circuit breakers of each rating needed in your configuration

Select circuit breaker of correct rating for each power supply to be connected. Recommendations for the right sizes are after the circuit breakers listing. Example calculations, ProLiant Gen11 server's power advisory calculation gives 900W max power for given configuration. Server is using P17023-B21 (HPE 1600W FS -48VDC Ht Plg PS Kit). Correct breaker size for this workload is 900 W / 40 V = 22.5 A. Closest match to this is 30A breaker (P9J62A) and two alternative E-T-A power cables, 1200W cable or 1600W cable.

Factory Express Rack Integration

Ordering your choice of E-T-A power products pre-integrated into racks at HPE prior to shipping, is possible only by utilizing HPE Factory Express services.

For more than ten years, HP and latterly Hewlett Packard Enterprise, has been building, testing and deploying fully integrated, high quality data center, branch office and OEM solutions from its manufacturing facilities across the globe. Based on a robust portfolio of flexible, prepriced, integration modules, we are able to tailor a quality solution based on your requirements. Specifically, our factory in EMEA has developed capabilities for pre integrated DC solutions including E-T-A DC Power products.

Build information such as product placement and DC cable connection plan must be supplied with each order and is mandatory for all E-T-A DC products in order for integration to take place.

Factory Express Ordering & Configuring Information

Services

The relevant services to select for rack integration of E-T-A DC components are based on the Factory Express Racking & Third party Integration portfolio of services, services to be attached in OCA are as follows:

- Base Racking should be added to your choice of Shock pallet rack , i.e.

P9K08A #001 - HPE 42U 600x1075mm Adv G2 Kit Shck Rack HPE Factory Express Base Racking Service

- Third Party Hardware integration HA844A1 is required, Qty x1 per E-T-A Product to be integrated. Breaker integration is included to DC breaker panel, so those quantities do not need to be added. Labelling is highly recommended for-48v DC Cables , order Qty x1 HA850A1 Rack Cable Labelling Service, per rack.

- HPE Base Racking XXXXXX #001:

• HPE Rack Product Placement Service  HA864A1
• Third Party Hardware integration HA844A1
• Rack Cable Labelling Service HA850A1

Notes: Factory integration services included in this solution require a Customer Intent Document (CID) to assist with the configuration and successful installation and implementation of the solution. The CID is required to be in place prior to sale. All integrated components need to be installed inside the physical rack. E-T-A panels can be installed only through HPE factory integration services, not by HPE site engineer at onsite customer location.

If E-T-A panels or cables are shipped standalone, an authorized customer data center representative can install the E-T-A products. Before issuing a purchase order against this solution, please contact:

- EMEA Region CSEP@hpe.com

- AMS region easy.solutions.americas@hpe.com

- APJ region EMAP.issfe@hpe.com

Details to include in your CID document are:

- Placement of Hardware (rack position of each equipment),

- Cable layout plan (point to point),

- Cable Labeling information

For additional information please visit:

Rack Customization Services: https://psnow.ext.hpe.com/doc/4AA5-5954EEE?from=app4AA5-5954EEE

Third Party Hardware Integration and Management Services:

https://psnow.ext.hpe.com/doc/4AA5-5954EEE?from=app4AA5-5954EEE

Table above valid as of December 2018.

For latest information, see the E-T-A breaker panel installation guide

(QR code on the left, URL https://www.e-t-a.de/X21279922.pdf)
