HPE PDU Management Module

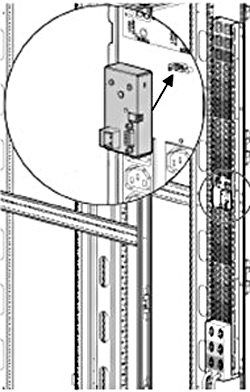

The HPE PDU Management Module enables you to monitor and manage power environments through comprehensive control of individual HPE PDUs.

• Access the management module:
  • Remotely through a Web browser.
  • Remotely through a Telnet session.
  • Locally through a terminal emulation program.

The management module can be configured to send alert traps to HPE Systems Insight Manager and other SNMP management programs or used as a standalone management system. This flexibility enables you to monitor and manage with up to two PDUs through the network connector; the serial connector located on the front of the management module is only used for configuration. To facilitate day-to-day maintenance tasks, the firmware provides detailed system logs.

• Use the management module firmware to:
  • Customize alerts
    • Send email notification messages
    • Send SNMP traps
  • Monitor and manage PDUs
    • Manage independent PDU load segments to provide separate power control of connected equipment
    • Display text logs for analysis
    • Monitor the status of PDUs

Models

HPE PDU Management Module

AF400A

Kit Contents

• Installation Guide
• Warranty Card
• Serial Cable, 6'

HPE Systems Insight Manager

Use HPE Systems Insight Manager to:

• Discover management modules. As part of the discovery process, HPE SIM can detect an installed management module. The web interface for the discovered module can be launched from the HPSIM Servers Links tab.
• Receive SNMP traps from the management module. The module can send event-based traps to HPSIM that include a URL in the trap. This functionality enables administrators to easily launch the web interface of the module in context. For example, if the management module detects an alarm condition, the module can send a trap to HPE SIM with an attached hyperlink that routes users directly to the Overview screen for the attached PDU.
• Conveniently launch the management module web interface from within HPE SIM.
  • Tools menu-Users can add a link to the web interface on the HPE SIM Tools menu using a tools definition file.
  • Event-based trap-A URL is included in each trap to link directly from HPE SIM to the Overview screen for the specific device for which the trap was sent.
  • Access to the management module can also be done by clicking on the Management Module link that is automatically created when the HPE PDU Management Module is discovered by HPSIM.

Security Considerations Overview

• The management module implements strict security for two important reasons:
  • The module monitors devices that have the potential to perform operations that are sensitive and destructive.
  • The management module has browser accessibility.
• To better ensure the security of the management module and the devices it manages, consider the following topics in accordance with your organization's security policies and the environment in which the module will operate.
  • Remote access to the management module requires a user account. Logging in requires the use of a user name and password, which should be kept properly secured.
  • Each account in can be given different access levels, providing different capabilities. Ensure that the appropriate access level is granted to users.
  • Browsing to the management module can be done using SSL, which encrypts the data between the browser and management module. The module is supported by a 128-bit encryption level. SSL also provides authentication of the management module by means of its digital certificate. Securely importing this certificate must be done to ensure the identification of the management module.

Warranty

HPE PDU Management Modules are backed by a limited 3-year warranty

HPE Services

For HPE Services (hardware & software) information, as well as orderable part numbers, please refer to the URL listed below:
http://www.hpe.com/services

NOTE: This is a list of related options. Some may be discontinued.

HPE Power Distribution Unit with Power Monitoring

HPE Monitored Power Distribution Unit: Full Rack Version

HP Dual Input 3 Phase 24A Monitored Power Distribution Unit

370959-D71

HP Single Input 3 Phase 24A Monitored Power Distribution Unit

370960-D71

HP Dual Input 1 Phase 40A Monitored Power Distribution Unit

370961-D71

HP Single Input 1 Phase 40A Monitored Power Distribution Unit

370962-D71

HP Dual Input 3 Phase 16A Monitored Power Distribution Unit

370963-B31

HPE Single Input 3 Phase 16A Monitored Power Distribution Unit

370964-B31

HP Dual Input 1 Phase 32A Monitored Power Distribution Unit

370965-B31

HPE Single Input 1 Phase 32A Monitored Power Distribution Unit

370966-B31

HP 22kVA 32A Single Input Three Phase INTL Monitored Power Distribution Unit

AF917A

HPE Services

HPE Install Rack and Rack Options Service

U2871E

Mechanical Dimensions (WxHxD)

1.625 x 3.125 x 1 in (4.128 x 7.938 x 2.54 cm)

Unit Weight

0.5 lb (.23 kg)

Shipping Dimensions (WxHxD)

8.5 x 2.3 x 9.7 in (21.59 x 5.84 x 24.62 cm)

Shipping Weight

1.3 lb (.59 kg)

Operating Temperature

212° to 932° F (100° to 500° C)

Operating Relative Humidity (%)

20% to 80 % relative humidity non-condensing

Operating Elevation

0 to 10,000 ft (0 to 3048 m)

Storage Temperature

212° to 932° F (100° to 500° C)

Storage Relative Humidity (%)

5% to 95 % relative humidity non-condensing

Storage Elevation

0 to 49,000 ft (0 to 14935 m)

Software

Browser

Web Browser Client

• Microsoft® operating systems
• Microsoft Internet Explorer 6.0 with Service Pack 1 (32-bit only)
• Red Hat Linux operating system (32-bit only)
• Mozilla 1.4
• SUSE Linux operating system (32-bit only)
• Mozilla 1.6

Plug-in

Macromedia Flash Player 7.0

Monitor Resolution

• Minimum supported resolution of 1024 x 768, 16-bit
• high color (maximize browser window for optimal display)

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

http://www.hpe.com/recycle

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

http://www.hpe.com/recycle

Date

Version History

Action

Description of Change

12-Jun-2017

From Version 6 to 7

Changed

QuickSpecs was rebranded.

20-Jun-2011

From Version 5 to 6

Changed

Changes were made throughout the QuickSpecs.

21-Jan-2011

From Version 4 to 5

Changed

Corrected a typo.

05-Oct-2007

From Version 3 to 4

Changed

Change made to description of P/N AF916A in the RELATED OPTIONS section.

05-Feb-2007

From Version 2 to 3

Added

Added the Environment-friendly Products and Approach object to the Technical Specifications section.

24-Feb-2006

From Version 1 to 2

Changed

Change made to description of P/N AF917A in the RELATED OPTIONS section.
