Quantum-X800 XDR Switches for HPE QuickSpecs

The NVIDIA Quantum-3 family of fixed-con figuration switches revolutionizes the performance, scalability, and efficiency of high-performance computing and AI infrastructures, enabling faster and more effective AI processing and computation. These switches are available in both 4U and 2U systems.

NVIDIA Quantum-X800 InfiniBand switches deliver 800 gigabits per second (Gb/s) throughput, with ultra-low latency and advanced NVIDIA In-Network Computing, which is essential for handling trillion-parameter-scale generative AI. These switches incorporate advanced features, including remote direct-memory access (RDMA), the fourth-generation NVIDIA® Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)^TM, adaptive routing, telemetry-based congestion control, self-healing, and Quantum-X Photonics co-packaged optics (CPO) technologies. Such enhancements elevate overall application performance within high-performance computing (HPC) and AI data centers.

The NVIDIA Quantum-X800 Q3400-RA 4U switches, the first to leverage 200 Gb/s-per-lane serializer/deserializer (SerDes) technology, significantly enhance network performance and bandwidth. They feature 144 ports at 800 Gb/s distributed across 72 octal small form-factor pluggable (OSFP) cages. The switches' high radix supports a two-level, fat-tree topology capable of connecting up to 10,368 network interface cards (NICs) with minimal latency and optimal job locality, as well as other topologies providing connectivity to tens of thousands of GPUs. The Q3400-RA is an air-cooled system designed for standard 19-inch rack cabinets, for smaller-scale platforms or integration with existing infrastructures, the NVIDIA Quantum-X800 Q3200 2U air-cooled configuration switch is ideal. This system houses two independent switches within a single enclosure, each providing 36 ports at 800 Gb/s. The Q3200 fixed-configuration switches are well-suited for connecting new compute clusters to previous-generation Quantum and Quantum-2 InfiniBand storage infrastructure. All NVIDIA Quantum-X800 switches include a dedicated OSFP InfiniBand in-band management port specifically for NVIDIA UFM® (Unified Fabric Manager), separated on the front panel from the other ports. This separation allows the full set of standard ports to be used for data network connectivity, simplifying port allocation and streamlining topology design. Additionally, NVIDIA Quantum-X800 switches feature optional router capabilities, facilitating the expansion of InfiniBand clusters to support a large scale of nodes located across multiple sites

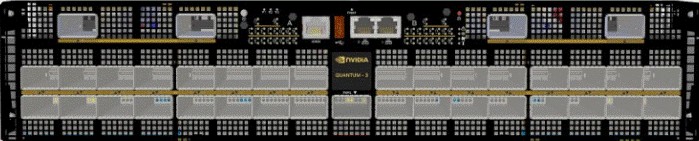

Q3200-RA Front View

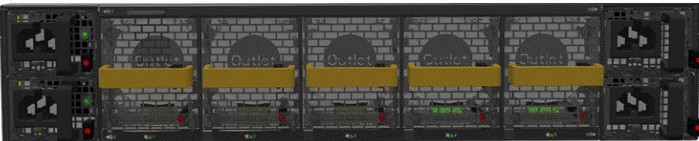

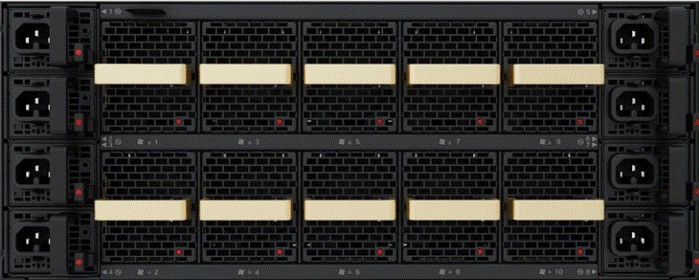

Q3200-RA Rear View

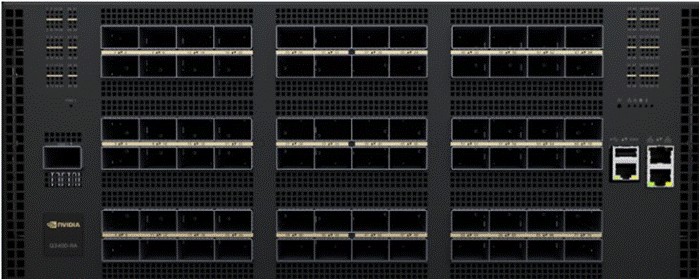

Q3400-RA Front View

HPE InfiniBand XDR Switch Series- Q3200, Q3400

Models

NVIDIA InfiniBand XDR 2x36-port OSFP Managed Connector to Power Airflow Switch

P79109-B21

NVIDIA InfiniBand XDR 144-port OSFP Managed Connector to Power Airflow Switch

P79110-B21

- NVIDIA Quantum-3-based 800 Gb/s InfiniBand switches

- 2x faster speeds and 5x higher scalability for AI

- Q3400: 4U 144 ports at 800 Gb/s; 72 octal form-factor pluggable cages

- Q3200: 2U 2 independent switches of 36 ports (18 OSFP per switch)

- 4th generation NVIDIA SHARP non-blocking switching capacity of 115.2Tb/s on Q3400-RA

- Two switches each of 28.8Tb/s on Q3200-RA

- Self-healing technology

- Standard depth

- Managed switch

- C2P airflow

- Rail kit

- Power cords not included

- Quick Start Guide

Key Features

- Highest Scale for AI: NVIDIA Quantum-X800 switches enable 2X faster speeds and 5X higher scalability for AI compute fabrics. A two-tier Quantum-X800 fat- tree topology can support over 10,000 800 Gb/s host connections.

- Next-Generation In-Network Computing: Quantum-X800 switches support SHARP for efficient offloading of compute operations to the network, boosting performance by up to 9X. The fourth generation of SHARP adds support for FP8 precision and new collective operations, such as ReduceScatter and ScatterGather.

- Higher Effective Bandwidth and Performance Isolation: Quantum-X800 switches support enhanced adaptive routing and telemetry-based congestion control. This enables nearly perfect effective bandwidth, as well as performance isolation for multi-tenant and multi-job environments.

- Enhanced Power Efficiency and Resiliency: NVIDIA's new Quantum-X Photonics CPO switch reduces total power consumption, latency, and total cost of ownership (TCO) while enhancing resiliency and serviceability. This is achieved by eliminating the need for pluggable transceivers and minimizing the distance and number of connections between optics and electronics.

- Enhanced Software Operations: Quantum-X800 switches include NVIDIA Networking OS Software (NVOS) for comprehensive chassis management and system configuration. NVOS supports various interfaces, including a command-line interface (CLI), REST APIs, Simple Network Management Protocol (SNMP), and gRPC Network Management Interface (gNMI) telemetry.

- Quick and easy setup and management

- Improved performance by removing fabric congestion

- Backward compatibility to Nvidia NDR InfiniBand technology for ease of migration

Switch Specifications

- Nvidia Quantum-3-based Q3400-RA and Q3200-RA switch systems

- XDR (800 Gbps) per port bidirectional

- Q3400-RA: 144 800 Gb/s non-blocking ports, 72 OSFP connectors

- Q3200-RA: Two switches of 36 800 Gb/s non-blocking ports, two groups of 18 OSFP connectors

- Switching capacity 115.2 Tbps on Q3400-RA; 28.8 Tbps on Q3200-RA

- Separate fabric management port

Connectors and cabling

- OSFP ports

-  Active copper or optical transceiver with fiber cables

Indicators

- Per OSFP port status LED for link and activity

- System status LEDs for system, fans, power supplies

- Unit ID (beacon) LED

Power Supply

- Q3200: 4 power supplies; Q3400: 8 power supplies. Input range: 200-240V AC; US min: 2 phases of 100-110v in total, at least 208v80 Gold+ and ENERGY STAR certified

Power Cords for Switches

8 PSU per Q3400, 4 PSU per Q3200

Cords are not supplied with XDR switches. HPE has compatible cables as below:

Cooling

- Connector to power airflow

- Hot-swappable fan units

Warranty and support

- Switches carry a 3-year warranty, On Site, next business day response

- Cables carry a 1-year warranty, parts exchange
