HPE Aruba Networking Gateway Software

Improved visibility and control at the WAN edge

HPE Aruba Networking Gateway Software technology is the answer to growing bandwidth demands and tightening budget considerations. New solutions offer simplified WAN operations and reduced operational costs for those managing public and private WAN connections, and those shifting toward cloud-based services altogether.

Aruba SD-WAN is designed for all of this and more - optimizing routing decisions and improving visibility across the WAN edge. Full Layer 7 application awareness combines with unique in-branch visibility based on end-user roles, device type, and location context to make Aruba SD-WAN ideal for distributed enterprises.

In fact, organizations in the retail, hospitality, and healthcare space - which typically have lean and centralized network teams - can improve the time to deploy, manage and maintain WAN connections, while enhancing the user experience and business operations. Aruba SD-WAN serves a key role in HPE Aruba Networking's overall SD-Branch solution.

Intelligent WAN Management

Through simplified workflows, managing a WAN can be completely orchestrated to improve the speed of deployment, network performance, and ongoing configuration changes. HPE Aruba Networking Central, an AI-powered network operations, assurance, and security platform, provides SD-WAN, as well as WLAN and LAN visibility and controls. Cloud advantages make it easy to configure and deploy and see data from Aruba branch gateways, headend gateways, and virtual gateways from anywhere. There is no on-premises management equipment to update or maintain.

Cloud-based SD-WAN orchestration

Using cloud-scale best practices, Aruba SD-WAN provides end-to-end orchestration to easily distribute routes and build scalable and secure VPN tunnels on-demand. This is based on the data center preference configured in HPE Aruba Networking Central. The orchestrator also simplifies the deployment of virtual gateways within Amazon AWS and Microsoft Azure public cloud infrastructure by automating cloud discovery, onboarding, and management.

Unrestricted bandwidth

Unlike other SD-WAN vendors, HPE Aruba Networking's SD-WAN solution offers unrestricted bandwidth per every gateway license. This means you have access to full hardware performance capabilities right out of the box - no upgrade purchases required.

Key Features

• On-premises and virtual gateway options
• Policy-based routing for 3,000+ applications with no additional hardware
• Licenses with unrestricted bandwidth for every SD-WAN gateway
• Flexible, cloud-based SD-WAN orchestration
• Policy enforcement for WAN, WLAN, and LAN
• Security integration with cloud and on-premises solutions

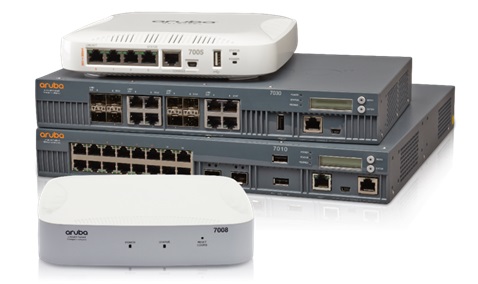

SD-WAN Gateways

SD-WAN gateways for branch

HPE Aruba Networking's SD-WAN gateways are designed to support multiple WAN connections that can be either broadband, MPLS or cellular links. Software features include the ability to route and prioritize traffic being sent to the data center, public cloud infrastructure or the Internet. Each gateway also supports High Availability (HA) requirements (e.g. active/active and active/standby), making it ideal for sites that need full redundancy.

SD-WAN gateways for headend

Aruba SD-WAN gateways deployed in headend/data center environments act as VPN concentrators (VPNCs) to terminate traffic from branch gateways. These gateways offer support for up to thousands of branch sites. In a typical dual hub-and-spoke model, one or more headend gateways can be used to terminate IPSec tunnels established from branch gateways.

SD-WAN gateways for public cloud

HPE Aruba Networking virtual gateways are deployed in public cloud infrastructures, such as a Microsoft Azure Virtual Network (VNET) or Amazon Web Services virtual private cloud (AWS VPC). These gateways serve as a virtual instance of a headend gateway and enable seamless and secure connectivity for all branch and data center locations connecting to public clouds. Virtual gateways support public Internet and private connections such as Direct Connect.

Virtual gateways are managed by HPE Aruba Networking Central and include full orchestration that completely automates VNET/VPC discovery, subnet management, gateway onboarding, HA configuration and status monitoring.

Virtual gateways support up to 4 Gbps of throughput, with 1-, 3-, and 5-year subscription options.

Microsoft Features

Office 365, Teams and Skype for Business

HPE Aruba Networking's integration with Microsoft enables unique application insight that detects Office 365, Teams and Skype for Business traffic and then prioritizes them over less critical applications. HPE Aruba Networking Central also includes specific call quality heuristics for additional visibility.

Microsoft preferred solution

HPE Aruba Networking virtual gateways are a Microsoft preferred solution on the Azure Marketplace. This means the gateway application has been validated by Microsoft experts as having proven competencies and capabilities that meet customer needs.

Policy-based Routing and Supported Protocols

With Policy-based Routing (PBR), traffic can be routed across multiple private or public WAN uplinks based on application type and link health, device profile, user role, and destination. Supported protocols include BGP, OSPF and static routes.

SAAS Optimization

HPE Aruba Networking Central enables the discovery of SaaS application servers based on geography, monitoring of application performance, and dynamic steering of WAN traffic from one server to another. This capability ensures that users who access SaaS applications such as Microsoft 365 (Office 365), Box, Slack, and Zendesk are matched to the best available points of presence. This feature requires the SD-WAN Advanced License. For more information, please refer to the latest HPE Aruba Networking Central documentation

Key WAN Features

Overlay and Hybrid WAN Management

Aruba SD-WAN introduces a new architecture that provides a network overlay for WAN connections to improve visibility and control across private and public connections (hybrid WAN).

Hub-and-Spoke Topology

Secure connections can be established from a branch site to a headend site using public or private connections. This allows users to efficiently access corporate resources hosted in data centers.

Site-to-Site VPNs

Secure connections can also be established from one branch site to another over a public Internet connection. This allows users from different locations to access network resources hosted within the corporate network without going through the data center.

Dynamic Path Steering (DPS)

WAN traffic can be automatically routed over the best available uplink based on characteristics, such as WAN throughput, latency, jitter, and packet loss.

WAN Visibility

With deep packet inspection technology, HPE Aruba Networking Central provides monitoring for application traffic that enters and exits a branch network - regardless of the uplink type. This makes it easy for IT to manage WAN environments that increasingly utilize public WAN connections.

WAN Compression

Ideal for use during periods of network congestion, this WAN compression feature allows IT to send more traffic through the same WAN circuit at any given moment or timeframe.

Unrestricted Bandwidth

Aruba SD-WAN licenses provide access to the full bandwidth specification for each gateway. No additional license upgrades required.

Key Configuration Features

Simplified Installation Wizard

For easy configuration of SD-WAN gateways, HPE Aruba Networking Central provides users with step-by-step navigation that simplifies provisioning of the network.

Configuration Hierarchy

Network settings can be pre-configured and customized in HPE Aruba Networking Central based on branch-specific requirements. Zero Touch Provisioning (ZTP) provides an easy and error-free deployment model.

Zero Touch Provisioning (ZTP)

Using Zero Touch Provisioning, the hardware gateways can be factory-shipped and deployed onsite using Aruba Activate^TM, a cloud-based activation service that seamlessly works with HPE Aruba Networking Central. Settings can be applied based on configuration and other network-specific requirements.

Simple, mobile provisioning

HPE Aruba Networking's mobile installer app allows on-site personnel to easily onboard gateways. A central IT team can verify device location, licenses, and status with no additional steps required. This is available for iOS and Android.

Key Security and Visibility Features

Dynamic Segmentation

To simplify and better secure wired and wireless network access, the branch gateway can automatically enforce per user and per-device roles on wired and wireless networks.  Integration with ClearPass Policy Manager allows for centralized role and policy management. This ensures consistent policy regardless of user role and device type, and eliminates the need to configure unnecessary SSIDs, ACLs, VLANs and subnets at every node in the network. For more information on Dynamic Segmentation, please refer to the solution overview.

Policy Enforcement Firewall

Included within the Foundation license, PEF allows for wired and wireless user and application traffic to be sent to a branch gateway through GRE tunnels for inspection. Enforcement of policies based on user role, device type, application and location is accomplished through dynamic segmentation.

Application visibility and control

Also included in the Foundation license is an application visibility feature that uses Deep Packet Inspection (DPI) technology to evaluate and optimize performance and QoS policies for over 3,000 applications, including encrypted and hidden traffic.

Web content filtering

The Web Content Classification (WebCC) bundle is also part of the Foundation license. This classifies websites by content category and rates them by reputation. It can also block, apply QoS, bandwidth-limit, mirror, and log web content.

Unified Communications and Collaboration (UCC)

Measure and troubleshoot networks based on call quality metrics such as Mean Opinion Score, latency, jitter, and packet loss. Supported applications include Teams, Skype for Business®, Wi-Fi Calling, Facetime, SIP, Jabber, Spark and more.

Third-party security gateway and firewall support

For advanced malware or antivirus protection, HPE Aruba Networking gateways can assume the role of an on-premises agent of centrally hosted firewalls such as those provided by Palo Alto Networks and Check Point Software, or web security gateways such as Zscaler and Symantec.

Service and Warranty Information

• Hardware: 1-year parts/labor, can be extended with hardware-only support contract
• Branch and Headend Gateway Subscriptions: 1, 3, 5, 7, or 10-year options which include software support
• Virtual Gateway Subscriptions: 1, 3, or 5-year options which include software support

Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

Controllers

1. Select the appropriate HPE Aruba Networking Gateway

Remarks

Description

SKU

HPE Aruba Networking Branch Gateway

7010

Aruba 7010 (RW) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 AP and 2K Clients Controller

JW678A

Aruba 7010 (US) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 AP and 2K Clients Controller

JW679A

Aruba 7010 (JP) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP for 32 AP and 2K Clients Cntrlr

JW681A

Aruba 7010(IL) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 for AP and 2K Clients Cntrlr

JW680A

Aruba 7010 (EG) 16x 1000BASE-T + 2x SFP Ports 32 AP Branch Controller

JY850A

7030

Aruba 7030 (RW) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller

JW686A

Aruba 7030 (US) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller

JW687A

Aruba 7030 (JP) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller

JW689A

Aruba 7030 (IL) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller

JW688A

Aruba 7030 (EG) 8x 1000BASE-T or 8xSFP64 AP Branch Controller

JY851A

7030 K12 Bundle

Aruba 7030-K12-32-RW 7030 K-12 (RW) Mobility Controller w/32 AP License Bundle

JW773A

Aruba 7030-K12-32-US 7030 K-12 (US) Mobility Controller w/32 AP License Bundle

JW774A

TAA Controllers

7010 TAA

Aruba 7010 (RW) FIPS/TAA 16p 150W PoE+ 10/100/1000BASE-T 1GBASE-X SFP 32 AP and 2K Clnts Cntrlr

JW702A

Aruba 7010 (US) FIPS/TAA 16p 150W PoE+ 10/100/1000BASE-T 1GBASE-X SFP 32 AP and 2K Clnts Cntrlr

JW703A

Aruba 7010 (JP) FIPS/TAA 16p 150W PoE+ 10/100/1000BASE-T 1GBASE-X SFP 32 AP and 2K Clnts Cntrlr

JW705A

Aruba 7010 (IL) FIPS/TAA 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 AP and 2K Clnts Cntrlr

JW704A

7030 TAA

Aruba 7030 (RW) FIPS/TAA 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clnts Cntrlr

JW710A

Aruba 7030 (US) FIPS/TAA 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clnts Cntrlr

JW711A

Aruba 7030 (IL) FIPS/TAA 8p Dual Pers 10/100/1000BASE-T 1GBASE-X SFP 64 AP and 4K Clnts Cntrlr

JW712A

Aruba 7030 (JP) FIPS/TAA 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clnts Cntrlr

JW713A

HPE Aruba Networking Headend Gateway

Remarks

Description

SKU

7210

Aruba 7210 (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW743A

Aruba 7210 (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW744A

Aruba 7210 (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW749A

Aruba 7210 (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW747A

Aruba 7210 (EG) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JY853A

7210 K12

Aruba 7210-K12-128-RW 7210 K-12 (RW) Mobility Controller w/128 AP License Bundle

JW779A

Aruba 7210-K12-128-US 7210 K-12 (US) Mobility Controller w/128 AP License Bundle

JW780A

Aruba 7210-K12-256-RW 7210 K-12 (RW) Mobility Controller w/256 AP License Bundle

JW781A

Aruba 7210-K12-256-US 7210 K-12 (US) Mobility Controller w/256 AP License Bundle

JW782A

7220

Aruba 7220 (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW751A

Aruba 7220 (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW752A

Aruba 7220 (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW757A

Aruba 7220 (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW755A

7240XM

Aruba 7240XM (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW783A

Aruba 7240XM (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW784A

Aruba 7240XM (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW785A

Aruba 7240XM (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW786A

Aruba 7240XM (EG) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JY854A

7280

Aruba 7280 (RW) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX911A

Aruba 7280 (US) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX910A

Aruba 7280 (JP) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX912A

Aruba 7280 (IL) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX913A

Aruba 7280 (EG) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JZ077A

DC Powered Controllers

7210 DC

Aruba 7210DC (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW645A

Aruba 7210DC (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW646A

Aruba 7210DC (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW648A

Aruba 7210DC (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW647A

7220 DC

Aruba 7220DC (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW649A

Aruba 7220DC (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW650A

Aruba 7220DC (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW652A

Aruba 7220DC (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW651A

7240XM DC

Aruba 7240XMDC (RW) 16GB DRAM 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr

JW674A

Aruba 7240XMDC (US) 16GB DRAM 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr

JW675A

Aruba 7240XMDC (JP) 16GB DRAM 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr

JW676A

Aruba 7240XMDC (IL) 16GB DRAM 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr

JW677A

TAA Controllers

7210 TAA

Aruba 7210 (RW) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW745A

Aruba 7210 (US) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW746A

Aruba 7210 (JP) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW750A

Aruba 7210 (IL) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW748A

7220 TAA

Aruba 7220 (RW) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW753A

Aruba 7220 (US) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW754A

Aruba 7220 (JP) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW758A

Aruba 7220 (IL) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW756A

7240XM TAA

HPE Aruba Networking 7240XM (RW) 16G DRAM 4p 10GBase-X SFP+ 2p Dual Per 10/100/1000BASE-T/SFP Cntrlr

JW829A

HPE Aruba Networking 7240XM (US) 16G DRAM 4p 10GBase-X SFP+ 2p Dual Per 10/100/1000BASE-T/SFP Cntrlr

JW830A

HPE Aruba Networking 7240XM (JP) 16G DRAM 4p 10GBase-X SFP+ 2p Dual Per 10/100/1000BASE-T/SFP Cntrlr

JW831A

HPE Aruba Networking 7240XM (IL) 16G DRAM 4p 10GBase-X SFP+ 2p Dual Per 10/100/1000BASE-T/SFP Cntrlr

JW832A

7280 TAA

Aruba 7280 (RW) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX915A

Aruba 7280 (US) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX914A

Aruba 7280 (JP) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX916A

Aruba 7280 (IL) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX917A

Aruba 7280 (EG) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JZ078A

2. Select power supply for AC powered units (Optional)

Power Options

Remarks

Description

SKU

Supported on 7008 models

HPE Aruba Networking PSU-310-AC 7008 Series 150W AC Spare Power Supply

JX933A

Supported on 7210, 7220 and 7240 and 7240XM models

Aruba PSU-350-AC 7200 Series 350W AC Power Supply

JW657A

HPE Aruba Networking PSU-350-DC 7200 Series Mobility Controllers 350W DC (-48V DC) Power Supply

JW658A

Notes:

Must match chassis type (AC or DC power)

Supported on 7280 models

HPE Aruba Networking PSU-550-AC 550W AC Power Supply

JZ012A

Select AC Power cord for power supply

Remarks

Description

SKU

HPE Aruba Networking PC-AC-ARG 250V/10A 1.8m C13 to IRAM 2073 (AR) AC Power Cord

JW113A

HPE Aruba Networking PC-AC-AUS 250V/10A 1.8m C13 to AS3112 (AU) AC Power Cord

JW114A

HPE Aruba Networking PC-AC-BR 250V/10A 1.8m C13 to NBR 14136 (BR) AC Power Cord

JW115A

HPE Aruba Networking PC-AC-CHN 250V/10A 1.8m C13 to GB2099 (CH) AC Power Cord

JW116A

HPE Aruba Networking PC-AC-DEN 250V/10A 1.8m C13 to AFSNIT 107-2-D1 (DK) AC Power Cord

JW117A

HPE Aruba Networking PC-AC-EC 250V/10A 1.8m C13 to CEE7/7 (EU) AC Power Cord

JW118A

HPE Aruba Networking PC-AC-IN 250V/6A 1.8m C13 to IS1293 (IN) AC Power Cord

JW119A

HPE Aruba Networking PC-AC-IL 250V/10A 1.8m C13 to SI32 (IL) AC Power Cord

JW120A

HPE Aruba Networking PC-AC-IT 250V/10A 1.8m C13 to CEI 23-50 (IT) AC Power Cord

JW121A

HPE Aruba Networking PC-AC-JPN 125V/12A 1.8m C13 to JISC 8303 (JP) AC Power Cord

JW122A

HPE Aruba Networking PC-AC-KOR 250V/7A 1.8m C13 to KSC 8305 (KR) AC Power Cord

JW123A

HPE Aruba Networking PC-AC-NA 125V/10A 1.8m C13 to NEMA 5-15P (NA) AC Power Cord

JW124A

HPE Aruba Networking PC-AC-SWI 220V/10A 1.8m C13 to SEV 1011 (SW) AC Power Cord

JW125A

HPE Aruba Networking PC-AC-UK 250V/10A 1.8m C13 to BS1363 (UK) AC Power Cord

JW127A

HPE Aruba Networking PC-AC-ZA 250V/10A 1.8m C13 to SANS 164-1 (ZA) AC Power Cord

JW128A

3. Select transceivers

Transceivers

Rule #

Description

SKU

Supported on 7010, 7024, 7030, 7210, 7220, 7240 and 7240XM models

1

HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver

J4859D

1

HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D

1

HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D

2

HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver

J4860D

Supported on 7024, 7210, 7220, 7240, 7240XM and 7280 models

HPE Aruba Networking SFP-10GE-ZR 10GBASE-ZR SFP+ 1310nm LC Connector Pluggable 10GbE Transceiver

JW148A

1

HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D

1

HPE Aruba Networking 10G SFP+ LC LRM 220m OM2 MMF Transceiver

J9152D

1

HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver

J9153D

1

HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D

1

HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D

1

HPE Aruba Networking 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285D

Supported on 7280 models

2

HPE Networking X142 40G QSFP+ MPO SR4 Transceiver

JH231A

2

HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver

JH232A

2

HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver

JH233A

2

HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable

JH234A

2

HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable

JH235A

2

HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable

JH236A

2

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A

2

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A

2

HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver

JL308A

Configuration Rules

Rule #

Description

SKU

1

Minimum HPE Aruba Networking OS software version is 6.5.3.0 and 8.1.0.0

2

Minimum HPE Aruba Networking OS software version is 6.5.4.7 and 8.4.0.0

4. Available HPE Aruba Networking Central SD-WAN licenses

Software Licenses

Supported on 7005 and 7008 models

HPE Aruba Networking 90/70xx Central Gateway Foundation 1-year Subscription E-STU

JZ118AAE

HPE Aruba Networking 90/70xx Central Gateway Foundation 3-year Subscription E-STU

JZ119AAE

HPE Aruba Networking 90/70xx Central Gateway Foundation 5-year Subscription E-STU

JZ120AAE

HPE Aruba Networking 90/70xx Central Gateway Foundation 7-year Subscription E-STU

R0G52AAE

HPE Aruba Networking 90/70xx Central Gateway Foundation 10-year Subscription E-STU

R0G53AAE

HPE Aruba Networking 90/70xx Central Gateway Foundation Base Capacity 1-year Subscription E-STU

JZ124AAE

HPE Aruba Networking 90/70xx Central Gateway Foundation Base Capacity 3-year Subscription E-STU

JZ125AAE

HPE Aruba Networking 90/70xx Central Gateway Foundation Base Capacity 5-year Subscription E-STU

JZ126AAE

HPE Aruba Networking 90/70xx Central Gateway Foundation Base Capacity 7-year Subscription E-STU

R0G56AAE

HPE Aruba Networking 90/70xx Central Gateway Foundation Base Capacity 10-year Subscription E-STU

R0G57AAE

Supported on all 70xx or 90xx models

HPE Aruba Networking 90/70xx Central Gateway Advanced 1-year Subscription E-STU

JZ121AAE

HPE Aruba Networking 90/70xx Central Gateway Advanced 3-year Subscription E-STU

JZ122AAE

HPE Aruba Networking 90/70xx Central Gateway Advanced 5-year Subscription E-STU

JZ123AAE

HPE Aruba Networking 90/70xx Central Gateway Advanced 7-year Subscription E-STU

R0G54AAE

HPE Aruba Networking 90/70xx Central Gateway Advanced 10-year Subscription E-STU

R0G55AAE

Supported on all 72xx models

HPE Aruba Networking 92/72xx Central Gateway Foundation 1-year Subscription E-STU

JZ195AAE

HPE Aruba Networking 92/72xx Central Gateway Foundation 3-year Subscription E-STU

JZ196AAE

HPE Aruba Networking 92/72xx Central Gateway Foundation 5-year Subscription E-STU

JZ197AAE

HPE Aruba Networking 92/72xx Central Gateway Foundation 7-year Subscription E-STU

R0G60AAE

HPE Aruba Networking 92/72xx Central Gateway Foundation 10-year Subscription E-STU

R0G61AAE

HPE Aruba Networking 92/72xx Central Gateway Advanced 1-year Subscription E-STU

JZ198AAE

HPE Aruba Networking 92/72xx Central Gateway Advanced 3-year Subscription E-STU

JZ199AAE

HPE Aruba Networking 92/72xx Central Gateway Advanced 5-year Subscription E-STU

JZ200AAE

HPE Aruba Networking 92/72xx Central Gateway Advanced 7-year Subscription E-STU

R0G62AAE

HPE Aruba Networking 92/72xx Central Gateway Advanced 10year Subscription E-STU

R0G63AAE

5. Accessories (Optional)

Remarks

Description

SKU

Shelf Mount Kit (optional)

HPE Aruba Networking 7005-MNT-19 7005 Series 19-inch Rack Mount Kit

JW084A

HPE Aruba Networking 7008-MNT-19 7008 Series 19-inch Rack Mount Kit

JX934A

HPE Aruba Networking 7010-MNT-19 7010 Series Replacement 19-inch Rack Mount Kit

JW085A

Supported on the 7024 and 7030 series controllers.

HPE Aruba Networking 7030-MNT-19 7030 Series Replacement 19-inch Rack Mount Kit

JW086A

Supported on the 7024 series controller.

HPE Aruba Networking SPR-WL2-MNT S1500-24/-48/S2500/S1500-24/-48/S2500 Wall and Rack Mount Kit

JW083A

Supported on the 7280 Models

HPE Aruba Networking SPR-RK3-MNT 7205 / 7024 / S2500-xx / S1500-24P/48P Spare Front Rack Mount

JW082A

Supported on the 7210, 7220, 7240, 7240XM Models:

HPE Aruba Networking SPR-RK-MNT 7200 / S3500 / S1500-24/48 / S2500 Spare Front or Mid Mount

JW107A

HPE Aruba Networking SPR-4RK-MNT 7200 Series / S3500 Spare Four-Post 19" Rack-Mount Kit

JW108A

HPE Aruba Networking SPR-WL-MNT 7200 Series or S3500 Wall Mount Kit

JW109A

Accessories only supported on the 7210, 7220, 7240, 7240XM Models

HPE Aruba Networking PSU-PWBLNK 7200 Series and S3500 Power Supply Spare Faceplate Blank

JW110A

HPE Aruba Networking HW-7200-FT 7200 Series Fan Tray

JW111A

HPE Aruba Networking SPR-ESBLNK 7200 Series Expansion Slot Blank Panel

JW112A

Accessories only supported on the 7280 Models

HPE Aruba Networking HW-7280-FT 7280 Series Fan Tray

JZ013A

Memory Upgrades

Notes:

Memory Upgrades should not be further configurable with any controller option

For the 7240XM upgrade SKUs, the customer can order the upgrade SKU, get shipped the 7240XM and will have 60 days from the time the order is placed to return the old 7240 SKU. At the end of 60 days, the customer will be invoiced for the differential amount and will be responsible for the invoice in 30 days.

7240XM Memory Upgrade

Aruba 7240XM (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW833A

Aruba 7240XM (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW834A

Aruba 7240XM (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW835A

Aruba 7240XM (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW836A

7240XM TAA Memory Upgrade

Aruba 7240XM (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW837A

Aruba 7240XM (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW838A

Aruba 7240XM (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW839A

Aruba 7240XM (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW840A

7240XMDC Memory Upgrade

Aruba 7240XMDC (RW) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

JW841A

Aruba 7240XMDC (US) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

JW842A

Aruba 7240XMDC (JP) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

JW843A

Aruba 7240XMDC (IL) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

JW844A

Notes:

¹The 9004, 7005, and 7008 offer a base capacity license for up to 75 clients.

²The 1RU can support two 9004 gateways side-by-side using an optional mount kit.

For additional information on ordering and full gateway hardware specifications, please refer to:

7000 Series Mobility Controller Data sheet

7200 Series Mobility Controller Data sheet

9004 Series Gateways Data sheet

Date

Version History

Action

Description of Change:

22-Jan-2024

Version 5

Changed

Series name was updated.

Obsolete SKUs were removed.

02-Dec-2019

Version 4

Changed

Overview, Standard Features and Configuration Information sections were updated.

03-Dec-2018

Version 3

Changed

Complete document remade with shorter version provided by product owner.

15-Jun-2018

Version 2

Changed

Updates on all sections were made

04-Jun-2018

Version 1

New

New Quickspecs
