HPE Aruba Network Protector SDN Application Series: технические характеристики и документация

Aruba Network Protector SDN Application Series

Models

Aruba Network Protector Application 250 Concurrent Users E-LTU

JL004AAE

Key features

• Simple security for Bring Your Own Device (BYOD)
• Provides dynamic, zero touch threat protection across networks
• Prioritizes application traffic based on DNS
• Enhanced security policies and control

Product overview

The Aruba Network Protector SDN Application enables automated network posture assessment and real-time security across an SDN-enabled network and provides simple security for Bring Your Own Device (BYOD). The Network Protector SDN Application uses the HP Virtual Application Networks (VAN) SDN Controller to program the network infrastructure with security intelligence from the TrendMicro TippingPoint RepDV Labs database. This turns the entire network infrastructure into security-enforcement devices, providing visibility and threat protection against more than one million malicious botnets, malware and spyware sites.

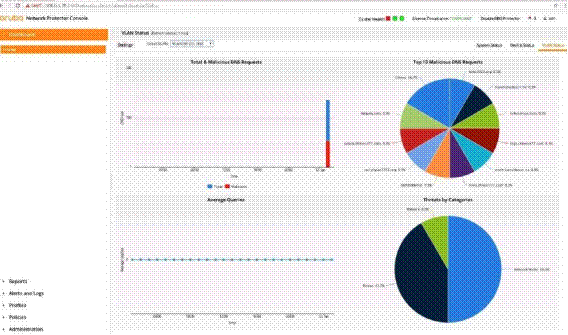

Network Protector Console

Features and Benefits

Quarantine thresholds
Can be configured on per client DNS requests per second or on total number of unique malicious connections per client, resulting in IP redirection or dropping of all client traffic.

Identity of malicious client
Displays the IP address associated with quarantined or blocked clients or reveals user identity when integrated with IMC.

Prioritized custom whitelist
Allows administrators to prioritize domains without using reputation database.

Custom blacklist
Allows the administrator to block malicious domains during specified periods of time.

Custom graylist
Allows the administrator to block certain domains to adhere to business policies during specified periods of time.

Remediation service
Allows the administrator to redirect blocked user to a custom remediation service portal.

Differentiated Services Code Point (DSCP) traffic marking
Allows the administrator to mark SDN traffic flows for proper mapping into existing policy-based routing architectures.

Top infected VLANs
Provides visibility into the relative health of VLAN clients.

Top infected endpoints
Provides visibility into the source of malicious traffic.

Dynamic access control list
Allows the administrator to create flow-based access control policy based on N-tuples.

Inspection throttling
Ensures that network performance is not impacted by bursts of heavy traffic.

Group policy
Supports individual reputation level for blocking or quarantining members of the group.

Flex time based policy
Allows the administrator to configure policies across extended time boundaries based on multiple years, weeks, days, hours, and minutes.

High availability
Provides a "2N+1" active-active model, which allows three Network protector applications to manage individual subsets of the network while sharing a common network view; the failure of one Protector application component generates a rapid response by the cluster to provide continued network operations.

Email alerts
Notifies the administrator of quarantined clients or malicious connection attempts.

Aruba Intelligent Management Center (IMC) integration
Allows the administrator to manage policies and statistics using IMC.

Warranty and Support

Limited electronic and business-hours telephone support is available from Hewlett Packard Enterprise. To reach our support centers, refer to http://www.hpe.com/networking/ contact-support. For details on the duration of support provided with your product purchase, refer to http://www.hpe.com/networking/warrantysummary.

Software Releases

To find software for your product, refer to http://www.hpe.com/networking/support. For details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary.

Aruba Network Protector Application 250 Concurrent Users E-LTU (JL004AAE)

Platform required

Server:

Aruba VAN SDN Controller software

Minimum system requirements

Server:

3.0 GHz Intel® Xeon® or Intel® Core™ 2 Quad processor or equivalent

Recommended software

Server:

Ubuntu 14.04 LTS 64-bit

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Aruba Network Protector SDN Application Series accessories

Aruba Network Protector RepDV Subscription 250 Concurrent Users 1yr E-LTU

JL005AAE

Aruba Network Protector RepDV Subscription 1000 Concurrent Users 1yr E-LTU

JL006AAE

Aruba Network Protector RepDV Subscription 2000 Concurrent Users 1yr E-LTU

JL007AAE

Aruba Network Protector RepDV Subscription 4000 Concurrent Users 1yr E-LTU

JL008AAE

Aruba Network Protector RepDV Subscription 8000 Concurrent Users 1yr E-LTU

JL092AAE

Aruba Network Protector RepDV Subscription 20000 Concurrent Users 1yr E-LTU

JL093AAE

Aruba Network Protector RepDV Subscription 40000 Concurrent Users 1yr E-LTU

JL094AAE

Date

Version History

Action

Description of Change

10-Mar-2017

From Version 3 to 4

Changed

Aruba Network Protector SDN Application Series

27-May-2016

From Version 2 to 3

Changed

Product description updated.

11-May-2015

From Version 1 to 2

Added

Accessories added: JL092AA; JL093AAE; JL094AAE

Changed

Minor changes made on the Overview section

SKUs descriptions updated
