HPE Scalable Persistent Memory

Ready to unlock new levels of performance from your business workloads?

HPE Scalable Persistent Memory in conjunction with the HPE ProLiant DL380 Gen10 server will transform your IT infrastructure, providing higher levels of performance while delivering increased levels of reliability and efficiency. It is part of an integrated storage solution that runs at memory speeds with TB scale capacity, unlocking new levels of compute performance with built-in persistence.

HPE Scalable Persistent Memory provides a complete hardware and software solution utilizing DRAM for application performance, a tier of flash for persistence and a backup power source to move data from DRAM to flash. Ideal for enabling in-memory compute with persistence and any workload that could benefit from low-latency DRAM-level performance:

• DRAM-level performance for fastest performing persistent memory
• Flexible capacity points ranging from 256 GB, 512 GB to 1 TB (coming in 2018)
• Complete solution using DRAM for application performance, flash tier for persistence and backup power for moving data to persistent store
• Up to 20x reduction in database restart time preserving maximum up-time[1]
• Up to 27x faster checkpoint operations enabling significantly faster business operations[2]

¹ HPE Internal Labs test. HPE Scalable Persistent Memory, restarting 1000GB Hekaton Database is as fast as restarting 200GB database or 20x, March 31, 2017

² TPC-C Benchmark Throughput with Checkpoint (trans/sec). Calculated Time to Checkpoint and Restore a Docker Container running MySQL, compare Persistent memory vs. SSD, March 31, 2017

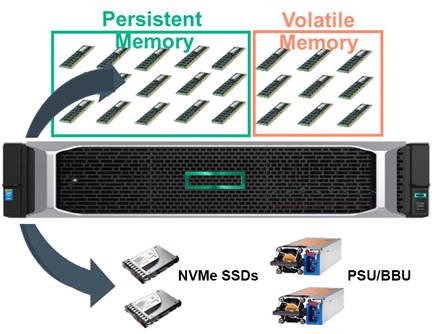

Supported on HPE ProLiant DL380 Gen10

Persistent Memory: HPE SmartMemory (DRAM) marked as Persistent Memory by the server BIOS and used as fast storage

Volatile Memory: HPE SmartMemory (DRAM)

NVMe SSDs: Dedicated flash tier for data persistence

PSU/BBU: Power supply with battery backup for holding up power to move data from DRAM to flash

Models

HPE Scalable Persistent Memory 256GB 2-socket Server

876401-B21

NOTE: Available as HPE Factory Configure To Order (CTO) SKUs only.

NOTE: Includes 384GB of total memory (256GB for Scalable PMEM and 128GB for server memory) using either (24) 16GB or (12) 32GB DIMMs.

NOTE: 128GB is minimum server memory for this solution.  Additional server memory can be added if using 32GB DIMMs in this configuration.

HPE Scalable Persistent Memory 512GB 2-socket Server

876402-B21

NOTE: Available as HPE Factory Configure To Order (CTO) SKUs only.

NOTE: Includes 768GB of total memory (512GB for Scalable PMEM and 256GB for server memory) using either (24) 32GB or (12) 64GB DIMMs.

NOTE: 256GB is minimum server memory for this solution.  Additional server memory can be added if using 64GB DIMMs in this configuration.

NOTE: Each HPE factory Configure To Order (CTO) SKU includes the required memory, NVMe SSDs + related infrastructure, (2) PSUs w/ battery backup and factory BIOS settings to support the specified amount of Scalable Persistent Memory.

NOTE: Please use HPE Power Advisor for sizing power requirements for your HPE Scalable Persistent Memory solution.

NOTE: No additional SSDs may be installed in Box 1.

NOTE: 64GB DIMM is the max memory DIMM size supported for HPE Scalable Persistent Memory.

NOTE: Supported only in datacenter environments with a max inlet air temperature of 25° C.

Storage at the Speed
of Memory

• HPE Scalable Persistent Memory delivers new levels of application performance enabling you to conduct business operations faster.
• Up to 20x reduction in database restart time preserving increased uptime.¹
• Up to 27x faster checkpoint operations enabling significantly faster business operations.²

¹HPE Internal Labs test. HPE Scalable Persistent Memory, restarting 1000GB Hekaton Database is as fast as restarting 200GB database or 20x, March 31, 2017

² TPC-C Benchmark Throughput with Checkpoint (trans/sec). Calculated Time to Checkpoint and Restore a Docker Container running MySQL, compare Persistent memory vs. SSD, March 31, 2017

Flexible Capacity Points

• HPE Scalable Persistent Memory supports terabyte-scale persistent memory enabling you to accelerate larger business workloads for faster and more efficient business operations.
• Scalable capacity that grows with your data needs.
• Flexible configurations designed to meet specific business application needs.

Designed to Address Common Application Storage Bottlenecks

• HPE Scalable Persistent Memory is optimized for industry-standard applications such as Microsoft® SQL Server® and Oracle® databases.
• Broad operating system support including Microsoft Windows® and Linux®.
• Benefits a broad range of workloads including large in-memory compute, databases, software defined storage, real time analytics, 3D graphics software and virtually any application that could benefit from the memory performance for storage applications.

Ideal Workloads

Large in-memory compute, faster checkpoints and restores, database storage bottlenecks and accelerating applications with memory performance.

Operating Systems

Microsoft Windows Server 2012 R2 (HPE driver)

Microsoft Windows Server 2016

Red Hat Enterprise Linux 7.3 or newer

SUSE Linux Enterprise Server 12 SP2 or newer

Warranty

For details on HPE Server Options Limited Warranty visit:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty

Other Resources

For information regarding HPE Persistent Memory visit: http://www.hpe.com/info/persistentmemory

For the latest updates on HPE Server Options visit: http://www.hpe.com/info/serveroptions

Service and Support

HPE Technology Services for ProLiant Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Support Services

HPE Support Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the selected support.
NOTE: This option is covered under the HPE Support Service(s) applied to the compute module. No separate HPE Support Service(s) need to be purchased.

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more at http://www.hpe.com/services/hpsc

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Support Service or Hewlett Packard Enterprise contractual support agreement.
NOTE: *HPE Support Center Mobile App is subject to local availability.

Parts and materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Warranty / Service Coverage

For ProLiant servers and storage systems, this service covers Hewlett Packard Enterprise-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by Hewlett Packard Enterprise as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hpe.com/services/proliant

For details on the HPE Server Memory Options Population Rules, visit:

http://www.hpe.com/docs/memory-population-rules

General Memory Population Rules and Guidelines

For HPE Gen10 Servers:

• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
• To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
• When two processors are installed, balance the DIMMs across the two processors.
• White DIMM slots denote the first slot to be populated in a channel.
• Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.

Server Platform(s): HPE ProLiant DL380 Gen10

Solution Capacity: 256GB, 512GB and 1,024GB (coming in 2018)

DIMM Type:  RDIMMs and LRDIMMs

DIMM Capacity:  16GB, 32GB and 64GB only (see Memory Configuration Rules)

Dedicated Backup Drives:  Select NVMe SSDs (see Dedicated Flash Backup Tier Rules) (

Backup Power: HPE Scalable PMEM 800W PSU/400W BBU (Qty: 2)

HPE Scalable Persistent Memory - Memory Configuration Rules

SKU

Total
Memory

Scalable PMEM Size

Server Memory Size

Supported Memory Configuration

Notes

876401-B21

384GB

256GB

256GB

DIMM Type(s):

RDIMM
LRDIMM

NOTE: Must use either (24) 16GB or (12) 32GB DIMMs.
NOTE: 128GB is minimum server memory for this solution.  Additional server memory can be added if using 32GB DIMMs in this configuration.
NOTE: 64GB DIMM is max memory DIMM size supported.

16GB DIMMs:

24

32GB DIMMs:

12

876402-B21

768GB

512GB

256GB

DIMM Type(s):

RDIMM
LRDIMM

NOTE: Must use either (24) 32GB or (12) 64GB DIMMs.
NOTE: 256GB is minimum server memory for this solution.  Additional server memory can be added if using 64GB DIMMs in this configuration.
NOTE: 64GB DIMM is max memory DIMM size supported.

32GB DIMMs:

24

64GB DIMMs:

12

HPE Scalable Persistent Memory - Dedicated Flash Backup Tier Rules

SKU

NVMe SKU

NVMe Description

Required NVMe Qty

Notes

876401-B21

877994-B21

HPE 1.6TB NVMe x4 MU SFF SCN DS SSD

2

NOTE: Must use 877994-B21 and required QTY to achieve bandwidth targets and backup power timeframe.

Must be installed in Box 3.

876402-B21

877994-B21

HPE 1.6TB NVMe x4 MU SFF SCN DS SSD

4

NOTE: Must use 877994-B21 and required QTY to achieve bandwidth targets and backup power timeframe.

Must be installed in Box 3.

HPE Scalable Persistent Memory - Backup Power Rules

SKU

PSU/BBU SKU

PSU/BBU Description

Required SKU Qty

Notes

876401-B21

827608-B21

HPE Scalable PMEM 800W PSU/400W BBU FIO SKU

1

NOTE: Each SKU contains 2 PSU/BBU units for redundancy and is available as a HPE factory configuration Configure To Order (CTO) SKU only.

NOTE: Includes required air baffle for DL380 Gen10.
NOTE: Please use HPE Power Advisor for sizing power requirements for your HPE Scalable Persistent Memory solution.

876402-B21

827608-B21

HPE Scalable PMEM 800W PSU/400W BBU

1

NOTE: Each SKU contains 2 PSU/BBU units for redundancy and is available as a HPE factory configuration Configure To Order (CTO) SKU only.
NOTE: Please use HPE Power Advisor for sizing power requirements for your HPE Scalable Persistent Memory solution.

HPE Scalable Persistent Memory - Required Infrastructure Rules

SKU

Required Infrastructure

Notes

876401-B21

826689-B21

HPE DL38X NVMe 8 Solid State Drive Express Bay Enablement Kit

NOTE: HPE Scalable PMEM 256GB SKU (876401-B21) defaults these required infrastructure components.
NOTE: No SSDs may be installed in Box 1.

867807-B21

HPE DL38X Gen10 4-port 8 NVMe Slim SAS Riser

867810-B21

HPE DL38X Gen10 High Performance Temperature Fan Kit

876402-B21

826689-B21

HPE DL38X NVMe 8 Solid State Drive Express Bay Enablement Kit

NOTE: HPE Scalable PMEM 512GB SKU (876402-B21) defaults these required infrastructure components.
NOTE: No SSDs may be installed in Box 1.

867807-B21

HPE DL38X Gen10 4-port 8 NVMe Slim SAS Riser

867810-B21

HPE DL38X Gen10 High Performance Temperature Fan Kit

Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

8-Jan-2018

Version 2

Changed

Parts and Materials & Persistent Memory URL updated

18-Dec-2017

Version 1

New

New QuickSpecs.

© Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Xeon and Intel are registered trademarks of Intel Corporation.

a00021848enw - 16052 - Worldwide  - V2 - 8-January-2018
