В архивеOverview
|
HPE NVDIMMs | ||
|
Do you need to increase the performance of your data center database and analytics applications? When you need to increase the performance of your database and analytics applications, look to HPE Persistent Memory. HPE has the broadest persistent memory portfolio in the market. We offer NVDIMMs that are right-sized to handle your constrained workloads, as well as terabyte capacity persistent memory, for larger bottlenecks. Now you can unlock new levels of performance, increase data resiliency and achieve faster business decisions in database management. HPE NVDIMMs are flash-backed DIMMs designed to eliminate smaller storage bottlenecks while delivering the performance of memory with the persistence of storage. Our NVDIMMs are also complemented by a robust software ecosystem that is designed around HPE servers and today's applications and workloads. What's new:
| ||
|
| ||
|
| ||
|

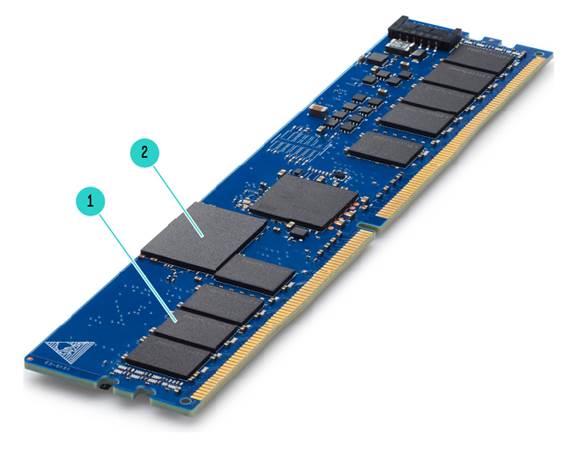

HPE 16GB NVDIMM | ||
|
1. |
DRAM: Application Acceleration. | |
|
2. |
NAND Flash: Persistent store for the NVDIMM. | |
|
Models | ||
|
HPE 16GB NVDIMM Single Rank x4 DDR4-2666 Module Kit |
845264-B21 | |
|
Notes: Supported on select HPE ProLiant Gen10 servers (DL360, DL380, DL560, DL580), BL460c Gen10 and Synergy Gen10 Compute Modules (SY480 and SY660) - includes CTO support. | ||
|
http://persistentmemory.hpe.com. | ||
Standard Features
|
Storage at the Speed of Memory Select HPE Servers equipped with HPE 16GB NVDIMMs increase performance for write intensive workloads delivering up to 2x+ faster database logging performance. [1] Designed to speed customer applications workloads, delivering up to 4x faster and better CPU Utilization with byte addressable storage. [2] |
|
|
|
Technology Designed to Make Your Business Data Resilient The HPE 16GB NVDIMM Modules include a flash component for persistence and utilizes the HPE Smart Storage Battery that provides you with a persistent storage capability at memory speeds without the data volatility of memory. [4] Active data runs on DRAM component of NVDIMM which not only provides outstanding performance but also offers greater endurance than traditional storage media. |
|
|
|
Solutions Designed Around Your Business Workloads HPE Persistent Memory is designed around industry applications and workloads to deliver the performance of memory with the persistence of storage. Complete hardware and software ecosystem providing a comprehensive persistent memory solution for your business, delivering up to 50% reduction in core-based software licensing. [3] |
|
|
|
Optimized for HPE servers, including select ProLiant and BladeSystem servers and Synergy Compute Modules. The HPE 16GB NVDIMM is supported on the following Gen10 servers: ProLiant DL Gen10: DL360, DL380, DL560 and DL580 Synergy Gen10: SY480 and SY660 BladeSystem Gen10: BL460c |
|
|
|
Ideal Workloads Ideal for databases write caching use cases and write-intensive workloads constrained by smaller storage bottlenecks. Reducing database storage bottlenecks: Up to 4x faster and better CPU utilization with byte addressable storage features in Microsoft SQL Server 2016. Software licensing reduction: Up to 50% reduction in core-based software licensing using NVDIMMs with fewer server cores while still maintaining equivalent or better overall performance. Write caching: Up to 2x faster with NVDIMMs versus NVMe SSDs. |
|
|
|
Operating Systems Microsoft Windows Server 2012 R2 (HPE driver) Microsoft Windows Server 2016 Red Hat Enterprise Linux 7.3 or newer SUSE Linux Enterprise Server 12 SP2 or newer |
|
|
|
Warranty For details on HPE Server Options Limited Warranty visit: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty |
|
|
|
Other Resources For information regarding HPE Persistent Memory visit: http://www.hpe.com/info/persistentmemory For the latest updates on HPE Server Options visit: http://www.hpe.com/info/serveroptions
Based on the NVDIMM utilizing NAND Flash as a persistent store and the HPE Smart Storage Battery providing the backup power source to move data from DRAM to NAND Flash.
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.
Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Recommended Services HPE Pointnext Tech Care. HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare |
|
|
|
Warranty / Service Coverage For ProLiant servers and storage systems, this service covers Hewlett Packard Enterprise-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions applyThe defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by Hewlett Packard Enterprise as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option. |
|
|
|
For more information To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hpe.com/services/proliant |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
|
Technical Specifications
|
For details on the HPE Server Memory Options Population Rules, visit: http://www.hpe.com/docs/memory-population-rules
HPE 16GB NVDIMM for Gen10 Servers - Population Rules and Guidelines:
o Choose a CPU with open slots (based on NUMA proximity), if any. o Pick a channel with two open slots, if any. This keeps the NVDIMM-N from sharing bandwidth with regular memory. Populate the white slot. o Pick a channel with an open slot that already has an NVDIMM-N rather than a regular DIMM, if any. This slot must be a black slot. Keep NVDIMM-N traffic away from regular DIMM traffic.
o It's important to keep the same number of DIMMs on the same memory controller. o Choose the number of NVDIMM-Ns per CPU based on desired block device size and NUMA locality. o Pick a memory controller with a channel with two open slots, if any. o Pick a channel with two open slots, if any. This keeps the NVDIMM-N from sharing bandwidth with regular memory. Populate the white slot.
|
|
|
|
|
|
NVDIMM Type: NVDIMM-N NVDIMM Rank: Single Rank NVDIMM Capacity: 16 GB Native Speed (MT/s): 2,666 (16GB) Non-volatile media: NAND Flash Backup power source: HPE Smart Storage Battery Max number of NVDIMMs: Gen10: 2s (12) and 4s (24) Max NVDIMM capacity (single server): 16GB: 192GB (2s) and 384GB (4s) Compatible DIMM Types: RDIMMs only What's included in kit: HPE 16GB NVDIMM for Gen10 Imperial Dimensions (W x D x H): 5.25 in x .25 in x 1.23 in Metric Dimensions (W x D x H): 2.54 cm x .64 cm x 3.12 cm Imperial Weight: .5 lbs Metric Weight: .24kg |
|
|
| |
|
Environment-friendly Products and Approach- End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
15-Nov-2021 |
Version 7 |
Changed |
Service and Support Section was updated |
|
03-Jun-2019 |
Version 6 |
Changed |
Models Section was updated |
|
12-Feb-2018 |
Version 5 |
Changed |
Parts and Materials and Persistent Memory URLs were updated |
|
04-Dec-2017 |
Version 4 |
Changed |
Overview and Technical Specification Sections were updated. New SKUs were added |
|
13-Feb-2017 |
Version 3 |
Changed |
Standard Features, and Technical Specifications were revised |
|
06-Jun-2016 |
Version 2 |
Changed |
Overview and Standard Features were revised. |
|
31-Mar-2016 |
Version 1 |
New |
New QuickSpecs |
