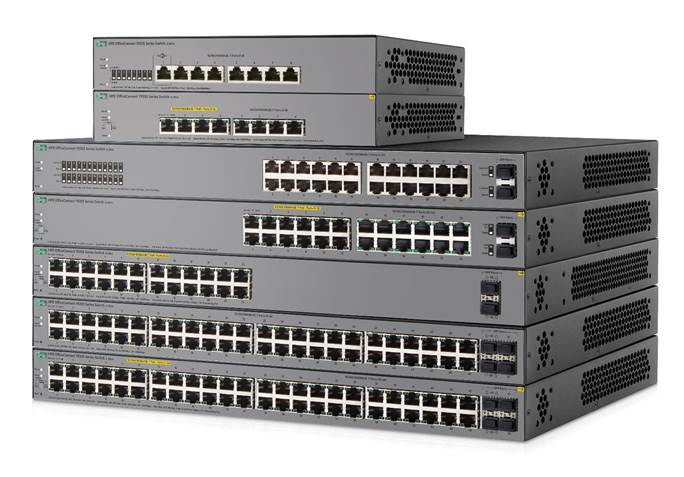

HPE OfficeConnect 1920S Switch Series

Models

HPE OfficeConnect 1920S 8G Switch

JL380A

HPE OfficeConnect 1920S 24G 2SFP Switch

JL381A

HPE OfficeConnect 1920S 48G 4SFP Switch

JL382A

HPE OfficeConnect 1920S 8G PPoE+ 65W Switch

JL383A

HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch

JL384A

HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W Switch

JL385A

HPE OfficeConnect 1920S 48G 4SFP PPoE+ 370W Switch

JL386A

Key features

• Customized operation using intuitive Web interface
• Layer 3 static routing with 32 routes for network segmentation and expansion
• Access control lists for granular security control
• Spanning Tree Protocol: STP, RSTP, and MSTP
• 8-, 24- and 48-port non-PoE+ models are fanless for quiet operation
• HPE Limited Lifetime warranty

Product overview

The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution.

The series consists of seven switches including 8- 24- and 48-port Gigabit Ethernet switches and 8-, 24- and 48-port PoE+ models of which half the ports are POE+ capable. An additional 24-port PoE+ model is available that provides PoE+ on all 24-ports. All ports provide non-blocking Gigabit per performance. Some models include SFP ports for fiber connectivity and the 8-, 24- and 48-port non PoE+ models are fanless, making them ideal for office deployments. All HPE OfficeConnect 1920S Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet switch for environments where no lline power is available.

The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products. These switches provide a great value, and includes features to satisfy even the most advanced small business networks. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static routing, IPv4 and IPv6 Host mode, ACLs, and Spanning Tree Protocols. HPE OfficeConnect 1920S Switch Series includes a Limited Lifetime Warranty.

Features and benefits

Management

• Simple Web management
  Allows for easy management of the switch-even by nontechnical users-through an intuitive Web GUI; supports HTTP and HTTP Secure (HTTPS)
• SNMPv1, v2c, and v3
  Facilitate management of the switch, as the device can be discovered and monitored from an SNMP management station
• Complete session logging
  Provides detailed information for problem identification and resolution
• Port mirroring
  Enables traffic on a port or VLAN to be simultaneously sent to a network analyzer for monitoring
• Dual flash images
  Provide independent primary and secondary operating system files for backup while upgrading
• Network Time Protocol (NTP)
  Synchronizes timekeeping among distributed time servers; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Manual network time configuration
  Manually set the date and time on the switch in the absence of an NTP server
• Default DHCP client mode
  Allows the switch to be directly connected to a network, enabling plug-and-play operation; in absence of a DHCP server on the network, the switch falls back to the static address 192.168.1.1
• FTP and TFTP
  Provides different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using user Datagram Protocol (UDP)
• Remote monitoring (RMON)
  Remote monitoring (RMON) provides advanced monitoring and reporting capabilities for statistics, history, alarms and events. RMON data is retrieved from the switch through a network management platform over SNMP.

Quality of Service (QoS)

• Traffic prioritization
  Provides time-sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification; packets are mapped to six hardware queues for more effective throughput
• IEEE 802.1p/Q VLAN tagging
  Delivers data to devices based on the priority and type of traffic; supports IEEE 802.1Q
• Advanced classifier based QoS
  Classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information.
• Packet storm protection
  Protects against unknown unicast, broadcast and multicast storms with user-defined thresholds
• Rate limiting
  Sets per-port ingress enforced maximums or percent minimum bandwidth per queue
• Class of Service (CoS)
  Sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number or source port
• Powerful QoS feature
  Supports the following congestion actions: strict priority queuing (SP) or weighted round robin (WRR) queuing. SP and WRR queuing can be configured on individual switch ports.

Connectivity

• IPv6 host
  Enables switches to be managed and deployed at the IPv6 network’s edge
• IEEE 802.3X Flow Control
  Provides a flow throttling mechanism propagated through the network to prevent packet loss at a congested node
• IEEE 802.3at Power over Ethernet (PoE+)
  Provides up to 30 W per port, which allows support of the latest PoE+ capable devices such as Video IP phones, wireless access points, and advanced pan/tilt/zoom security cameras, as well as any 15.4 W IEEE 802.3af-compliant end device; mitigates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments
• PoE+ port availability
  Ports 1-4 are PoE/PoE+ capable on the HPE OfficeConnect 1920S 8G PPoE+ 65W switch; ports 1-12 are PoE/PoE+ capable on the HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W switch; all ports provide PoE/PoE+ on the HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W switch; ports 1-24 are PoE/PoE+ capable on the HPE OfficeConnect 1920S 48G 4SFP PPoE+ 370W switch
• Auto-PoE power configuration
  The switch automatically assigns the required power to a port for a PD device based on Link Layer Discovery Protocol (LLDP). Optionally, the switch permits manual, per port, PoE power configuration
• PoE shut down mode
  A PoE scheduler provides the ability to define the hours of PoE power being supplied to a group of switch ports based on a 24-hour day. The scheduler enables the flexibility to select individual days of a week as well as reoccurrence on a weekly basis with a start and end date.
• PoE power allocation
  Support multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savings
• SPF ports for fiber connectivity
  Provides fiber connections for uplinks and other connections across longer distances than copper cabling can support; SFP ports are in addition to available copper Ethernet ports, providing a higher total number of available ports. Two SFP ports available on 24 and four SFP ports on 48 port models
• Loop protection
  If the switch detects a loop, it disables the source port from forwarding data packets originating from the switch to avoid broadcast storms
• Auto MDI/MDI-X
  Adjusts automatically for straight-through or crossover cables on all 10/100/1000 ports
• Energy Efficient Ethernet (EEE)
  Compliant with IEEE 802.3az standard requirements to save energy during periods of low data activity
• Auto-port shut down
  The switch saves power by automatically shutting down power to inactive ports. Power is restored on a port upon link detection
• Energy savings status
  The switch provides an estimated cumulative energy savings due to green Ethernet features being enabled
• Energy-efficient cooling
  Includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption by the switch

Security

• Access Control Lists (ACLs)
  Enables network traffic filtering by creating an ACL, add rules and match criteria to an ACL, and apply the ACL to permit or deny on one or more interfaces or a VLAN. Up to 50 inbound entries may be configured based on IPv4 source and destination IP and MAC address, Layer 4 ports and protocol type of the IPv4 packet.
• RADIUS
  The switch support RADIUS authentication and configuration of up to 8 RADIUS servers
• RADIUS Accounting
  A robust set of attributes and statistics are available for collecting information from the switch
• IEEE 802.1X access control
  Authentication of network users on a per port basis prior to permitting network access.  Port VLAN includes RADIUS VLAN assignment, dynamic VLAN creation, guest VLAN or into an unauthenticated VLAN.
• Switch 802.1X supplicant
  Enables the switch to authenticate itself to a RADIUS server
• Port isolation
  Ports in a port isolation group are restricted from forwarding Layer 2 traffic between ports in that group; provides data privacy and security
• Automatic denial-of-service protection
  Monitors for malicious attacks and protects the network by blocking the attacks
• Management password
  Provides security so that only authorized access to the Web browser interface is allowed
• Secure Sockets Layer (SSL)
  Encrypts all HTTP traffic, secure access to the browser-based management of the switch

Performance

• Half-and full-duplex auto-negotiating capability on every port
  doubles the throughput of every port
• Selectable queue configurations
  Allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications
• IGMP snooping
  Improves network performance through multicast filtering, instead of flooding traffic on all ports
• SFP fiber uplinks
  Provides greater distance connectivity using Gigabit fiber uplinks

Layer 2 switching

• Spanning Tree Protocol (STP)
  Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• BPDU filtering
  Drops BPDU packets when STP is enabled globally but disabled on a specific port
• Jumbo frame support
  Supports up to 9216 bytes frame size to improve the performance of large data transfers
• VLAN support and tagging
  Support for IEEE 802.1Q; 256 VLANs with a VLAN ID range of 2-4093

Layer 3 services

• Address Resolution Protocol (ARP)
  Displays the MAC address of another IP host in the same subnet; supports static ARPs; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• DHCP relay
  Simplifies management of DHCP addresses in networks with multiple subnets

Layer 3 routing

• Static IPv4 routing
  Provides basic routing supporting up to 32 static routes to allow manual routing configuration
• Link aggregation
  Groups together multiple ports up to a maximum of eight ports per trunk either automatically using Link Aggregation Control Protocol (LACP), or manually, to form an ultra-high-bandwidth connection to the network backbone; help prevent traffic bottlenecks. The 8 port models support 4 trunks, 16 and 24 port models support 8 trunks, 48 port models support 16 trunks.

Convergence

• LLDP-MED (Media Endpoint Discovery)
  Defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure network devices such as IP phones automatically
• Auto voice VLAN
  Recognizes IP phones and automatically assigns voice traffic to dedicated VLAN for IP phones

Warranty and support

• Limited Lifetime Warranty
  See http://www.hpe.com/officeconnect/support for warranty and support information included with your product purchase.

Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HPE OfficeConnect 1920S 8G Switch

JL380A

• 8 RJ-45 autosensing 10/100/1000 ports
• 1U - Height (Desktop Model)

See Configuration NOTE: 2

No Power Cord

JL380A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 8G PPoE+ 65W Switch

JL383A

• 4 RJ-45 autosensing 10/100/1000 PoE+ ports
• 4 RJ-45 autosensing 10/100/1000 ports
• 1U - Height (Desktop Model)

See Configuration NOTE: 2

PDU Cable NA/MX/TW/JP

JL383A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL383A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL383A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 24G 2SFP Switch

JL381A

• 24 RJ-45 autosensing 10/100/1000 ports
• 2 SFP 100/1000 Mbps ports (min=0 \ max=2 SFP  Transceivers)
• 1U - Height

See Configuration NOTE: 2, 3

PDU Cable NA/MX/TW/JP

JL381A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL381A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL381A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch

JL384A

• 12 RJ-45 autosensing 10/100/1000 PoE+ ports
• 12 RJ-45 autosensing 10/100/1000 ports
• 2 SFP 100/1000 Mbps ports (min=0 \ max=2 SFP  Transceivers)
• 1U - Height

See Configuration NOTE: 2, 3

PDU Cable NA/MX/TW/JP

JL384A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL384A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL384A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W Switch

JL385A

• 24 RJ-45 autosensing 10/100/1000 PoE+ ports
• 2 SFP 100/1000 Mbps ports (min=0 \ max=2 SFP  Transceivers)
• 1U - Height

See Configuration NOTE:2, 3

PDU Cable NA/MX/TW/JP

JL385A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL385A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL385A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 48G 4SFP Switch

JL382A

• 48 RJ-45 autosensing 10/100/1000 ports
• 4 SFP 100/1000 Mbps ports (min=0 \ max=4 SFP  Transceivers)
• 1U - Height

See Configuration NOTE:2, 3

PDU Cable NA/MX/TW/JP

JL382A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL382A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL382A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 48G 4SFP PPoE+ 370W Switch

JL386A

• 24 RJ-45 autosensing 10/100/1000 PoE+ ports
• 24 RJ-45 autosensing 10/100/1000 ports
• 4 SFP 100/1000 Mbps ports (min=0 \ max=4 SFP  Transceivers)
• 1U - Height

See Configuration NOTE:2, 3

PDU Cable NA/MX/TW/JP

JL386A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL386A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL386A#AC3

• No Localized Power Cord Selected

Configuration Rules:

Note 2

Localization (Wall Power Cord) required on orders without #B2B or #B2C (PDU Power Cord). (See Localization Menu)

Note 3

The following Transceivers install into this switch:

Aruba 100M SFP LC FX 2km MMF XCVR

J9054D

Aruba 1G SFP LC SX 500m MMF XCVR

J4858D

Aruba 1G SFP LC LX 10km SMF XCVR

J4859D

Aruba 1G SFP RJ45 T 100m Cat5e XCVR

J8177D

Remarks:

Drop down under power supply should offer the following options and results:

Switch/Router/Power Supply to PDU Power Cord -  #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)

Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

OCA Only Model Selection Form -

HPE Offering > Aruba > OfficeConnect - Smart Web Managed Switch:

OfficeConnect 1920S Switch Series

Rack Level Integration CTO Models

HPE OfficeConnect 1920S 24G 2SFP Switch

JL381A

• 24 RJ-45 autosensing 10/100/1000 ports
• 2 SFP 100/1000 Mbps ports (min=0 \ max=2 SFP  Transceivers)
• 1U - Height

See Configuration NOTE: 1, 2, 3

PDU Cable NA/MX/TW/JP

JL381A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL381A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL381A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch

JL384A

• 12 RJ-45 autosensing 10/100/1000 PoE+ ports
• 12 RJ-45 autosensing 10/100/1000 ports
• 2 SFP 100/1000 Mbps ports (min=0 \ max=2 SFP  Transceivers)
• 1U - Height

See Configuration NOTE: 1, 2, 3

PDU Cable NA/MX/TW/JP

JL384A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL384A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL384A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W Switch

JL385A

• 24 RJ-45 autosensing 10/100/1000 PoE+ ports
• 2 SFP 100/1000 Mbps ports (min=0 \ max=2 SFP  Transceivers)
• 1U - Height

See Configuration NOTE: 1, 2, 3

PDU Cable NA/MX/TW/JP

JL385A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL385A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL385A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 48G 4SFP Switch

JL382A

• 48 RJ-45 autosensing 10/100/1000 ports
• 4 SFP 100/1000 Mbps ports (min=0 \ max=4 SFP  Transceivers)
• 1U - Height

See Configuration NOTE: 1, 2, 3

PDU Cable NA/MX/TW/JP

JL382A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL382A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL382A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1920S 48G 4SFP PPoE+ 370W Switch

JL386A

• 24 RJ-45 autosensing 10/100/1000 PoE+ ports
• 24 RJ-45 autosensing 10/100/1000 ports
• 4 SFP 100/1000 Mbps ports (min=0 \ max=4 SFP  Transceivers)
• 1U - Height

See Configuration NOTE: 1, 2, 3

PDU Cable NA/MX/TW/JP

JL386A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JL386A#B2C

• C15 PDU Jumper Cord (ROW)

No Power Cord

JL386A#AC3

• No Localized Power Cord Selected

Configuration Rules:

Note 1

The following Transceivers install into this switch:

Aruba 100M SFP LC FX 2km MMF XCVR

J9054D

Aruba 1G SFP LC SX 500m MMF XCVR

J4858D

Aruba 1G SFP LC LX 10km SMF XCVR

J4859D

Aruba 1G SFP RJ45 T 100m Cat5e XCVR

J8177D

Note 2

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) . (See Localization Menu)

REMARK: When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Switches/Routers.

#AC3 No Localized Power Cord Selected

Note 3

If this switch is factory installed in any HP Racks, Then the J9583A#0D1 is required.

Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.

Transceivers

SFP Transceivers

Aruba 100M SFP LC FX 2km MMF Transceiver

J9054D

Aruba 1G SFP LC LX 10km SMF Transceiver

J4859D

Aruba 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D

Switch Enclosure Options

Rack Mount Kit

HPE X410 1U Univ 4-post RM Kit

J9583A

• Supported on JL381A, JL382A, JL384A, JL385A, JL386A

See Configuration NOTE: 1

Configuration Rules:

Note 1

If this Mounting Kit is order with #0D1 then it integrates to the HPE Network Rack.  (not the switch)

HPE OfficeConnect 1920S 8G Switch (JL380A)

I/O ports and slots

8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical characteristics

Dimensions

10(w) x 6.28(d) x 1.73(h) in

(25.4 x 15.95 x 4.39 cm) (1U height)

Weight

1.81 lb (0.82 kg)

Memory and processor

ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB

Performance

100 Mb Latency

< 7.0 µs

1000 Mb Latency

< 2.4 µs

Throughput

up to 11.9 Mpps

Routing/Switching capacity

16 Gbps

Routing table size

32 entries

MAC address table size

8,000 entries

Reliability

MTBF (years)

144.9

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 0 dB no fan

Electrical characteristics

Frequency

50/60 Hz

AC Voltage

100 - 240 VAC

Current

.2 A

Maximum power rating

9.5 W

Idle power

8.2 W

Safety

UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1

Emissions

VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32

Immunity

Generic

EN 55024, CISPR 24

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Device Management

Web browser

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920S 24G 2SFP Switch (JL381A)

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX)

Physical characteristics

Dimensions

17.42(w) x 9.69(d) x 1.73(h) in

(44.25 x 24.61 x 4.39 cm) (1U height)

Weight

6 lb (2.72 kg)

Memory and processor

ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB

Performance

100 Mb Latency

< 7.0 µs

1000 Mb Latency

< 2.0 µs

Throughput

up to 38.6 Mpps

Routing/Switching capacity

52 Gbps

Routing table size

32 entries

MAC address table size

8,000 entries

Reliability

MTBF (years)

80

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 0 dB no fan

Electrical characteristics

Frequency

50/60 Hz

AC Voltage

100 - 127 / 200 - 240 VAC

Current

.5/.3 A

Maximum power rating

15.7 W

Idle power

11.6 W

Safety

UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1

Emissions

VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32

Immunity

Generic

EN 55024, CISPR 24

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Device Management

Web browser

Notes

Use only supported genuine HPE mini-GBICs with your switch.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920S 48G 4SFP Switch (JL382A)

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX)

Physical characteristics

Dimensions

17.42(w) x 9.69(d) x 1.73(h) in

(44.25 x 24.61 x 4.39 cm) (1U height)

Weight

7.3 lb (3.31 kg)

Memory and processor

ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB

Performance

100 Mb Latency

< 7.0 µs

1000 Mb Latency

< 2.0 µs

Throughput

up to 77.3 Mpps

Routing/Switching capacity

104 Gbps

Routing table size

32 entries

MAC address table size

16,000 entries

Reliability

MTBF (years)

61.73

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 0 dB no fan

Electrical characteristics

Frequency

50/60 Hz

AC Voltage

100 - 127 / 200 - 240 VAC

Current

.8/.5 A

Maximum power rating

32.2 W

Idle power

23.3 W

Safety

UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1

Emissions

VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32

Immunity

Generic

EN 55024, CISPR 24

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Device Management

Web browser

Notes

Use only supported genuine HPE mini-GBICs with your switch.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920S 8G PPoE+ 65W Switch (JL383A)

I/O ports and slots

4 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical characteristics

Dimensions

10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height)

Weight

2.01 lb (0.91 kg)

Memory and processor

ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB

Performance

100 Mb Latency

< 7.0 µs

1000 Mb Latency

< 2.3 µs

Throughput

up to 11.9 Mpps

Routing/Switching capacity

16 Gbps

Routing table size

32 entries

MAC address table size

8,000 entries

Reliability

MTBF (years)

112.36

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 0 dB no fan

Electrical characteristics

Frequency

50/60 Hz

AC Voltage

100 - 240 VAC

Current

.9 A

Maximum power rating

72.9 W

Idle power

9.7 W

PoE power

65 W PoE+

Safety

UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1

Emissions

VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32

Immunity

Generic

EN 55024, CISPR 24

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Device Management

Web browser

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch (JL384A)

I/O ports and slots

12 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

12 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX)

Physical characteristics

Dimensions

17.42(w) x 9.69(d) x 1.73(h) in

(44.25 x 24.61 x 4.39 cm) (1U height)

Weight

7.3 lb (3.31 kg)

Memory and processor

ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB

Performance

100 Mb Latency

< 7.0 µs

1000 Mb Latency

< 2.0 µs

Throughput

38.6 Mpps

Routing/Switching capacity

52 Gbps

Routing table size

32 entries

MAC address table size

8,000 entries

Reliability

MTBF (years)

64.52

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 36 dB

Electrical characteristics

Frequency

50/60 Hz

AC Voltage

100 - 127 / 200 - 240 VAC

Current

2.6/1.3 A

Maximum power rating

207.9 W

Idle power

19 W

PoE power

185 W PoE+

Safety

UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1

Emissions

VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32

Immunity

Generic

EN 55024, CISPR 24

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Device Management

Web browser

Notes

Use only supported genuine HPE mini-GBICs with your switch.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W Switch (JL385A)

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX)

Physical characteristics

Dimensions

17.42(w) x 12.7(d) x 1.73(h) in

(44.25 x 32.26 x 4.39 cm) (1U height)

Weight

9.7 lb (4.4 kg)

Memory and processor

ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB

Performance

100 Mb Latency

< 7.0 µs

1000 Mb Latency

< 2.0 µs

Throughput

77.3 Mpps

Routing/Switching capacity

52 Gbps

Routing table size

32 entries

MAC address table size

16,000 entries

Reliability

MTBF (years)

57.1

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 45 dB

Electrical characteristics

Frequency

50/60 Hz

AC Voltage

100 - 127 / 200 - 240 VAC

Current

3.5/1.9 A

Maximum power rating

435 W

Idle power

34.2 W

PoE power

370 W PoE+

Safety

UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1

Emissions

VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32

Immunity

Generic

EN 55024, CISPR 24

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Device Management

Web browser

Notes

Use only supported genuine HPE mini-GBICs with your switch.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920S 48G 4SFP PPoE+ 370W Switch (JL386A)

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX)

Physical characteristics

Dimensions

17.42(w) x 12.7(d) x 1.73(h) in

(44.25 x 32.26 x 4.39 cm) (1U height)

Weight

9.7 lb (4.4 kg)

Memory and processor

ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB

Performance

100 Mb Latency

< 7.0 µs

1000 Mb Latency

< 2.0 µs

Throughput

77.3 Mpps

Routing/Switching capacity

104 Gbps

Routing table size

32 entries

MAC address table size

16,000 entries

Reliability

MTBF (years)

45

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 45 dB

Electrical characteristics

Frequency

50/60 Hz

AC Voltage

100 - 127 / 200 - 240 VAC

Current

5.1/2.6 A

Maximum power rating

481 W

Idle power

54.8 W

PoE power

370 W PoE+

Safety

UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1

Emissions

VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32

Immunity

Generic

EN 55024, CISPR 24

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Device Management

Web browser

Notes

Use only supported genuine HPE mini-GBICs with your switch.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Standards and protocols
(applies to all products in series)

Denial of service protection

CPU DoS Protection

General Protocols

IEEE 802.1D MAC Bridges

IEEE 802.1p Priority

IEEE 802.1Q VLANs

IEEE 802.1s (MSTP)

IEEE 802.1w Rapid Reconfiguration of Spanning Tree

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.3x Flow Control

IEEE 802.3 Type 10BASE-T

IEEE 802.3i 10BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

RADIUS Server

RADIUS server configuration options

IP/Address or Hostname

Friendly server name

Port Number (1-65335) Default = 1812

Secret key

Message Authenticator - enable or disable

RADIUS server summarized statistics

Client IP address / hostname

Round trip time

Access requests

Access rejects

Pending requests

Timeouts

Packets Dropped

RADIUS Accounting

RADIUS accounting server configurations options

IP Address or Hostname

Friendly server name

Port number - (1-65535) Default = 1813

Secret Key

RADIUS accounting attributes

RADIUS_ATTR_TYPE_USER_NAME

RADIUS_ATTR_TYPE_USER_PASSWORD

RADIUS_ATTR_TYPE_NAS_IP_ADDRESS

RADIUS_ATTR_TYPE_NAS_PORT

RADIUS_ATTR_TYPE_SERVICE_TYPE

RADIUS_ATTR_TYPE_FRAMED_IP_ADDRESS

RADIUS_ATTR_TYPE_FILTER_ID

RADIUS_ATTR_TYPE_FRAMED_MTU

RADIUS_ATTR_TYPE_REPLY_MESSAGE

RADIUS_ATTR_TYPE_STATE

RADIUS_ATTR_TYPE_CLASS

RADIUS_ATTR_TYPE_SESSION_TIMEOUT

RADIUS_ATTR_TYPE_TERMINATION_ACTION

RADIUS_ATTR_TYPE_CALLED_STATION_ID

RADIUS_ATTR_TYPE_CALLING_STATION_ID

RADIUS_ATTR_TYPE_NAS_IDENTIFIER

RADIUS_ATTR_TYPE_ACCT_STATUS_TYPE

RADIUS_ATTR_TYPE_ACCT_INPUT_OCTETS

RADIUS_ATTR_TYPE_ACCT_OUTPUT_OCTETS

RADIUS_ATTR_TYPE_ACCT_SESSION_ID

RADIUS_ATTR_TYPE_ACCT_SESSION_TIME

RADIUS_ATTR_TYPE_ACCT_TERMINATE_CAUSE

RADIUS_ATTR_TYPE_ACCT_G_IBYTES

RADIUS_ATTR_TYPE_ACCT_G_OBYTES

RADIUS_ATTR_TYPE_NAS_PORT_TYPE

RADIUS_ATTR_TYPE_TUNNEL_TYPE

RADIUS_ATTR_TYPE_TUNNEL_MEDIUM_TYPE

RADIUS_ATTR_TYPE_EAP_MESSAGE

RADIUS_ATTR_TYPE_MESSAGE_AUTHENTICATOR

RADIUS_ATTR_TYPE_TUNNEL_PRIVATE_GROUP_ID

RADIUS accounting summarized statistics

Accounting Requests

Pending Requests

Timeouts

Packets Dropped

MIB support

RFC 2819 RMON-MIB

HC-ALARM-MIB

SNMP-FRAMEWORK-MIB

SNMP-NOTIFICATION-MIB

SNMP-USER-BASED-SM-MIB

SR-AGENT-INFO-MIB

BRIDGE-MIB (IEEE 802.1Q)

Q-BRIDGE-MIB (RFC 2674

LLDP-MIB (IEEE 802.3AB)

LLDP-EXT-MED-MIB

LAG-MIB (IEEE 802.3ad)

RADIUS-ACC-CLIENT-MIB

EtherLike-MIB

IF-MIB (RFC 2863)

RFC1213-MIB

Power Ethernet MIB (RFC3621)

HPE Private MIBS

sysOID - identifier MIB objects

HPE OfficeConnect 1920S Switch Series accessories

Transceivers

Aruba 100M SFP LC FX 2km MMF Transceiver

J9054D

Aruba 1G SFP LC LX 10km SMF Transceiver

J4859D

Aruba 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D

Mounting Kit

HPE X410 1U Universal 4-post Rackmount Kit

J9583A

Date

Version History

Action

Description of Change:

02-Apr-2018

Version 4

Changed

Accessories updated

04-Sep-2017

Version 3

Changed

Updates made on Features and benefits

16-May-2017

Version 2

Changed

Edits made on Technical Specifications

06-Mar-2017

Version 1

Created

Document creation
