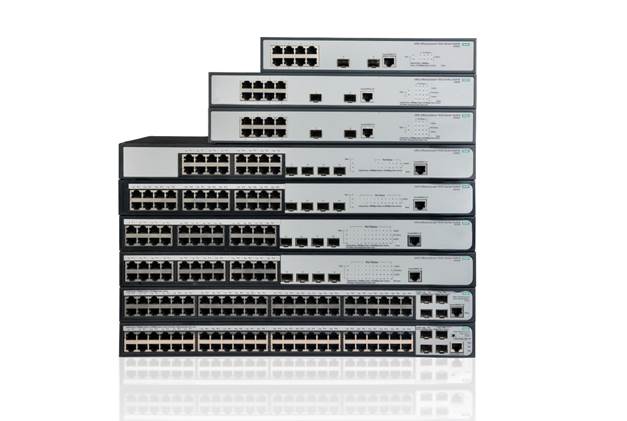

HPE OfficeConnect 1920 Switch Series

Models

HPE OfficeConnect 1920 8G Switch

JG920A

HPE OfficeConnect 1920 8G PoE+ (65W) Switch

JG921A

HPE OfficeConnect 1920 8G PoE+ (180W) Switch

JG922A

HPE OfficeConnect 1920 16G Switch

JG923A

HPE OfficeConnect 1920 24G Switch

JG924A

HPE OfficeConnect 1920 24G PoE+ (180W) Switch

JG925A

HPE OfficeConnect 1920 24G PoE+ (370W) Switch

JG926A

HPE OfficeConnect 1920 48G Switch

JG927A

HPE OfficeConnect 1920 48G PoE+ (370W) Switch

JG928A

Key features

• Customized operation using intuitive Web interface
• Layer 3 static routing with 32 routes for network segmentation and expansion
• Access control lists for granular security control
• Spanning Tree Protocol : STP, RSTP, and MSTP
• Limited Lifetime warranty

Product overview

The HPE OfficeConnect 1920 Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution. By utilizing the latest design in silicon technology, this series is one of the most power efficient in the market.

The series has 9 switches: four non-PoE models and five PoE+ models. All models are equipped with additional Gigabit SFP ports for fiber connectivity. The 8-, 24- and 48-port PoE+ models are available with PoE or without PoE.

The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products. These switches provide a great value, and includes features to satisfy even the most advanced small business networks. All models support rack mounting or desktop operation. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static routing, IPv6, ACLs, and Spanning Tree Protocols. HPE OfficeConnect 1920 Switch Series includes a Limited Lifetime Warranty. This warranty provides advance hardware replacement with next business day shipment in most countries, limited 24x7 telephone support available from HPE for the first 90 days, and limited electronic and business hours telephone support is available from HPE for the entire warranty period.

Features and benefits

Management

• Simple Web management
  allows for easy management of the switch—even by nontechnical users—through an intuitive Web GUI; supports HTTP and HTTP Secure (HTTPS)
• Single IP management
  enables management of up to 32 HPE OfficeConnect 1920 switches using a single Web interface; simplifies management of multiple devices
• SNMPv1, v2c, and v3
  facilitates management of the switch, as the device can be discovered and monitored from an SNMP management station
• Management Security
  restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide Telnet and SNMP access; local and remote syslog capabilities allow logging of all access
• Complete session logging
  provides detailed information for problem identification and resolution
• Port mirroring
  enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
• Dual flash images
  provides independent primary and secondary operating system files for backup while upgrading
• Network Time Protocol (NTP)
  synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Limited CLI
  enables users to quickly deploy and troubleshoot devices in the network
• Default DHCP client mode
  allows the switch to be directly connected to a network, enabling plug-and-play operation; in absence of a DHCP server on the network, the switch will fall back to a unique static address determined by the switch's MAC address
• FTP, TFTP, and SFTP support
  offers different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using User Datagram Protocol (UDP); Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
• Remote monitoring (RMON)
  uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group

Quality of Service (QoS)

• Traffic prioritization
  provides time-sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification; packets are mapped to eight hardware queues for more effective throughput
• IEEE 802.1p/Q
  delivers data to devices based on the priority and type of traffic; supports IEEE 802.1Q
• Class of Service (CoS)
  sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
• Broadcast control
  allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
• Advanced Classifier based QoS
  classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port basis
• Rate limiting
  sets per-port ingress enforced maximums and per-port, per-queue minimums
• Powerful QoS feature
  supports the following congestion actions: strict priority queuing (SP), weighted round robin (WRR) queuing, and SP+WRR

Connectivity

• IPv6
  • IPv6 host
    enables switches to be managed and deployed at the IPv6 network's edge
  • IPv6 routing
    supports IPv6 static routes
  • MLD snooping
    forwards IPv6 multicast traffic to the appropriate interface, preventing traffic flooding
  • IPv6 ACL/QoS
    supports ACL and QoS for IPv6 network traffic
• IEEE 802.3X flow control
  provides a flow throttling mechanism propagated through the network to prevent packet loss at a congested node
• IEEE 802.3at Power over Ethernet (PoE+)
  provides upto 30W per port, which allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; lowers the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments.
• Cable diagnostics
  detects cable issues remotely using a browser-based tool
• Flow control
  provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations
• Auto MDI/MDI-X
  adjusts automatically for straight-through or crossover cables on all 10/100/1000 ports

Security

• Advanced access control lists (ACLs)
  enables network traffic filtering and enhances network control using MAC- and IP-based ACLs; time-based ACLs allow for greater flexibility with managing network access
• IEEE 802.1X and RADIUS network logins
  controls port-based access for authentication and accountability
• Secure Socket Layer (SSL)
  encrypts all HTTP traffic, allowing safe access to the browser-based management GUI in the switch
• Port Isolation
  The port isolation feature isolates Layer 2 traffic for data privacy and security without using VLANs. This feature can also be used to isolate the hosts in a VLAN from one another.
• Port Security
  Combines and extends IEEE 802.1X and MAC authentication to provide MAC-based network access control
• ARP attack protection
  The ARP detection feature enables access devices to block ARP packets from unauthorized clients to prevent user spoofing and gateway spoofing attacks.
• Automatic VLAN assignment
  assigns users automatically to the appropriate VLAN based on their identity, location and time of day
• STP BPDU port protection
  blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
• STP root guard
  protects the root bridge from malicious attacks or configuration mistakes
• Automatic denial-of-service protection
  monitors for malicious attacks and protects the network by blocking the attacks
• Management password
  provides security so that only authorized access to the Web browser interface is allowed

Performance

• Half- and full-duplex auto-negotiating capability on every port
  doubles the throughput on every port
• Selectable queue configurations
  allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications
• IGMP snooping
  improves network performance through multicast filtering, instead of flooding traffic to all ports
• Fiber uplink
  provides greater distance connectivity using Gigabit Ethernet fiber uplinks

Layer 2 switching

• Spanning Tree Protocol (STP)
  supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• BPDU filtering
  drops BPDU packets when STP is enabled globally but disabled on a specific port
• Jumbo frame support
  supports up to 10 kilobyte frame size to improve the performance of large data transfers
• VLAN support and tagging
  supports IEEE 802.1Q with 4,094 simultaneous VLAN IDs

Layer 3 services

• Address Resolution Protocol (ARP)
  determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• DHCP relay
  simplifies management of DHCP addresses in networks with multiple subnets

Layer 3 routing

• Static IPv4/IPv6 routing
  provides basic routing (supporting up to 32 static routes and 8 virtual VLAN interfaces); allows manual routing configuration

Resiliency and high availability

• Available redundant power supply
  provides additional PoE of up to 795W for high-power applications like PTZ IP cameras, Video IP phones; the HPE RPS1600 Redundant Power System (JG136A), which is sold separately, is for use with the HPE OfficeConnect 1920-24G-PoE+ (180W) switch and HPE OfficeConnect 1920-24G-PoE+(370W) switch models
• Link aggregation
  groups together multiple ports up to a maximum of eight ports per trunk either automatically using Link Aggregation Control Protocol (LACP), or manually, to form an ultra-high-bandwidth connection to the network backbone; help prevent traffic bottlenecks. The 8 port models support 4 trunks, 16 and 24 port models support 8 trunks, 48 port models support 16 trunks.

Convergence

• LLDP-MED (Media Endpoint Discovery)
  defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones
• PoE allocations
  supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savings
• Auto voice VLAN
  recognizes IP phones and automatically assigns voice traffic to dedicated VLAN for IP phones

Additional information

• Green initiative support
  provides support for RoHS and WEEE regulations
• Green IT and power
  improves energy efficiency through the use of the latest advances in silicon development; shuts off unused ports and utilizes variable-speed fans, reducing energy costs
• Energy Efficient Ethernet
  Compliant with IEEE 802.3az standard requirements to save energy during periods of low data activity.

Warranty and support

• Limited Lifetime Warranty
  This series comes with a Limited Lifetime Warranty providing advance hardware replacement with next business day shipment in most countries, 24x7 phone support available for the first 90 days, and electronic and business hours phone support for the entire warranty period. See http://www.hpe.com/networking/warrantysummary for full warranty and support information included with your product purchase.

Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HPE OfficeConnect 1920 8G Switch

JG920A

• 8 RJ-45 auto-negotiating 10/100/1000 ports
• 2 SFP 1000 Mbps ports
• min=0 \ max=2 SFP  Transceivers
• 1U - Height

See Configuration NOTE:1, 2

PDU Cable NA/MX/TW/JP

JG920A #B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG920A #B2C

• C15 PDU Jumper Cord (ROW)

HPE OfficeConnect 1920 8G PoE+ (65W) Switch

JG921A

• 8 RJ-45 auto-negotiating 10/100/1000 PoE+ ports
• 2 SFP 1000 Mbps ports
• min=0 \ max=2 SFP  Transceivers
• 1U - Height

See Configuration NOTE:1, 2

PDU Cable NA/MX/TW/JP

JG921A    #B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG921A    #B2C

• C15 PDU Jumper Cord (ROW)

HPE OfficeConnect 1920 8G PoE+ (180W) Switch

JG922A

• 8 RJ-45 auto-negotiating 10/100/1000 PoE+ ports
• 2 SFP 1000 Mbps ports
• min=0 \ max=2 SFP  Transceivers
• 1U - Height

See Configuration NOTE:1, 2

PDU Cable NA/MX/TW/JP

JG922A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG922A#B2C

• C15 PDU Jumper Cord (ROW)

HPE OfficeConnect 1920 16G Switch

JG923A

• 16 RJ-45 auto-negotiating 10/100/1000 ports
• 4 SFP 1000 Mbps ports
• min=0 \ max=4 SFP  Transceivers
• 1U - Height

See Configuration NOTE:1, 2

PDU Cable NA/MX/TW/JP

JG923A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG923A#B2C

• C15 PDU Jumper Cord (ROW)

HPE OfficeConnect 1920 24G Switch

JG924A

• 24 RJ-45 auto-negotiating 10/100/1000 ports
• 4 SFP 1000 Mbps ports
• min=0 \ max=4 SFP  Transceivers
• 1U - Height

See Configuration NOTE:1, 2

PDU Cable NA/MX/TW/JP

JG924A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG924A#B2C

• C15 PDU Jumper Cord (ROW)

HPE OfficeConnect 1920 24G PoE+ (180W) Switch

JG925A

• 24 RJ-45 auto-negotiating 10/100/1000 PoE+ ports
• 4 SFP 1000 Mbps ports
• min=0 \ max=4 SFP  Transceivers
• 1U - Height

See Configuration NOTE:1, 2

PDU Cable NA/MX/TW/JP

JG925A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG925A#B2C

• C15 PDU Jumper Cord (ROW)

HPE OfficeConnect 1920 24G PoE+ (370W) Switch

JG926A

• 24 RJ-45 auto-negotiating 10/100/1000 PoE+ ports
• 4 SFP 1000 Mbps ports
• min=0 \ max=4 SFP  Transceivers
• 1U - Height

See Configuration NOTE:1, 2

PDU Cable NA/MX/TW/JP

JG926A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG926A#B2C

• C15 PDU Jumper Cord (ROW)

HPE OfficeConnect 1920 48G Switch

JG927A

• 48 RJ-45 auto-negotiating 10/100/1000 ports
• 4 SFP 1000 Mbps ports
• min=0 \ max=4 SFP  Transceivers
• 1U - Height

See Configuration NOTE:1, 2

PDU Cable NA/MX/TW/JP

JG927A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG927A#B2C

• C15 PDU Jumper Cord (ROW)

HPE OfficeConnect 1920 48G PoE+ (370W) Switch

JG928A

• 48 RJ-45 auto-negotiating 10/100/1000 PoE+ ports
• 4 SFP 1000 Mbps ports
• min=0 \ max=4 SFP  Transceivers
• 1U - Height

See Configuration NOTE:1, 2

PDU Cable NA/MX/TW/JP

JG928A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG928A#B2C

• C15 PDU Jumper Cord (ROW)

Configuration Rules:

Note 1

The following Transceivers install into this switch:

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

Note 2

Localization (Wall Power Cord) required on orders without #B2B or #B2C (PDU Power Cord). (See Localization Menu)

Remarks:

Drop down under power supply should offer the following options and results:

Switch/Router/Power Supply to PDU Power Cord -  #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)

Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

Transceivers

SFP Transceivers

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

Cables

Multi-Mode Cables

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

Switch Enclosure Options

External/Redundant Power Supplies

HPE RPS1600 Redundant Power System

JG136A

• Height = 1U
• includes 1 x c13,  1600w and Power Supply port

See Configuration NOTE:2, 3, 4

HPE RPS1600 1600W AC Power Supply

JG137A

• Installs into JG136A only

See Configuration NOTE:1, 3

Configuration Rules:

Note 1

If this power supply is selected, The JG136A - HPE RPS1600 Redundant Power System must be on order or onsite.

Note 2

Localization required.

Note 3

Each switch will only support 1 JG136A and 1 JG137A Power supply systems.

Note 4

This power supply only supported on switch JG926A and JG928A.

External/Redundant Power Cables

HPE X290 1000 A JD5 2m RPS Cable

JD187A

See Configuration NOTE:1

Remarks:

These cables are used to connect the External Power System to Switch.

Configuration Rules:

Note 1

This Cable is only supported on switch JG926A and JG928A when used with the RPS 1600 (JG136A)

HPE OfficeConnect 1920 8G Switch (JG920A)

I/O ports and slots

8 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

2 SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X

Supports a maximum of 8 autosensing 10/100/1000 ports plus 2 SFP 100/1000 slots

Additional ports and slots

1 RJ-45 console port to access limited CLI port

Physical characteristics

Dimensions

10.47(w) x 6.38(d) x 1.73(h) in (26.6 x 16.2 x 4.4 cm) (1U height)

Weight

1.98 lb (0.9 kg)

Memory and processor

MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included), Wall Mount

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

14.8 Mpps (64-byte packets)

Routing/Switching capacity

20 Gbps

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Reliability

MTBF (years)

128.20

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

10% to 95%, noncondensing

Altitude

up to 16,404 ft (5 km)

Acoustic

Pressure: 0 dB No Fan

Electrical characteristics

Frequency

50/60 Hz

AC voltage

100 - 240 VAC

Maximum power rating

9 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP port and copper ports work simultaneously, independent of each other, to provide a total of 10 Gigabit switching ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920 8G PoE+ (65W) Switch (JG921A)

I/O ports and slots

8 RJ-45 auto-negotiating 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE 802.3at)

2 SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X

S Supports a maximum of 8 autosensing 10/100/1000 ports plus 2 SFP 100/1000 slots

Additional ports and slots

1 RJ-45 console port to access limited CLI port

Physical characteristics

Dimensions

12.99(w) x 9.06(d) x 1.73(h) in (33 x 23 x 4.4 cm) (1U height)

Weight

6.5 lb (2.95 kg)

Memory and processor

MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

14.8 Mpps (64-byte packets)

Routing/Switching capacity

20 Gbps

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Reliability

MTBF (years)

76.33

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

10% to 95%, noncondensing

Altitude

up to 16,404 ft (5 km)

Acoustic

Pressure: 0 dB No Fan

Electrical characteristics

Frequency

50/60 Hz

AC voltage

100 - 240 VAC

Maximum power rating

94 W

PoE power

65 W PoE+

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP port and copper ports work simultaneously, independent of each other, to provide a total of 10 Gigabit switching ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920 8G PoE+ (180W) Switch (JG922A)

I/O ports and slots

8 RJ-45 auto-negotiating 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE 802.3at)

2 SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X

Supports a maximum of 8 autosensing 10/100/1000 ports plus 2 SFP 100/1000 slots

Additional ports and slots

1 RJ-45 console port to access limited CLI port

Physical characteristics

Dimensions

12.99(w) x 9.06(d) x 1.73(h) in (33 x 23 x 4.4 cm) (1U height)

Weight

7.05 lb (3.2 kg)

Memory and processor

MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

14.8 Mpps (64-byte packets)

Routing/Switching capacity

20 Gbps

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Reliability

MTBF (years)

64.51

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

10% to 95%, noncondensing

Altitude

up to 16,404 ft (5 km)

Acoustic

Low-speed fan: 43.6 dB, High-speed fan: 51.5 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

AC voltage

100 - 240 VAC

Maximum power rating

235 W

PoE power

180 W PoE+

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP port and copper ports work simultaneously, independent of each other, to provide a total of 10 Gigabit switching ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920 16G Switch (JG923A)

I/O ports and slots

16 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

4  SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X

Supports a maximum of 16 autosensing 10/100/1000 ports plus 4 SFP 100/1000 slots

Additional ports and slots

1 RJ-45 console port to access limited CLI port

Physical characteristics

Dimensions

17.32(w) x 6.81(d) x 1.73(h) in (44 x 17.3 x 4.4 cm) (1U height)

Weight

4.74 lb (2.15 kg)

Memory and processor

MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

29.8 Mpps (64-byte packets)

Routing/Switching capacity

40 Gbps

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Reliability

MTBF (years)

125

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

10% to 95%, noncondensing

Altitude

up to 16,404 ft (5 km)

Acoustic

No Fan

Electrical characteristics

Frequency

50/60 Hz

AC voltage

100 - 240 VAC

Maximum power rating

13 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports can work simultaneously, independent of each other, to provide a total of 20 Gigabit Ethernet-capable ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920 24G Switch (JG924A)

I/O ports and slots

24 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

4  SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X

Supports a maximum of 24 autosensing 10/100/1000 ports plus 4 SFP 100/1000 slots

Additional ports and slots

1 RJ-45 console port to access limited CLI port

Physical characteristics

Dimensions

17.32(w) x 6.81(d) x 1.73(h) in (44 x 17.3 x 4.4 cm) (1U height)

Weight

4.96 lb (2.25 kg)

Memory and processor

MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

41.7 Mpps (64-byte packets)

Routing/Switching capacity

56 Gbps

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Reliability

MTBF (years)

120.48

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

10% to 95%, noncondensing

Altitude

up to 16,404 ft (5 km)

Acoustic

No Fan

Electrical characteristics

Frequency

50/60 Hz

AC voltage

100 - 240 VAC

Maximum power rating

19 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports can work simultaneously, independent of each other, to provide a total of 28 Gigabit Ethernet-capable ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920 24G PoE+ (180W) Switch (JG925A)

I/O ports and slots

24 RJ-45 auto-negotiating 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE 802.3at)

4  SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X

Supports a maximum of 24 autosensing 10/100/1000 ports plus 4 SFP 100/1000 slots

Additional ports and slots

1 RJ-45 console port to access limited CLI port

Physical characteristics

Dimensions

17.32(w) x 9.37(d) x 1.73(h) in (44 x 23.8 x 4.4 cm) (1U height)

Weight

7.5 lb (3.4 kg)

Memory and processor

MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

41.7 Mpps (64-byte packets)

Routing/Switching capacity

56 Gbps

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Reliability

MTBF (years)

68.96

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

10% to 95%, noncondensing

Altitude

up to 16,404 ft (5 km)

Acoustic

Power: 44.9 dB, Pressure: 53.3 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

AC voltage

100 - 240 VAC

Maximum power rating

235 W

PoE power

180 W PoE+

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports work simultaneously, independent of each other, to provide a total of 28 Gigabit switching ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920 24G PoE+ (370W) Switch (JG926A)

I/O ports and slots

24 RJ-45 auto-negotiating 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE 802.3at)

4  SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X

Supports a maximum of 24 autosensing 10/100/1000 ports plus 4 SFP 100/1000 slots

Additional ports and slots

1 RJ-45 console port to access limited CLI port

Physical characteristics

Dimensions

17.32(w) x 10.24(d) x 1.73(h) in (44 x 26 x 4.4 cm) (1U height)

Weight

7.5 lb (3.4 kg)

Memory and processor

MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

up to 41.7 Mpps (64-byte packets)

Routing/Switching capacity

56 Gbps

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Reliability

MTBF (years)

65.78

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

10% to 95%, noncondensing

Altitude

up to 16,404 ft (5 km)

Acoustic

Low-speed fan: 44.9 dB, High-speed fan: 53.3 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

AC voltage

100 - 240 VAC

Maximum power rating

474 W

PoE power

370 W PoE+

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).
When supplemented with the use of an HP RPS1600 Redundant Power System, up to 795 W of PoE+ can be supplied. Unit max. power consumption with RPS is 833 W.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports can work simultaneously, independent of each other, to provide a total of 28 Gigabit switching ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920 48G Switch (JG927A)

I/O ports and slots

48 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

4  SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X

Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 SFP 100/1000 slots

Additional ports and slots

1 RJ-45 console port to access limited CLI port

Physical characteristics

Dimensions

17.32(w) x 9.37(d) x 1.73(h) in (44 x 23.8 x 4.4 cm) (1U height)

Weight

6.94 lb (3.15 kg)

Memory and processor

MIPS @ 650 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 1.5 MB

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

77.4 Mpps (64-byte packets)

Routing/Switching capacity

104 Gbps

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

16384 entries

Reliability

MTBF (years)

76.92

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

10% to 95%, noncondensing

Altitude

Acoustic

Pressure: 49.7 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz
Achieved Miercom Certified Green Award

AC voltage

100 - 240 VAC

Maximum power rating

32 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports work simultaneously, independent of each other, to provide a total of 52 Gigabit Ethernet-capable ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE OfficeConnect 1920 48G PoE+ (370W) Switch (JG928A)

I/O ports and slots

48 RJ-45 auto-negotiating 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE 802.3at)

4  SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X

Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 SFP 100/1000 slots

Additional ports and slots

1 RJ-45 console port to access limited CLI port

Physical characteristics

Dimensions

17.32(w) x 17.32(d) x 1.73(h) in (44 x 44 x 4.4 cm) (1U height)

Weight

9.48 lb (4.3 kg)

Memory and processor

MIPS @ 650 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 1.5 MB

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

up to 77.4 Mpps (64-byte packets)

Routing/Switching capacity

104 Gbps

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

16384 entries

Reliability

MTBF (years)

44.44

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

10% to 95%, noncondensing

Altitude

up to 16,404 ft (5 km)

Acoustic

Low-speed fan: 47 dB, High-speed fan: 49.3 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

AC voltage

100 - 240 VAC

Maximum power rating

492 W

PoE power

370 W PoE+

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).

When supplemented with the use of an HP RPS1600 Redundant Power System, up to 795 W of PoE+ can be supplied. Unit max. power consumption with RPS is 876W.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports can work simultaneously, independent of each other, to provide a total of 52 Gigabit switching ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Standards and protocols
(applies to all products in series)

Device management
RFC 2819 RMON
Web UI

General protocols
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s (MSTP)
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3 Type 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3i 10BASE-T
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X

MIBs
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 2021 RMONv2 MIB
RFC 2233 Interface MIB
RFC 2233 Interfaces MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2573 SNMP-Notification MIB
RFC 2573 SNMP-Target MIB
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2667 IP Tunnel MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3418 MIB for SNMPv3

Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1D (STP)
RFC 1215 SNMP Generic traps

QoS/Cos
IEEE 802.1p (CoS)

RFC 2474 DiffServ Precedence, including 8 queues/port

Security
IEEE 802.1X Port Based Network Access Control

HPE OfficeConnect 1920 Switch Series accessories

Transceivers

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

Cables

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.

HPE X121 1G SFP LC SX Transceiver (J4858C)

A small form-factor pluggable (SFP) Gigabit SX
transceiver that provides a full-duplex Gigabit solution
up to 550 m on multimode fiber.

Ports

1 LC 1000BASE-SX port; Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.48(h) in. (5.69 x 1.37 x 1.22 cm)
Weight: 0.04 lb. (0.02 kg)
Transceiver form factor: SFP

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)

Operating relative humidity: 5% to 85%, noncondensing

Nonoperating/Storage temperature: -40°F to 203°F (-40°C to 85°C)

Altitude: up to 10,000 ft. (3 km)

Electrical characteristics

Power consumption typical: 0.4 W

Power consumption maximum: 0.7 W

Cabling

Type:

• 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively;

Maximum distance:

• 2-220 m (62.5 µm core diameter, 160 MHz*km bandwidth
• 2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth
• 2-500 m (50 µm core diameter, 400 MHz*km bandwidth)
• 2-550 m (50 µm core diameter, 500 MHz*km bandwidth)

Cable length: 2-550m

Fiber type: Multi Mode

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE X121 1G SFP LC LX Transceiver (J4859C)

HPE X121 1G SFP LC LX Transceiver: An SFP format
gigabit transceiver with LC connectors using LX
technology.

Ports

1 LC 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX); Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.486(h) in. (5.69 x 1.37 x 1.23 cm)
Weight:0.04 lb. (0.02 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)

Operating relative humidity: 0% to 85%, noncondensing

Nonoperating/Storage temperature: -40°F to 212°F (-40°C to 100°C)

Altitude: up to 10,000 ft. (3 km)

Cabling

Type:

• Either single mode or multimode; 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively; Low metal content, single-mode fiber-optic, complying with ITU-T G.652 and ISO/IEC 793-2 Type B1;

Maximum distance:

• 2-550 m (multimode 62.5 µm core diameter, 500 MHz*km bandwidth)
• 2-550 m (multimode 50 µm core diameter, 400 MHz*km bandwidth)
• 2-550 m (multimode 50 µm core diameter, 500 MHz*km bandwidth)
• 2-10,000 m (single-mode fiber)

Notes

A mode conditioning patch cord may be needed in some multimode fiber installations.
Wavelength: 1310nm
Power Consumption: < 500mW Typical

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE X121 1G SFP RJ45 T Transceiver (J8177C)

HPE X121 1G SFP RJ45 T Transceiver: An SFP format
gigabit transceiver with RJ45 connectors using
1000BaseT technology.

Ports

1 RJ-45 1000BASE-T port (IEEE 802.3ab Type 1000BASE-T); Duplex: full only

Physical characteristics

Dimensions: 2.71(d) x 0.54(w) x 0.55(h) in. (6.88 x 1.37 x 1.4 cm)
Weight: 0.06 lb. (0.03 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C); with 100 LFM airflow over the SFP module

Operating relative humidity: 0% to 95% @ 75°F (25°C), noncondensing

Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)

Nonoperating/Storage relative humidity: 0% to 95% @ 77°F (25°C), noncondensing

Altitude: up to 10,000 ft. (3000 km)

Cabling

Cable type:
1000BASE-T: Category 5 (5E or better recommended), 100 Ù differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T;

Maximum distance:

• 100 m

Notes

Power consumption is nominally 1 watt.
For supported platforms and minimum software requirements to support this product, see the document titled "Support for the J8177C 1000Base-T Mini-GBIC" on the "HP Mini-GBICs and SFPs" Manuals Web page.
The J8177C Gigabit copper mini-GBIC is not supported on dual-personality ports.
The J8177C is capable of 100 Mb operation. This is supported on only the HP E8200zl, E5400zl, and HP E6200-24G-mGBIC yl Switches using software version K.12.21 or later. Use the "auto-100" port setting to enable 100 Mb operation.
Important: The earlier J8177B does not support 100 Mb operation. When used in the Switch gl 20-Port 10/100/1000 Module (J4908A), the J8177C mini-GBIC can be installed in either the upper or lower mini-GBIC
port, but will block access to the other port.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE X120 1G SFP LC SX Transceiver (JD118B)

A small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550m on a Multimode fiber.

Ports

1 LC 1000BASE-SX port

Connectivity

Connector type

LC

Wavelength

850 nm

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Maximum distance:
FDDI Grade distance = 220m
OM1 = 275m
OM2 = 500m
OM3 = Not Specified by standard

Cable length

up to 550m

Fiber type

Multi Mode

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE X120 1G SFP LC LX Transceiver (JD119B)

A small form-factor pluggable (SFP) Gigabig LX transceiver that provides a full duplex Gigabit solution up to 550m on MMF or 10Km on SMF

Ports

1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)

Connectivity

Connector type

LC

Wavelength

1300 nm

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type:
Either single mode or multimode;

Maximum distance:
550m for Multimode
10km for Singlemode

Fiber type

Both

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE X120 1G SFP RJ45 T Transceiver (JD089B)

Ports

1 RJ-45 1000BASE-T port (IEEE 802.3ab Type 1000BASE-T)

Connectivity

Connector type

RJ-45

Physical characteristics

Dimensions

2.71(d) x 0.54(w) x 0.55(h) in. (6.88 x 1.37 x 1.4 cm)

Full configuration weight

0.07 lb. (0.03 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type:
1000BASE-T: Category 5 (5E or better recommended), 100 Ù differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T

Maximum distance:
100m

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable  (AJ833A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber and designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable  (AJ834A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable  (AJ835A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable  (AJ836A)

Cabling

Cable type:
50/125 µm core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: This specification defines the detail requirements for a tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable  (AJ837A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable  (AJ838A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable  (AJ839A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable  (QK732A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core Diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable  (QK733A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable  (QK734A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable  (QK735A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable  (QK736A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable  (QK737A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Date

Version History

Action

Description of Change:

01-Oct-2018

Version 8

Changed

Recommended and Extended markings removed from the document.

04-Sep-2018

Version 7

Changed

QuickSpecs updated with the current Recommended-Extended Options

07-Oct-2016

Version 6

Changed

Minor edits on Technical Specifications

29-Apr-2016

Version 5

Changed

Document name changed to HPE OfficeConnect 1920 Switch Series, SKU descriptions updated. Changes made on Features and Benefits and Technical Specifications.

01-Dec-2015

Version 4

Changed

Overview and Technical Specifications updated

09-Feb-2015

Version 3

Added

SKU JG928A added

01-Dec-2014

Version 2

Changed

Updated Warranty and support

29-Sep-2014

Version 1

Created

Document creation
