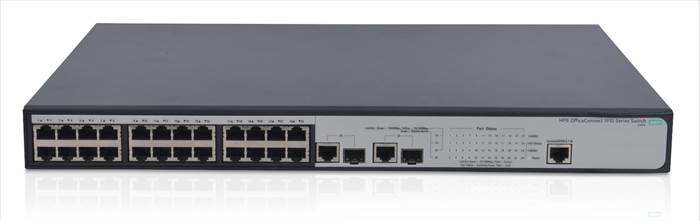

HPE OfficeConnect 1910 Switch Series

Models

HPE OfficeConnect 1910 24 Switch

JG538A

HPE OfficeConnect 1910 48 Switch

JG540A

HPE OfficeConnect 1910 8 PoE+ Switch

JG537A

HPE OfficeConnect 1910 24 PoE+ Switch

JG539A

Key features

• Customized operation using intuitive Web interface
• Layer 3 static routing with 32 network segments and expansion routes.
• Access control lists for granular security control
• Spanning Tree: STP, RSTP, and MSTP
• Limited Lifetime Warranty

Product overview

HPE OfficeConnect 1910 Switch Series consists of advanced smart-managed fixed-configuration Fast Ethernet switches designed for small businesses in an easy-to-administer solution. By utilizing the latest design in silicon technology, this series is one of the most power efficient in the market. The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products.

The series consists of five Fast Ethernet models. The 8- and 24- port models include two dual-personality SFP ports to support fiber connectivity. The 48 port model has 2 dedicated SFP ports plus two 10/100/1000 Ethernet ports. The 8- and 24-port Fast Ethernet models are available with or without PoE.

All models support rack mounting or desktop operation. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static routing, IPv6, ACLs, and Spanning Tree Protocols. HPE OfficeConnect 1910 Switch Series is covered by a limited lifetime warranty.

Features and benefits

Management

• Simple Web management
  allows for easy management of the switch- even by nontechnical users- through an intuitive Web GUI; http and secure http (https) is supported
• Single IP management
  enables management of up to four HPE OfficeConnect 1910 devices using a single Web interface; simplifies management of multiple devices
• Secure Web GUI
  provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
• SNMPv1, v2c, and v3
  facilitates management of the switch, as the device can be discovered and monitored from an SNMP management station
• Complete session logging
  provides detailed information for problem identification and resolution
• Dual flash images
  provides independent primary and secondary operating system files for backup while upgrading
• Port mirroring
  enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
• Management security
  restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide Telnet and SNMP access; local and remote syslog capabilities allow logging of all access
• Network Time Protocol (NTP)
  synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
  advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network
  management applications
• Limited CLI
  enables users to quickly deploy and troubleshoot devices in the network
• RMON
  provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events
• Default DHCP client mode
  allows the switch to be directly connected to a network, enabling plug-and-play operation; in absence of DHCP server on the network, the switch will fallback to a unique static address determined by the MAC address of the switch

Quality of Service (QoS)

• Broadcast control
  allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
• Rate limiting
  sets per-port ingress enforced maximums and per-port, per-queue minimums
• Traffic prioritization
  provides time-sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification; packets are mapped to four hardware queues for more effective throughput

Connectivity

• IPv6

- IPv6 host
enables switches to be managed and deployed at the IPv6 network's edge

- IPv6 routing
supports IPv6 static routes

- MLD snooping
forwards IPv6 multicast traffic to the appropriate interface, preventing traffic flooding

- IPv6 ACL/QoS
supports ACL and QoS for IPv6 network traffic

• Auto-MDI/MDIX
  adjusts automatically for straight-through or crossover cables on all 10/100/1000 ports
• IEEE 802.3X flow control
  provides a flow throttling mechanism propagated through the network to prevent packet loss at a congested node
• IEEE 802.3af Power over Ethernet (PoE) ready
  provides up to 15.4 W per port to power standards-compliant IP phones, wireless LAN access points, Web cameras, and more (all PoE models)
• IEEE 802.3at Power over Ethernet (PoE+)
  provides up to 30 W per port, which allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments.
• Packet storm protection
  protects against broadcast, multicast, or unicast storms with user-defined thresholds
• Cable diagnostics
  detects cable issues remotely, using a browser-based tool

Security

• Advanced access control lists (ACLs)
  enables network traffic filtering and enhances network control using MAC- and IP-based ACLs; time-based ACLs allow for greater flexibility with managing network access
• Secure Sockets Layer (SSL)
  encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
• IEEE 802.1X and RADIUS network logins
  controls port-based access for authentication and accountability
• Automatic VLAN assignment
  assigns users automatically to the appropriate VLAN based on their identity, location and time of day
• STP BPDU port protection
  blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
• STP root guard
  protects the root bridge from malicious attacks or configuration mistake
• Automatic denial-of-service protection
  monitors for malicious attacks and protects the network by blocking the attacks
• Management password
  provides security so that only authorized access to the Web browser interface is allowed

Performance

• Half-/full-duplex auto-negotiating capability on every port
  doubles the throughput of every port
• Selectable queue configurations
  allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications
• IGMP snooping
  improves network performance through multicast filtering, instead of flooding traffic to all ports
• Fiber uplink
  provides greater distance connectivity using Gigabit fiber uplinks

Layer 2 switching

• VLAN support and tagging
  supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
• Spanning Tree Protocol (STP)
  supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• BPDU filtering
  drops BPDU packets when STP is enabled globally but disabled on a specific port
• Jumbo frame support
  supports up to 10 kilobyte frame size to improve the performance of large data transfers

Layer 3 services

• Address Resolution Protocol (ARP)
  determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• DHCP relay
  simplifies management of DHCP addresses in networks with multiple subnets

Layer 3 routing

• Static IPv4/IPv6 routing
  provides basic routing (supporting up to 32 static routes and 8 virtual VLAN interfaces); allows manual configuration of routing

Resiliency and high availability

• Link aggregation
  Brings together groups of ports automatically using Link Aggregation Control Protocol (LACP) or, manually, to form an ultra-high-bandwidth connection to the network backbone; helps prevent traffic bottlenecks;(8-port, 24-port and 48-port models support a maximum of 8 ports per trunk; the 8-port models supports 4 trunks; the 24-port model supports 8 trunks; the 48-port model support supports 16 trunks)

Convergence

• LLDP-MED (Media Endpoint Discovery)
  defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure automatically network devices such as IP phones
• PoE allocations
  supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more
  efficient energy savings
• Auto voice VLAN
  recognizes IP phones and automatically assigns voice traffic to dedicated VLAN for IP phones

Additional information

• Green initiative support
  provides support for RoHS and WEEE regulation
• Green IT and power
  improves energy efficiency through the use of the latest advances in silicon development; shuts off unused ports and utilizes variable-speed fans, reducing energy costs

Warranty and support

• Limited Lifetime Warranty
  See http://www.hpe.com/officeconnect/support for warranty and support information included with your product purchase.

Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HPE OfficeConnect 1910 8 PoE+ Switch

JG537A

• 8 RJ-45 auto-negotiating 10/100 ports
• 2 SFP dual-personality 1000 Mbps ports
• min=0 \ max=2 SFP Transceivers
• 1U - Height

See Configuration NOTE: 2, 3

No Power Cord

JG537A#AC3

• No Localized Power Cord Selected

HP 1910-8G-PoE+ (65W) Switch

JG349A

• 8 RJ-45 auto-negotiating 10/100/1000 ports
• 1 SFP 1000 Mbps port
• min=0 \ max=1 SFP  Transceiver
• 1U - Height

See Configuration NOTE: 4, 5

PDU Cable NA/MEX/TW/JP

JG349A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG349A#B2C

• C15 PDU Jumper Cord (ROW)

HP 1910-8G-PoE+ (180W) Switch

JG350A

• 8 RJ-45 auto-negotiating 10/100/1000 ports
• 1 SFP 1000 Mbps port
• min=0 \ max=1 SFP  Transceiver
• 1U - Height

See Configuration NOTE: 4, 5

PDU Cable NA/MEX/TW/JP

JG350A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG350A#B2C

• C15 PDU Jumper Cord (ROW)

HP 1910-16G Switch

JE005A

• 16 RJ-45 auto-negotiating 10/100/1000 ports
• 4 SFP 1000 Mbps ports
• min=0 \ max=4 SFP  Transceivers
• 1U - Height

See Configuration NOTE: 1, 5

PDU Cable NA/MEX/TW/JP

JG350A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG350A#B2C

• C15 PDU Jumper Cord (ROW)

HP 1910-24G-PoE(170W) Switch

JE008A

• 24 RJ-45 auto-negotiating 10/100/1000 ports
• 4 SFP 1000 Mbps ports
• min=0 \ max=4 SFP  Transceivers
• 1U - Height

See Configuration NOTE: 1, 5

PDU Cable NA/MEX/TW/JP

JE008A#B2B

• C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JE008A#B2C

• C15 PDU Jumper Cord (ROW)

HPE OfficeConnect 1910 24 Switch

JG538A

• 24 RJ-45 autosensing 10/100 ports
• 2 SFP dual-personality 1000 Mbps ports
• min=0 \ max=2 SFP Transceivers
• 1U - Height

See Configuration NOTE: 2, 3

No Power Cord

JG538A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1910 24 PoE+ Switch

JG539A

• 24 RJ-45 auto-negotiating 10/100 ports
• 2 SFP dual-personality 1000 Mbps ports
• min=0 \ max=2 SFP Transceivers
• 1U - Height

See Configuration NOTE: 2, 3, 6

No Power Cord

JG539A#AC3

• No Localized Power Cord Selected

HPE OfficeConnect 1910 48 Switch

JG540A

• 48 RJ-45 autosensing 10/100 ports
• 2 RJ-45 autosensing10/100/1000 ports
• 2 SFP 1000 Mbps ports
• min=0 \ max=2 SFP Transceivers
• 1U - Height

See Configuration NOTE: 2, 3

No Power Cord

JG540A#AC3

• No Localized Power Cord Selected

Configuration Rules:

Note 1

The following Transceivers install into this switch:

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

Note 2

Localization required. (See Localization Menu for list.)

Note 3

The following Transceivers install into this switch:

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X120 1G SFP LC LX Transceiver

JD119B

Note 4

The following Transceivers install into this switch:

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

Note 5

Localization (Wall Power Cord) required on orders without #B2B or #B2C (PDU Power Cord). (See Localization Menu)

Note 6

CLIC RULE ONLY: #0D1 is not supported on JG538A and JG539A.

Rack Level Integration CTO Models

HPE OfficeConnect 1910 48 Switch

JG540A

• 48 RJ-45 autosensing 10/100 ports
• 2 RJ-45 autosensing 10/100/1000 ports
• 2 SFP 1000 Mbps ports
• min=0 \ max=2 SFP  Transceivers
• 1U - Height

See Configuration NOTE: 1, 2

Configuration Rules:

Note 1

CLIC RULE ONLY: #0D1 on JG540A for use with ZU715A only.

Note 2

#ABA Localization required.

Remarks:

The Rack Level Integration CTO section above and it's rules are for CLIC Setup at this time. No setup in Watson or QuickSpecs is required at this time.

Transceivers

SFP Transceivers

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

Internal or External Power Supplies(Model Dependant)

Internal Power supplies Included

External Redundant Power Supplies

HPE RPS1600 Redundant Power System

JG136A

• Height = 1U
• includes 1 x c13, 1600w and Power Supply port

See Configuration NOTE: 2, 3

HPE RPS1600 1600W AC Power Supply

JG137A

• Installs into JG136A only

See Configuration NOTE: 1, 3

Configuration Rules:

Note 1

If this power supply is selected, The JG136A - HPE A-RPS1600 Redundant Power System must be on order or onsite.

Note 2

Localization required.

Note 3

Each switch will only support 1 JG136A and 1 JG137A Power supply systems.

Options for the HPE 1600 External RPS Power Supply

HPE X290 1000 A JD5 2m RPS Cable

JD187A

Remark:

These cables are used to connect the External Power System to Switch.

Cables

Multi-Mode Cables

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

HPE OfficeConnect 1910 24 Switch (JG538A)

Ports

24 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full
2 dual-personality ports; each port can be used as a RJ 45 10/100/1000 Mbps port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) or as a SFP 100/1000 Mbps slot (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X)
1 RJ-45 console port to access limited CLI port
Supports a maximum of 24 autosensing 10/100 ports plus 2 dual-personality ports either RJ-45 10/100/1000 port or SFP 100/1000 slot

Physical characteristics

Dimensions

17.32(w) x 6.81(d) x 1.73(h) in (44 x 17.3 x 4.4 cm) (1U height)

Weight

4.85 lb (2.2 kg)

Memory and processor

Module

MIPS @ 500 MHz, 32 MB flash, 128 MB RAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

up to 6.6 Mpps (64-byte packets)

Routing/Switching capacity

8.8 Gb/s

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

10% to 95%, noncondensing

Electrical characteristics

Frequency

50/60 Hz

Voltage

100 - 240 VAC, rated

Maximum power rating

12 W

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

IEC 60950-1; EN 60950-1; UL 60950-1 2nd Edition; CSA C22.2 No. 60950-1-07 2nd Edition

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager;
IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports can work simultaneously, independent of each other to give a total of 28
Gigabit-capable ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE OfficeConnect 1910 48 Switch (JG540A)

Ports

48 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full
2 SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X)
2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
1 RJ-45 console port to access limited CLI port
Supports a maximum of 48 autosensing 10/100 ports plus 2 autosensing 10/100/1000 ports plus 2 SFP 100/1000 slots

Physical characteristics

Dimensions

17.32(w) x 6.81(d) x 1.73(h) in (44 x 17.3 x 4.4 cm) (1U height)

Weight

5.07 lb (2.3 kg)

Memory and processor

Module

MIPS @ 500 MHz, 32 MB flash, 128 MB RAM; packet buffer size: 1.5 MB

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

up to 13.1 Mpps (64-byte packets)

Routing/Switching capacity

17.6 Gb/s

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

10% to 95%, noncondensing

Electrical characteristics

Frequency

50/60 Hz

Voltage

100 - 240 VAC, rated

Maximum power rating

22 W

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

IEC 60950-1; EN 60950-1; UL 60950-1 2nd Edition; CSA C22.2 No. 60950-1-07 2nd Edition

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager;
IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports can work simultaneously, independent of each other to give a total of 28 Gigabit-capable ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE OfficeConnect 1910 8 PoE+ Switch (JG537A)

Ports

8 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3at PoE+); Duplex: half or full
2 dual-personality ports; each port can be used as a RJ 45 10/100/1000 Mbps port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) or as a SFP 100/1000 Mbps slot (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X)
1 RJ-45 console port to access limited CLI port
Supports a maximum of 8 autosensing 10/100 ports plus 2 dual-personality ports either RJ-45 10/100/1000 port or SFP 100/1000 slot

Physical characteristics

Dimensions

12.99(w) x 9.06(d) x 1.73(h) in (33 x 23 x 4.4 cm) (1U height)

Weight

4.63 lb (2.1 kg)

Memory and processor

Module

MIPS @ 500 MHz, 32 MB flash, 128 MB RAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

up to 4.2 Mpps (64-byte packets)

Routing/Switching capacity

5.6 Gb/s

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

10% to 95%, noncondensing

Electrical characteristics

Frequency

50/60 Hz

Voltage

100 - 240 VAC, rated

Maximum power rating

90 W

PoE power

62 W

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE Power is the power supplied by the internal power supply, it is dependent on the type and quantity of power supplies and may be supplemented with the use of an External Power Supply (EPS).

Safety

IEC 60950-1; EN 60950-1; UL 60950-1 2nd Edition; CSA C22.2 No. 60950-1-07 2nd Edition

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager;
IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports can work simultaneously, independent of each other to give a total of 28 Gigabit-capable ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE OfficeConnect 1910 24 PoE+ Switch (JG539A)

Ports

24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Duplex: half or full
2 dual-personality ports; each port can be used as a RJ 45 10/100/1000 Mbps port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) or as a SFP 100/1000 Mbps slot (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X)
1 RJ-45 console port to access limited CLI port
Supports a maximum of 24 autosensing 10/100 ports plus 2 dual-personality ports either RJ-45 10/100/1000 port or SFP 100/1000 slot

Physical characteristics

Dimensions

17.32(w) x 9.37(d) x 1.73(h) in (44 x 23.8 x 4.4 cm) (1U height)

Weight

7.28 lb (3.3 kg)

Memory and processor

Module

MIPS @ 500 MHz, 32 MB flash, 128 MB RAM; packet buffer size: 512 KB

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

< 5 µs

1000 Mb Latency

< 5 µs

Throughput

up to 6.6 Mpps (64-byte packets)

Routing/Switching capacity

8.8 Gb/s

Routing table size

32 entries (IPv4), 32 entries (IPv6)

MAC address table size

8192 entries

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, non-condensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

10% to 95%, noncondensing

Electrical characteristics

Frequency

50/60 Hz

Voltage

100 - 240 VAC, rated

Maximum power rating

220 W

PoE power

180 W

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE Power is the power supplied by the internal power supply, it is dependent on the type and quantity of power supplies and may be supplemented with the use of an External Power Supply (EPS).

Safety

IEC 60950-1; EN 60950-1; UL 60950-1 2nd Edition; CSA C22.2 No. 60950-1-07 2nd Edition

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN
61000-3-2 2000, 61000-3-3; ICES-003 Class A

Management

IMC - Intelligent Management Center; limited command-line interface; Web browser;
SNMP Manager; IEEE 802.3 Ethernet MIB

Notes

SFP ports and copper ports can work simultaneously, independent of each other to give a total of 28 Gigabit-capable ports.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

Standards and protocols
(applies to all products in series)

Device management
RFC 2819 RMON

General protocols
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s (MSTP)
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3 Type 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3i 10BASE-T
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X

MIBs
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 2021 RMONv2 MIB
RFC 2233 Interface MIB
RFC 2233 Interfaces MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2573 SNMP-Notification MIB
RFC 2573 SNMP-Target MIB
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2667 IP Tunnel MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3418 MIB for SNMPv3

Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1D (STP)
RFC 1215 SNMP Generic traps

QoS/Cos
IEEE 802.1p (CoS)

Security
IEEE 802.1X Port Based Network Access Control

HPE OfficeConnect 1910 Switch Series accessories

Transceivers

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.

HPE X121 1G SFP LC SX Transceiver (J4858C)

A small form-factor pluggable (SFP) Gigabit SX
transceiver that provides a full-duplex Gigabit solution
up to 550 m on multimode fiber.

Ports

1 LC 1000BASE-SX port; Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.48(h) in. (5.69 x 1.37 x 1.22 cm)
Weight: 0.04 lb. (0.02 kg)
Transceiver form factor: SFP

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)

Operating relative humidity: 5% to 85%, noncondensing

Nonoperating/Storage temperature: -40°F to 203°F (-40°C to 85°C)

Altitude: up to 10,000 ft. (3 km)

Electrical characteristics

Power consumption typical: 0.4 W

Power consumption maximum: 0.7 W

Cabling

Type:

• 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively;

Maximum distance:

• 2-220 m (62.5 µm core diameter, 160 MHz*km bandwidth
• 2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth
• 2-500 m (50 µm core diameter, 400 MHz*km bandwidth)
• 2-550 m (50 µm core diameter, 500 MHz*km bandwidth)

Cable length: 2-550m

Fiber type: Multi Mode

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X121 1G SFP LC LX Transceiver (J4859C)

HP X121 1G SFP LC LX Transceiver: An SFP format
gigabit transceiver with LC connectors using LX
technology.

Ports

1 LC 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX); Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.486(h) in. (5.69 x 1.37 x 1.23 cm)
Weight:0.04 lb. (0.02 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)

Operating relative humidity: 0% to 85%, noncondensing

Nonoperating/Storage temperature: -40°F to 212°F (-40°C to 100°C)

Altitude: up to 10,000 ft. (3 km)

Cabling

Type:

• Either single mode or multimode; 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively; Low metal content, single-mode fiber-optic, complying with ITU-T G.652 and ISO/IEC 793-2 Type B1;

Maximum distance:

• 2-550 m (multimode 62.5 µm core diameter, 500 MHz*km bandwidth)
• 2-550 m (multimode 50 µm core diameter, 400 MHz*km bandwidth)
• 2-550 m (multimode 50 µm core diameter, 500 MHz*km bandwidth)
• 2-10,000 m (single-mode fiber)

Notes

A mode conditioning patch cord may be needed in some multimode fiber installations.
Wavelength: 1310nm
Power Consumption: < 500mW Typical

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X121 1G SFP RJ45 T Transceiver (J8177C)

HP X121 1G SFP RJ45 T Transceiver: An SFP format
gigabit transceiver with RJ45 connectors using
1000BaseT technology.

Ports

1 RJ-45 1000BASE-T port (IEEE 802.3ab Type 1000BASE-T); Duplex: full only

Physical characteristics

Dimensions: 2.71(d) x 0.54(w) x 0.55(h) in. (6.88 x 1.37 x 1.4 cm)
Weight: 0.06 lb. (0.03 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C); with 100 LFM airflow over the SFP module

Operating relative humidity: 0% to 95% @ 75°F (25°C), noncondensing

Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)

Nonoperating/Storage relative humidity: 0% to 95% @ 77°F (25°C), noncondensing

Altitude: up to 10,000 ft. (3000 km)

Cabling

Cable type:
1000BASE-T: Category 5 (5E or better recommended), 100 Ù differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T;

Maximum distance:

• 100 m

Notes

Power consumption is nominally 1 watt.
For supported platforms and minimum software requirements to support this product, see the document titled "Support for the J8177C 1000Base-T Mini-GBIC" on the "HP Mini-GBICs and SFPs" Manuals Web page.
The J8177C Gigabit copper mini-GBIC is not supported on dual-personality ports.
The J8177C is capable of 100 Mb operation. This is supported on only the HP E8200zl, E5400zl, and HP E6200-24G-mGBIC yl Switches using software version K.12.21 or later. Use the "auto-100" port setting to enable 100 Mb operation.
Important: The earlier J8177B does not support 100 Mb operation. When used in the Switch gl 20-Port 10/100/1000 Module (J4908A), the J8177C mini-GBIC can be installed in either the upper or lower mini-GBIC
port, but will block access to the other port.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP LC SX Transceiver (JD118B)

A small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550m on a Multimode fiber.

Ports

1 LC 1000BASE-SX port

Connectivity

Connector type

LC

Wavelength

850 nm

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Maximum distance:
FDDI Grade distance = 220m
OM1 = 275m
OM2 = 500m
OM3 = Not Specified by standard

Cable length

up to 550m

Fiber type

Multi Mode

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP LC LX Transceiver (JD119B)

A small form-factor pluggable (SFP) Gigabig LX transceiver that provides a full duplex Gigabit solution up to 550m on MMF or 10Km on SMF

Ports

1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)

Connectivity

Connector type

LC

Wavelength

1300 nm

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type:
Either single mode or multimode;

Maximum distance:
550m for Multimode
10km for Singlemode

Fiber type

Both

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP RJ45 T Transceiver (JD089B)

Ports

1 RJ-45 1000BASE-T port (IEEE 802.3ab Type 1000BASE-T)

Connectivity

Connector type

RJ-45

Physical characteristics

Dimensions

2.71(d) x 0.54(w) x 0.55(h) in. (6.88 x 1.37 x 1.4 cm)

Full configuration weight

0.07 lb. (0.03 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type:
1000BASE-T: Category 5 (5E or better recommended), 100 Ù differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T

Maximum distance:
100m

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable (AJ833A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber and designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable (AJ834A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable (AJ835A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable (AJ836A)

Cabling

Cable type:
50/125 µm core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: This specification defines the detail requirements for a tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable (AJ837A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable (AJ838A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable (AJ839A)

Cabling

Cable type:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um
• Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm.
• Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable (QK732A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core Diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable (QK733A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable (QK734A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable (QK735A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable (QK736A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable (QK737A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um
Bandwidth: 3000 MHz-km @ 850nm (Laser)
Jacket Color: Blue
Jacket Material: Riser Grade - Low Smoke Zero Halogen (LSZH) thermoplastic
Boot Color: White
Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.
Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

Date

Version History

Action

Description of Change:

05-Mar-2018

Version 21

Changed

Accessories updated

04-Sep-2017

Version 20

Changed

Updates made on Features and benefits

Removed

Model removed: JG536A

23-Sep-2016

Version 19

Added

SKU JD120B added to Accessories

01-Aug-2016

Version 18

Changed

Adding #AC3 Option on Configuration section.
Updates made on Overview and Technical Specifications

06-May-2016

Version 17

Changed

Document name changed to HPE OfficeConnect Switch Series. Overview, Features and Benefits, Technical Specifications updated.

18-Mar-2016

Version 16

Changed

Version updated to change Concentra ID from c03824531 to c05051651

01-Dec-2015

Version 15

Changed

Overview, Features and Benefits and Technical Specifications updated.

01-Dec-2014

Version 14

Changed

Updated Warranty and support and Product Overview

25-Feb-2014

Version 12

Changed

Internal and External Power Supplies, Transceivers, and Cables were revised.

09-Dec-2013

Version 11

Changed

Configuration was revised.

09-Oct-2013

Version 10

Removed

HP X124 1G SFP LC SX and HP X124 1G SFP LC LX Transceivers were removed.

11-Sep-2013

Version 9

Added

Configuration was added.

10-Jun-2013

Version 8

Added

OM4 cables were added.

14-May-2012

Version 7

Changed

Features and Benefits were updated.
The product description and Key Features were also updated.
3 new models were added.

26-Sep-2011

Version 6

Changed

The QuickSpecs was completely revised, including changing the title.

20-Jun-2011

Version 4

Changed

Features and Benefits were updated.
The product description and Key Features were also updated

20-Oct-2010

Version 2

Changed

Features and Benefits were reorganized and updated Layer 3 routing.
Ports, Notes, Services note and General Protocols were revised throughout Models
PremierFlex Cables were added
