HPE FlexNetwork 5130 EI Brazil Switch Series: технические характеристики и документация

HPE FlexNetwork 5130 EI Brazil Switch Series

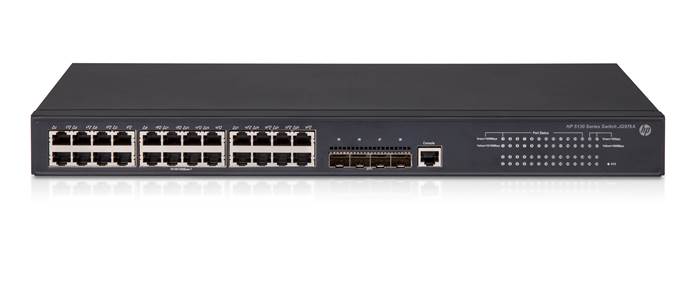

HPE FlexNetwork 5130 24G 4SFP+ EI Brazil Switch (JG975A)

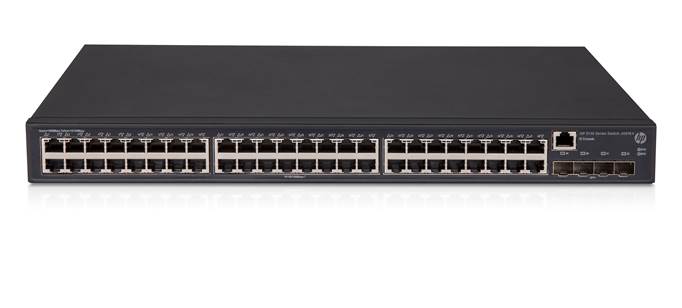

HPE FlexNetwork 5130 48G 4SFP+ EI Brazil Switch (JG976A)

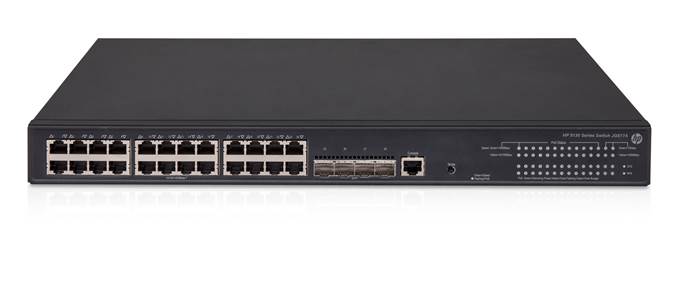

HPE FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Brazil Switch (JG977A)

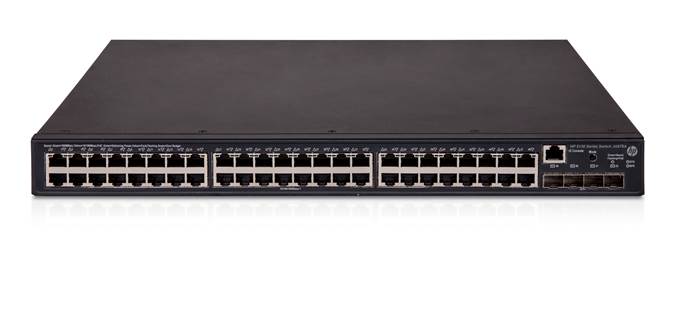

HPE FlexNetwork 5130 48G PoE+ 4SFP+ (370W) EI Brazil Switch (JG978A)

Models

HPE FlexNetwork 5130 24G 4SFP+ EI Brazil Switch

JG975A

HPE FlexNetwork 5130 48G 4SFP+ EI Brazil Switch

JG976A

HPE FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Brazil Switch

JG977A

HPE FlexNetwork 5130 48G PoE+ 4SFP+ (370W) EI Brazil Switch

JG978A

Key features

• Fixed 10G Ports for high speed Stacking or Uplinks
• Support for multiple services
• Comprehensive security control policies
• Diversified quality of service (QoS) policies
• Excellent manageability

Product overview

The HPE FlexNetwork 5130 EI Brazil Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) interfaces. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series. These products are manufactured in Brazil.

Features and benefits

Software-defined networking

• OpenFlow
  supports OpenFlow 1.3 specification to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths

Quality of Service (QoS)

• Broadcast control
  allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
• Advanced classifier-based QoS
  classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch
• Powerful QoS feature
  supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR
• Traffic policing
  supports Committed Access Rate (CAR) and line rate

Management

• Remote configuration and management
  enables configuration and management through a secure Web browser or a CLI located on a remote device
• Manager and operator privilege levels
  provides read-only (operator) and read/write (manager) access on CLI and Web browser management interfaces
• Command authorization
  leverages HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail
• Secure Web GUI
  provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
• Multiple configuration files
  stores easily to the flash image
• Complete session logging
  provides detailed information for problem identification and resolution
• Remote monitoring (RMON)
  uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
  advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
• sFlow (RFC 3176)
  provides scalable ASIC-based wire speed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
• Management VLAN
  segments traffic to and from management interfaces, including CLI/telnet, a Web browser interface, and SNMP
• Remote intelligent mirroring
  mirrors ingress/egress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network
• Device Link Detection Protocol (DLDP)
  monitors a cable between two compatible switches and shuts down the ports on both ends if the cable is broken, which prevents network problems such as loops
• IPv6 management
  provides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6
• Troubleshooting
  ingress and egress port monitoring enables network problem-solving; virtual cable tests provide visibility into cable problems
• HPE Intelligent Management Center (IMC)
  integrates fault management, element configuration, and network monitoring from a central vantage point; built-in support for third-party devices enables network administrators to centrally manage all network elements with a variety of automated tasks, including discovery, categorization, baseline configurations, and software images; the software also provides configuration comparison tools, version tracking, change alerts, and more
• Network management
  offers SNMPv1/v2c/v3, with Traps, and RADIUS Authentication Client MIB (RFC 2618); embedded HTML management tool with secure access.

Connectivity

• Auto-MDIX
  automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
• Flow control
  provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations
• High-density connectivity
  provides up to 48 fixed 10/100/1000BASE-T ports in a Layer 2/Layer 3 switch
• IEEE 802.3at Power over Ethernet (PoE+) support
  simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location
• Ethernet operations, administration and maintenance (OAM)
  detects data link layer problems that occurred in the "last mile" using the IEEE 802.3ah OAM standard; monitors the status of the link between two devices

Performance

• Nonblocking architecture
  up to 176 Gb/s nonblocking switching fabric provides wire speed switching with up to 130.9 million pps throughput
• Hardware-based wire speed access control lists (ACLs)
  help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation

Resiliency and high availability

• Separate data and control paths separates control from services and keeps service processing isolated; increases security and performance
• External redundant power supply
  provides high reliability
• Smart link
  allows under 100ms failover between links
• Spanning Tree/PVST+,MSTP, RSTP
  provides redundant links while preventing network loops, supports up to 64 instances of MSTP
• Intelligent Resilient Fabric (IRF)
  creates virtual resilient switching fabrics, where two to nine switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate need for complex protocols like Spanning Tree Protocol, Equal-Cost Multipath (ECMP), or VRRP, thereby simplifying network operation

Layer 2 switching

• 16K MAC address table
  provides access to many Layer 2 devices
• VLAN support and tagging
  supports IEEE 802.1Q with 4,094 simultaneous VLAN IDs
• IEEE 802.1ad QinQ and selective QinQ
  increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network
• 10GbE port aggregation
  allows grouping of ports to increase overall data throughput to a remote device
• Device Link Detection Protocol (DLDP)
  monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks
• Jumbo Frame Support
  improves the performance of large data transfers; supports frame size of up to 9K-bytes

Layer 3 services

• Address Resolution Protocol (ARP)
  determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• Dynamic Host Configuration Protocol (DHCP)
  simplifies the management of large IP networks; supports client; DHCP Relay enables DHCP operation across subnets
• Loopback interface address
  defines an address that can always be reachable, improving diagnostic capability
• User Datagram Protocol (UDP) helper function
  allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP
• Route maps
  provide more control during route redistribution; allow filtering and altering of route metrics
• DHCP server
  centralizes and reduces the cost of IPv4 address management

Layer 3 routing

• Static IP routing
  provides manually configured routing for both IPv4 and IPv6 networks
• Routing Information Protocol (RIP)
  uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection

Security

• Access control lists (ACLs)
  provides IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL
• IEEE 802.1X
  industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server
• MAC-based authentication
  client is authenticated with the RADIUS server based on the client's MAC address
• Identity-driven security and access control

- Per-user ACLs
permits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or providing unauthorized access to sensitive data

- Automatic VLAN assignment
automatically assigns users to the appropriate VLAN based on their identities

• Secure management access
  delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, HTTPS and/or SNMPv3
• Secure FTP/SCP
  allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file
• Guest VLAN
  provides a browser-based environment to authenticated clients that is similar to IEEE 802.1X
• Port security
  allows access only to specified MAC addresses, which can be learned or specified by the administrator
• Port isolation
  secures and adds privacy, and prevents malicious attackers from obtaining user information
• STP BPDU port protection
  blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
• STP root guard
  protects the root bridge from malicious attacks or configuration mistakes
• DHCP protection
  blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
• IP source guard
  helps prevent IP spoofing attacks
• Dynamic ARP protection
  blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
• RADIUS/HWTACACS
  eases switch management security administration by using a password authentication server

Convergence

• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
  facilitates easy mapping using network management applications with LLDP automated device discovery protocol
• LLDP-MED
  is a standard extension that automatically configures network devices, including LLDP-capable IP phones
• LLDP-CDP compatibility
  receives and recognizes CDP packets from Cisco's IP phones for seamless interoperation
• IEEE 802.3at Power over Ethernet (PoE+)
  provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments
• PoE allocations
  supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savings
• Voice VLAN
  automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance
• IP multicast snooping (data-driven IGMP)
  prevents flooding of IP multicast traffic

Device support

• Prestandard PoE Support
  detects and provides power to prestandard PoE devices such as wireless LAN access points and IP phones

Additional information

• Green IT and power
  improves energy efficiency through the use of the latest advances in silicon development; shuts off unused ports and utilizes variable-speed fans, reducing energy costs
• Green initiative support
  provides support for RoHS and WEEE regulations
• Unified Hewlett Packard Enterprise Comware operating system with modular architecture
  provides an easy-to-enhance-and-extend feature set, which doesn't require whole-scale changes; all switching, routing, and security platforms leverage the Comware OS, a common unified modular operating system
• Energy Efficient Ethernet (EEE) Support
  Reduces power consumption in accordance with IEEE 802.3az

Warranty and support

• Limited Lifetime Warranty
  See http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
• Software releases
  to find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

Switch Chassis

HPE FlexNetwork 5130 24G 4SFP+ EI Brazil Switch

JG975A

• 24 RJ-45 autosensing 10/100/1000 ports
• 4 SFP+ ports
• min=0 \ max=4 SFP+  Transceivers
• Power supply included
• 1U – Height

See Configuration NOTE: 2, 6, 7

HPE FlexNetwork 5130 48G 4SFP+ EI Brazil Switch

JG976A

• 48 RJ-45 autosensing 10/100/1000 ports
• 4 SFP+ ports
• min=0 \ max=4 SFP+  Transceivers
• Power supply included
• 1U - Height

See Configuration NOTE: 2, 6, 7

HPE FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Brazil Switch

JG977A

• 24 RJ-45 autosensing 10/100/1000 ports
• 4 SFP+ ports
• min=0 \ max=4 SFP+  Transceivers
• Power supply included
• 1U - Height

See Configuration NOTE: 2, 6, 7

HPE FlexNetwork 5130 48G PoE+ 4SFP+ (370W) EI Brazil Switch

JG978A

• 48 RJ-45 autosensing 10/100/1000 ports
• 4 SFP+ ports
• min=0 \ max=4 SFP+  Transceivers
• Power supply included
• 1U - Height

See Configuration NOTE: 2, 6, 7

Configuration Rules:

Note 2

The following Transceivers install into this Switch: (SFP+ Ports)

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP RJ45 1000BASE-T Transceiver

JD089B

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HPE X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Campus-Cable

JH693A

HPE X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Campus-Cable

JH694A

HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable

JH695A

Note 6

Only available in Brazil.

Note 7

Localization required. (See Localization Menu)

Remarks

Drop down under power supply should offer the following options and results:

Switch/Router/Power Supply to PDU Power Cord -  #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)

Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

High Volt Switch/Router/Power Supply to Wall Power Cord -  #B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)

Transceivers

SFP Transceivers

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP RJ45 1000BASE-T Transceiver

JD089B

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC LH100 Transceiver

JD103A

SFP+ Transceivers

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HPE X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Campus-Cable

JH693A

HPE X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Campus-Cable

JH694A

HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable

JH695A

Cables

Multi-Mode Cables

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

Internal Power Supplies

HPE FlexNetwork 5500 150WDC Power Supply

JD366A

See Configuration NOTE: 4

HP 5500 150WAC Power Supply

JD362A

• includes 1 x c13,  910w

See Configuration NOTE: 2, 3, 4

PDU Cable NA/MEX/TW/JP

JD362A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JD362A#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JD362A#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

Configuration Rules:

Note 2

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch .   (Offered only in North America, Mexico, Taiwan, and  Japan)

Note 3

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) . (See Localization Menu)
REMARK: When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Switches/Routers.

Note 4

Not supported on JG932A, JG934A, JG936A, JG937A, JG975A, JG976A, JG977A, JG978A.

Remarks:

Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord -  #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)
High Volt Switch/Router/Power Supply to Wall Power Cord -  #B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)

Switch Enclosure Options

External/Redundant Power Supplies

HPE RPS 800 Redundant Power Supply

JD183A

• Height = 1U
• includes 1 x c13,  800w

See Configuration NOTE:2, 3, 5, 7

HPE RPS1600 Redundant Power System

JG136A

• Height = 1U
• includes 1 x c13,  1600w and Power Supply port

See Configuration NOTE:2, 3, 6

HPE RPS1600 1600W AC Power Supply

JG137A

• Installs into JG136A only

See Configuration NOTE:1, 6

Configuration Rules:

Note 1

If this power supply is selected, The JG136A - HP A-RPS1600 Redundant Power System must be on order or onsite.

Note 2

Localization required. (See Localization Menu for list.)

Note 3

Only 1 JD183A or JG136A can be connected per switch.

Note 5

Supported on JG934A, JG976A

Note 6

Supported on JG934A, JG976A, JG933A, JG936A, JG977A, JG937A, JG978A, JG938A, JG939A, JG940A, JG941A.

Note 7

Supported on JG933A only when connected to DC Power Supply JD366A with cable JD186A.

External/Redundant Power Cables

HPE X290 500 V 1m RPS Cable

JD186A

See Configuration NOTE: 1

HPE X290 1000 A JD5 2m RPS Cable

JD187A

See Configuration NOTE: 2

HPE X290 1000 A JD5 NonPoE 2m RPS Cable

JD188A

See Configuration NOTE: 3

Configuration Rules:

Note 1

Supported on JG934A, JG976A and JD366A when used in JG933A to connect to JD183A.

Note 2

Supported on JG936A, JG977A, JG937A, JG978A, JG940A, JG941A to connect to JG136A.

Note 3

Supported on JG934A, JG976A, JG933A, JG938A, JG939A to connect to JG136A.

HPE FlexNetwork 5130 24G 4SFP+ EI Brazil Switch (JG975A)

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 6.3(d) x 1.72(h) in (44 x 16 x 4.36 cm) (1U height)

Weight

11.02 lb (5 kg)

Memory and processor

1 GB SDRAM; Packet buffer size: 1.5 MB, 512 MB flash

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

IPv6 Ready Certified

1000 Mb Latency

< 5 µs

10 Gbps Latency

< 3 µs

Throughput

up to 96 Mpps

Routing/Switching capacity

128 Gbps

Routing table size

512 entries (IPv4), 256 entries (IPv6)

MAC address table size

16384 entries

Environment

Operating temperature

23°F to 113°F (-5°C to 45°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 95%, noncondensing

Acoustic

High-speed fan: 39.7 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

64/88 BTU/hr (67.52/92.84 kJ/hr)

Voltage

100 - 240 VAC

Current

2 A

Maximum power rating

26 W

Idle power

19 W

Notes

Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

Generic

EN 55024

ESD

EN300 386

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexNetwork 5130 48G 4SFP+ EI Brazil Switch (JG976A)

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 10.24(d) x 1.72(h) in (44 x 26 x 4.36 cm) (1U height)

Weight

11.02 lb (5 kg)

Memory and processor

1 GB SDRAM; Packet buffer size: 3 MB, 512 MB flash

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

IPv6 Ready Certified

1000 Mb Latency

< 5 µs

10 Gbps Latency

< 3 µs

Throughput

up to 130.9 Mpps

Routing/Switching capacity

176 Gbps

Routing table size

512 entries (IPv4), 256 entries (IPv6)

MAC address table size

16384 entries

Environment

Operating temperature

23°F to 113°F (-5°C to 45°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 95%, noncondensing

Acoustic

Low-speed fan: 38.4 dB, High-speed fan: 47.0 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

130/153 BTU/hr (137.15/161.42 kJ/hr), For AC powered units. For DC powered units heat dissipation is 130 BTU/hr min, 171 BTU/hr max

Voltage

100 - 240 VAC

-48 to -60 VDC

Current

10 A

Maximum power rating

45 W

Idle power

38 W

Notes

Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. Power ratings for AC power indicated above. Current used is 5A Max when DC Power used. For DC input power, idle power is 38W, maximum DC power used is 50W.

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

Generic

EN 55024

ESD

EN300 386

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Brazil Switch (JG977A)

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 11.81(d) x 1.72(h) in (44 x 30 x 4.37 cm) (1U height)

Weight

17.64 lb (8 kg)

Memory and processor

1 GB SDRAM; Packet buffer size: 1.5 MB, 512 MB flash

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

IPv6 Ready Certified

1000 Mb Latency

< 5 µs

10 Gbps Latency

< 3 µs

Throughput

up to 96 Mpps

Routing/Switching capacity

128 Gbps

Routing table size

512 entries (IPv4), 256 entries (IPv6)

MAC address table size

16384 entries

Environment

Operating temperature

23°F to 113°F (-5°C to 45°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 95%, noncondensing

Acoustic

Low-speed fan: 49.8 dB, High-speed fan: 52.9 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

102/1569 BTU/hr (107.61/1655.29 kJ/hr), for AC Power. For DC Power min heat dissipation is 85BTU/hr and max heat dissipation is 2559 BTU/hr

Voltage

100 - 240 VAC
-54 to -57 VDC

Current

10 A

Maximum power rating

460 W

Idle power

30 W

PoE power

370 W PoE+

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply. When supplemented with the use of an HPE RPS1600 Redundant Power System, up to 740 W of PoE+ can be supplied.

Max current rating for DC power is 25A. AC Input power is 30W typical, and 460W max(including 370W PoE+ consumption. DC Input voltage range is -54 to -57VDC. Total DC input power is 25W Typical and 790W with 740W PoE+ Power consumption. DC Input voltage range is -54VDC to -57VDC. DC Input Source is the HPE RPS1600.

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

Generic

EN 55024

ESD

EN300 386

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexNetwork 5130 48G PoE+ 4SFP+ (370W) EI Brazil Switch (JG978A)

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 14.17(d) x 1.72(h) in (44 x 36 x 4.36 cm) (1U height)

Weight

17.64 lb (8 kg)

Memory and processor

1 GB SDRAM; Packet buffer size: 3 MB, 512 MB flash

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

IPv6 Ready Certified

1000 Mb Latency

< 5 µs

10 Gbps Latency

< 3 µs

Throughput

up to 130.9 Mpps

Routing/Switching capacity

176 Gbps

Routing table size

512 entries (IPv4), 256 entries (IPv6)

MAC address table size

16384 entries

Environment

Operating temperature

23°F to 113°F (-5°C to 45°C)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 95%, noncondensing

Acoustic

Low-speed fan: 50.6 dB, High-speed fan: 54.6 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

160/1671 BTU/hr (168.8/1762.91 kJ/hr), for AC power. For DC power min heat dissipation is 147BTU/hr and 3037BTU/hr max.

Voltage

100 - 240 VAC
-54 to -57 VDC

Current

10 A

Maximum power rating

490 W

Idle power

47 W

PoE power

370 W PoE+

Notes

Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

PoE Power is the power supplied by the internal power supply. When supplemented with the use of an HPE RPS1600 Redundant Power System, up to 740 W of PoE+ can be supplied.

Max current rating for DC power is 25A. AC Input power is 47W typical, and 490W max(including 370W PoE+ consumption. DC Input voltage range is -54 to -57VDC. Total DC input power is 43W typical and 890W with 800W PoE+ Power consumption. DC Input voltage range is -54VDC to -57VDC. DC Input Source is the HPE RPS1600.

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

Generic

EN 55024

ESD

EN300 386

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Standards and protocols (applies to all products in series)

Device Management

RFC 1157 SNMPv1/v2c

RFC 1305 NTPv3

RFC 2573 (SNMPv3 Applications)

RFC 2819 (RMON groups Alarm, Event, History and Statistics only)

RFC 3416 (SNMP Protocol Operations v2)

HTML and telnet management

Multiple Configuration Files

SNMP v3 and RMON RFC support

SSHv1/SSHv2 Secure Shell

TACACS/TACACS+

Web UI

General Protocols

IEEE 802.1ad Q-in-Q

IEEE 802.1ak Multiple Registration Protocol (MRP) and Multiple VLAN Registration Protocol (MVRP)

IEEE 802.1D MAC Bridges

IEEE 802.1p Priority

IEEE 802.1Q VLANs

IEEE 802.1s Multiple Spanning Trees

IEEE 802.1w Rapid Reconfiguration of Spanning Tree

IEEE 802.1X PAE

IEEE 802.3 Type 10BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3ac (VLAN Tagging Extension)

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.3ae 10-Gigabit Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-X

IEEE 802.3x Flow Control

IEEE 802.3z 1000BASE-X

RFC 768 UDP

RFC 783 TFTP Protocol (revision 2)

RFC 791 IP

RFC 792 ICMP

RFC 793 TCP

RFC 826 ARP

RFC 854 TELNET

RFC 855 Telnet Option Specification

RFC 894 IP over Ethernet

RFC 950 Internet Standard Subnetting Procedure

RFC 951 BOOTP

RFC 959 - File Transfer Protocol (FTP)

RFC 1027 Proxy ARP

RFC 1042 IP Datagrams

RFC 1071 Computing the Internet Checksum

RFC 1123 Requirements for Internet Hosts

RFC 1166 - IP Addresses

RFC 1213 Management Information Base for Network Management of TCP/IP-based internets

RFC 1256 - ICMP Router Discovery Protocol (IRDP)

RFC 1305 NTPv3

RFC 1350 TFTP Protocol (revision 2)

RFC 1519 CIDR

RFC 1533 DHCP Options and BOOTP Vendor Extensions

RFC 1591 DNS (client only)

RFC 1643 - Definitions of Managed Objects for the Ethernet-like Interface Types

RFC 1812 IPv4 Routing

RFC 1866 Hypertext Markup Language - 2.0

RFC 1901 - Introduction to Community-based SNMPv2

RFC 1902-1907 - SNMPv2

RFC 2131 DHCP

RFC 2236 IGMP Snooping

RFC 2462 IPv6 Stateless Address Autoconfiguration

RFC 2474 Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers

RFC 2475 Architecture for Differentiated Services

RFC 2597 Assured Forwarding PHB Group

RFC 2616 HTTP Compatibility v1.1

RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types

RFC 2668 Definitions of Managed Objects for IEEE 802.3 Medium Attachment Units (MAUs)

RFC 2865 Remote Authentication Dial In User Service (RADIUS)

RFC 2866 RADIUS Accounting

RFC 3046 - DHCP Relay Agent Information Option

RFC 3246 Expedited Forwarding PHB

RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)

RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)

RFC 3416 Protocol Operations for SNMP

RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)

RFC 3576 Ext to RADIUS (CoA only)

RFC 3580 - IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines

RFC 3587 IPv6 Global Unicast Address Format

RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6

RFC 4213 Basic IPv6 Transition Mechanisms

RFC 4291 IP Version 6 Addressing Architecture

RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches

RFC 4575 A Session Initiation Protocol (SIP) Event Package for Conference State

RFC 4675 RADIUS VLAN & Priority

RFC 5095 Deprecation of Type 0 Routing Headers in IPv6

802.1r - GARP Proprietary Attribute Registration Protocol (GPRP)

IP multicast

RFC 1112 IGMPv1

RFC 3376 IGMPv3

IPv6

RFC 1981 IPv6 Path MTU Discovery

RFC 2460 IPv6 Specification

RFC 2461 IPv6 Neighbor Discovery

RFC 2463 ICMPv6

RFC 2464 Transmission of IPv6 over Ethernet Networks

RFC 3162 RADIUS and IPv6

RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses

RFC 3315 DHCPv6 (client and relay)

RFC 3484 Default Address Selection for IPv6

RFC 3736 Stateless Dynamic Host Configuration Protocol (DHCP) Service for IPv6

RFC 4291 IP Version 6 Addressing Architecture

RFC 4293 MIB for IP

RFC 4443 ICMPv6

RFC 4861 IPv6 Neighbor Discovery

RFC 4862 IPv6 Stateless Address Auto-configuration

RFC 6724 Default Address Selection for Internet Protocol Version 6 (IPv6)

MIBs

RFC 1212 Concise MIB Definitions

RFC 1213 MIB II

RFC 1493 Bridge MIB

RFC 1757 Remote Network Monitoring MIB

RFC 2096 IP Forwarding Table MIB

RFC 2233 Interface MIB

RFC 2571 SNMP Framework MIB

RFC 2572 SNMP-MPD MIB

RFC 2573 SNMP-Notification MIB

RFC 2573 SNMP-Target MIB

RFC 2574 SNMP USM MIB

RFC 2618 RADIUS Authentication Client MIB

RFC 2620 RADIUS Accounting Client MIB

RFC 2665 Ethernet-Like-MIB

RFC 2668 802.3 MAU MIB

RFC 2674 802.1p and IEEE 802.1Q Bridge MIB

RFC 2737 Entity MIB (Version 2)

RFC 2819 RMON MIB

RFC 2863 The Interfaces Group MIB

RFC 2925 Ping MIB

RFC 3414 SNMP-User based-SM MIB

RFC 3415 SNMP-View based-ACM MIB

RFC 3418 MIB for SNMPv3

RFC 3621 Power Ethernet MIB

Network Management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

RFC 2579 Textual Conventions for SMIv2

RFC 2580 Conformance Statements for SMIv2

RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)

ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)

SNMPv1/v2c/v3

QoS/CoS

RFC 2474 DS Field in the IPv4 and IPv6 Headers

RFC 3260 New Terminology and Clarifications for DiffServ

Security

IEEE 802.1X Port Based Network Access Control

RFC 1492 TACACS+

RFC 2138 RADIUS Authentication

RFC 2139 RADIUS Accounting

RFC 2865 RADIUS (client only)

RFC 2866 RADIUS Accounting

Secure Sockets Layer (SSL)

SSHv2 Secure Shell

HPE FlexNetwork 5130 EI Brazil Switch Series accessories

Transceivers

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP LC LH100 Transceiver

JD103A

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE X120 1G SFP RJ45 1000BASE-T Transceiver

JD089B

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Campus-Cable

JH693A

HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable

JH695A

HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable

JH695A

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

Cables

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

HPE FlexNetwork 5130 48G 4SFP+ EI Brazil Switch (JG976A)

HPE RPS 800 Redundant Power Supply ¹

JD183A

HPE RPS1600 Redundant Power System ¹

JG136A

HPE RPS1600 1600W AC Power Supply ¹

 JG137A

HPE X290 500 V 1m RPS Cable

JD186A

HPE X290 1000 A JD5 NonPoE 2m RPS Cable

JD188A

HPE FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Brazil Switch  (JG977A)

HPE RPS1600 Redundant Power System ¹

JG136A

HPE RPS1600 1600W AC Power Supply ¹

JG137A

HPE X290 1000 A JD5 2m RPS Cable

JD187A

HPE FlexNetwork 5130 48G PoE+ 4SFP+ (370W) EI Brazil Switch (JG978A)

HPE RPS1600 Redundant Power System ¹

JG136A

HPE RPS1600 1600W AC Power Supply ¹

JG137A

HPE X290 1000 A JD5 2m RPS Cable

JD187A

¹ Products covered by 1 year warranty.  See details at www.hpe.com/networking/warrantyquickref

Date

Version History

Action

Description of Change

09-Jan-2017

From Version 4 to 5

Added

SKUs added: JH693A, JH694A, JH695A

Changed

Technical Specifications updated

20-May-2016

From Version 3 to 4

Changed

Document name changed to HPE FlexNetwork 5130 EI Brazil Switch Series. SKU descriptions updated.
Updates made on Overview, Technical Specifications and Accessories.

01-Dec-2015

From Version 2 to 3

Changed

Overview and Technical Specifications updated

28-Aug-2015

From Version 1 to 2

Changed

Updated Features and Benefits and Technical Specifications
