HPE FlexFabric 5800 Switch Series: технические характеристики и документация

HPE FlexFabric 5800 Switch Series

HPE FlexFabric 5800 24G PoE+ Switch (JC099B)

HPE FlexFabric 5800 24G Switch (JC100B)

HPE FlexFabric 5800 24G SFP 1-slot Switch (JC103B)

HPE FlexFabric 5800 48G PoE+ 1-slot Switch (JC104B)

HPE FlexFabric 5800 48G 1-slot Switch (JC105B)

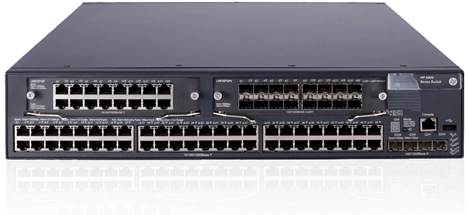

HPE FlexFabric 5800 48G POE+ 2-slot Switch (JC101B)

HPE FlexFabric 5800AF 48G Switch (JG225B)

Models

HPE FlexFabric 5800 24G PoE+ Switch

JC099B

HPE FlexFabric 5800 24G Switch

JC100B

HPE FlexFabric 5800 24G SFP 1-slot Switch

JC103B

HPE FlexFabric 5800 48G PoE+ 1-slot Switch

JC104B

HPE FlexFabric 5800 48G 1-slot Switch

JC105B

HPE FlexFabric 5800 48G POE+ 2-slot Switch

JC101B

HPE FlexFabric 5800AF 48G Switch

JG225B

Key features

• For enterprise edge, distribution, data center
• Cut-through design with low latency
• Support for up to 84 ports
• OAA module for flexible deployment
• Redundant, hot-swappable power supplies, fans

Product overview

The HPE FlexFabric 5800 Switch Series offer an unmatched combination of Gigabit and 10-Gigabit Ethernet port density, high-availability architecture, and full Layer 2 and Layer 3 dual-stack IPv4 and IPv6 capabilities. In addition to wire-speed line-rate performance on all ports, the switches include patented Intelligent Resilient Fabric (IRF) technology and Rapid Ring Protection Protocol (RRPP), which allow local or geographically distributed HPE 5800 switches to be interconnected for higher resiliency and performance. Available in PoE and non-PoE models as well as 1 RU and 2 RU form factor configurations, HPE FlexFabric 5800 switches are built on open standards and include an open application architecture (OAA) module slot that enables flexible deployment options for new services. These versatile switches are ideal for use in the network core of buildings or departments, or as high-performance switches in the convergence layer or network edge of enterprise campus networks

Features and benefits

Quality of Service (QoS)

• Powerful QoS feature
  creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), and SP+WDRR
• Integrated network services
  with support for open application architecture (OAA) modules, extends and integrates application capability into the network
• Ring Resiliency Protection Protocol (RRPP)
  provides fast recovery for ring Ethernet-based topology; provides consistent application performance for applications such as VoIP

Management

• Remote configuration and management
  is available through a secure Web browser or a command-line interface (CLI)
• IEEE 802.1AB LLDP discovery
  advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
• USB support:

- File copy
allows users to copy switch files to and from a USB flash drive

• DHCP options:

- DNS Relay and SMTP Redirection

- DHCP: Server (RFC 2131), Client, and Option-82 Relay (RFC 3046)

• sFlow
  provides scalable, ASIC-based network monitoring and accounting; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
• SNMPv1, v2c, and v3
  facilitate centralized discovery, monitoring, and secure management of networking devices
• Network Time Protocol (NTP)
  synchronizes timekeeping among distributed time servers and clients; keeps consistent timekeeping among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time

Connectivity

• High-density port connectivity
  supports up to 84 1-Gigabit ports per unit (612 per stack)
• Auto-MDIX
  automatically adjusts for straight-through or crossover cables on all 10/100 ports
• Jumbo frames
  on Gigabit Ethernet and 10-Gigabit ports, jumbo frames of 9k size allow high-performance remote backup and disaster-recovery services
• IEEE 802.3af Power over Ethernet (PoE)
  provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras
• IEEE 802.3at Power over Ethernet (PoE+) support
  simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location
• IPv6 native support

- IPv6 host
enables switches to be managed and deployed at the IPv6 network's edge

- Dual stack (IPv4/IPv6)
transitions from IPv4 to IPv6, supporting connectivity for both protocols

- MLD snooping
forwards IPv6 multicast traffic to the appropriate interface

- IPv6 ACL/QoS
supports ACL and QoS for IPv6 network traffic, preventing traffic flooding

- IPv6 routing
supports IPv6 static routes and IPv6 versions of RIP, OSPF, IS-IS, and BGP routing protocols

Performance

• Hardware-based wire-speed access control lists (ACLs)
  feature-rich ACL implementation (TCAM-based) helps provide high levels of security and ease of administration without impacting network performance
• Unique versatile architecture
  supports the best of both fixed-port and modular configurations

Resiliency and high availability

• Data center-optimized design
  the HPE 5800AF-48G Switch (JG225B) supports front-to-back/back-to-front airflow for hot/cold aisles, rear rack mounts, and redundant hot-swappable AC or DC power and fans

Manageability

• Full-featured console
  provides complete control of the switch with a familiar command-line interface (CLI)
• Web interface
  allows configuration of the switch from any Web browser on the network
• RMON and sFlow
  provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
• Multiple configuration files
  allow multiple configuration files to be stored to a flash image
• Troubleshooting

- Ingress and egress port monitoring
enable network problem solving

- Traceroute and ping
enable testing of network connectivity

- Virtual cable tests
provide visibility to cable problems

Layer 2 switching

• GARP VLAN Registration Protocol:
  allows automatic learning and dynamic assignment of VLANs
• 32K MAC addresses
  provide access to many Layer 2 devices
• 4,094 port-based VLANs
  provide security between workgroups
• IEEE 802.1ad QinQ and Selective QinQ
  increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network
• Gigabit Ethernet port aggregation
  allows grouping of ports to increase overall data throughput to a remote device
• 10 GbE port aggregation
  allows grouping of ports to increase overall data throughput to a remote device
• Spanning Tree/MSTP, RSTP, and STP Root Guard
  prevent network loops
• IPFIX/sFlow
  allows traffic sampling
• Spanning Tree Protocols (STP, MSTP, and RSTP) and STP root guard
  helps prevent network loops; up to 32 MSTP instances available

Layer 3 services

• Address Resolution Protocol (ARP)
  determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• Dynamic Host Configuration Protocol (DHCP)
  simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets

Layer 3 routing

• Layer 3 IPv4 routing
  provides routing of IPv4 at media speed; supports static routes, RIP and RIPv2, OSPF, IS-IS, and BGP
• RIP and RIPng support
  provides complete support of RIP for both IPv4 and IPv6
• OSPF and OSPFv3 support
  provides complete support of OSPF for both IPv4 and IPv6
• IS-IS and IS-ISv6 support
  provides complete support of IS-IS for both IPv4 and IPv6
• Layer 3 IPv6 routing
  provides routing of IPv6 at media speed; supports static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+
• Bidirectional Forwarding Detection (BFD)
  enables link connectivity monitoring and reduces network convergence time for RIP, OSPF, BGP, IS-IS, VRRP, MPLS, and IRF
• Virtual Router Redundancy Protocol (VRRP) and VRRP Extended
  allow quick failover of router ports
• Policy-based routing
  makes routing decisions based on policies set by the network administrator
• IGMPv1, v2, and v3
  allow individual hosts to be registered on a particular VLAN
• PIM-SSM, PIM-DM, and PIM-SM (for IPv4 and IPv6)
  support IP Multicast address management and inhibition of DoS attacks
• Equal-Cost Multipath (ECMP)
  enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth
• NEW MPLS support
  provides extended support of MPLS, including MPLS VPNs and MPLS Traffic Engineering (MPLS TE)
• NEW VPLS support
  provides extended support of VPLS for data center to data center communication at Layer 2; provides support of hierarchical VPLS for scalability

Security

• Unicast Reverse Path Forwarding (URPF)
  allows normal packets to be forwarded correctly, but discards the attaching packet due to lack of reverse path route or incorrect inbound interface; prevents source spoofing and distributed attacks; supports distributed UFPF
• Defense-in-depth security
  provides integrated and distributed security enforcement that can be managed from a central location, such as the HPE Intelligent Management Center (IMC)
• Advanced processor queuing mechanism
  helps prevent denial-of-service (DoS) attacks, while DHCP snooping helps ensure that devices can only receive an IP address from a legitimate DHCP server on the network
• IEEE 802.1X-based dynamic delivery of QoS, ACLs, and VLANs
  allows complete control over user network access
• Guest VLAN
  similar to IEEE 802.1X, it provides a browser-based environment to authenticated clients
• Port isolation
  secures and adds privacy, and prevents malicious attackers from obtaining user information
• MAC-based authentication
  allows or denies access to the switch based on client MAC address
• HTTPS management
  provides secure Web management
• Multi-Customer Edge (MCE)-Multicast Virtual Routing and Forwarding (MVRF)
  provide MPLS Edge router support
• Public Key Infrastructure (PKI)
  is used to control access
• RADIUS/HWTACACS
  eases switch management security administration by using a password authentication server
• Secure Shell (SSHv2)
  encrypts all transmitted data for secure, remote CLI access over IP networks
• IP Source Guard
  helps prevent IP spoofing attacks; filters packets on a per-port basis, which prevents illegal packets from being forwarded
• Access control lists (ACLs)
  helps provide high levels of security and ease of administration; 6k ingress entries and 1k egress entries (IPv4 and IPv6)

Convergence

• Voice VLAN
  automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance
• Internet Group Management Protocol (IGMP)
  is used by IP hosts to establish and maintain multicast groups; supports v1, v2, and v3; utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks
• Protocol Independent Multicast (PIM)
  defines modes of Internet multicasting to allow one-to-many and many-to-many transmission of information; supports PIM Dense Mode (DM), Sparse Mode (SM), and Source-Specific Multicast(SSM)
• LLDP-MED (Media Endpoint Discovery)
  defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure automatically network devices such as IP phones

Monitor and diagnostics

• Port mirroring
  enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
• OAM (IEEE 802.3ah)
  operational, administration and maintenance (OAM) management capabilities detects data link layer problems that occurred in the "last mile"; monitors the status of the link between the two devices
• CFD (IEEE 802.1ag)
  connectivity fault detection (CFD) provides a Layer 2 link OAM mechanism used for link connectivity detection and fault locating

Additional information

• HPE Intelligent Resilient Fabric (IRF)

- Creates virtual resilient switching fabrics, where two or more switches perform as a single Layer 2 switch and Layer 3 router

- Switches do not have to be co-located and can be part of a disaster-recovery system

- Servers or switches can be attached using standard LACP for automatic load balancing and high availability

- Simplifies network operation by eliminating the complexity of Spanning Tree Protocol, ECMP, or VRRP

• OAA modules
  support wireless network management and high-performance security applications; leverage network infrastructure investment
• Green IT and power
  use the latest advances in silicon development, shut off unused ports, and use variable-speed fans to improve energy efficiency
• Higher scalability with IRF
  simplifies the architecture of server access networks and reduces cost and complexity; up to nine 5800 Switches can be combined to deliver unmatched scalability of virtualized access layer switches and flatter, two-tier FlexFabric networks

Warranty and support

• Limited Lifetime warranty
  See http://www.hpe.com/networking/warrantysummary  for warranty and support information included with your product purchase.
• Software releases
  to find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

Standard Switch Chassis

HPE FlexFabric 5800 24G Switch

JC100B

• 24 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U - Height

See Configuration NOTE:1, 3, 7

PDU Cable NA/MEX/TW/JP

JC100B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC100B#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JC100B#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE FlexFabric 5800 24G PoE+ Switch

JC099B

• 24 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U - Height

See Configuration NOTE:1, 3, 7

PDU Cable NA/MEX/TW/JP

JC099B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC099B#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JC099B#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE FlexFabric 5800 24G SFP 1-slot Switch

JC103B

• 24 100/1000 SFP ports
• min=0 \ max=24 SFP Transceivers
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Must select min 1 Power Supply
• 1U - Height

See Configuration NOTE:1, 4

HPE FlexFabric 5800 48G 1-slot Switch

JC105B

• 48 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U- Height

See Configuration NOTE:1, 3, 7

PDU Cable NA/MEX/TW/JP

JC105B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC105B#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JC105B#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE FlexFabric 5800AF 48G Switch

JG225B

• 48 RJ-45 autosensing 10/100/1000 ports
• 6 fixed 1000/10000 SFP+ ports
• min=0 \ max=6 SFP+ Transceivers
• Must select min 1 Power Supply
• Must select min 2 Fan Trays
• 1U- Height

See Configuration NOTE:1

HPE FlexFabric 5800 48G PoE+ 1-slot Switch

JC104B

• 48 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U - Height

See Configuration NOTE:1, 3, 7

PDU Cable NA/MEX/TW/JP

JC104B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC104B#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JC104B#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE FlexFabric 5800 48G POE+ 2-slot Switch

JC101B

• 48 RJ-45 autosensing 10/100/1000 ports
• 2 extended module slot
• 4 fixed 1000 SFP ports
• min=0 \ max=4 SFP Transceivers
• Must select min 1 Power Supply
• 2U - Height

See Configuration NOTE:4

Configuration Rules

Note 1

The following Transceivers install into this switch:

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LRM Transceiver

JD093B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC SR Data Center Transceiver

JL437A

HPE X130 10G SFP+ LC LRM Data Center Transceiver

JL438A

HPE X130 10G SFP+ LC LR Data Center Transceiver

JL439A

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HPE X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Campus-Cable

JH693A

HPE X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Campus-Cable

JH694A

HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable

JH695A

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

Note 3

Localization required on orders without #B2B, #B2C or #B2E options.

Note 4

The following Transceivers install into this Switch:

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

Note 7

#B2E is Offered only NA, Mexico, Taiwan, and Japan.

Box Level Integration CTO Models

CTO Solution Sku

HPE FlexFabric 58xx Configure-to-order Switch Solution

JG478A

• SSP trigger sku

CTO Base Sku

HPE FlexFabric 5800 24G Switch

JC100B

• 24 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U - Height

See Configuration NOTE:1, 3, 9, 10, 11

PDU Cable NA/MEX/TW/JP

JC100B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC100B#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JC100B#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE FlexFabric 5800 24G PoE+ Switch

JC099B

• 24 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U - Height

See Configuration NOTE:1, 3, 9, 10, 11

PDU Cable NA/MEX/TW/JP

JC099B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC099B#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JC099B#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE FlexFabric 5800 24G SFP 1-slot Switch

JC103B

• 24 100/1000 SFP ports
• min=0 \ max=24 SFP Transceivers
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Must select min 1 Power Supply
• 1U - Height

See Configuration NOTE:1, 4, 5, 10

HPE FlexFabric 5800 48G 1-slot Switch

JC105B

• 48 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U- Height

See Configuration NOTE:1, 3, 9, 10, 11

PDU Cable NA/MEX/TW/JP

JC105B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC105B#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JC105B#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE FlexFabric 5800AF 48G Switch

JG225B

• 48 RJ-45 autosensing 10/100/1000 ports
• 6 fixed 1000/10000 SFP+ ports (min=0 \ max=6 SFP+ Transceivers)
• Must select min 1 Power Supply
• Must select min 2 Fan Trays
• 1U - Height

See Configuration NOTE:1, 8, 10

HPE FlexFabric 5800 48G PoE+ 1-slot Switch

JC104B

• 48 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U - Height

See Configuration NOTE:1, 3, 9, 10, 11

PDU Cable NA/MEX/TW/JP

JC104B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

C15 PDU ROW

JC104B#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JC104B#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE FlexFabric 5800 48G POE+ 2-slot Switch

JC101B

• 48 RJ-45 autosensing 10/100/1000 ports
• 2 extended module slot
• 4 fixed 1000 SFP ports
• min=0 \ max=4 SFP Transceivers
• Must select min 1 Power Supply
• 2U - Height

See Configuration NOTE:4, 5,10

Configuration Rules

Note 1

The following Transceivers install into this switch: (Use #0D1 or #B01 if switch is CTO) If Applicable -

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LRM Transceiver

JD093B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC SR Data Center Transceiver

JL437A

HPE X130 10G SFP+ LC LRM Data Center Transceiver

JL438A

HPE X130 10G SFP+ LC LR Data Center Transceiver

JL439A

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HPE X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Campus-Cable

JH693A

HPE X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Campus-Cable

JH694A

HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable

JH695A

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

Note 3

Localization required on orders without #B2B, #B2C or #B2E options.

Note 4

The following Transceivers install into this Switch: (Use #0D1 if switch is CTO) If Applicable -

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

Note 5

If this Switch is selected at least one of these Power Supply with #0D1 is required:

HPE 5800 300W AC Power Supply

JC087A

HPE 5800 750W AC Power Supply

JC089A

Note 8

If this Switch is selected at least one of these Power Supply with #0D1 is required:

HPE 58x0AF 650W AC Power Supply

JC680A

Note 9

B2E is Offered only in . NA, Mexico, Taiwan, and Japan.

Note 10

If the Switch Chassis is to be Box Level Factory Integrated (CTO), Then the #0D1 is required on the Switch Chassis and integrated to the JG478A - HPE FlexFabric 58xx Configure-to-order Switch Solution. (Min 1/Max 1 Switch per SSP)

Note 11

If this Switch is selected, Then a Minimum of 1 factory integrated accessory, OR Factory Service, must be ordered and integrated to CTO chassis. See Menu below, option must have a #0D1 to be integrated to the CTO Chassis.

Rack Level Integration CTO Models

Standard Switch Chassis

HPE FlexFabric 5800 24G Switch

JC100B

• 24 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U - Height

See Configuration NOTE:1, 3, 10

PDU Cable NA/MEX/TW/JP

JC100B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC100B#B2C

• C15 PDU Jumper Cord (ROW)

HPE FlexFabric 5800 24G PoE+ Switch

JC099B

• 24 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U - Height

See Configuration NOTE:1, 3, 10

PDU Cable NA/MEX/TW/JP

JC099B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC099B#B2C

• C15 PDU Jumper Cord (ROW)

HPE FlexFabric 5800 24G SFP 1-slot Switch

JC103B

• 24 100/1000 SFP ports
• min=0 \ max=24 SFP Transceivers
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Must select min 1 Power Supply
• 1U - Height

See Configuration NOTE:1, 4, 10

HPE FlexFabric 5800 48G 1-slot Switch

JC105B

• 48 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U- Height

See Configuration NOTE:1, 3, 10

PDU Cable NA/MEX/TW/JP

JC105B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC105B#B2C

• C15 PDU Jumper Cord (ROW)

HPE FlexFabric 5800AF 48G Switch

JG225B

• 48 RJ-45 autosensing 10/100/1000 ports
• 6 fixed 1000/10000 SFP+ ports (min=0 \ max=6 SFP+ Transceivers)
• Must select min 1 Power Supply
• Must select min 2 Fan Trays
• 1U - Height

See Configuration NOTE:1, 10

HPE FlexFabric 5800 48G PoE+ 1-slot Switch

JC104B

• 48 RJ-45 autosensing 10/100/1000 ports
• 1 extended module slot
• 4 fixed 1000/10000 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power Supply included
• 1U - Height

See Configuration NOTE:1, 3, 10

PDU Cable NA/MEX/TW/JP

JC104B#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC104B#B2C

• C15 PDU Jumper Cord (ROW)

HPE FlexFabric 5800 48G POE+ 2-slot Switch

JC101B

• 48 RJ-45 autosensing 10/100/1000 ports
• 2 extended module slot
• 4 fixed 1000 SFP ports
• min=0 \ max=4 SFP Transceivers
• Must select min 1 Power Supply
• 2U - Height

See Configuration NOTE:4, 10

Configuration Rules:

Note 1

The following Transceivers install into this switch:

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LRM Transceiver

JD093B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC SR Data Center Transceiver

JL437A

HPE X130 10G SFP+ LC LRM Data Center Transceiver

JL438A

HPE X130 10G SFP+ LC LR Data Center Transceiver

JL439A

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HPE X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Campus-Cable

JH693A

HPE X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Campus-Cable

JH694A

HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable

JH695A

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

Note 3

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) . (See Localization Menu)
REMARK: When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Switches/Routers.

Note 4

The following Transceivers install into this Switch:

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

Note 10

If HPE CTO Switch Chassis is selected for Rack Level Integration, Then the Switch needs to integrate (with #0D1) to the HPE Rack.

Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.

Modules

Ethernet Modules

(JC101x, JG242x, Switch Only ) System (std 0 // max 2) User Selection (min 0 // max 2) per chassis

(JC100x, JC099x, JC103x, JC105x, JC104x, JG254x, JG255x, JG256x, JG257x, JG258x, Switch Only )
System (std 0 // max 1) User Selection (min 0 // max 1) per chassis

HPE 5800 16-port SFP Module

JC095A

• min=0 \ max=16 SFP Transceivers

See Configuration NOTE:2

HPE 5800 4-port 10GbE SFP+ Module

JC091A

• min=0 \ max=4 SFP and SFP + Transceivers

See Configuration NOTE:1

HPE 5800 2-port 10GbE SFP+ Module

JC092B

• min=0 \ max=2 SFP and SFP + Transceivers

See Configuration NOTE:1

HPE 5800 16-port Gig-T Module

JC094A

• No Transceivers

Configuration Rules:

Note 1

The following Transceivers install into this Module: (Use #0D1 if switch is CTO) If Applicable -

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LRM Transceiver

JD093B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC SR Data Center Transceiver

JL437A

HPE X130 10G SFP+ LC LRM Data Center Transceiver

JL438A

HPE X130 10G SFP+ LC LR Data Center Transceiver

JL439A

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH70 Transceiver

JD063B

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HPE X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Campus-Cable

JH693A

HPE X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Campus-Cable

JH694A

HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable

JH695A

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

Note 2

The following Transceivers install into this Module: (Use #0D1 if switch is CTO) If Applicable -

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

Access Control Modules

(JC101x and JG242x Switch Only ) System (std 0 // max 1) User Selection (min 0 // max 1) per chassis

HPE 5820 VPN Firewall Module

JD255A

• No Transceivers

See Configuration NOTE:1

Configuration Rules:

Note 1

This Module install to the following switches only:
JC101x - HPE 5800-48G Switch with 2 Slots

PoE Modules

(JC101x and JG242x Switch Only ) System (std 0 // max 1) User Selection (min 0 // max 1) per chassis

HPE 5800 PoE Module

JC097B

• No Transceivers

Transceivers

SFP+ Transceivers

HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LRM Transceiver

JD093B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC SR Data Center Transceiver

JL437A

HPE X130 10G SFP+ LC LRM Data Center Transceiver

JL438A

HPE X130 10G SFP+ LC LR Data Center Transceiver

JL439A

HPE X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HPE X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Campus-Cable

JH693A

HPE X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Campus-Cable

JH694A

HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable

JH695A

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

SFP Transceivers

HPE X110 100M SFP LC LH40 Transceiver

JD090A

HPE X110 100M SFP LC LH80 Transceiver

JD091A

HPE X115 100M SFP LC FX Transceiver

JD102B

HPE X110 100M SFP LC LX Transceiver

JD120B

HPE X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HPE X125 1G SFP LC LH70 Transceiver

JD063B

Internal Power Supplies

(JC103x and JG256x Only) System (std 0 // max 2) User Selection (min 1 // max 2) per switch

(JC101x and JG242x Only) System (std 0 // max 2) User Selection (min 1 // max 2) per switch

(JG225B only) System (std 0 // max 2) User Selection (min 1 // max 2) per switch

HPE 5500 150WAC Power Supply

JD362A

See Configuration NOTE:1, 2, 3

PDU Cable NA/MEX/TW/JP

JD362A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JD362A#B2C

• C13 PDU Jumper Cord (ROW)

HPE X361 150W 100-240VAC to 12VDC Power Supply

JD362B

• includes 1 x c13,  910w

See Configuration NOTE:1, 2, 3

PDU Cable NA/MEX/TW/JP

JD362B#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JD362B#B2C

• C13 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

JD362B#B2E

• HPE 2.3M C13 to NEMA L6-20P Power Cord (J9936A)

No Power Cord

JD362B#AC3

• No Localized Power Cord Selected

HPE FlexNetwork 5500 150WDC Power Supply

JD366A

See Configuration NOTE:1, 3

HPE X361 150W 48-60VDC to 12VDC Power Supply

JD366B

See Configuration NOTE:1, 3

HPE 5800 300W AC Power Supply

JC087A

See Configuration NOTE:1, 2, 4

PDU Cable NA/MEX/TW/JP

JC087A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC087A#B2C

• C15 PDU Jumper Cord (ROW)

HPE 5800 300W DC Power Supply

JC090A

See Configuration NOTE:1, 4

HPE 5800 750W AC Power Supply

JC089A

See Configuration NOTE:1, 2, 4

PDU Cable NA/MEX/TW/JP

JC089A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JC089A#B2C

• C15 PDU Jumper Cord (ROW)

HPE 58x0AF 650W AC Power Supply

JC680A

• includes 1 x c13, 650w

See Configuration NOTE:1, 2, 6

PDU Cable NA/MEX/TW/JP

JC680A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

JC680A#B2C

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

HPE A58x0AF Back (Power Side) to Front (Port Side) Airflow 300W AC Power Supply

JG900A

• includes 1 x c13,  300w

See Configuration NOTE:1, 2, 6

PDU Cable NA/MEX/TW/JP

JG900A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JG900A#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord

JG900A#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE A58x0AF Back (Power Side) to Front (Port Side) Airflow 300W DC Power Supply

JG901A

See Configuration NOTE:1, 6, 7

HPE FlexFabric Switch 650W 48V Hot Plug NEBS-compliant DC Power Supply

JH336A

See Configuration NOTE:1, 6

Configuration Rules:

Note 1

If 2 power supplies are selected then they must be the same Sku number.

Note 2

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) . (See Localization Menu)
REMARK: When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Switches/Routers.

Note 3

This power supply only supported on JC103x and JG256x Only.

Note 4

This power supply only supported on JC101x and JG242x Only.

Note 6

This power supply only supported on JG225B Only.

Note 7

Watson Only - Add "(NEBS)" after the description on the PS table.

Remarks:

Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

NOTE* Switch JG225B should default selection of Power Supply as JC680A but allow selection of JG900A, JG901A, and JC681A.

Switch Options

Fan Trays

(JG225B only) System (std 0 // max 2) User Selection (min 2 // max 2) per switch

HPE 58x0AF Back (Power Side) to Front (Port Side) Airflow Fan Tray

JC682A

See Configuration NOTE:1

HPE 58x0AF Front (Port Side) to Back (Power Side) Airflow Fan Tray

JC683A

See Configuration NOTE:1

Configuration Rules:

Note 1

Fan Trays cannot be mixed in the same switch enclosure

Remark:

Watson Blue Text:
If there is any empty space below the switch in a rack when using Back to Front Fan Trays, JC682A, the rack will receive an Air Plenum kit that takes up 1U of additional space in the rack. The Air Plenum kit is not required on fully configured racks. This only applies for CTO Rack Level Integration. The Air Plenum Kit is a non-saleable SKU, and is brought in automatically for CTO Factory Rack Level Integration.

Fan Options

HPE 5800 2RU Spare Fan Assembly

JC096A

See Configuration NOTE:1

HPE 5800 1RU Spare Fan Assembly

JC098A

See Configuration NOTE:2

Configuration Rules:

Note 1

This Spare Fan is only supported on switches JC101B and JG242B.

Note 2

This Spare Fan is only supported on switches JC099B, JC100B, JC103B, JC104B, JC105B, JG254B, JG255B, JG256B, JG257B and JG258B.

Opacity Shield Kit

System (std 0 // max 1) User Selection (min 0 // max 1)

HPE 5800 24G/48G PoE Opacity Shield Kit

JG560A

• Supported on JG254B, JG257B

See Configuration NOTE:1

HPE 58xx 2-slot Switch Opacity Shield Kit

JG561A

• Supported on JG242B

See Configuration NOTE:1

HPE 5800 24G SFP Opacity Shield Kit

JG562A

• Supported on JG256B

See Configuration NOTE:1

HPE 5800 24G/48G Opacity Shield Kit

JG563A

• Supported on JG255B, JG258B

See Configuration NOTE:1

Configuration Rules:

Note 1

If selected with a CTO Switch Solution, Quantity 1 of JG585A#B01 must also be ordered.

Tamper Evidence Labels

System (std 0 // max 1) User Selection (min 0 // max 1)

HPE 12mm x 60mm Tamper Evidence (30) Labels

JG585A

• Supported on JG254B, JG257B, JG242B, JG256B, JG255B, JG258B

 See Configuration NOTE:1

Configuration Rules:

Note 1

If selected with a CTO Switch Solution, Quantity 1 of JG560A#B01, JG561A#B01, JG562A#B01 or JG563A#B01 must also be ordered.

Remarks

Each JG560A, JG561A, JG562A or JG563A would use 1 of JG585A.

License

HPE WX5000 32 Access Point License Upgrade

JD463A

See Configuration NOTE:1

Configuration Rules:

Note 1

If this license is selected, Then one of these modules should be selected or be on site:

HPE 5800 Access Controller Module for 32-64 Access Points

JD443A

HPE 5800 Access Controller Module for 64-256 Access Points

JD441A

External Redundant Power Supplies

HPE RPS 800 Redundant Power Supply

JD183A

• Height = 1U
• includes 1 x c13

See Configuration NOTE:2, 4

HPE RPS1600 Redundant Power System

JG136A

• Height = 1U
• includes 1 x c13, 1600w and Power Supply port

See Configuration NOTE:2, 3, 5

HPE RPS1600 1600W AC Power Supply

JG137A

• Installs into JG136A only

See Configuration NOTE:1, 3

Configuration Rules:

Note 1

If this power supply is selected, The JG136A - HPE RPS1600 Redundant Power System must be on order or onsite.

Note 2

Localization required.

Note 3

Each switch will only support 1 JG136A and 1 JG137A Power supply systems.

Note 4

This power supply only supported on switches JC105B and JC100B.

Note 5

This power supply only supported on switches JC099B, JC101B, JC103B, JC104B.

Options for the HPE RPS 800 and 1600 External RPS Power Supplies

HPE X290 1000 A JD5 2m RPS Cable

JD187A

See Configuration NOTE:3

HPE X290 1000 A JD5 NonPoE 2m RPS Cable

JD188A

See Configuration NOTE:2

HPE X290 1000 B JD5 2m RPS Cable

JD189A

See Configuration NOTE:4

HPE X290 500/800 1m RPS Cable

JD190A

See Configuration NOTE:1

Configuration Rules:

Note 1

This Cable is only supported on switches JC105B and JC100B when used with the RPS 800 (JD183A)

Note 2

This Cable is only supported on switch JC103B when used with the RPS 1600 (JG136A)

Note 3

This Cable is only supported on switches JC099B, JC101B, JC104B, and when used with the RPS 1600 (JG136A).

Note 4

This Cable is only supported on switches JC101B (Running On Non-PoE mode), JC103B when used with the RPS 1600 (JG136A)

HPE FlexFabric 5800 24G PoE+ Switch (JC099B)

Ports

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

1 extended module slot

4 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.3(w) x 16.8(d) x 1.71(h) in (43.94 x 42.67 x 4.34 cm) (1U height)

Weight

17.64 lb (8 kg)

Memory and processor

2048 MB SDRAM; Packet buffer size: 4 MB, 512 MB flash

Performance

Latency

4.02 µs (Store and Forward) (64-byte packets)

Throughput

up to 155 Mpps

Routing/Switching capacity

208 Gbps

Routing table size

16000 entries

MAC address table size

32000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

10% to 90%

Acoustic

Low-speed fan: 47.5 dB, High-speed fan: 52.4 dB

Electrical characteristics

Maximum heat dissipation

2968 BTU/hr (3131.24 kJ/hr)

Voltage

100 - 120 / 200 - 240 VAC, rated

Frequency

50/60 Hz

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

Immunity

Generic

ETSI EN 300 386 V1.3.3

EN

EN 55024:1998+ A1:2001 + A2:2003

ESD

EN 61000-4-2; IEC 61000-4-2

Radiated

EN 61000-4-3; IEC 61000-4-3

EFT/Burst

EN 61000-4-4; IEC 61000-4-4

Surge

EN 61000-4-5; IEC 61000-4-5

Conducted

EN 61000-4-6; IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8; EN 61000-4-8

Voltage dips and interruptions

EN 61000-4-11; IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; HTTPS; RMON1; FTP

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexFabric 5800 24G Switch (JC100B)

Ports

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

1 extended module slot

4 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 14.35(d) x 1.72(h) in (44.0 x 36.45 x 4.36 cm) (1U height)

Weight

13.23 lb (6 kg)

Memory and processor

2048 MB SDRAM; Packet buffer size: 4 MB, 512 MB flash

Performance

Latency

4.02 µs (Store and Forward) (64-byte packets)

Throughput

up to 155 Mpps

Routing/Switching capacity

208 Gbps

Routing table size

16000 entries

MAC address table size

32000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

10% to 90%

Acoustic

Low-speed fan: 42.3 dB, High-speed fan: 52.9 dB

Electrical characteristics

Maximum heat dissipation

358 BTU/hr (377.69 kJ/hr)

Voltage

100 - 120 - 240 VAC, rated

Frequency

50/60 Hz

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

Immunity

Generic

ETSI EN 300 386 V1.3.3

EN

EN 55024:1998+ A1:2001 + A2:2003

ESD

EN 61000-4-2; IEC 61000-4-2

Radiated

EN 61000-4-3; IEC 61000-4-3

EFT/Burst

EN 61000-4-4; IEC 61000-4-4

Surge

EN 61000-4-5; IEC 61000-4-5

Conducted

EN 61000-4-6; IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8; EN 61000-4-8

Voltage dips and interruptions

EN 61000-4-11; IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; HTTPS; RMON1; FTP

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexFabric 5800 24G SFP 1-slot Switch (JC103B)

Ports

24 SFP fixed Gigabit Ethernet SFP ports

1 extended module slot

4 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

Power supplies

2 power supply slots
1 minimum power supplies required (ordered separately)

Physical characteristics

Dimensions

17.32(w) x 16.81(d) x 1.72(h) in (44.0 x 42.7 x 4.36 cm) (1U height)

Weight

18.74 lb (8.5 kg)

Memory and processor

2048 MB SDRAM; Packet buffer size: 8 MB, 512 MB flash

Performance

Latency

4.02 µs (Store and Forward) (64-byte packets)

Throughput

up to 155 Mpps

Routing/Switching capacity

208 Gbps

Routing table size

16000 entries

MAC address table size

32000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

10% to 90%

Acoustic

Low-speed fan: 49.6 dB, High-speed fan: 58.1 dB

Electrical characteristics

Maximum heat dissipation

498 BTU/hr (525.39 kJ/hr)

Voltage

100 - 120 / 200 - 240 VAC, rated

DC voltage

-48 VDC to -60 VDC

Frequency

50/60 Hz

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

Immunity

Generic

ETSI EN 300 386 V1.3.3

EN

EN 55024:1998+ A1:2001 + A2:2003

ESD

EN 61000-4-2; IEC 61000-4-2

Radiated

EN 61000-4-3; IEC 61000-4-3

EFT/Burst

EN 61000-4-4; IEC 61000-4-4

Surge

EN 61000-4-5; IEC 61000-4-5

Conducted

EN 61000-4-6; IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8; EN 61000-4-8

Voltage dips and interruptions

EN 61000-4-11; IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; HTTPS; RMON1; FTP

Notes

The customer must order a power supply, as the device does not come with a PSU. At least one JD362A/JD362B or JD366A/JD366B is required.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexFabric 5800 48G PoE+ 1-slot Switch (JC104B)

Ports

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

1 extended module slot

4 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 16.81(d) x 1.72(h) in (44.0 x 42.7 x 4.36 cm) (1U height)

Weight

18.74 lb (8.5 kg)

Memory and processor

2048 MB SDRAM; Packet buffer size: 8 MB, 512 MB flash

Performance

Latency

4.02 µs (Store and Forward) (64-byte packets)

Throughput

up to 190 Mpps

Routing/Switching capacity

256 Gbps

Routing table size

16000 entries

MAC address table size

32000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

10% to 90%

Acoustic

Low-speed fan: 50.5 dB, High-speed fan: 57.9 dB

Electrical characteristics

Maximum heat dissipation

3320 BTU/hr (3502.6 kJ/hr)

Voltage

100 - 120 / 200 - 240 VAC, rated

Frequency

50/60 Hz

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

Immunity

Generic

ETSI EN 300 386 V1.3.3

EN

EN 55024:1998+ A1:2001 + A2:2003

ESD

EN 61000-4-2; IEC 61000-4-2

Radiated

EN 61000-4-3; IEC 61000-4-3

EFT/Burst

EN 61000-4-4; IEC 61000-4-4

Surge

EN 61000-4-5; IEC 61000-4-5

Conducted

EN 61000-4-6; IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8; EN 61000-4-8

Voltage dips and interruptions

EN 61000-4-11; IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP
Manager; Telnet; HTTPS; RMON1; FTP

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexFabric 5800 48G 1-slot Switch (JC105B)

Ports

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

1 extended module slot

4 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 14.45(d) x 1.72(h) in (44.0 x 36.7 x 4.36 cm) (1U height)

Weight

14.33 lb (6.5 kg)

Memory and processor

2048 MB SDRAM; Packet buffer size: 8 MB, 512 MB flash

Performance

Latency

4.02 µs (Store and Forward) (64-byte packets)

Throughput

up to 190 Mpps

Routing/Switching capacity

256 Gbps

Routing table size

16000 entries

MAC address table size

32000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

10% to 90%

Acoustic

Low-speed fan: 45.3 dB, High-speed fan: 56.5 dB

Electrical characteristics

Maximum heat dissipation

557 BTU/hr (587.64 kJ/hr)

Voltage

100 - 120 / 200 - 240 VAC, rated

Frequency

50/60 Hz

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

Immunity

Generic

ETSI EN 300 386 V1.3.3

EN

EN 55024:1998+ A1:2001 + A2:2003

ESD

EN 61000-4-2; IEC 61000-4-2

Radiated

EN 61000-4-3; IEC 61000-4-3

EFT/Burst

EN 61000-4-4; IEC 61000-4-4

Surge

EN 61000-4-5; IEC 61000-4-5

Conducted

EN 61000-4-6; IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8; EN 61000-4-8

Voltage dips and interruptions

EN 61000-4-11; IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; HTTPS; RMON1; FTP

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexFabric 5800 48G POE+ 2-slot Switch (JC101B)

Ports

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 extended module slots

1 open module slot

4 SFP fixed Gigabit Ethernet SFP ports

1 RJ-45 serial console port

Power supplies

2 power supply slots
1 minimum power supplies required (ordered separately)

Physical characteristics

Dimensions

17.32(w) x 18.31(d) x 3.39(h) in (44.0 x 46.5 x 8.61 cm) (2U height)

Weight

39.7 lb (18.0 kg)

Memory and processor

2048 MB SDRAM; Packet buffer size: 8 MB, 512 MB flash

Performance

Latency

4.02 µs (Store and Forward) (64-byte packets)

Throughput

up to 211 Mpps

Routing/Switching capacity

284 Gbps

Routing table size

16000 entries

MAC address table size

32000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

10% to 90%

Acoustic

Low-speed fan: 54 dB, High-speed fan: 58.5 dB

Electrical characteristics

Maximum heat dissipation

6278 BTU/hr (6623.29 kJ/hr)

Voltage

100 - 120 / 200 - 240 VAC, rated

DC Voltage

300 W DC: -48 VDC to -60 VDC; 750 W DC: -54 VDC to -57 VDC

Frequency

50/60 Hz

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

Immunity

Generic

ETSI EN 300 386 V1.3.3

EN

EN 55024:1998+ A1:2001 + A2:2003

ESD

EN 61000-4-2; IEC 61000-4-2

Radiated

EN 61000-4-3; IEC 61000-4-3

EFT/Burst

EN 61000-4-4; IEC 61000-4-4

Surge

EN 61000-4-5; IEC 61000-4-5

Conducted

EN 61000-4-6; IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8; EN 61000-4-8

Voltage dips and interruptions

EN 61000-4-11; IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; HTTPS; RMON1; FTP

Notes

Customer must order power supply, as the device does not come with a PSU. At least one JC087A/JC090A/JC089A is required.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE FlexFabric 5800AF 48G Switch (JG225B)

Ports

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

6 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

Power supplies

2 power supply slots
1 minimum power supply required (ordered separately)

Fan tray

2 fan tray slots
The customer must order fan trays, as fan trays are not included with the switch. This system requires two same-direction airflow fan trays to function properly. The system should not be operated with only one fan tray for more than 24 hours. The system should not be operated without a fan tray more than two minutes. The system should not be operated outside of the temperature range of 32°F (0°C) to 113°F (45°C). Failure to comply with these operating requirements may void the product warranty.

Physical characteristics

Dimensions

17.32(w) x 25.98(d) x 1.72(h) in (43.99 x 65.99 x 4.37 cm) (1U height)

Weight

22.05 lb (10 kg), Fully loaded

Memory and processor

2048 MB flash; Packet buffer size: 8 MB, 512 MB SDRAM

Performance

Latency

< 5 µs (64-byte packets)

Throughput

up to 161 Mpps

Routing/Switching capacity

216 Gbps

Routing table size

16000 entries

MAC address table size

32000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

10% to 90%

Acoustic

Low-speed fan: 60.1 dB, High-speed fan: 69.9 dB

Electrical characteristics

Maximum heat dissipation
