HPE FlexFabric 12500 Switch Series

Overview

HPE FlexFabric 12500 Switch Series

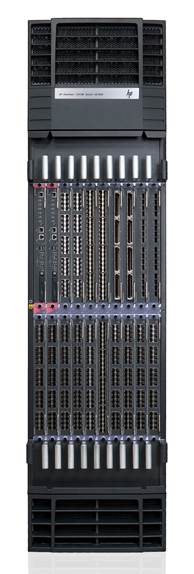

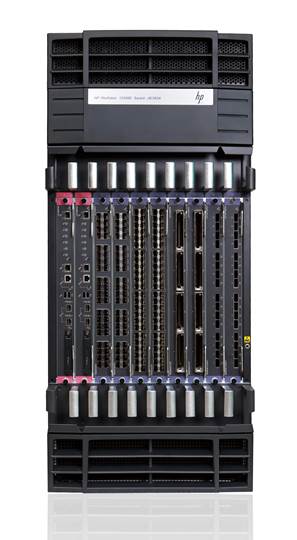

HPE FlexFabric 12508E Switch	HPE FlexFabric 12518E Switch

Models
HPE 12504 AC Switch Chassis		JC654A
HPE 12504 DC Switch Chassis		JC655A
HP 12508 AC Switch Chassis		JF431C
HP 12508 DC Switch Chassis		JC652A
HP 12518 AC Switch Chassis		JF430C
HP 12518 DC Switch Chassis		JC653A
HPE FlexFabric 12508E AC Switch Chassis		JG782A
HPE FlexFabric 12508E DC Switch Chassis		JG783A
HPE FlexFabric 12518E AC Switch Chassis		JG784A
HPE FlexFabric 12518E DC Switch Chassis		JG785A


Product overview
The HPE 12500 Switch Series is a family of powerful, next-generation routing switches with outstanding capacity and scale for the network core or data center. Designed for high performance with nonblocking and distributed Clos architecture, these switches deliver up to 24.3 Tbps switching capacity and 10.8 Bpps throughput with up to 400 Gbps per line card slot. The 12500 switches also have energy-efficiency features that drive down operational expenses and are ideal for organizations contemplating large-scale data center consolidations, business continuity and disaster recovery sites, metropolitan area network deployments, and other applications requiring a robust, reliable and highly available switching platform.

Key features

Optimized for cata centers with extensive virtualization and convergence featured
Broad interface options from 1G to 100G scaling up to 24.3 Tbps switching capacity
SDN ready with Open Flow 1.3 support
Large Layer 2 and Layer 3 tables to support large scale deployments
Fully redundant architecture with hot swappable components

Features and benefits

Data center optimized

Scalable Layer 2 fabrics
build flexible, resilient, and scalable Layer 2 fabrics with SPB and HPE IRF
Multitenant Device Context (MDC)
is an innovative data center virtualization solution that enables multi-tenancy, giving customers the ability to virtualize a physical switch into multiple logical devices, with each logical switch having its own tenants
HPE Ethernet Virtual Interconnect (EVI)
is an HPE Virtual Application Network innovation that provides a Layer 2 extension across the data center to simplify the interconnectivity of geographically disperse data centers
NEW Data Center Bridging (DCB) protocols
provide support for IEEE 802.1Qaz Data Center Bridging Exchange (DCBX), Enhanced Transmission Selection (ETS), and IEEE 802.1Qbb Priority Flow Control (PFC) for converged fabrics
NEW Fibre Channel over Ethernet (FCoE) features
deliver support for FCoE, including expansion, fabric, trunk VF and N ports, and aggregation of E-port and N-port virtualization
Accelerated perfomance with jumbo frames
for intra-data-center communication, or for data center to data center traffic (disaster recovery), reducing the amount of time required for data backup and recovery
Network load balancing (NLB) multicast ARP
Microsoft® NLB co-works with multicast ARP to provide servers with load balancing and fault switchover, which lowers costs and investment

Software-defined networking

NEW Supports OpenFlow 1.3 specifications
to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths

Performance

NEW High performance design with nonblocking and distributed Clos architecture
delivers up to 24.3 Tbps switching capacity and 10.8 Bpps throughput with up to 400 Gbps per line card slot
NEW High-density 1GbE,10GbE and 40GbE interface connectivity
offers up to 18 interface module slots to scale up to 864 1GbE and 1/10GbE and 288 40GbE ports
Hardware-based wirespeed access control lists (ACLs)
help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation
High-performance processor system
the supervisor module uses three different processors to isolate key tasks: control plane (STP, OSPF, BGP, MPLS, etc.), fast recovery protocols (RRPP, BFD, etc.), and chassis management (temperature, power, etc.)

Product architecture

Distributed architecture with separation of data and control planes
delivers enhanced fault tolerance and facilitates continuous operation and zero service disruption during planned or unplanned control-plane events
Advanced Comware modular operating system
brings modularity, enhanced serviceability, stability and independent process monitoring through modern Comware v7 Operating System
In-Service Software Upgrade (ISSU)
provides an upgrade of the entire chassis, or an individual task or process, with zero packet loss

Resiliency and high availability

Intelligent Resilient Fabric (IRF)
creates virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate the need for complex protocols like Spanning Tree Protocol, Equal-Cost Multipath (ECMP), or VRRP, thereby simplifying network operation
Ultrafast protocol convergence
enables link connectivity monitoring and reduces network convergence time for RIP, OSPF, BGP, IS-IS, VRRP, MPLS, and IRF
Device Link Detection Protocol (DLDP)
monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks
Complete set of routing protocols (Layer 3 IPv4 and IPv6)
support virtually all existing routing protocols (RIP, OSPF, IS-IS, and BGP) for both Layer 3 IPv4 and Layer 3 IPv6; complete support of PIM-DM, PIM-SM, PIM-SSM, and MSDP
Hot patching
the 12500 switch series supports hot patching, allowing in-service patching for some isolated software problems
Non Stop Forwarding/Graceful Restart (NSF/GR)
using standardized-based IETF protocols, the 12500 switch series provides nonstop forwarding (switching/routing) for Layer 3 routing protocols (control plane - OSPF, BGP, and MPLS), providing hitless failover
Fully redundant and hot swappable components
providing full hardware redundancy for each component including power supplies, fan trays, supervisor modules and fabric modules to enable the highest level of availability
Rapid Ring Protection Protocol (RRPP)
provides fast recovery for ring Ethernet-based topology

Quality of Service (QoS)

Virtual Output Queue (VOQ)
prevents head-of-line (HOL) blocking per port at peak time and distributes it over a period of time, increasing switch performance
IEEE 802.1p prioritization
delivers data to devices based on the priority and type of traffic
Layer 4 prioritization
enables prioritization based on TCP/UDP port numbers
Broadcast control
allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Advanced classifier-based QoS
classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Bandwidth shaping

- Port-based rate limiting
provides per-port ingress-/egress-enforced maximum bandwidth

- Classifier-based rate limiting
uses access control lists (ACLs) to enforce maximum bandwidth for ingress/egress traffic on each port

Compartmentalization

Department protection
using network virtualization standards (QinQ, VRF, and MPLS), the 12500 switch series allows organizations to isolate different business units with different resources (VRFs); using standard-based mechanisms, the network is completely virtualized, reducing cost and operations
IEEE 802.1ah Provider Backbone Bridge (MAC in MAC)
Provider Backbone Bridge (PBB) is a Layer 2 VPN technology that allows a complete separation of customer and provider domains by sealing the user MAC in the service provider MAC, which enhances the scalability of an Ethernet network

Layer 2 switching

Multiple VLAN Registration Protocol (MVRP)
helps to maintain VLAN configuration dynamically based on current network configurations
GARP VLAN Registration Protocol
allows automatic learning and dynamic assignment of VLANs
IP multicast snooping and data-driven IGMP
automatically prevents flooding of IP multicast traffic
IEEE 802.1ad QinQ
increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network
Bridge Protocol Data Unit (BPDU) tunneling
transmits Spanning Tree Protocol BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs
VLAN support and tagging
supports IEEE 802.1Q (4K VLAN IDs)
Spanning Tree
the 12500 switch series supports the entire set of STP protocols (STP, RSTP, and MSTP), facilitating a complete integration with standard networks

Layer 3 routing

Layer 3 IPv4 routing
provides routing of IPv4 at media speed; supports static routes, RIP and RIPv2, OSPF, IS-IS, and BGP
RIP and RIPng support
provides complete support of RIP for both IPv4 and IPv6
OSPF and OSPFv3 support
provides complete support of OSPF for both IPv4 and IPv6
IS-IS and IS-ISv6 support
provides complete support of IS-IS for both IPv4 and IPv6
Equal-Cost Multipath (ECMP)
enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth
Layer 3 IPv6 routing
provides routing of IPv6 at media speed; supports static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+
IPv6 tunneling
allows a smooth transition from IPv4 to IPv6 by encapsulating IPv6 traffic over an existing IPv4 infrastructure
Complete multicast protocol stack
PIM-DM, PIM-SM, PIM-SSM, MSDP, and extensions to BGP provide one of the most complete multicast protocol stacks
Policy routing
allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate policies
MPLS support
provides extended support of MPLS, including MPLS VPNs and MPLS Traffic Engineering (MPLS TE)
VPLS support
provides extended support of VPLS for data center to data center communication at Layer 2; provides support of hierarchical VPLS for scalability

Management

sFlow
provides scalable, ASIC-based network monitoring and accounting; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
IEEE 802.1ab LLDP discovery
advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
USB support

- File copy
allows users to copy switch files to and from a USB flash drive

Multiple configuration files
can be stored to the flash image
Command-line interface (CLI)
provides a secure, easy-to-use CLI for configuring the module via SSH or a switch console; provides direct real-time session visibility
Logging
provides local and remote logging of events via SNMP (v2c and v3) and syslog; provides log throttling and log filtering to reduce the number of log events generated
Management interface control
enables or disables each of the following interfaces depending on security preferences: console port, Telnet port, and SSH port
Out-of-band interface
isolates management traffic from user data plane traffic for complete isolation and total reachability, no matter what happens in the data plane
Network management
HPE Intelligent Management Center (IMC) centrally configures, updates, monitors, and troubleshoots
Network management
SNMP v2c/v3 MIB-II with traps
RADIUS accounting
logs all session details that can be used to generate usage reports or interface to a billing system
RMON
provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events
Remote Intelligent Mirroring
mirrors ingress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network

Connectivity

IPv6 native support:

- IPv6 host
enables switches to be managed and deployed at the IPv6 network's edge

- Dual stack (IPv4 and IPv6)
transitions from IPv4 to IPv6, supporting connectivity for both protocols

- Multicast Listener Discovery (MLD) snooping
forwards IPv6 multicast traffic to the appropriate interface

- IPv6 ACL/QoS
supports ACL and QoS for IPv6 network traffic, preventing traffic flooding

- IPv6 routing
supports IPv6 static routes and IPv6 versions of RIP and OSPF routing protocols

Security

Control Plane Policing (CoPP)
provides protection against DoS attacks at infrastructure routers and switches and ease of configuration for control plane policies
IEEE 802.1X and RADIUS network logins
control port-based access for authentication and accountability
Secure FTP
allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file
Switch management logon security
can require either RADIUS or TACACS+ authentication for secure switch CLI logon
DHCP protection
blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
Dynamic ARP protection
blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
Secure Shell (SSHv2)
encrypts all transmitted data for secure, remote CLI access over IP networks
Secure management access
securely encrypts all access methods (CLI, GUI, or MIB) through SSHv2 and SNMPv3
Access control lists (ACLs)
provide IPv4 and IPv6 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number
Media access control (MAC) authentication
provides simple authentication based on a user's MAC address; supports local or RADIUS-based authentication

Convergence

Layer 2, 3, and 4 QoS mechanisms
support DiffServ priority tagging based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, and source port
IP multicast snooping and data-driven IGMP
automatically prevent flooding of IP multicast traffic
LLDP-MED
is a standard extension that automatically configures network devices, including LLDP-capable IP phones
Internet Group Management Protocol (IGMP)
is used by IP hosts to establish and maintain multicast groups; supports IGMPv1, v2, and v3; utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks
Protocol Independent Multicast (PIM)
defines modes of Internet IPv4 and IPv6 multicasting to allow one-to-many and many-to-many transmission of information; supports PIM Dense Mode (DM), Sparse Mode (SM), and Source-Specific Multicast(SSM)
Multicast Source Discovery Protocol (MSDP)
is used for inter-domain multicast applications, allowing multiple PIM-SM domains to interoperate
Multicast VLAN
allows multiple VLANs to receive the same IPv4 or IPv6 multicast traffic, lessening network bandwidth demand by reducing or eliminating multiple streams to each VLAN

Monitor and diagnostics

Port mirroring
enables traffic on a port to be simultaneously sent to a network
analyzer for monitoring
Connectivity fault detection (IEEE 802.1ag)
connectivity fault detection (CFD) provides a Layer 2 link Operations, Administration, and Maintenance (OAM) mechanism used for link connectivity detection and fault locating

Investment protection

Modular switch fabric
provides investment protection by enabling future performance upgrades and increased port density
Environmentally friendly
RoHS support and low power consumption based on the latest technology provide outstanding power efficiency

Warranty and support

1-year warranty
see http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Software releases
to find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Configuration

Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HPE 12504 AC Switch Chassis		JC654A
2 - MPUx (Management Ports) 4 - I/O module slots 4 - Fabric module slots Must select min 1 Management Module Must select min 3 Power Supply Must select Min 1 Fans Must select Min 4 Fabric Modules 10U - Height Rack

HPE FlexFabric 12508E AC Switch Chassis		JG782A
2 - MPUx (Management Ports) 8- I/O module slots 9 - Fabric module slots Must select min 1 Management Module Must select min 3 Power Supply PEM included Must select Min 2 Fans Must select Min 8 Fabric Modules 22U - Height Rack		See Configuration NOTE:1

PDU Cable NA/MEX/TW/JP		JG782A#B2B
C19 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW		JG782A#B2C
C19 PDU Jumper Cord (ROW)

High Volt Power Entry Module to Wall Power Cord		JG782A#B2E
NEMA L6-20P Cord (NA/MEX/JP/TW)

No Power Cord		JG782A#AC3
No Localized Power Cord Selected

HPE FlexFabric 12518E AC Switch Chassis		JG784A
2 - MPUx (Management Ports) 18 - I/O module slots 9 - Fabric module slots Must select min 1 Management Module Must select min 6 Power Supply PEM included Must select min 2 Fans Must select Min 8 Fabric Modules 38U - Height Rack		See Configuration NOTE:1

PDU Cable NA/MEX/TW/JP		JG784A#B2B
C19 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW		JG784A#B2C
C19 PDU Jumper Cord (ROW)

High Volt Power Entry Module to Wall Power Cord		JG784A#B2E
NEMA L6-20P Cord (NA/MEX/JP/TW)

No Power Cord		JG784A#AC3
No Localized Power Cord Selected

Configuration Rules:

Note 1	Localization required on orders without #B2B, #B2C or #B2E options.

Box Level Integration CTO Models

CTO Solution Sku

HPE 125xx Configure-to-order Switch Solution		JG477A
SSP trigger SKU

CTO Switch Chassis

HPE 12504 AC Switch Chassis		JC654A
2 - MPUx (Management Ports) 4 - I/O module slots 4 - Fabric module slots Must select min 1 Management Module Must select min 3 Power Supply Must select Min 1 Fans Must select Min 4 Fabric Modules 10U - Height Rack		See Configuration NOTE:1, 2

Configuration Rules:

Note 1	If this Switch is selected at least one of these Power Supplies is required: (Use #0D1 if switch is CTO) JF429A - HPE 12500 2000W AC Power Supply

Note 2	If the Switch Chassis is to be Box Level Factory Integrated (CTO)), Then the #0D1 is required on the Switch Chassis and integrated to the JG477A - HP 125xx CTO Switch Solution (Min 1/Max 1 Switch per SSP)


Rack Level Integration CTO Models

HPE 12504 AC Switch Chassis		JC654A
2 - MPUx (Management Ports) 4 - I/O module slots 4 - Fabric module slots Must select min 1 Management Module Must select min 3 Power Supply Must select Min 1 Fans Must select Min 4 Fabric Modules 10U - Height Rack		See Configuration NOTE:1, 2, 3

HPE FlexFabric 12508E AC Switch Chassis		JG782A
2 - MPUx (Management Ports) 8- I/O module slots 9 - Fabric module slots Must select min 1 Management Module Must select min 3 Power Supply PEM included Must select Min 2 Fans Must select Min 8 Fabric Modules 22U - Height Rack		See Configuration NOTE:1, 3, 5

PDU Cable NA/MEX/TW/JP		JG782A#B2B
C19 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW		JG782A#B2C
C19 PDU Jumper Cord (ROW)

No Power Cord		JG782A#AC3
No Localized Power Cord Selected

HPE FlexFabric 12518E AC Switch Chassis		JG784A
2 - MPUx (Management Ports) 18 - I/O module slots 9 - Fabric module slots Must select min 1 Management Module Must select min 6 Power Supply PEM included Must select min 2 Fans Must select Min 8 Fabric Modules 38U - Height Rack		See Configuration NOTE:1, 3, 5

PDU Cable NA/MEX/TW/JP		JG784A#B2B
C19 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW		JG784A#B2C
C19 PDU Jumper Cord (ROW)

No Power Cord		JG784A#AC3
No Localized Power Cord Selected

Configuration Rules:

Note 1	If this Switch is selected at least one of these Power Supply is required: (Use #0D1 if switch is CTO) JF429A - HPE 12500 2000W AC Power Supply

Note 2	When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Power Electrical Module. (See Drop down remark in the "Internal Power Supplies" section.)

Note 3	If HPE CTO Switch Chassis is selected to be Rack Level Integration, Then the CTO Switch Chassis needs to integrate (with #0D1) to the P9K48A HPE Universal Rack Only. (Default to the P9K48A)

Note 5	Localization required on orders without #B2B or #B2C options.

Enter the following menu selections as integrated to the CTO Model X above if order is factory built.

Modules

Management Modules

System (std 0 // max 2) User Selection (min 1 // max 2) per Switch

HPE FlexFabric 12500E Main Processing Unit		JG802A
No supported Transceivers		See Configuration NOTE:1, 3, 4

Configuration Rules:

Note 1	Management Modules cannot be mixed, They must all be the same SKU.

Note 3	Supported on JC654A Switch Chassis only.

Note 4	Supported on JG782A and JG784A Switch Chassis only.

Fabric Modules

12504 - System (std 0 // max 4) User Selection (min 4 // max 4) per Switch

12508 and 12518 System (std 0 // max 9) User Selection (min 8 // max 9) per Switch

HPE 1250x G2 Fabric Module		JC658A
		See Configuration NOTE: 3, 4

HPE FlexFabric 12508E Fabric Module		JG798A
		See Configuration NOTE:4, 6

HPE FlexFabric 12518E Fabric Module		JG800A
		See Configuration NOTE:4, 7

Configuration Rules:

Note 3	Supported on Switch JC654A Switch Chassis only.

Note 4	Fabric Modules cannot be mixed, They must all be the same SKU

Note 6	Supported on Switch JG782A Switch Chassis only.

Note 7	Supported on Switch JG784A Switch Chassis only.

I/O Modules

12504 - System (std 0 // max 4) User Selection (min 0 // max 4)

12508 - System (std 0 // max 8) User Selection (min 0 // max 8)

12518 - System (std 0 // max 18) User Selection (min 0 // max 18)

HPE FlexFabric 12500 16-port 40GbE QSFP+ FD Module		JG790A
Min 0 // Max 16 QSFP+ Transceivers		See Configuration NOTE:2, 6, 10, 11

HPE FlexFabric 12500 48-port 1/10GbE SFP+ FD Module		JG796A
Min 0 // Max 48 SFP+ Transceivers		See Configuration NOTE:3, 4, 6, 10, 11

HPE FlexFabric 12500 40-port 1/10GbE SFP+ FD Module		JG792A
Min 0 // Max 40 SFP+ Transceivers		See Configuration NOTE:3, 4, 6, 10, 11

HPE FlexFabric 12500 40-port 1/10GbE SFP+ FG Module		JG794A
Min 0 // Max 40 SFP+ Transceivers		See Configuration NOTE:3, 4, 6, 10, 11

HPE FlexFabric 12500 4-port 100GbE CFP FD Module		JG786A
Min 0 // Max 4 CFP Transceivers		See Configuration NOTE: 6, 10, 11, 12

HPE FlexFabric 12500 4-port 100GbE CFP FG Module		JG788A
Min 0 // Max 4 CFP Transceivers		See Configuration NOTE: 6, 10, 11, 12

Configuration Rules:

Note 2	The following 40G Transceivers install into this Module:
	HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver	JG661A
	HPE X140 40G QSFP+ MPO SR4 Transceiver	JG325B
	HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver	JG709A

Note 3	The following Transceivers install into this Module:
	HPE X170 1G SFP LC LH70 1550 Transceiver	JD109A
	HPE X170 1G SFP LC LH70 1570 Transceiver	JD110A
	HPE X170 1G SFP LC LH70 1590 Transceiver	JD111A
	HPE X170 1G SFP LC LH70 1610 Transceiver	JD112A
	HPE X170 1G SFP LC LH70 1510 Transceiver	JD115A
	HPE X120 1G SFP LC LH100 Transceiver	JD103A
	HPE X125 1G SFP LC LH40 1310nm Transceiver	JD061A
	HPE X120 1G SFP LC LH40 1550nm Transceiver	JD062A
	HPE X120 1G SFP RJ45 T Transceiver	JD089B
	HPE X120 1G SFP LC SX Transceiver	JD118B
	HPE X120 1G SFP LC LX Transceiver	JD119B
	HPE X120 1G SFP LC BX 10-U Transceiver	JD098B
	HPE X120 1G SFP LC BX 10-D Transceiver	JD099B

Note 4	The following Transceivers install into this Module: (Use #0D1 or #B01 if switch is CTO) - if applicable
	HPE X130 10G SFP+ LC SR Transceiver	JD092B
	HPE X130 10G SFP+ LC LRM Transceiver	JD093B
	HPE X130 10G SFP+ LC LR Transceiver	JD094B
	HPE X130 10G SFP+ LC SR Data Center Transceiver	JL437A
	HPE X130 10G SFP+ LC LRM Data Center Transceiver	JL438A
	HPE X130 10G SFP+ LC LR Data Center Transceiver	JL439A
	HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	JD097C
	HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable	JG081C
	HPE X130 10G SFP+ LC ER 40km Transceiver	JG234A
	HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable	JC784C

Note 6	If this Module is selected then ONLY the following Fabric Modules must be selected as well:
	HP 12518 G2 Fabric Module	JC657A
	HPE 1250x G2 Fabric Module	JC658A
	HPE FlexFabric 12508E Fabric Module	JG798A
	HPE FlexFabric 12518E Fabric Module	JG800A

Note 10	Supported on JF431C, JC652A, JF430C, JC653A, JC654A, JC655A, JG782A, JG783A, JG784A and JG785A Switch Chassis only.

Note 11	These modules require JG800A, JG798A, JC658A, JC657A, JC815A, JC816A, JG497A or JG802A MPU.

Note 12	The following Transceivers install into this Module:
	HPE X150 100G CFP LC LR4 10km SM Transceiver	JG829A

Remarks	JC064B and JC476B - Do not install the card in any of the following slots: slot 16, 17, 18, or 19 of the S12518.

Transceivers

SFP Transceivers

HPE X120 1G SFP LC LH100 Transceiver		JD103A
HPE X125 1G SFP LC LH40 1310nm Transceiver		JD061A
HPE X120 1G SFP LC LH40 1550nm Transceiver		JD062A
HPE X125 1G SFP LC LH70 Transceiver		JD063B
HPE X120 1G SFP RJ45 T Transceiver		JD089B
HPE X120 1G SFP LC SX Transceiver		JD118B
HPE X120 1G SFP LC LX Transceiver		JD119B
HPE X120 1G SFP LC BX 10-U Transceiver		JD098B
HPE X120 1G SFP LC BX 10-D Transceiver		JD099B

SFP+ Transceivers

HPE X130 10G SFP+ LC SR Transceiver		JD092B
HPE X130 10G SFP+ LC LRM Transceiver		JD093B
HPE X130 10G SFP+ LC LR Transceiver		JD094B
HPE X130 10G SFP+ LC SR Data Center Transceiver		JL437A
HPE X130 10G SFP+ LC LRM Data Center Transceiver		JL438A
HPE X130 10G SFP+ LC LR Data Center Transceiver		JL439A
HPE X130 10G SFP+ LC ER 40km Transceiver		JG234A
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable		JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable		JG081C
HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable		JC784C

QSFP+ Transceivers

HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver		JG661A
HPE X140 40G QSFP+ MPO SR4 Transceiver		JG325B
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver		JG709A

XFP Transceivers

HPE X135 10G XFP LC ER Transceiver		JD121A
HPE X130 10G XFP LC ZR Single Mode 80km 1550nm Transceiver		JD107A
HPE X130 10G XFP LC SR Transceiver		JD117B
HPE X130 10G XFP LC LR Single Mode 10km 1310nm Transceiver		JD108B

Internal Power Supplies

12508 and 12504 - System (std 0 // max 6) User Selection (min 3 // max 6)

12508E - System (std 0 // max 8) User Selection (min 3 // max 8)

12518 - System (std 0 // max 12) User Selection (min 6 // max 12)

HPE 12500 2000W AC Power Supply		JF429A
		See Configuration NOTE:1

Configuration Rules:

Note 1	Supported on Switches JC654A, JG782A and JG784A only.


Remarks:	12504 only - Default 6 power supplies and allow the user to change down to 3. 12508E only - Default 6 power supplies and allow the user to change down to 3. 12518E only - Default 12 power supplies and allow the user to change down to 6.

	The power module support load balancing and N+1/N+M redundancy. Deploying N+1 power redundancy The total number of power modules (JF431C, JF430C) = Ceiling (total power load of the chassis/2000) + 1 For example, if the total load of the chassis is 3000 W, the number of power modules must be 2 + 1 = 3. Deploying 1:1 power redundancy JF431C-Requires 6 power modules. JF430C-Total number of power modules = [Ceiling (total power load of the chassis/2000) ] x 2 For example, if the total power load of the chassis is 7000 W, the total number of power modules must be (4 + 1) x 2 = 10.

	Localization is not required on these internal AC power supplies. Localization is covered on the chassis for the 125x8E AC models (JG782A, JG784A), or on the PEMs listed below for the AC 125xx models (JC654A).


Server Specific Options

Multi-Mode Cables

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable		QK732A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable		QK733A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable		QK734A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable		QK735A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable		QK736A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable		QK737A

Cable Guides

System (std 0 // max 1) User Selection (min 0 // max 1) Per Switch

HP 12500 Side Cable Management Guide		JC084A

HPE FlexFabric 12508E Optional Extended Cable Guide for AC Powered Switch		JG830A
		See Configuration NOTE:5

HPE FlexFabric 12518E Optional Extended Cable Guide for AC Powered Switch		JG831A
		See Configuration NOTE:6

Configuration Rules:

Note 5	Supported on Switch JG782A - HPE FlexFabric 12508E AC Switch Chassis only.

Note 6	Supported on Switch JG784A - HPE FlexFabric 12518E AC Switch Chassis only.

Remarks:	These items are optional .and used by customers for I/O cabling management.

Fan Assemblies

12504 Only - System (std 0 // max 1) User Selection (min 1 // max 1) Per Switch

12508 and 12518 Only - System (std 0 // max 2) User Selection (min 2 // max 2) Per Switch

HPE 12504 Fan Assembly		JC664A
		See Configuration NOTE:3

HPE FlexFabric 12500E Fan Tray Assembly		JG805A
		See Configuration NOTE:4

Configuration Rules:

Note 3	Supported on Switch JC654A Switch Chassis only.

Note 4	Supported on JG782A and JG784A Switch Chassis only.

Air Filter Assemblies

System (std 0 // max 1) User Selection (min 0 // max 1)

HPE FlexFabric 12508E Optional Air Filter		JG808A
		See Configuration NOTE:3

HPE FlexFabric 12518E Optional Air Filter		JG809A
		See Configuration NOTE:4

Configuration Rules:

Note 3	Supported on Switch JG782A Switch Chassis only.

Note 4	Supported on Switch JC653A and JG784A Switch Chassis only.

Power Monitor Module

12508E and 12518E only-System (std 0 // max 1) User Selection (min 0 // max 1) Per Switch

HPE FlexFabric 12500E Spare Power Monitor Module		JG804A
		See Configuration NOTE:2

Configuration Rules:

Note 2	This item is only used to replace the Power Monitor Module of an JG782A, JG784A. A host is delivered with the Power Monitor Module.

Mounting Kit

HPE X421 Chassis Universal 4-post Rackmount Kit		JC665A

Remarks:	This item is optional and used by customers to allow the chassis to slide in and out of the rack

Technical Specifications

HPE 12504 AC Switch Chassis (JC654A)
I/O ports and slots	4 open module slots
	Supports a maximum of 192 Gigabit Ethernet ports or 192 1/10GbE ports or 64 40GbE ports, or a combination
Additional ports and slots	2 MPU (for management modules) slots
Additional ports and slots	4 switch fabric slots
Physical characteristics	Dimensions	17.4(w) x 27.87(d) x 17.4(h) in (44.2 x 70.8 x 44.2 cm) (10U height)
	Weight	132.28 lb (60 kg)
	Full configuration weight	220.46 lb (100 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM
Mounting and enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	1920 Mpps
Performance	Routing/Switching capacity	3240 Gb/s
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Frequency	50/60 Hz
	Maximum heat dissipation	8123 BTU/hr (8569.77 kJ/hr)
	Voltage	100 - 120 / 200 - 240 VAC, rated (depending on power supply chosen)
	Maximum power rating	2380 W
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE 12504 DC Switch Chassis (JC655A)
I/O ports and slots	4 open module slots Supports a maximum of 192 Gigabit Ethernet ports or 192 1/10GbE ports or 64 40GbE ports, or a combination
Additional ports and slots	2 MPU (for management modules) slots 4 switch fabric slots
Physical characteristics	Dimensions	17.4(w) x 27.87(d) x 17.4(h) in (44.2 x 70.8 x 44.2 cm) (10U height)
	Weight	132.28 lb (60 kg)
	Full configuration weight	220.46 lb (100 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM
Mounting and enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	up to 1920 Mpps
Performance	Routing/Switching capacity	3240 Gbps
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Maximum heat dissipation	8123 BTU/hr (8569.77 kJ/hr)
	Voltage	-48 to -60 VDC, rated (depending on power supply chosen)
	Maximum power rating	2380 W
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP 12508 AC Switch Chassis (JF431C)
I/O ports and slots	8 open module slots Supports a maximum of 384 Gigabit Ethernet ports or 384 1/10GbE ports or 128 40GbE ports, or a combination
Additional ports and slots	2 MPU (for management modules) slots 9 switch fabric slots
Physical characteristics	Dimensions	17.4(d) x 29.13(w) x 38.39(h) in. (44.2 x 73.99 x 97.51 cm) (22U height)
	Weight	209.44 lb (95 kg)
	Full configuration weight	374.78 lb. (170 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM
Mounting and enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	up to 3840 Mpps
Performance	Routing/Switching capacity	6120 Gbps
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Frequency	50/60 Hz
	Achieved Miercom Certified Green Award*
	* Products within this series have achieved sufficient scores in each of the rated criteria to achieve the Miercom Certified Green distinction Award. See the Specifications section of this series for more information.
	Description	10GbE modules consume half the power compared to competitive products; redundant, scalable, 90% efficient power supplies deliver high reliability in the data center; new ASIC technology has low power consumption when providing rich features.
	Maximum heat dissipation	14587 BTU/hr (15389.29 kJ/hr)
	Voltage	100 - 120 / 200 - 240 VAC, rated (depending on power supply chosen)
	Maximum power rating	4750 W
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP 12508 DC Switch Chassis (JC652A)
I/O ports and slots	8 open module slots Supports a maximum of 384 Gigabit Ethernet ports or 384 1/10GbE ports or 128 40GbE ports, or a combination
Additional ports and slots	2 MPU (for management modules) slots 9 switch fabric slots
Physical characteristics	Dimensions	17.4(d) x 29.13(w) x 38.39(h) in. (44.2 x 73.99 x 97.51 cm) (22U height)
	Weight	209.44 lb (95 kg)
	Full configuration weight	374.78 lb. (170 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM MB
Mounting	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	up to 3840 Mpps
Performance	Routing/Switching capacity	6120 Gbps
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Maximum heat dissipation	14587 BTU/hr (15389.29 kJ/hr)
	Voltage	-48 to -60 VDC, rated (depending on power supply chosen)
	Maximum power rating	4750 W
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP 12518 AC Switch Chassis (JF430C)
I/O ports and slots	18 open module slots Supports a maximum of 864 Gigabit Ethernet ports or 864 1/10GbE ports or 288 40GbE ports, or a combination
Additional ports and slots	2 MPU (for management modules) slots 9 switch fabric slots
Physical characteristics	Dimensions	17.4(d) x 29.13(w) x 66.38(h) in. (44.2 x 73.99 x 168.61 cm) (38U height)
	Weight	352.74 lb (160 kg)
	Full configuration weight	639.33 lb (290 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM
Mounting and enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	up to 8640 Mpps
Performance	Routing/Switching capacity	13.3 Tbps
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Frequency	50/60 Hz
	Maximum heat dissipation	32859 BTU/hr (34666.24 kJ/hr)
	Voltage	100 - 120 / 200 - 240 VAC, rated (depending on power supply chosen)
	Maximum power rating	10700 W
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP 12518 DC Switch Chassis (JC653A)
I/O ports and slots	18 open module slots Supports a maximum of 864 Gigabit Ethernet ports or 864 1/10GbE ports or 288 40GbE ports, or a combination
Additional ports and slots	2 MPU (for management modules) slots 9 switch fabric slots
Physical characteristics	Dimensions	17.4(d) x 29.13(w) x 66.38(h) in. (44.2 x 73.99 x 168.61 cm) (38U height)
	Weight	352.74 lb (160 kg)
	Full configuration weight	639.33 lb (290 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM
Mounting and enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	up to 8640 Mpps
Performance	Routing/Switching capacity	13.3 Tbps
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Maximum heat dissipation	32859 BTU/hr (34666.24 kJ/hr)
	Maximum power rating	10700 W
	Voltage	-48 to -60 VDC, rated (depending on power supply chosen)
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE FlexFabric 12508E AC Switch Chassis (JG782A)
I/O ports and slots	8 open module slots Supports a maximum of 384 Gigabit Ethernet ports or 384 1/10GbE ports or 128 40GbE ports
Additional ports and slots	2 MPU (for management modules) slots 9 switch fabric slots
Physical characteristics	Dimensions	17.4(w) x 29.13(d) x 38.39(h) in (44.2 x 74.0 x 97.51 cm) (22U height)
	Weight	242.51 lb (110 kg)
	Full configuration weight	374.78 lb (170 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM
Mounting and enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	up to 4800 Mpps
Performance	Routing/Switching capacity	10.8 Tbps
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Frequency	50/60 Hz Achieved Miercom Certified Green Award
	Description	10GbE modules consume half the power compared to competitive products; redundant, scalable, 90% efficient power supplies deliver high reliability in the data center; new ASIC technology has low power consumption when providing rich features.
	Maximum heat dissipation	14587 BTU/hr (15389.29 kJ/hr)
	Voltage	100 - 120 / 200 - 240 VAC, rated (depending on power supply chosen)
	Maximum power rating	4750 W
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE FlexFabric 12508E DC Switch Chassis (JG783A)
I/O ports and slots	8 open module slots Supports a maximum of 384 Gigabit Ethernet ports or 384 1/10GbE ports or 128 40GbE ports
Additional ports and slots	2 MPU (for management modules) slots 9 switch fabric slots
Physical characteristics	Dimensions	17.4(w) x 29.13(d) x 38.39(h) in (44.2 x 73.99 x 97.51 cm) (22U height)
	Weight	209.44 lb (95 kg)
	Full configuration weight	374.78 lb (170 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM
Mounting and enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	up to 4800 Mpps
Performance	Routing/Switching capacity	10.8 Tbps
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Maximum heat dissipation	14587 BTU/hr (15389.29 kJ/hr)
	Maximum power rating	4750 W
	Voltage	-48 to -60 VDC, rated (depending on power supply chosen)
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE FlexFabric 12518E AC Switch Chassis (JG784A)
I/O ports and slots	18 open module slots Supports a maximum of 864 Gigabit Ethernet ports or 864 1/10GbE ports or 288 40GbE ports, or a combination
Additional ports and slots	2 MPU (for management modules) slots 9 switch fabric slots
Physical characteristics	Dimensions	17.4(w) x 29.13(d) x 66.38(h) in (44.2 x 73.99 x 168.61 cm) (38U height)
	Weight	352.74 lb (160 kg)
	Full configuration weight	639.33 lb (290 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM
Mounting and enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	up to 10.8 Bpps
Performance	Routing/Switching capacity	24.3 Tbps
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Frequency	50/60 Hz
	Maximum heat dissipation	32859 BTU/hr (34666.24 kJ/hr)
	Voltage	100 - 120 / 200 - 240 VAC, rated (depending on power supply chosen)
	Maximum power rating	10700 W
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE FlexFabric 12518E DC Switch Chassis (JG785A)
I/O ports and slots	18 open module slots Supports a maximum of 864 Gigabit Ethernet ports or 864 1/10GbE ports or 288 40GbE ports, or a combination
Additional ports and slots	2 MPU (for management modules) slots 9 switch fabric slots
Physical characteristics	Dimensions	17.4(w) x 29.13(d) x 66.38(h) in (44.2 x 73.99 x 168.61 cm) (38U height)
	Weight	352.74 lb (160 kg)
	Full configuration weight	639.33 lb (290 kg)
Memory and processor	Gigabit Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports)
	10G Module	PowerPC @ 667 MHz, 1 GB RAM; Packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports)
	Management Module	Quad Core CPU @ 1800 MHz, 512 MB flash, 4 GB compact flash, 8 GB RAM
	Fabric	PowerPC @ 400 MHz, 128 MB RAM
Mounting and enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet
Performance	Throughput	up to 10.8 Bpps
Performance	Routing/Switching capacity	24.3 Tbps
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	5% to 95%, non-condensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, non-condensing
Electrical characteristics	Maximum heat dissipation	32859 BTU/hr (34666.24 kJ/hr)
	Maximum power rating	10700 W
	Voltage	-48 to -60 VDC, rated (depending on power supply chosen)
	Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance
Emissions	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunity	Generic	ETSI EN 300 386 V1.3.3
	EN	EN 55024:1998+ A1:2001 + A2:2003
	ESD	EN 61000-4-2; IEC61000-4-2
	Radiated	EN 61000-4-3; IEC61000-4-3
	EFT/Burst	EN 61000-4-4; IEC61000-4-4
	Surge	EN 61000-4-5; IEC61000-4-5
	Conducted	EN 61000-4-6; IEC61000-4-6
	Power frequency magnetic field	IEC 61000-4-8; EN61000-4-8
	Voltage dips and interruptions	EN 61000-4-11; IEC61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface
Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

Standards and protocols
(applies to all products in series)

BGP
RFC 1657 Definitions of Managed Objects for BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 2796 BGP Route Reflection
RFC 2842 Capability Advertisement with BGP-4
RFC 2858 BGP-4 Multi-Protocol Extensions
RFC 2918 Route Refresh Capability

Denial of service protection
RFC 2267 Network Ingress Filtering
Automatic Filtering of well known Denial of Service Packets
CPU DoS Protection
Rate Limiting by ACLs

Device management
RFC 1155 Structure and Mgmt Information (SMIv1)
RFC 1157 SNMPv1/v2c
RFC 1305 NTPv3
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0
RFC 2452 MIB for TCP6
RFC 2454 MIB for UDP6
RFC 2573 (SNMPv3 Applications)
RFC 2578-2580 SMIv2
RFC 2579 (SMIv2 Text Conventions)
RFC 2580 (SMIv2 Conformance)
RFC 2819 (RMON groups Alarm, Event, History and Statistics only)
RFC 2819 RMON
RFC 3417 (SNMP Transport Mappings)
SNMP v3 and RMON RFC support
SSHv1/SSHv2 Secure Shell
TACACS/TACACS+

General protocols
IEEE 802.1ad Q-in-Q
IEEE 802.1ag Service Layer OAM
IEEE 802.1ah Provider Backbone Bridges
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and Port
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.1X PAE
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation (LAG)
IEEE 802.3ae 10-Gigabit Ethernet
IEEE 802.3ah Ethernet in First Mile over Point to Point Fiber - EFMF
IEEE 802.3ba 40 and 100 Gigabit Ethernet Architecture
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-X
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 903 RARP
RFC 951 BOOTP
RFC 959 File Transfer Protocol (FTP)
RFC 1027 Proxy ARP
RFC 1042 IP Datagrams
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 1812 IPv4 Routing
RFC 2131 DHCP
RFC 2338 VRRP
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2865 Remote Authentication Dial In User Service (RADIUS)

IP multicast
RFC 1112 IGMP
RFC 2236 IGMPv2
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 2362 PIM Sparse Mode
RFC 2934 Protocol Independent Multicast MIB for IPv4
RFC 3376 IGMPv3
RFC 3618 Multicast Source Discovery Protocol (MSDP)
RFC 4601 PIM Sparse Mode

IPv6
RFC 1350 TFTP
RFC 1981 IPv6 Path MTU Discovery
RFC 2080 RIPng for IPv6
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address Auto-configuration
RFC 2463 ICMPv6
RFC 2473 Generic Packet Tunneling in IPv6
RFC 2475 IPv6 DiffServ Architecture
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 2740 OSPFv3 for IPv6
RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers
RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only)
RFC 3315 DHCPv6 (client only)
RFC 3484 Default Address Selection for IPv6
RFC 3513 IPv6 Addressing Architecture
RFC 3587 IPv6 Global Unicast Address Format
RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4541 IGMP & MLD Snooping Switch
RFC 4862 IPv6 Stateless Address Auto-configuration

MIBS
IEEE8023-LAG-MIB
RFC 1213 MIB II
RFC 1229 Interface MIB Extensions
RFC 1286 Bridge MIB
RFC 1493 Bridge MIB
RFC 1573 SNMP MIB II
RFC 1643 Ethernet MIB
RFC 1657 BGP-4 MIB
RFC 1724 RIPv2 MIB
RFC 1757 Remote Network Monitoring MIB
RFC 1850 OSPFv2 MIB
RFC 2011 SNMPv2 MIB for IP
RFC 2012 SNMPv2 MIB for TCP
RFC 2013 SNMPv2 MIB for UDP
RFC 2021 RMONv2 MIB
RFC 2096 IP Forwarding Table MIB
RFC 2233 Interfaces MIB
RFC 2273 SNMP-NOTIFICATION-MIB
RFC 2452 IPV6-TCP-MIB
RFC 2454 IPV6-UDP-MIB
RFC 2465 IPv6 MIB

RFC 2466 ICMPv6 MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2573 SNMP-Target MIB
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2787 VRRP MIB
RFC 2819 RMON MIB
RFC 2863 The Interfaces Group MIB
RFC 2925 Ping MIB
RFC 2932IP (Multicast Routing MIB)
RFC 2933 IGMP MIB
RFC 3273 HC-RMON MIB
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3418 MIB for SNMPv3
RFC 3621 Power Ethernet MIB
RFC 3813 MPLS LSR MIB
RFC 3814 MPLS FTN MIB
RFC 3815 MPLS LDP MIB
RFC 3826 AES for SNMP's USM MIB
RFC 4133 Entity MIB (Version 3)
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
LLDP-MIB

MPLS
RFC 2205 Resource ReSerVation Protocol (RSVP) - Version 1 Functional Specification
RFC 2209 Resource ReSerVation Protocol (RSVP)
RFC 2702 Requirements for Traffic Engineering Over MPLS
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 3031 Multiprotocol Label Switching Architecture
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3107 Carrying Label Information in BGP-4
RFC 3209 RSVP-TE: Extensions to RSVP for LSP Tunnels
RFC 3479 Fault Tolerance for the Label Distribution Protocol (LDP)
RFC 3487 Graceful Restart Mechanism for LDP
RFC 4090 Fast Reroute Extensions to RSVP-TE for LSP Tunnels
RFC 4364 BGP/MPLS IP Virtual Private Networks (VPNs)
RFC 4379 Detecting Multi-Protocol Label Switched (MPLS) Data Plane Failures
RFC 4447 Pseudowire Setup and Maintenance Using LDP
RFC 4448 Encapsulation Methods for Transport of Ethernet over MPLS Networks
RFC 4664 Framework for Layer 2 Virtual Private Networks
RFC 4665 Service Requirements for Layer 2 Provider Provisioned Virtual Private Networks
RFC 4761 Virtual Private LAN Service (VPLS) Using BGP for Auto-Discovery and Signaling
RFC 4762 Virtual Private LAN Service (VPLS) Using Label Distribution Protocol (LDP) Signaling

Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1D (STP)
RFC 1155 Structure of Management Information
RFC 1157 SNMPv1
RFC 1215 SNMP Generic traps
RFC 1757 RMON 4 groups: Stats, History, Alarms and Events
RFC 1905 SNMPv2 Protocol Operations
RFC 2211 Controlled-Load Network
RFC 2272 SNMPv3 Management Protocol
RFC 2273 SNMPv3 Applications
RFC 2274 USM for SNMPv3
RFC 2571 SNMP Management Frameworks
RFC 2572 SNMPv3 Message Processing
RFC 2573 SNMPv3 Applications
RFC 2576 Coexistence between SNMP versions
RFC 2578 SMIv2
RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
RFC 3164 BSD syslog Protocol
RFC 3415 SNMPv3 View-based Access Control Model VACM)
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
SNMPv1/v2c/v3

OSPF
RFC 1245 OSPF protocol analysis
RFC 1246 Experience with OSPF
RFC 1587 OSPF NSSA
RFC 1765 OSPF Database Overflow
RFC 1850 OSPFv2 Management Information Base (MIB), traps
RFC 2328 OSPFv2
RFC 2370 OSPF Opaque LSA Option
RFC 3101 OSPF NSSA
RFC 3623 Graceful OSPF Restart

QoS/CoS
IEEE 802.1p (CoS)
RFC 2212 Guaranteed Quality of Service
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2697 A Single Rate Three Color Marker
RFC 2698 A Two Rate Three Color Marker
Bi-directional Rate Shaping

Security
IEEE 802.1AE MAC Security Standard (MACSec)
IEEE 802.1X Port Based Network Access Control
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message Authentication
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 2867 RADIUS Accounting Modifications for Tunnel Protocol Support
RFC 2868 RADIUS Attributes for Tunnel Protocol Support
RFC 2869 RADIUS Extensions
RFC 3567 Intermediate System (IS) to IS Cryptographic Authentication
Access Control Lists (ACLs)
Guest VLAN for 802.1X
MAC Authentication
SSHv2 Secure Shell
Web Authentication

IKEv1
RFC 2865 - Remote Authentication Dial In User Service (RADIUS)

Accessories

HPE FlexFabric 12500 Switch Series accessories

Modules
HPE FlexFabric 12500E Main Processing Unit	JG802A
HP 12500 MPU w/Comware V7 OS	JG497A
HP 12500 Main Processing Unit	JC072B
HPE FlexFabric 12500 4-port 100GbE CFP FD Module	JG786A
HPE FlexFabric 12500 4-port 100GbE CFP FG Module	JG788A
HPE FlexFabric 12500 16-port 40GbE QSFP+ FD Module	JG790A
HPE FlexFabric 12500 48-port 1/10GbE SFP+ FD Module	JG796A
HPE FlexFabric 12500 40-port 1/10GbE SFP+ FD Module	JG792A
HPE FlexFabric 12500 40-port 1/10GbE SFP+ FG Module	JG794A
HP 12500 16-port 10GbE SFP+ LEB Module	JC782A
HP 12500 16-port 10GbE SFP+ LEC Module	JC783A
HP 12500 32-port 10GbE SFP+ REB Module	JC064B
HP 12500 32-port 10GbE SFP+ REC Module	JC476B
HP 12500 8-port 10GbE SFP+ LEB Module	JC780A
HP 12500 8-port 10GbE SFP+ LEC Module	JC781A
HP 12500 8-port 10GbE SFP+ LEF Module	JC659A
HP 12500 48-port Gig-T LEB Module	JC074B
HPE 12500 48-port Gig-T LEC Module	JC065B
HP 12500 48-port GbE SFP LEB Module	JC075B
HPE 12500 48-port GbE SFP LEC Module	JC069B
HPE 12500 48-port GbE SFP LEF Module	JC660A
HP 12500 Spare Power Monitor Module	JC502A
Transceivers
HPE X125 1G SFP LC LH40 1310nm Transceiver	JD061A
HPE X120 1G SFP LC LH40 1550nm Transceiver	JD062A
HPE X125 1G SFP LC LH70 Transceiver	JD063B
HPE X120 1G SFP RJ45 T Transceiver	JD089B
HPE X120 1G SFP LC BX 10-U Transceiver	JD098B
HPE X120 1G SFP LC BX 10-D Transceiver	JD099B
HPE X120 1G SFP LC LH100 Transceiver	JD103A
HPE X170 1G SFP LC LH70 1550 Transceiver	JD109A
HPE X170 1G SFP LC LH70 1570 Transceiver	JD110A
HPE X170 1G SFP LC LH70 1590 Transceiver	JD111A
HPE X170 1G SFP LC LH70 1610 Transceiver	JD112A
HPE X170 1G SFP LC LH70 1510 Transceiver	JD115A
HPE X120 1G SFP LC SX Transceiver	JD118B
HPE X120 1G SFP LC LX Transceiver	JD119B
HPE X130 10G XFP LC ZR Single Mode 80km 1550nm Transceiver	JD107A
HPE X130 10G XFP LC LR Single Mode 10km 1310nm Transceiver	JD108B
HPE X130 10G XFP LC SR Transceiver	JD117B
HPE X135 10G XFP LC ER Transceiver	JD121A
HPE X180 10G XFP LC LH 80km 1538.98nm DWDM Transceiver	JG226A
HPE X180 10G XFP LC LH 80km 1539.77nm DWDM Transceiver	JG227A
HPE X180 10G XFP LC LH 80km 1542.94nm DWDM Transceiver	JG230A
HPE X130 10G SFP+ LC SR Transceiver	JD092B
HPE X130 10G SFP+ LC LRM Transceiver	JD093B
HPE X130 10G SFP+ LC LR Transceiver	JD094B
HPE X130 10G SFP+ LC ER 40km Transceiver	JG234A
HPE X130 10G SFP+ LC LH 80km Transceiver	JG915A
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable	JG081C
HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable	JC784C
HPE X140 40G QSFP+ MPO SR4 Transceiver	JG325B
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver	JG709A
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver	JG661A
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver	JL251A
HP X150 100G CFP LC LR4 10km SM Transceiver	JG829A
Cables
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable	QK732A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable	QK733A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable	QK734A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable	QK735A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable	QK736A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable	QK737A
Mounting Kit
HPE X421 Chassis Universal 4-post Rackmount Kit	JC665A
Memory
HPE FlexFabric 4GB Compact Flash Card	JG806A
HPE FlexFabric 4GB DDR3 SDRAM Memory	JG807A
HPE X600 1G Compact Flash Card	JC684A
HPE 12504 AC Switch Chassis (JC654A)
HPE 1250x G2 Fabric Module	JC658A
HPE 12500 AC Power Entry Module	JF426A
HPE 12500 2000W AC Power Supply	JF429A
HPE 12504 Fan Assembly	JC664A
HPE 12504 DC Switch Chassis (JC655A)
HPE 1250x G2 Fabric Module	JC658A
HPE X210 10m JG Connector to Bare 6AWG 37800 Watt 72V DC Power Cable	JG280A
HPE 12500 1800W DC Power Supply	JC651A
HPE 12504 Fan Assembly	JC664A
HP 12508 AC Switch Chassis (JF431C)
HPE 1250x G2 Fabric Module	JC658A
HP 12508 Top and Bottom Cable Guides for AC Powered Switch	JC785A
HP 12500 Side Cable Management Guide	JC084A
HPE 12500 2000W AC Power Supply	JF429A
HPE 12500 AC Power Entry Module	JF426A
HP 12508 Fan Assembly	JC081A
HP 12508 Optional Air Filter	JC082A
HP 12508 DC Switch Chassis (JC652A)
HP 12508 Fabric Module	JC067B
HPE 1250x G2 Fabric Module	JC658A
HP 12508 Top and Bottom Cable Guides for DC Powered Switch	JC787A
HP 12500 Side Cable Management Guide	JC084A
HPE X210 10m JG Connector to Bare 6AWG 37800 Watt 72V DC Power Cable	JG280A
HPE 12500 1800W DC Power Supply	JC651A
HP 12508 Fan Assembly	JC081A
HP 12508 Optional Air Filter	JC082A
HP 12518 AC Switch Chassis (JF430C)
HP 12518 G2 Fabric Module	JC657A
HP 12518 Fabric Module	JC066A
HP 12518 Top and Bottom Cable Guides for AC Powered Switch	JC786A
HP 12500 Side Cable Management Guide	JC084A
HPE 12500 2000W AC Power Supply	JF429A
HPE 12500 AC Power Entry Module	JF426A
HP 12518 Fan Assembly	JC080A
HP 12518 Optional Air Filter	JC083A
HP 12518 DC Switch Chassis (JC653A)
HP 12518 G2 Fabric Module	JC657A
HP 12518 Fabric Module	JC066A
HP 12518 Top and Bottom Cable Guides for DC Powered Switch	JC788A
HP 12500 Side Cable Management Guide	JC084A
HPE X210 10m JG Connector to Bare 6AWG 37800 Watt 72V DC Power Cable	JG280A
HPE 12500 1800W DC Power Supply	JC651A
HP 12518 Fan Assembly	JC080A
HP 12518 Optional Air Filter	JC083A
HPE FlexFabric 12508E AC Switch Chassis (JG782A)
HPE FlexFabric 12508E Fabric Module	JG798A
HPE FlexFabric 12508E Optional Extended Cable Guide for AC Powered Switch	JG830A
HPE FlexFabric 12508E Optional Extended Cable Guide for DC Powered Switch	JG832A
HPE 12500 2000W AC Power Supply	JF429A
HPE FlexFabric 12500E Spare Power Monitor Module	JG804A
HPE FlexFabric 12500E Fan Tray Assembly	JG805A
HPE FlexFabric 12508E Optional Air Filter	JG808A
HPE FlexFabric 12508E DC Switch Chassis (JG783A)
HPE FlexFabric 12508E Fabric Module	JG798A
HP 12508 Top and Bottom Cable Guides for DC Powered Switch	JC787A
HP 12500 Side Cable Management Guide	JC084A
HPE X210 10m JG Connector to Bare 6AWG 37800 Watt 72V DC Power Cable	JG280A
HPE FlexFabric 12508E Optional Extended Cable Guide for DC Powered Switch	JG832A
HPE 12500 1800W DC Power Supply	JC651A
HPE FlexFabric 12500E Spare Power Monitor Module	JG804A
HPE FlexFabric 12500E Fan Tray Assembly	JG805A
HPE FlexFabric 12508E Optional Air Filter	JG808A
HPE FlexFabric 12518E AC Switch Chassis (JG784A)
HPE FlexFabric 12518E Fabric Module	JG800A
HP 12518 Top and Bottom Cable Guides for AC Powered Switch	JC786A
HP 12500 Side Cable Management Guide	JC084A
HPE FlexFabric 12518E Optional Extended Cable Guide for AC Powered Switch	JG831A
HPE 12500 2000W AC Power Supply	JF429A
HPE 12500 AC Power Entry Module	JF426A
HPE FlexFabric 12500E Spare Power Monitor Module	JG804A
HPE FlexFabric 12500E Fan Tray Assembly	JG805A
HPE FlexFabric 12518E Optional Air Filter	JG809A
HPE FlexFabric 12518E DC Switch Chassis (JG785A)
HPE FlexFabric 12518E Fabric Module	JG800A
HP 12518 Top and Bottom Cable Guides for DC Powered Switch	JC788A
HP 12500 Side Cable Management Guide	JC084A
HPE X210 10m JG Connector to Bare 6AWG 37800 Watt 72V DC Power Cable	JG280A
HPE FlexFabric 12518E Optional Extended Cable Guide for DC Powered Switch	JG833A
HPE 12500 1800W DC Power Supply	JC651A
HPE FlexFabric 12500E Spare Power Monitor Module	JG804A
HPE FlexFabric 12500E Fan Tray Assembly	JG805A
HPE FlexFabric 12518E Optional Air Filter	JG809A

Accessory Product Details

NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.

Modules

HPE FlexFabric 12500 4-port 100GbE CFP FG Module (JG788A)	I/O ports and slots	4 CFP 100GbE ports
	Physical characteristics	Dimensions	15.75(w) x 18.39(d) x 1.57(h) in (40.0 x 46.7 x 4.0 cm)
		Weight	13.12 lb (5.95 kg)
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE FlexFabric 12500 4-port 100GbE CFP FD Module (JG786A)	I/O ports and slots	4 CFP 100GbE ports
	Physical characteristics	Dimensions	15.75(w) x 18.39(d) x 1.57(h) in (40.0 x 46.7 x 4.0 cm)
		Weight	12.68 lb (5.75 kg)
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP 12500 48-port Gig-T LEB Module (JC074B)	Ports	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
	Physical characteristics	Dimensions	18.39(d) x 15.75(w) x 1.57(h) in. (46.7 x 40 x 4 cm)
		Weight	9.37 lb. (4.25 kg)
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE 12500 48-port Gig-T LEC Module (JC065B)	Ports	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
	Physical characteristics	Dimensions	18.39(d) x 15.75(w) x 1.57(h) in. (46.7 x 40 x 4 cm)
		Weight	9.79 lb. (4.44 kg)
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP 12500 48-port GbE SFP LEB Module (JC075B)	Ports	48 SFP 100/1000 Mbps ports
	Physical characteristics	Dimensions	18.39(d) x 15.75(w) x 1.57(h) in. (46.7 x 40 x 4 cm)
		Weight	9.96 lb. (4.52 kg)
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE 12500 48-port GbE SFP LEC Module (JC069B)	Ports	48 SFP 100/1000 Mbps ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
	Physical characteristics	Dimensions	18.39(d) x 15.75(w) x 1.57(h) in. (46.7 x 40 x 4 cm)
		Weight	10.03 lb. (4.55 kg)
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HP 12500 32-port 10GbE SFP+ REB Module (JC064B)	Ports	32 SFP+ 10-GbE ports Duplex: full only
	Physical characteristics	Dimensions	18.39(d) x 15.75(w) x 1.57(h) in. (46.7 x 40 x 4 cm)
		Weight	13.45 lb. (6.10 kg)
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

Transceivers

HPE X125 1G SFP LC LH40 1310nm Transceiver (JD061A) A small form-factor pluggable SFP Gigabit LH40 transceiver that provides a full duplex Gigabit solution up to 40km on a single-mode fiber.	Ports	1 LC 1000Base-LH port (no IEEE standard exists for 1550 nm optics)
	Connectivity	Connector type	LC
		Wavelength	1310 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
	Physical characteristics	Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
	Electrical characteristics	Power consumption maximum	1.0 W
	Cabling	Cable type: Single-mode fiber optic, complying with ITU-T G.652; Maximum distance: 40km distance
	Cabling	Fiber type	Single Mode
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP LC LH40 1550nm Transceiver (JD062A) A small form-factor pluggable (SFP) Gigabit LH40 transceiver that provides a full-duplex Gigabit solution up to 40 km on a single mode fiber.	Ports	1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)
	Connectivity	Connector type	LC
		Wavelength	1550 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
	Physical characteristics	Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
	Electrical characteristics	Power consumption maximum	1.0 W
	Cabling	Cable type: Single-mode fiber optic, complying with ITU-T G.652; Maximum distance: 40km distance
	Cabling	Fiber type	Single Mode
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X125 1G SFP LC LH70 Transceiver (JD063B) A small form-factor pluggable (SFP) Gigabit LH70 transceiver that provides a full-duplex Gigabit solution up to 70km on a single-mode fiber.	Ports	1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)
	Connectivity	Connector type	LC
	Connectivity	Wavelength	1550 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
	Physical characteristics	Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
	Electrical characteristics	Power consumption maximum	1.0 W
	Cabling	Cable type: Single-mode fiber optic, complying with ITU-T G.652; Maximum distance: 70km
		Fiber type	Single Mode
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP RJ45 T Transceiver (JD089B) A small form factor pluggable (SFP) Gigabit 1000Base-T transceiver that provides a full duplex Gigabit solution up to 100m on a Cat-5+ cable.	Ports	1 RJ-45 1000BASE-T port (IEEE 802.3ab Type 1000BASE-T)
	Connectivity	Connector type	RJ-45
	Physical characteristics	Dimensions	2.71(d) x 0.54(w) x 0.55(h) in. (6.88 x 1.37 x 1.4 cm)
		Full configuration weight	0.07 lb. (0.03 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Cable type: 1000BASE-T: Category 5 (5E or better recommended), 100 Ù differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T; Maximum distance: 100m
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP LC BX 10-U Transceiver (JD098B) A small form-factor pluggable (SFP) Gigabit LX-BX10-U transceiver that provides a full duplex Gigabit solution up to 10km on a single mode cable.	Ports	1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-U); Duplex: full only
	Connectivity	Connector type	LC
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Maximum distance: 10km
		Fiber type	Single Mode
	Notes	TX 1310nm RX 1490nm
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP LC BX 10-D Transceiver (JD099B) A small form-factor pluggable (SFP) Gigabit LX-BX10-D transceiver that provides a full duplex Gigabit solution up to 10km on a single mode cable.	Ports	1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-D); Duplex: full only
	Connectivity	Connector type	LC
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Maximum distance: Up to 10km
		Fiber type	Single Mode
	Notes	TX 1490nm RX 1310nm
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP LC LH100 Transceiver (JD103A) A small form factor pluggable (SFP) Gigabit LH100 transceiver that provides a full-duplex Gigabit solution up to 100km on a single mode fiber.	Ports	1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)
	Connectivity	Connector type	LC
		Wavelength	1550 nm
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Cable type: Single-mode fiber optic, complying with ITU-T G.652; Maximum distance: Up to 100km
		Fiber type	Single Mode
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP LC SX Transceiver (JD118B) A small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550m on a Multimode fiber.	Ports	1 LC 1000BASE-SX port
	Connectivity	Connector type	LC
	Connectivity	Wavelength	850 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
	Physical characteristics	Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
	Electrical characteristics	Power consumption maximum	1.0 W
	Cabling	Maximum distance: FDDI Grade distance = 220m OM1 = 275m OM2 = 500m OM3 = Not Specified by standard
		Cable length	up to 550m
		Fiber type	Multi Mode
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE X120 1G SFP LC LX Transceiver (JD119B) A small form-factor pluggable (SFP) Gigabig LX transceiver that provides a full duplex Gigabit solution up to 550m on MMF or 10Km on SMF	Ports	1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)
	Connectivity	Connector type	LC
	Connectivity	Wavelength	1300 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
	Physical characteristics	Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
	Electrical characteristics	Power consumption maximum	1.0 W
	Cabling	Cable type: Either single mode or multimode; Maximum distance: 550m for Multimode 10km for Singlemode
		Fiber type	Both
	Services	Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

Cables

HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable (QK732A)

Notes
