HPE Aruba Networking 7200 Series Mobility Controllers

Overview

HPE Aruba Networking 7200 Series Mobility Controllers

Improved network performance, visibility, and control

HPE Aruba Networking 7200 Series Mobility Controllers enhance WLAN performance for high-performance, high-density enterprise requirements. The 7200 Series centralizes all control functionality for individual HPE Aruba Networking access points (APs) to improve AP utilization, security, and client roaming. Ideally suited for large campuses and high-density environments, the 7200 Series can be deployed using Zero Touch Provisioning (ZTP) to simplify deployment.

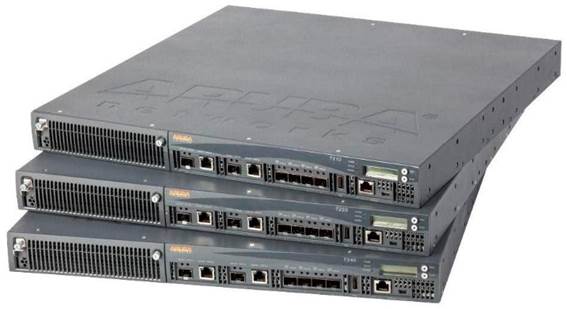

HPE Aruba Networking 7200 Series Mobility Controllers

Front: 7210/7220/7240

Front: 7205





Back: 7210/7220/7240

Back: 7205





Front: 7280

Back: 7280

Key Features

  • Support for new Wi-Fi 6 (802.11ax), WPA3 and Enhanced Open - and existing standards
  • Patented ClientMatch technology can now group together Wi-Fi 6-capable devices
  • Dynamic segmentation enforces wired and wireless access policies to simplify and secure the network
  • Application awareness for 3,000+ applications without additional hardware
  • Built in AI-powered wireless/RF optimization
  • Unifies policy enforcement for WLAN, LAN and WAN traffic

Standard Features

Simple and Secure Access

The 7000 Series serves a key role in dynamic segmentation, providing HPE Aruba Networking's Policy Enforcement Firewall (PEF) to enforce policies based on user role, device type, application, and network location - and simplifying and securing wired and wireless network access. Traffic is encapsulated in GRE tunnels for complete encryption all the way from an AP or switch. This feature can be enabled with the HPE ArubaOS PEF license and eliminates the need to manually configure SSIDs, VLANs or ACLs for each new client on the network.

High Performance and Reliability

Each 7000 Series provides connectivity for up to 4,096 concurrent users or client devices, 64 access points and include up to 24 Ethernet ports and multiple WAN uplinks. With 8Gbps of maximum throughput to perform Policy Enforcement Firewall (PEF) features, the 7000 Series delvers plenty of horsepower for the most demanding enterprise environments. These capabilities are over 40 times the client density and 10 times the maximum throughput of typical network appliances.

For enhanced resiliency and availability, the 7200 Series can be clustered together in a network managed by HPE Aruba Networking Mobility conductor.

24/7 Mission-critical Networking

HPE Aruba Networking's unique patented wireless technologies are based on AI-powered machine learning algorithms and integrated directly into HPE ArubaOS. Adaptive Radio Management, AirMatch and ClientMatch (now enhanced with Wi-Fi 6 grouping) provide RF optimization techniques to improve user experience and network health based on changing environmental conditions, correct for noisy or congested RF and resolve sticky client issues during user roaming. RFProtect provides advanced spectrum analysis and wireless intrusion protection (WIPS/WIDS) to help identify and mitigate Wi-Fi and non-Wi-Fi sources of interference, as well as containment of potential security risks. Learn more about HPE Aruba Networking's software features on the HPE ArubaOS datasheet.

When deployed with HPE Aruba Networking Mobility Conductor, the 7000 Series can be joined to a controller cluster to increase scale, improve reliability using High Availability (HA), adopt configurations seamlessly based on hierarchy, support Live Upgrades to reduce maintenance windows, and share licenses from a global licensing pool. The 7000 Series also serves a key policy enforcement role in HPE Aruba Networking's 360 Secure Fabric. Aruba AirWave provides real-time monitoring, reporting and Wi-Fi planning and visibility services.

SD-WAN Deployment

For organizations that are now managing multiple WAN connections, the 7000 Series can be connected to HPE Aruba Networking's SD-WAN fabric right out of the box. SD-WAN is a rich WAN management solutions that is used to simplify management of traffic entering and exiting branch sites. Please refer to the SD-WAN datasheet for more information.

Microsoft Features

HPE Aruba Networking's integration with Microsoft enables unique application intelligence that detects Microsoft 365, Teams and Skype for Business traffic and then prioritizes them over less critical applications. Through management interfaces on HPE ArubaOS, HPE Aruba Networking Central, and Aruba AirWave, IT can visualize call quality metrics such as MOS, latency, jitter, and packet loss for additional insights.

Mobility Controller Deployment

The HPE Aruba Networking 7200 Series can be deployed using HPE Aruba Networking Mobility Controller software licenses in a campus or branch access layer deployment. In this mode, the controllers cannot be simultaneously used for SD-WAN. In Mobility Controller mode, the 7200 Series can also participate in HPE Aruba Networking's dynamic segmentation framework, with, at minimum, an access point (AP) license and a Policy Enforcement Firewall (PEF) license for each HPE Aruba Networking access point and switch in the network.

SD-WAN Deployment

Refer to the SD-WAN use cases guide for more information on how the 7200 Series can be used. Each 7200 Series requires an HPE Aruba Networking Central software subscription license to enable SD-WAN software features and the use of cloud-based management. The SD-WAN license also enables the use of the entire bandwidth capacity stated in the data sheet for each gateway.

In high availability deployments, each primary and backup appliances need to have a separate subscription license applied.

Each SD-WAN subscription includes software support and TAC/phone support. For SD-WAN hardware replacement support, order hardware-only support SKUs through your HPE Aruba Networking value-added reseller (VAR).

Enhanced Capabilities

  • Wi-Fi 6 (802.11ax) enhanced with ClientMatch - The latest Wi-Fi standard brings enhanced performance, speed, and efficiency with key features such as OFDMA, 1024-QAM, and bidirectional MU-MIMO. Combined with HPE Aruba Networking's patented ClientMatch technology, 802.11ax clients will now be grouped together to optimize the multi-user experience.
  • Enhanced wireless security - Support for WPA3 brings stronger encryption and authentication methods, while Enhanced Open brings automatic security to open networks. New WPA2-MPSK feature enables simpler passkey management for WPA2 devices - should the Wi-Fi password on one device need to be changed, no additional key changes are needed for other devices on the network.
  • Dynamic Segmentation - To simplify and better secure wired and wireless network access, the 7000 Series can enforce per-user and device roles across wired and wireless networks by integrating with ClearPass Policy Manager. This ensures consistent policy regardless of user role and device type, and eliminates the need to configure unnecessary SSIDs, ACLs, VLANs and subnets at every node in the network.
  • Policy Enforcement Firewall - Enabled by the PEF license, wired and wireless user and application traffic can be tunneled to a stateful firewall on the 7000 Series through GRE tunnels for inspection. Policies are then enforced based on user role, device type, application and location - as described in Dynamic Segmentation.
  • Application visibility and control - As part of the PEF license, application visibility with Deep Packet Inspection (DPI) technology evaluates and optimizes performance and Quality of Service policies for over 3,000 applications - even for encrypted or hidden traffic.
  • Web content filtering - WebCC is an add-on subscription-based feature that classifies websites by content category and rates them by reputation. It can also block, apply QoS, bandwidth-limit, mirror, and log web content.
  • Unified Communications and Collaboration (UCC) - Visualize and troubleshoot networks based on call quality metrics such as MOS, latency, jitter and packet loss. Supported applications include: Teams, Skype for Business®, Wi-Fi Calling, Facetime, SIP, Jabber, Spark and more.
  • Zero Touch Provisioning - The 7000 Series can be factory-shipped and deployed onsite with cloud-based Aruba Activate. For network-specific requirements, settings can be applied based on hierarchical configuration.
  • Integrated VPN services - With support for IPSec/SSL VPNs, HPE Aruba Networking remote APs (RAPs) and HPE Aruba Networking VIA VPN users can establish encrypted sessions without any additional hardware required.
  • Third-party security integration - For advanced malware or antivirus protection, the 7000 Series can assume the role of an on-premises agent of centrally-hosted firewalls such as those provided by Palo Alto Networks and Check Point Software. Dedicated firewall appliances are no longer needed at each branch.

Service and Warranty Information

  • Hardware: 1 year parts/ labor, can be extended with support contract
  • Software: 90 days, can be extended with support contract

Configuration Information

BTO Models

AC Powered Controllers

7210

Rule #

Description

SKU

1, 6

Aruba 7210 (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW743A

  • Aruba 7210 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted Regulatory Domain.
  • These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

2, 6

Aruba 7210 (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW744A

  • Aruba 7210 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  US regulatory domain (for deployments in USA only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

3, 6

Aruba 7210 (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW749A

  • Aruba 7210 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted regulatory domain (for deployments in Japan only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

4, 6

Aruba 7210 (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW747A

  • Aruba 7210 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted regulatory domain (for deployments in Israel only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

5, 6

Aruba 7210 (EG) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JY853A

  • Aruba 7210 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted regulatory domain (for deployments in Egypt only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers



7210 K12

Rule #

Description

SKU

1, 6

Aruba 7210-K12-128-RW 7210 K-12 (RW) Mobility Controller w/128 AP License Bundle

JW779A

  • Aruba 7210-K12-128-RW 7210 K-12 (RW) Mobility Controller w/128 AP License Bundle, 2x 10GBASE-X (SFP+), Unrestricted Regulatory Domain. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan
  • Combo Ports min=0 \ max=4 10/100/1000 or SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=2 SFP/SFP+ Transceivers

2, 6

Aruba 7210-K12-128-US 7210 K-12 (US) Mobility Controller w/128 AP License Bundle

JW780A

  • Aruba 7210-K12-128-US 7210 K-12 (US) Mobility Controller w/128 AP License Bundle, 2x 10GBASE-X (SFP+), Restricted Regulatory Domain. For deployment in the United States only.
  • Combo Ports min=0 \ max=4 10/100/1000 or SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=2 SFP/SFP+ Transceivers

1, 6

Aruba 7210-K12-256-RW 7210 K-12 (RW) Mobility Controller w/256 AP License Bundle

JW781A

  • Aruba 7210-K12-256-RW 7210 K-12 (RW) Mobility Controller w/256 AP License Bundle, 2x 10GBASE-X (SFP+), Unrestricted Regulatory Domain. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan
  • Combo Ports min=0 \ max=4 10/100/1000 or SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=2 SFP/SFP+ Transceivers

2, 6

Aruba 7210-K12-256-US 7210 K-12 (US) Mobility Controller w/256 AP License Bundle

JW782A

  • Aruba 7210-K12-256-US 7210 K-12 (US) Mobility Controller w/256 AP License Bundle, 2x 10GBASE-X (SFP+), Restricted Regulatory Domain. For deployment in the United States only.
  • Combo Ports min=0 \ max=4 10/100/1000 or SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=2 SFP/SFP+ Transceivers



7220

Rule #

Description

SKU

1, 6

Aruba 7220 (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW751A

  • Aruba 7220 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted Regulatory Domain. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan.
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

2, 6

Aruba 7220 (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW752A

  • Aruba 7220 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  US regulatory domain (for deployments in USA only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

3, 6

Aruba 7220 (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW757A

  • Aruba 7220 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted regulatory domain (for deployments in Japan only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers



4, 6

Aruba 7220 (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW755A

  • Aruba 7220 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted regulatory domain (for deployments in Israel only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers



7240XM

Rule #

Description

SKU

1, 6

Aruba 7240XM (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW783A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted Regulatory Domain. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan.
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

2, 6

Aruba 7240XM (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW784A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  US regulatory domain (for deployments in USA only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

3, 6

Aruba 7240XM (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW785A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted regulatory domain (for deployments in Japan only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

4, 6

Aruba 7240XM (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW786A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted regulatory domain (for deployments in Israel only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

5, 6

Aruba 7240XM (EG) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JY854A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W AC  power supply.  Restricted regulatory domain (for deployments in Egypt only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers







7280

Rule #

Description

SKU

1, 6

Aruba 7280 (RW) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX911A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  Includes one 550W AC power supply.  Restricted Regulatory Domain. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel, Egypt or Japan
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers

2, 6

Aruba 7280 (US) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX910A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  Includes one 550W AC power supply.  Restricted Regulatory Domain. US regulatory domain (for deployments in USA only).
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers

3, 6

Aruba 7280 (JP) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX912A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  Includes one 550W AC power supply.  Restricted Regulatory Domain. Japan regulatory domain (for deployments in Japan only).
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers

4, 6

Aruba 7280 (IL) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX913A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  Includes one 550W AC power supply.  Restricted Regulatory Domain. Israel regulatory domain (for deployments in Israel only).
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers

5, 6

Aruba 7280 (EG) 2x40GbE and 8x10GBASE-X (SFP+) Controller

JZ077A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  Includes one 550W AC power supply.  Restricted Regulatory Domain. Egypt regulatory domain (for deployments in Egypt only).
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers







DC Powered Controllers

7210 DC

Rule #

Description

SKU

1

Aruba 7210DC (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW645A

  • Aruba 7220 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  Restricted Regulatory Domain. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers



2

Aruba 7210DC (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW646A

  • Aruba 7210 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  US regulatory domain (for deployments in USA only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

3

Aruba 7210DC (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW648A

  • Aruba 7210 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  Restricted regulatory domain (for deployments in Japan only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

4

Aruba 7210DC (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW647A

  • Aruba 7210 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  Restricted regulatory domain (for deployments in Israel only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers







7220 DC

Rule #

Description

SKU

1

Aruba 7220DC (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW649A

  • Aruba 7220 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  Restricted Regulatory Domain. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan.
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

2

Aruba 7220DC (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW650A

  • Aruba 7220 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  US regulatory domain (for deployments in USA only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

3

Aruba 7220DC (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW652A

  • Aruba 7220 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  Restricted regulatory domain (for deployments in Japan only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

4

Aruba 7220DC (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) 350W DC Pwr Cntrlr

JW651A

  • Aruba 7220 Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  Restricted regulatory domain (for deployments in Israel only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

7240XM DC

Rule #

Description

SKU

1

Aruba 7240XMDC (RW) 16GB DRAM 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr

JW674A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  Restricted Regulatory Domain. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan.
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

2

Aruba 7240XMDC (US) 16GB DRAM 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr

JW675A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  US regulatory domain (for deployments in USA only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

3

Aruba 7240XMDC (JP) 16GB DRAM 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr

JW676A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  Restricted regulatory domain (for deployments in Japan only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

4

Aruba 7240XMDC (IL) 16GB DRAM 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr

JW677A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  Restricted regulatory domain (for deployments in Israel only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

5

Aruba 7240XMDC (EG) 16GB DRAM 4p 10GBase-X/SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr

R8W28A

  • Aruba 7240XM Mobility Controller with 4x 10GBase-x (SFP/SFP+) and 2x dual media (10/100/1000BASE-T or SFP) ports.  Includes one 350W DC (-48V DC) power supply.  US regulatory domain (for deployments in Egypt only).
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers









TAA Controllers

7210 TAA

Rule #

Description

SKU

6

Aruba 7210 (RW) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW745A

  • Aruba 7210, 4x 10GBase-X (SFP+), 1x 350W AC PS, Unrestricted Regulatory Domain. FIPS & TAA Compliant.  These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan.
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

2, 6

Aruba 7210 (US) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW746A

  • Aruba 7210, 4x 10GBase-X (SFP+), 1x 350W AC PS, Restricted Regulatory Domain - US, FIPS & TAA Compliant
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

3, 6

Aruba 7210 (JP) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW750A

  • Aruba 7210, 4x 10GBase-X (SFP+), 1x 350W AC PS, Restricted Regulatory Domain - JP FIPS & TAA Compliant
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

4, 6

Aruba 7210 (IL) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW748A

  • Aruba 7210, 4x 10GBase-X (SFP+), 1x 350W AC PS, Restricted Regulatory Domain - IL FIPS & TAA Compliant
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers





7220 TAA

Rule #

Description

SKU

6

Aruba 7220 (RW) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW753A

  • Aruba 7220, 4x 10GBase-X (SFP+), 1x 350W AC PS, Unrestricted Regulatory Domain. FIPS & TAA Compliant. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan.
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

2, 6

Aruba 7220 (US) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW754A

  • Aruba 7220, 4x 10GBase-X (SFP+), 1x 350W AC PS, Restricted Regulatory Domain - US, FIPS & TAA Compliant
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

3, 6

Aruba 7220 (JP) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW758A

  • Aruba 7220, 4x 10GBase-X (SFP+), 1x 350W AC PS, Restricted Regulatory Domain - JP FIPS & TAA Compliant
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

4, 6

Aruba 7220 (IL) TAA 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller

JW756A

  • Aruba 7220, 4x 10GBase-X (SFP+), 1x 350W AC PS, Restricted Regulatory Domain - IL FIPS & TAA Compliant
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

7240XM TAA

Rule #

Description

SKU

6

HPE Aruba Networking 7240XM (RW) 16G DRAM 4p 10GBase-X SFP+ 2p Dual Per 10/100/1000BASE-T/SFP Cntrlr

JW829A

  • Aruba 7240XM, 4x 10GBase-X (SFP+), 1x 350W AC PS, Unrestricted Regulatory Domain. FIPS & TAA Compliant.  These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel or Japan.
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

2, 6

HPE Aruba Networking 7240XM (US) 16G DRAM 4p 10GBase-X SFP+ 2p Dual Per 10/100/1000BASE-T/SFP Cntrlr

JW830A

  • Aruba 7240XM, 4x 10GBase-X (SFP+), 1x 350W AC PS, Restricted Regulatory Domain - US, FIPS & TAA Compliant
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

3, 6

HPE Aruba Networking 7240XM (JP) 16G DRAM 4p 10GBase-X SFP+ 2p Dual Per 10/100/1000BASE-T/SFP Cntrlr

JW831A

  • Aruba 7240XM, 4x 10GBase-X (SFP+), 1x 350W AC PS, Restricted Regulatory Domain - JP FIPS & TAA Compliant
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers

4, 6

HPE Aruba Networking 7240XM (IL) 16G DRAM 4p 10GBase-X SFP+ 2p Dual Per 10/100/1000BASE-T/SFP Cntrlr

JW832A

  • Aruba 7240XM, 4x 10GBase-X (SFP+), 1x 350W AC PS, Restricted Regulatory Domain - IL FIPS & TAA Compliant
  • Combo Ports min=0 \ max=2 SFP  Transceivers
  • SFP/SFP+ ports  min=0 \ max=4 SFP/SFP+ Transceivers





7280 TAA

Rule #

Description

SKU

1, 6

Aruba 7280 (RW) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX915A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  FIPS & TAA Compliant.  Includes one 550W AC power supply.  Restricted Regulatory Domain. These products should be considered as 'Rest of World' products and MUST NOT be used for deployments in the United States, Israel, Egypt or Japan
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers

2, 6

Aruba 7280 (US) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX914A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  FIPS & TAA Compliant.  Includes one 550W AC power supply.  US regulatory domain (for deployments in USA only).
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers

3, 6

Aruba 7280 (JP) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX916A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  FIPS & TAA Compliant.  Includes one 550W AC power supply.  Japan regulatory domain (for deployments in Japan only).
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers

4, 6

Aruba 7280 (IL) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JX917A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  FIPS & TAA Compliant.  Includes one 550W AC power supply.  Israel regulatory domain (for deployments in Israel only).
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers

5, 6

Aruba 7280 (EG) TAA-compliant 2x40GbE and 8x10GBASE-X (SFP+) Controller

JZ078A

  • Aruba 7280 Mobility Controller with 8 x 10GBase-x (SFP/SFP+) and 2 x 40GbE QSFP+ ports.  FIPS & TAA Compliant.  Includes one 550W AC power supply.  Egypt regulatory domain (for deployments in Egypt only).
  • SFP/SFP+ ports  min=0 \ max=8 SFP/SFP+ Transceivers
  • QSFP+ ports min=0 \ max=2 Transceivers





Memory Upgrades

NOTES: 7240XM Memory Upgrade

Rule #

Description

SKU

1, 7, 8

Aruba 7240XM (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW833A

Aruba 7240XM (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

2, 7, 8

Aruba 7240XM (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW834A

Aruba 7240XM (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

3, 7, 8

Aruba 7240XM (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW835A

Aruba 7240XM (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

4, 7, 8

Aruba 7240XM (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW836A

Aruba 7240XM (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade





7240XM TAA Memory Upgrade

Rule #

Description

SKU

1, 7, 8

Aruba 7240XM (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW837A

Aruba 7240XM (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

2, 7, 8

Aruba 7240XM (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW838A

Aruba 7240XM (US) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

3, 7, 8

Aruba 7240XM (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW839A

Aruba 7240XM (JP) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

4, 7, 8

Aruba 7240XM (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade

JW840A

Aruba 7240XM (IL) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Cntrlr 16GB Upgrade





7240XMDC Memory Upgrade

Rule #

Description

SKU

1, 7, 8

Aruba 7240XMDC (RW) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

JW841A

Aruba 7240XMDC (RW) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

2, 7, 8

Aruba 7240XMDC (US) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

JW842A

Aruba 7240XMDC (US) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

3, 7, 8

Aruba 7240XMDC (JP) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

JW843A

Aruba 7240XMDC (JP) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

4, 7, 8

Aruba 7240XMDC (IL) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

JW844A

Aruba 7240XMDC (IL) 4p 10GBase-X /SFP+ 2p Dual Pers (10/100/1000 or SFP) DC Pwr Cntrlr 16GB Upgrade

Configuration Rules

Rule #

Description

1

Available everywhere except, US, Israel and Japan.

2

Available in US only

3

Available in Japan only

4

Available in Israel only

5

Available in Egypt only

6

Bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization Menu

7

Memory Upgrades should not be further configurable with any controller options.

8

OCA Blue Notes:
For the 7240XM upgrade SKUs, the customer can order the upgrade SKU, get shipped the 7240XM and will have 60 days from the time the order is placed to return the old 7240 SKU. At the end of 60 days, the customer will be invoiced for the differential amount and will be responsible for the invoice in 30 days.

9

Available in Russia only

Notes:

OCA Only Model Selection Form - HPE Aruba Networking > WAN Gateway > SD-WAN > Headend/VPNC:

SD-WAN 7200 Series Headend Gateway/VPNC

Transceivers



Transceivers

Std (Min 0 // max 99) User Selection (min 0 // max 99)

Rule #

Description

SKU

3, 4

HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver

J4859D

3, 4

HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D

3, 4

HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver

J4860D

3, 4

HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D

3, 5

HPE Aruba Networking SFP-10GE-ZR 10GBASE-ZR SFP+ 1310nm LC Connector Pluggable 10GbE Transceiver

JW148A

3, 5, 7

HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D

3, 5, 7

HPE Aruba Networking 10G SFP+ LC LRM 220m OM2 MMF Transceiver

J9152D

3, 5, 7

HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver

J9153D

3, 5, 7

HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D

3, 5, 7

HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D

3, 5, 7

HPE Aruba Networking 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285D

6, 9

HPE Networking X142 40G QSFP+ MPO SR4 Transceiver

JH231A

6, 9

HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver

JH232A

6, 9

HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver

JH233A

6, 9

HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable

JH234A

6, 9

HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable

JH235A

6, 9

HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable

JH236A

6, 9

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A

6, 9

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A

6, 9

HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver

JL308A

Configuration Rules

Rule #

Description

3

Supported on the 7210, 7220, 7240, 7240XM Models (min0 // max 4)

4

Supported on the 7210, 7220, 7240, 7240XM Combo Ports (min 0 // max 2)

5

Supported on the 7280 Models (min 0 // max 8)

6

Supported on the 7280 Models (min 0 // max 2)

7

OCA Display Notes:
Default minimum HPE ArubaOS software version is 6.5.3.0 and 8.1.0.0

8

OCA Display Notes:
Minimum HPE ArubaOS software version is 6.5.4.7 and 8.4.0.0

9

OCA Display Notes:
Minimum HPE ArubaOS software version is 6.5.4.7 and 8.4.0.0 when installed into a 7280 Controller.

Accessories



Controller Mount Kits

Std (Min 0 // max 99) User Selection (min 0 // max 99)

Rule #

Description

SKU

1

HPE Aruba Networking SPR-RK3-MNT 7205 / 7024 / S2500-xx / S1500-24P/48P Spare Front Rack Mount

JW082A

2

HPE Aruba Networking SPR-RK-MNT 7200 / S3500 / S1500-24/48 / S2500 Spare Front or Mid Mount

JW107A

2

HPE Aruba Networking SPR-4RK-MNT 7200 Series / S3500 Spare Four-Post 19" Rack-Mount Kit

JW108A

2

HPE Aruba Networking SPR-WL-MNT 7200 Series or S3500 Wall Mount Kit

JW109A

Configuration Rules

Rule #

Description

1

Only supported on the 7280 Models

2

Only supported on the 7210, 7220, 7240, 7240XM Models

Accessories

Std (Min 0 // max 99) User Selection (min 0 // max 99)

Rule #

Description

SKU

2

HPE Aruba Networking PSU-PWBLNK 7200 Series and S3500 Power Supply Spare Faceplate Blank

JW110A

2

HPE Aruba Networking HW-7200-FT 7200 Series Fan Tray

JW111A

2

HPE Aruba Networking SPR-ESBLNK 7200 Series Expansion Slot Blank Panel

JW112A

3

HPE Aruba Networking HW-7280-FT 7280 Series Fan Tray

JZ013A

Configuration Rules

Rule #

Description

2

Only supported on the 7210, 7220, 7240, 7240XM Models

3

Only supported on the 7280 Models

Power Options



For 7210, 7220, 7240, 7240XM, 7280 Std (Min 0 // max 1) User Selection (min 0 // max 1)

Rule #

Description

SKU

1, 2

Aruba PSU-350-AC 7200 Series 350W AC Power Supply

JW657A

Notes:

350W AC Power Supply.  May be used as a redundant power supply or field-replaceable spare for 7200 Series, S3500-24T, S3500-48T and S3500-24F. Power cord not included- order country-specific (PC-AC-xx) power cord below.



1, 4

HPE Aruba Networking PSU-550-AC 550W AC Power Supply

JZ012A

3

HPE Aruba Networking PSU-350-DC 7200 Series Mobility Controllers 350W DC (-48V DC) Power Supply

JW658A

Notes:

350W DC (-48V DC) Power Supply.  May be used as a redundant power supply or field-replaceable spare for 7200 Series Mobility Controllers.



Configuration Rules

Rule #

Description

1

Bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization Menu

2

Only allowed on AC models.

3

Only allowed on DC models.

4

Only supported on the 7280 Models

Software

Licenses

Std (Min 0 // max 1) User Selection (min 1 // max 1)

Rule #

Description

SKU

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 1-year Subscription E-STU

JZ195AAE

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 3-year Subscription E-STU

JZ196AAE

HPE Aruba Networking 92/72xx Central Gateway Foundation 5-year Subscription E-STU

JZ197AAE

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 7-year Subscription E-STU

R0G60AAE

HPE Aruba Networking 92/72xx SD-Branch Gateway Foundation 10-year Subscription E-STU

R0G61AAE

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 1-year Subscription E-STU

JZ198AAE

HPE Aruba Networking 92/72xx Central Gateway Advanced 3-year Subscription E-STU

JZ199AAE

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 5-year Subscription E-STU

JZ200AAE

HPE Aruba Networking 92/72xx SD-Branch Gateway Advanced 7-year Subscription E-STU

R0G62AAE

HPE Aruba Networking 92/72xx Central Gateway Advanced 10year Subscription E-STU

R0G63AAE



On-Prem Services / Gateway and Controller Foundation Government Subscriptions



3

HPE Aruba Networking COP Controller Foundation 1-year Government Subscription E-STU

S1P61AAE

3

HPE Aruba Networking COP Controller Foundation 3-year Government Subscription E-STU

S1P62AAE

3

HPE Aruba Networking COP Controller Foundation 5-year Government Subscription E-STU

S1P63AAE

3

HPE Aruba Networking COP Controller Foundation 7-year Government Subscription E-STU

S1P64AAE

3

HPE Aruba Networking COP Controller Foundation 10-year Government Subscription E-STU

S1P65AAE



Configuration Rules



Rule #

Description



3

Add the Central On-Prem SKUs to the HPE Aruba Networking Catalog as Standalone:

HPE Aruba Networking > Network Management > Central > On-Prem Services



Technical Specifications

Performance and Capacity

Features

7205

7210

7220

7240XM

7280

Maximum campus or remote AP licenses

256

512

1,024

2,048

2,048

Maximum concurrent users/devices

8,192

16,384

24,576

32,768

32,768

Maximum VLANs

4,096

4,096

4,096

4,096

4,096

Active firewall sessions

1 million (M)

2M

2M

2M

2M

Concurrent GRE tunnels

4,096

8,192

16,384

32,768

32,768

Concurrent IPsec sessions

8,192

16,384

24,576

32,768

32,768

Concurrent SSL sessions

4,096

8,192

8,192

8,192

8,192

Firewall throughput (Gbps)

12

20

40

40

100

Wired Bridged Throughput (Gbps)

12

20

40

40

100

Encrypted throughput 3DES (Gbps)

5

7

25

28

57

Encrypted throughput AES-CBC-256 (Gbps)

5

7

22

30

46

Encrypted throughput AES-CCM (Gbps)

5

7

20

29

75

Encrypted throughput AES-GCM-256 (Gbps)

5

7

26

35

70

Interfaces and Indicators

Features

7205

7210

7220

7240XM

7280

Form factor/footprint

1xRU

1xRU

1xRU

1xRU

1xRU

10/100/1000BASE-T

4xCombo

2xCombo

2xCombo

2xCombo

-

1000BASE-X

4xCombo

2xCombo

2xCombo

2xCombo

-

10G Ports

(10G or 1G supported)

2xSFP+

4xSFP+

4xSFP+

4xSFP+

8xSFP+

40G Ports

-

-

-

-

2xQSFP+

USB 2.0

2

1

1

1

1

Management/status LEDs

Yes

Yes

Yes

Yes

Yes

LINK/ACT and status LEDs

Yes

Yes

Yes

Yes

Yes

LCD panel and navigation buttons

Yes

Yes

Yes

Yes

Yes

Console port

micro USB,
RJ45

mini USB,
RJ45

mini USB,
RJ45

mini USB,
RJ45

micro USB,
RJ45

Out-of-band management port

Yes

Yes

Yes

Yes

Yes

Physical

Features

7205

7210

7220

7240XM

7280

Dimentions

(HxWxD)

(H) 4.4 cm x (W) 44.2 cm x (D) 33.4 cm

(1.75" x 17.38" x 13.13")

(H) 4.4 cm x (W) 44.5 cm x (D) 44.5 cm

(1.75" x 17.5" x 17.5")

(H) 4.4 cm x (W) 44.2 cm x (D) 40.1 cm

(1.73" x 17.40" x 15.79")

Weight

4.95 kg (10.19 lbs.)

7.45 kg (16.43 lbs.)

7.9 kg (17.41 lbs)

MTBF (Hours)

129,597 (@40C)

106,536 (@40C)

113,751 (@40C)

116,590 (@40C)

281,896 (@45C)

Environmental

Features

7205

7210

7220

7240XM

7280

Operating Temperature

0° C to 40° C

Storage Temperature

-40° C to 70° C

Humidity/Storage Humidity

10% to 95%, NC

5% to 95%, NC

5% to 95%, NC

5% to 95%, NC

5% to 95%, NC

Operating Altitude

10,000 feet

Acoustic Noise1

49 dBA

52.9 dBA

52.9 dBA

52.9 dBA

47.1 dBA

Maximum Heat Dissipation (BTU/hour)

260

375

427

563

819

Maximum Power Consumption

75.2W

110W

125W

165W

240W

Power Source

Internal power supply

350-watt AC or DC power supply

550-watt power supply



Notes: 1 Sound power per ETSI 300 753 in accordance with ISO 7779

Power Adapter and Supply Specifications

Features

350-watt AC

350-watt DC

550-watt

Input voltage range

100 VAC to 240 VAC

DC -48V to DC -60V

100 VAC to 240 VAC

Output Voltage

+12VDC, 29.16A

+12VDC, 29.16A

+12VDC, 29.16A

Input frequency

50-60 Hz

50-60 Hz

50-60 Hz

AC line input current (steady state)

5 - 2.5A

5 - 2.5A

7.1 - 3.4A

Operating Temperature

-5° to +55° C

-5° to +55° C

-5° to +55° C

Cooling

Internal fan
(Air flow rear to front)

Internal fan
(Air flow rear to front)

Internal fan
(Air flow rear to front)

Weight

1.3 kg (2.8 lbs)

1.3 kg (2.8 lbs)

0.87 kg (1.9 lbs)



Regulatory and Safety Compliance

Features

7205

7210

7220

7240XM

7280

Regulatory SKU information

ARCN7205

ARCN0100

ARCN0101

ARCN0102

ARCN7280

Minimum HPE ArubaOS Release

6.4.3.0

6.2.0.0

6.2.0.0

6.4.4.0

6.5.4.0 or 8.3.0.0

802.11ax (Wi-Fi 6), AOS 8.4; WI-FI CERTIFIED WPA3TM, AOS 8.4; WI-FI CERTIFIED Enhanced OpenTM, AOS 8.4

Regulatory and Safety Compliance

FCC Part 15 Class A CE

Industry Canada Class A

VCCI Class A (Japan)

EN 55022 Class A (CISPR 22 Class A), EN 61000-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55024, AS/NZS 3548

UL 60950, EN60950

CAN/CSA 22.2 #60950

CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC

Telco

Common Language Equipment Identifier (CLEI) Code



Summary of Changes

Date

Version History

Action

Description of Change

22-Jan-2024

Version 14

Changed

Series name was updated.

16-Oct-2023

Version 13

Changed

Configuration Information section was updated

Obsolete SKUs were removed.

07-Sep-2021

Version 12

Changed

Configuration Information section was updated.

15-Mar-2021

Version 11

Changed

SKUs added in Configuration Information section.

01-Feb-2021

Version 10

Changed

SKUs updated in Configuration Information section.

11-Jan-2021

Version 9

Changed

Standard Features section was updated. Obsolete SKUs were deleted in Configuration Information section.

05-Oct-2020

Version 8

Changed

Configuration Information section was updated.

03-Aug-2020

Version 7

Changed

Configuration Information section was updated.

04-Nov-2019

Version 6

Changed

Overview, Standard Features, Configuration Information and Technical Specification sections were updated.

03-Dec-2018

Version 5

Changed

Complete document revised (software feature update)

08-Jan-2018

Version 4

Added

SKUs added: Q9B90AAE, JW538AAE, JW539AAE, JW540AAE, JW541AAE, JW542AAE, JW543AAE, JW544AAE, JY028AAE, JY029AAE, JY030AAE, JY031AAE, JY032AAE

07-Aug-2017

Version 3

Added

Models added: JX910A, JX911A, JX912A, JX913A, JX914A, JX915A, JX916A, JX917A, JZ077A, JZ078A

SKUs added: JZ012A, JZ013A

07-Nov-2016

Version 2

Added

Models added: JY852A, JY853A, JY854A

01-Nov-2016

Version 1

New

New QuickSpecs

Copyright

Make the right purchase decision. Contact our presales specialists.









HewlettPackardEnterpriseLogo



© Copyright 2024 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.



To learn more, visit: http://www.hpe.com/networking



c05272677 - 15695 - Worldwide - V14 - 19-February-2024
