HPE Altoline 6960 Switch Series

Overview

HPE Altoline 6960 Switch Series

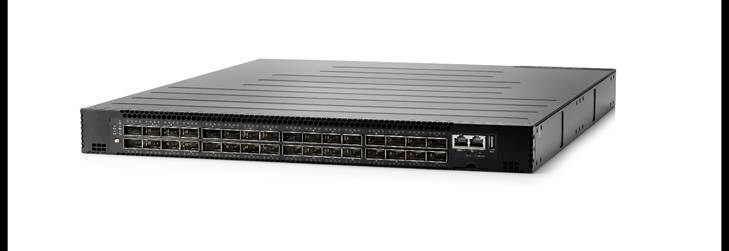

HPE Altoline 6960 32QSFP28 Switch JL279A_JL280 LF

Models

HPE Altoline 6960 32QSFP28 x86 ONIE AC Front-to-Back Switch

JL279A

HPE Altoline 6960 32QSFP28 x86 ONIE AC Back-to-Front Switch

JL280A

Key features

  • High 100GbE port density and low latency for demanding applications
  • Choice of network operating systems, including Cumulus Networks Linux NOS, and Pica8 NOS
  • Open-networking and disaggregated solution for customer choice
  • VXLAN for efficient network virtualization overlay solutions
  • Support for Big Switch Network’s Big Cloud Fabric and Big Monitoring Fabric solutions

Product overview

The HPE Altoline 6960 Switch Series are top-of-rack (TOR) or spine switches for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate L2 and L3 switching across up to 32 x QSFP28 ports, supporting 25GbE server connections as a ToR switch, or 100GbE spine interconnects as a spine switch.

The 32 fixed QSFP28 ports support up to 32 x 100GbE connections.

The HPE Altoline 6960 Switch Series are bare-metal switches loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible independent switch OS offerings.

Features and benefits

Data center optimized

  • Flexible high port density
    the HPE Altoline 6960 Switch Series enables scaling of the server edge with 100GbE spine and ToR deployments to new heights with high-density 32-port solutions delivered in a 1RU design. Up to 32 100GbE QSFP28 ports can also be configured as four 25GbE ports by using a 100GbE-to-25GbE splitter cable providing up to 128 25GbE ports.
  • High-performance switching
    cut-through and nonblocking architecture delivers low latency (600 - 720 nanosecond for 100GbE) for very demanding enterprise applications; the switch delivers high-performance switching capacity and wire-speed packet forwarding
  • Hot/cold aisle support
    Models available with front-to-back (port-to-power) or back-to-front (power-to-port) airflow
  • Redundant fans and power supplies
    1+1 internal redundant and hot-pluggable power supplies and N+1 redundant fan trays enhance reliability and availability
  • VXLAN hardware support
    supports VXLAN VTEP overlay technologies

Manageability

  • Out-of-band interface
    isolates management traffic from user data plane traffic for complete isolation and total reachability, no matter what happens in the data plane
  • ONIE bootloader
    switch is loaded with Open Network Install Environment (ONIE) software installer
  • Intel x86 CPU
    provides high performance support of widely available, industry standard software and utilities

Layer 2 switching

  • VLAN support
    provides support for 4,096 VLAN IDs

Additional information

  • Low power consumption
    typical operation uses just 267W of AC power

Warranty and support

  • 1-year Warranty
    see     http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
  • Software releases
    to find software for your product, refer to     http://www.hpe.com/networking/support ; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary











Configuration

Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.



Router Chassis







HPE Altoline 6960 32QSFP28 x86 ONIE AC Front-to-Back Switch

JL279A

  • 32 QSFP+\QSFP28 40\100GbE ports (min=0 \ max=32 QSFP+\QSFP28 Transceivers)
    Each Switch:
  • 2 Power Supplies Standard (min=2 \ max=2)
  • 6 Front to Back Fan Trays Standard (min=6\ max=6)
  • 1U - Height

See Configuration NOTE: 1, 4, 6





PDU Cable NA/MEX/TW/JP

JL279A#B2B

  • C13 PDU Jumper Cord (NA/MEX/TW/JP)







PDU Cable NA/MEX/TW/JP

JL279A#B2C

  • C13 PDU Jumper Cord (ROW)







High Volt Switch/Router to Wall Power Cord

JL279A#B2E

  • HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)







No Power Cord

JL279A#AC3

  • No Localized Power Cord Selected







HPE Altoline 6960 32QSFP28 x86 ONIE AC Back-to-Front Switch

JL280A

  • 32 QSFP+\QSFP28 40\100GbE ports (min=0 \ max=32 QSFP+\QSFP28 Transceivers)
    Each Switch:
  • 2 Power Supplies Standard (min=2 \ max=2)
  • 6 Back to Front Fan Trays Standard (min=6\ max=6)
  • 1U - Height

See Configuration NOTE: 1, 4, 6





PDU Cable NA/MEX/TW/JP

JL280A#B2B

  • C13 PDU Jumper Cord (NA/MEX/TW/JP)







PDU Cable NA/MEX/TW/JP

JL280A#B2C

  • C13 PDU Jumper Cord (ROW)







High Volt Switch/Router to Wall Power Cord

JL280A#B2E

  • HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)







No Power Cord

JL280A#AC3

  • No Localized Power Cord Selected







Configuration Rules:







Note 1

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E. (See Localization Menu)









Note 4

The following 40G Transceivers install into this Switch:  (Use #0D1 or #B01 if switch is CTO) - if applicable



HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver

JG661A

HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver

JL251A

HPE X140 40G QSFP+ MPO SR4 Transceiver

JG325B

HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver

JG709A

HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver

JL286A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG326A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG327A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG328A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG330A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A



HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable

JL287A



HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable

JL288A



HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable

JL289A







Note 6

The following QSFP28 Transceivers install into this switch:



HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver

JL274A

HPE X150 100G QSFP28 LC LR4 10km SM Transceiver

JL275A

HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable

JL271A

HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable

JL272A

HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable

JL276A

HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable

JL277A

HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable

JL278A

HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable

JL273A

HPE X240 QSFP28 4xSFP28 1m Direct Attach Copper Cable

JL282A

HPE X240 QSFP28 4xSFP28 3m Direct Attach Copper Cable

JL283A





Rack Level Integration CTO Models







CTO Switch Chassis







HPE Altoline 6960 32QSFP28 x86 ONIE AC Front-to-Back Switch

JL279A

  • 32 QSFP+\QSFP28 40\100GbE ports (min=0 \ max=32 QSFP+\QSFP28 Transceivers)
    Each Switch:
  • 2 Power Supplies Standard (min=2 \ max=2)
  • 6 Front to Back Fan Trays Standard (min=6\ max=6)
  • 1U - Height

See Configuration NOTE: 1, 4, 6





PDU Cable NA/MEX/TW/JP

JL279A#B2B

  • C13 PDU Jumper Cord (NA/MEX/TW/JP)







PDU Cable NA/MEX/TW/JP

JL279A#B2C

  • C13 PDU Jumper Cord (ROW)







High Volt Switch/Router to Wall Power Cord

JL279A#B2E

  • HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)







No Power Cord

JL279A#AC3

  • No Localized Power Cord Selected







HPE Altoline 6960 32QSFP28 x86 ONIE AC Back-to-Front Switch

JL280A

  • 32 QSFP+\QSFP28 40\100GbE ports (min=0 \ max=32 QSFP+\QSFP28 Transceivers)
    Each Switch:
  • 2 Power Supplies Standard (min=2 \ max=2)
  • 6 Back to Front Fan Trays Standard (min=6\ max=6)
  • 1U - Height

See Configuration NOTE: 1, 4, 6





PDU Cable NA/MEX/TW/JP

JL280A#B2B

  • C13 PDU Jumper Cord (NA/MEX/TW/JP)







PDU Cable NA/MEX/TW/JP

JL280A#B2C

  • C13 PDU Jumper Cord (ROW)







High Volt Switch/Router to Wall Power Cord

JL280A#B2E

  • HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)







No Power Cord

JL280A#AC3

  • No Localized Power Cord Selected







Configuration Rules:







Note 1

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E. (See Localization Menu)









Note 4

The following 40G Transceivers install into this Switch:  (Use #0D1 or #B01 if switch is CTO) - if applicable



HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver

JG661A

HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver

JL251A

HPE X140 40G QSFP+ MPO SR4 Transceiver

JG325B

HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver

JG709A

HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver

JL286A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG326A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG327A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG328A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG330A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A



HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable

JL287A



HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable

JL288A



HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable

JL289A







Note 6

The following QSFP28 Transceivers install into this switch:



HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver

JL274A

HPE X150 100G QSFP28 LC LR4 10km SM Transceiver

JL275A

HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable

JL271A

HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable

JL272A

HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable

JL276A

HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable

JL277A

HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable

JL278A

HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable

JL273A

HPE X240 QSFP28 4xSFP28 1m Direct Attach Copper Cable

JL282A

HPE X240 QSFP28 4xSFP28 3m Direct Attach Copper Cable

JL283A





Transceivers







SFP Transceivers



HPE X120 1G SFP RJ45 T Transceiver

JD089B

HPE X120 1G SFP LC SX Transceiver

JD118B

HPE X120 1G SFP LC LX Transceiver

JD119B

HPE X120 1G SFP LC LH40 1550nm Transceiver

JD062A





SFP+ Transceivers



HPE X130 10G SFP+ LC SR Transceiver

JD092B

HPE X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC SR Data Center Transceiver

JL437A

HPE X130 10G SFP+ LC LR Data Center Transceiver

JL439A

HPE X130 10G SFP+ LC LH 80km Transceiver

JG915A





QSFP+ Transceivers



HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver

JG661A

HPE X140 40G QSFP+ MPO SR4 Transceiver

JG325B

HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver

JG709A

HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver

JL251A

HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver

JL286A





QSFP28 Transceivers



HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver

JL274A

HPE X150 100G QSFP28 LC LR4 10km SM Transceiver

JL275A





Cables



HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable

JC784C

HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG326A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG327A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG328A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG330A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A

HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable

JL287A

HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable

JL288A

HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable

JL289A

HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable

JL271A

HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable

JL272A

HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable

JL273A

HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable

JL276A

HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable

JL277A

HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable

JL278A

HPE X240 QSFP28 4xSFP28 1m Direct Attach Copper Cable

JL282A

HPE X240 QSFP28 4xSFP28 3m Direct Attach Copper Cable

JL283A





Switch Enclosure Options







Rackmount Kits



System (std 0 // max 1) User Selection (min 0 // max 1)







HPE Altoline Gen2 Rackmount Kit

JL198A



See Configuration NOTE: 1, 3





HPE Altoline Gen3 Rackmount Kit

JL228A



See Configuration NOTE: 2, 3





Configuration Rules:







Note 1

This rack mount kit is only supported on the following switches:



HPE Altoline 6920 48XG 6QSFP+ x86 ONIE AC Front-to-Back Switch

JL167A

HPE Altoline 6920 48XG 6QSFP+ x86 ONIE AC Back-to-Front Switch

JL168A

HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch

JL315A

HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch

JL316A

HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Front-to-Back Switch

JL317A

HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Back-to-Front Switch

JL318A

HPE Altoline 6940 32QSFP+ x86 ONIE AC Front-to-Back Switch

JL165A

HPE Altoline 6940 32QSFP+ x86 ONIE AC Back-to-Front Switch

JL166A

HPE Altoline 6941 32QSFP+ x86 ONIE AC Front-to-Back Switch

JL313A

HPE Altoline 6941 32QSFP+ x86 ONIE AC Back-to-Front Switch

JL314A

HPE Altoline 6960 32QSFP28 x86 ONIE AC Front-to-Back Switch

JL279A

HPE Altoline 6960 32QSFP28 x86 ONIE AC Back-to-Front Switch

JL280A





Note 2

This rack mount kit is only supported on the following switches:



HPE Altoline 6900 48G 4XG 2QSFP ARM ONIE AC Switch

JL223A

HPE Altoline 6900 48G 4XG 2QSFP ARM ONIE AC Back-to-Front Switch

JL473A

HPE Altoline 6900 48G 4XG 2QSFP ARM ONIE DC Front-to-Back Switch

JL474A

HPE Altoline 6900 48G 4XG 2QSFP ARM ONIE DC Back-to-Front Switch

JL475A







Note 3

If a switch is ordered and factory racked, then this rackmount must be #0D1









Technical Specifications



HPE Altoline 6960 32QSFP28 x86 ONIE AC Front-to-Back Switch (JL279A)

I/O ports and slots

32 QSFP28 100GbE ports

Additional ports and slots

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

Power supplies

2 power supply slots

1 minimum power supply required

includes: 2 x PSUs ()

Fan tray

5 fan tray slots

Switch comes with five (5) fan trays (port to power airflow)

Physical characteristics

Dimensions

17.26(w) x 20.28(d) x 1.73(h) in (43.84 x 51.50 x 4.4 cm)

Weight

18.52 lb (8.4 kg)

Memory and processor

Intel Rangely C2538 4-core @ 2.4 GHz, 8 GB DDR3 SDRAM; storage: mSATA: 32G; Packet buffer size: 12 MB, 8 GB NAND flash

Performance

Routing/Switching capacity

3.2 Tbps

MAC address table size

8000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

5% to 95%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 62 dB

Electrical characteristics

Frequency

50/60 Hz

Voltage

90 - 264 VAC, rated

Maximum power rating

315 W

Idle power

267 W

Notes

Idle power is the actual power consumption of the device with no ports connected.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

PSU Efficiency: Up to 93% for AC PSUs

Safety

cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A: Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL

Emissions

FCC part 15 Class A; EN 55022 Class A; VCCI

Immunity

ESD

32°F to 113°F (0°C to 45°C)

EFT/Burst

IEC 68-2-14

Management

Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Altoline 6960 32QSFP28 x86 ONIE AC Back-to-Front Switch (JL280A)

I/O ports and slots

32 QSFP28 100GbE ports

Additional ports and slots

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

Power supplies

2 power supply slots

1 minimum power supply required

includes: 2 x PSUs ()

Fan tray

5 fan tray slots

Switch comes with five (5) fan trays (power to port airflow)

Physical characteristics

Dimensions

17.26(w) x 20.28(d) x 1.73(h) in (43.84 x 51.50 x 4.4 cm)

Weight

18.52 lb (8.4 kg)

Memory and processor

Intel Rangely C2538 4-core @ 2.4 GHz, 8 GB DDR3 SDRAM; storage: mSATA: 32GB; Packet buffer size: 12 MB, 8 GB NAND flash

Performance

Routing/Switching capacity

3.2 Tbps

MAC address table size

8000 entries

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 95%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 62 dB

Electrical characteristics

Frequency

50/60 Hz

Voltage

90 - 264 VAC, rated

Maximum power rating

315 W

Idle power

267 W

Notes

Idle power is the actual power consumption of the device with no ports connected.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

PSU Efficiency: Up to 93% for AC PSUs

Safety

cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A: Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL

Emissions

FCC part 15 Class A; EN 55022 Class A; VCCI

Immunity

ESD

EN 60950

EFT/Burst

IEC 68-2-14

Management

Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Summary of Changes

Date

Version History

Action

Description of Change:

05-Mar-2018

Version 9

Changed

Key features updated

05-Feb-2018

Version 8

Changed

Configuration section updated.

18-Apr-2017

Version 7

Added

Transceivers added on the Configuration section: JL437A, JL439A

01-Aug-2016

Version 6

Changed

Several updates on Configuration section including the addition of the #AC3 Option

17-June-2016

Version 5

Changed

Edits made on Configuration and Technical Specifications, Product image added.

06-May-2016

Version 4

Changes

Minor edits on Technical Specifications

15-Apr-2016

Version 3

Changed

SKU descriptions updated (Accessories), Configuration section updated.

08-Apr-2016

Version 2

Changed

Voltage on Technical Specifications

31-Mar-2016

Version 1

Created

Document creation











Sign up for updates







© Copyright 2018 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit: http://www.hpe.com/networking

c04943726 - 15532 - Worldwide - V9 - 05-March-2018
